IAN 93716 - Inline skates CRIVIT - Free user manual and instructions

Product Type	Inline Skates
Brand	Crivit
Model	IAN 93716
Size Range	Adjustable: EU 30-36 (US 12-4.5, UK 11-3.5)
Weight (per skate)	Approx. 1.2 kg (2.6 lbs)
Wheel Material	Polyurethane (PU)
Wheel Size	72 mm
Wheel Durometer	78A
Bearing Rating	ABEC 5
Brake Type	Rear brake (rubber stopper)
Closure System	Lace-up with buckle and strap
Frame Material	Aluminum
Boot Material	Composite plastic with soft liner
Recommended User Age	Children and youth (ages 5-12)
Maximum User Weight	50 kg (110 lbs)
Safety Standards	EN 13843:2015
Adjustable Sizing	Yes, press button to extend/reduce length
Maintenance	Clean with damp cloth; lubricate bearings as needed
Replacement Parts	Wheels, bearings, brake pads available separately

Frequently Asked Questions - IAN 93716 CRIVIT

How do I adjust the size of the inline skates?

Locate the size adjustment button at the heel. Press it while sliding the front part of the boot forward or backward to fit your foot. Ensure both skates are set to the same size.

How tight should the skates be?

The skates should be snug but not uncomfortable. Lace them firmly, then secure the strap and buckle. Your heel should not lift inside the boot when you walk.

How do I stop safely?

To stop, lean slightly forward and press down on the rear brake pad with your braking foot. Practice on flat ground at low speed first.

Can I replace the wheels and bearings?

Yes. Use a hex key to remove the axle bolts, then replace wheels or bearings. Match the size (72 mm) and hardness (78A) for optimal performance.

What maintenance do the skates require?

Regularly check and tighten all screws. Wipe the frame and boots with a damp cloth. Clean and lubricate bearings if they become noisy or slow.

Are safety gear included?

No. You must wear a helmet, knee pads, elbow pads, and wrist guards separately when skating to prevent injuries.

What is the maximum user weight?

The recommended maximum weight is 50 kg (110 lbs). Exceeding this may damage the skates or increase the risk of falls.

How do I clean the skates?

Use a soft, damp cloth to wipe the exterior. Do not submerge in water. For dirt on the wheels, use a brush. Dry thoroughly after cleaning.

Can I use these skates for aggressive skating?

No. These are recreational inline skates designed for casual use on smooth pavement. They are not built for jumps, grinds, or rough terrain.

Where can I find replacement parts?

Contact Crivit customer service or check the manufacturer's website. Use the model number IAN 93716 when ordering parts like brake pads or wheels.

USER MANUAL IAN 93716 CRIVIT

Black and white photo of a modern roller skates with visible branding (no text or symbols)

Black and white photo of a modern roller skates with visible branding (no text on the skates themselves)

Softboot-InlineSkateS

DE AT CH

Softboot-InlineSkateS

Bedienungsanleitung

GB

Softboot Inline SkateS

Instructions for use

IAN 93716

Line drawing of a speed skater in motion, no text or symbols present

Line drawing of a rollerblading skates with no text or symbols

Line drawing of a roller skates with wheels and seat plate (no text or symbols)

Diagram of a car interior with directional arrows indicating movement or flow (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical component with dashed lines and arrows indicating motion or force (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram of a car seatbelt mechanism showing a directional arrow (no text or symbols present)

DE AT CH

Pure by HeiQ ^® 6

Scope of delivery/names of parts 11

Technical Data 11

Correct use 11

Pure by HeiQ ^® 11

Safety notes 11

Skating tips 12

Removing the skates 12 - 13

Putting the skates on 13

Maintenance 13-14

Care, Storage 14

Trouble-shooting 14 - 15

Disposal Information 15

3 Years Warranty 15

Fersenbremse (Abb. C):

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

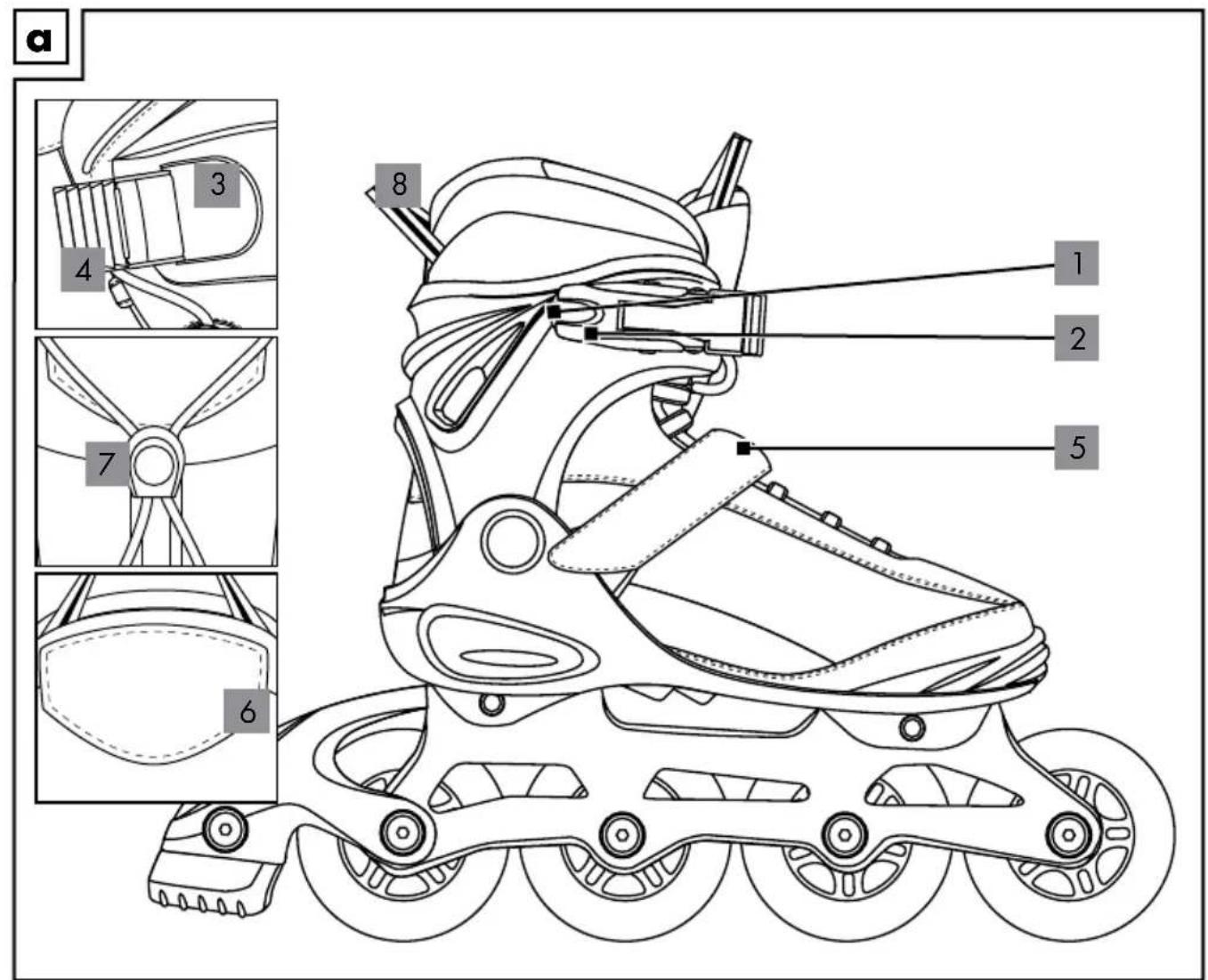

Scope of delivery/ names of parts (figure A)

1 x User guide
1 x Soft boot inline skates
1 x Replacement stopper
2 x Allen key

(1) Pressure sliders
(2) Quick-release fastener
(3) Rocker fastener
(4) Ratchet strip
(5) Velcro fastener
(6) Tongue Velcro fastener
(7) Slide on the fast lacing closure
(8) Pulling aid

Technical data

Sizes: 42-43

class A, 20–100 kg

rollers: 84 x 22 mm

ball bearings: ABEC 7

Correct use

These inline skates are designed as fitness skates for private use and are not suitable for street hockey or aggressive skating.

Pure by HeiQ®

Pure is a silver-based anti-bacterial odour inhibitor for sports and leisure clothing. It was designed and manufactured by the Swiss high-tech company HeiQ®.

The inline skates are fitted with innovative, antibacterial silver technology.

The anti-bacterial effect of silver has been known for centuries. HeiQ® has further strengthened these properties in order to prevent the formation of odours effectively and permanently.

Safety notes

Risk of injury!

• Always pay attention to other road users and follow the road traffic regulations.
- Choose the right surface for inline skating. Surfaces should be smooth, clean, and dry.
- Make sure that screws and bolts are secure before skating.
- Ensure that screws and bolts retain their self-locking properties.
- Do not modify the inline skates in such a way that poses risk to your safety.
- Remove sharp edges that may form during skating.
- Always wear suitable protective equipment (helmet, protectors for your hands, wrists, elbows, and knees).
- Avoid areas with heavy traffic.
- Remain vigilant at all times and be careful.
- Avoid excessive speeds. As a rule of thumb: never skate faster than you can run.
- Exchange the brakes, rollers, and ball bearings regularly if they are worn.
• Always wear reflective clothing so that you are visible to others.
- Do not use this article barefoot.

Risk of injury!

• Look after your inline skates.
• Avoid water, oil, potholes, and very rough surfaces.

Skating tips

Note:

we recommend skating in skate parks and taking a skating course with an instructor.

First attempts

Initial position:

Keep your feet shoulder-width apart and bend your knees slightly to avoid falling backwards.

Accelerating:

As a beginner, start by taking small steps forwards with your toes pointing outwards at an angle.

Rolling:

If you take a few steps in succession you will then have enough momentum to place your skates next to one another and roll. Bend your knees slightly while doing this.

How to fall

Important! Practise falling initially onto a soft surface using protective equipment without your inline skates. Always try to fall forwards, and never backwards! Fall onto your protective knee pads. Then catch yourself using the elbow and wrist protectors. Spread your fingers in order to avoid injury.

Mastering curves

At low speeds:

Shift your weight as in riding a bicycle. Move your weight onto your left foot for a left curve and onto your right foot for a right curve.

At high speeds:

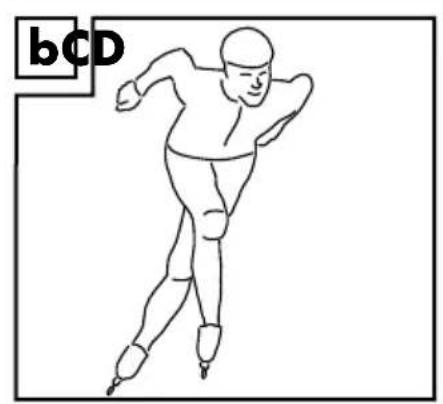

Cross your feet as in ice-skating (figure B)

Braking techniques

Note:

Practise various braking techniques on a smooth surface without traffic or pedestrians. Avoid slopes until you are confident about braking.

Heel brake (figure C):

If your inline skates are fitted with brakes then remember to use them. Lift the point of the skate where the brake is mounted and push the brake into the ground. Shift your weight forwards slightly and bend your knee. The braking effect can be intensified if you bend your knee more and shift your weight further forwards, while increasing at the same time the pressure on the skate you are braking with.

T-stopping (figure D):

If your inline skates are not fitted with a brake or if you have removed the brake, then we recommend using the 'T-stop' technique. However this is only suitable for advanced skaters! To brake using the 'T-stop' technique, shift your entire weight onto one foot. Now move the other skate behind the front skate at a right angle. Then shift your weight from the front to the inside of the rollers of your back skate and brake with increasing pressure.

Removing the skates

Prepare the skates for wear following delivery

Important!

Ensure that your inline skates fit correctly. The outer boot should not become deformed when you close the quick-release fastener. Do not use force to close the quick-release fastener. If your outer boot is deformed then this is either a sign that the tension is incorrect or that you may have purchased inline skates in the wrong size.

Note!

To find the right tension for your foot, pull the rocker fastener upwards at an angle and move the ratchet strip to the correct position for you.

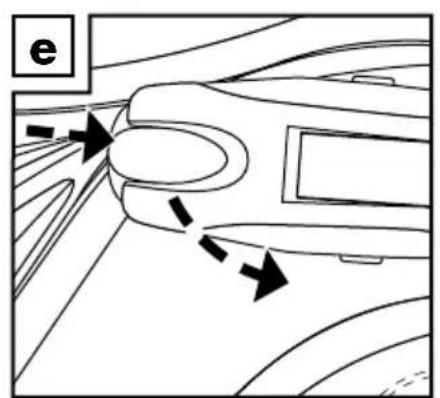

1. Press the pressure slider (1) on the quick-release fastener (2) in the direction of the arrow and open the quick-release fastener (see figure E).

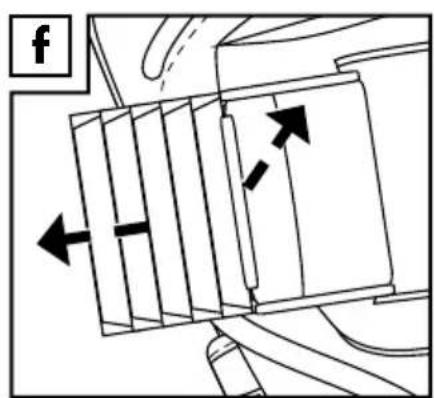

2. Pull the rocker fastener (3) upwards at an angle and pull the ratchet strip (4) out of the opening on the rocker fastener (see figure F).

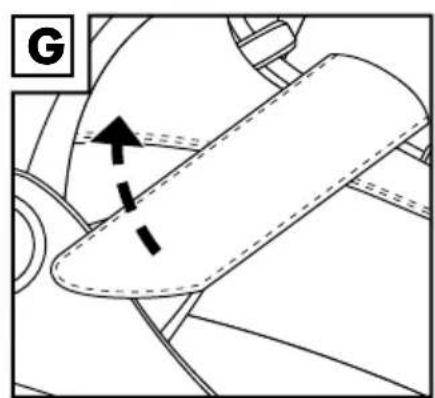

3. Open the Velcro fastener (5) (see figure G).

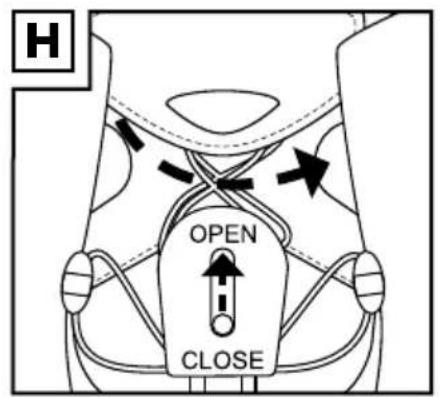

4. Open the tongue Velcro fastener (6) (see figure H).
5. Set the slider on the fast lacing closure (7) to OPEN and loosen the fast lacing system (see figure H).

Putting the skates on:

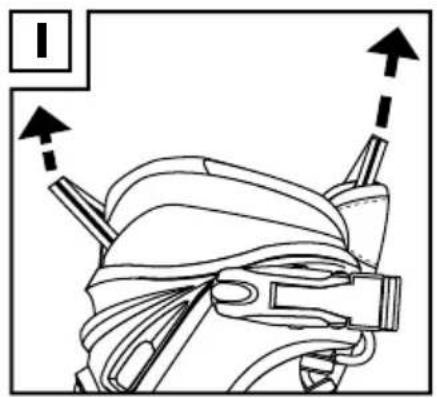

1. Pull the inline skate on using the pulling aid (8) (see figure 1).

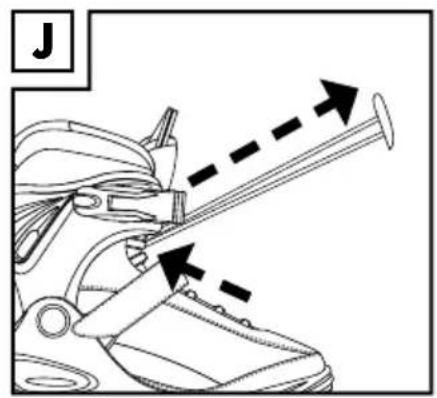

2. Pull the fast-lacing system tight and slide the fastener on the fast-lacing closure back (see figure J).

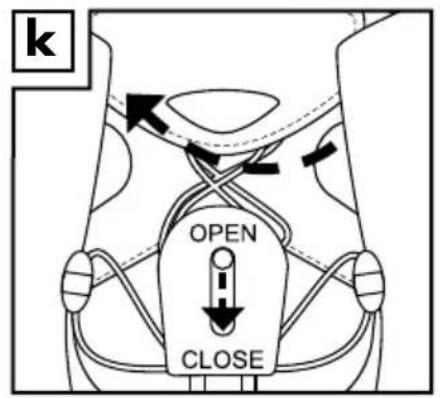

3. Set the slider on the fast-lacing closure to CLOSE, place the laces for the fast-lacing closure under the tongue Velcro closure and then close it (see figure K).
4. Close the Velcro closure.

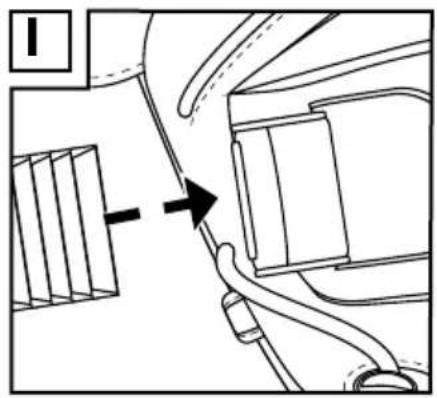

5. Slide the ratchet strip into the correct opening under the rocker fastener and set it at the right tension (see figure L).
6. Close the fast closure system ('CLICK').

Maintenance

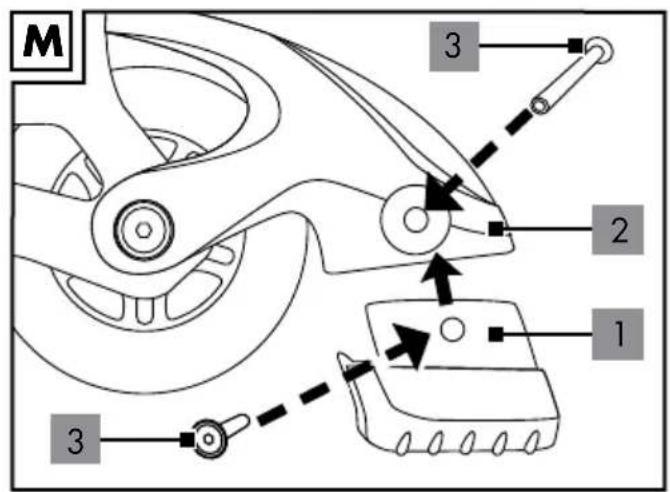

Changing the brake (figure M) Note:

worn brakes do not function correctly. An angle of more than 40 degrees between the frame and the surface is a sign of worn brakes. If the distance between the brake block and the ground becomes too large (more than 17 mm), then the brake block must be exchanged.

• Unscrew the brake block (3) on the inline skate with the enclosed Allen key.
• Pull the brake block screws out and remove the brake block (1) from the brake block mounting (2).
• Attach the new brake block back onto the brake block mounting securely using the brake block screws.

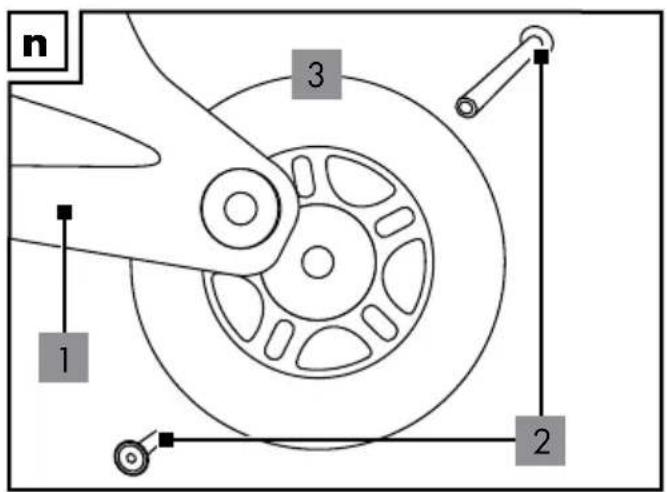

Changing the rollers (figure N) Important!

• Please observe the chapter on technical data:
  Rollers with a different diameter could change the handling characteristics and could mean a risk to the user in some circumstances.
  You should therefore not use the skates if the rollers cannot be fitted perfectly. Never install larger rollers then those originally used in the inline skates.

• Please observe the following with regard to the axle bolts:
  Self-sealing lacquer must be re-applied to the screw thread after the screw connection has been released. We recommend always doing this step as a precautionary measure.
  Self-sealing lacquer is available from DIY stores or specialist retailers.

Rollers become worn. The wear depends on many factors such as skating style, surfaces, the size and weight of the user, weather conditions, the roller material and its degree of hardness. It is therefore necessary to exchange them every so often.

• Unscrew the axle bolts (2) on the inline skate from the frame (1) using the two Allen keys supplied.
• Remove the axle bolts and remove the roller (3).
• Install the new roller into the frame and fix it with the axle bolts.

After changing the rollers:

If the roller scrapes on the side after the exchange, or if it touches the edge of the frame, please do not use the roller! Please ensure that all screws are still secure after the first few minutes of use and that nothing has become detached or loosened.

Re-install the rollers in order to ensure that they are running smoothly and no sounds are emitted from the bearings.

Important!

New rollers make the inline skates taller. This changes the distance to the ground therefore also the braking characteristics. For this reason, you must adjust or exchange the brake block.

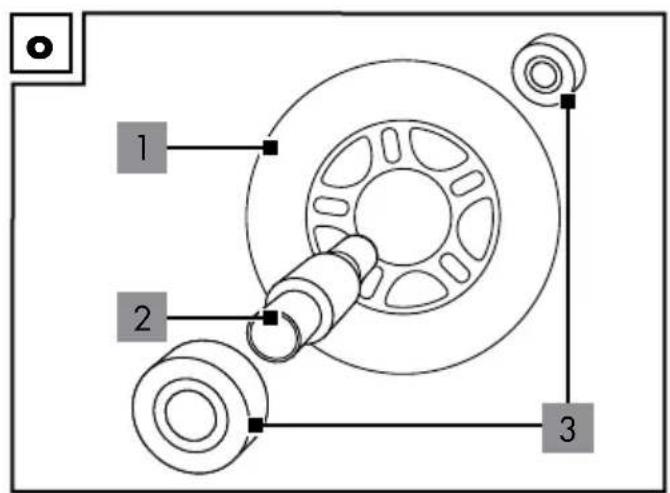

Changing the ball bearing (figure O)

Note:

The quality of the ball bearing and its maintenance are extremely important for the smooth running of the inline skates.

• Remove the roller (1) as described above (pages 13-14).
• Push a bearing (3) out by pressing on a spacer (2) with an Allen key and then remove the spacer.

• Push the other bearing out by pressing on it with an Allen key.

• Push in a new bearing. Turn the roller around, insert the spacer, and then push in a second new bearing.

• Re-attach the roller to the frame, as described in the paragraph 'exchanging the rollers'.

Care, storage

Inline skates are pieces of technical sports and leisure equipment and they therefore become worn depending on the skill and style of each skater. We recommend that you clean and dry the inline skates thoroughly after use. Remove any small stones and other objects that may have become trapped in your rollers. Remove any sharp edges that may have formed during skating. Always keep the inline skates in a dry place.

• Clean your ball bearings with a dry cloth after skating. Wet or damp ball bearings must be dried using a clean cloth. Lubricate the bearings from the outside with a suitable bearing grease to prevent the formation of external rust.
• Bearings are usually closed and cannot be lubricated inside. Worn ball bearings must be replaced.

Trouble-shooting

• Rollers or ball bearings are noisy
  Smooth surfaces extend the life of the rollers. Try harder rollers for harder surfaces and for use in difficult conditions.
• Rollers wear quickly

Do not fasten the axle bolts too tightly.

- Skate pulls to the left or right

This can depend on the user. Exchange the rollers that show signs of one-sided wear.

• The brake is not working properly

Change the brake if the angle between the brake and the ground is greater than 40 degrees, i.e. if the distance between the brake block and the ground becomes too great (more than 17 mm). Rounded brakes need to be changes for new blocks.

- Brake problems

Always keep sufficient distance. The faster you skate the longer your braking distance. Ensure that you understand the braking techniques and practise them on a level ground.

- Ankles get twisted frequently

Make sure the laces are tight enough.

- Problems with the foot bed

You may not be accustomed this kind of movement. Check the areas that are causing you problems and re-adjust the inline skates. Try wearing thick socks.

Disposal Information

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 93716

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service

Bestellkarte

93716, Softboot-Inliner Delta-Sport Nr. HI-1738

Two black plastic components on a plain background (no text or symbols visible)

Four black and white roller skates with visible branding (no text or symbols on the main body)

93716_Stopper

Artikel-Nr. 01001

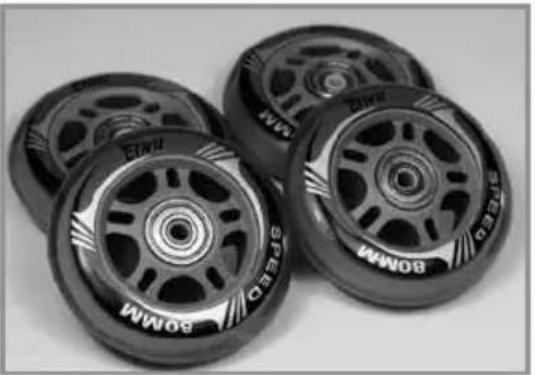

93716_Rollen

Artikel-Nr. 01002

Order form

93716, Softboot-Inliner Delta-Sport Nr. HI-1738

Additional parts for our products are delivered against advance payment by bank transfer or Paypal. Please be sure to state the article number together with your name and postcode in the reference fi eld when sending a payment.

Bank transfer:

Please send your Paypal payment to: [e-mail]

Our postal address:

SERVICE.DELTA-SPORT.COM

HÜTTMANNSWEG 11 • 24641 HÜTTBLEK GERMANY

Here is how you order: Under "sender/purchaser", enter in capital letters your name, address, and telephone number (in case of any queries).

Sender/purchaser

(please fill out completely in capital letters)

Surname, given name

House number, street

Town, postcode

Telephone number

Alternatively, you can order all articles directly from our on-line store: service.delta-sport.com

QuantityArticle NUnit price				Total
		x	7,00 €01001	€
01002		x	10,00 €	€
Post and packaging
				5,00 €
Total
				€
SignatureDate and place

93716_stopper
Article No. 01001
93716_rollers
Article No. 01002

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • D-22397 Hamburg

Version: 02/2014
