Product Type	Random Orbital Sander
Brand	Cocraft
Model	SDGJ-SS2-180
Rated Voltage	220-240 V AC, 50 Hz
Power Consumption	180 W
No-Load Speed	13,000/min
Orbits per Minute	26,000/min
Sanding Sheet Size	140 x 140 x 80 mm
Weight	1.0 kg
Sound Pressure Level (LpA)	76 dB(A), K=3 dB(A)
Sound Power Level (LwA)	87 dB(A), K=3 dB(A)
Vibration Level	9.0 m/s², K=1.5 m/s²
Dust Collection	Removable dust collector
Power Switch	On/Off (I/0)
Safety Features	Double insulated; requires ear defenders, dust mask, safety glasses
Applications	Wood, dry filler, painted or varnished surfaces
Maintenance	Clean with damp cloth; keep ventilation openings clear
Storage	Store in dry place, out of children's reach
Certification	CE, complies with Machinery Directive 2006/42/EC, EMC 2014/30/EU, LVD 2014/35/EU

Frequently Asked Questions - SDGJ-SS2-180 Cocraft

How do I change the sanding sheet on the Cocraft SDGJ-SS2-180 sander?

Switch off and unplug the sander. Remove the old sanding sheet and attach a new one of size 140x140 mm. Ensure it is properly aligned and secured.

How do I empty the dust collector?

Turn off and unplug the sander. Twist the dust collector and pull it away. Shake out dust and debris, then refit. For thorough cleaning, disassemble and vacuum the collector.

What materials can I sand with this sander?

This sander is designed for sanding wood, dry filler, painted or varnished surfaces. Ensure surfaces are dry before sanding.

What safety precautions should I take when using the sander?

Always wear a dust mask, safety glasses, and ear defenders. Keep the work area clean and well-lit. Avoid loose clothing. Use a residual current device (RCD) if operating in damp conditions.

How often should I clean the ventilation openings?

Regularly check and clean the motor ventilation openings (parts 2 and 4) to prevent dust buildup. Use a vacuum or damp cloth, but ensure the sander is unplugged and dry before use.

What is the vibration level of the SDGJ-SS2-180?

The vibration emission value is 9.0 m/s² with a measurement uncertainty K=1.5 m/s².

Can I use the sander outdoors?

Yes, but use an extension cord suitable for outdoor use. If damp conditions are unavoidable, plug into a residual current device (RCD) protected supply.

How should I store the sander when not in use?

Unplug the sander, clean it, and store in a dry location out of reach of children. Avoid storing in extreme temperatures or humid environments.

What is the noise level produced by this sander?

The sound pressure level is 76 dB(A) and sound power level is 87 dB(A), with a K factor of 3 dB(A). Always wear ear protection.

What accessories are included with the sander?

The sander comes with a dust collector and one sanding sheet. Additional sanding sheets and dust collection bags can be purchased separately.

USER MANUAL SDGJ-SS2-180 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue and black Cocrac® HD 180 power tool with visible grille and base (no text or symbols on body)

Art.no Model

18-3620

41-1249

SDGJ-SS2-180-UK

SDGJ-SS2-180

Ver. 20190515

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings

Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Safety instructions specific to sanders

• Wear a dust mask whenever sanding and a dust extractor connected to the machine should also be used wherever possible.
• Extra caution should be taken when sanding lead paint, wood, metal or other materials which produce toxic dust. Make sure any bystanders in the work area are well protected.
• Remember that dust caused by sanding can be very flammable when mixed with air.

Safety symbol guide

Read the entire instruction manual.

Always use ear defenders, dust masks, safety glasses or visors.

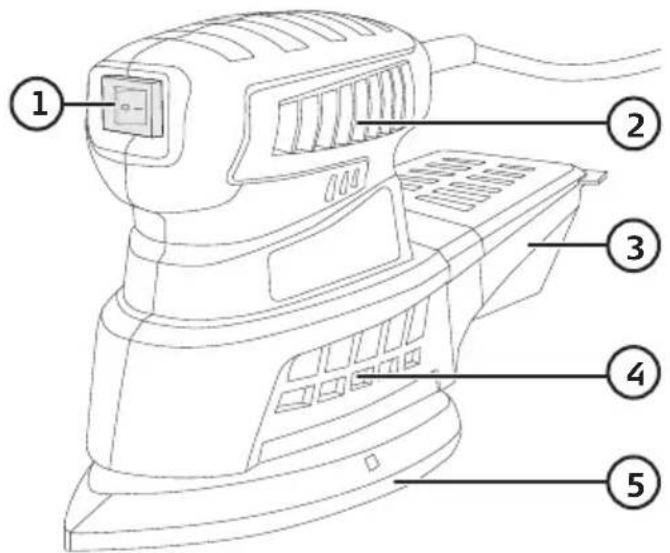

Product description

1. [I/O] Power switch
2. Ventilation opening
3. Dust collector
4. Ventilation opening
5. Sanding pad

Operating instructions

The sander is designed for sanding wood, dry filler, painted or varnished surfaces. Make sure that the surfaces you plan to sand are dry.

1. Fit the sanding sheet of your choice.
2. Make sure that the power switch is set to 0 before plugging the mains lead into a wall socket.
3. Stand steady and balanced while holding the sander in a firm grip.
4. Turn the sander on by setting the power switch to the I position.

Line drawing of a hand holding a slice of cheese with visible cavities and toppings (no text or symbols)

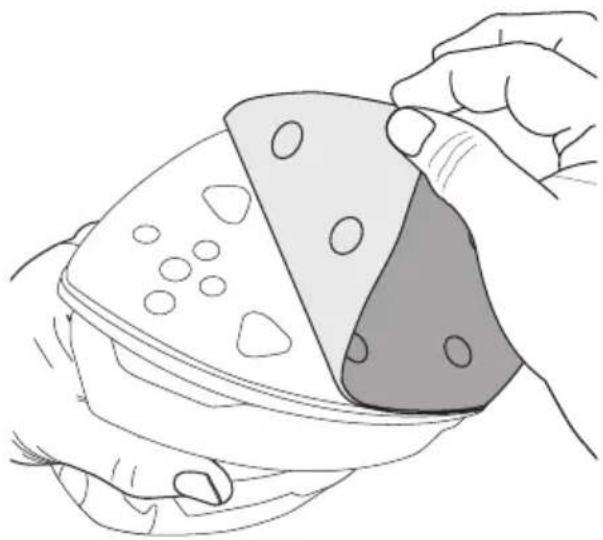

Changing sanding sheets

1. Switch the sander off and disconnect it from the power supply.
2. Remove the old sanding sheet and replace it with a new one.

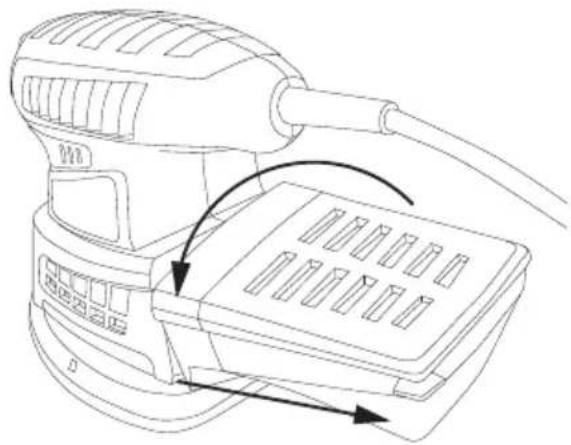

Emptying the dust collector

1. Switch the sander off and disconnect it from the power supply.

2. Twist the dust collector and pull it away from the sander.

3. Shake all dust and debris out of the dust collector and refit it to the sander.

Line drawing of a hand holding a small electronic component, with an inset showing the internal structure (no text or symbols)

Line drawing of a handheld device with a cable and connector, showing internal components (no text or symbols)

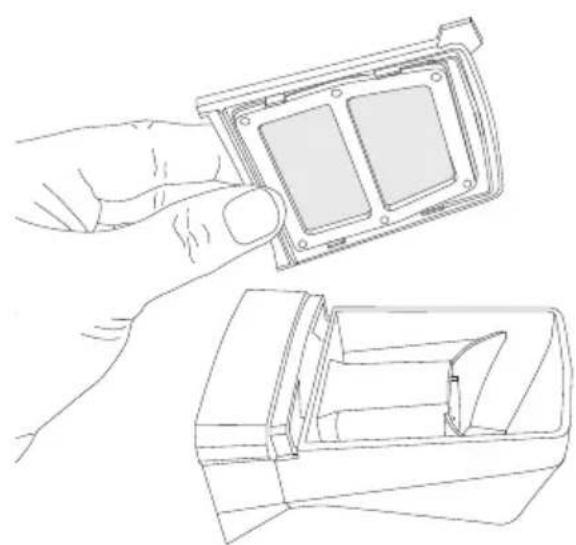

1. Disassemble the dust collector and clean/vacuum it out when needed.

Care and maintenance

- Unplug the mains lead before cleaning the sander with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals. Vacuum them if necessary.

- Keep the motor ventilation openings (2 and 4) clean and free of dust and debris.

- Unplug the power adaptor and store the sander in a dry location out of reach of children if it is not to be used for an extended period.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a recycling bin with crossed lines indicating no waste or restriction (no text or labels)

Specifications

Rated voltage 220–240 V AC, 50 Hz

Power 180 W

Orbits 26 000/min

No-load speed 13 000/min

Sanding sheet 140 × 140 × 80 mm

Weight 1.0 kg

Sound level LpA = 76 dB(A), K = 3 dB(A)

LwA = 87 dB(A), K = 3 dB(A)

Vibration value 9.0 m/s ^2 K=1.5 m/s ^2

Slipmaskin

Art.nr 18-3620 Modell SDGJ-SS2-180-UK 41-1249 SDGJ-SS2-180

Användning

Illustration of a hand holding a sliced cake with three slices (no text or symbols)

Byte av slippapper

Line drawing of a hand holding a small electronic component, with an inset showing the internal structure (no text or symbols)

Line drawing of a handheld device with a cable and connector, showing internal components (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Specifikationer

Märkspänning 220–240 V AC, 50 Hz

Effekt 180 W

Bruk

Illustration of a hand holding a sliced cake with three slices (no text or symbols)

Skifte slipepapir

Line drawing of a hand holding a small electronic component, with an inset showing the internal structure (no text or symbols)

Line drawing of a handheld device with a cable and connector, showing internal components (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Spesifikasjoner

Spenning 220–240 V AC, 50 Hz

Effekt 180 W

Svingninger/min. 26 000 svingninger/min

Turtall, ubelastet 13 000 o/min

Käyttö

Illustration of a hand holding a sliced cake with three slices (no text or symbols)

Hiomapaperin vaihto

Line drawing of a hand holding a small electronic component, with an inset showing the internal structure (no text or symbols)

Line drawing of a handheld device with a cable and a grid panel, showing directional arrows (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Tekniset tiedot

Nimellisjännite 220–240 V AC, 50 Hz

Teho 180 W

Kierr./min 26 000

Kuormittamaton

Benutzung

Illustration of a hand holding a pie chart with three slices (no text or symbols)

Line drawing of a hand holding a small electronic component, with an inset showing the internal structure (no text or symbols)

Line drawing of a hairdryer with a cable inserted, showing internal components and directional arrows (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

SDGJ-SS2-180 / SDGJ-SS2-180-UK

Machinery Directive2006/42/EC	EMC Directive2014/30/EU	Low Voltage Directive2014/35/EU
EN 62841-2015EN 62841-2-4:2014	EN 55014-1:2017EN 55014-2:2015EN 61000-3-2:2014EN 61000-3-3:2013

Elliner Widushim

Ellinor Wickström

Product Compliance Manager

Insjön, Sweden, 2019-05-15

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN
