Product Type	Orbital Sander
Brand	Cocraft
Model	HD 180
Power Input	180 W
Power Supply	Mains-powered (230 V, 50 Hz)
No-Load Speed	6000 – 12000 rpm
Orbit Diameter	1.2 mm
Pad Size	180 x 90 mm (rectangular)
Dust Collection	Via integrated dust bag or external vacuum adapter
Weight	1.2 kg
Dimensions (L x W x H)	240 x 110 x 150 mm
Cable Length	2.0 m
Sound Pressure Level	82 dB(A)
Vibration Level	5.5 m/s²
Main Functions	Sanding wood, metal, plastic, painted surfaces
Speed Settings	Variable speed dial
Maintenance	Clean dust filter and replace sandpaper regularly
Safety Features	Lock-off switch, dust-sealed bearing, vibration dampening
Spare Parts Availability	Sandpaper sheets, dust bags, carbon brushes available online
Repairability	User-replaceable carbon brushes; professional service recommended for motor

Frequently Asked Questions - HD 180 Cocraft

What type of sandpaper does the Cocraft HD 180 use?

The Cocraft HD 180 uses rectangular sandpaper sheets sized 180 x 90 mm. You can buy pre-cut sheets or cut from larger rolls. Hook-and-loop (velcro) backing is standard.

Can I use the sander without a dust bag?

Yes, you can connect an external vacuum cleaner to the dust port for better dust extraction. Alternatively, you can operate without any dust collection, but it will create more mess.

How do I adjust the speed on the HD 180?

The sander has a variable speed dial located on the top of the body. Turn it to increase or decrease the orbital speed. Lower speeds are for delicate surfaces like plastic, higher for wood.

Is the Cocraft HD 180 suitable for drywall sanding?

The sander is designed for light to medium sanding tasks, including drywall. However, due to the fine dust, always connect a vacuum and wear a dust mask. The 180W motor may not be powerful enough for heavy stock removal.

What is the weight of the sander?

The Cocraft HD 180 weighs approximately 1.2 kg (2.6 lbs), making it comfortable for prolonged use.

How do I change the sandpaper?

Simply peel off the old sandpaper from the hook-and-loop pad. Align the new sheet with the pad and press firmly. Ensure the holes in the paper align with the dust extraction holes.

Does the sander come with a carrying case?

Typically, the Cocraft HD 180 is sold as a bare tool without a carrying case. It comes with a dust bag, one sheet of sandpaper, and a manual. Check the package contents before purchase.

What is the noise level of the sander?

The sound pressure level is about 82 dB(A). It is recommended to wear hearing protection during extended use.

Can I repair the sander myself?

Basic maintenance like replacing carbon brushes and cleaning the dust filter can be done by the user. For motor or electronic issues, contact an authorized service center.

What is the warranty on the Cocraft HD 180?

Cocraft offers a 2-year warranty against manufacturing defects. Register your product online to activate the warranty. Keep your receipt as proof of purchase.

USER MANUAL HD 180 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue and black Cocrac® HD 150 power tool on textured surface (no visible text or symbols beyond branding)

Art.no Model

41-1249

SDGJ-SS2-180

Ver. 20220527

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings

Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Safety instructions specific to sanders

• Wear a dust mask whenever sanding and a dust extractor connected to the machine should also be used wherever possible.
• Extra caution should be taken when sanding lead paint, wood, metal or other materials which produce toxic dust. Make sure any bystanders in the work area are well protected.
• Remember that dust caused by sanding can be very flammable when mixed with air.

Safety symbol guide

Read the entire instruction manual.

Always use ear defenders, dust masks, safety glasses or visors.

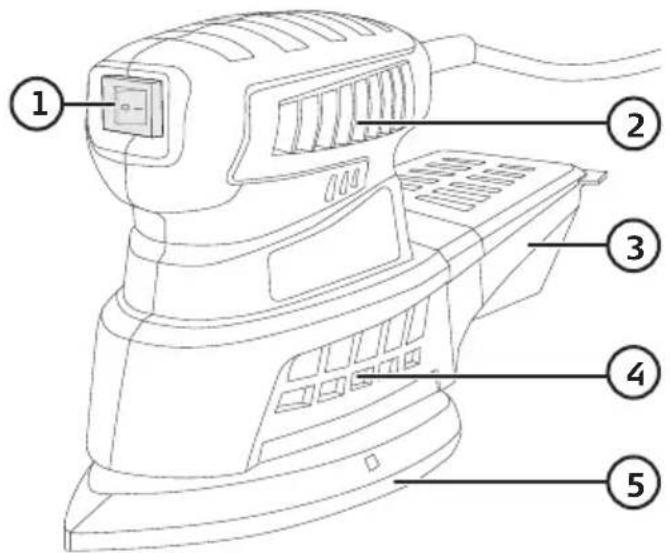

Product description

1. [I/O] Power switch
2. Ventilation opening
3. Dust collector
4. Ventilation opening
5. Sanding pad

Operating instructions

The sander is designed for sanding wood, dry filler, painted or varnished surfaces. Make sure that the surfaces you plan to sand are dry.

1. Fit the sanding sheet of your choice.
2. Make sure that the power switch is set to 0 before plugging the mains lead into a wall socket.
3. Stand steady and balanced while holding the sander in a firm grip.
4. Turn the sander on by setting the power switch to the I position.

Line drawing of a hand holding a slice of cheese with visible cavities and toppings (no text or symbols)

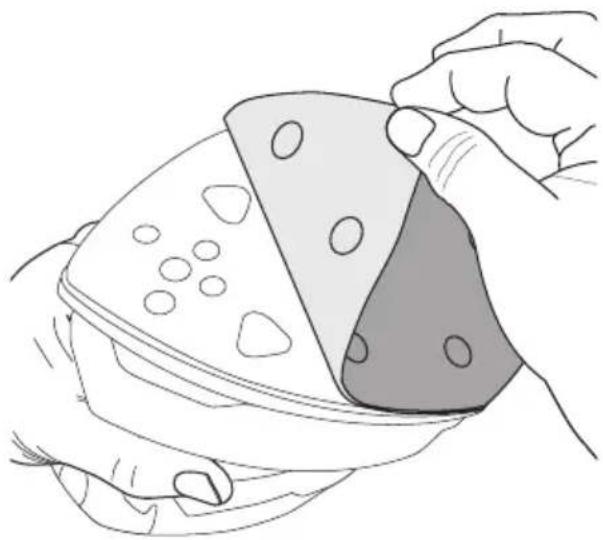

Changing sanding sheets

1. Switch the sander off and disconnect it from the power supply.
2. Remove the old sanding sheet and replace it with a new one.

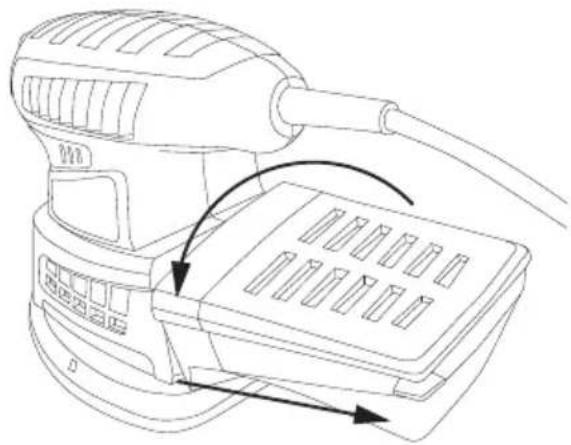

Emptying the dust collector

1. Switch the sander off and disconnect it from the power supply.
2. Twist the dust collector and pull it away from the sander.
3. Shake all dust and debris out of the dust collector and refit it to the sander.

Line drawing of a hand holding a small electronic component, with an inset showing the internal structure (no text or symbols)

Line drawing of a handheld device with a cable and connector, showing internal components (no text or symbols)

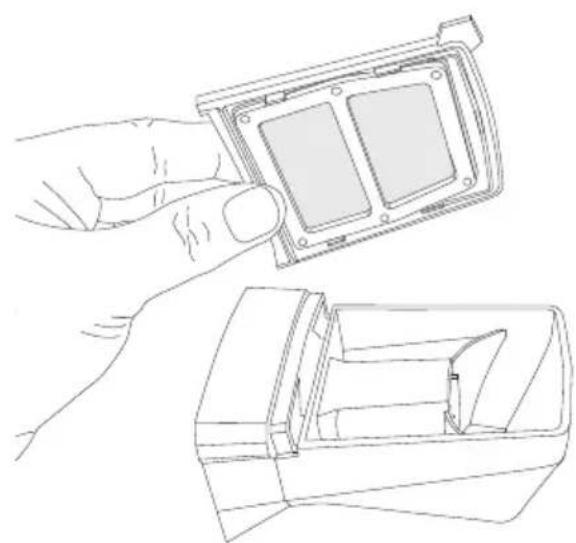

1. Disassemble the dust collector and clean/vacuum it out when needed.

Care and maintenance

• Unplug the mains lead before cleaning the sander with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals. Vacuum them if necessary.
• Keep the motor ventilation openings (2 and 4) clean and free of dust and debris.
• Unplug the power adaptor and store the sander in a dry location out of reach of children if it is not to be used for an extended period.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Rated voltage 220–240 V AC, 50 Hz

Power 180 W

Orbits 26 000/min

No-load speed 13 000/min

Sanding sheet 140 × 140 × 80 mm

Weight 1.0 kg

Sound level LpA = 76 dB(A), K = 3 dB(A)

LwA = 87 dB(A), K = 3 dB(A)

Vibration value 9.0 m/s ^2 K=1.5 m/s ^2

Slipmaskin

Art.nr 41-1249 Modell SDGJ-SS2-180

Användning

Illustration of hands holding a pie chart with three slices (no text or symbols)

Byte av slippapper

Line drawing of a hand holding a small electronic component, with an inset showing the internal structure (no text or symbols)

Line drawing of a handheld device with a cable and connector, showing internal components (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Specifikationer

Märkspänning 220–240 V AC, 50 Hz

Effekt 180 W

Bruk

Illustration of a hand holding a sliced cake with three slices (no text or symbols)

Skifte slipepapir

Line drawing of a hand holding a small electronic component, with an inset showing the internal structure (no text or symbols)

Line drawing of a handheld device with a cable and internal grid array (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Spenning 220–240 V AC, 50 Hz

Effekt 180 W

Svingninger/min. 26 000 svingninger/min

Turtall, ubelastet 13 000 o/min

Käyttö

Illustration of a hand holding a sliced cake with three slices (no text or symbols)

Hiomapaperin vaihto

Line drawing of a hand holding a small electronic device component, shown from two different angles (no text or symbols)

Line drawing of a handheld device with a cable and connector, showing internal components (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Tekniset tiedot

Nimellisjännite 220–240 V AC, 50 Hz

Teho 180 W

Kierr./min 26 000

Kuormittamaton

EC Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer.

EU-försäkran om överensstämmelse utfärdas på tillverkarens eget ansvar. / Egenerkläringen er utstedt under produsentens eget ansvar. / Tämä vaatimustenmukaisuusvakuutus on annettu valmistajan yksinomaisella vastuulla

Manufacturer and person authorised to compile technical file: Clas Ohlson AB, SE-793 85 Insjön, Sweden

Name	Mouse Sander 180W
Type/Model	SDGJ-SS2-180
Clas Ohlson Article Number	41-1249

The product satisfies the provision for CE-marking according to the following directive(s) / regulation(s) including amendments / Produkten uppfyller kraven för CE-märkning enligt följande direktiv / förordningar inklusive ändringar/ Produktet tilfredsstiller bestemmelsen om CE-merking i henhold til fölgende direktiv (er) / forskrifter, inkludert endringer / Tuote täyttää seuraavien direktiivien / asetusten mukaiset CE-merkintää koskevat vaatimukset, mukaan lukien muutokset;

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared. Hänvisning till de harmoniserade standarder som använts eller hänvisningar till de specifikationer som försäkran om överensstämmelse deklareras: / Referere til harmoniserte standarder som brukes, eller henvisninger til spesifikasjonene der samsvarserklæring er erklärt: / Viittaus yhdenmukaistettuihin standardeihin tai viittaus eritelmiin, jossa vaatimustenmukaisuusvakuutus on julistettu; EN 62841-1:2015. EN 62841-2-4:2014. EN 55014-1:2017 + A11:2020. EN 55014-2:2015. EN 61000-3-2:2019. EN 61000-3-3:2013 + A1:2019

Signed for and on behalf of;

Carina Hemstrand

Product Compliance & Sustainability Manager

Clas Ohlson AB, SE-793 85 Insjön, Sweden

Place and date: 2021-10-29
