USER MANUAL DVW-7100A SANYO

DVD Player & Video Cassette Recorder

Illustration of a computer monitor with a separate cable attachment (no text or symbols)

Supplied Accessory

- Remote control (NA228UD) with two AA batteries

- RF cable

• Audio/Video cables

• Instruction manual

- Quick start guide

SANYO'S HELP-LINE

Call the toll-free number below if you have any difficulties operating this product.

1-800-813-3435 (Weekdays: 7:30 AM - 4:00 PM Central Time)

Please read before using this equipment.

DVW-7100A

Table of Contents

Precautions

Laser Safety

■ Important Safeguards....3
Installation Location 4 Avoid the Hazards of Electrical Shock and Fire. 4 Moisture Condensation Warning 4 About Copyright 4
Notice for progressive scan outputs 4
Symbol Used in This Manual .... 4 Maintenance .... 4

Setup

■ About the Video Cassettes and Discs .... 5
Playable Video Cassettes .... 5 Playable Discs .... 5 Unplayable Discs .... 5

■ Connections .... 5

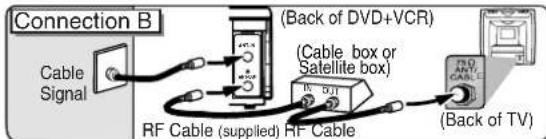

RF Output Channel....5 Hint for Cable Box or Satellite Box....6 Connection to an Audio System....6 Connection to a TV....7 Front & Rear Terminals....7

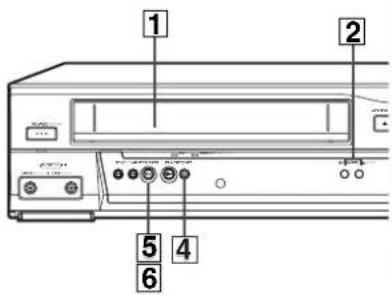

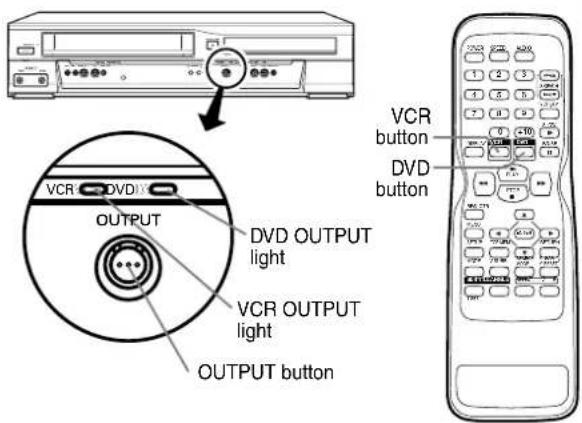

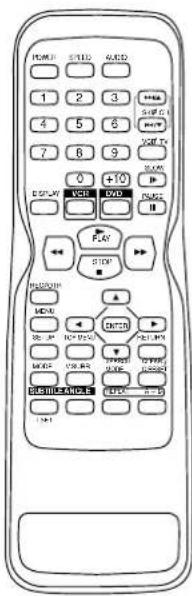

■ About the Remote Control and Front Panel....8 ■ VCR/DVD Switching....9

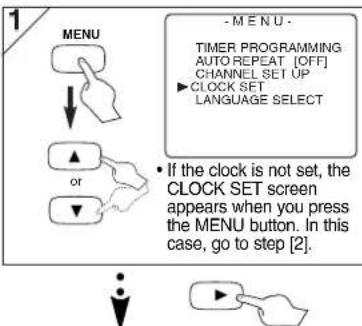

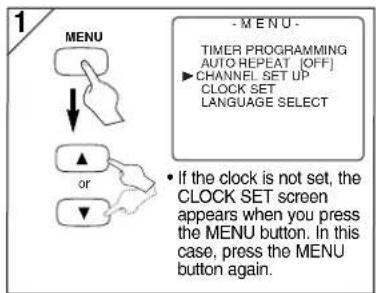

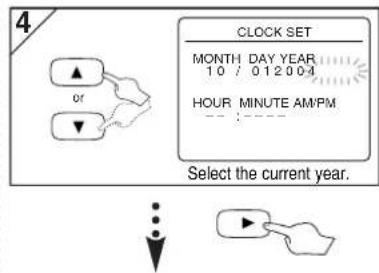

■ Preset for Use....9 Turn on the unit for the first time....9 To Add/Delete Channels....10 Clock Set Up....10

VCR Functions

■ Playback....11

■ Recording & OTR (One Touch Recording)....11

■ Other Operations .... 11

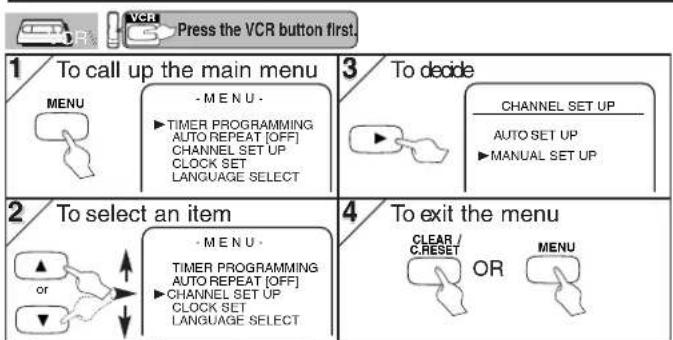

■ On-Screen Operations 12

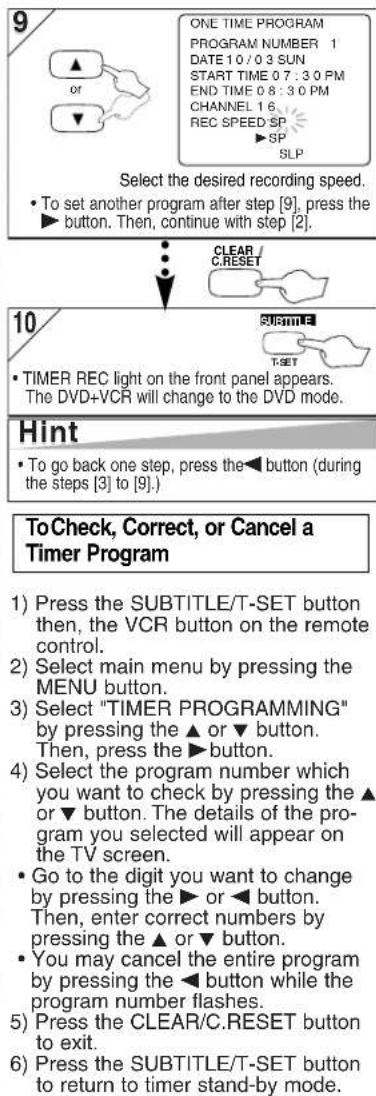

■ Recording Features .... 12 Timer Recording.... 12 Hint for Timer Recording.... 13 Copying a Video Tape.... 13

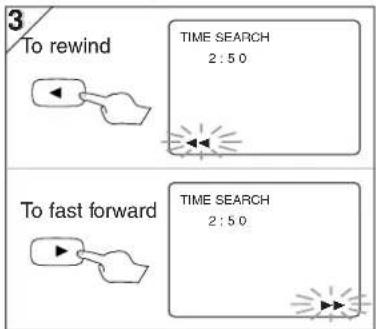

■ Special Features .... 14 Time Search / Index Search / Auto Repeat .... 14

DVD Functions

■ Playback....15

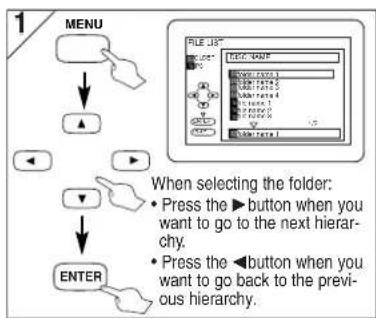

■ MP3 Playback .... 16

■ On-Screen Display 16

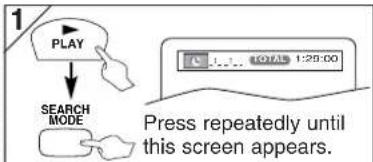

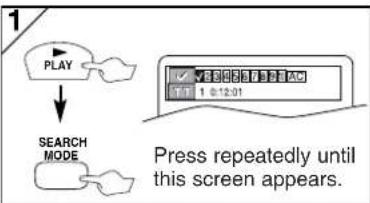

■ Search Function .... 17 Track Search / Title/Chapter Search / Time Search .... 17

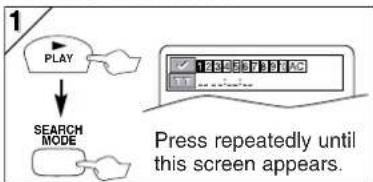

Marker Setup....17

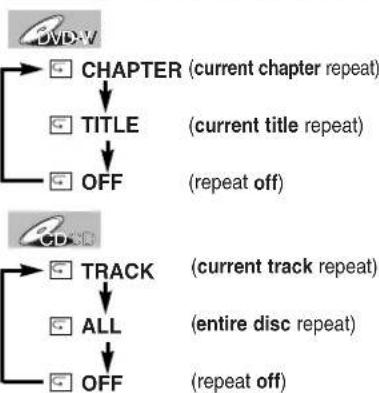

■ Repeat / Random / Programmed Playback .... 18 Repeat Playback / Repeat A-B Playback / Random Playback / Programmed Playback.... 18

■ Special Settings .... 19 Subtitle Language / Audio Language / Camera Angle / Black Level Setting / Stereo Sound mode / Virtual Surround (3D Surround Sound) .. 19

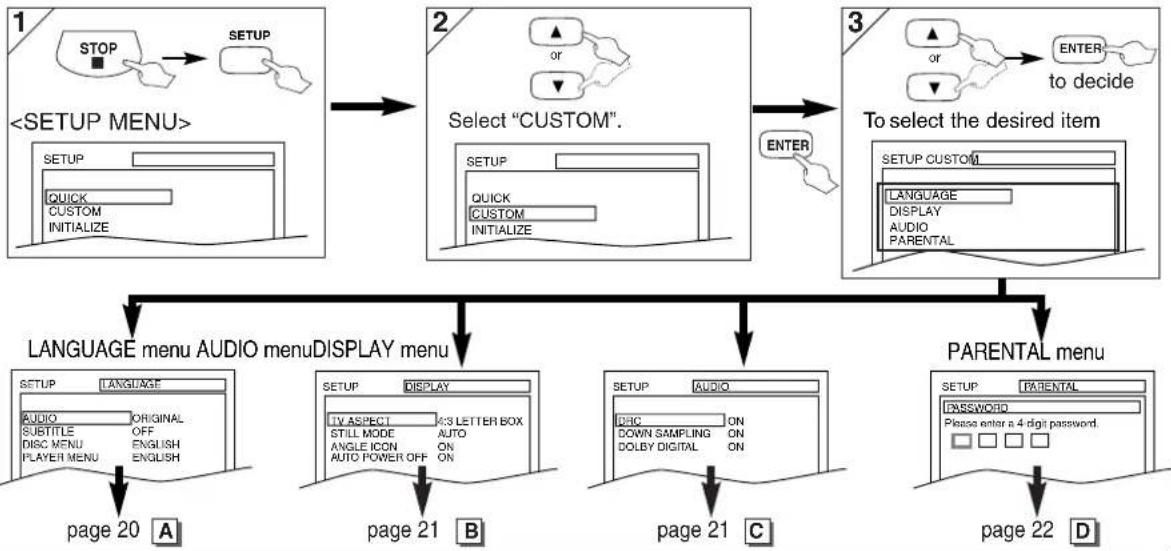

■ DVD Set Up....20 LANGUAGE Setting....20

DISPLAY Setting 21

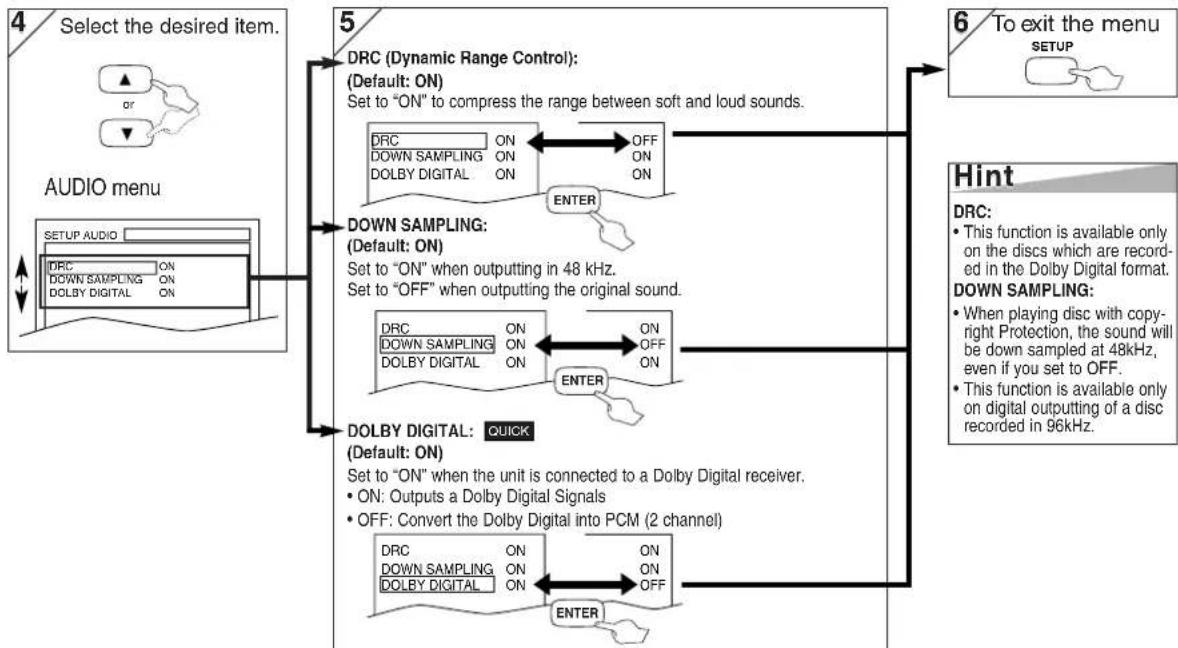

AUDIO Setting 21

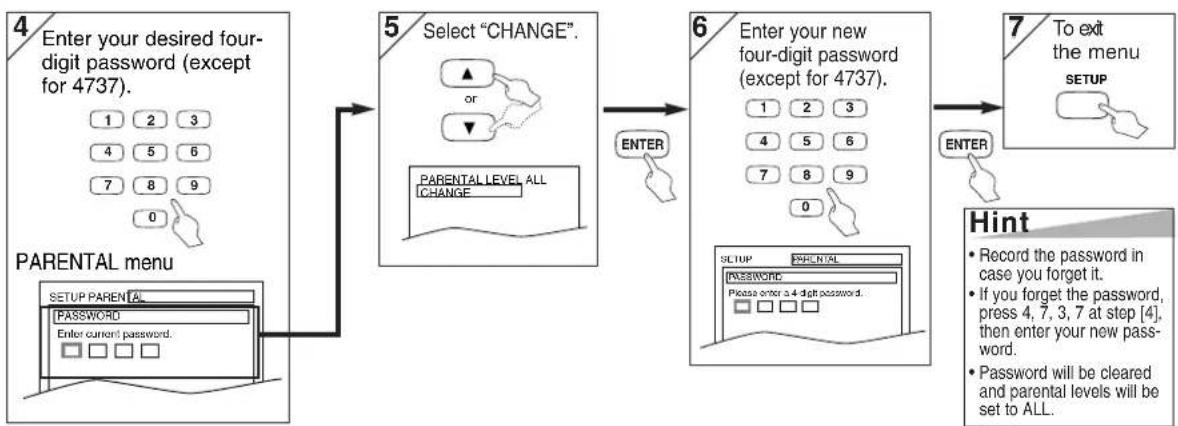

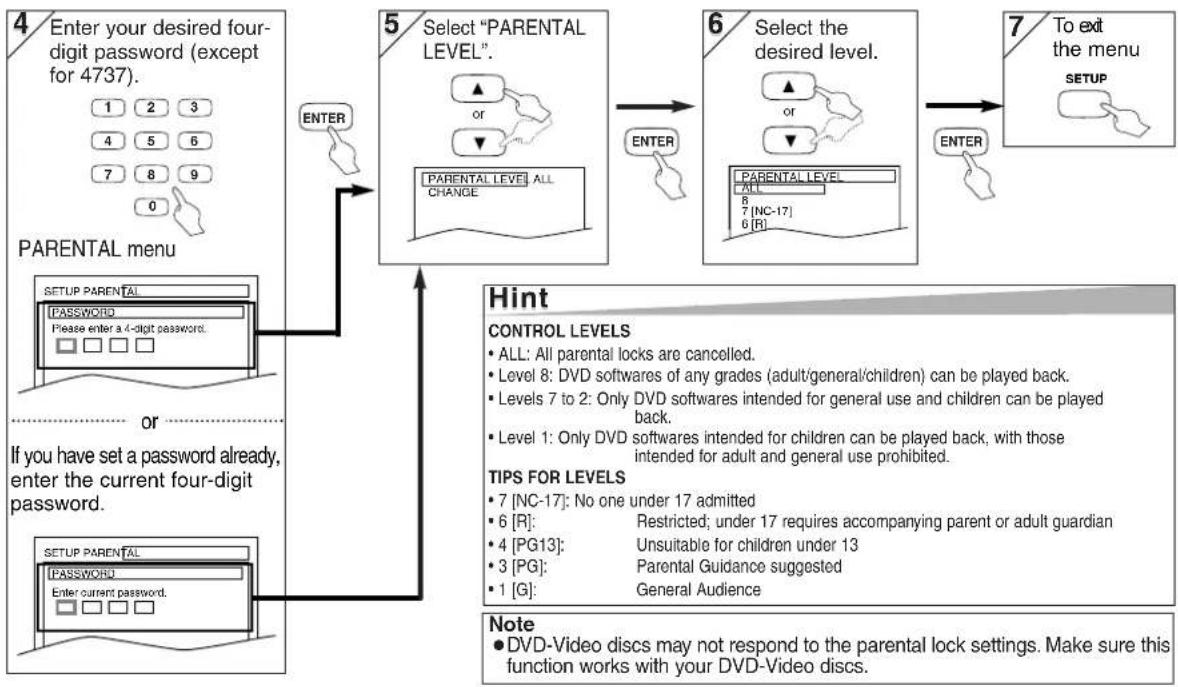

PARENTAL Setting 22

To return the All Selections of SET UP (except for PARENTAL) to the Default Setting . . 22

Information

■ Troubleshooting Guide....23

■ Specifications 24

■ Language List....24

■ Limited Warranty....25

Español 26

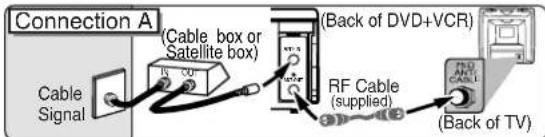

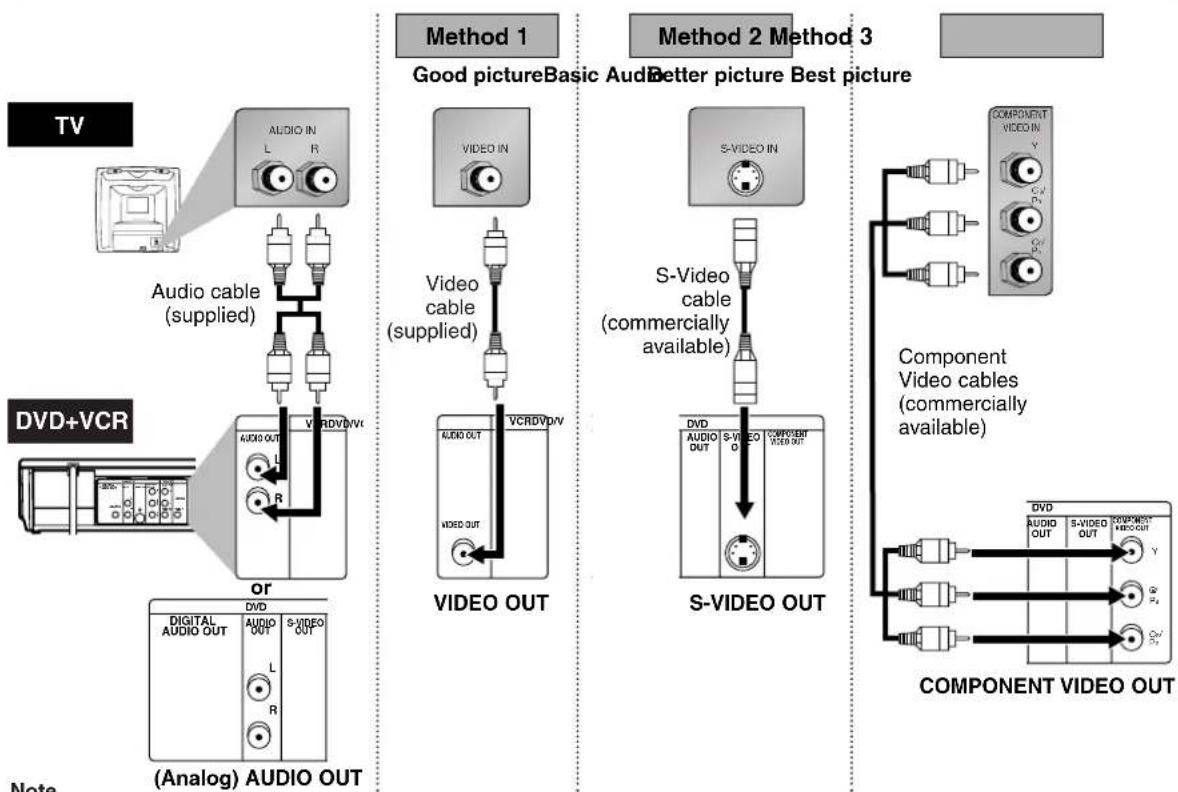

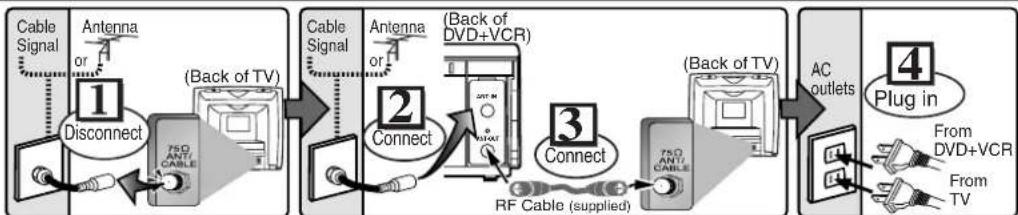

Basic TV Connection

5 Please refer to "Connections" on page 5.

Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Laser Safety

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.
- You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

For Customer Use:

Read carefully the information located at the back of this unit and enter below the Serial No. Retain this information for future reference.

Model No. DVW-7100A

Serial No.

Important Safeguards

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. Attachments - Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

7. Water and Moisture- Do not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. Power Sources - This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization - This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

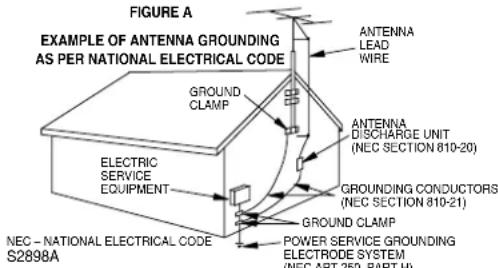

13. Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with regard to

proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

1. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.

2. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

3. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

4. Object and Liquid Entry - Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

5. Servicing - Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

6. Damage Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the video product.

c. If the video product has been exposed to rain or water.

d. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e. If the video product has been dropped or damaged in any way.

f. When the video product exhibits a distinct change in performance this indicates a need for service.

1. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

2. Safety Check - Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

3. Heat - This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Installation Location

For safety and optimum performance of this unit:

• Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV.
• Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.

Avoid the Hazards of Electrical Shock and Fire

• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.
• Do not put your fingers or objects into the DVD+VCR cassette holder.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use this unit at least for 2 hours until its inside gets dry.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Notice for progressive scan outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the 'standard definition' output. If there are questions regarding our TV set compatibility with this model 525p DVD player, please contact our customer service center.

Symbol Used in This Manual

The following symbols appear in some headings and notes in this manual.

Description refers to playback or recording of video cassette tapes.

Description refers to playback of DVD-Video discs.

Description refers to playback of Audio CDs.

Description refers to playback of MP3 files.

Maintenance

SERVICING

• Please refer to relevant topics on the Troubleshooting Guide on page 23 before return the product.
• When this unit become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power plug, and please call our help line mentioned on the front page to locate an Authorized Service Center.

CLEANING THE CABINET

- Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

CLEANING THE DISC LENS

- If this unit still does not perform properly although you refer to the relevant sections and to "TROUBLESHOOTING GUIDE" in this Instruction Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

• Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is not used.

AUTO HEAD CLEANING

• Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.

• Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after a long period of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your DVD+VCR may need to be cleaned.

• Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

• If a Video Head Cleaner does not solve the problem, please call our help line mentioned on the front page to locate an Authorized Service Center.

Notes:

• Remember to read the instructions along with the video head cleaner before use.
• Clean video heads only when problems occur.

Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building, as close to the point of cable entry as practical.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Setup

About the Video Cassettes and Discs

playable Video Cassettes

Use only cassettes marked VHS with this unit.

playable Discs

Playable discs	Mark (logo)	Region code	Recorded signals	Disc size	Disc types
DVD-Video*1,2,4,6		or[XTWX]	Digital video(MPEG2)	12 cm or 8cm
DVD-R DVD-RW*1,2,3,4,5,6		-
Audio CD^4,6		-	Digital audio or MP3	12 cm or 8cm	Digital audio ExampleTrack 1 Track 2 Track 3 Track 4 Track 5 Track 6
CD-R CD-RW*4,5,6					MP3 Example Group 1 Group 2Track 1 Track 2 Track 3 Track 4 Track 5 Track 6

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back. *2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc's producers.

*3: Only the discs which have been recorded in the video format and finalized can be played back.

Discs unfinalized or DVD-RW discs recorded in the VR (Video Recording) format cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may be not be smooth, etc.).

*4: Scratched or stained discs may not be played back.

*5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

*6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.

Unplayable Discs

• On the following discs, only the sound can be heard (picture cannot be viewed). CDV, CD-G

- NEVER play back the following discs. Otherwise, malfunction may result! DVD-RAM

CD-I Photo CD

Video CD

DVD with region codes other than 1 or ALL

DTS-CD

DVD-ROM for personal computers

CD-ROM for personal computers

• On the following disc, the sound MAY NOT be heard. Super Audio CD

Note: Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

• Any other discs without compatibility indications.

Connections

Please refer to "Basic TV Connection" on the front page before you use this unit.

RF Output Channel

If channel 3 is already occupied for broadcasting,

1) Set your TV to channel 4.

2) Insert a pre-recorded tape into this unit.

3) Press the OUTPUT button on the DVD+VCR so that the VCR OUTPUT light is lit. - If noise appears on the TV screen, press the VCR/TV button on the remote control.

4) Press the PLAY button once.

5) After a few seconds, press the PLAY button on the DVD+VCR for 3 seconds.
• The RF output channel will change to channel 4 from channel 3 and you will see a playback picture.
- When a picture does not appear on the TV screen, repeat step [4].

6) Press the STOP button to stop playback.

Hint

- The RF output channel may not change when you adjust tracking during playback. In this case, stop the playback, and start the playback again. After that, press the PLAY button on the DVD+VCR for 3 seconds again.

Hint for Cable Box or Satellite Box

Select this connection when you want to view or record a scrambled channel. With this connection, channels cannot be changed on the DVD+VCR. You can view or record ONLY the channels you have selected on the cable box or the satellite box.

- While you are recording, only the recorded channel can be viewed.

To select channels of the cable box or satellite box

1) Turn on the DVD+VCR by pressing the POWER button, and then, press the VCR/TV button. The "POWER" light on the front panel will appear. Then, press the CHANNEL buttons to select channel 3 or 4 (the same channel as the output channel of the cable box or satellite box).
- If you use the channel 4, you need to change the DVD+VCR's RF output to channel 4. Refer to "RF Output Channel".
2) At the TV, select channel 3 or 4 (the same channel as you have selected at step 1).
3) At the cable box or satellite box, select the channel you want to view or record.

Select this connection when you want to change channels on the DVD+VCR. With this connection, you may watch one channel while recording another.

- You may not view or record a scrambled channel.

To select channels of the cable box or satellite box

1) At the cable box or satellite box, select channel 3 or 4 (the same channel as the DVD+VCR's RF output channel).
• Refer to "RF Output Channel".
2) At the TV, select the same channel as the output channel (3 or 4) of the cable box or satellite box.
3) Turn on the DVD+VCR by pressing the POWER button, and then, press the VCR/TV button. The "POWER" light on the front panel will appear. Then, select the channel you want to view or record.

To play back a tape

Follow the steps 1) to 2) above. Then, play back a tape.

• Refer to "Playback" on page 11.

To view one channel while recording another

1) While you are recording on the DVD+VCR, press the VCR/TV button.
2) At the cable box or satellite box, select the channel you want to view.

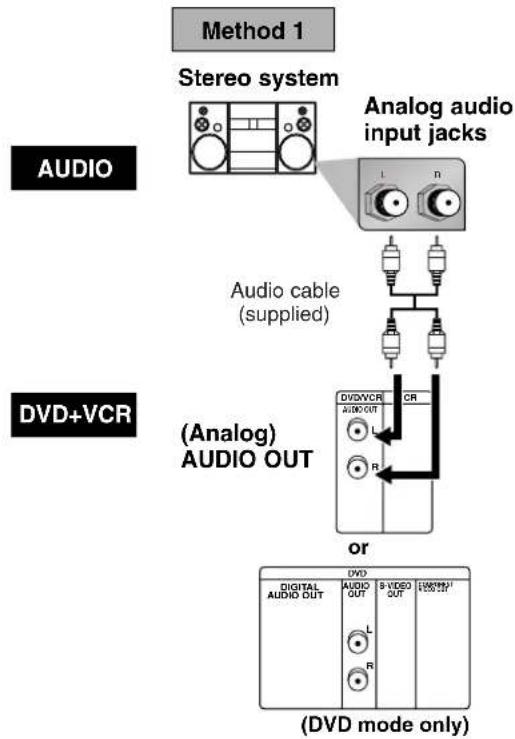

Connection to an Audio System

Need help? Call 1-800-813-3435


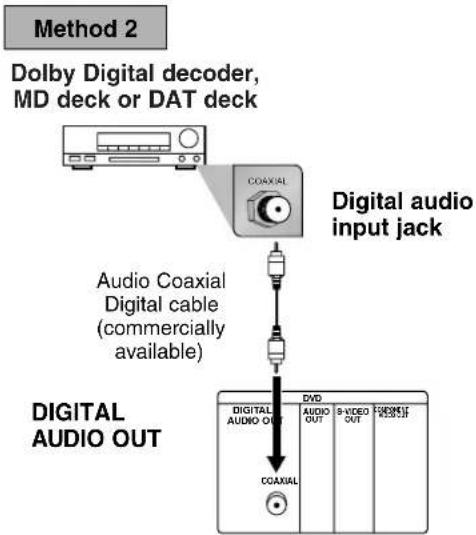

    A["Method 2: Dolby Digital decoder, MD deck or DAT deck"] --> B["Digital audio input jack"]
    B --> C["Audio Coaxial Digital cable (commercially available)"]
    C --> D["DVD"]
    D --> E["COAXIAL"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333

Note

• If output is Dolby Digital encoded audio, connect to a Dolby Digital decoder, and set "DOLBY DIGITAL" to "ON" in the AUDIO menu. (Refer to pages 20-21.)
• The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD or DAT deck.
• Unless connected to a Dolby Digital decoder, set "DOLBY DIGITAL" to "OFF" in the AUDIO menu. Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers. (Refer to pages 20-21.)
• Set "DOLBY DIGITAL" to "OFF" in the AUDIO menu for connecting to an MD deck or DAT deck. (Refer to pages 20-21.)
• By hooking this unit up to a Multi-channel Dolby Digital decoder, you can enjoy high-quality 5.1ch Dolby Digital surround sound as heard in the movie theaters.

Connection to a TV

Note
- Connect this unit directly to the TV. If the A/V cables are connected to a VCR, pictures may be distorted due to the copy protection system.
- When progressive scanning mode is selected, no video signal will be output from the VIDEO OUT or S-VIDEO OUT jack.
• The COAXIAL, DVD AUDIO OUT, S-VIDEO OUT and COMPONENT VIDEO OUT jacks are only useful in DVD mode.

If your TV is compatible with 525p (480p) progressive scanning and you want to enjoy that high quality picture;

You must select the connection Method 3 above and progressive scanning mode. To set the mode, press and hold the PLAY button on the front panel for more than 5 seconds, so that PROGRESSIVE indicator will light up. (The progressive scanning is not available in the VCR mode.)

If your TV is not compatible with progressive scanning;

Use this unit in interlace mode. Make sure that PROGRESSIVE indicator of this unit lights off. If not, press and hold the PLAY button on this unit for more than 5 seconds, so that PROGRESSIVE indicator will light off.

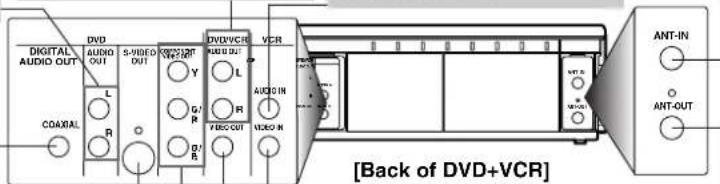

Front & Rear Terminals

DVD AUDIO OUT (analog) jacks

Connect the supplied audio cables here through the Audio In jacks of a television or other audio equipment. (DVD only)

DIGITAL AUDIO OUT COAXIAL jack

Connect an optional coaxial digital audio cable here through the coaxial digital audio in jack of a decoder or audio receiver. (DVD only)

S-VIDEO OUT jack Connect an optional S-Video cable here through the S-video in jack of a televi- sion. (DVD only)

COMPONENT VIDEO OUT jacks

Connect optional component video cables here through the component video in jacks of a television. (DVD only)

DVD/VCR AUDIO OUT jacks

Connect the supplied audio cables here through the audio In jacks of a television or other audio equipment.

AUDIO IN jack

Connect audio cable coming from the audio out jack of a camcorder, another VCR, or an audio source here.

ANT-IN jack

Connect your antenna or cable box here.

[Front of DVD+VCR]

DVD/VCR VIDEO OUT jack

Connect the supplied yellow video cable here through the TV's video in jack.

VIDEO IN jack

Connect a cable coming from the video out jack of a camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc.) here.

ANT-OUT jack

Connect the supplied RF cable to the antenna input jack on your TV.

About the Remote Control and Front Panel About the Remote Cor

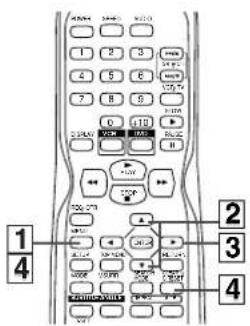

Remote Control

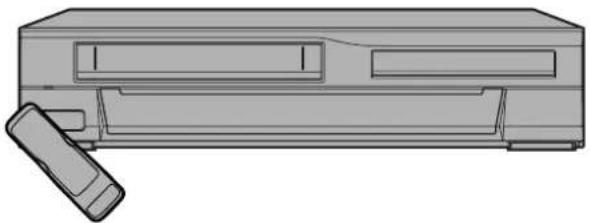

Installing the Batteries for the Remote Control

Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

1

2

3

Keep in mind the following when using the remote control:

• Make sure that there is no obstacle between the remote control and the remote sensor on the unit.
• Use within the operating range and angle, as shown.

Remote control

Disc/Tape Button(Alphabetical order)				VCR modeDVD mode
				MP3
	To select chapter or title directly.	To select track directly.		To select channel.The +10 button has no effect in VCR mode.
	To search forward/backward through a disc.To begin slow forward/reverse playback during the pause mode.	To search forward/backward through a disc.		To forward/backward a tape.
	To move the cursor and determine its position.	To move the cursor and determine its position.		To select an item on the VCR Menu.To advance to the next VCR Menu.To go back one step during clock and timer setting.
	To repeat between your chosen point A and B.	To repeat between your chosen point A and B. (CD)		—
	To select camera angles on a disc.	—		—
	To select audio languages on a disc.	To select STEREO, L-CH or R-CH. (CD)		—
	To clear the markers.To clear the numbers entered incorrectly.	To clear the markers. (CD)To remove status No. in program input.To clear the numbers entered incorrectly.		To exit the VCR Menu.To reset the tape counter.
	To display the current disc mode.	To display the current disc mode.		To display the current time, tape counter and channel.
	To select the DVD output mode.To activate the remote control in DVD mode.	To select the DVD output mode.To activate the remote control in DVD mode.		—
	To call up the Menu on a disc.	To call up the MP3 menu. (MP3)		To call up the VCR Menu.
	To set black level on/off.	To arrange the playing order or play randomly.		—
	To pause disc playback.To advance playback one frame at a time.	To pause disc playback.		To pause tape playback or recording.To advance playback one frame at a time.
	To begin disc playback.	To begin disc playback.		To begin tape playback.
R	To tum the unit on or off.	To turn the unit on or off.		To turn the unit on or off.
	—	—		To start a recording.
[T80X]	To play a chapter or title repeatedly.	To play a track or disc repeatedly. (CD)To play a track, group or disc repeatedly. (MP3)		—
	To return to the previous operation on the DVD setup menu.	To return to the previous operation on the DVD setup menu.		—
[XX6Y]	To search chapter, title or time.To set or search the markers.	To search track.To search time. (CD)To set or search the markers. (CD)		To call up the index or time search menu.
	To call up the DVD setup menu.	To call up the DVD setup menu.		—
	To skip chapters.	To skip tracks.		To change channels.To adjust the tracking manually during playback.
	—	—		To view the tape in slow motion.
	To stop playback.	To stop playback.		To select the recording speed.
[4264]	To select subtitles on a disc.	—		To stop playback or recording.
[T4YT]	To call up the Top Menu on a disc.	To return to the top file of the highest hierarchy in the program and MP3 menu. (MP3)		To put the VCR into standby mode for a timer recording.
[844X]	—	—		To select the VCR output mode.To activate the remote control in VCR mode.
	To select DVD position or TV position.	To select CD/MP3 position or TV position.		To select VCR position or TV position.
	To set virtual surround on/off.	To set virtual surround on/off.		—

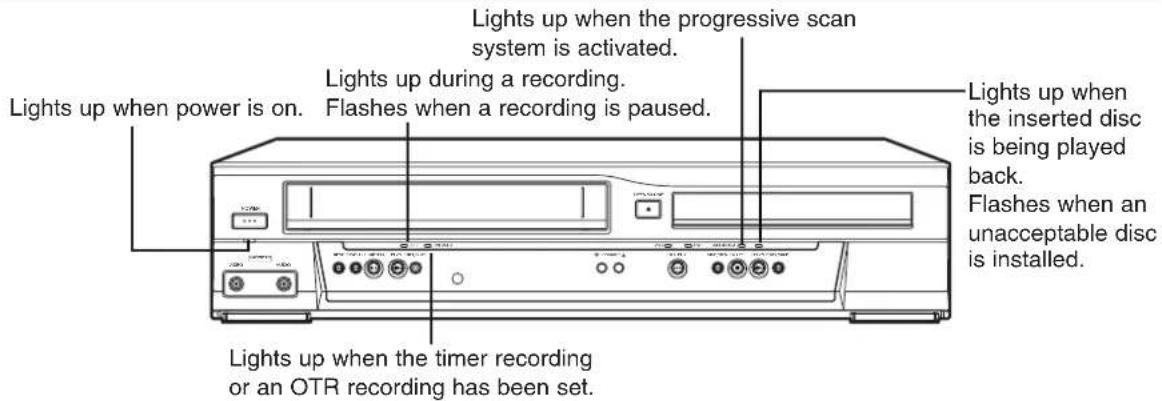

Front Panel Display

VCR/DVD Switching

Pressing the OUTPUT button on the front panel switches the output signal. (The VCR or DVD OUTPUT light is lit.)

However, when using the remote control, you must press the DVD or VCR button on the remote control first.

• To use the VCR, press the VCR button on the remote control.
  (Verify that the VCR OUTPUT light is lit.)
• To use the DVD player, press the DVD button on the remote control.

(Verify that the DVD OUTPUT light is lit.)

Note

• This remote control cannot operate your TV.

Need help? Call

1-800-813-3435

Preset for Use


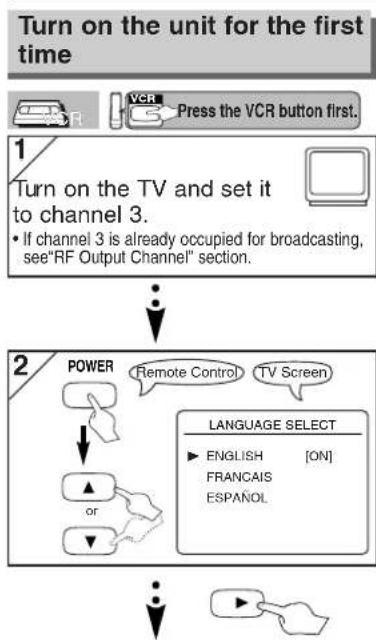

    A["Turn on the unit for the first time"] --> B["1. Turn on the TV and set it to channel 3.<br>• If channel 3 is already occupied for broadcasting, see&quot;RF Output Channel&quot; section."]
    B --> C["2. POWER"]
    C --> D["Language Select"]
    D --> E["► ENGLISH [ON"]
FRANCAIS
ESPAÑOL]
    E --> F["or"]
    F --> G["▼"]
    G --> H["→"]

Hint

- Repeat these steps only if either there was a power failure or this unit has been unplugged for more than 30 seconds.

TIP:

If you change the on-screen language at step [2], change the language for DVD function in "PLAYER MENU" setting. (Refer to page 20.)

EN

ToSelect a Channel

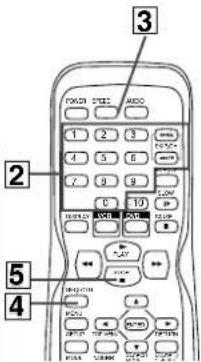

You can select a channel by directly entering channel using the Number buttons on the remote control.

Notes for using the Number buttons:

• When selecting cable channels which are higher than 99, enter channel numbers as a three-digit number.(For example: 117, press 1,1,7)
• You must precede single-digit channel numbers with a zero (For example: 02, 03, 04 and so on).

ToAdd/Delete Channels

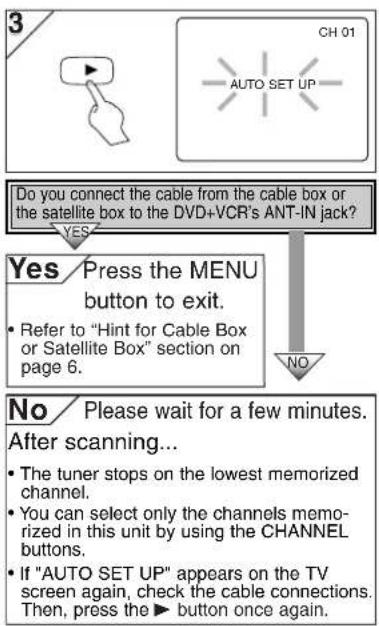

To Preset the Channel Again

1) Press the MENU button until the main menu appears.
2) Select "CHANNEL SET UP" by pressing the ▲ or ▼ button. Then, press the ▶ button.
3) Select "AUTO SET UP" by pressing the ▲ or ▼ button. Then, press the ▶ button. After scanning, the tuner stops on the lowest memorized channel.

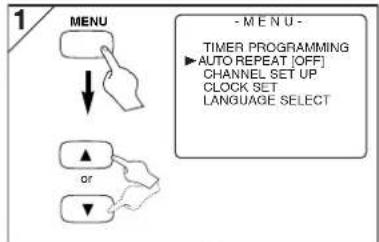

To Change the On-Screen Language

1) Press the MENU button until the main menu appears.
2) Select "LANGUAGE SELECT" by pressing the ▲ or ▼ button. Then, press the ▶ button.
3) Select "ENGLISH", "FRANCAIS" or "ESPAÑOL" by pressing the ▲ or ▼ button. Then, press the CLEAR/C.RESET button.

Hint

• If you accidentally select Spanish or French and need English: Press the MENU button and choose SELEC. IDIOMA, or SELECTION LANGUE. Press the ▶ button, and select ENGLISH. Finally, press the CLEAR/C.RESET button.

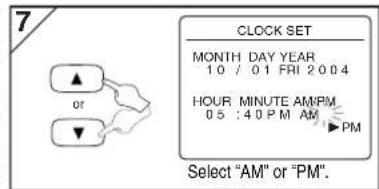

Clock Set Up


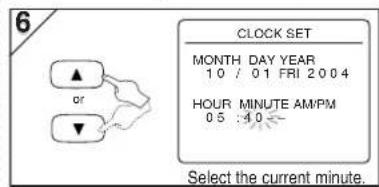

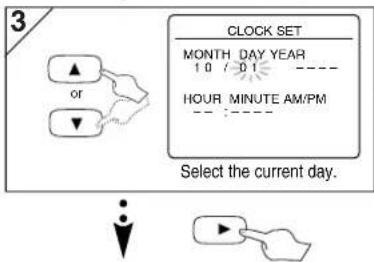

    D --> E["• If the clock is not set, the CLOCK SET screen appears when you press the MENU button. In this case, go to step [2"].]

Hint

• To go back one step, press the ◀button (during the steps [2] to [7]).
• Your clock setting will be lost if either there is a power failure or this unit has been unplugged for more than 30 seconds.

Need help? Call 1-800-813-3435

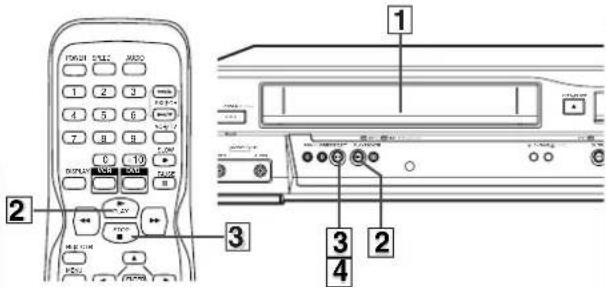

VCR Functions

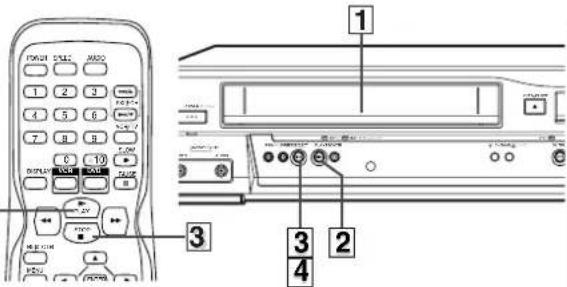

Playback

Before:

Turn on the TV and set it to channel 3.

- If channel 3 is already occupied for broadcasting, see "RF Output Channel" section.

Hint

• When a tape without record tab is inserted, the DVD+VCR will start playback automatically.
• Tracking will be automatically adjusted upon playback. To adjust the tracking manually, press the SKIP/CH ▶▶/▲ or ◀◀/▼ button (or CHANNEL buttons).

Recording & OTR (One Touch Recording)

Before:

Turn on the TV and set it to channel 3.

- If channel 3 is already occupied for broadcasting, see "RF Output Channel" section.

You can select a fixed recording time by pressing the REC/OTR button repeatedly.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its record tab. To record on it later, cover the hole with adhesive tape.

You CAN NOT copy a DVD to a videotape.

To stop recording temporarily (Pause mode)

Press the PAUSE button.

• During the rec-pause mode, five ■ marks appear on the TV screen. Each ■ mark represents one minute.
• Press it again to resume recording.

Hint

• To view one channel while recording another
1) While you are recording on the DVD+VCR, press the VCR/TV button. 2) At the cable box or satellite box, select the channel you want to view.
- If you have connected the DVD+VCR to a cable box or satellite box, refer to "Hint for Cable Box or Satellite Box" section on page 6.

Hint

- Pause mode will be automatically cancelled after 5 minutes to prevent damage to the tape and the video head.

Other Operations

To cue or review picture during playback (Picture Search)

Press the ▶▶ or ◀◀ button (or F.FWD or REW button).

- Press it again and the DVD+VCR will search in super high speed. (in the LP/SLP modes only)

To freeze the picture on TV screen during play-back (Still mode)

Press the PAUSE button. Each time you press the button, the picture will be forwarded by one frame.

• If the picture begins to vibrate vertically during the still mode, stabilize the picture by pressing the SKIP/CH ▶▶/▲ or ▶◀◀/▼ button (or CHANNEL buttons).
• If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV, if equipped.

Counter Reset

Press the CLEAR/C.RESET button.

To play back in slow motion

Press the SLOW button during playback or the still mode.

- If the noise bars appear on the TV screen, you can reduce it by by pressing the SKIP/CH ▶▶▶/▲ or ◀◀◀/▼ button (or CHANNEL buttons).

Auto Rewind

When a tape reaches its end during playback, fast-forward, or recording (except timer recording and One Touch Recording), the tape will automatically rewind to the beginning. After rewinding finishes, the DVD+VCR will eject the tape.

Hint

• Still/Slow mode will be automatically cancelled after 5 minutes to prevent damage to the tape and the video head.
  • To return to playback from the Picture Search/Still/ Slow mode, press the PLAY button.

EN

On-Screen Operations

Recording Features

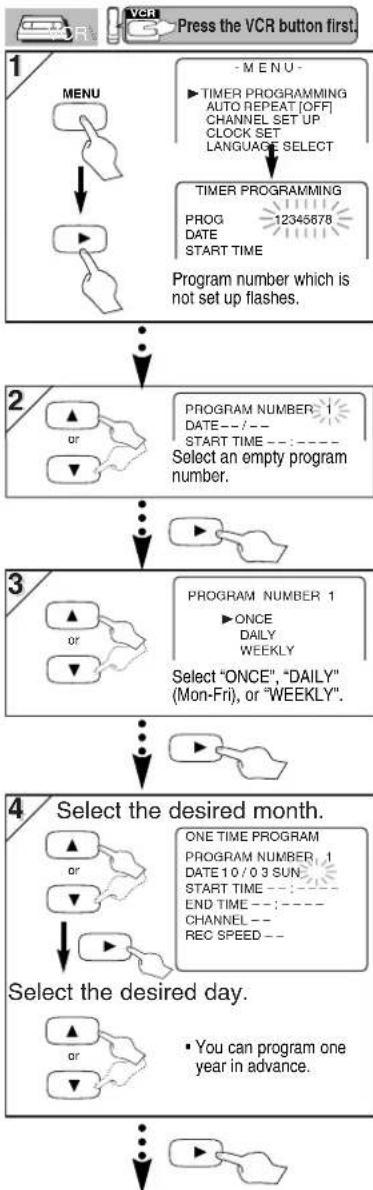

Timer Recording

- Insert a tape with its record tab into the DVD+VCR.


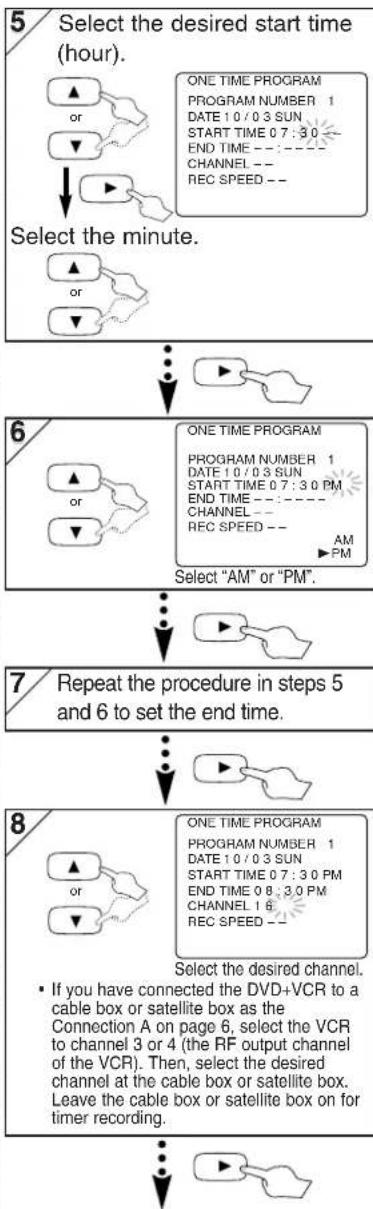


-12-

To cancel a Timer Recording in progress

Press the STOP/EJECT button on the DVD+VCR.

EN

Hint for Timer Recording

• If there is a power failure or the DVD+VCR has been unplugged for more than 30 seconds, the clock setting and all timer settings will be lost.
• If a tape is not in the DVD+VCR or does not have the record tab, the TIMER REC light flashes and timer recording cannot be performed. Please insert a recordable tape.
• If a tape ends during timer recording, the VCR will stop, eject the tape, and switch to the DVD mode automatically as the TIMER REC light flashes. (If the DVD power is off, the VCR will become STANDBY status.)
• When all timer recordings are finished, the TIMER REC light will flash.
• When timer recordings are set, the TIMER REC light will appear. To use the VCR as usual until the time for the recording, press the SUBTITLE/T-SET button so that the TIMER REC light disappears. Press the VCR/TV button to choose the VCR position. Select either VCR or DVD mode, then continue with the other features as described in this manual.

If you want to use the DVD player during a VCR timer recording or while the TIMER REC light is on or flashes.

- You can use the DVD player while the TIMER REC light is on or flashes, or during a timer recording. Press the POWER button to turn on the DVD. Press the DVD button on the remote control to choose DVD mode, then continue with the other DVD features as described in this manual. You don't have to set the TIMER off to use the DVD only.

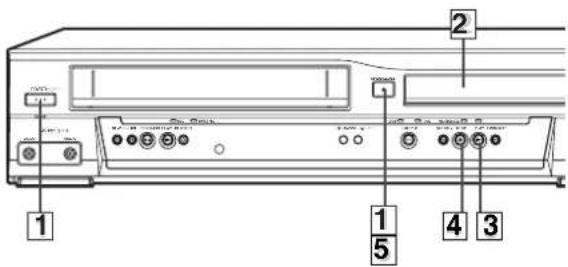

Copying a Video Tape

Warning: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

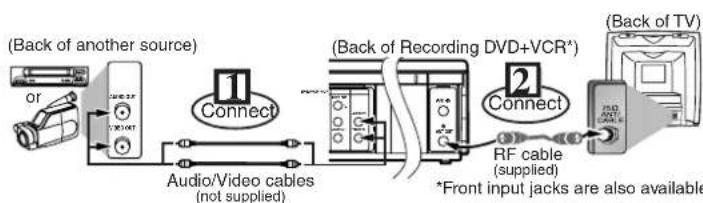


Hint

• For best results during dubbing, use the front panel controls whenever possible. The remote control might affect another source's operation.
  • Always use video-quality shielded cables with RCA-type connectors. Standard audio cables are not recommended.
• You can use a video disc player, satellite receiver, or other audio/video component with A/V outputs.
• "L1" or "L2" is found before the lowest memorized channel. (Example: CH02)
  • "L2" input jacks are on the front of this DVD+VCR.

1) Insert a pre-recorded tape into the playing VCR.
2) Insert a tape with its record tab into the recording DVD+VCR.
3) Press the SPEED button on the remote control of the recording DVD+VCR to select the desired recording speed (SP/SLP).
4) Select the "L1" or "L2" position on the recording DVD+VCR.
- To use the input jacks on the back of this unit, select "L1" position by pressing [0], [0], [1] on the remote control or the CHANNEL buttons.
- To use the input jacks on the front of this unit, select "L2" position by pressing [0], [0], [2] on the remote control or the CHANNEL buttons.
5) Press the REC/OTR button on the recording DVD+VCR.
6) Begin playback of the tape in another source.
7) To stop recording, press the STOP/EJECT button on the recording DVD+VCR, then stop playback of the tape in another source.

Need help? Call 1-800-813-3435

Special Features

Time Search Index Search Auto Repeat

You can specify the time for fast forwarding or rewinding.
- Insert a tape into this unit.

2 Select the desired length of time for fast forwarding or rewinding.

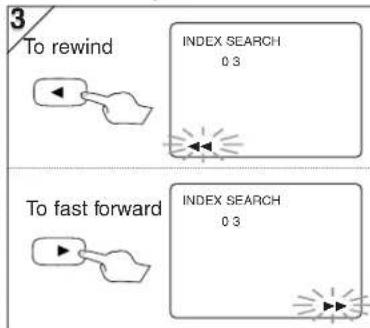

You can specify the number of programs to be skipped.
- Insert a tape into this unit.

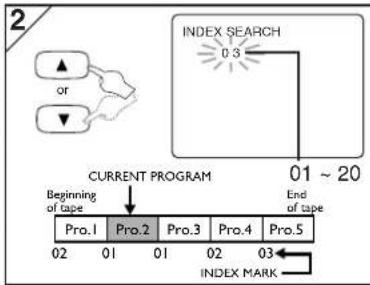


Hint

- This unit stores index mark at the beginning of the recording. There should be time gap between two index marks for the Index Search.

You can repeat playback of a whole tape automatically.
- Insert a tape into this unit.

Hint

• To cancel Auto Repeat, follow steps [1]-[2] above. Then, press the ▶ button, so that [OFF] appears beside AUTO REPEAT. Press the CLEAR/C.RESET button to exit.
• If menu remains on the TV screen at step [3], press the CLEAR/C.RESET button to exit.

Need help? Call 1-800-813-3435

Hint for Time Search & Index Search

• These functions are not available during recording.
- Press the STOP button to stop the search.
- If the end of the tape is reached during a Search, this unit will cancel the search and rewind the tape.

DVD Functions

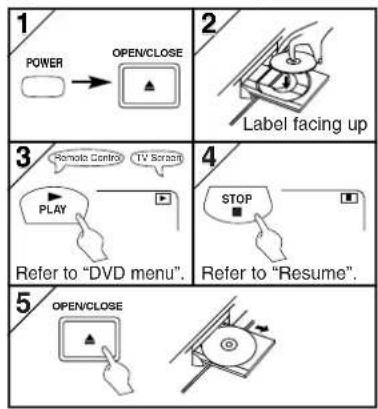

Playback

Before: Turn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio receiver (commercially available) are set to the correct channel.

Hint

• When you play an MP3 file, details on page 16.
• A "prohibited icon" may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit.
• Some DVDs may be played from title 2 or 3 due to specific programs.
• During the playback of a two-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.

TIP:

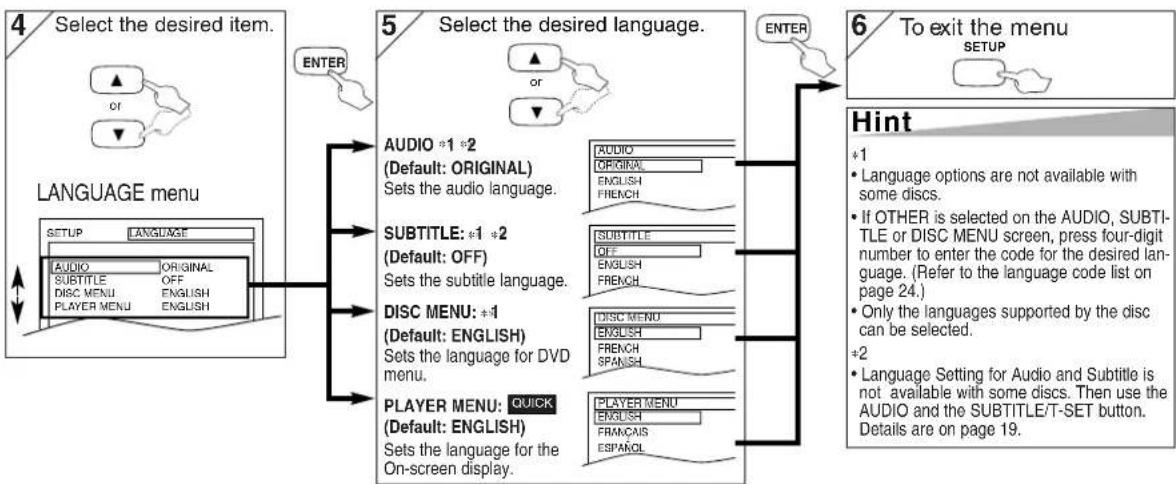

You can change the on-screen language for DVD function in "PLAYER MENU" setting. (Refer to page 20.)

DVD menu

DVDs may contain menus to access special features. Press appropriate Number buttons or use the arrow (▲/▼/◄/►) buttons to highlight your selection on the DVD main menu and press the ENTER button to confirm.

Calling up a Menu Screen during Playback

• Press the MENU button to call up the DVD menu.
• Press the TOP MENU button to call up the title menu. Note
• Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for details.

Resume

Press the STOP button. Resume message will appear on the TV screen.

Press the PLAY button, play-back will resume from the point at which playback was stopped.

• To cancel resume, press the STOP button one more time during the Stop mode.
- For MP3, playback will resume from the beginning of the track at which playback was stopped.

Paused and Step-by-Step Playback

Press the PAUSE button during playback. To continue playback, press the PLAY button.

The disc goes forward by one frame each time the PAUSE button is pressed during the pause mode. To continue playback, press the PLAY button.

Hint

- Set "STILL MODE" to "FIELD" in the Display menu if pictures in the pause mode are blurred. (Refer to pages 20-21.)

To use the SKIP/REV, FWD/SKIP buttons on the Main Unit

Press once to skip chapters or tracks to a desired point. Press and hold to change forward or reverse playback speed. To continue playback, press the PLAY button.

Fast Forward/Reverse Search

Press the ▶▶ or ◀◀ button repeatedly during playback to select the required forward or reverse speed.

To continue playback, press the PLAY button.

• For DVDs, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1(x2),2(x8),3(x50),4(x100).
• For Audio CDs, approximate speed is x16.
• For MP3, approximate speed is x8.

Slow Forward/Slow Reverse

Press the ▶▶ or ◀◀ button repeatedly during the pause mode to select the required forward or reverse speed.

To continue playback, press the PLAY button.

- Slow forward or reverse speed is different depending on the disc. Approximate speed is 1(1/16), 2(1/8), 3(1/2).

Hint

- Set "STILL MODE" to "FIELD" in the Display menu if pictures in the slow play-back mode are blurred. (Refer to pages 20-21.)

Need help? Call 1-800-813-3435

MP3 Playback

MP3 is a method of compressing files. You can copy MP3 files on CD-R/RWs from the computer and play the files on this unit.

Press the DVD button first.

Insert a MP3-format disc, then press the MENU button to call up the MP3 menu on the TV screen.

Hint

• Some selections may take a while to be recognized.
• Press the TOP MENU button to return to the first item.
• Folders are known as Groups; files are known as Tracks.
  • MP3 files are accompanied by icon.
• Folders are accompanied by ☐on.
• A maximum of 255 folders can be recognized.
  • A maximum of 512 files can be recognized.
• Up to 8 hierarchies can be created.
  This player recommends the files recorded under the following circumstances:
  • Sampling frequency: 44.1kHz or 48kHz
• Constant bit rate: 112kbps \~ 320kbps.

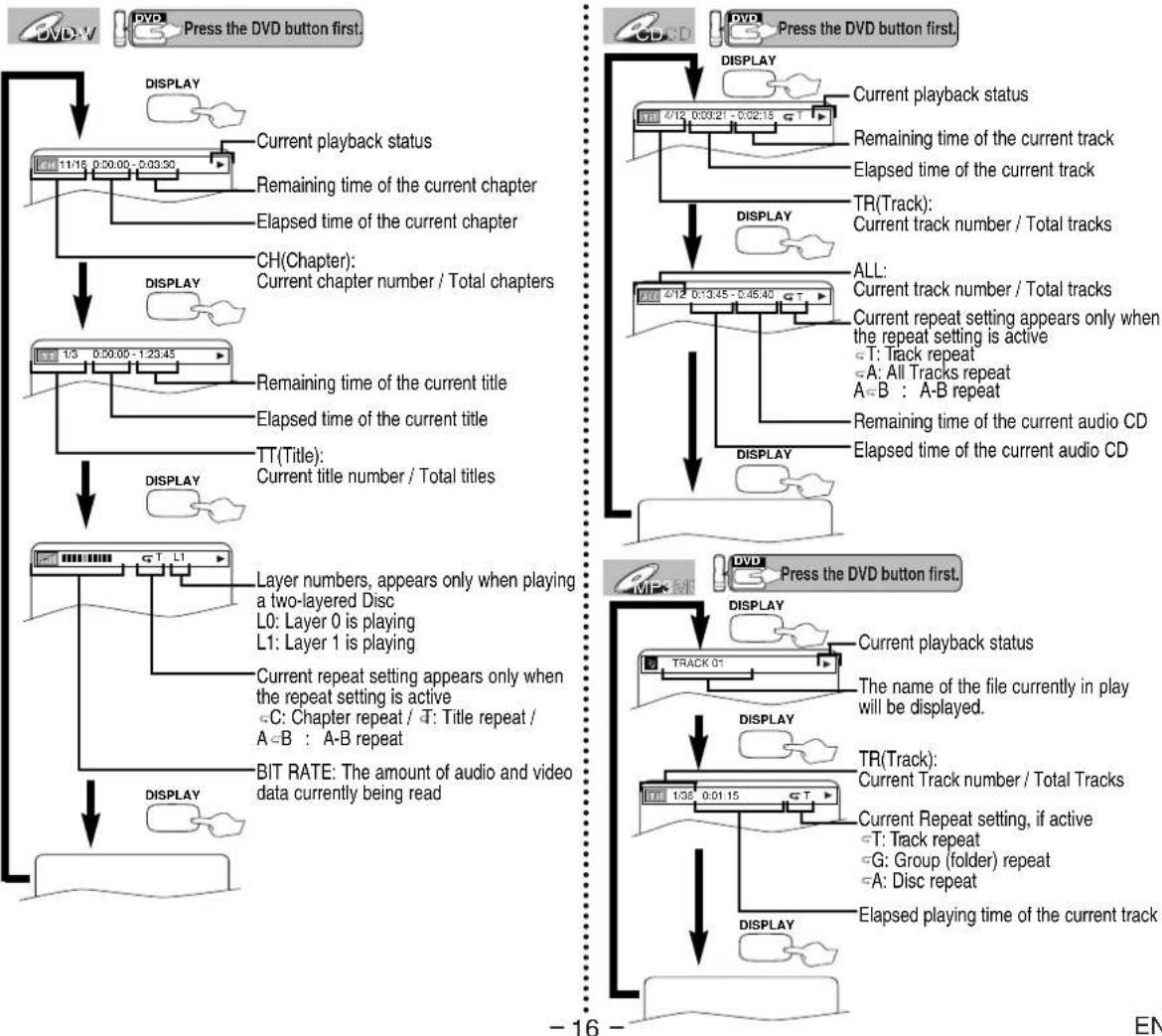

On-Screen Display

You can check the information about the current disc by pressing the DISPLAY button on the remote control.

    S["Press the DVD button first."] --> T["DISPLAY"]
    T --> U["Current playback status"]
    U --> V["TR(Track): Current track number / Total Tracks"]
    V --> W["Current Repeat setting, if active"]
    W --> X["T: Track repeat"]
    X --> Y["G: Group (folder) repeat"]
    Y --> Z["A: Disc repeat"]
    Z --> AA["Elapsed playing time of the current track"]

    AB["ALL: Current track number / Total tracks"] --> AC["4/12 0:13:45 - 0:45:40"]
    AC --> AD["Remaining time of the current track"]
    AD --> AE["TR(Track): Current track number / Total tracks"]
    AE --> AF["All: Current track number / Total tracks"]
    AF --> AG["Current repeat setting appears only when the repeat setting is active"]
    AG --> AH["A: All Tracks repeat"]
    AH --> AI["A<B : A-B repeat"]
    AI --> AJ["Remaining time of the current audio CD"]
    AJ --> AK["Elapsed time of the current audio CD"]

    AL["MIP"] --> AM["DVD Press the DVD button first."]
    AM --> AN["DISPLAY"]
    AN --> AO["TRACK 01"]
    AO --> AP["The name of the file currently in play will be displayed."]
    AP --> AQ["TR(Track): Current Track number / Total Tracks"]
    AQ --> AR["Current Repeat setting, if active"]
    AR --> AS["T: Track repeat"]
    AS --> AT["G: Group (folder) repeat"]
    AT --> AU["A: Disc repeat"]
    AU --> AV["Elapsed playing time of the current track"]

    AW["EN"] --> AX["-16"]

EN

Search Function

Track Search

Press the DVD button first.

Using the number buttons

• For single digit tracks (1-9), press a single number (eg. track 3, press 3).
  • To play track 29, press +10, 2, 9 of the Number buttons.

Using the SEARCH MODE button

Using the SKIP /◀◀, ▶▶/buttons

Title / Chapter Search

DVD Press the DVD button first.

Using the SEARCH MODE button

Press once for the chapter search. Press twice for the title search.

Using the SKIP /▲, ▶▶ buttons

Note

- Depending on the disc being played, this function can also be performed by directly entering the desired chapter number with the number buttons. Refer to the manual accompanying the disc.

Time Search

- When there is no need to enter a number, "0" appears automatically. For example, "0:0_:__" appears in the Time Search display if the total time of the disc is less than 10 minutes.

Need help? Call 1-800-813-3435

Marker Setup

This feature allows you to assign a specific point on a disc to be called back later.

To set a marker


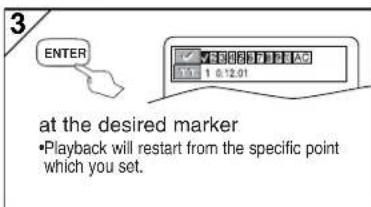

To return to the marker later

To exit the marker screen

Notes

• Opening the disc tray or turning off the power will erase all markers.
• Selecting "AC" at step [2] in the section "To set a marker" will also erase all markers.
• Toclear a marker, select the marker to be cleared at step [2] in the section "To return to the marker later," and then press the CLEAR/C.RESET button.

Repeat / Random / Programmed Playback

Repeat Playback

Repeat function is available only during playback.

Each time the REPEAT button is pressed...


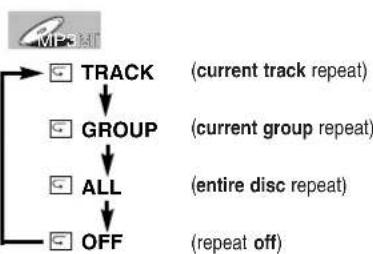

    note1["(current track repeat)"]
    note2["(current group repeat)"]
    note3["(entire disc repeat)"]
    note4["(repeat off)"]

• Repeat setting will be cleared when moving to another title, chapter, or track.
• Repeat playback are not available with all discs or during repeat A-B playback.

Need help? Call 1-800-813-3435

Repeat A-B Playback

at your desired end point (B)

- Point B should be in the same title or track as point A is.

• To exit the sequence, press the A-B button.
• To cancel Point A, press the CLEAR/C.RESET button.
• This function does not work in the other repeat modes.

Random Playback

This shuffles the playing order of tracks instead of playback in the sequence.

Press twice.

Note

- If you want to repeat the current track in the random selections, press the REPEAT button repeatedly until ☑ TRACK appears during playback. If you want to repeat the entire random selections, press the REPEAT button repeatedly until Ⓐ ALL appears during playback.

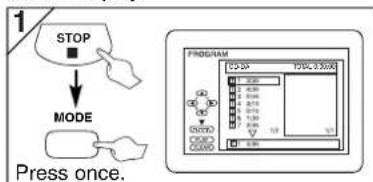

Programmed Playback

You may determine the order in which tracks will play.

Notes

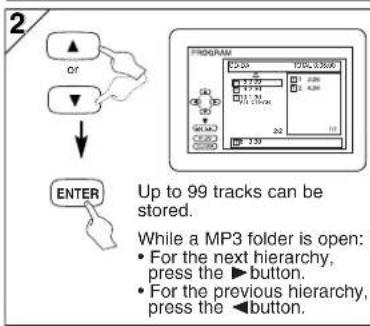

• Press the CLEAR/C.RESET button at step [2] to erase the most recently entered track.
• To erase all programmed tracks at once, select "ALL CLEAR" and press the ENTER button at step [2].
  ● While a program is being played back, the STOP button works as follows;
  →Press the STOP button and the PLAY button next, so that the programmed playback restarts. (CD playback restarts from the current point. MP3 playback restarts from the beginning of the current track.)
  →Press the STOP button twice and the PLAY button next, so that playback restarts from the first track in the original order. However, your programmed playback can be restarted when you follow the above steps. (Your program is still stored until either the disc tray is open or power is turned off.)
• To repeat the current track in the program, press the REPEAT button repeatedly until "☐RACK" appears during playback.
• To repeat the entire program, press the REPEAT button repeatedly until "ALL" appears during playback.

EN

Special Settings

Subtitle Language

DVD Press the DVD button first.

This unit allows you to select a subtitle language (if available) during DVD play-back.

Each time you press the SUBTITLE/T-SET button, subtitle languages change.

For example


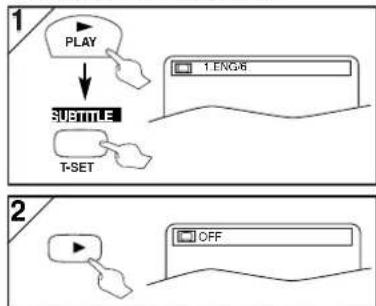

To set subtitle ON/OFF

Notes

• If your language is not shown after pressing the AUDIO or SUBTITLE/T-SET button several times, the disc may not have that language. However, some discs allow audio language or subtitle language setting on the disc menu. (Operation varies depending on the discs, so refer to the manual along with the disc.)
• When "NOT AVAILABLE" appears on the TV screen, it means no subtitle is recorded on the scene.
• If you choose a language that has a 3 letter language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, '-' will be displayed instead. (Refer to page 24.)

Need help? Call 1-800-813-3435

Audio Language

DVD Press the DVD button first.

This unit allows you to select an audio language (if multiple languages are available) during DVD playback.

Each time you press the AUDIO button; For example

Camera Angle

DVD-V Press the DVD button first.

Some DVD discs may contain scenes which have been shot simultaneously from various angles. You can change the camera angle if the ( ) icon appears on the screen the "ANGLE ICON" setting is "OFF" in the Display menu, the ( ) icon will not appear. (Refer to pages 20-21.)

Black Level Setting

DVD-V Press the DVD button first

Adjust the Black Level Setting to make the dark areas of the TV picture brighter.

2 ENTER OFF

ON: Makes the dark areas brighter. OFF: Shows the original picture as recorded.

3 RETURN

Stereo Sound mode

DVD Press the DVD button first.

This unit allows you to select a sound mode during CD playback.

Each time you press the AUDIO button;

Note

- If the Virtual Surround setting is "1" or "2", the sound mode will be fixed to STEREO, and can not be changed.

Virtual Surround (3D Surround Sound)

DVD Press the DVD button first.

You can enjoy stereophonic virtual world on your existing 2 channel stereo system.

Note (for CD play back only)

- Virtual Surround will not be effective if the sound mode is set to something other than STEREO.

DVD Set Up

DVD Press the DVD button first.

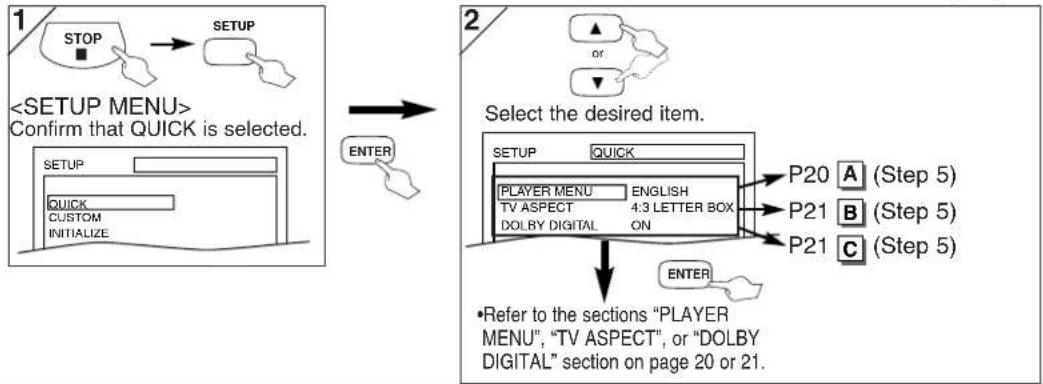

QUICK SETUP Menu

You can select the "PLAYER MENU", "TV ASPECT", or "DOLBY DIGITAL" from the QUICK SETUP menu quickly.

CUSTOM Menu

You can change the DVD player's settings.

    subgraph Setup
        F["SETUP"]
        G["QUICK"]
        H["CUSTOM"]
        I["INITIALIZE"]
    end

    subgraph Display
        J["SETUP"]
        K["DISPLAY"]
        L["TV ASPECT"]
        M["STILL MODE"]
        N["ANGLE ICON"]
        O["AUTO POWER OFF"]
    end

    subgraph Legend
        P["LIST"]
        Q["DOWN SAMPLING"]
        R["DOLBY DIGITAL"]
    end

    style Setup fill:#f9f,stroke:#333
    style Display fill:#ccf,stroke:#333

A LANGUAGE Setting

Follow the step 1) to 3) in the "CUSTOM Menu" section above.

    subgraph Section 1
        E["AUDIO *1 *2 (Default: ORIGINAL) Sets the audio language."] --> F["AUDIO"]
        G["SUBTITLE: *1 *2 (Default: OFF) Sets the subtitle language."] --> H["SUBTITLE"]
        I["DISC MENU: *1 (Default: ENGLISH) Sets the language for DVD menu."] --> J["DISC MENU"]
        K["PLAYER MENU: QUICK (Default: ENGLISH) Sets the language for the On-screen display."] --> L["PLAYER MENU"]
    end

    subgraph Section 2
        M["AUDIO"] --> N["ORIGINAL"]
        O["ENGLISH"] --> P["FRENCH"]
        Q["OFF"] --> R["FRENCH"]
        S["DISC"] --> T["FRENCH"]
        U["SPANSH"] --> V["FRENCH"]
        W["ENGLISH"] --> X["FRENCH"]
        Y["ENGLISH"] --> Z["FRENCH"]
        AA["ENGLISH"] --> AB["FRENCH"]
        AC["ENGLISH"] --> AD["FRENCH"]
        AE["ENGLISH"] --> AF["FRENCH"]
        AG["ENGLISH"] --> AH["FRENCH"]
        AI["ENGLISH"] --> AJ["FRENCH"]
        AK["ENGLISH"] --> AL["FRENCH"]
        AM["ENGLISH"] --> AN["FRENCH"]
        AO["ENGLISH"] --> AP["FRENCH"]
        AQ["ENGLISH"] --> AR["FRENCH"]
        AS["ENGLISH"] --> AT["FRENCH"]
        AU["ENGLISH"] --> AV["FRENCH"]
        AW["ENGLISH"] --> AX["FRENCH"]
        AY["ENGLISH"] --> AZ["FRENCH"]
        BA["ENGLISH"] --> BB["FRENCH"]
        BC["ENGLISH"] --> BD["FRENCH"]
        BE["ENGLISH"] --> BF["FRENCH"]
        BG["ENGLISH"] --> BH["FRENCH"]
        BI["ENGLISH"] --> BJ["FRENCH"]
        BK["ENGLISH"] --> BL["FRENCH"]
        BM["ENGLISH"] --> BN["FRENCH"]
        BO["ENGLISH"] --> BP["FRENCH"]
        BQ["ENGLISH"] --> BR["FRENCH"]
        BS["ENGLISH"] --> BT["FRENCH"]
        BU["ENGLISH"] --> BV["FRENCH"]
        BW["ENGLISH"] --> BX["FRENCH"]
        BY["ENGLISH"] --> BZ["FRENCH"]
        CA["ENGLISH"] --> CB["FRENCH"]
        CC["ENGLISH"] --> CD["FRENCH"]
        DE["ENGLISH"] --> DF["FRENCH"]
        DG["ENGLISH"] --> DH["FRENCH"]
        DI["ENGLISH"] --> DJ["FRENCH"]
        DK["ENGLISH"] --> DL["FRENCH"]
        DV["ENGLISH"] --> DW["FRENCH"]
        DX["ENGLISH"] --> DXF["FRENCH"]
        DXF --> DXF
    end

    subgraph Section 3
        E
        G
        H
        I
        J
        K
        L
        M
        N
        O
        P
        Q
        R
        S
        T
        U
        V
        W
        X
        Y
        Z
        AA
        AB
    end

    subgraph Section 4
        E
        G
        H
        I
        J
        K
        L
        M
        N
        O
        P
        Q
        R
        S
        T
        U
        V
        X
    end

    subgraph Section 5
        E
        G
        H
        I
        J
        K
        L
    end

    subgraph Section 6
        D
        E
        F
        G
        H
        I
        J
    end

    note1["AUDIO&quot; is selected on the AUDIO, SUBTITLE or DISC MENU screen, press four-digit number to enter the code for the desired language. (Refer to the language code list on page 24.)&quot;<br>    note2[&quot;Only the languages supported by the disc can be selected"]
    note3["Language Setting for Audio and Subtitle is not available with some discs. Then use the AUDIO and the SUBTITLE/T-SET button. Details are on page 19."]

EN

    subgraph Section 1
        E["AUDIO *1 *2 (Default: ORIGINAL) Sets the audio language."] --> F["AUDIO"]
        G["SUBTITLE: *1 *2 (Default: OFF) Sets the subtitle language."] --> H["SUBTITLE"]
        I["DISC MENU: *1 (Default: ENGLISH) Sets the language for DVD menu."] --> J["DISC MENU"]
        K["PLAYER MENU: QUICK (Default: ENGLISH) Sets the language for the On-screen display."] --> L["PLAYER MENU"]
    end

    subgraph Section 2
        M["AUDIO"] --> N["ORIGINAL"]
        O["ENGLISH"] --> P["FRENCH"]
        Q["OFF"] --> R["FRENCH"]
        S["DISC"] --> T["FRENCH"]
        U["SPANSH"] --> V["FRENCH"]
        W["ENGLISH"] --> X["FRENCH"]
        Y["ENGLISH"] --> Z["FRENCH"]
        AA["ENGLISH"] --> AB["FRENCH"]
        AC["ENGLISH"] --> AD["FRENCH"]
        AE["ENGLISH"] --> AF["FRENCH"]
        AG["ENGLISH"] --> AH["FRENCH"]
        AI["ENGLISH"] --> AJ["FRENCH"]
        AK["ENGLISH"] --> AL["FRENCH"]
        AM["ENGLISH"] --> AN["FRENCH"]
        AO["ENGLISH"] --> AP["FRENCH"]
        AQ["ENGLISH"] --> AR["FRENCH"]
        AS["ENGLISH"] --> AT["FRENCH"]
        AU["ENGLISH"] --> AV["FRENCH"]
        AW["ENGLISH"] --> AX["FRENCH"]
        AY["ENGLISH"] --> AZ["FRENCH"]
        BA["ENGLISH"] --> BB["FRENCH"]
        BC["ENGLISH"] --> BD["FRENCH"]
        BE["ENGLISH"] --> BF["FRENCH"]
        BG["ENGLISH"] --> BH["FRENCH"]
        BI["ENGLISH"] --> BJ["FRENCH"]
        BK["ENGLISH"] --> BL["FRENCH"]
        BM["ENGLISH"] --> BN["FRENCH"]
        BO["ENGLISH"] --> BP["FRENCH"]
        BQ["ENGLISH"] --> BR["FRENCH"]
        BS["ENGLISH"] --> BT["FRENCH"]
        BU["ENGLISH"] --> BV["FRENCH"]
        BW["ENGLISH"] --> BX["FRENCH"]
        BY["ENGLISH"] --> BZ["FRENCH"]
        CA["ENGLISH"] --> CB["FRENCH"]
        CC["ENGLISH"] --> CD["FRENCH"]
        DE["ENGLISH"] --> DF["FRENCH"]
        DG["ENGLISH"] --> DH["FRENCH"]
        DI["ENGLISH"] --> DJ["FRENCH"]
        DK["ENGLISH"] --> DL["FRENCH"]
        DV["ENGLISH"] --> DW["FRENCH"]
        DX["ENGLISH"] --> DXF["FRENCH"]
        DXF --> DXF
    end

    subgraph Section 3
        E
        G
        H
        I
        J
        K
        L
        M
        N
        O
        P
        Q
        R
        S
        T
        U
        V
        W
        X
        Y
        Z
        AA
        AB
    end

    subgraph Section 4
        E
        G
        H
        I
        J
        K
        L
        M
        N
        O
        P
        Q
        R
        S
        T
        U
        V
        X
    end

    subgraph Section 5
        E
        G
        H
        I
        J
        K
        L
    end

    subgraph Section 6
        D
        E
        F
        G
        H
        I
        J
    end

    note1["AUDIO&quot; is selected on the AUDIO, SUBTITLE or DISC MENU screen, press four-digit number to enter the code for the desired language. (Refer to the language code list on page 24.)&quot;<br>    note2[&quot;Only the languages supported by the disc can be selected"]
    note3["Language Setting for Audio and Subtitle is not available with some discs. Then use the AUDIO and the SUBTITLE/T-SET button. Details are on page 19."]

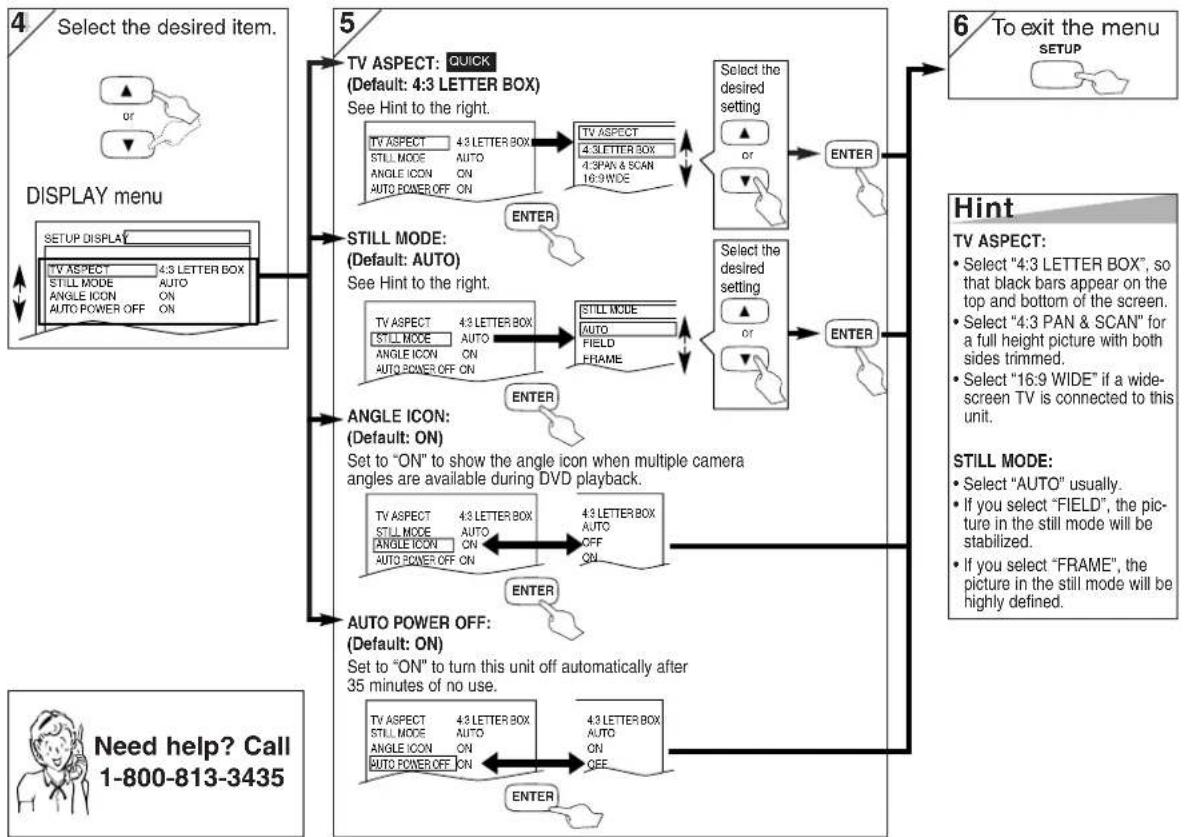

B DISPLAY Setting

You can change the display functions. Follow the step 1) to 3) in the "CUSTOM Menu" section on page 20.

C AUDIO Setting

Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD discs. Follow the step 1) to 3) in the "CUSTOM Menu" section on page 20.

    subgraph DRC
        G["DRC (Dynamic Range Control): (Default: ON)"]
        H["SET to "ON" to compress the range between soft and loud sounds."]
    end

    subgraph DOWN SAMPLING
        I["DOWN SAMPLING: (Default: ON)"]
        J["SET to "ON" when outputting in 48 kHz."]
        K["SET to "OFF" when outputting the original sound."]
    end

    subgraph DOLBY DIGITAL
        L["DOLBY DIGITAL: QUICK (Default: ON)"]
        M["DOLBY DIGITAL: ON"]
        N["DOLBY DIGITAL ON"] --> O["SET to "ON" when the unit is connected to a Dolby Digital receiver."]
        P["• ON: Outputs a Dolby Digital Signals"]
        Q["• OFF: Convert the Dolby Digital into PCM (2 channel)."]
    end

    subgraph Hint
        R["DRC: This function is available only on the discs which are recorded in the Dolby Digital format."]
        S["DOWN SAMPLING: When playing disc with copyright Protection, the sound will be down sampled at 48kHz, even if you set to OFF."]
        T["• This function is available only on digital outputting of a disc recorded in 96kHz."]
    end

EN

PARENTAL Setting

Parental Control limits the disc viewing that exceed your settings. (An incorrect password will not play.)

This feature prevents your children from viewing inappropriate materials.

Parental Levels

Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set. Follow the steps 1) to 3) in the "CUSTOM Menu" section on page 20.

To Change the Password for Parental Controls

You can change your password for parental controls. Follow the steps 1) to 3) in the "CUSTOM Menu" section on page 20.

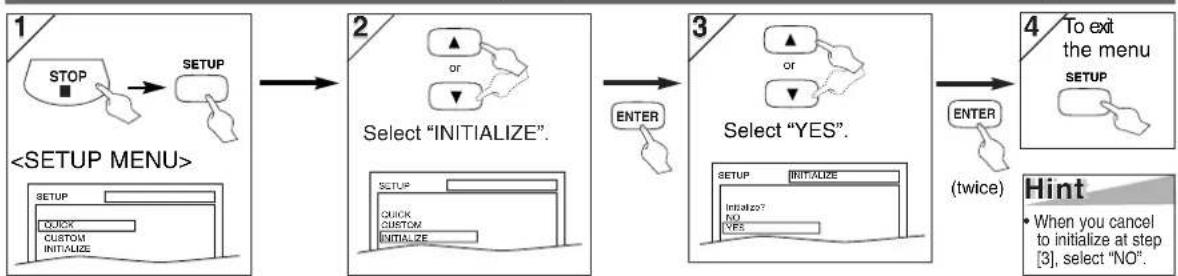

To return the All Selections of SET UP (except for PARENTAL) to the Default Setting

    subgraph Setup
        A --> B
        B --> C
        C --> D
    end

    subgraph navigation
        B -->|ENTER| C
        C -->|(twice)| D

    note right of B: Select "INITIALIZE".
    note right of C: Select "YES".
    note right of D: Hint
    note right of D: When_you_cancel_to_initialize_at_step["3"], select "NO".

EN

Information

Troubleshooting Guide

If this unit does not perform properly when operated as instructed in this Instruction Manual, check this unit consulting the following checklist.

	PROBLEM CORRECTIVE ACTION
DVR	No power. • Make sure the power plug is connected to an AC outlet.• Make sure the power is turned on.
	This unit does not respond to • Check if the power plug is connected to an AC outlet.the remote control. • Check the batteries in the remote control.• Aim the remote control directly at the remote sensor. If necessary, remove all the obstacles between the sensor and the remote control.• You have to be within 23 feet of this unit.• Check if the right mode is selected. If it's not in the right mode, press the DVD or VCR buttons, whichever you need, on the remote control.• Check if a cassette tape is in this unit.• Tune your radio to an empty AM station so that you hear a lot of noises. Turn the volume up. If you hear some signal sound from the radio in response to your pressing buttons on the remote control, the remote control is working.
	Poor picture or noise	• Interference signal may be received. Change the position and orientation of the unit.
VCR	Timer recording is impossible. • Make sure the timer recording is set correctly.• Make sure the TIMER REC light appears on the DVD+VCR. If not, press the SUBTITLE/T-SET button.• Make sure the VCR clock is set correctly.
	Cannot go into Record mode. • Make sure the tape has a safety tab. If needed, cover the hole with adhesive tape.• Activate this unit in VCR mode. Press the VCR button on the remote control so that the green VCR OUTPUT light is lit.
	Playback picture is partially noisy. • Adjust tracking control for a better picture by pressing the CHANNEL (▼/▲) buttons on the DVD+VCR or the SKIP/CH.(▲/▼) buttons on the remote control.
	Cannot view a tape but the audio is OK. • Head cleaning may be necessary. Refer to “AUTO HEAD CLEANING”.• Make sure the VCR is not in the Menu mode.
	No, or poor, playback picture. • Change the RF output channel to CH4. Then select the same channel on the TV.• Fine tune your TV.
	TV programs cannot be seen normally. • Re-check the ANT-IN and ANT-OUT connections. See pages 1 and 6.• Press the VCR/TV button.• Press the VCR button on the remote control to activate it in the VCR mode. Check if the green VCR OUTPUT light is lit. Then, set it to the TV position by pressing the VCR/TV button.
	Video or color fades in and out when making a copy of a video tape. • You cannot copy a copyrighted video tape. You are experiencing copy guard protection.
DVD	No picture. • Connect the video cables firmly.• Insert a correct video disc that plays on this unit.• Press the DVD button on the remote control. Check if the DVD OUTPUT light is lit. Then try other DVD features.• Check if the INTERLACE/PROGRESSIVE mode is set correctly according to your TV. See page 7.
	Disc cannot be played. • Insert the disc.• Clean the disc.• Place the disc correctly with the label side up.• Cancel the parental lock or change the control levels.• Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.
	No sound. • Connect the audio cables firmly.• Turn the power of the audio component on.• Correct the audio output settings.• Correct the input settings on the audio component.
	No DTS audio is output. • This unit does not support DTS audio. This is not a malfunction.
	Distorted picture. • Connect this unit directly to the TV.• There are some cases where pictures may be slightly distorted, and those are not a sign of a malfunction.• Although pictures may stop for a moment, this is not a malfunction.
	Audio or subtitle language does not match the set up. • The selected language is not available for audio or subtitles on the DVD.This is not a malfunction.
	The camera angle cannot be changed. • The DVD does not contain sequences recorded from different camera angles.This is not a malfunction.
	Audio or subtitle language cannot be changed. • The DVD does not contain audio source or subtitles in the selected language.This is not a malfunction.
	“Prohibited icon” appears on the screen, prohibiting an operation. • That operation is prohibited by this unit or the disc.This is not a malfunction.
	The PLAY indicator on the front panel flashes. • An unacceptable disc is installed.Insert a playable disc.

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Instruction Manual for details on correct operations.
• Playback from a desired track and random playback are not available during program playback.
  • Some functions are prohibited on some discs.

Specifications

Video Heads : Four Heads Output signal format : NTSC color Power source : 120 V AC +/- 10%, 60 Hz +/- 0.5% Power consumption : 21 W (standby: 3.6W)	Operating temperature : 41°F (5°C) to 104°F (40°C) Dimensions : W : 17 3/16"(435mm) H : 3 3/4" (94mm) D : 9 3/16" (233mm) Weight : Approx 6lbs (2.7kg)	• Designs and specifications are subject to change without notice. • If there is a discrepancy between languages, the default language will be English.
		As an ENERGY STAR®Partner, our company has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. ENERGY STAR®is a U.S. registered mark.

Language List

Language	Code	Language	Code	Language	Code	Language	Code
A-B		French [FRE]	5264	Macedonian	5957	Siswat 6565
Abkhazian 4748		Frislan 5271		Malagasy 5953		Slovak	6557
Afar 4747		Galician	5358	Malay	5965	Slovenian	6558
Afrikaans 4752		Georgian	5747	Malayalam	5958	Somali	6561
Albanian 6563		German [GER]	5051	Maltese	5966	Spanish [SPA]	5165
Amharic 4759		Greek [GRE]	5158	Maori	5955	Sundanese	6567
Arabic 4764		Greenlandic	5758	Marathi 5964		Swahili	6569
Armenian 5471		Guarani 5360		Moldavian	5961	Swedish [SWE]	6568
Assamese 4765		Gujarati	5367	Mongolian	5960	T
Aymara 4771		Hausa	5447	Nauru	6047	Tagalog	6658
Azerbaijani 4772		Hebrew	5569	Nepali 6051		Tajik	6653
Bashkir 4847		Hindi	5455	Norwegian [NOR]	6061	Tamil	6647
Basque 5167		Hungarian [HUN]	5467	O-R		Tatar	6666
Bengali;Bangla 4860		I-K		Occitan 6149		Telugu 6651
Bhutani 5072		Icelandic [ICE]	5565	Oriya	6164	Thai	6654
Bihari 4854		Indonesian	5560	Oromo(Afan)	6159	Tibetan 4861
Bislama 4855		Interlingua 5547		Panjabi 6247		Tigrinya 6655
Breton 4864		Interlingue 5551		Pashto;Pushto	6265	Tonga	6661
Bulgarian 4853		Inupiak	5557	Persian 5247		Tsonga 6665
Burmese	5971	Irish [IRI]	5347	Polish	6258	Turkish [TUR]	6664
Byelorussian	4851	Italian [ITA] 5566		Portuguese [POR]	6266	Turkmen	6657
C-E		Japanese [JPN]	5647	Quechua	6367	TwI	6669
Cambodian	5759	Javanese 5669		Rhaeto-Romance	6459	U-Z
Catalan	4947	Kannada	5760	Romanian [RUM]	6461	Ukrainian 6757
Chinese [CHI]	7254	Kashmiri 5765		Russian [RUS]	6467	Urdu	6764
Corsican	4961	Kazakh 5757		S		Uzbek 6772
Croatian	5464	Kinyarwanda	6469	Samoan	6559	Vietnamese	6855
Czech 4965		Kirghiz	5771	Sangho	6553	Volapuk	6861
Danish [DAN]	5047	Kirundi	6460	Sanskrit	6547	Welsh	4971
Dutch [DUT]	6058	Korean [KOR]	5761	Scots Gaelic	5350	Wolof 6961
English [ENG]	5160	Kurdish 5767		Serbian	6564	Xhosa 7054
Esperanto	5161	L-N		Serbo-Croatian	6554	Yiddish	5655
Estonian 5166		Laothian	5861	Sesotho 6566		Yoruba	7161
F-H		Latin	5847	Setswana	6660	Zulu	7267
Faroese	5261	Latvian; Lettish	5868	Shona	6560
Fiji	5256	Lingala	5860	Sindhi	6550
Finnish [FIN]	5255	Lithuanian	5866	Singhalese 6555

If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 19. If you choose any other languages, ‘---’ will be displayed instead. (3 letter language code is written in bracket.)

For assistance in obtaining repairs and operational information, please contact the following Toll Free Number:

DIAL TOLL FREE: 1-800-813-3435

Weekdays: 7:30 AM - 4:00 PM Central Time

Also, you may write to SANYO Manufacturing Corporation, 3333 Sanyo Road, Forrest City, Arkansas 72335.

Limited Warranty

LABOR 1 YEAR PARTS 1 YEAR CARRY-IN ONLY

THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED FROM A WAL-MART STORE AND USED IN THE UNITED STATES OF AMERICA, EXCLUDING HAWAII AND ALL U.S. TERRITORIES AND PROTECTORATES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL PURCHASER AND DOES NOT APPLY TO PRODUCTS USED FOR ANY INDUSTRIAL, PROFESSIONAL OR COMMERCIAL PURPOSE.

Subject to the OBLIGATIONS and EXCLUSIONS below, SANYO Manufacturing Corporation ("SANYO") warrants this SANYO product against defects in materials and workmanship for the periods of LABOR and PARTS specified above. SANYO will repair or replace (at its option) the product and any of its parts which fail to conform to this warranty with new or refurbished products or parts.

The warranty period commences on the date the product was first purchased at retail from a Wal-Mart Store.

OBLIGATIONS

In order to obtain warranty service, the product must be delivered to and picked up from a Wal-Mart Store at the original retail purchaser's expense. The original dated bill of sale, or sales slip from a Wal-Mart Store must be submitted to a Wal-Mart Store at the time warranty service is requested.

EXCLUSIONS

1. This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model's instruction manual, or (B) the repair of any product whose serial number has been altered, defaced or removed.
2. This warranty shall not apply to the cabinet or cosmetic parts, broken or damaged video heads, batteries or routine maintenance.
3. This warranty does not apply to uncrating, setup, installation, removal of the product for repair or reinstallation of the product after repair.
4. This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SANYO including, but not limited to, any malfunction, defect or failure caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by user or any third party, abuse, misuse, neglect, accident, incorrect line voltage, fire, flood or other Acts of God, or normal wear and tear.

The foregoing is in lieu of all other express warranties and SANYO does not assume or authorize any party to assume for it any other obligation or liability.

THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS) IS LIMITED TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL SANYO OR THE MANUFACTURER OF THE PRODUCT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIAL LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. R03/12/18 (M)

For your protection in the event of theft or loss of this product, please keep the following information with a sales receipt in a safe place.

Model No. ____ Serial No.

Date of Purchase

Purchase Price ____ Where Purchased

SANYO Manufacturing Corporation

Conexiones

2

Consejo

SANYO Manufacturing Corporation

SANYO Electric Co., Ltd.
