Product Type	Fan
Brand	Black & Decker
Model	BXEFP60E
Maximum Airflow	40.67 m³/min
Power Input	56.40 W
Service Value	0.72 (m³/min)/W
Standby Power Consumption	0.00 W
Sound Power Level	59.24 dB(A)
Maximum Air Velocity	3.49 m/s
Oscillation Angle	75°
Speed Settings	3
Tilt Adjustment	Yes, manual tilt
Handle	Yes, on motor body
Power Supply	220-240 V~, 50 Hz
Fan Type	Stand fan
Assembly Required	Yes, base and guard assembly
Cleaning Method	Wipe with damp cloth and mild detergent
Indoor Use Only	Yes
Warranty	Legal guarantee per current legislation
Safety Features	Overheat protection not specified; safety precautions in manual

Frequently Asked Questions - BXEFP60E BLACK & DECKER

How do I assemble the stand fan model BXEFP60E?

First, insert the lower stand tube into the base hole and align the foot with the base space. Secure with four screws. Then, insert the upper stand tube into the lower stand tube and turn clockwise to tighten. Next, remove the spinner lock nut and guard lock nut from the motor shaft, fit the rear guard onto the location pins, and secure with the guard lock nut. Push the fan blade onto the motor shaft matching slots with the shaft pin, and tighten the spinner lock nut counter-clockwise. Finally, fit the front guard and press the securing clip.

How do I clean the fan?

Always disconnect the fan from the mains and allow it to cool before cleaning. Use a damp cloth with a few drops of washing-up liquid to wipe the surfaces, then dry thoroughly. Do not use solvents, abrasive products, or submerge the fan in water. Avoid getting any liquid into the motor vents.

How does the oscillation function work?

The oscillation function directs airflow automatically across a 75° range. To activate, press the oscillation control knob (J). To deactivate, press it again.

Can I use this fan outdoors?

No, the fan is designed for indoor household use only. Do not use or store it outdoors, in rain, or in moist conditions to prevent electric shock.

How do I adjust the tilt of the fan?

You can adjust the tilt by simply moving the fan head with your hand to the desired angle.

What should I do if the fan stops working?

First, check that the power cord is fully unrolled and undamaged, and that the plug is properly inserted. Ensure the on/off switch is in a speed position. If it still doesn't work, do not attempt to repair it yourself. Contact authorized technical support.

How many speed settings does the fan have?

The fan has three speed settings, controlled by the speed button (Q).

Is it safe for children to use this fan?

The fan can be used by children aged 8 and above if supervised. Children should not play with the appliance. Cleaning and maintenance should not be done by children without supervision.

How should I store the fan when not in use?

Disconnect from mains, clean it, and store in a dry place out of reach of children. Keep the power cord unwrapped and avoid creasing.

What is the power consumption of the fan?

The fan has a power input of 56.40 W during operation. Standby power consumption is 0.00 W.

USER MANUAL BXEFP60E BLACK & DECKER

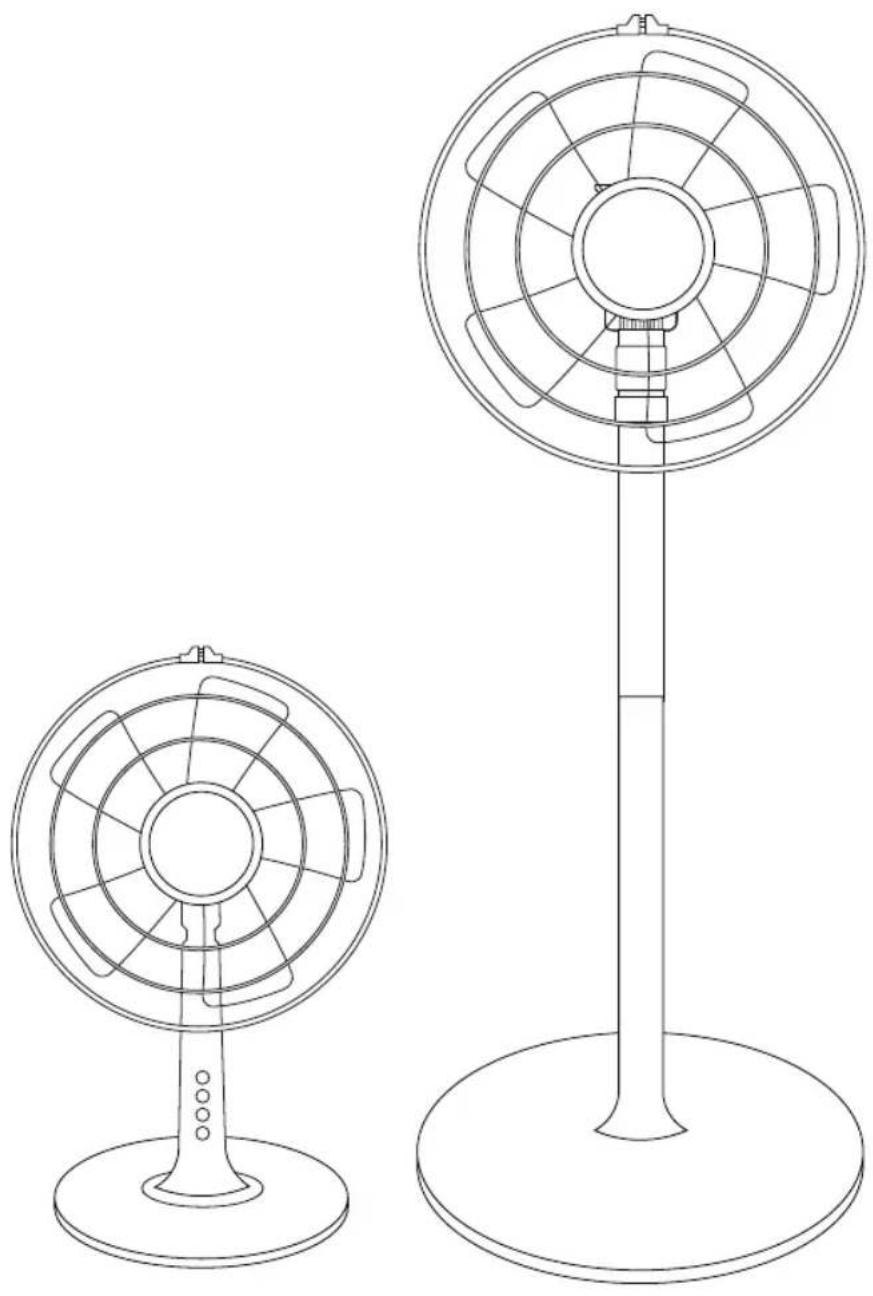

Line drawing of two different outdoor fan-shaped devices, one with a circular fan and the other a flat stand (no text or symbols)

Illustration of hands performing a mechanical maneuver with a spring and rope, showing motion arrows (no text or symbols)

ENGLISH

(Original instructions)

FAN

BXEFD40E

BXEFP60E

Dear customer,

Many thanks for choosing to purchase a BLACK+DECKER brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR- NINGS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• Ensure that the fan is switched off from the supply mains before start any installation or assembly operation.
  ◆ Disconnect the appliance from the mains before undertaking any

cleaning task. Ensure that the fan is switched off from the supply mains before removing the guard.

If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.
- This appliance is for household use only, not professional, industrial use.
- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
- Connect the appliance to a socket that can supply a minimum of 10 amperes.
- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
- The appliance must be used and placed on a flat, stable surface.
- Do not use the appliance if the cable or plug is damaged.
If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
Do not wrap the power cord around the appliance.
Do not clip or crease the power cord.
- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
- The appliance is not suitable for outdoor use.
Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
Do not use or store the appliance outdoors.
Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
Do not touch the plug with wet hands.
- Do not touch any of the appliance's moving parts while it is operating.

Use and care:

• Fully unroll the appliance's power cable before each use. If the model of your appliance does not have the
• Do not use the appliance if the on/off switch does not work.
  accessories described above, they can also be bought separately from the Technical Assistance Service.

◆ Use the appliance handle/s, to catch it or move it.

- Do not use the appliance if it is tipped up and do not turn it over.

- Do not turn the appliance over while it is in use or connected to the mains.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Service:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

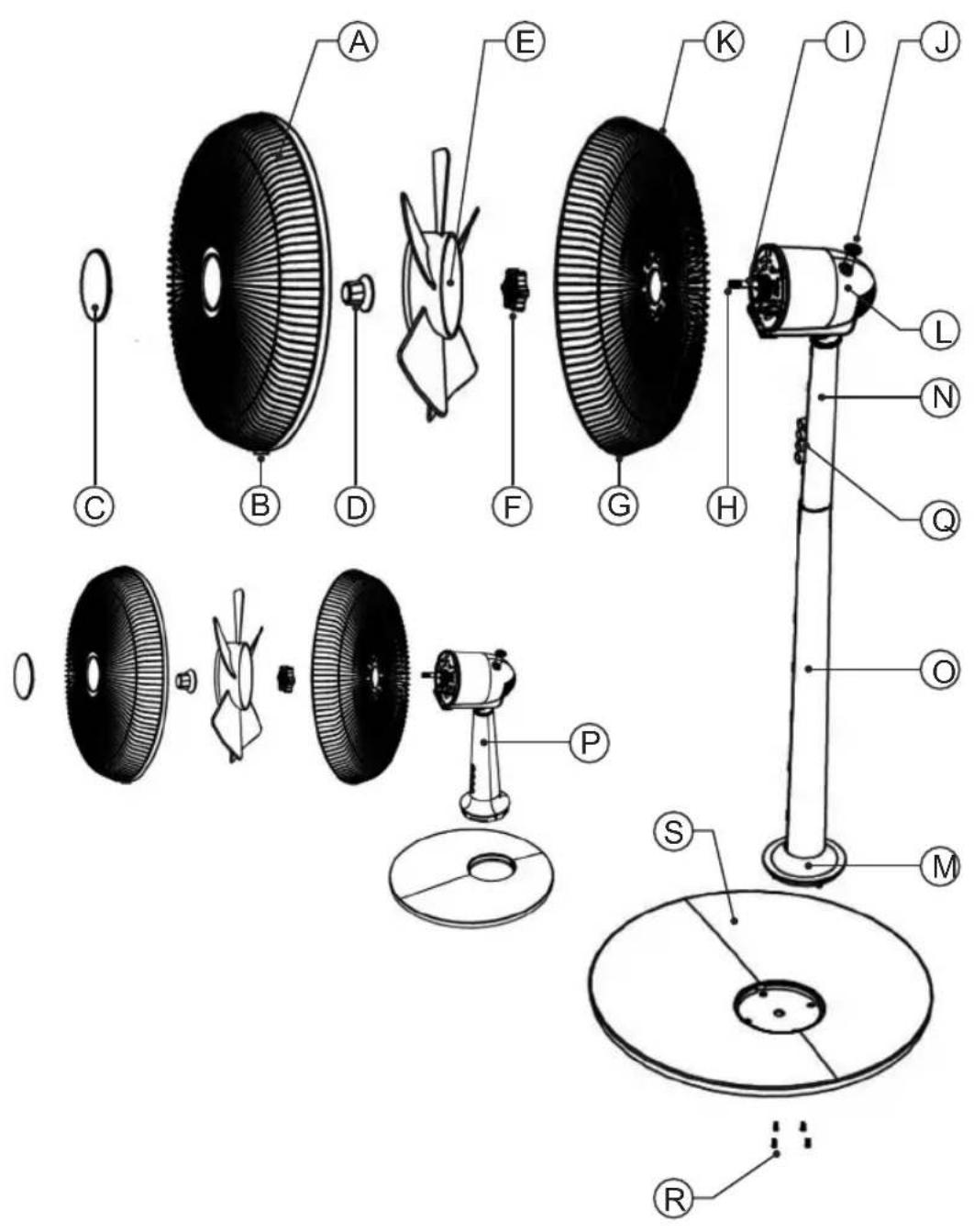

DESCRIPTION

A Front grill

B Guard securing

C Front cover

D Spinner lock nut

E Propeller

F Guard lock nut

G Rear grill

H Motor shaft

I Shaft pin

J Oscillation control knob

K Handle

L Motor cover

M Foot base

N Upper stand tube *

O Lower stand tube *

P Stand tube

Q Speed button

R Screw *

S Base plate

(*) Only available on BXEFP60E

INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
• Ensure that the fan is switched off from the supply mains before start any installation or assembly operation.
• The appliance should be used with its base fitted.

Assembling the base (ONLY FOR THE DESK FAN):

Put the power cord into the base hole and set the bulge of stand tube alignment with space of base hole, and turn the stand tube by clockwise direction.

ASSEMBLING THE BASE (ONLY FOR THE STAND FAN):

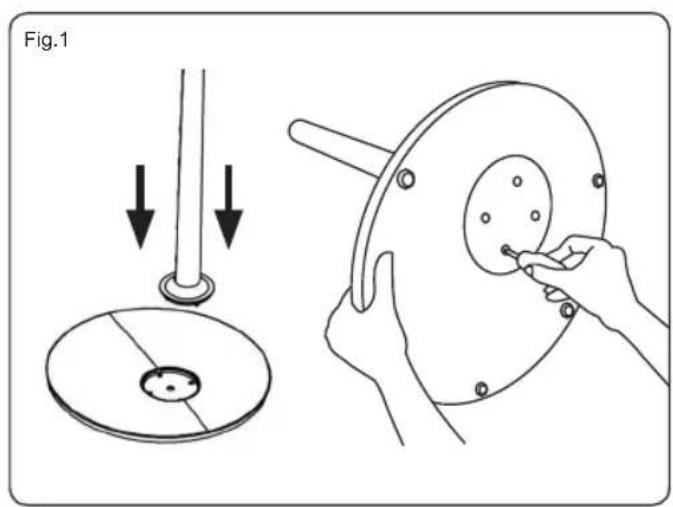

- Insert the lower stand tube (O) into the base hole (S) and keep the foot (M) of the stand tube alignment with space of the base hole.

- Then use four screws (R) tighten (Fig.1).

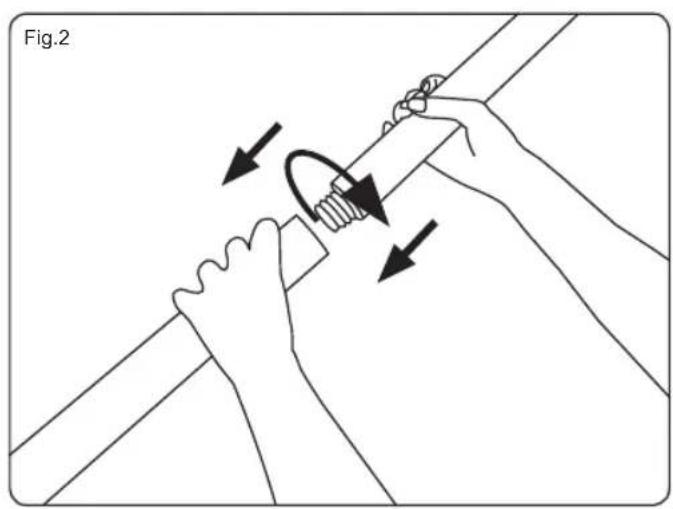

- Insert the upper stand tube (N) into the lower stand tube (O) by hand near the thread zone and turning it in a clockwise direction (Fig.2).

Assembling the grill and the propeller:

• Remove the spinner lock nut and guard lock nut from the motor shaft spindle.
  ◆ Fit the rear guard, by positioning on the location pins

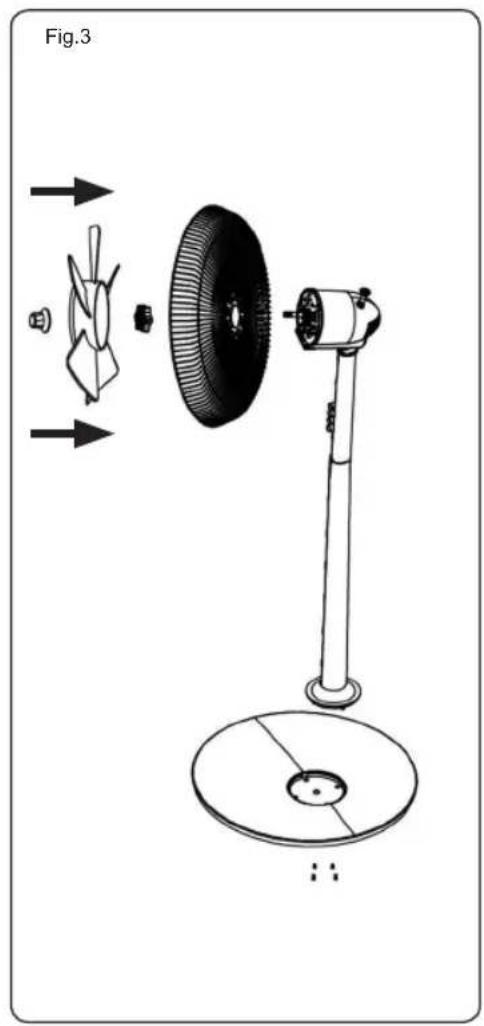

• Secure the guard to the motor body with the guard lock nut (Fig. 3).
• Push the fan blade onto the motor shaft by matching the slots on the base of the blade with the shaft pin.
• Secure the blade with the spinner lock nut. The spinner lock nut must be tightened by turning it in a counter-clockwise direction. Check that the fan blades rotate freely by turning with your hand.

- Open the securing clip of the front guard.

- Fit together the rear guard with the front guard and press the securing clip.

INSTRUCTIONS FOR USE

Before use:

- Make sure that all products' packaging has been removed.

Use:

◆ Unroll the cable completely before plugging it in.
- Connect the appliance to the mains.
- Turn the appliance on, by using one of the speed

ENGLISH

(Original instructions)

selection buttons.

- Select the desired ventilation speed.

Oscillation function:

The oscillation function makes it possible to direct the flow from the apparatus so that it automatically alternates over a range of 75^ .
◆ To activate this function, press the (J) switch.
- To deactivate this function, follow the procedure for switching it on in reverse.

TILTING:

- The appliance can be adjusted for a desired tilt with your hand.

Once you have finished using the appliance:

• Stop the appliance, selecting position 0 on the selector control.
  ◆ Unplug the appliance from the mains.
• Clean the appliance.

Carry handle/s:

- This appliance has a handle on the upper part of the body, which facilitates comfortable transportation.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
  Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
  If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For EU product versions and/or in case that it is requested in your country: Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

- The following information details the features related to ecodesign.

BXEFP60E
Maximum fan flow rate (F) 40,67 m ^3 /min
Fan power input(P) 56,40W
Service value (SV) (according to IEC 60879)	0,72 (m ^3 /min)/W
Standby power consumption (PSB)	0,00 W
Fan sound power level (LWA)	59,24 dB(A)
Maximum air velocity( c ) 3,49 metres/sec

BXEFD40E
Maximum fan flow rate (F) 2	2,92 m ^3 /min
Fan power input(P) 36,40 W
Service value (SV) (according to IEC 60879)	0,63 (m ^3 /min)/W
Standby power consumption (PSB)	0,00 W
Fan sound power level (LWA)	57,52 dB(A)
Maximum air velocity (c) 2	88 metres/sec

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the

legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://www.2helpu.com/

You can also request related information, by contacting us (see the last page of the manual).

You can download this instruction manual and its updates at http://www.2helpu.com/
