PCG200 - Sander BLACK & DECKER - Free user manual and instructions

Type	Random Orbital Sander
Brand	Black & Decker
Model	PCG200
Power Rating	200 W
Voltage	230 V ~ 50 Hz
No-Load Speed	12,000 OPM
Orbit Diameter	1.6 mm
Sanding Pad Size	125 mm (5 in)
Dust Collection	Micro-filter dust canister
Weight	1.3 kg
Dimensions (L x W x H)	200 x 125 x 150 mm
Cable Length	2 m
Vibration Level	2.5 m/s²
Sound Pressure Level	80 dB(A)
Grip	Soft-grip handle
Switch	Lock-on button
Safety	Double insulated, no earthing required
Sandpaper Attachment	Hook and loop (Velcro)
Included Accessories	5 sanding discs, dust bag (optional)
Maintenance	Clean dust filter after each use
Reparability	Replaceable sanding pad and carbon brushes

Frequently Asked Questions - PCG200 BLACK & DECKER

What is the power rating of the PCG200 sander?

The PCG200 sander has a 200 W motor, suitable for light to medium sanding tasks.

How do I change the sanding disc?

Press the hook and loop disc firmly onto the pad. To remove, simply peel it off. Ensure the sander is unplugged before changing.

Can I use this sander for wet sanding?

No, this sander is designed for dry sanding only. Using it with water may cause electrical shock or damage.

How do I connect the dust extraction?

Attach the dust canister or a vacuum hose (not included) to the dust port on the back of the sander. Ensure a tight fit for optimal dust collection.

Is the speed adjustable?

The PCG200 has a fixed speed of 12,000 OPM. It does not have a variable speed dial.

What type of sandpaper does it use?

It uses 125 mm (5 in) sanding discs with hook and loop backing. Various grits are available.

How to clean the dust filter?

Remove the dust canister, take out the micro-filter, and tap it gently or rinse with water. Let it dry completely before reuse.

What safety precautions should I take?

Always wear safety goggles and a dust mask. Keep the cord away from the sanding area. Unplug when changing discs or cleaning.

Can I use it for sanding walls?

Yes, for drywall or plaster, but use a finer grit and connect a vacuum to minimize dust. Avoid excessive pressure.

Where can I buy replacement parts?

Contact Black & Decker customer service or authorized dealers. Common parts like sanding pads and carbon brushes are available online.

USER MANUAL PCG200 BLACK & DECKER

Line drawing of a portable power tool with 'PORTER CABLE' branding and screwdriver (no text or symbols on the device itself)

A

Technical diagram showing a mechanical assembly with labeled parts 5 and 6

1 2 3 4 POTTER MILE

B1

B1 8 10 9 7

C1

Technical diagram showing mechanical assembly with labeled parts 5 and 7

C2

7 5 14 6

B2

32 4 11

C3

Technical diagram showing a mechanical component with labeled parts 5 and 6

C4

Technical line drawing of a mechanical component with no visible text or symbols

D

1583

E

E 6 17 16 7

F

18 2

G

Line drawing of hands using a power tool to clean or wear a substance (no text or symbols)

H

20° - 30°

|

5° - 15°

PCG200 600W 100mm Angle Grinder

TECHNICAL DATA

SPECIFICATION		PCG200-XE
Input Voltage	V	230
Power Input	W	600
No load speed	RPM	11,000
Maximum Wheel Size	mm	100 × 6 × 16
Spindle		M10
Weight	Kg	1.5
Cable Length	M	3

INTENDED USE

Your Porter-Cable Small Angle Grinder has been designed for grinding at various work sites.

SAFETY INSTRUCTIONS

General power tool safety warnings

Warning! Read all safety warnings and all

instructions. Failure to follow all instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

g. Recommendation for the use of a residual current device with a rated residual current of 30 mA or less.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

4. Power tool use and care

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power g. Recommendation for the use of a residual current device with a rated residual current of 30 mA or less. tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will make sure that the safety of the power tool is maintained.

ADDITIONAL SAFETY INSTRUCTIONS FOR AUSTRALIA AND NEW ZEALAND

a. Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure they do not play with this appliance.
b. Replacement of the supply cord. If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Porter-Cable Service Centre in order to avoid a hazard.

SAFETY WARNINGS COMMON FOR GRINDING OPERATION:

a. This power tool is intended to function as a grinder. Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

b. Operations such as sanding, wire brushing, polishing or cutting off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c. Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d. The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
e. The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f. The arbour size of wheels, flanges, backing pads or any other accessory must properly fit the spindle of the power tool. Accessories with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
g. Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
h. Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i. Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
j. Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its

own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.

k. Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
I. Never lay the power tool down until the accessory has come to a complete stop. Thespinning accessory may grab the surface and pull the power tool out of your control.
m. Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
n. Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
o. Do not operate the power tool near flammable materials. Sparks could ignite these materials.
p. Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

KICKBACK AND RELATED WARNINGS

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a. Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b. Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c. Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

d. Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e. Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS:

a. Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b. The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel.
c. Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
d. Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
e. Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

SYMBOLS

The label on your tool may include the following symbols:

V Volts

A ......Amperes

Hz ......Hertz

W ......Watts

min......minutes

\~....Alternating current —....Direct current

n_0 No load speed

Class II Construction Earthing terminal

⚠️ ......Safety alert symbol

.../min......Revolutions or reciprocations per minute

DOUBLE INSULATION

The tool is double insulated. Double insulation means that all the external metal parts are electrically insulated—from the mains power supply. This is done by placing insulated barriers between the electrical and mechanical-components so as to making unnecessary for the tool to be earthed.

NOTE: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

ELECTRICAL SAFETY

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

WARNING: Never connect the live (L) or neutral (N)

wires to the earth pin marked E or ⊕.

USING AN EXTENSION CABLE

An extension cable should not be used unless absolutely necessary. Use of an improper extension cable could result in a risk of fire and electric shock. If an extension cable must be used, use only those that are approved by the country's Electrical Authority. Make sure that extension cord is in good condition before using. Always use the cord that is suitable for the power input of your tool (see technical data on name plate). The minimum conductor size is 1.5mm. When using a cable reel, always unwind the cable completely.

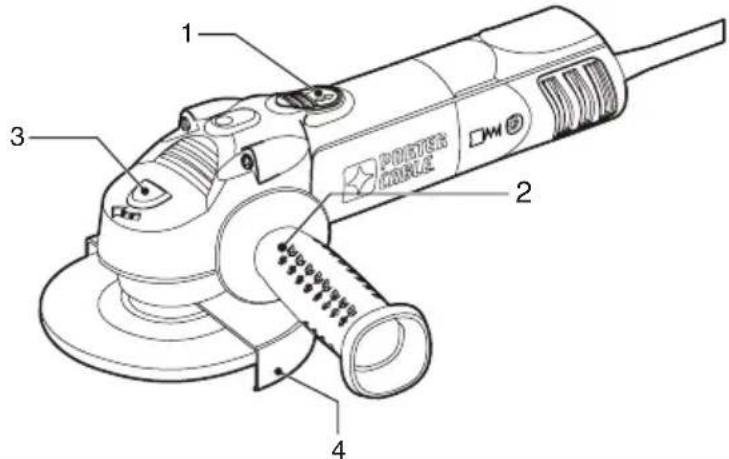

DESCRIPTION (FIG. A)

1. On/off switch
2. Side handle
3. Spindle lock
4. Wheel guard
5. Inner flange
6. Outer flange

ASSEMBLY AND ADJUSTMENT

Prior to assembly and adjustment always unplug the

tool.

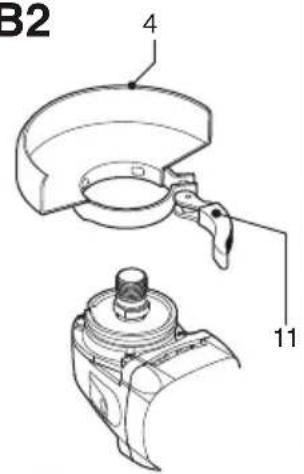

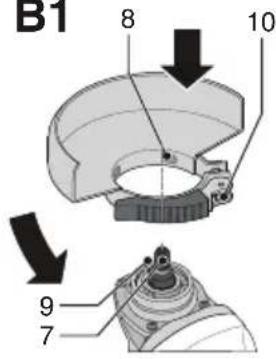

Mounting and Removing the Guard (Fig. B)

Mounting

• Place the angle grinder on a flat and steady surface, spindle (7) up (fig. B1).
• Release the clamping lock (11) and hold the guard (4) over the tool as shown.

• Align the lugs (8) with the notches (9).

• Press the guard down and rotate it to the required position.

• If required, increase the clamping force by tightening the screw (10).
  • Tighten the clamping lock.
  • To remove the guard, release the clamping lock.

Do not operate the grinder with a loose guard.

Removing

- Follow the procedure above in reverse order.

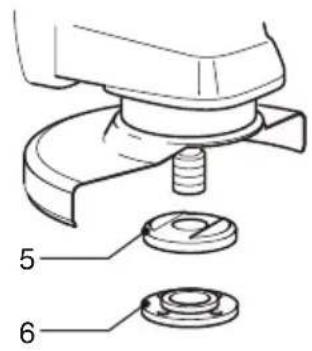

Mounting and Removing Grinding Wheels or Cutting

Discs (Fig. C & D)

Your grinder comes with two reversible flanges to accommodate a wide variety of different accessories. Make sure the correct sides of the flanges are being used ensuring no excessive play between the accessory and the flanges.

Mounting

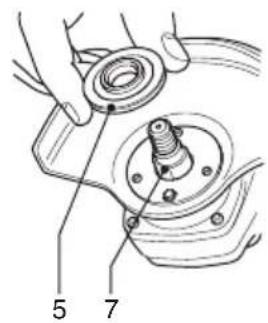

• Place the inner flange (5) on the grinder spindle (7) (fig. C1).
• Place the wheel (14) against the flange. Screw the threaded flange (6) onto the spindle (7). (fig. C2).
• Make sure that the threaded outer flange (6) is facing in the correct direction for the type of disc fitted. For grinding discs, the flange (6) is fitted with the raised portion facing towards the disc (fig. C3). For cutting discs, the flange(6) is fitted with the inner portion facing away from the disc (fig. C4).
• Press in the spindle lock button (3) and rotate the spindle until it locks. Keeping the lock button pressed in, tighten the threaded flange (6) with the spanner (15) provided (fig. D)
• Release the spindle lock.

Removing

• Follow the procedure above in reverse order.

Mounting and Removing the Rubber Backing Pad (Fig. D & E)

The rubber-backing pad is available as an option. The guard is not required when using the tool for sanding with the backing pad.

Mounting

• Remove the guard from the tool.
• Press the backing pad (16) onto the spindle (7). The inner flange is not required (fig. E).
  • Position the abrasive disc (17) on the pad.
• Screw the threaded flange (6) onto the spindle.
• Press in the spindle lock button (3) and rotate thespindle until it locks. Keeping the lock button pressed in, tighten the threaded flange (6) with the spanner (15) provided (fig. D.)
• Release the spindle lock.

Removing

• Follow the procedure above in reverse order.

Mounting the Side Handle (Fig. F)

- Screw the side handle (2) tightly into one of the three holes (18) on the gear case.

INSTRUCTION FOR USE

• Always observe the safety instructions and applicable regulations.
• Ensure all materials to be ground or cut are secured in place.
• Apply only a gentle pressure to the tool. Do not exert side pressure on the grinding wheel or cutting disc.
• Avoid overloading. Should the tool become hot, let it run a few minutes under no load condition.
• Slide after push.

Prior to Operation

• Install the appropriate guard and disc or wheel. Do not use excessively worn discs or wheels.
- Be sure the inner and threaded flanges are mounted correctly.
- Make sure the disc or wheel rotates in the direction of the arrows on the accessory and the tool.

Switching On And Off (Fig. A)

Make sure that the switch is in the "OFF" position plugging in.

• To run the tool, slide the ON/OFF switch (1) forward to the "ON" position.
• To stop the tool, slide the switch backwards to the "OFF" position.
• Always switch off the tool when work is finished and before unplugging.

Do not switch the tool ON and OFF when under load.

Handy Hints (Fig. G)

• Hold your angle grinder with one hand on the body and the other hand firmly around the side handle.
  • Always position the guard so that as much of the exposed disc as possible is pointing away from you.
• Be prepared for a stream of sparks when the disc touches the metal.

Grinding (Fig. H)

Use a depressed center Type 27 disc. Hold the tool at an angle of approximately 20^-30^ to work for grinding.

MAINTENANCE

Your Porter-Cable tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

• Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.
• Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

PROTECTING THE ENVIRONMENT

Separate collection. This product must not be disposed normal household waste.

Should you find one day that your Porter-Cable product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging materials to be recycled and used again. Re-use of ed materials helps prevent environmental pollution reduces the demand for raw materials.

NOTE

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. Porter-Cable provides a facility for the collection and recycling of Porter-Cable products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf. You can check the location of your nearest authorised repair agent by contacting your local Porter-Cable office at the address indicated in this manual. Alternatively, a list of authorised Porter-Cable repair agents and full details of our after-sales service and contacts are available on the Internet at www.2helpU.com

GUARANTEE

Three Year Limited Warranty

Porter-Cable will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. Please return the complete unit, transportation prepaid, to any Porter-Cable Service Centre, or any authorised service station.

For warranty repair information, call (Australia) 1800 654 155 or (New Zealand) 0800 339 258. This warranty does not apply to:

• Accessories
• Damage caused where repairs have been made or attempted by others.
• Damage due to misuse, neglect, wear and tear, alteration or modification.

This warranty gives you specific legal rights and you may have other rights under the provisions of the Consumer Guarantee Act 1993 (New Zealand only), Trade Practices Act 1974 and State Legislation (Australia only). In addition to the warranty, Porter-Cable tools are covered by our:

Free One Year Service Contract

Porter Cable will also maintain the tool for free at any time during the first year of purchase. This includes labour, parts and lubrication required to restore the product to sound mechanical and/or electrical condition. Normal wear parts are not covered in this service. Carbon brushes worn more than 50% will be replaced.

NOTE: 3 Year warranty is not applicable to items deemed as consumables. Porter Cable Reserves the right to review its warranty policy prior to launch of any new business development products.

Contact Information

Australia

Porter-Cable Tel. [phone]

20 Fletcher Road, Mooroolbark, Fax. [phone]

Victoria, 3138

New Zealand

Porter-Cable Tel. [phone]

5 Te Apunga Place Fax. [phone]

Mt Wellington

Auckland 1060

Contact your local council for disposal information.
