| Product type | Contact grill with raclette function |
| Model | U1243CH |
| Brand | Rotel |
| Rated voltage | 220-240 V ~ 50/60 Hz |
| Rated power | 350 W per unit (2 units) |
| Number of plates | 1 grill plate + 4 mini-pans for raclette |
| Dimensions (approx.) | 35 cm x 25 cm x 12 cm (estimate) |
| Weight (approx.) | 2.5 kg (estimate) |
| Plate material | Non-stick coating |
| Main functions | Grill, raclette, keep warm, defrost |
| Control type | On/off switch with indicator light |
| Power cord length | Approx. 90 cm (estimate) |
| Included accessories | 4 mini-pans, connection cable, power cord |
| Care and cleaning | Plate and pans washable with soapy water; do not use abrasive products |
| Safety | Automatic shut-off not mentioned; do not immerse; hot surface; keep out of reach of children |
| Intended use | Domestic and similar use (staff kitchens, farms, hotels) |
| Repairability | Repair by authorized service; spare parts available via Rotel SA |
| Warranty | Manufacturer warranty subject to proper use, wear parts excluded |
| Conformity | Directives 2014/35/EU and 2014/30/EU |
| Disposal | Do not dispose of with household waste; selective collection according to WEEE |
Frequently Asked Questions - U1243CH ROTEL
User questions about U1243CH ROTEL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Contact grill in PDF format for free! Find your manual U1243CH - ROTEL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. U1243CH by ROTEL.
USER MANUAL U1243CH ROTEL

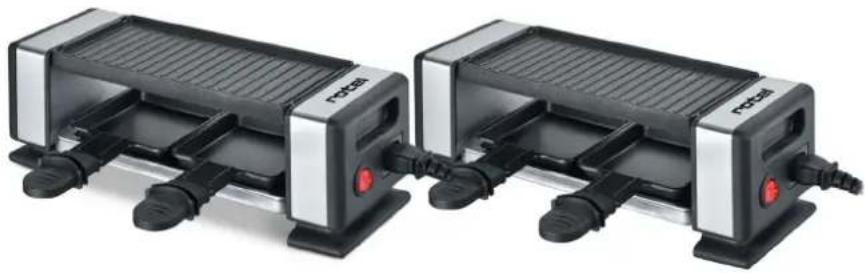

RACLETTEDUOCONNECT1243CH
U1243CH
- MODE D'EMPLOI
• ISTRUZIONI PER L'USO
• INSTRUCTIONS FOR USE
- Full slate
- Small pan (2x2)
- On/Off Switch
- Appliance inlet
- Appliance outlet
- Power cord
- Connecting line

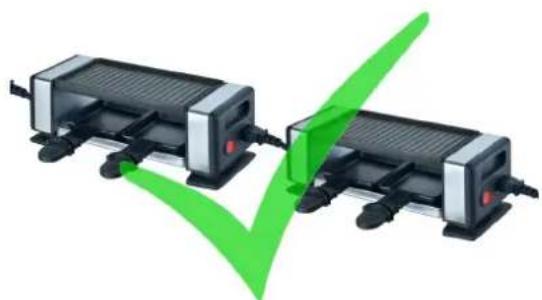

Richtige Anordnung
Disposition correcte
TECHNISCHE DATEN
Please read all instructions before using the device.
○ This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
○ This appliance must not be used by children. The appliance and its connecting cable must be kept away from children.
- The appliance must be disconnected from the mains during periods of no supervision and prior to assembling, disassembling or cleaning.
- The appliance shall not be operated with a damaged supply cord or plug, or after the appliance malfunctions, or has been damaged in any manner. It shall be returned to the nearest authorized service facility for examination, repair or adjustment.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
- The appliance shall be used on a steady, dry and level surface.
- The appliance shall not be placed on or near a hot gas or electric burner.
- To avoid fire, this appliance shall not be covered or touch flammable material, including curtains, draperies, walls, etc. when in operation.
○ If the use of an extension cord is required, it should be arranged so that it will not drape over the counter-top or table top where it can be pulled on by children or tripped over accidentally.
○ The power cord shall not hang over the edge of a table or counter, or touch hot surfaces.
- To avoid fire, electric shock and personal injury, the appliance, its cord or plug shall not be immersed into water or any other fluid.
- To assure safe operation, over-sized utensils or food must not be inserted into the raclette grill.
- CAUTION: Never leave the raclette grill unattended when in use.
○ CAUTION: HOT SURFACE
The temperature of accessible surfaces may be high when the appliance is operating.
- Do not touch hot surfaces. Use handles and hot pads.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- The appliance shall always be unplugged when not in use or when left unattended. Moreover, it shall be allowed to cool before assembling, disassembling or cleaning.
○ Unplug the appliance by grasping the plug and never by pulling the cord.
- Incorrect reassembly or use of any accessory/attachment not recommended or sold by the manufacturer may cause fire, electric shock or personal injury and will void the manufacturer's warranty.
- Do not use this appliance for other than the intended use.
○ This appliance is intended to be used in household and similar applications such as:
■ staff kitchen areas in shops, offices and other working environments;
■ farm houses;
■ by clients in hotels, motels and other residential type environments;
■ bed and breakfast type environments.
• STARTING UP THE APPLIANCE
Before you use the griddle and raclette pans for the first time, wash them with washing-up liquid and dry them. Before the first use, lightly oil the griddle.
Note: The griddle is preheated to the ideal grilling temperature after about 10 minutes.
• OPERATING INSTRUCTIONS
- Plug the power cord connector into the first unit appliance inlet, put the plug connector of the connecting cable into first unit appliance outlet. Put the connector of the connecting cable into the second unit appliance inlet. Then insert the plug into the socket. Turn on the switch while the lamp is lit. After pre-heating, put the food onto the girll plate. The mini pan should be used to keep the food warm and defrost food.
○ After cooking, turn off the first and second units and disconnect the plug.
- GRILLING
- Season the meat or fish and depending on the thickness, grill it for around 2 to 4 minutes on each side, then add salt. Sausages can be barbecued whole, but we do advise that you cut thick sausages into approx. 2 ~cm thick slices. Tomatoes, fruit and vegetables can be cooking away at the same time in the raclette pans under the griddle.
- RACLETTE
- Cut the cheese into approx. 5 mm thick slices and place it in the raclette pans under the griddle. If there are additional pans, you can preheat or keep the cheese warm on the griddle. Season the raclette to your liking with paprika and pepper.
- CLEANING
○ Periodic cleaning of the raclette/grilling area
■ Always unplug the raclette grill and allow it to cool before cleaning.
- The pans and grilling plate may be cleaned using a nylon pad and a mild liquid soap solution.
■ Never use harsh abrasive or caustic cleansers on the non-stick surface.
○ Cleaning other parts of the raclette grill
■ Always unplug the raclette grill and allow it to cool before cleaning.
- To assure maximum safe operation, keep the unit free of grease and build-up of food particles.
■ Then you can clean it with water.
• DISPOSAL
- For proper disposal, please return device to a retailer, a service agent or Rotel AG.
European Directive 2012/19/EC concerning Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling materials comprising the machine, while preventing potential damage to public health and the environment. The crossed-out wheeled bin symbol appears on all products to remind owners of the obligations regarding separate waste collection. Owners should contact their local authorities or appliance dealers for further information concerning the correct disposal of household appliances.
This appliance conforms to the following EU directives:
2014/35/EU (Low Voltage Directive) 2014/30/EU (Electromagnetic Compatibility Directive)
D/F/I/E
• GARANTIE / GARANTIE / GARANZIA / WARRANTY
• 3 JAHRE GARANTIE
• 3 ANS DE GARANTIE
• 3 ANNI DI GARANZIA
• 3 YEARS WARRANTY
○ Warranty commitment
We commit ourselves to repair this device free of charge, should a failure occur within the period of warranty despite proper handling. We repair all defects caused by material or manufacturing faults. The guarantee will be fulfilled either by repairing the device or replacing the defective parts, according to our judgement. A warranty does not cover damages due to wearing parts, damages and defects caused by improper handling or maintenance (such as limescale and commercial use). It will only be granted if either the warranty card stating date of purchase, dealer's stamp and signature, or the purchase receipt is sent with the device to the relevant after-sales service (see address below). Devices shall be returned in their original packaging. Transport costs are to be borne by the purchaser. Remember to specify your address to your sending, as well as a short declaration about the failure, shall the defect not be obvious.
Servicestation:
Service après-vente:
Rotel AG
After-sales service:
5012 Schönenwerd
E-mail: office@rotel.ch
