USER MANUAL Pro Convert NDI to HDMI Magewell

Glossary and Abbreviations 53

Getting Started

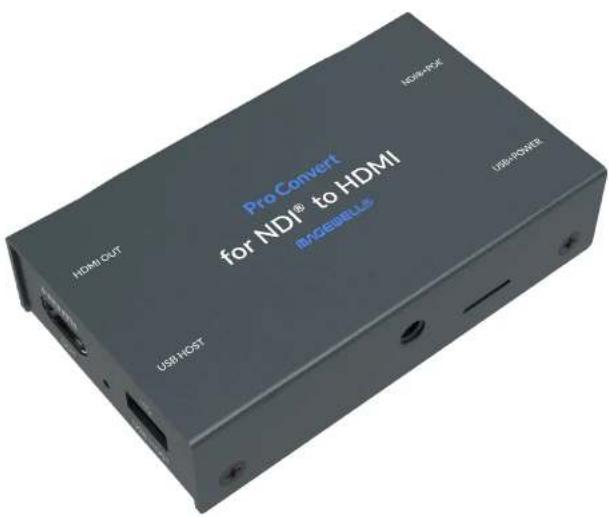

Pro Convert for NDI® to HDMI IRGBEBELED HDMI OUT USB-HOST HDMI-POWER USB-HOST

Overview

Pro Convert™ family of NDI decoders are built on NewTek's extremely popular NDI media-over-IP technology, converting live NDI streams into high-quality outputs for connection to baseband devices such as monitors and projectors. The low-latency decoder simplifies the use of NewTek's popular media-over-IP technology in applications such as digital signage and video walls.

The ultra-compact Pro Convert devices are ideal for both in-studio and portable field use. The decoder features DHCP-based automatic network configuration, while a browser-based interface provides access to status monitoring and advanced features such as FPGA-based up/down/cross-conversion. Two on-device buttons also enable users to select source content and match the output format to their target display without requiring a computer.

Key Features

• Support for decoding streams of NDI, RTSP, HTTP, RTMP Pull/Push and TS over UDP/SRT/RTP in H.264 or H.265 format.
  • Support for decoding embedded audio.
  • Support for PoE (Power over Ethernet).
  • Support for plug-and-play.
  • Support for Ethernet over USB.
  • Support for web-based UI remote control and on-device control buttons.

System Requirements

Network

- Gigabit Ethernet

Supported Web Browser for the Web UI

• Google Chrome version 49 and above
• Microsoft Internet Explorer 11
- Microsoft Edge
- Mozilla Firefox version 61 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

Supported Product

The decoder supports to decode NDI ^® RTSP, HTTP, RTMP Pull/Push or TS over UDP/SRT/RTP streams. The compatible products supported by the decoder includes but not limited to the following products.

• Pro Convert encoder
• Magewell Bridge for NDI ^
• NDI®Scan Converter
• NewTek Connect
• NDI ^ Studio Monitor
• OBS Studio
  vMix
  • VLC
  IP Camera
  Haivision

Installation

Safety Information

Electrical Safety

• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
  • Make sure that you are using the correct power adapter for the local voltage. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
  • If the power adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer for help.

Operation Safety

• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you notice any damage, contact your dealer immediately.
  • To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
• Place the product on a stable surface.
  • If you encounter technical problems with the product, contact your dealer or the Magewell Support Team via [e-mail].

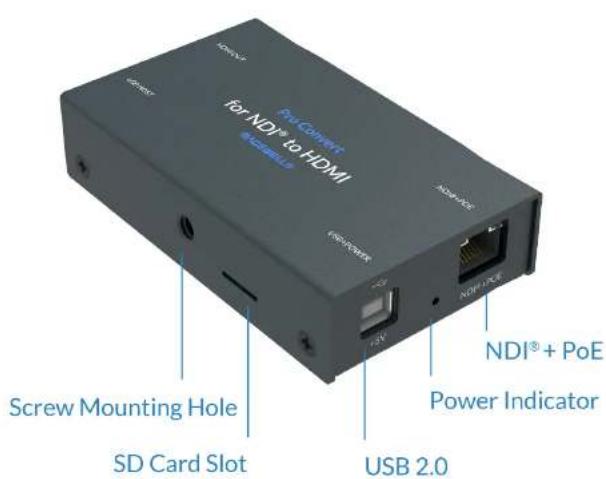

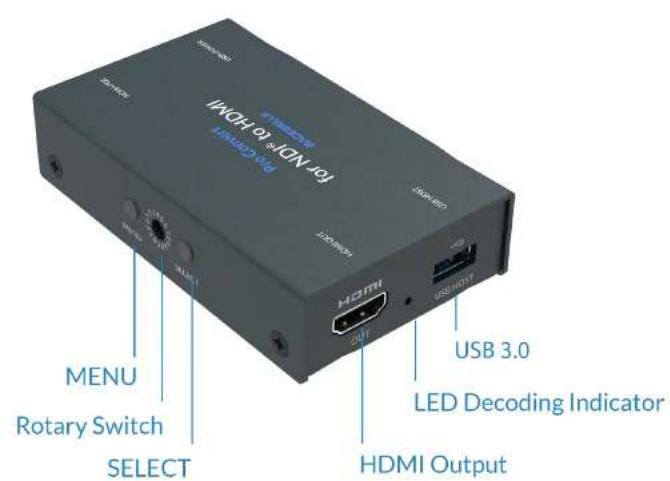

Interfaces & Indicators

For Connect for NDI® to HDMI SD Card Slot Screw Mounting Hole Power Indicator USB 2.0 NDI® + PoE

I/O-DCN-10-HDMI HDMI USB 3.0 LED Decoding Indicator HDMI Output MENU Rotary Switch SELECT COM/RESET USB/RESET

Note: The SD card function is not available currently.

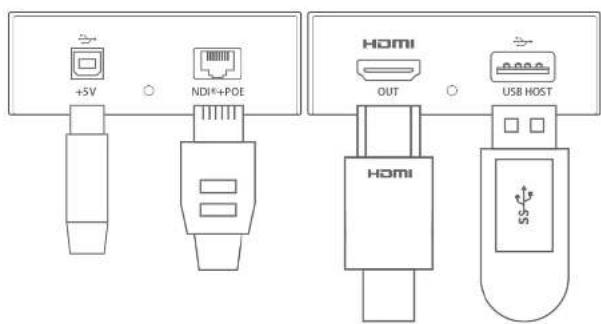

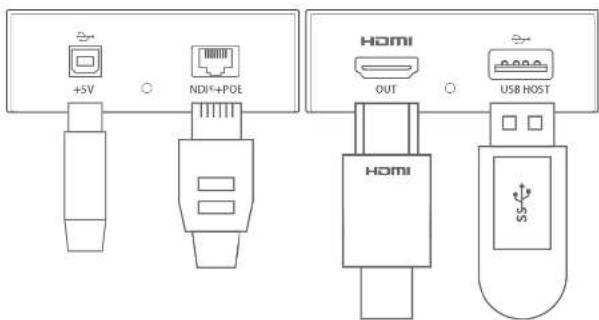

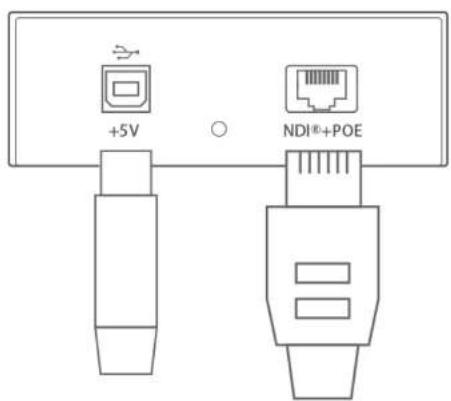

Connections

+5V NDI®+POE HOMI OUT USB HOST

1. Plug in the USB cable.

2. For power supply: connect the other end of the USB cable to the power adapter.

3. For Ethernet over USB (RNDIS/ECM): connect the other end of the USB cable to your computer.

4. Plug in the Ethernet cable.

5. For PoE: connect the other end of the Ethernet cable to a PoE switch or a PoE adapter for power and Ethernet connection.

6. To ensure high speed transmission, it is recommended to connect the Pro Convert unit to a gigabit network.

7. Plug in the HDMI cable to connect presentation and delivery appliances to the OUT port, such as a monitor, a video switcher or a projector. * An android TV is not recommended if low latency matters.

8. Connect a wired or wireless keyboard or mouse to the USB HOST to make it more convenient to control advanced settings without requiring a computer.

Web UI Configuration

Pro Convert allows you to control your devices via a web-based user interface. With the Web UI, you can monitor the device's working status, output signal status, and configure settings for your sessions.

+5V NDI®+POE HDMI OUT USB HOST HDMI

Figure1. Connections

Accessing the Web UI

If you know your device's IP address, type it into your web browser to display the Web UI. Alternatively, you can access the Web UI in one of the following ways. (1) For Windows7/8/8.1/10 users, you can find and access your Pro Convert device as a Network device in a File Explorer window. (2) Using the Ethernet over USB function. (3) Using the on-screen menu Options.

Solution 1: using Windows File Explorer

This method is available for Windows7/8/8.1/10 users.

Step 1 Connect your decoder via Ethernet and power it up as shown on the left figure.

Open a File Explorer window in one of the following ways.Step 2

• Click on the Start Button and find File Explorer in the Start menu.
• Press the Windows logo key 📄E.
• Select the folder icon on the taskbar.

Step 3 Select the Network at the bottom of the list of items on the left side of the File Explorer.

Turn on the network discovery function if prompted.Step 4

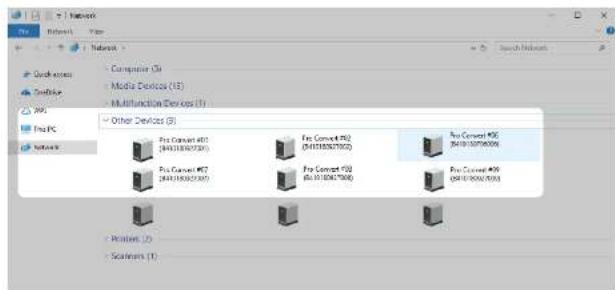

Network Network Computer (5) Media Devices (12) Multifunction Devices (1) Other Devices (3) Pro Connect 400 (94118000700) Pro Connect 400 (94118000700) Pro Connect 400 (94118000700) Pro Connect 400 (94118000700) Pro Connect 400 (94118000700) Positive (2) Scramark (1)

Figure2. Find your Pro Convert device in the Network > Other Device section

Step 5 Find your Pro Convert device in the Other Device section, where it will be shown as "Pro Convert + #board index + (serial number)".

• The serial number (marked on your device) will be in a form like 'A410180706006'.
• The board index (the rotary switch number on your device) is shown like "06" or "#06".

Step 6 Double click the decoder icon to open the Web UI of the device in your web browser.

http://192.168.66.1

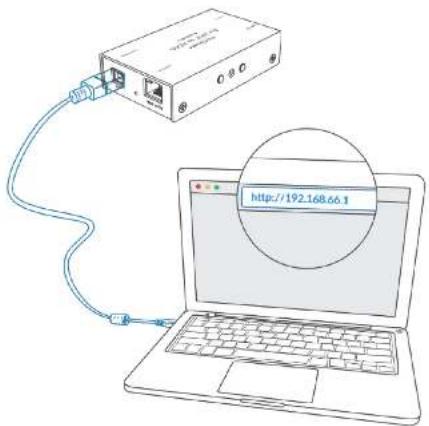

Solution 2: using Ethernet over USB

RNDIS (For Microsoft)/ECM (For Mac/Linux) provides a virtual Ethernet link to the computer's operating system.

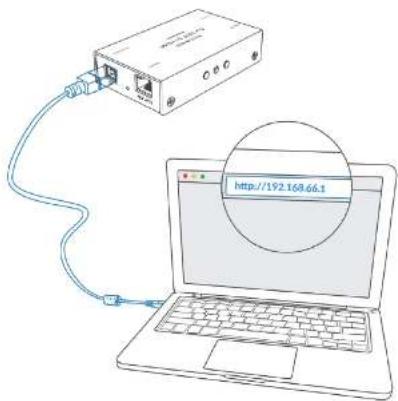

Step 1 Connect the device and your computer using a USB cable as shown on the left.

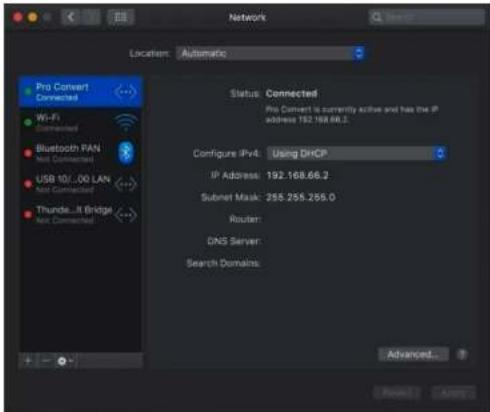

Step 2 Type the Ethernet over USB IP address in your web browser. The default address is http://192.168.66.1.

The pop-up web UI of the connected device will be shown in your browser.

Please do not change it unless there is a conflict in your network.

Do not connect more than one Pro Convert device simultaneously to the same system via Ethernet over USB.

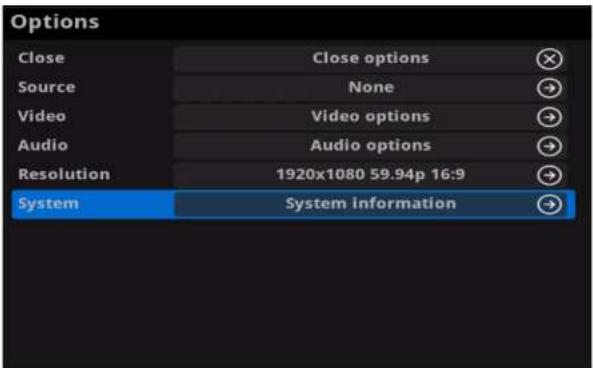

Options Close Close options Source None Video Video options Audio Audio options Resolution 1920x1080 59.94p 16:9 System System information

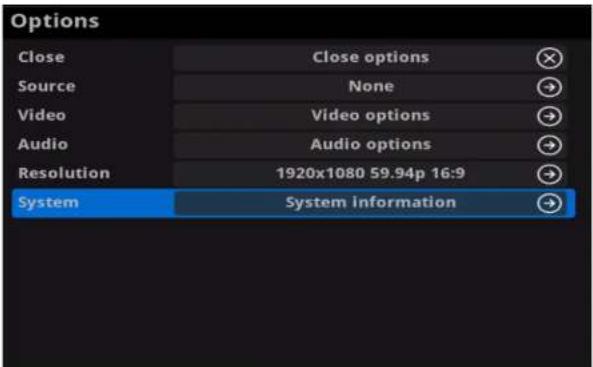

Figure1 Select System in Options menu.

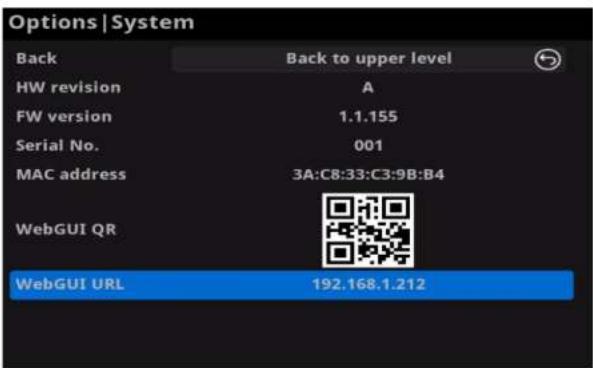

Options | System Back Back to upper level HW revision A FW version 1.1.155 Serial No. 001 MAC address 3A:C8:33:C3:9B:B4 WebGUI QR WebGUI URL 192.168.1.212

Figure2 Check the WebGUI

Solution 3: using the on-screen menu Options

Step 1 Connect your decoder via Ethernet, power it up and connect a presentation device as shown in the Figure1. Connections.

Step 2 Press the on-device MENU button, click the mouse or the keyboard(if connected), to display the Options overlaid on the output.

Step 3 Go to the System option and check for the device WebGUI URL or scan the WebGUI QR to open the web UI in your web browser within the same LAN with your decoder.

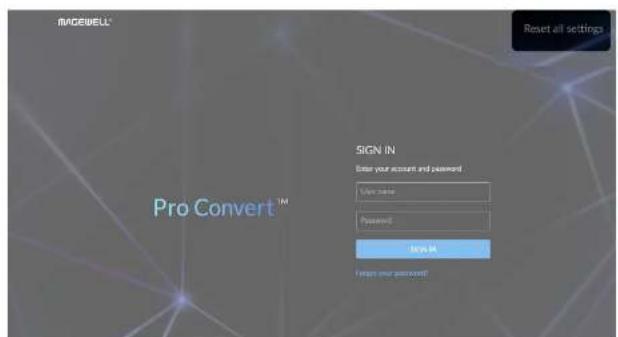

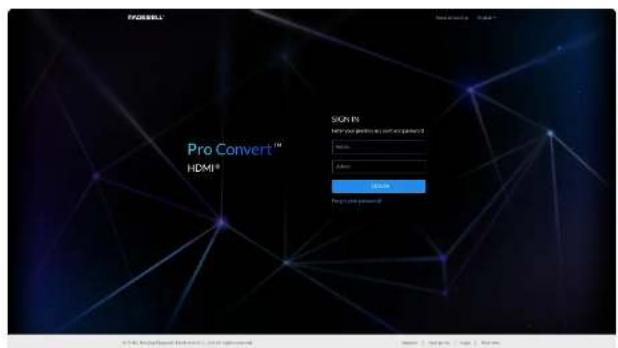

PROBELL® Pro Convert™ HDMI® SIGN IN Show your website at http://www.hpm.com/ http://www.hpm.com/ Login OK/Cancel Cancel your password!

BASERELL Account Image Video Audio Clack Style Number User account Networks Firmware Report Log Change password Sign text Robust USER ADMIN Admin user account and Management that are just used Locally on the Control Admin. Admin Add New Info

Signing In/Out

The Web UI allows multi-users to have read/write access to make configuration settings at the same time after login. However, to avoid configuration conflicts, we do not recommend you to operate one device simultaneously.

- The default administrator account name and password are as follows:

Username: Admin

Password: Admin

- It is recommended to change the admin password after login (see modify the admin password). Unlike the password, the administrator username cannot be modified.

- Your account will sign out automatically if there is no operation performed within ten minutes.

Step 2 Signing Out: click the drop-list icon behind your username at the top-right of the Web UI, and select Sign out.

Note that the Reboot function requires administrative rights.

Dashboard

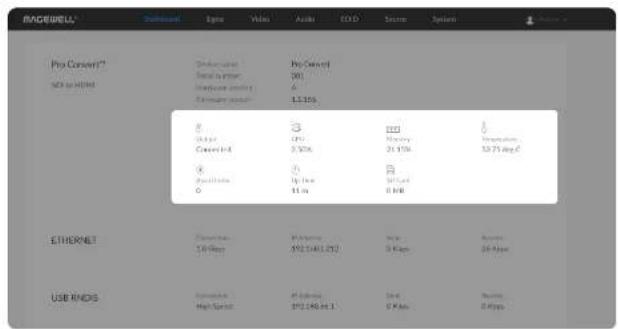

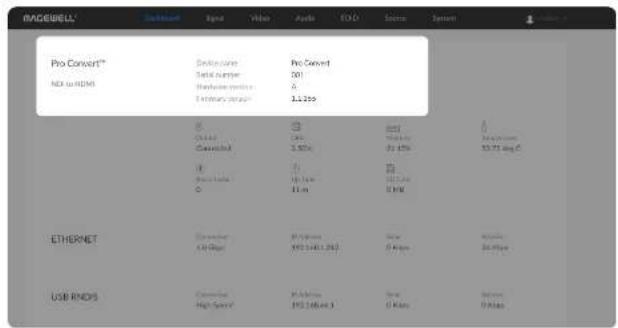

The Dashboard tab in the web UI can show the real-time status and parameters of the Pro Convert device. Click and enter the Dashboard tab to check the device status.

BAGEWELL Pro Convert* NO. 50 REM E ETHERNET USB RNDS Employee Serial number Hardware version Primary format Pro Convert Serial number Serial number E 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number Serial number

BAGEWELL Subtotal Energy Video Audio CDD Scene System Pro Convert? Product name: Product code: 101 Product type: Primary model: 12.10% 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Checking Basic Information

• Device name shows the name of your Pro Convert unit. Only the Administrator can modify the device name in the System > Network tab. For detailed information, refer to Setting Device Name.
• Serial number shows the serial number of your unit, which is also marked on your device.
  • Hardware version shows the hardware version of your unit.

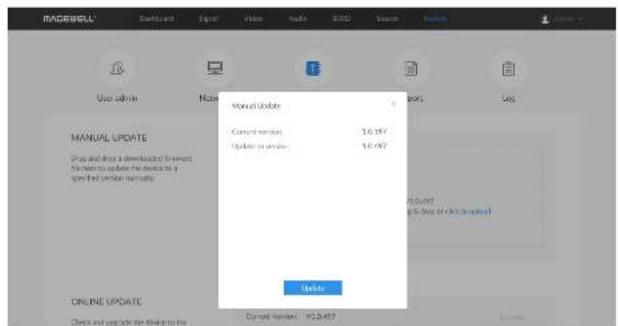

• Firmware version shows the current firmware version that's installed in your unit. Only the Administrator can update the firmware, via the Firmware tab. For detailed information, refer to Updating the Firmware.

Checking the Current Working Status

• Output shows whether an output device is connected to the Pro Convert device.
  • CPU shows the current CPU usage (the load on the processor, shown as a percentage) of the Pro Convert device.
  CPU usage increases when the device is handling more complex video processing tasks (e.g. decoding at higher resolutions and frame rates).
  • Memory shows current memory usage.

BAGEBELL File Conversion Add to format Remove to user Export to server File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format File Format: 1.0 Mbps 2.0 Mbps 3.0 Mbps 4.0 Mbps 5.0 Mbps 6.0 Mbps 7.0 Mbps 8.0 Mbps 9.0 Mbps 10.0 Mbps Ethernet Conversion: 1.0 Mbps Implementation: 192.165.1.012 Send: 201 Kms Send: 44.51 Mbps USB ENDS Conversion: High Speed Implementation: 212.268.6x1.1 Send: 0 Kms Send: 0 Kms

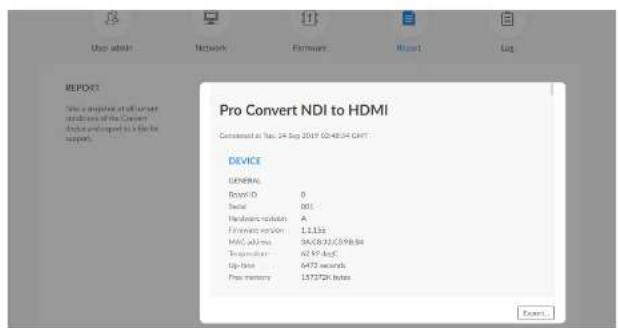

You can find out the free memory in System > Report tab, subject to administrative rights.

• Temperature shows the current temperature of the unit's processor. Keeping the device free from dust and avoiding a high-temperature work environment may help to avoid overheating of the device. If the core temperature is approaching 100°C, please try to lower the temperature by ensuring a supply of cooler air.
• Board Index shows the rotary switch number. You can change the number on the rotary switch to set a different Board Index.
  • Up Time shows the elapsed time since your device's last boot-up.
• SD Card shows the capacity of current inserted SD card. This function is not available now.

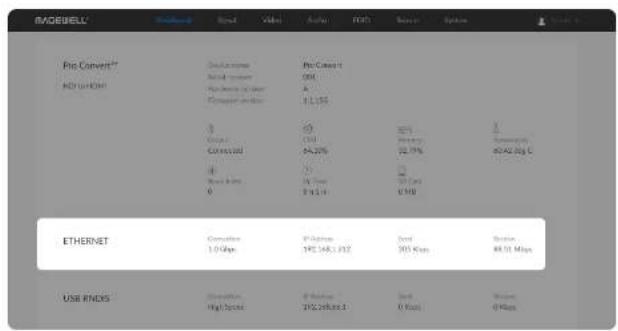

Checking Ethernet Status

• Connection shows Ethernet network connection status.

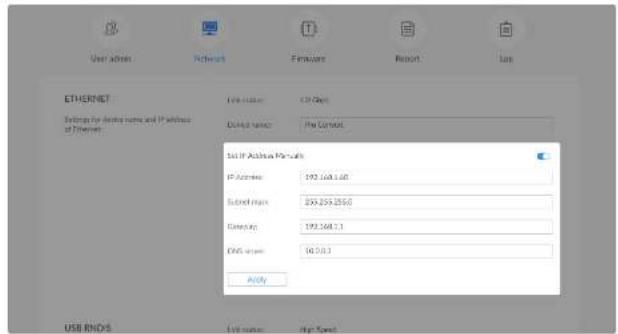

- IP Address shows Ethernet IP Address. You can manually change it in the System > Network tab with administrative rights.
- Send shows the current Ethernet transmission speed.
- Receive shows the current Ethernet receive speed.

Ethernet USB RNDIS SOURCE 40000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 General Type Address 1231689999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999 45168888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888 45168888888888888888888888888888888888888888888888 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 4516B 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451E 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451A 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C 451C

• Connection shows Ethernet over USB connection status.

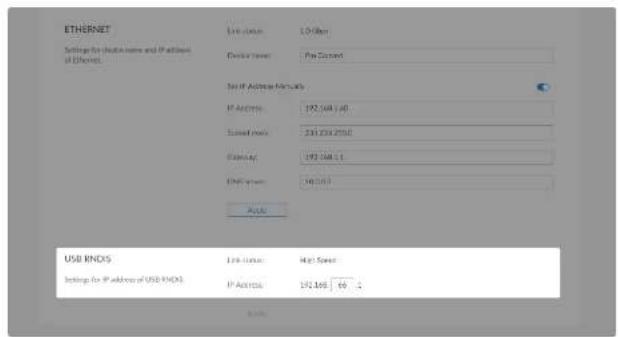

- IP Address shows Ethernet over USB JP Address. By default, it is http://192.168.66.1. You can manually change it in the System > Network tab, with administrative rights.
- Send shows current Ethernet over USB send speed.
- Receive shows current Ethernet over USB receive speed.

Checking Source Status

Settings of decoded video stream refers to the Source tab.

- General shows video source information.

• Type shows the decoding stream type which is specified in the Source tab.
  • Connection shows whether a stream data is received by your decoder.

• Tally shows the decoded stream 'on-air' status.

• Preview shows whether the decoded source stream is being previewed. If yes, it shows On and is green, otherwise, it is Off and grey.
• Program shows whether the decoded source stream is being programmed. If yes, it shows On and is red, otherwise, it is Off and grey.

• QoS shows the number of frames dropped in the previous second.

• Video drop samples shows dropped video samples in the previous second.
- Audio drop samples shows dropped audio samples in the previous second.

• Decoding shows the decoding speed in the previous second.

• Video shows the video bitrate for the previous second.
• Audio shows the audio bitrate for the previous second.

• Video shows the decoded video information.

• Resolution shows the decoded video resolution.
• Field rate shows the decoded video field rate.

• Audio Shows audio information.

• Sampling shows the sampling rate and bit depth of the audio source.
• Channels shows the total number of source audio channels.

- Jitter Shows the time difference between the estimated and actual arrival time of a frame of source image.

• Video shows the video time difference.
• Audio shows the audio time difference.

Signal

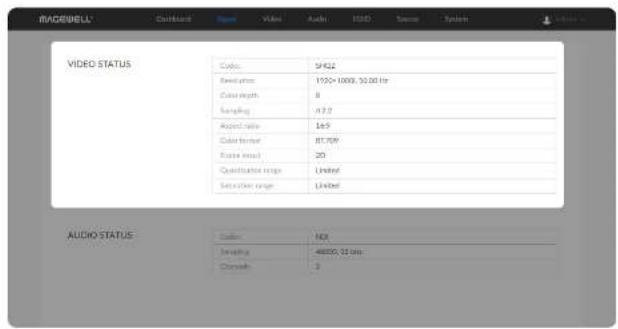

Click and enter the Signal tab to check the input signal information detected by the device.

Riadewell Video Status Color: 54022 Swimming: 1500+ 1000, 32.00 fps Color depth: 8 Sampling: A7.2 Audio type: 16.9 Color format: BC709 Base mode: 20 Quantification range: Limited Saturation range: Limited AUDIO STATUS: Color: 100 Sampling: 48000, 32 fps Drawn: 2

Checking VIDEO STATUS

• Codec shows the video encoding format.
• Resolution shows the chosen stream pixel resolution & frame rate.
• Color depth shows the chosen stream color depth, in bits.
• Sampling shows the chosen stream color sampling format.
- Aspect ratio shows the chosen stream aspect ratio.
• Color format shows the chosen stream color encoding format.
• Frame struct shows the chosen stream frame type, it is always 2D.
• Quantization range shows the quantization range, e.g. Full or Limited.
• Saturation range shows the saturation range, e.g. Full or Limited.

RACEBELL Video Status Color: SHQ1 Resolution: 27250 MHz, 30.0 MHz Audio type: 8 Sampling: 422 Audio size: 16.9 Color frame: BT769 Power level: 30 Speed/speed range: Limited Audio/second: Limited AUDIO STATUS Color: N/A Sampling: 49000, 32 MHz Oursals: 2

Checking AUDIO STATUS

• Codec shows the audio encoding format.
- Sampling shows the audio sampling rate and bit depth of the chosen stream.
• Channels shows the number of audio channels of the chosen stream.

Video

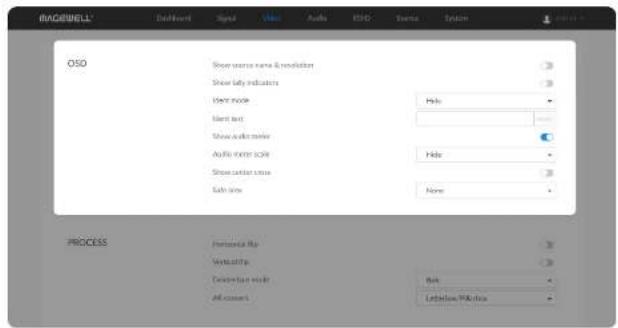

Click and enter Video tab to modify the video format according to your needs. By clicking Reset to Default in the bottom right corner of the page, you can cancel your modified settings.

RACEDWELL OISO Show status name & resolution Show key indicators Next mode Next text Show auto meter Auto meter scale Show cutter size Sub time Hide Hide None PROCESS Portfolio Map Viewcall Viewcall mode All correct Reset Let Belize Please

Setting OSD Format

Choose the overlay layers on the output.

• Show source name & resolution

Turn on the switch to show current decoded stream name at the top of the output display. By default, it is off.

• Show tally indicators

Turn on the switch to show the "on-air" status of selected stream at the top field of the output. If being previewed, it is PREVIEW/PREVIEW/Non-air, it is PROGRAM/PROGRAMators locate beside the source name & resolution; otherwise, there is nothing displayed. By default, it is off.

- Ident mode

Choose to show/hide the device name or ident text that overlays the output. It is used to separate multiple decoders from each other when they are working together. By default, it is Hide.

The device name can be modified in the System tab with administrative rights. The steps refer to Setting Device Name.

Ident text can be edited in the Ident text option.

- Ident text

Custom digital label overlaid on the output. By default, it is null. The text will be overlaid on the output when the Ident mode is set to Show ident text. The label text ranges from 1 to 32 characters which contains A to Z, a to z, 0

to 9, and special characters including spaces, dash(), minus(-) and plus(+) sign.

• Show audio meter

Check the box to show the volume bar on the left side of presentation screen. By default, it is overlaid on the output.

- Audio meter scale

Choose the scale for the measurement of the volume.

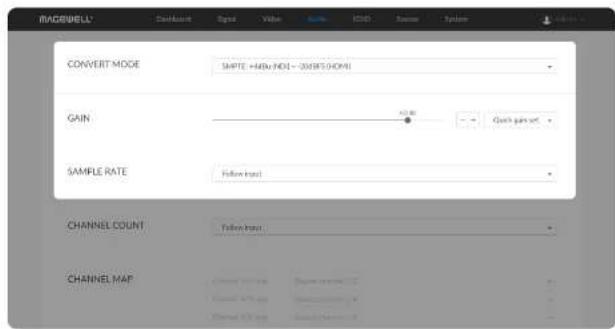

If CONVERT MODE in the Audio tab is EBU: 0dBu (NDI) = -18dBFS (HDMI), options are Hide, Show dBu scale, Show post gain dBu scale, and Show post gain dBFS scale. If audio gain is set, the Show post gain dBu scale, and Show post gain dBFS scale will show the gain effect. By default, it is Hide.

If CONVERT MODE in the Audio tab is SMPTE: +4dBu (NDI) = -20dBFS (HDMI), options are Hide, Show dBVU scale, Show post gain dBVU scale, and Show post gain dBFS scale. If audio gain is set, the Show post gain dBVU scale, and Show post gain dBFS scale will show the gain effect. By default, it is Hide.

- Show center cross

Turn on the switch to overlay the center cross on the output screen which determines the center position of the entire image, helps with interlaced scans check and static convergence.

- Safe area

It ensures that the most important parts of the picture are seen by the majority presentation device. Choose from None, Show 80% center view area, Show 4:3 aspect ratio area, and Show square aspect ratio area. By default, it is None.

PROCESS Horizontal Flo Verdictify Disturbate mode All correct Sub- Solution/Reliance SOURCE Correcting Close during source setting Auto Back screen RESOLUTION + 1920x1000 37.54y 36.8 + 1920x1000 37.54y 36.8 + 1920x1000 37.54y 36.8 + 1920x1000 37.54y 36.8 + 1920x1000 37.54y 36.8 + 200x1000 37.54y 36.8 + 200x1000 37.54y 36.8 + 200x1000 37.54y 36.8 + 200x1000 37.54y 36.8 + 200x1000 118.91x46.5 + 200x1000 118.91x46.5 + 200x1000 118.91x46.5 + 200x1000 118.91x46.5

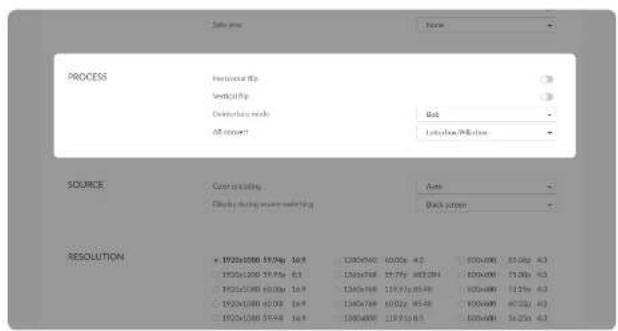

Setting PROCESS Format

By clicking Reset to Default in the bottom right corner of the page, you can cancel all settings.

- Horizontal flip

Turn on the switch to set a mirror effect of the video, making sure the viewer see the image in the right direction. By default, it is off.

- Vertical flip

Turn on the switch to reverse the active image vertically, making sure the viewer see the image in the right direction. By default, it is off.

- Deinterlace mode

Convert interlaced source video into a progressive one using Weave or Bob method.

• Weave takes pairs of fields and puts them together (every other line) to one frame. The result is the same as no deinterlacing. This mode is used when users want to capture the original video.
  • Bob blends the top and bottom & field together. By default, this is used.

- AR convert

Set the method to convert the aspect ratio of the decoded video.

• Letterbox/Pillarbox indicates to adapt the display size of the presentation screen by filling with black borders to keep the aspect ratio of the source image. Letterbox features to fill in black bars at the top and bottom while pillarbox filling in left and right. By default, this is used.
  • Full Screen indicates to stretch the video image to fill the presentation screen.
• Zoom/Crop indicates to use the screen aspect ratio as the decoded

video aspect ratio by stretch or compression.

PROCESS Horizontal Blue Verification Description mode All content Sub- Latency/PMR/rise SOURCE Color encoding Auto Display during source switching Back screen RESOLUTION + 1920x1200 37.75p 16.9 1920x1200 37.75p 16.9 1920x1200 43.05p 16.9 1920x1200 43.05p 16.9 1920x1200 57.75p 16.9 1920x1200 57.75p 16.9 1920x1200 57.75p 16.9 1920x1200 57.75p 16.9 1920x1200 57.75p 16.9 1925x1200 37.75p 43.2 1925x1200 37.75p 43.2 1925x1200 37.75p 43.2 1925x1200 37.75p 43.2 1925x1200 37.75p 43.2 1925x1200 43.2 1925x1200 43.2 1925x1200 43.2 1925x1200 43.2 1925x1200 43.2 1925x1200 43.2 1925x1200 43.2 1928x1200 60.05p 43.48 1928x1200 60.05p 43.48 1928x1200 60.05p 43.48 1928x1200 60.05p 43.48 1928x1200 60.05p 43.48 1928x1300 60.05p 43.48 1928x1300 60.05p 43.48 1928x1300 60.05p 43.48 1928x1300 60.05p 43.48 1928x1300 60.06p 43.48 1928x1300 60.06p 43.48 1928x1300 60.06p 43.48 1928x1300 60.06p 43.48 1928x1300 60.06p 43.48

RiAGESELL Symbol Signal Video Audio STOCK Source System SOURCE Color switching Audio Origin during source switching Black screens RESOLUTION 1920x1000 59.94p 16.9 1930x1000 29.97p 16.9 1280/768 84.89p 5.3 4096x2160 60.00p 256.133 1970x1000 29.00p 16.9 1280/768 74.87p 5.3 4096x2160 59.94p 256.133 1970x1000 24.00p 16.9 1280/768 19.97p 5.3 4096x2160 50.00p 256.133 1970x1000 23.98p 16.9 1280/720 60.00p 16.9 4096x2160 30.00p 256.133 1600x1200 119.92p 4.3 1280/720 39.94p 16.9 4096x2160 29.97p 256.133 1600x1200 85.00p 4.3 1280/720 50.00p 16.9 4096x2160 25.00p 256.133 1600x1200 75.00p 4.3 1024/768 119.99p 4.3 4096x2160 24.00p 256.133 1600x1200 70.00p 4.3 1024/768 86.98p 4.3 4096x2160 23.98p 256.133 1600x1200 68.00p 4.3 1024/768 83.38p 4.3 354x2160 60.00p 16.9 1600x1200 60.00p 4.3 1024/768 75.35p 4.3 354x2160 59.94p 16.9 1680x250 119.99p 8.5 1024/768 70.87p 4.3 354x2160 50.00p 16.9 1680x250 84.94p 8.5 1024/768 60.00p 4.3 354x2160 50.00p 16.9 1680x250 74.89p 8.5 1024/574 19.97p 16.9 354x2160 29.97p 16.9 837x624 74.55p 4.3

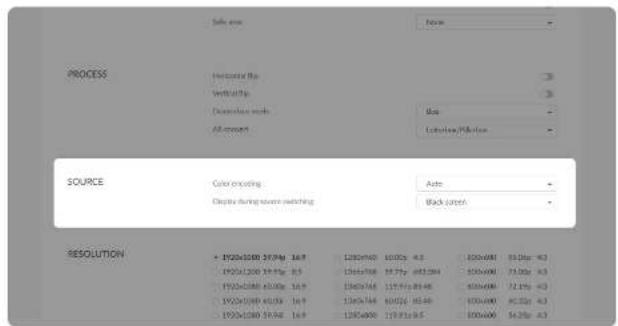

Setting SOURCE Format

• Color encoding

Set the color space to BT.601 or BT.709. When it is set to Auto, the color space will be BT.601 for SD and BT.709 for HD according to the source.

• Display during source switching

Set the image to either Black screen or Keep last picture of the previous video when the source is changed.

Setting RESOLUTION

The decoder will list all selections of resolution, frame rate and aspect ratio according to the capability of the connected presentation device in the RESOLUTION section. Options varies according to the presentation appliances. Specify the resolution to meet your needs, or else the default mode is recommended.

Audio

Click and enter the Audio tab to set the output.

MODEWELL Channel Mode Signal Value Units ICSD Sensor System CONVERT MODE SAMPLE = 440x100 - 25685.0000 GAIN - 0.00 Open gain set SAMPLE RATE Follow rate CHANNEL COUNT Follow rate CHANNEL MAP Channel count Channel count Channel count Channel count

- CONVERT MODE

Two ways are provided for audio values conversion between source and output signal: EBU: 0dBu (NDI) = -18dBFS (HDMI), SMPTE: +4dBu (NDI) = -20dBFS (HDMI). By default, it is SMPTE: +4dBu (NDI) = -20dBFS (HDMI).

GAIN

Adjust the gain from -100.00dB to 20.00dB as needed. Or you can select +20 dB, +10 dB, EBU (+6 dB), SMPTE (+0dB) or Mute (-inf dB) from the Quick gain set. By default, it is 0.

- SAMPLE RATE

Choose the proper sample rate for your work, including Follow input, 32000Hz, 44100Hz, 48000Hz, 88200Hz, 96000Hz. By default, it is Follow input.

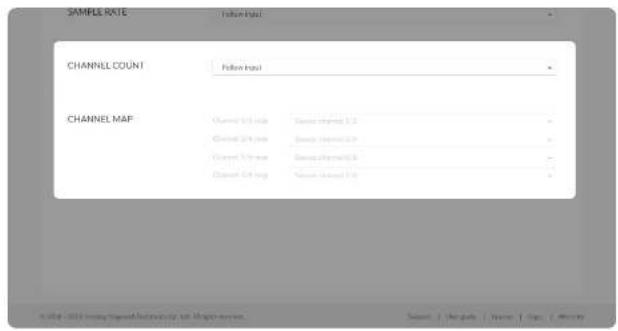

SAMPLE RATE Channel Input CHANNEL COUNT Channel Input CHANNEL MAP Channel 0.1 min Channel 2.4 min Channel 3.7 min Channel 5.8 min Channel 6.9 min Channel 8.0 min Channel 9.1 min Channel 10.2 min Channel 11.3 min Channel 12.4 min Channel 13.5 min Channel 14.6 min Channel 15.7 min Channel 16.8 min Channel 17.9 min Channel 18.0 min Channel 19.1 min Channel 20.2 min Channel 21.3 min Channel 22.4 min Channel 23.5 min Channel 24.6 min Channel 25.7 min Channel 26.8 min Channel 27.9 min Channel 28.0 min Channel 29.1 min Channel 30.2 min Channel 31.3 min Channel 32.4 min Channel 33.5 min Channel 34.6 min Channel 35.7 min Channel 36.8 min Channel 37.9 min Channel 38.0 min Channel 39.1 min Channel 40.2 min Channel 41.3 min Channel 42.4 min Channel 43.5 min Channel 44.6 min Channel 45.7 min Channel 46.8 min Channel 47.9 min Channel 48.0 min Channel 49.1 min Channel 50.2 min Channel 51.3 min Channel 52.4 min Channel 53.5 min Channel 54.6 min Channel 55.7 min Channel 56.8 min Channel 57.9 min Channel 58.0 min Channel 59.1 min Channel 60.2 min Channel 61.3 min Channel 62.4 min Channel 63.5 min Channel 64.6 min Channel 65.7 min Channel 66.8 min Channel 67.9 min Channel 68.0 min Channel 69.1 min Channel 70.2 min Channel 71.3 min Channel 72.4 min Channel 73.5 min Channel 74.6 min Channel 75.7 min Channel 76.8 min Channel 77.9 min Channel 78.0 min Channel 79.1 min Channel 80.2 min Channel 81.3 min Channel 82.4 min Channel 83.5 min Channel 84.6 min Channel 85.7 min Channel 86.8 min Channel 87.9 min Channel 88.0 min Channel 89.1 min Channel 90.2 min Channel 91.3 min Channel 92.4 min Channel 93.5 min Channel 94.6 min Channel 95.7 min Channel 96.8 min Channel 97.9 min Channel 98.0 min Channel 99.1 min Channel 100.2 min

- CHANNEL COUNT

Choose the proper audio channels for your work, including Follow input, 2 Channels, 4 Channels, 8 Channels. Then you can set the mapping relationship between the output and source channels. By default, it is Follow input.

- CHANNEL MAP

Map the audio channels between the output and source channels when the CHANNEL COUNT is not Follow input.

When the CHANNEL COUNT is set to 2 Channels, select audio channels mapping for Channel 1/2.

When the CHANNEL COUNT is set to 4 Channels, select audio channels mapping for Channel 1/2 & 3/4.

When the CHANNEL COUNT is set to 8 Channels, select audio channels mapping for Channel 1/2, 3/4, 5/6, 7/8.

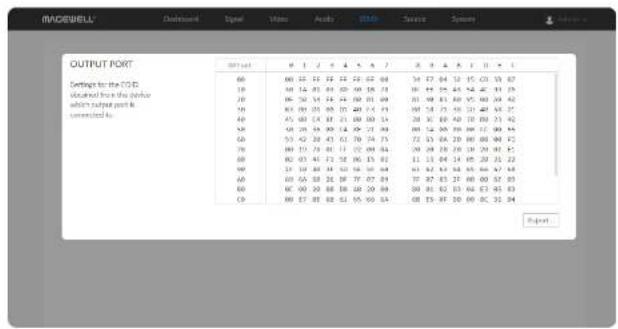

EDID

EDID shows the EDID of the presentation device connected via output port.

OUTPUT PORT Settings for the CSS Outlooked from the splice which support port in Converted to: 60 00 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 60 00 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 10 00 25 26 27 28 29 30 31 32 33 34 35 36 37 10 00 25 26 27 28 29 30 50 00 25 26 27 50 00 50 00 50 00 50 00 50 00 50 00 50 00 50 00 50 00 50 00 50 00 50 00 50 00 50 00 50 00 / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / | | | | | | | | | | / | | | | | | | | | | / | | | | | | | | | | / | | | | | | | | | | / | | | | | | | | | | / | | | | -1 + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + / | | | | -1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1. / | | | | -1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1. / | | | | -1 - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | / | | | | - | (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued) (Continued)

- Export: Click and set the file name to export the current EDID as a bin file.

Source

Not only NDI ^® stream, but also RTMP, RTSP, SRT, HTTP, UDP and RTP streams are supported to be processed by Pro Convert decoder. Click and enter the Source tab to do the settings.

RIMDBELL Source PRESETS Name Type Action Name - OK RMP PUSH data: 127.03.1 (access from the database) RMP Edit / Remove / Adjust Add Clear NOI SOURCES Name Type Action RIPD/OPF VIZETCO NVIDIA GPTA 2680 T (L) (5) 144 (124) (94) NOI (5) 144 (124) (94) RIPD/OPF VIZETCO GPTA Express 50146 (5) 144 (124) (94) NOI (5) 144 (124) (94) PRO CORNIT AGI (MINT) 50146 (5) 144 (124) (94) PRO CORNIT AGI (MINT) 50146 (5) 144 (124) (94) NOI (5) 144 (124) (94)

Setting SOURCE PRESETS

SOURCE PRESETS shows saved stream sources adding manually or from the NDI® SOURCES. By default, it is None, which means not to decode.

• Click Edit to modify the parameters of the stream.
• Click Delete to remove the source from the list.
• Click Select to decode current source stream.
• Click Add to select streams of NDI, RTSP, HTTP, RTMP Pull/Push and TS over UDP/SRT/RTP to join to the list.
• Click Clear to delete all presets. Please be cautious of this operation.

Notes

• The name of each stream should be unique.
- Either name or URL is required when adding a new NDL Source.
- NDI® source, which can not be auto-detected but can be pinged by the decoder, can be added to preset list.
- When adding RTMP Push stream to the decoder, the port number specified by the sender should be 1935 or be omitted, and the key of sender and receiver should be identical.
- If the source TS OVER SRT stream has a password, Encrypted and Passphrase is required when being added to decoding list. The decoder can be either a caller or a listener.

NDI® SOURCES Name DESKTOP FV20TCO NVIDIA GeForce GTX 360 (T1) (92)168.1207/041 DESKTOP FV20TCO USB Capture 321 (4X) (92)168.1207/042 PRO CONVERT XSL (RAS130/T645) (92)168.1207/043 PRO CONVERT XSL (RAS29/R645) (92)168.1207/044 PRO CONVERT XSL (RST 3) (92)168.1207/045 Type Add Add Action Save as percent Select Save as percent Select Add Save as percent Select Add Save as percent Select Add Save as percent Select Add Save as percent Select Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Aver / Add / Add

- For NDI® source, the buffer duration ranges from 20 to 120 ms, while the non-NDI type of source ranges from 20 to 800 ms.

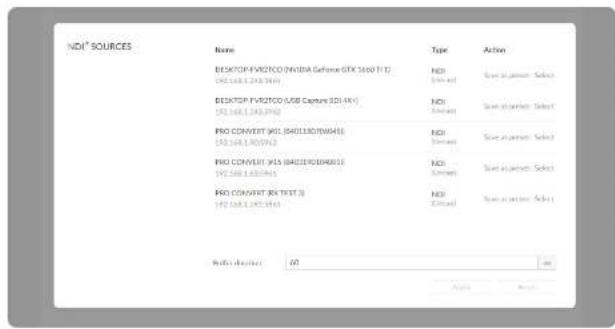

Setting NDI®SOURCES

NDI® sources auto-detected by the decoder are list here. The sources, which are in the specified group and be able to pinged, are included, if Discovery Server is enabled in the NDI® OPTIONS section.

- Click Save as preset to add current stream to SOURCE PRESETS list.

- Click Select to start decoding current stream.

- Buffer duration ranges from 20 to 120ms. We recommend that you set the value greater than the Jitter in the Dashboard tab.

If low latency is required, you can reduce the Buffer duration. Otherwise, the default value 60 ms is recommended.

Click Apply after modification.

You can click Reset to reset the buffer to default value.

PRO COMMANDS 4.03.2018 PRO COMMANDS 4.03.2018 PRO COMMANDS 4.03.2018 PRO COMMANDS 4.03.2018 PRO COMMANDS 4.03.2018 PRO COMMANDS 4.03.2018 PRO COMMANDS 4.03.2018 PRO COMMANDS 4.03.2018 PROCOMMANDS 4.03.2018 PROCOMMANDS 4.03.2018 PROCOMMANDS 4.03.2018 PROCOMMANDS 4.03.2018 PROCOMMANDS 4.03.2018 PROCOMMANDS 4.03.2018 PROCOMMANDS 4.03.2018 PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMAND S PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDS PROCOMMANDES

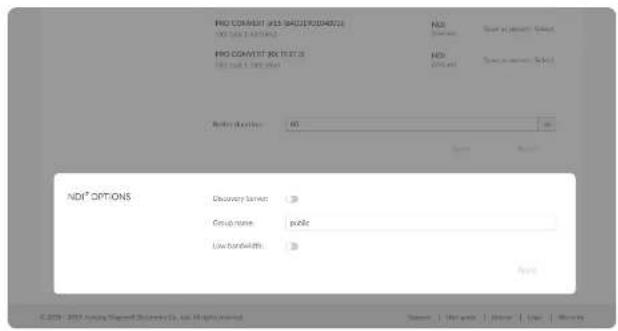

Setting NDI®OPTIONS

• Discovery Server

Turn on the switch for the decoder to auto-detect a source sender in different network segment but be able to pinged. And the Server IP should be the IP address of the server running discovery server software. By default, it is off.

- Group name

Specify the Group name which the source belongs to. It is non case-sensitive, and should contain A to Z, a to z, 0 to 9 and special characters like _. The group name entry can contain comma-separated values, allowing your decoder to receive all the groups listed here. By default, it is public.

- Low bandwidth

Turn on the switch for decoding NDI stream when the network bandwidth is too low to have a smooth video. Generally, if the resolution is higher than 2048 x 1080, it will be reduced to a quarter of the original resolution; otherwise it will be reduced to half of the original value. Meanwhile, the frame rate will drop to about 15 FPS. By default, it is off.

Note that you need to click Apply at the bottom-right corner of the NDI® OPTIONS to save changes.

System

With administrative rights, you can access the System tab to control more functions, such as:

• Creating or removing general user accounts for accessing the decoder
  • Changing passwords for all users of the decoder
• Changing the decoder's name
  • Network settings for joining a specific LAN
• Updating firmware for the latest features and improvements
• Exporting reports and logs to get technical support
• Rebooting or resetting the decoder to fix problems

Otherwise, the System tab is invisible when you log in as a general user.

IMADEWELL Dashboard Signal Video Audio EOD Source System Admin - User admin Nether Add New User User name Password Confirm password OK Cancel USER ADMIN Admit user create and manage users that are stored locally on the Convert Devices

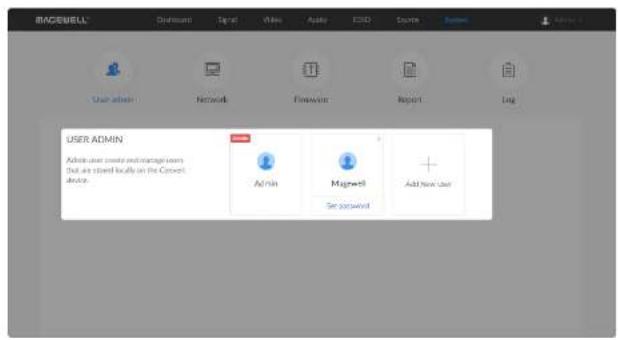

Creating/Removing General Users

After signing in with default admin account, you may need to add general users to give them permissions to do basic operations, like monitoring the device, or setting some of the parameters.

Access the Web UI, and sign in as administrator.Step 1

Click and enter the System > User admin tab.Step 2

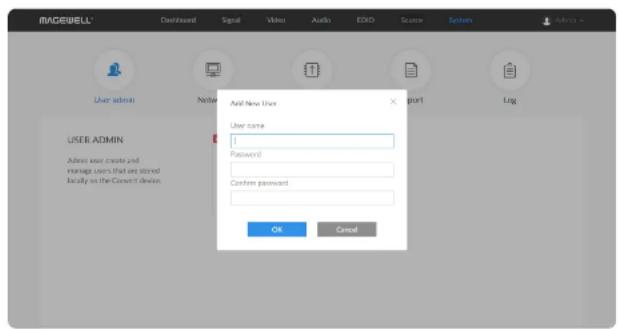

Click Add New User.Step 3

Type in the user name, password, and confirm your password.Step 4

• The username is a string of 3 to 12 characters, which contains the letters A-Z, a-z, numbers 0-9 and underscore.
• The password is a string of 1 to 32 characters, which contains the letters A-Z, a-z, numbers 0-9 and special characters _

BNCBEELL User Admin Network Password Report Log USER ADMIN Admin user counts and managers But an stored locally on its Connect device. Add new User Admin MagnetNet + Add New User Set password

\~!@%\$%^&+-=.

Click OK.Step 5

Repeat Step 3 to 5 to add multiple users.Step 6

decoders support the addition of up to 15 general users.

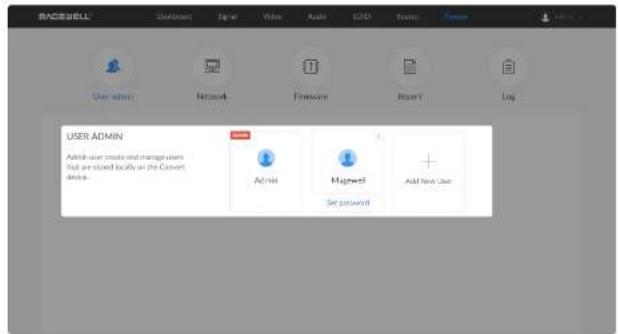

Step 7 To delete a user, move the cursor to the user name you want to delete, then click the delete button "X" appeared at the top-right corner.

Confirm the deletion when prompted.Step 8

INADEWELL Editcnt Signal Video Audio KISO Search Index User admin Network Performance Report Log Change personnel Signed Refresh USER ADMIN Admin not valid and manage user that is moved back on the Current Account. Add New User

BOSBELL User admin Network Fireware Report Log USER ADMIN Admin user create and manage users but are stored locally on the Connect device. Admin Master-5 Add New User Set password

Setting Password

After login, You can either set up a password in the user account drop-list, or in the System tab (with administrative rights).

Solution 1: Setting in via the user account drop-list

Access the Web UI, and sign in with your username and password. Ste

Step 2 Click the drop-list icon beside the logged-in username, and click Change password.

Step 3 In the prompt window, type in your old password, the new password, and confirm your new password.

The password is a string of 1 to 32 characters, which contains letters A-Z, a-z, numbers 0-9 and special characters _\~!@#\$%^&*-=. Click OK.Step 4

Solution 2: Setting in the System tab

Step 1 Access the Web UI and sign in from the administrator account, then you can change any user's password. Click and enter the System tab.Step 2

Step 3 Move the cursor to the specific user name, then click Set password. In the prompt window, type in and confirm your password.Step 4 The password is a string of 1 to 32 characters, which contains letters A-Z, a-z, numbers 0-9 and special characters _\~!@#\$%^&*-+.. Click OK.Step 5

INOCHELL User address Internet Firmware Rout Log ETHERNET Link Address: 1.0 GHz Settings for device name and IP address of Ethernet Device name: Pre Connect Set IP Address My address

User admin Network Financier Report Iain ETHERNET Settings for device name and IP address of Internet IP Address: 192.368.1.00 Submit mask: 259.259.256.0 Submit mask: 192.368.1.1 DNS mask: 66.0.0.3 Apply USB ENDS List name: Net Spand

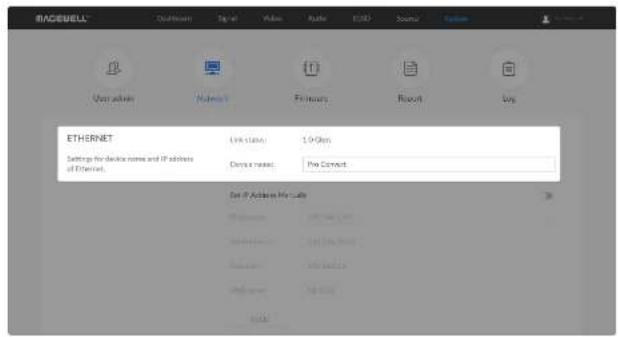

Setting Device Name

To change device name in the System tab requires administrative rights. By default, the device name is the same as the product model name.

Access the Web UI, and sign in as administrator.Step 1

Step 2 Click and enter the System tab, then select Network.

Enter a new Device name.Step 3

The device name is a string of 1 to 30 non-case sensitive characters, containing letters a to z, A to Z, 0-9, spaces and special characters like _++.

Step 4 Click Apply to save changes, and confirm with Yes when prompted.

Network Settings

To change network connections in the System tab requires administrative rights. You can change the device name while setting network parameters. By default, the Pro Convert unit automatically detects any connected network. You can set a static IP Address if the device failed to auto-configure using DHCP. If multiple devices are connected using Ethernet over USB, change the RNDIS IP address according to your own arrangement.

Setting Ethernet IP Address

Access the Web UI, and sign in as administrator.Step 1

Step 2 Click and enter the System tab, then select Network.

Step 3 Turn on Set IP Address Manually, then enter a new IP address, Subnet mask, Gateway, and DNS server.

Click Apply to save changes.Step 4

When the prompt appears, click Yes.Step 5

ETHERNET Settings for IP address or IP address of Ethernet Link status: 100000 Device name: Pre Second Link IP Address Status: IP Address: 192.648.140 Shared name: 233.234.2550 Address: 192.648.14 Shared name: 140.000 Add USB ENDS Link status: High Speed Settings for IP address or USD ENDS IP Address: 192.648.140

Step 6 Type the manually assigned IP address in your web browser to access the Web UI, verifying if the network settings work.

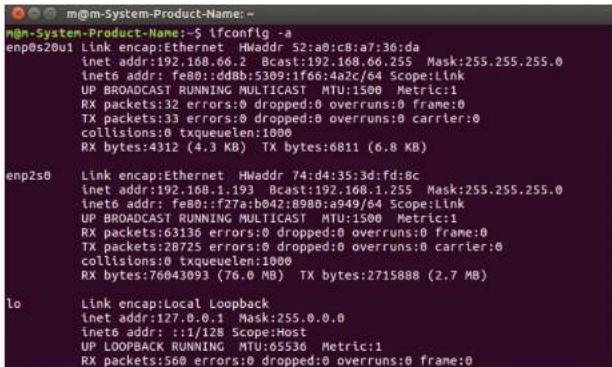

Setting Ethernet over USB IP Address

RNDIS (Microsoft's widely used Ethernet over USB protocol)/ECM (Ethernet Control Model) provides a virtual Ethernet link for the decoder to connect to a computer operating system.

Note:

• It is not recommended that you modify this IP address unless there is a conflict on your LAN.
• Do not connect more than one decoder simultaneously to one system when using Ethernet over USB.

Access the Web UI and sign in as administrator.Step 1

Step 2 Click and enter the System tab, then select Network.

Enter a new IP address for Ethernet over USB.Step 3

Step 4 Click Apply to save changes, then click Yes when prompted.

IMACIWELL User admin Network Comments Import Help MANUAL UPDATE Drug and drug is downloaded features the form to update the device to a spectred version manually. Current version: V1.0497. After it the update the user by drug & drug is click on upload ONLINE UPDATE Create and upgrade the service to the user with the system, allowing your help.

Figure1. Click to update

RACEWELL Default Card Enter Video Media EBS Search Help User admin Name Manual Update Current version 10.097 Update to version 10.097 Update MANUAL UPDATE Snap and drove a downloaded foreign and notes to update the device to a specified version manual. 10.097 Update & other options obtained ONLINE UPDATE Check and update the links to the Current version: 10.097

Figure2 Click update

LOCATING REMAVER DO NOT use this or where the store or calling home From your website: http://www.elsevier.com http://www.elsevier.com

Figure3. Click Reboot

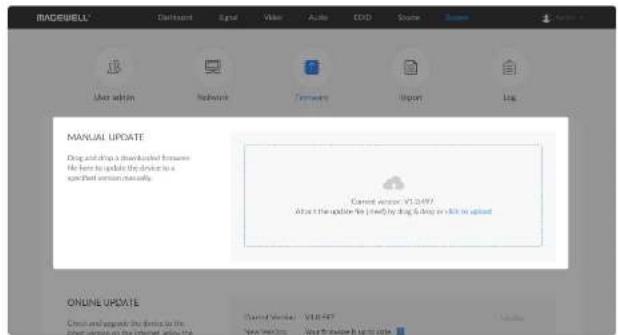

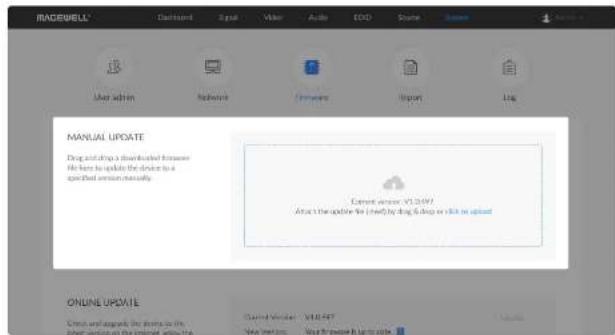

Updating the Firmware

To update the firmware via the System tab requires administrative rights.

Note: Currently online update is not supported.

Access the Web UI, and sign in as administrator.Step 1

Step 2 Click and enter the System tab, then select Firmware.

Step 3 Click on click to update to select the .mwf firmware update file from your local storage, or just drag and drop the file from your computer into the upload zone.

You can download the Pro Convert firmware package from the Downloads section of the Magewell website:

http://www.magewell.com/downloads/pro-convert.

Click Open to upload the updates package.Step 4

The device will automatically verify the update file.

The unit will upload the file after the file verification is passed.

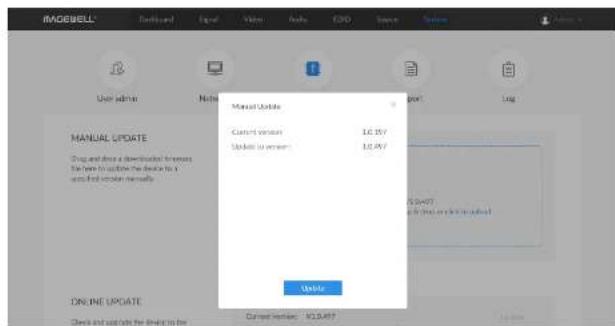

Step 5 In the Manual Update window, click Update.

DO NOT shut down or reboot the device when updating firmware. Click Reboot to complete the update.Step 6

The changes take effect after you reboot the device.

Step 7 Log in to your unit's Web UI and check the current Firmware version in the Dashboard tab.

The Firmware version should have changed to show the number of the new update.

Pro Convert NDI to HDMI Comment at Nov. 24 Sep 2019 02:48:54 GMT DEVICE GENERAL Region ID 0 Serial 001 Hardware version A Firmware version 1.1.133 MAC address 3A/6833/C39884 Temperature 62.97 kΩC Up time 6472 seconds Free memory 157372K bytes Event

Exporting Reports and Logs

You can export reports and logs from your decoder when you want to get help from the Magewell Support team. These files will help our support engineers get a better understanding of your device status and other related equipment like the source device. These operations require administrative rights.

Exporting Reports

Access the Web UI and sign in as administrator.Step 1

Step 2 Click and enter the System tab, then select Report.

Click Export... to generate a .html file.Step 3

When the prompt appears, click Export.Step 4

User admin Network Performance Report Log SYSTEM LOG Track important events generated by the device and report (see as a file for tech or support) Total: 156 events All Information Warning Error Level Date & Time Detail © 2019-09-24 10:48:29 User Admin(1992.168.46.2) logged in, session 207 © 2023-09-24 10:48:58 User Admin(1992.168.46.2) logged out, session 2 © 1970-01-01 08:00:16 User Admin(1992.168.46.2) logged in, session 2 © 1970-01-01 08:00:43 Ethernet link status: 1000 Mbps, IP slot: 192.168.3.202 © 1970-01-01 08:00:58 Ethernet link status: 1000 Mbps, IP slot: 169.254.10.904 © 1970-01-01 08:00:11 Ethernet link status: 1000 Mbps, IP slot: 0.0.0.0 © 1970-01-01 08:00:20 Ethernet link status: disconnected © 1970-01-01 08:00:59 Ethernet link status: disconnected © 1970-01-01 08:00:68 Ethernet link status: 50 Mbps, IP slot: 0.0.0.0 © 1970-01-01 08:00:67 Ethernet link status: 1000 Mbps, IP slot: 0.0.0.0 © 1970-01-01 08:00:66 Ethernet link status: disconnected © 1970-01-01 08:00:55 USB AND/IS IP slot: 192.168.66.1

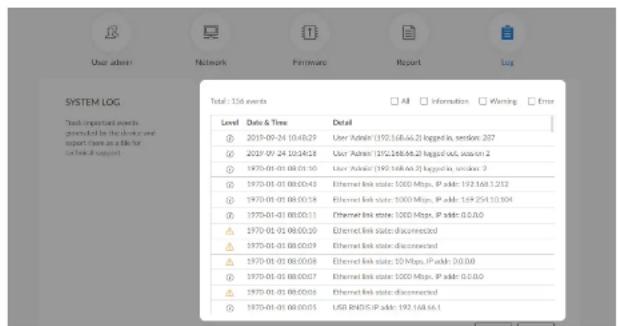

Clearing/Exporting All Logs

Access the Web UI and sign in as administrator.Step 1

Step 2 Click and enter the System tab, then select Log.

(Optional) Filter current logs.Step 3

By default, all logs are displayed in the table. Log entries can be categorized as "error", "warning", and "information".

• Total shows the total number of filtered events.
• All: Check to show all logs.

The device can store up to 1000 local log entries. After 1000 entries have been recorded, the oldest entry will be deleted before a new one can be added.

• Information: Check to show information logs - which record user actions or significant system events, e.g. login and signal locked.
- Warning: Check to show warning logs - which mean something has not worked as it should. e.g. Ethernet is disconnected or signal is unlocked.
- Error: Check to show error logs - which mean some serious error has happened.

Step 4 (Optional) Click Export... to get a .html file of all logs.

When prompted in the window, click Export.

(Optional) Click Clear to delete all logs.Step 5

When prompted in the window, click Yes.

VMADWELL Download Final Video Audio STOCK Source Help User Admin Mouse 4 Firmware Report Log Change personnel Sign out Default USER ADMIN Admin used to use and manage events that are involved in the Current Device. Admin Add New User

http://192.18661

Figure1. Corrections Figure2. Reset all settings

Pro Camer's™ OK OK

Rebooting/Resetting Pro Convert

Rebooting/resetting your Pro Convert when problems are encountered.

Rebooting Pro Convert

⚠ Rebooting your device will not lose any of your configuration settings.

Access the Web UI and sign in as administrator.Step 1

Step 2 Click the drop-list icon behind your username at the top-right of the Web UI and select Reboot. When prompted in the window, click Reboot.Step 3

Resetting All Settings

⚠ Warning: Resetting your device will lose all your configuration data.

Connect the device and your computer with the USB cable.Step 1

Step 2 Launch your web browser and type in the Ethernet over USB address to access the Web UI SIGN IN page.

The default address is http://192.168.66.1. Please do not change it unless there is a conflict in your network.

Step 3 Click Reset all settings at the top right corner of the SIGN IN page. The reset process may take a few minutes.

FAQ

+5V NDI®+POE

How to supply power to the Pro Convert

There are 2 ways to power your decoder as shown in the left figure:

1. Via USB: Plug in the supplied 5V power adapter via the USB cable to supply power.
2. Via PoE: Plug in an Ethernet cable connected to a PoE switch or a PoE adapter for power and Ethernet connection.

Note:

• Pro Convert devices require a 5V DC source with a current rating of no less than 2.1A.
  • We recommend that you use only the included Magewell accessories.
• If any included accessory is lost or broken, please contact your Magewell authorized local resellers for help.

Which version of NDI ^® SDK is compatible with Pro Convert?

Pro Convert is compatible with NewTek NDI ^® SDK from 3.5 to 4.0 version for now.

How long it takes for one frame to be received until it is displayed?

After testing, in a Gigabit Ethernet network, if using Philips 328M monitor as the presentation device, the minimum delay of converting 1080P60 signal is about 50 ms when the buffer duration is 20 ms.

ROGHELL® PRO CONVERT™ SIGN IN User create adjustment User name: Recommended 2008 Help your product?

+5V NDI®+POE HOMI OUT USB HOST

Figure1. Connections

How to configure Pro Convert via Web UI

Pro Convert allows you to set up and control via a web-based user interface as either an administrator or a general user.

You can get access to the Web UI using Windows File Explorer, through your web browser over a USB connection, or with menu Options.

Make sure that at least one of the following web browsers is installed in your system.

• Google Chrome version 49 and above
• Microsoft Internet Explorer 11
- Microsoft Edge
• Mozilla Firefox version 61 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

1. Using Windows File Explorer

This method is available for Windows7/8/8.1/10 users.

Step 1 Connect your decoder via Ethernet and power it up. Connect a presentation device.

Open a File Explorer window in one of the following ways.Step 2

• Click on the Start Button and find File Explorer in the Start menu.
• Press the Windows logo key 📄E.
• Select the folder icon on the taskbar.

Step 3 Select the Network view at the bottom of the list of items on the left

http://192.168.66.1

side of the File Explorer.

Turn on the network discovery function if prompted.Step 4

Step 5 Find your Pro Convert device in the Other Device section, where it will be shown as "Pro Convert + #board index + (serial number)".

- The serial number (marked on your device) will be in a form like 'B410180706006'.

- The board index (the rotary switch number on your device) is shown like "04" or "#04".

Step 6 Double click the decoder icon to open the Web UI of the device in your web browser.

2. Using Ethernet over USB

Step 1 Connect the Pro Convert device to your computer using the USB cable.

Step 2 Launch your web browser, and type in USB RNDIS address to access the Web UI. The default address is http://192.168.66.1.

Step 3 Enter your account and password in the SIGN IN page, and configure the device after you login successfully. The default admin account (case-sensitive) is Admin, Admin.

Options Close Close options Source None Video Video options Audio Audio options Resolution 1920x1080 59.94p 16:9 System System information

Figure1. Select System in Options menu

Options | System Back Back to upper level HW revision A FW version 1.1.155 Serial No. 001 MAC address 3A:C8:33:C3:9B:B4 WebGUI QR WebGUI URL 192.168.1.212

Figure? Check the WebGUI

Solution 3: using the on-screen menu Options

Step 1 Connect your decoder via Ethernet, power it up and connect a presentation device as shown in the Figure1. Connections.

Step 2 Press the on-device MENU button, click the mouse or the keyboard(if connected), to display the Options overlaid on the output.

Step 3 Go to the System option and check for the device WebGUI URL or scan the WebGUI QR to open the web UI in your web browser within the same LAN with your decoder.

Riackwell User address Ethernet Windows Report Log ETHERNET Link status 1.0 GHz Settings for device name and IP address of Internet Device name: Raw Comment SIP Address Modems 12.0000 12.0000 12.0000 12.0000 12.0000 12.0000 12.0000 12.0000 12.0000 12.0000 12.0000 12.0000 12.0000 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12, 12,

How to change device name

Pro Convert allows you to set up and control via a web-based user interface as other an administrator or a general user. Changing the device name requires administrator rights.

Access the Web UI, and sign in as administrator.Step 1

Click and enter the System > Network tab.Step 2

Change the Device name.Step 3

The device name is a string of 1 to 30 non-case sensitive characters, containing letters a to z, A to Z, 0-9, spaces and special characters like _+.

Step 4 Click Apply to save your changes, and then click Yes when prompted.

It may take a few minutes for your settings to take effect.

Step 5 Click and enter the Dashboard tab in the Web UI to check the Device name. The values should be the same as your settings.

http://192.169.66.1

R/CEWELL® Reset all settings PRO Convert™ SIGN IN Enter your account and password User name Password WIN M Reset my password!

How to reset a Pro Convert device

⚠ Warning: Resetting your device will lose all your configuration data.

Connect your decoder to your computer.Step 1

Step 2 Launch your web browser, and type in the USB RNDIS address to access the Web UI SIGN IN page.

The default address is http://192.168.66.1. Please do not change it unless there is a conflict on your network.

Step 3 Click Reset all settings at the top right corner of the SIGN IN page. The reset process may take a few minutes.

IMAGEWELL User admin Network Formers Import Log MANUAL UPDATE Drug add drops a downloaded transformer File torn to update the device to a specified version manually. Current version: V1.2097 Attach the update file (new) by drug & drop or R&K to upload ONLINE UPDATE Close and expand the devices to the User admin Current Version: V1.2097 New Version: V1.2097 Web https://www.imagewell.com/ Online

Figure1. Click to update

IMOBELL Standard Equal Video Audio ECD Splice System User admin Notes Manual Update Current version: 16.057 Update to version: 16.067 MANUAL UPDATE Drug and drive a downloaded license The new to update the device to a user file version manuals. 16.057 the first or last updated Addis Addis ONLINE UPDATE Check and update the default to the Current Version: 16.067

Figure2 Click update

FIRMWARE

Upgrade device to the latest version.

enjoy the latest features and

improvements, appreciate your assets

Firmware update completed. You need to reboot device for the update to take effect. Reboot

Figure3. Click Reboot

How to manually update the firmware for Pro Convert

You can update firmware via the Web UI with administrative rights.

Access the Web UI and sign in as administrator.Step 1

Step 2 Click and enter the System tab, then select Firmware.

Click on click to update.Step 3

Select the .mwf firmware update file from your local storage.Step 4

You can download the Pro Convert firmware package from the

Downloads section of the Magewell website:

http://www.magewell.com/downloads/pro-convert.

Click Open to upload the updates package.Step 5

The device will automatically verify the update file.

The unit will upload the file after the file verification is passed.

Step 6 In the Manual Update window, click Update.

The device will verify the update file and automatically upload it if the verification is successful.

After loading successfully, click Reboot to complete the update.Step 7

The reboot process may take a few minutes.

Step 8 Login to the Web UI again and check the current Firmware version number in the Dashboard tab.

The Firmware version should now show the number of the new update.

RACEWELL User admin Network Password Report Log USER ADMIN Add new admin and management but are stored locally on the Current device. Admin Mawell Add Now User Set password

Diagram showing a laptop connected to a device with a cable, and a magnified circular display showing URL and address.

Figure1 connections Figure2 Reset al settings

Pro Convert® OK

What to do if you forgot the password

If you are a general user, ask your administrator to set a new password for you. If you are the administrator, you need to reset all settings back to default values, then set a new admin password.

1. To reset a general user's password.

Access the Web UI and sign in as administrator.Step 1 Click and enter the System tab.Step 2

Step 3 Click the Set password link which appears when your mouse hovers over the user name.

Step 4 Type in new password and confirm the new password as prompted in the window.

The password is a string of 1 to 32 case-sensitive characters, which contains A-Z, a-z, 0-9 and special characters _\~!@#\$%^&*-+. Click OK.Step 5

2. To set a new admin password.

Connect the device to a computer with the USB cable.Step 1

Type in the USB RNDIS address to your web browser.Step 2

The default IP address of USB RNDIS is http://192.168.66.1. Please do not modify it unless there is a conflict on your network.

Step 3 Click Reset all settings at the top-right corner of the SIGN IN page. The reset process may take a few minutes, and all configuration data will be lost – not just the passwords.

Step 4 Sign in to the Web UI via the default admin account (case-sensitive): Admin, Admin.

Click and enter the System tab.Step 5

Step 6 Click the Set password link which appears when your mouse hovers over the user name.

Step 7 Type in new password, and confirm the new password as prompted in the window.

The password is a string of 1 to 32 case-sensitive characters, which contains letters A-Z, a-z, numbers 0-9 and special characters _-!@#\$%^&*-=.

Click OK.Step 8

http://191.168.05.1

Figure1. USB RNDIS corrections

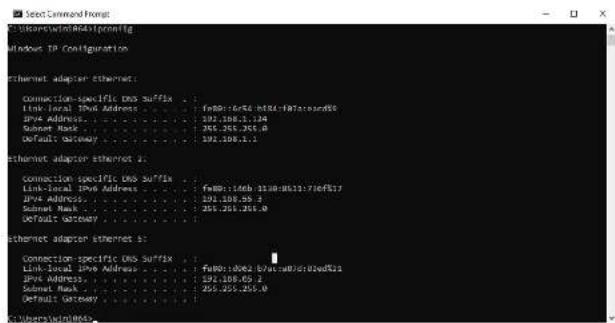

Select Command Prompt Windows TCP Configuration Ethernet adapter ethernet: connection-specific DNS suffix Link local IPv Address ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... connection-specific DNS suffix Link-local IPv Address ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...... IPv Address................................................................................................................................................................................. Subset Mask: 255.255.255.0 Default Gateway: 192.108.1.1 Ethernet adapter ethernet 2: connection-specific DNS suffix Link-local IPv Address ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... IPv Address: 192.108.55 2 Subset Mask: 255.255.255.0 Default Gateway: 192.108.1.1 Ethernet adapter ethernet 3: connection-specific DNS suffix Link-local IPv Address : 192.108.65 2 IPv Address: 192.108.65 2 Subset Mask: 255.255.255.0 Default Gateway: 192.108.1.1 Connection specific DNS suffix Link-local IPv Address : 192.108.65 2 IPv Address: 192.108.65 2 Subset Mask: 255.255.255.0 Default Gateway: 192.108.1.1

Figure 7. Windows

How to retrieve your USB RNDIS IP Address

Step 1 Connect the device and your computer with a USB cable as shown in Solution 2, using USB RNDIS.

Take the following steps according to your operating system.Step 2

- For Windows users

1. Type cmd in the search bar to start the command interpreter.
2. Type in ipconfig, and find an IPv4 address of the form 192.168.xxx.2, as shown in Figure1. Windows.

- For Linux users

1. Launch the terminal.
2. Type in ifconfig -a, and find an IPv4 address of the form 192.168.xxx.2, as shown in Figure2. Linux.

- For Mac users

1. Click the System Preferences icon in the Dock or choose Apple menu > System Preferences.
2. Choose Network > Pro Convert, and check the IP Address, as shown in Figure3. Mac.

If 192.168.xxx.2 is taken, the IP address would automatically change to another value within the ranges of 192.168.xxx.2 to 192.168.xxx.254.

Type in 192.168.xxx.1 in your web browser to access the Web UI.Step

m@m-System-Product-Name:~ m@m-System-Product-Name:~$ ifconfig -a enp0s20u1 Link encap:Ethernet HWaddr 52:a0:c8:a7:30:da inet addr:192.168.66.2 Bcast:192.168.66.255 Mask:255.255.255.0 inet6 addr: fe80:fdd8b:5309:1f66:4a2c/64 Scope:Link UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:32 errors:0 dropped:0 overruns:0 frame:0 TX packets:33 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:4312 (4.3 KB) TX bytes:0811 (6.8 KB) enp2s0 Link encap:Ethernet HWaddr 74:d4:35:3d:fd:Bc inet addr:192.168.1.193 Bcast:192.168.1.255 Mask:255.255.255.0 inet6 addr: fe80:f27a:b042:B9B0:a949/64 Scope:Link UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:63136 errors:0 dropped:0 overruns:0 frame:0 TX packets:28725 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:76043093 (76.0 MB) TX bytes:2715888 (2.7 MB) lo Link encap:Local Loopback inet addr:127.0.0.1 Mask:255.0.0. inet6 addr::1/128 Scope:Host UP LOOPBACK RUNNING MTU:65536 Metric:1 RX packets:560 errors:0 dropped:0 overruns:0 frame:0

Figure1 Linux

Pro Convert Connected Wi-Fi Connected Bluetooth PAN Not Connected USB 10/..00 LAN Not Connected Thunde...It Bridge Not Connected Location: Automatic Status: Connected Pro Convert is currently active and has the IP address 192.168.66.2. Configure IPv4: Using DHCP IP Address: 192.168.66.2 Subnet Mask: 255.255.255.0 Router: DNS Server Search Domains: Advanced...

Figure1 Mac

Support

Get the Latest Information

If you have any problems using Magewell products or need more technical information, please visit the following channels.

• Tutorial video: http://www.magewell.com/tv
• YouTube channel: Magewel Video Capture Device
  • Knowledge base: http://www.magewell.com/kb/pro-convert
  • Official website: http://www.magewell.com/pro-convert

Technical Support

Contact the Magewell Technical Support Team at [e-mail].

Warranty

Limited Warranty

Except otherwise set between you and Magewell in advance in a written form, the free limited warranty service starts from the date on your proof of purchase. The proof can be: sales contract, formal sales receipt, invoice or delivery note. The earliest date of these proofs is the starting date of the free limited warranty.

The period of free limited warranty goes as below:

• Pro Convert Family: two (2) years;
• The USB cable and power adapter provided as accessories: one (1) year;

How to get the limited warranty

1. Please contact the Magewell support team by email ([e-mail]) first, to determine whether your problem can only be solved by returning it to Magewell for repair. Magewell might ask you to take photos of the front and back of the defective products.
2. Magewell will issue an RMA letter to you if it is confirmed that you need to return the faulty product for further examination or repair. Please fill in the RMA with necessary information as required.
   If it is regular repair, you will be responsible for the shipping cost, duties and insurance cost (if applicable); if the product is DOA, Magewell will be responsible for the shipping cost.
3. If some components need to be replaced, Magewell will decide to repair, renovate or replace the components by itself. Magewell may use new or repaired component to repair the product. The repaired product can be expected to work normally and the performance to remain the same. Repaired products can work in a good working condition and at least function the same as the original unit. The original replaced component will become the property of Magewell and components which are replaced for the client will become his/her property.
4. If the product is within warranty, Magewell will repair or replace the faulty units at its own discretion. In circumstances where the faulty unit is replaced by another one, Magewell may use new, repaired or renovated units. The faulty unit will then become the property of Magewell while the replacement unit will become the property of the purchaser.
5. If the warranty expires, Magewell will inform the purchaser whether the products can be repaired and the maintenance costs they need to pay. If purchasers

decide to repair, Magewell will repair, renovate, or replace the components after receiving the maintenance costs. If purchasers give up repairing, Magewell will dispose of the faulty unit if the purchaser chooses that option.

1. The repaired or replaced product assumes 1) the remaining term of the Warranty of the replaced unit or faulty unit; 2) ninety (90) days from the date of replacement or repair, whichever provides longer coverage for you. The extended warranty is only valid for repaired/replaced components.
2. The period of service depends on the client's location (country and area) and the product.

To view the complete warranty policy, please visit www.magewell.com/quality-assurance.

Notice

Copyright © 2019 Nanjing Magewell Electronics Co., Ltd.

All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher, except in the case of brief quotations embodied in critical reviews and certain other noncommercial uses permitted by copyright law.

Trademarks

HDMI, the HDMI logo and High-Definition Multimedia interface are trademarks or registered trademarks of HDMI Licensing LLC. Windows, DirectShow and DirectSound are trademarks or registered trademarks of Microsoft Corporation. OS X and macOS are trademarks or registered trademarks of Apple Inc. NDI is trademark or registered trademark of NewTok Inc. Other trademarks and company names mentioned are the properties of their respective owners.

About this Document

• This document is for reference only. Please refer to the actual product for more details.
• The user shall undertake any losses resulting from violation of guidance in the document.
• In case that PDF document cannot be opened, please upgrade the reading tool to the latest version or use other mainstream reading tools.
- This company reserves rights to revise any information in the document anytime; and the revised contents will be added to the new version without prior announcement. Some functions of the products may be slightly different before and after revision.
- The document may include technically inaccurate contents, inconsistencies with product functions and operations, or misprint. Final explanations of the company shall prevail.
- The only warranties for Magewell products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Magewell shall not be liable for technical or editorial errors or omissions contained herein.

Glossary and Abbreviations

Board Index

Board Index indicates the rotary switch number located in the Pro Convert. It helps users to mark and identify multiple devices

ECM

Ethernet Control Model (ECM) provides a virtual Ethernet link for mac users used on top of USB.

EDID

Extended Display Identification Data (FDID) is a metadata format for display devices to describe their capabilities to a video source.

NDI®

NDI (Network Device Interface) is a standard developed by NewTek to transport video, audio & metadata over a local Ethernet network. Visit https://www.newtek.com/ndi/ for more information.

PoE

Power over Ethernet (PoE) is a networking feature defined by the IEEE 802.3af and 802.3at standards. PoE allows a single cable to provide both data connection and electric power to attached devices.

QoS

Quality of service (QoS) is the description or measurement of the overall performance of a service. To quantitatively measure quality of service, several related aspects of the network service are often considered, such as packet loss, etc.

RNDIS

Remote Network Driver Interface Specification (RNDIS) is a Microsoft proprietary protocol used on top of USB. It provides a virtual Ethernet link to operating systems.

Tally

Tally lights comprise one or more signal-lamps on a professional video camera or monitor, to show when the device is on-air. A preview tally signal is typically green, while a program one is usually shown using the colour red.
