USER MANUAL SL I 4-90 A++ IXTZ SCHNEIDER

Exterior view of a modern stainless steel kitchen unit with a mounted chimney and open lid (no visible text or symbols)

Deutsch

Seite

2

English

Page

29

Close-up of a blue industrial machine with a black circular component mounted on a metal frame (no visible text or symbols)

DIE AUFNAHME FÜR DEN ABLUFTSCHLAUCH IST VORMONTIERT.

Cylindrical metallic object with textured surface, placed on a blue workbench (no visible text or symbols)

Exterior view of a modern office building (no signage)

Close-up of a blue surface with a black arrow pointing downward to a small object, no visible text or symbols.

Technical diagram of a mechanical device with labeled parts 1 and 2, showing internal spiral flow arrows.

Circular black fan or vent with concentric rings and radial blades, no visible text or symbols

Close-up of a black plastic mechanical component with four circular holes and a yellow wire, no visible text or symbols.

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....31

1.1 Signal words.... 32
1.2 Safety instructions.... 32

1. Installation 35

2.1 Minimum distances.... 36
2.2 Installation steps ...... 37
2.3 Electrical connection....40

1. Extraction mode / Recirculation mode.... 40

3.1 Extraction mode 40
3.2 Recirculation mode....41

3.2.1 Carbon filters....41
3.3 Grease filter(s) 43

1. Control panel.... 43

4.1 Operation....43

1. Environmental protection 45

5.1 Energy saving....45

1. Cleaning and maintenance....45

6.1 Grease filters....46
6.2 Carbon filters....47
6.3 Replacing of the illuminant....48

1. Trouble shooting....48

2. Technical data....50

3. Waste management....51
4. Guarantee conditions....52

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for extracting/recirculating cooking vapours in private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
3. The power cord must be replaced by a qualified professional only.
4. Never repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly, please contact the customer service or the shop you purchased the appliance at ^8 . Original spare parts should be used only.
5. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

6. If gas is set free in your home:
   a) Open all windows.
   b) Do not unplug the appliance and do not use the control panel.
   c) Do not touch the appliance until the gas has gone.
   d) Otherwise sparks can be generated which will ignite the gas.

7. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!

8. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons:

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa ( 4 × 10^-5 bar).
2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock.
5. The technical data of your energy supply must meet the data on the rating label.
6. Your domestic circuit must be equipped with an automatic circuit breaker.
7. Strictly observe the minimum distance between hood and hob. It is also absolutely necessary to observe the individual minimum distances to extractor hoods which are specified in the instruction manual of your hob / oven / etc.

MINIMUM DISTANCE HOOD TO

Ceramic-glass rings / hotplates	min. 65 cm
Gas cooker	min. 75 cm
Coal / oil / stove wood firing	min. 85 cm

1. Never install the appliance below the required minimum distance. If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

2. The load-bearing capacity of the wall/ceiling of the installation room must be checked before you install the appliance. The appliance must be installed at a suitable position only.

3. Before you install the appliance, check that there are not any electrical or other cables in the installation area; this prevents these cables from being drilled unintentionally. RISK OF ELECTIC SHOCK!

4. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.
5. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.
6. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
7. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
8. The exhaust hose must not be made of flammable materials or contain any flammable materials.
9. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.
10. Disconnect the appliance from the mains before cleaning and maintenance.
11. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
12. Children must not play with the appliance.
13. Always supervise children when they are near the appliance.
14. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Any potential user has to be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!
3. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.

2. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney.

3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.

4. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.
5. Take the enclosed parts from the packaging and its polystyrene-components.
6. Check that the power cord and the appliance are not damaged before electrical connection.
7. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

⚠ WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.

1. For extracting the exhaust air always observe the current legal regulations.
2. The diameter of the exhaust hose must meet the diameter of the connecting ring.
3. The load-bearing capacity of the wall/ceiling ^9 of the installation room must be checked before you install the appliance.
4. The appliance must be installed at a suitable position only.
5. Before you install the appliance, check that there are not any electrical or other cables in the installation area; this prevents these cables from being drilled unintentionally.
6. Clean the environment thoroughly before installation. This prevents dust or rubble from being sucked in during initial operation of the appliance.
7. During installation ensure that the extractor hood is in horizontal position in order to avoid accumulations of fat in one corner of the appliance.

8. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.

9. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.

10. The proper maximum bending angle outwards is 120°.
11. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
12. When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^0 is required. Otherwise condensate will get into the motor of the hood.
13. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.
14. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
15. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.
16. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.

2.1 Minimum distances

i Strictly observe the minimum distance between hood and hob.
i It is also absolutely necessary to observe the individual minimum distances to extractor hoods which are specified in the instruction manual of your hob / oven / etc.

REQUIRED MINIMUM DISTANCE HOOD TO
Ceramic-glass rings / hotplates	min. 65 cm
Gas cooker	min. 75 cm
Coal / oil / stove wood firing	min. 85 cm

1. The minimum distances do not represent the required total height but a minimum value generated by adding the height of the hob (floor hob) and the required minimum distance of the hob to the extractor hood (hob extractor hood)

$$ \begin{array}{l} (\text { floor } \leftrightarrow \text { hob }) \ + \quad (\text { h o b } \leftrightarrow \text { e x t r a c t o r h o o d }) \ = \quad \text { MINIMUM INSTALLATION HEIGHT } \ \end{array} $$

1. Adapt the total installation height to the height of the user. Please note that the extraction capacity of the appliance can decrease if installed at a large distance to the hob.

⚠ WARNING! Never install the appliance below the required minimum distance. If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

CAUTION! Any potential user has to be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!

2.2 Installation steps

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

⚠ WARNING! Do not damage the wiring in the wall while drilling

NOTICE! Two assistants are required for installation.

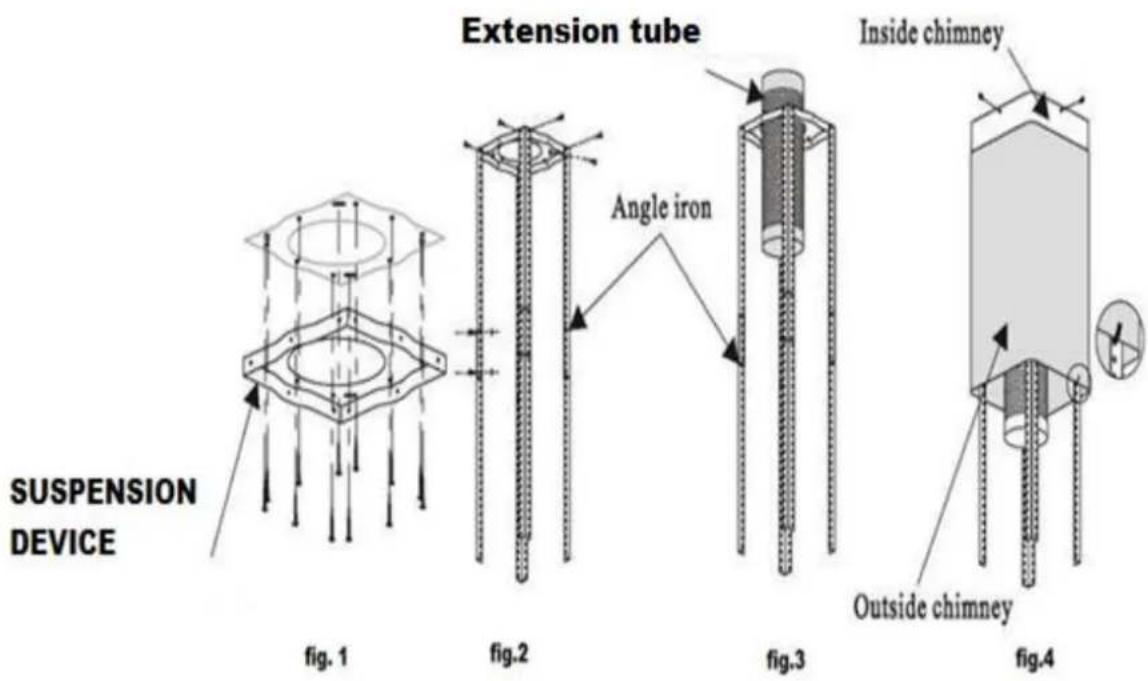

1. The ceiling must take a weight of at least 120 kg. The ceiling gauge must be at least 30 mm.
2. Drill a hole with a diameter of 170 mm through the ceiling.
3. Drill 12 holes which have to meet the dimension of the suspension device into the ceiling (fig. 1).
4. Fix the suspension device with 12 big flathead screws type ST6*40 mm on the ceiling. Use 8 dowel screws when fixing on a concrete ceiling.
5. Connect the suspension device with 8 screws type M4*10 to the angle irons (fig. 2).
6. Calculate the needed length of the angle irons. Fix the angle irons with 16 big flathead screws type M4*10 and M4 nuts. An overlapping length of at least 100 mm is required.
7. Insert the extension tube into the 170 mm-hole and lead it outwards (fig. 3).
8. Fix the inside chimney with 4 screws type ST4*8 on the suspension device. Push the outside chimney on the inside chimney. Use the S-hook to hold the chimney while installing it.

SUSPENSION DEVICE Extension tube Angle iron Inside chimney fig. 1 fig.2 fig.3 Outside chimney fig.4

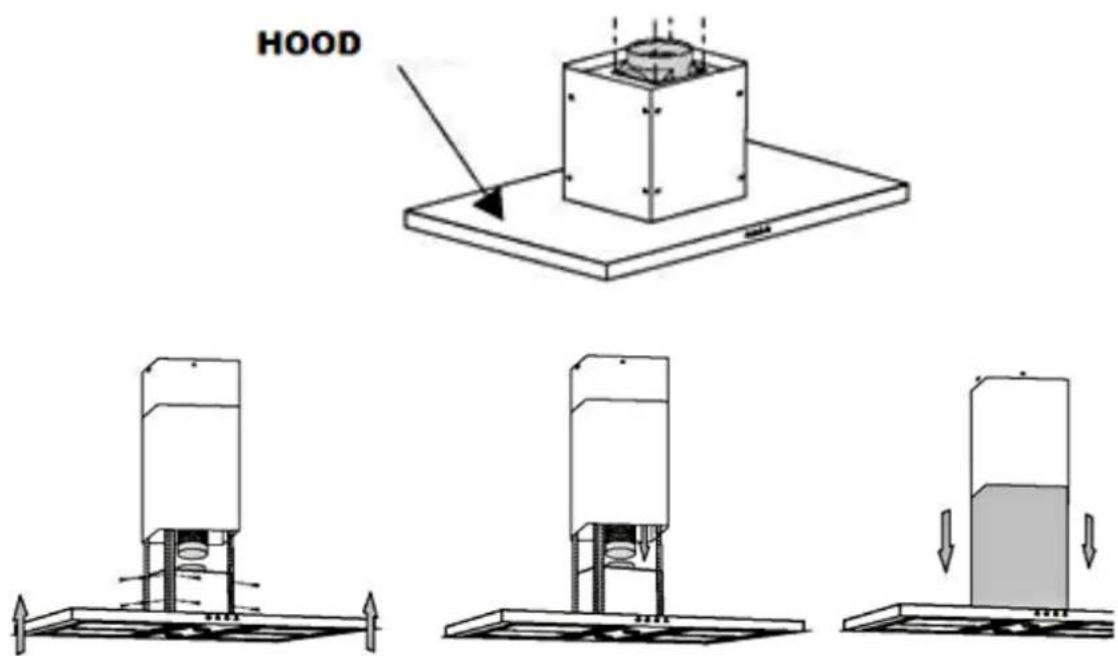

1. Fix the chimney with 4 screws type ST4*8.
2. You need at least two persons to lift the hood. Fix the hood with 16 screws type M4*10 on the angle irons.
3. Now pull the extension tube and fix it. Ensure that there are not any gaps. Remove the S-hook and pull the outside chimney to its proper position.
4. Insert the grease filters and connect the appliance to the mains ^10 .

HOOD

^10 If the socket is covered by the chimney, you must plug in the appliance at an earlier point in time.

Check the correct position of the hood from front and side perspective. Otherwise the appliance will not work properly.

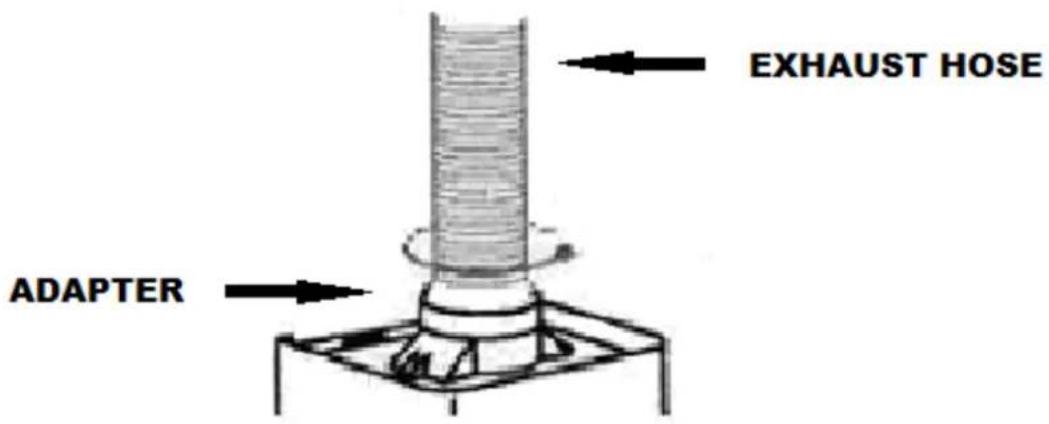

You can fix an exhaust hose with an adapter (depending on model if included in delivery) on the appliance (s. fig. below). Fix the adapter with four screws above the opening on the top of the appliance and insert the exhaust hose. The exhaust hose must lead away from the appliance horizontally and must not been bent more than 120^0 . Otherwise the appliance does not work properly.

EXHAUST HOSE ADAPTER

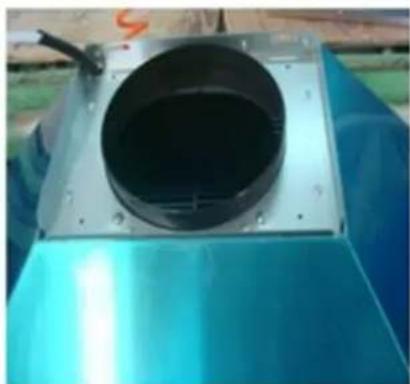

MODELS WITH PREASSEMBLED AIR OUTLET:

Close-up of a black circular component mounted on a metallic base, with no visible text or symbols.

PREASSEMBLED AIR OUTLET FOR FIXING THE EXHAUST HOSE.

Cylindrical metallic component mounted on a blue industrial machine (no visible text or symbols)

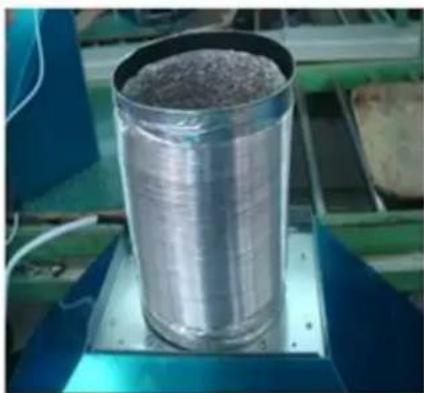

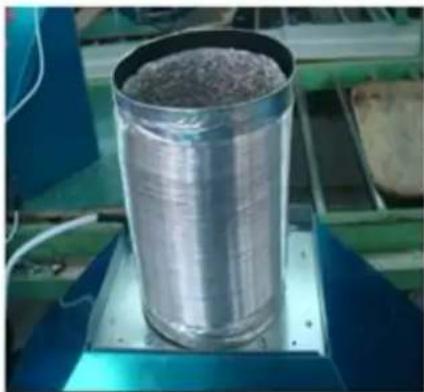

VIEW OF SEGMENT OF AN EXHAUST HOSE.

You must install the crescent-shaped protective covers, when you operate the appliance in extraction mode. The covers protect the motor from the outdoor air and draught.

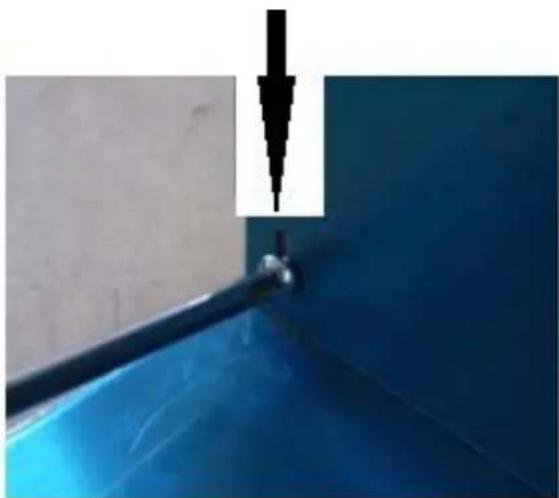

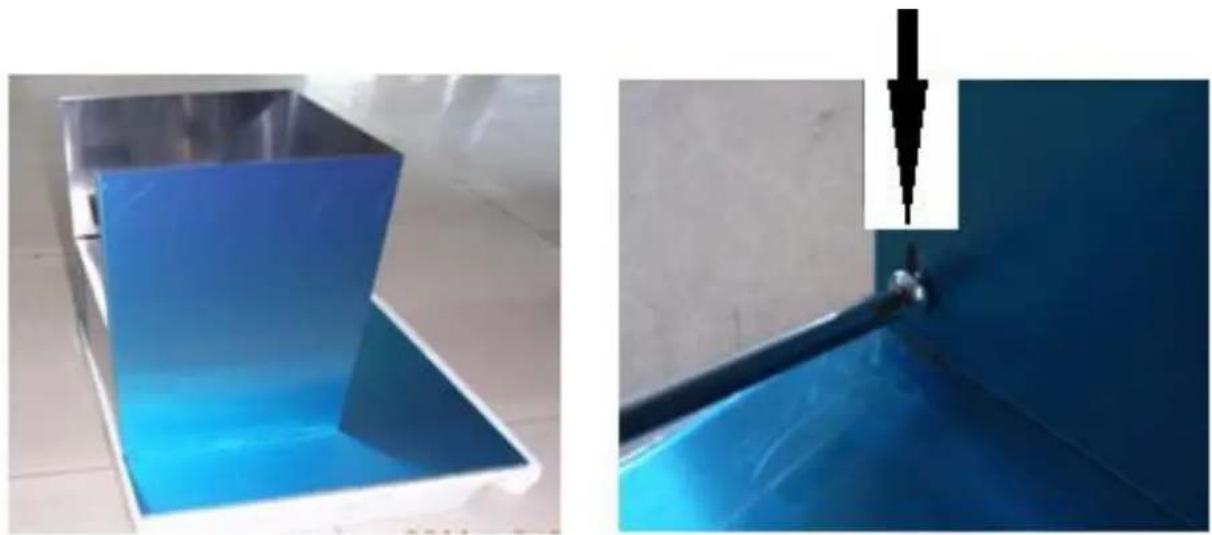

i Depending on model the lower chimney can be fixed with screws (s. fig. below).

Two-panel image showing a blue-colored container and a close-up of a mechanical component with a downward arrow (no text or symbols visible)

2.3 Electrical connection

Check that the voltage indicated on the rating plate matches the mains voltage of your home before connecting the extractor hood to the mains.
Check that the extractor hood is installed properly before you connect the appliance to the mains.

3. Extraction mode / Recirculation mode

3.1 Extraction mode

WARNING! Do not lead the exhaust air into a chimney which is used for extracting exhaust air of appliances operated by gas or other combustibles.

In extraction mode, the intake air is led through an exhaust hose to the outside. For this purpose, an exhaust shaft or an outwardly leading exhaust pipe must be available in your house / flat.

If your appliance is equipped with a carbon filter, you must remove the carbon filter before you operate the appliance in the extraction mode!

3.2 Recirculation mode

You can also use the appliance in recirculation mode.
In recirculation mode, the exhaust air is led back into the kitchen.
If you want to use the extractor hood in recirculation mode, you have to install the carbon filters; s. chapter 3.2.1 CARBON FILTERS.

In recirculation mode you can use CARBON FILTERS to eliminate cooking vapours and odours.

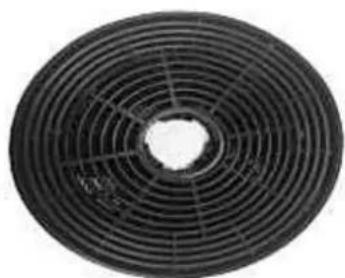

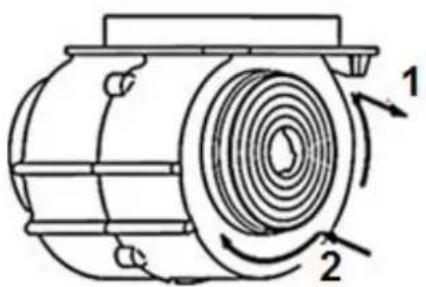

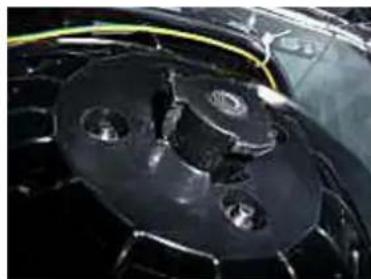

3.2.1 Carbon filters

WARNING! Carbon filters should only be used in recirculation mode!

NOTICE! Carbon filters are not included in the scope of delivery ^11 .

i Replace the CARBON FILTERS regularly (see also chapter CLEANING AND MAINTENANCE).
CARBON FILTERS for your extractor hood are optional available.

You can order the CARBON FILTERS at

www.pkm-online.de

➢ Type name of the CARBON FILTERS: See chapter TECHNICAL DATA

WARNING! Switch off the appliance and disconnect it from the mains before you install any carbon filters (use the relevant fuse in your household fuse box).

HOW TO INSTALL THE CARBON FILTER(S):

Technical diagram of a mechanical device with labeled parts 1 and 2, showing rotational flow indicators.

Unplug the appliance before installing the carbon filter!

For recirculating mode only.

1	OPEN:➢ Turn to the left = Remove a previously installed carbon filter.
2	CLOSE:➢ Turn to the right = Place the carbon filter on the motor and turn the filter to the left slightly or jerk it carefully until the filter is installed properly.

1. Remove the ALUMINIUM GREASE FILTER(S).
2. The CARBON FILTERS are intended to be installed on both sides of the motor.
3. Match the brackets of the filter with the holding mechanism of the motor and jerk carefully until the filter locks.

FILTER BRACKETS

Circular black plastic fan with concentric grooves and a central hole (no text or symbols)

HOLDING MECHANISM / MOTOR

Close-up of a black mechanical component with circular holes and a yellow wire, no visible text or symbols

1. Repeat the procedure on the other side of the motor.
2. Reinstall the ALUMINIUM GREASE FILTER(S).
3. If you want to uninstall the CARBON FILTERS, turn the filters anti-clockwise and remove them.

⚠ WARNING! Install the carbon filters safely and properly; otherwise the carbon filters can loosen and cause hazardous situations.

NOTICE! The suction capacity is decreased by installed carbon filters.

NOTICE! Depending on frequency of use, replace the carbon filters every three to six months. Clean the grease filter(s) regularly for proper operation of the motor (s chapter CLEANING AND MAINTENANCE).

3.3 Grease filter(s)

i Always ensure that the grease filter(s) is / are inserted properly.

i Clean the grease filter(s) regularly (s. chapter CLEANING AND MAINTENANCE).

WARNING! Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE!

4. Control panel

◆ Press this button to switch on / off the extractor hood.

1

LOW POWER LEVEL

❖ Press this button to set the lowest power level of the extractor hood.
This power level is suitable for slow cooking / simmering and roasting with the lid of the cookware closed.
Use this power level when low steam generation occurs (low concentration of cooking fumes).

2

MEDIUM POWER LEVEL

❖ Press this button to set the medium power level of the extractor hood.

Use this power level for an ideal air circulation in the kitchen when medium steam generation occurs (medium concentration of cooking fumes).

3

❖ Press this button to set the highest / maximum power level of the extractor hood.
Use this power level when lots of steam occurs (strong concentration of cooking fumes).

BUTTON: ILLUMINANT ON / OFF

◆ Press this button to switch on / off the illuminant of the extractor hood.

⚠ WARNING! The illuminant must not be covered by thermal insulation or other materials. RISK OF FIRE!

⚠️ CAUTION! Do not touch the illuminant within 30 minutes after using the appliance. RISK OF BURNS!

NOTICE! Only switch on the illuminant while the appliance is operating. Do not switch on the illuminant to illuminate the room.

5.1 Energy saving

❖ Cover your cookware (cooking pot / pan) with lids during cooking.
The diameter of the cooking pot / pan should meet the diameter of the cooking zone or the size of the flame of the burner (gas appliances).
- Switch off the extractor hood after cooking or use the delayed switch-off function (equipment depends on model).
Only switch on the illuminant while the appliance is in operation. Do not switch on the illuminant to illuminate the room.
❖ Switch off the illuminant(s) of the appliance after cooking.
The power level should always meet the intensity of the generated cooking fumes. Use the highest motor speed or intensive speed of the appliance (highest power level) to extract strong concentration of cooking fumes only. A lower power level always means a lower energy consumption.
Make sure there is sufficient supply air to allow the extractor hood to operate efficiently and with low operating noise.
In the case of a strong concentration of cooking fumes select a higher power level early. Cooking fumes which are already distributed in the kitchen may require a longer operation of the extractor hood.
- Clean the grease filter(s) regularly as clean filters will increase the efficiency of the appliance.
❖ Replace the carbon filters (for recirculation mode only) regularly. Observe the information given on the packaging of the carbon filters.

6. Cleaning and maintenance

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it.

⚠ WARNING! Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE! Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.
3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.
4. Clean the glass panels ^13 with a suitable detergent only.
5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents. Such changes do not influence the capacity of the appliance and are no reason for complaint.
7. Do not use any abrasive detergents or vinegar cleaners.
8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!

SPECIAL INSTRUCTIONS FOR APPLIANCES WITH A STAINLESS-STEEL CASING ^14 :

To clean stainless steel surfaces, use a non-abrasive stainless-steel cleaning agent only.

NOTICE! Never use stainless steel cleaner for the direct environment of the control panel or the control panel itself.

NOTICE! Aggressive detergents such as abrasive detergents, vinegar cleaners, etc. damage the surface of the extractor hood.

6.1 Grease filters

⚠ WARNING! Failure to follow the cleaning instructions will increase the RISK OF FIRE due to fat deposits.

NOTICE! The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents. Such changes do not influence the capacity of the appliance and are no reason for complaint.

NOTICE! Do not damage the grid of metal-made (aluminium) grease filters.

• Clean the filters by hand or in a dishwasher regularly (up to 30 °C).
  Do not use any acrid or corrosive detergents.
  Do not use any abrasive detergents!
  Do not use any alkaline dishwasher-detergents! (pH more than 7).

CLEANING INTERVAL FOR ALUMINIUM GREASE FILTERS:

➢ Every 2 - 3 weeks according to the frequency of use of the extractor hood.

MANUAL CLEANING OF THE ALUMINIUM GREASE FILTERS:

1. Soak the aluminium grease filter(s) in warm rinse water (up to 30^ C)
2. Then clean the grease filter(s) with a soft brush. Be careful not to damage the grid of the grease filter(s).
3. After cleaning: Rinse the grease filter(s) thoroughly using hot water.
4. Repeat this process in case of stubborn soilings or deposits.
5. Dry the filter(s) properly before you reinstall it / them.

CLEANING OF THE ALUMINIUM GREASE FILTERS IN THE DISHWASHER:

The grease filters can also be cleaned in the dishwasher: Normal programme (up to 30^ C).
Do not put the filter(s) in the dishwasher together with tableware. Dry the filter(s) properly before you reinstall it / them.

NOTICE! Filters which are blocked with food leftovers are not covered by the guarantee.

6.2 Carbon filters

⚠ WARNING! Switch off the appliance and disconnect it from the mains before you install any carbon filters (use the relevant fuse in your household fuse box).

CARBON FILTERS for your extractor hood are optional available.

i Conventional carbon filters cannot be cleaned.

The capacity of these filters is limited. You can use such filters for about 3 - 6 months approx.
❖ Replace used filters immediately. Find further information on the filter packaging.

REPLACEMENT INTERVAL FOR CARBON FILTERS:

➢ At least every 3 - 6 months according to the frequency of use of the extractor hood.

You can order the CARBON FILTERS at

www.pkm-online.de

➢ Type name of the CARBON FILTERS: See chapter TECHNICAL DATA

6.3 Replacing of the illuminant

⚠ WARNING! The LED-illuminant must be replaced by a competent person only. If the LED-illuminant is damaged, please contact a qualified professional. Illuminants and the replacing of illuminants are not included in guarantee.

7. Trouble shooting

MALFUNCTION

POSSIBLE CAUSE	MEASURE
THE APPLIANCE DOES NOT WORK AT ALL:
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
LIGHT IS ON BUT MOTOR DOES NOT WORK:
1. Ventilation damper blocked.2. Motor mounting defective.	1. Remove blockage.2. Replace motor.
ABNORMAL MOTOR-SMELLS:
1. Motor defective.	1. Replace motor.
SMEAR OF OIL:
1. One-way valve is leaky.	1. Seal the valve.
APPLIANCE VIBRATES:
1. Motor not properly fixed.	1. Fix motor properly.
2. Hood not properly fixed.	2. Fix hood properly.
INSUFFICIENT EXTRACTING CAPACITY:
1. Too much distance hood-hob.	1. Lower position of hood.
2. Too much draught because of open doors and/or windows.	2. Close the doors/windows.
APPLIANCE IS UNSTABLE:
1. Screws are not firmly tightened.	1. Tighten the screws.
2. The mounting bracket / mounting plate is not fixed firmly.	2. Fix the mounting bracket / mounting plate properly.

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the customer service.

IF THE HOOD DOES NOT WORK PROPERLY AND / OR YOU CAN HEAR INCREASED OPERATING NOISE, CHECK THE SCHEDULE BELOW:

▶ Incorrect dimension of the air duct.
Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120 mm; otherwise the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
➢ Install a cover panel with moveable slats, which do not obstruct the air vent.
➢ Check condition and cleanliness of the filters.
➢ Check if the air which is extracted by the hood is replaced to avoid negative pressure.
When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months).

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the customer service.

8. Technical data

TECHNICAL DATA*

Type	Extractor hood
Material	Stainless steel / glass
Installation-width in cm	90.00
Ceiling installation	✓
Touch control	✓
Recirculation / extraction mode**	✓	✓
Annual energy consumption (AEC _hood )	11.0 kW/h
Energy efficiency category	A++
Fluid dynamical efficiency (FDE _hood )	26.5
Fluid dynamical efficiency category	B
Lighting efficiency (LE _hood )	26.0 lux/W
Lighting efficiency category	B
Grease separation	79.5 %
Grease separation category	C
Air flow ***	264 m ^3 /h	487 m ^3 /h
Maximum air flow Qmax	501 m ^3 /h
A-rated noise emission ***	45 dB	56 dB
Power consumption off (P _o )	0.44 W
Power consumption standby (P _s )	-
Power consumption lighting system (W)	6 W (4*1.5 W / LED)
Connected load	116 W
Voltage / frequency	AC 220 - 240 V / 50 Hz
Grease filter / material / dishwasher-proof	3 aluminium	✓
Display	✓
Carbon filter ****	2*CF 110
Exhaust hose	✓
Installation material	✓
Instruction manual	✓
Telescopic chimney extractable from-to	59.00 - 123.80 cm
Total height incl. telescopic chimney	123.80 cm
Dimensions appliance H*W*D in cm	65.00 – 123.80*90.00*60.00
Weight net / gross in kg	26.80 / 28.60

◆ Technical modifications reserved.

*	According to Regulation (EU) No. 65/2014
**	Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = ∅ 150 mm, drilling about ∅ ca. 153 mm.
***	Measured values at minimum/maximum motor speed.
****	Optional equipment.

9. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD! RISK OF INJURY!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the SCHNEIDER-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a SCHNEIDER-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

SCHNEIDER

August 2014

i Abmessungen in mm.
i Dimensions in mm.

SERVICE INFORMATION

SCHNEIDER

Aftersales service information on the leaflet inside this instruction manual.
