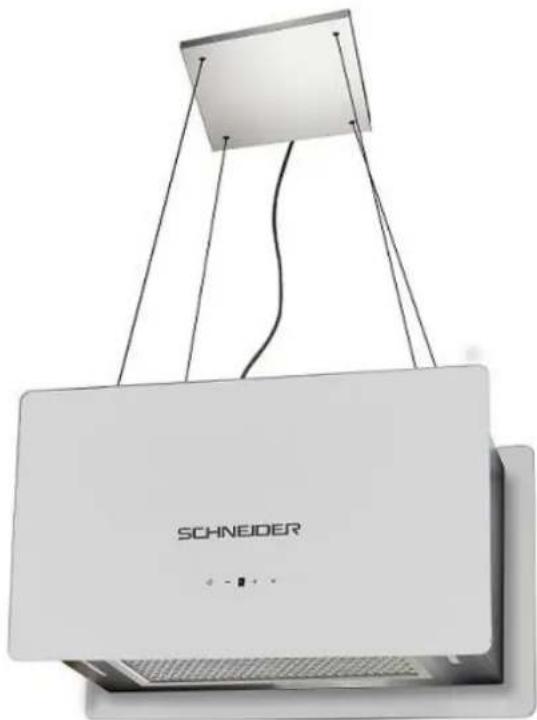

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information.... 35

1.1 Signal words.... 36
1.2 Safety instructions.... 36

1. Installation 39

2.1 Minimum distances.... 40
2.2 Ceiling installation.... 41
2.3 Electrical connection....43

1. Recirculation mode....43

3.1 View of the body of the extractor hood.... 44
3.2 Carbon filters.... 44
3.3 Grease filter(s) 46

1. Operation.... 46

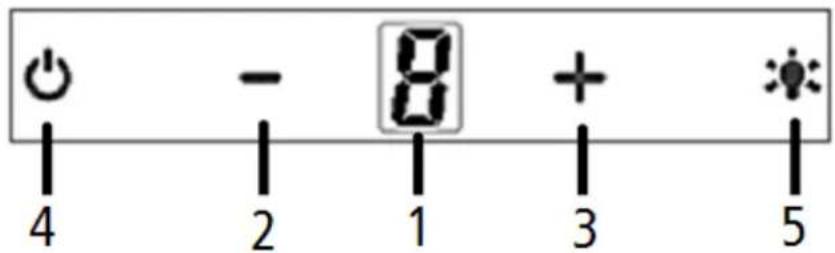

4.1 Touch control: control panel.... 47
4.2 Touch control: operation.... 47

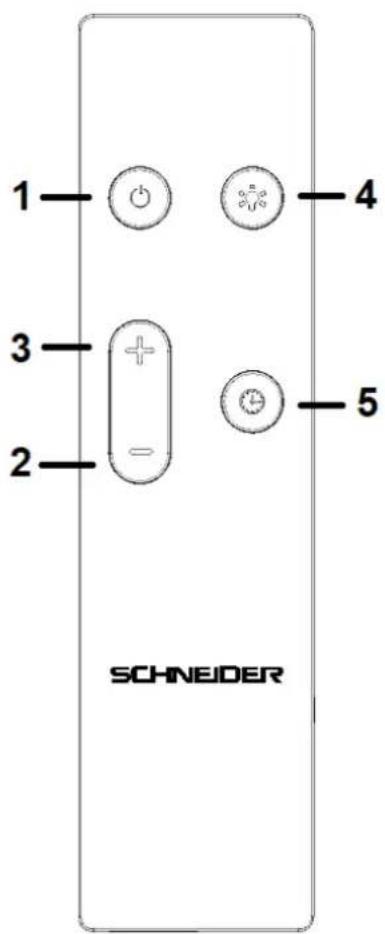

4.3 Remote control: view / calibration / operation 49
4.4 Power levels....52

1. Environmental protection .... 53

5.1 Energy saving.... 53

1. Cleaning and maintenance....54

6.1 Grease filters....55
6.2 Carbon filters....56
6.3 Replacing of the illuminant....57

1. Trouble shooting....57
2. Technical data....59
3. Waste management....60
4. Guarantee conditions....61

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for extracting/recirculating cooking vapours in private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
3. The power cord must be replaced by a qualified professional only.
4. Never repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly, please contact the customer service or the shop you purchased the appliance at ^2 . Original spare parts should be used only.
5. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

6. If gas is set free in your home:
   a) Open all windows.
   b) Do not unplug the appliance and do not use the control panel.
   c) Do not touch the appliance until the gas has gone.
   d) Otherwise sparks can be generated which will ignite the gas.

7. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!

8. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons:

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa ( 4 × 10^-5 bar).
2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock.
5. The technical data of your energy supply must meet the data on the rating label.
6. Your domestic circuit must be equipped with an automatic circuit breaker.
7. Strictly observe the minimum distance between hood and hob. It is also absolutely necessary to observe the individual minimum distances to extractor hoods which are specified in the instruction manual of your hob / oven / etc.

MINIMUM DISTANCE HOOD TO
Ceramic-glass rings / hotplates	min. 65 cm
Gas cooker	min. 75 cm
Coal / oil / stove wood firing	min. 85 cm

1. Never install the appliance below the required minimum distance. If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

2. The load-bearing capacity of the wall/ceiling ^13 of the installation room must be checked before you install the appliance. The appliance must be installed at a suitable position only.

3. Before you install the appliance, check that there are not any electrical or other cables in the installation area; this prevents these cables from being drilled unintentionally. RISK OF ELECTIC SHOCK!
4. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.
5. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.
6. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
7. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
8. The exhaust hose ^4 must not be made of flammable materials or contain any flammable materials.
9. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.
10. Disconnect the appliance from the mains before cleaning and maintenance.
11. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
12. Children must not play with the appliance.
13. Always supervise children when they are near the appliance.
14. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.
2. Any potential user has to be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!
3. Carry out the installation of the appliance with at least two persons. RISK OF DAMAGE! RISK OF INJURY!

NOTICE!

1. We recommend to carry out the installation of the extractor hood by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!
2. The appliance must be transported and installed by at least two persons.
3. Unpack the parts of the chimney ^15 very carefully; otherwise you will damage the chimney.
4. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
5. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.
6. Take the enclosed parts from the packaging and its polystyrene-components.
7. Check that the power cord and the appliance are not damaged before electrical connection.
8. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

We recommend to carry out the installation of the extractor hood by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!

1. The load-bearing capacity of the wall/ceiling ^16 of the installation room must be checked before you install the appliance.

2. The appliance must be installed at a suitable position only.

3. Before you install the appliance, check that there are not any electrical or other cables in the installation area; this prevents these cables from being drilled unintentionally.

4. Clean the environment thoroughly before installation. This prevents dust or rubble from being sucked in during initial operation of the appliance.
5. During installation ensure that the extractor hood is in horizontal position in order to avoid accumulations of fat in one corner of the appliance.

2.1 Minimum distances

i Strictly observe the minimum distance between hood and hob.

i It is also absolutely necessary to observe the individual minimum distances to extractor hoods which are specified in the instruction manual of your hob / oven / etc.

REQUIRED MINIMUM DISTANCE HOOD TO
Ceramic-glass rings / hotplates	min. 65 cm
Gas cooker	min. 75 cm
Coal / oil / stove wood firing	min. 85 cm

1. The minimum distances do not represent the required total height but a minimum value generated by adding the height of the hob (floor hob) and the required minimum distance of the hob to the extractor hood (hob extractor hood)

$$ \begin{array}{l} (\text { floor } \leftrightarrow \text { hob }) \ + \quad (\text { h o b } \leftrightarrow \text { e x t r a c t o r h o o d }) \ = \text { MINIMUM INSTALLATION HEIGHT } \ \end{array} $$

1. Adapt the total installation height to the height of the user. Please note that the extraction capacity of the appliance can decrease if installed at a large distance to the hob.

⚠ WARNING! Never install the appliance below the required minimum distance. If you ignore the required minimum distance, the accumulated fat in the filters can catch fire due to the heat emission of the hob. RISK OF FIRE!

⚠️ CAUTION! Any potential user has to be careful not to hit their head on the corners and edges of the appliance. RISK OF BRUISES! RISK OF INJURIES IN THE OCULAR AREA!

2.2 Ceiling installation

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in ELECTRICAL HAZARDS.

⚠ WARNING! Do not damage the wiring in the wall while drilling. RISK OF ELECTRIC SHOCK!

NOTICE! Two assistants are required for installation.

i We recommend to carry out the installation of the extractor hood by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!

Always use dowels and screws according to the characteristics of the ceiling on which the mounting plate will be installed. If you are in doubt that the fixing material is suitable for the installation on your ceiling, ask an electrician or qualified engineer which suitable fixing material should be used for the installation of the appliance.

INSTALLATION STEPS:

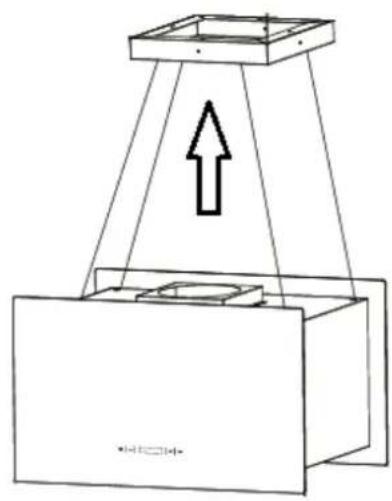

1. Position the mounting plate of the extractor hood on the ceiling and mark the position of the drill holes.

Pure technical line drawing of a structural frame with mounting holes and dashed alignment lines (no text or symbols)

1. When having inserted the suitable fixing material (dowels, anchorages, etc.) into the ceiling and fixed it securely, screw the mounting plate tightly.

Pure structural diagram of a beam supported by two vertical supports, with dashed lines indicating support levels (no text or symbols)

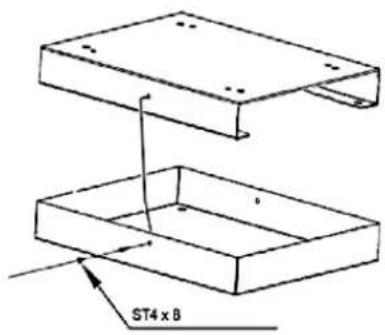

1. Connect the decor plate with the mounting plate using the appropriate screws: 2*ST4 (8 mm).

ST4 x B

1. Press the tips of the rope holders (A / s. fig. below) slightly and insert the holding ropes ^17 (B). The single holding rope will be blocked automatically when you release the tip of the respective rope holder.

Adjust the length of the holding ropes according to your individual requirements (A and B / s. fig. below). Strictly observe the minimum distance between extractor hood and hob.

Simple line drawing of a funnel with an arrow pointing downward (no text or symbols)

A

Simple line drawing of a funnel with downward and upward arrows indicating flow or movement (no text or symbols)

B

A	PRESS SLIGHTLY
B	INSERT THE HOLDING ROPES / ADJUSTMENT: PULL THE HOLDING ROPES DOWNWARDS

i Ensure that the extractor hood is in horizontal position to avoid accumulations of fat in one corner of the appliance.
i You must press the tips of the rope holders to adjust the holding ropes.

1. Lift the extractor hood with at least two persons upwards. Fix the holding ropes on the appropriate holders on the top of the extractor hood properly.

Adjust the individual length of the holding ropes before you fix the body of the extractor hood on the holding ropes.

Simple line drawing of a mechanical device with an upward arrow, no text or symbols present

Check the correct position of the hood from front and side perspective. Otherwise the appliance will not work properly.

2.3 Electrical connection

Check that the voltage indicated on the rating plate matches the mains voltage of your home before connecting the extractor hood to the mains.

Check that the extractor hood is installed properly before you connect the appliance to the mains.

3. Recirculation mode

❖ This appliance is intended for recirculation mode only.
In recirculation mode, the exhaust air is led back into the kitchen (s. fig. below).

Simple diagram of a suspended rectangular object with curved arrows indicating motion or force, no text or symbols present.

In recirculation mode you can use CARBON FILTERS to eliminate cooking vapours and odours (s. chapter 3.2 CARBON FILTERS).

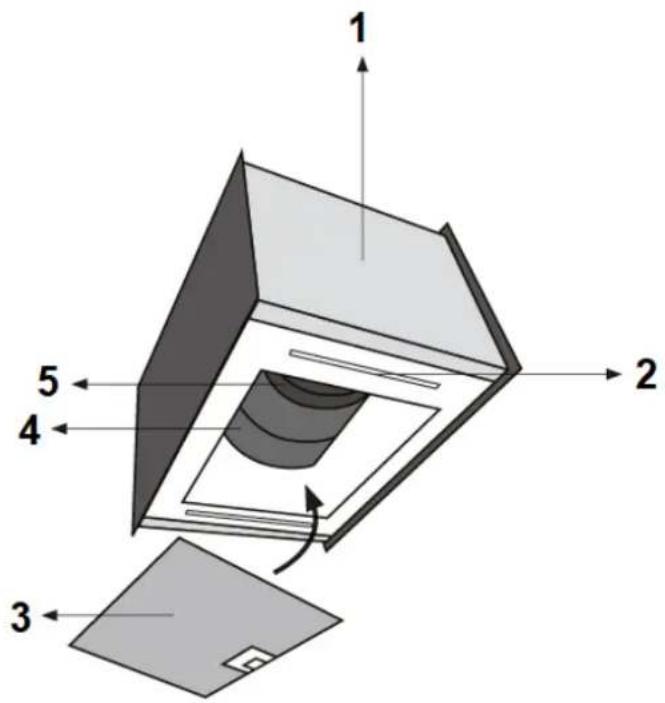

3.1 View of the body of the extractor hood

1 2 3 4 5

1	BODY OF THE EXTRACTOR HOOD
2	LED ILLUMINANT
3	ALUMINIUM GREASE FILTER (filters fat evaporations)
4	MOTOR BLOCK
5	CARBON FILTER (filters odour particles from the room air)

3.2 Carbon filters

Always insert the CARBON FILTERS before you install the ALUMINIUM GREASE FILTER.
i Replace the carbon filters regularly (see also chapter CLEANING AND MAINTENANCE).

NOTICE! Carbon filters are not included in the scope of delivery ^18 .

CARBON FILTERS for your extractor hood are optional available.

You can order the CARBON FILTERS at

www.pkm-online.de

➢ Type name of the CARBON FILTERS: See chapter TECHNICAL DATA

⚠ WARNING! Switch off the appliance and disconnect it from the mains before you install any carbon filters (use the relevant fuse in your household fuse box).

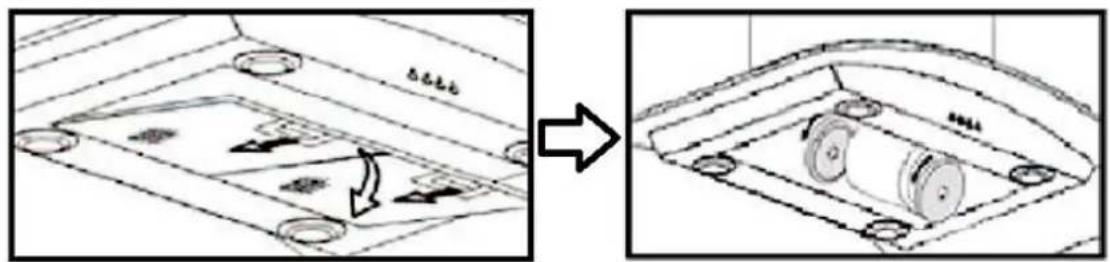

HOW TO INSTALL THE CARBON FILTERS:

1. Remove the ALUMINIUM GREASE FILTER (3 / s. fig. below and s. fig. in chapter 3.1 VIEW OF THE BODY OF THE EXTRACTOR HOOD).

Technical diagram showing a mechanical assembly before and after transformation, with Chinese annotations indicating component states.

1. The CARBON FILTERS are intended to be installed on both sides of the motor (s. above; fig. on the right).

2. Place the CARBON FILTER on the motor and turn it clockwise until it is firmly tightened (s. fig. below).

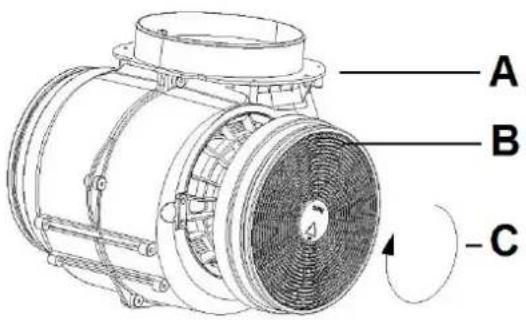

A B C

A	MOTOR
B	CARBON FILTER
C	CLOCKWISE ROTATION = Place the CARBON FILTER on the motor and turn the filter clockwise until it is installed properly.

1. Repeat the procedure on the other side of the motor.
2. Reinstall the ALUMINIUM GREASE FILTER properly.
3. If you want to uninstall the CARBON FILTERS, turn the filters anti-clockwise and remove them.

⚠ WARNING! Install the carbon filters safely and properly; otherwise the carbon filters can loosen and cause hazardous situations.

NOTICE! The suction capacity is decreased by installed carbon filters.

NOTICE! Depending on frequency of use, replace the carbon filters every three to six months. Clean the grease filter(s) regularly for proper operation of the motor (s chapter CLEANING AND MAINTENANCE).

3.3 Grease filter(s)

i Always ensure that the grease filter(s) is / are inserted properly.
Clean the grease filter(s) regularly (s. chapter CLEANING AND MAINTENANCE).

⚠ WARNING! Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE!

4. Operation

⚠ WARNING! The illuminant must not be covered by thermal insulation or other materials. RISK OF FIRE!

⚠️ CAUTION! Do not touch the illuminant within 30 minutes after using the appliance. RISK OF BURNS!

NOTICE! Only switch on the illuminant while the appliance is operating. Do not switch on the illuminant to illuminate the room.

NOTICE! Never press two buttons simultaneously

When you connect the extractor hood to the mains, the appliance is in STAND - BY MODE automatically.
i STAND - BY MODE = display indicates « 0 » and the illuminant is switched off.

4.1 Touch control: control panel

4 - 2 1 3 5 - 8 + 5

(Fig similar; modifications are possible)

1	DISPLAY➢ Indicates the current power level.
2	Button todecreasethe POWER LEVEL / MOTOR SPEED
3	Button toincreasethe POWER LEVEL / MOTOR SPEED
4	Button to switch on / off
5	➢ Button to switch on / off the ILLUMINANT

4.2 Touch control: operation

✿ Press the button — (2) on the control panel to decrease the power level / motor speed of the extractor hood (see also chapter 4.4 POWER LEVELS).

When you have set the power level of the appliance to « 0 » using the button — (2) and the illuminant is switched off simultaneously, the appliance is in STAND - BY MODE.

✿ Press the button + (3) on the control panel to increase the power level / motor speed of the extractor hood (see also chapter 4.4 POWER LEVELS).

BUTTON: ILLUMINANT ON / OFF

✿ Press the button ✉ (4) on the control panel to switch on / off the illuminant of the extractor hood.

⚠ WARNING! The illuminant must not be covered by thermal insulation or other materials. RISK OF FIRE!

⚠️ CAUTION! Do not touch the illuminant within 30 minutes after using the appliance. RISK OF BURNS!

NOTICE! Only switch on the illuminant while the appliance is operating. Do not switch on the illuminant to illuminate the room.

TIMER

Quick Timer : Touch + and – for 1 Second. The Display will flash and the 5 minutes-Countdown will begin. After 5 Minutes, the motor and the Light will be turned off automatically. An acoustic Signal will sound for 1 Second.

4.3 Remote control: view / calibration / operation

VIEW OF THE REMOTE CONTROL:

1	Button ON / OFF ➤ Button to switch on / off the MOTOR of the appliance.
2	Button to decrease the POWER LEVEL / MOTOR SPEED
3	Button to increase the POWER LEVEL / MOTOR SPEED
4	Button to switch on / off the ILLUMINANT
5	Button for the setting of the TIMER (countdown time for the extractor hood / 5 minutes)

HOW TO CALIBRATE THE REMOTE CONTROL:

Before you can use the remote control, you must calibrate it to the extractor hood. Proceed as follows:

1. The extractor hood must be in STAND-BY MODE (display indicates «0» / illuminant is switched off).

2. Press and hold the button (4) on the remote control for 3 seconds to activate the calibration mode.

3. The button (4) on the remote control flashes to indicate that the calibration mode is activated.

4. In calibration mode press the button ⏻ (1) on the remote control briefly.

5. When the calibration is successful, an acoustic signal sounds.

i If the calibration is unsuccessful, the extractor hood returns to STAND - BY MODE. In this case, repeat the calibration.

i After 15 seconds, without further operation of the button (4), the extractor hood also returns to STAND - BY MODE.

HOW TO OPERATE THE REMOTE CONTROL:

BUTTON: ON / OFF

✿ Press the button ⏻ (1) on the remote control to switch on / off the motor of the extractor hood.

✿ Press the button ⬤ (2) on the remote control to decrease the power level / motor speed of the extractor hood (s. chapter 4.4 POWER LEVELS).

✿ Press the button ⏻ (3) on the remote control to increase the power level / motor speed of the extractor hood (s. chapter 4.4 POWER LEVELS).

ILLUMINANT

✿ Press the button (4) on the remote control to switch on / off the illuminant of the extractor hood.

⚠ WARNING! The illuminant must not be covered by thermal insulation or other materials. RISK OF FIRE!

⚠️ CAUTION! Do not touch the illuminant within 30 minutes after using the appliance. RISK OF BURNS!

NOTICE! Only switch on the illuminant while the appliance is operating. Do not switch on the illuminant to illuminate the room.

TIMER

✿ Press the button Ⓔ (5) on the remote control to set the COUNTDOWN TIME (TIMER) for your extractor hood (extractor hood must be in operation).

1. The extractor hood must be in operation.

2. Press the button Ⓤ (5) on the remote control to activate the TIMER.

3. When the indicator of the power level on the display flashes ^19 , the TIMER is activated.

The period of time of the TIMER is 5 minutes.

When the countdown time (5 minutes) has elapsed, the extractor hood switches off automatically and the appliance returns to STANDBY - MODUS.

4.4 Power levels

i The extractor hood is equipped with 3 power levels (1 / 2 / 3)

➢ You can set the power levels of the extractor hood using the buttons — (2) and + (3) on the control panel or remote control.
The current power level (1 / 2 / 3) is indicated on the display.
If you decrease the power level to « 0 » using the button — (2) on the control panel, the appliance is in STAND - BY MODE (the illuminant must also be switched off).

1

LOW POWER LEVEL

To set the lowest power level, press the button - (2) or + (3) on the control panel or remote control repeatedly until the display indicates « 1 ».
This power level is suitable for slow cooking / simmering and roasting with the lid of the cookware closed.
Use this power level when low steam generation occurs (low concentration of cooking fumes).

2

MEDIUM POWER LEVEL

To set the medium power level, press the button - (2) or + (3) on the control panel or remote control repeatedly until the display indicates « 2 ».
Use this power level for an ideal air circulation in the kitchen when medium steam generation occurs (medium concentration of cooking fumes).

3

HIGH POWER LEVEL

To set the high power level, press the button - (2) or + (3) on the control panel or remote control repeatedly until the display indicates « 3 ».
Use this power level when lots of steam occurs (strong concentration of cooking fumes).

5. Environmental protection

5.1 Energy saving

❖ Cover your cookware (cooking pot / pan) with lids during cooking.
The diameter of the cooking pot / pan should meet the diameter of the cooking zone or the size of the flame of the burner (gas appliances).
- Switch off the extractor hood after cooking or use the delayed switch-off function (equipment depends on model).
Only switch on the illuminant while the appliance is in operation. Do not switch on the illuminant to illuminate the room.
❖ Switch off the illuminant(s) of the appliance after cooking.
The power level should always meet the intensity of the generated cooking fumes. Use the highest motor speed or intensive speed of the appliance (highest power level / boost function) to extract strong concentration of cooking fumes only. A lower power level always means a lower energy consumption.
Make sure there is sufficient supply air to allow the extractor hood to operate efficiently and with low operating noise.
In the case of a strong concentration of cooking fumes select a higher power level early. Cooking fumes which are already distributed in the kitchen may require a longer operation of the extractor hood.

• Clean the grease filter(s) regularly as clean filters will increase the efficiency of the appliance.
  ❖ Replace the carbon filters (for recirculation mode only) regularly. Observe the information given on the packaging of the carbon filters.

6. Cleaning and maintenance

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it.
⚠ WARNING! Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE! Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.
3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.
4. Clean the glass panels ^21 with a suitable detergent only.
5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents. Such changes do not influence the capacity of the appliance and are no reason for complaint.
7. Do not use any abrasive detergents or vinegar cleaners.
8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!

SPECIAL INSTRUCTIONS FOR APPLIANCES WITH A STAINLESS-STEEL CASING:

To clean stainless steel surfaces, use a non-abrasive stainless-steel cleaning agent only.

NOTICE! Never use stainless steel cleaner for the direct environment of the control panel or the control panel itself.

NOTICE! Aggressive detergents such as abrasive detergents, vinegar cleaners, etc. damage the surface of the extractor hood.

6.1 Grease filters

⚠ WARNING! Failure to follow the cleaning instructions will increase the RISK OF FIRE due to fat deposits.

NOTICE! The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents. Such changes do not influence the capacity of the appliance and are no reason for complaint.

NOTICE! Do not damage the grid of metal-made (aluminium) grease filters.

Clean the filter(s) by hand or in a dishwasher regularly (up to 55 °C).
Do not use any acrid or corrosive detergents.
Do not use any abrasive detergents!
Do not use any alkaline dishwasher-detergents! (pH more than 7).

CLEANING INTERVAL FOR ALUMINIUM GREASE FILTERS:

➢ Every 2 - 3 weeks according to the frequency of use of the extractor hood.

MANUAL CLEANING OF THE ALUMINIUM GREASE FILTERS:

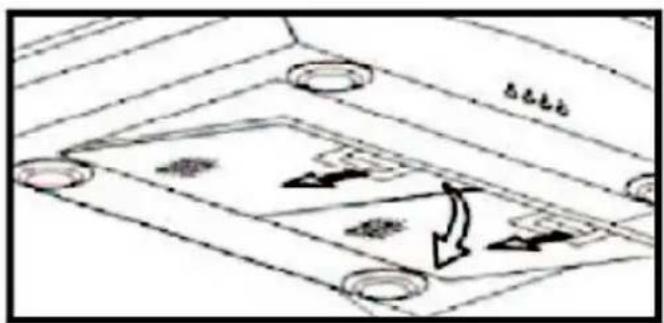

1. Remove the aluminium grease filter(s); s. fig. below.

点点点点

1. Soak the aluminium grease filter(s) in warm rinse water (up to 55 °C).

2. Then clean the grease filter(s) with a soft brush. Be careful not to damage the grid of the grease filter(s).

3. After cleaning: Rinse the grease filter(s) thoroughly using hot water.
4. Repeat this process in case of stubborn soilings or deposits.
5. Dry the filter(s) properly before you reinstall it / them.

CLEANING OF THE ALUMINIUM GREASE FILTERS IN THE DISHWASHER:

The grease filters can also be cleaned in the dishwasher: normal programme (up to 55^ C).
Do not put the filter(s) in the dishwasher together with tableware. Dry the filter(s) properly before you reinstall it / them.

NOTICE! Filters which are blocked with food leftovers are not covered by the guarantee.

6.2 Carbon filters

⚠ WARNING! Switch off the appliance and disconnect it from the mains before you install any carbon filters (use the relevant fuse in your household fuse box).

i CARBON FILTERS for your extractor hood are optional available.
i Conventional carbon filters cannot be cleaned.

The capacity of these filters is limited. You can use such filters for about 3 - 6 months approx.
❖ Replace used filters immediately. Find further information on the filter packaging.

REPLACEMENT INTERVAL FOR CARBON FILTERS:

➢ At least every 3 - 6 months according to the frequency of use of the extractor hood.

You can order the CARBON FILTERS at

www.pkm-online.de

➢ Type name of the CARBON FILTERS: See chapter TECHNICAL DATA

6.3 Replacing of the illuminant

⚠ WARNING! The LED-illuminant must be replaced by a competent person only. If the LED-illuminant is damaged, please contact a qualified professional. Illuminants and the replacing of illuminants are not included in guarantee.

7. Trouble shooting

MALFUNCTION
POSSIBLE CAUSE	MEASURE
THE APPLIANCE DOES NOT WORK AT ALL:
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
LIGHT IS ON BUT MOTOR DOES NOT WORK:
1. Ventilation damper blocked.2. Motor mounting defective.	1. Remove blockage.2. Replace motor.
ABNORMAL MOTOR-SMELLS:
1. Motor defective.	1. Replace motor.
SMEAR OF OIL:
1. One-way valve is leaky.	1. Seal the valve.
APPLIANCE VIBRATES:
1. Motor not properly fixed.2. Hood not properly fixed.	1. Fix motor properly.2. Fix hood properly.

INSUFFICIENT EXTRACTING CAPACITY:

1. Too much distance hood-hob.	1. Lower position of hood.
2. Too much draught because of open doors and/or windows.	2. Close the doors/windows.

APPLIANCE IS UNSTABLE:

1. Screws are not firmly tightened.2. The mounting bracket / mounting plate is not fixed firmly.

1. Tighten the screws.2. Fix the mounting bracket / mounting plate properly.

IF THE HOOD DOES NOT WORK PROPERLY AND / OR YOU CAN HEAR INCREASED OPERATING NOISE, CHECK THE SCHEDULE BELOW:

➢ Check condition and cleanliness of the filters.
➢ Check that the carbon filter(s) has been replaced on time (at least every 3 - 6 months).

If the appliance has a malfunction not noted on the schedules above or if you have checked all items on the schedules but the problem still exists, please contact the shop you purchased the appliance at.

8. Technical data

TECHNICAL DATA*

Type	Extractor hood
Material	Stainless steel 7 black glass
Installation-width in cm	70.00
Ceiling installation	✓
Touch control	✓
Recirculation / Extraction mode**	✓	-
Annual energy consumption (AEC _hood )	15.0 kW/h
Energy efficiency category	A+
Fluid dynamical efficiency (FDE _hood )	24.5
Fluid dynamical efficiency category	B
Lighting efficiency (LE _hood )	13.0 lux/W
Lighting efficiency category	D
Grease separation	74.0 %
Grease separation category	D
Air flow ***	354 m ^3 /h	547 m ^3 /h
Maximum air flow Qmax	547 m ^3 /h
A-rated noise emission ***	42 dB	55 dB
Power consumption off (Po)	0.38 W
Power consumption standby (Ps)	-
Power consumption lighting system (Wi)	6 W (2*3 W / LED)
Connected load	116 W
Voltage / frequency	AC 220 - 240 V / 50 Hz
Grease filter / material / dishwasher-proof	1 aluminium	✓
Carbon filter ****	2*CF 110
Exhaust hose	-
Installation material	✓
Instruction manual	✓
Dimensions appliance H*W*D in cm	35.00 – 150.00*70.00*35.00
Weight net / gross in kg	19.20 / 17.60

◆ Technical modifications reserved.

*	According to Regulation (EU) No. 65/2014
**	Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = ∅ 150 mm, drilling about ∅ ca. 160 mm.
***	Measured values at minimum / maximum motor speed.
****	Optional equipment.

9. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD! RISK OF INJURY!

2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.

3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.

4. Dispose of any paper and cardboard into the corresponding containers.

5. Dispose of any plastics into the corresponding containers.

6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.

7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the SCHNEIDER-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a SCHNEIDER-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

SCHNEIDER

August 2014

i Abmessungen in mm.
i Dimensions in mm.

SERVICE INFORMATION

SCHNEIDER

Please contact the shop you purchased the appliance at.
