Product type	Document camera
Brand	Optoma
Model	DC552
Image resolution	Up to 5 megapixels (2592 x 1944)
Capture capability	Documents, 3D objects, transparencies
Zoom	8x digital zoom
Focus	Autofocus
Lighting	Built-in adjustable LED
Video outputs	VGA, Composite, USB 2.0
Microphone input	No
Power supply	AC adapter (5V, 2A)
Dimensions (W x D x H)	260 x 180 x 360 mm (unfolded)
Weight	2.5 kg
Material	ABS plastic and metal
Included software	Optoma Viewer (Windows/Mac)
Main functions	Image capture, video recording, live annotation, mirroring to screen or projector
Maintenance and cleaning	Clean the lens and glass with a soft lint-free cloth. Use a lens cleaning solution if necessary. Avoid solvents.
Safety	Do not look directly at the lit LEDs. Disconnect the device before cleaning. Keep out of reach of children.
Spare parts and repairability	Repair must be carried out by an authorized technician. Available parts: AC adapter, cables. The lens is not interchangeable.
Warranty	2 years (depending on country)
Environment	Operating temperature: 0°C to 40°C, humidity: 20% to 80% non-condensing

Frequently Asked Questions - DC552 OPTOMA

What is the maximum resolution of the Optoma DC552 camera?

The maximum resolution is 5 megapixels (2592 x 1944 pixels), allowing clear capture of documents and objects.

How do I connect the camera to a computer?

Use the provided USB cable to connect the camera to a USB 2.0 port on your computer. The Optoma Viewer software will install automatically or can be downloaded from the Optoma website.

Can I use the DC552 with a projector without a computer?

Yes, you can directly connect the VGA or composite output of the camera to a projector or screen for real-time viewing.

How do I adjust the lighting?

The built-in LEDs are adjustable in intensity. Use the dedicated buttons on the camera or in the software to increase or decrease brightness as needed.

Can I capture videos with this camera?

Yes, the DC552 allows video recording at resolutions up to 1080p via the Optoma Viewer software or compatible third-party capture software.

How do I clean the camera lens?

Use a soft dry cloth, or a microfiber cloth slightly dampened with lens cleaner. Avoid abrasive products or solvents.

Is the camera compatible with Mac systems?

Yes, the Optoma Viewer software is available for Windows and macOS. The camera is recognized as a standard USB device.

What should I do if the image is blurry?

Use the autofocus function by pressing the AF button. If the image remains blurry, clean the lens and check that the distance to the document is appropriate (approximately 30-60 cm).

How do I capture a still image?

Press the 'Capture' button on the camera or in the software. The image will be saved in JPEG or PNG format depending on your settings.

Where can I find the Optoma Viewer software?

You can download the latest version of the software from the official Optoma website, in the support section for the DC552 model, or use the CD provided with the device.

USER MANUAL DC552 OPTOMA

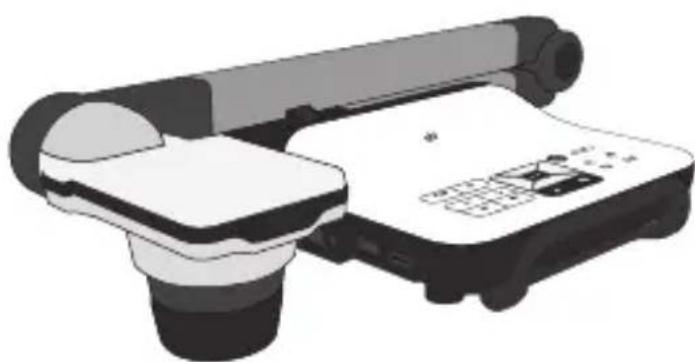

Line drawing of a medical device with a cylindrical device and a rectangular device (no text or symbols)

Deutsch

Bedienungsanleitung

- Willkommen:

Illustration of hands operating a handheld device with a circular green ring nearby (no text or symbols)

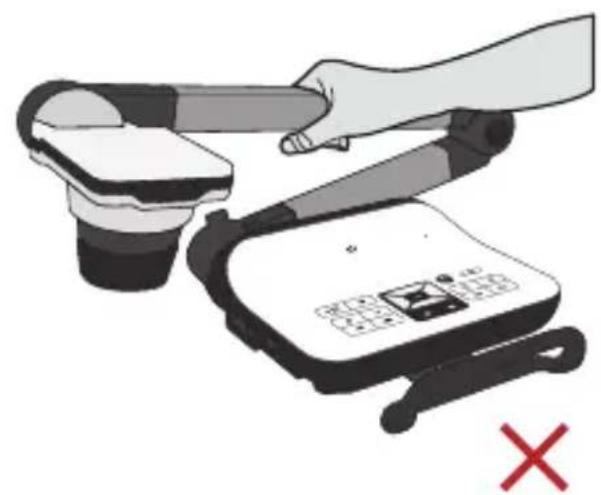

Illustration of a hand using a handheld device to press or install a device, with a red X mark indicating cancellation (no text or symbols present)

Illustration of a medical or laboratory probe interacting with a printed document labeled 'A', no text or symbols present.

Illustration of a stylized mechanical component with black, white, and gray sections and a yellow triangular base (no text or symbols)

Decorative blue floral pattern on a white plate, with a small inset showing a circular blue object (no text or symbols)

Illustration of hands inserting a black plug into a wall-mounted socket (no text or symbols)

Illustration of a handheld electronic device with a screen and lens, no visible text or symbols

47697 Westinghouse Drive,

Fremont, CA 94539, USA

www.optomausa.com

888-289-6786

510-897-8601

[e-mail]

Japan

東京都足立区綾瀬3-25-18

株式会社オーエス

[e-mail]

www.os-worldwide.com

Kanada

47697 Westinghouse Drive,

Fremont, CA 94539, USA

www.optomausa.com

888-289-6786

510-897-8601

[e-mail]

Taiwan

12F., No.213, Sec. 3, Beixin Rd., [phone]

Xindian Dist., New Taipei City 231,

Taiwan, R.O.C.

[phone]

[e-mail]

www.optoma.com.tw asia.optoma.com

Südamerika

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA

www.optomausa.com

510-897-8601

[e-mail]

Hongkong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

[phone]

[phone]

Kowloon, Hong Kong www.optoma.com.hk

Europa

Unit 1, Network 41, Bourne End Mills,

Hemel Hempstead, Herts,

[e-mail]

China

5F, No. 1205, Kaixuan Rd., [phone]

Changning District

[phone]

Shanghai,200052,China www.optoma.com.cn

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere

The Netherlands

www.optoma.nl

[phone]

Frankreich
