Product Type	Sealed Active Control Monitor
Model	Fostex 6301ND
Dimensions (W x H x D)	120 x 189 x 120 mm
Weight	2.3 kg
Power Supply	100–240 V AC, 50/60 Hz (automatic switching)
Power Consumption	10 W (standby < 0.5 W)
Speaker	100 mm cone full-range speaker
Frequency Range	70 Hz to 15 kHz
Max Sound Pressure Level	98 dB
Rated Power Output	20 W
Total Harmonic Distortion	0.05% (1 kHz, 1 W)
Audio Inputs	Digital AES/EBU (XLR-3-31), unbalanced analog (TS 6.3 mm)
Audio Output	Digital THRU (XLR-3-32)
Input Impedance	10 kΩ or more
Input Sensitivity	Unbalanced analog: -14 dBV (0.2 Vrms), Digital: -12 dBFS
Residual Noise	-65 dBV
Enclosure Material	Robust die-cast aluminum
Key Features	Auto standby, digital input selector (L/R/L+R), compact design, optional wall mount bracket (EB-6301)
Care and Cleaning	Clean with a dry cloth; do not use solvents
Safety	Polarized plug, Class I, overvoltage protection; do not expose to rain or moisture
Included Accessories	Power cord (2 m), user manual

Frequently Asked Questions - 6301ND FOSTEX

How do I connect the Fostex 6301ND monitor?

Connect the power cord to the AC IN connector and a wall outlet. Use the DIGITAL IN (XLR) for digital AES/EBU signal or the ANALOG IN (TS 6.3 mm) for unbalanced analog signal. Make sure the unit is powered off when making connections.

How do I adjust the volume on the 6301ND?

Turn the VOLUME knob on the front panel to adjust the sound level. The adjustment is continuous.

What does the color of the POWER indicator mean?

On the 6301ND: Green = digital signal locked, Orange = plug inserted in analog input, Red = standby, Off = power off. Refer to the manual for other models.

How do I use the auto standby function?

The function activates after approximately 25 minutes without a significant input signal. Power consumption drops below 0.5 W. It automatically deactivates when a signal is detected. To disable this function, press and hold the on/off button for 5 seconds (see manual).

Can I connect a balanced analog source?

The 6301ND model only accepts digital AES/EBU input and unbalanced analog input on a TS jack. For a balanced input, choose the 6301NX (transformer balanced) or 6301NE (electronic balanced) models.

How do I install the EB-6301 wall mount bracket?

Remove the screws from the top and bottom of the speaker. Attach the rubber washers (without groove) to the unit, then the washers with groove to the mounting screws. Position the speaker on the bracket and tighten the screws. Have a professional perform the wall installation.

What should I do if no sound comes out?

Check the input and power cable connections. Make sure the volume is not at minimum. If using digital input, ensure the source is sending a locked signal. Refer to the troubleshooting guide in the manual.

What is the analog input sensitivity?

The sensitivity is -14 dBV (0.2 Vrms) for the unbalanced analog input. For the digital input, it is -12 dBFS.

Can I use the speaker outdoors?

No, the unit is designed for indoor use only. Do not expose it to rain, moisture, or extreme temperatures. Use in a dry, well-ventilated location.

What is the maximum power of the built-in amplifier?

The rated output power is 20 W. The maximum sound pressure level reaches 98 dB at 1 m.

USER MANUAL 6301ND FOSTEX

Active monitor speaker

6301ND/NX/NE/NB

Exterior view of a Fostex 6301 portable electronic device with side knobs and fan grille (no readable text or symbols beyond branding)

Thank you for purchasing this Fostex product. This manual provides instructions for basic use of the unit. Read this before using the unit for the first time.

■ WARNINGS and PRECAUTIONS

- CAUTION: The symbol ^4 To prevent electric shock hazard, do not connect to mains power supply while grille is removed.

- WARNING: An apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

- WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

- WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

- WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

- WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.

- WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

WARNING: Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

1) Read these instructions. Lisez ces instructions.

2) Keep these instructions.

Conservez ces instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

(9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

The 6301N series are small monitors with built-in amplifiers for various kinds of monitoring.

■ Features of 6301ND/NX/NE/NB

• The cone-shaped, full-range speaker produces stable sound.
• As the speaker is compact and consists of a single unit, it can be placed anywhere.
  • The speaker uses a tough, aluminum die cast enclosure.
• The speaker has the same width and height as the older model, so upgrading is easy.
• Switches and knobs do not protrude from the panel to prevent damage caused if the speaker falls over.
  • Equipped with a switching power circuit compatible with 100 V to 240 V AC power supplies.
• By attaching wall mounting bracket EB-6301 (sold separately) to the unit, you can both adjust the angle of the unit and fix it to walls.
• The unit has an auto standby function that saves power automatically (power consumption of 0.5 W or less) when input continuously falls below a certain level.

■ Comparison of the different models

	Input Output
6301ND	Digital (AES/EBU)/XLRAnalog (unbalanced)/phone	THRU (AES/EBU)/XLR
6301NX	Analog (transformer type balanced)/XLRAnalog (unbalanced)/phone	—
6301NE	Analog (electronic type balanced)/XLRAnalog (unbalanced)/phone	—
6301NB	Analog (unbalanced)/phone —

■ Accessories

• Power cord × 1
• Owner's manual (this manual) × 1

Part names and functions

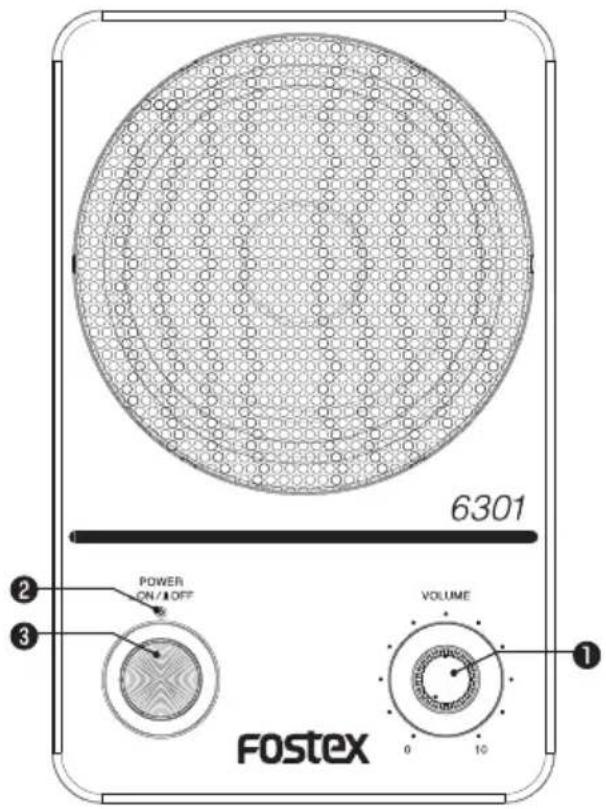

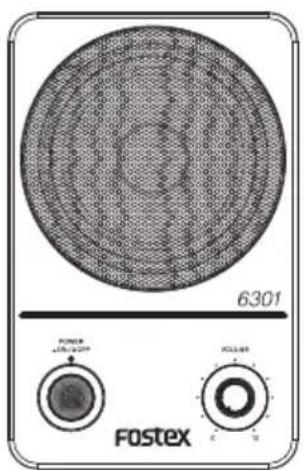

■ Front (same for 6301ND/NX/NE/NB)

① [VOLUME]

Adjusts the volume.

② [POWER] indicator

Lights to indicate the state of the unit.

③ [ON/OFF] button

Turns the unit on/off.

Note

• Use a standard AC outlet.
• Disconnect the plug from the outlet when the unit will not be used for a long time.

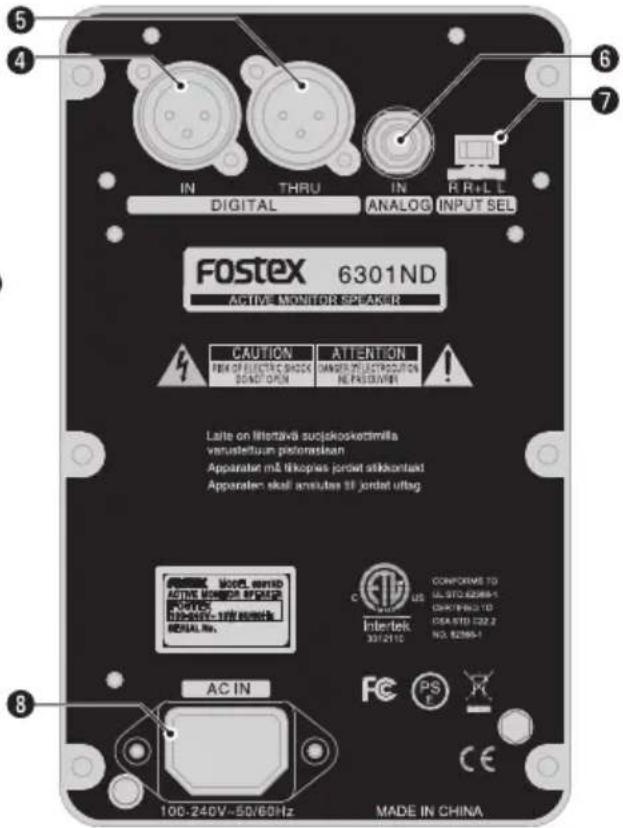

■ Back

4 [DIGITAL IN] terminal

AES/EBU-compliant digital input terminal.

⑤ [DIGITAL THRU] terminal

Directly outputs the signal from the [DIGITAL IN] terminal.

⑥ Analog input terminal (phone)

6.3 mm (1/4") TS phone unbalanced analog input terminal.

Inputs connected to the analog input terminal 6 are prioritized over inputs to other terminals.

6301ND: [ANALOG IN]

6301NX/NE: [INPUT UNBALANCED]

6301NB: [INPUT]

6301ND

⑦ [INPUT SEL] switch

Used to select the type of analog signal that the digital signal is transformed into.

Choose between left and right (R+L), left only (L), and right only (R).

8 [AC IN] terminal

Used to connect to a power outlet using the supplied power cord.

⑨ [INPUT BALANCED] terminal

XLR balanced analog input terminal.

6301NX uses a transformer type balanced system, and 6301NE uses an electronic type balanced system.

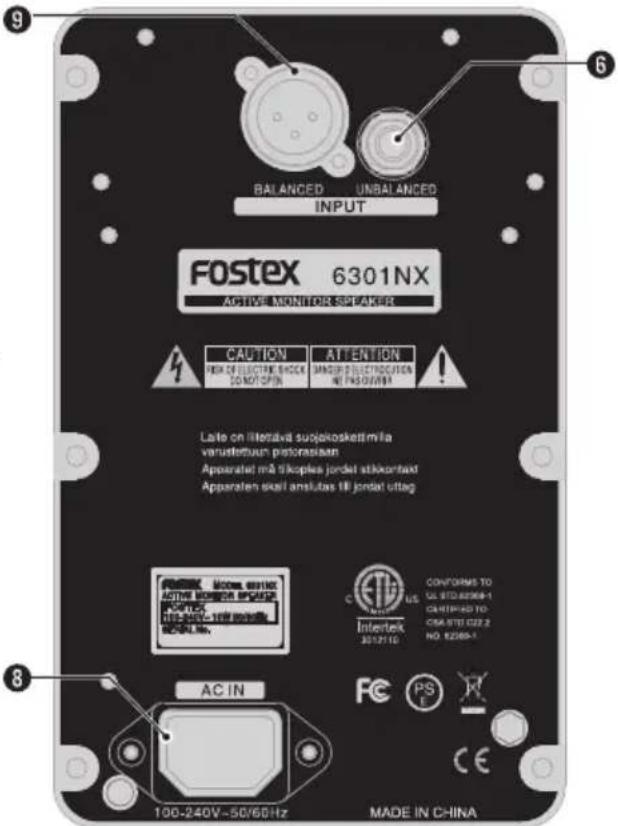

6301NX/NE

(The unit pictured above is 6301NX.)

6301NB

The [POWER] indicator

• 6301ND

Unlit: The power is off

Lit in green: A device is connected to the [DIGITAL IN] terminal and the digital signal is locked

Lit in orange: A plug is inserted in the analog input terminal (phone)

Lit in red: In standby

Note

- When a plug is inserted in the analog input terminal (phone), the indicator lights in orange whether anything is connected to the [DIGITAL IN] terminal or not.

- 6301NX/NE/NB

Unlit: The power is off

Lit in green: The power is on

Lit in red: In standby

The auto standby function

When input to the unit continues below a certain level for approximately 25 minutes, the auto standby function is activated, and power consumption is reduced to 0.5 W or below. If input then exceeds a certain level, the unit reverts to its normal state. The auto standby function may not function normally depending on the noise level of devices connected to the input terminals on the unit.

Note

• When a device is only connected to the [DIGITAL IN] terminal, the unit goes into standby unless the digital signal is locked.
• Even if the digital signal is locked, the unit goes into standby when input continues below a certain level for about 25 minutes.

Troubleshooting

Problem Solutions
There is no sound.	Check the connection. (⇒ page 4, page 5, page 6)Check the set volume of each device.

Specifications

	6301ND 6301	NX 6301NE 6301NB
Type Sealed powered speaker system
Speaker 100 mm cone-shaped, full-range speaker × 1
Frequency band 70 Hz to 15 kHz
Output sound pressure level	85 dB/W (1 m)
Maximum output sound pressure level	98 dB
Rated output 20 W
T. H. D. 0.05% (at 1 kHz 1 W output)
Input terminal	Analog unbalanced/φ6.3 mm (1/4") TS phone
	Digital XLR-3-31 type IEC60958 (AES/EBU) sampling frequency 44.1 kHz to 96 kHz	Analog balanced XLR-3-31 type HOT No. 2/ transformer type	Analog balanced XLR-3-31 type HOT No. 2/ electronic type	—
Output terminal (THRU)	Digital XLR-3-32 type	—
Input impedance Analog input (balanced/unbalanced) 10 kΩ or more
Input sensitivity	Analog (unbalanced): -14 dBV (0.2 Vrms) Digital: -12 dBFS	Analog (unbalanced): -14 dBV (0.2 Vrms) Analog (balanced): +4 dBu (1.2 Vrms)		Analog (unbalanced): -14 dBV (0.2 Vrms)
Residual noise	-65 dBV	-70 dBV
Enclosure material	Aluminum die-casting
Power consumption	10 W
External dimensions (mm)	120 (W) × 189 (H) × 120 (D)
Weight Approx. 2.3 kg
Length of the power cord	Approx. 2 m

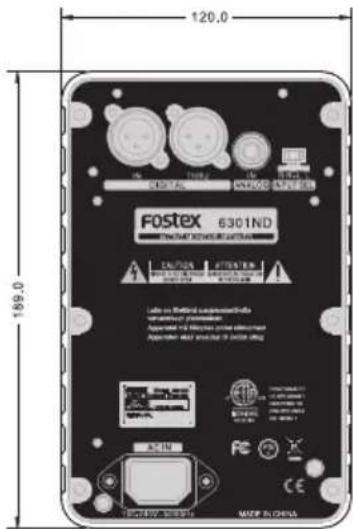

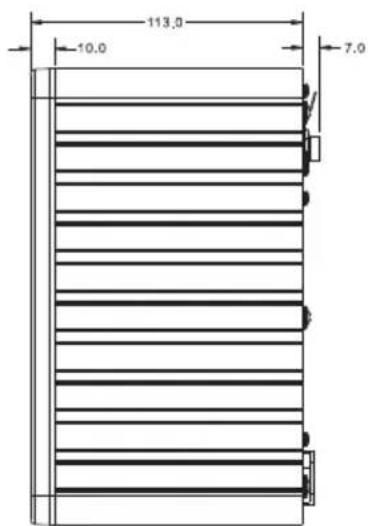

Dimensional drawings

Technical line drawing of a battery casing with a 51.5 mm dimension label (no text or symbols beyond the dimension)

Simple line drawing of a rectangular container with a central plus symbol and side connectors (no text or labels)

(6301ND is pictured above, but the external dimensions are the same for each model.)

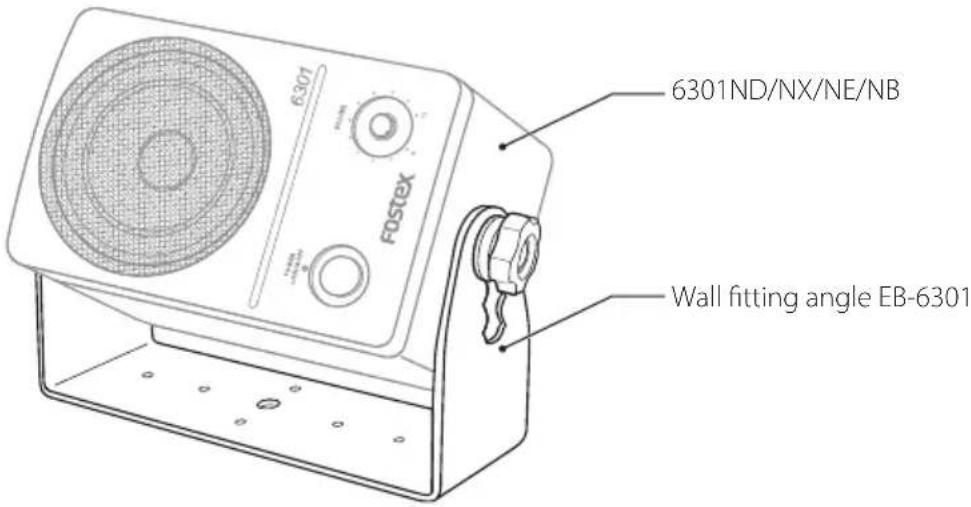

Optional accessory

By attaching a wall fitting angle (sold separately) to the unit, you can adjust the angle of the unit and fix the unit to walls.

Wall fitting angle EB-6301

CAUTION

Ask a professional to fix the unit to a wall using the bracket.

Fostex is not responsible for accidents and casualties caused by using the bracket.

When you attach the unit to the bracket, attach it firmly using the screws supplied with EB-6301.

Otherwise the unit may fall and cause accidents leading to injuries and damage.

Specifications

External dimensions (mm) 200 (W) × 75 (H) × 148 (D)
Weight 850 g

■ Accessories of EB-6301

• Mounting screw × 2
• Rubber washer (with no grooves) × 2

Pure geometric diagram showing concentric circles and a right-angle bracket without any text or symbols

- Rubber washer (with grooves) × 2

Pure diagram of concentric circles and a rectangular shape without any text or symbols

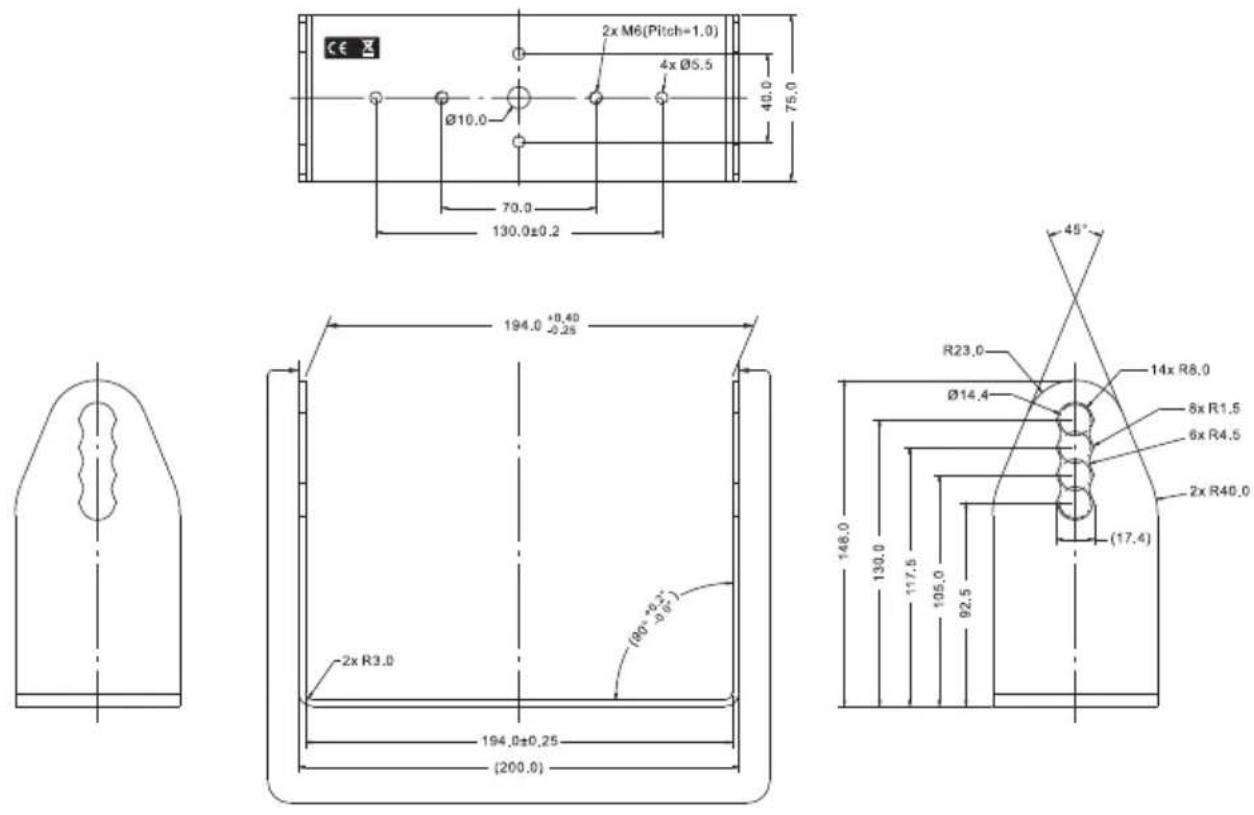

■ Dimensional drawings of EB-6301

■ Attaching EB-6301

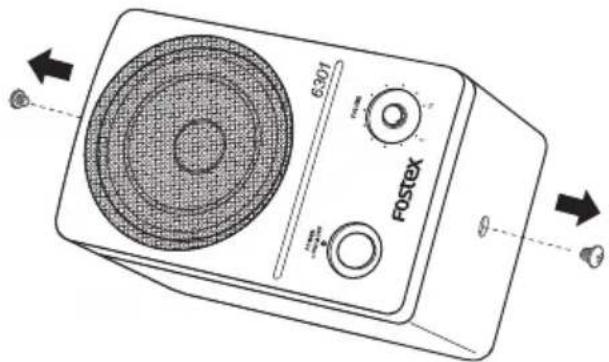

1 Remove the screws on the top and bottom of the 6301N series.

Line drawing of a Foxtex portable radio with speaker grille and control knobs (no text or symbols)

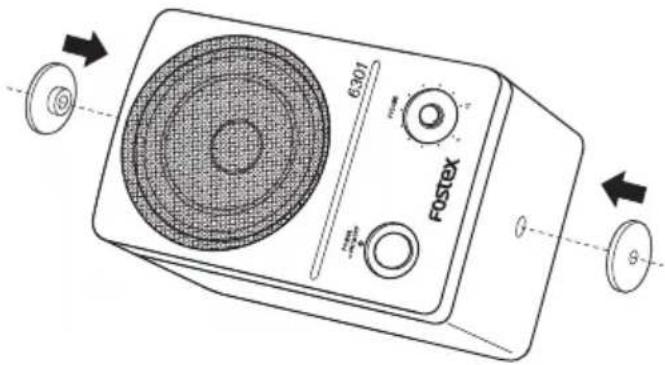

2 Attach the rubber washers (with no grooves) to the top and bottom of the unit.

3 Fit the rubber washers (with grooves) onto the mounting screws.

Diagram showing a mechanical component with a threaded shaft and a circular base, connected by an arrow indicating direction (no text or symbols)

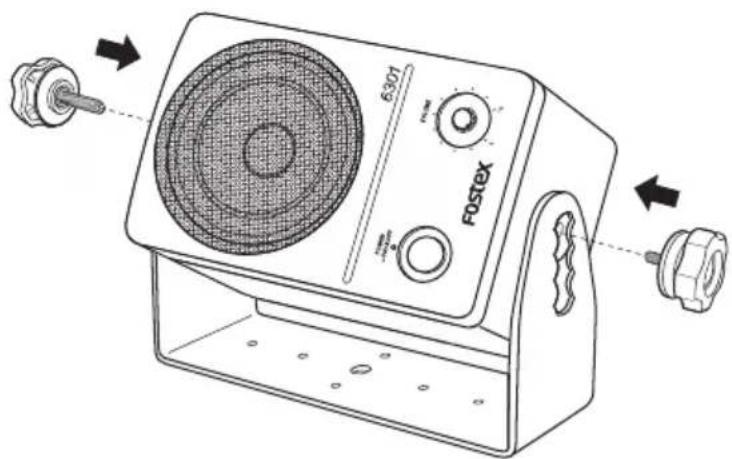

4 Adjust the unit to your preferred position in the bracket, then attach and tighten the mounting screws prepared in step 3.

Declaration of EC Directive

This equipment is compatible with the EMC Directive (2014/30/EU) - Directive on approximation of member nation's ordinance concerning the electromagnetic compatibility and with the Low Voltage Directive (2014/35/EU) - Directive on approximation of member nation's ordinance concerning electric equipment designed to be used within the specified voltage range.

The full text of the EU declaration of conformity is available at the following internet address:

https://www.fostexinternational.com/docs/tech_support/declaration-conformity.shtml

The Affect of Immunity on This Equipment

The affect of the European Specification EN61000-6-1 (coexistence of electromagnetic waves - common immunity specification) on this equipment are as shown below.

In the electrical fast transient/burst requirements, surge, conducted disturbances by radio-frequency fields, power frequency magnetic field, radiate electromagnetic field requirements and static electricity discharging environment, this could be affected by generation of noise in some cases.
