HNK147 - Heated blanket INVENTUM - Free user manual and instructions

Product type	Heated blanket
Brand	Inventum
Model	HNK147
Material	Polar fleece (exterior), separate inner cushion
Power	100 W
Power supply	Mains (220-240 V)
Number of temperature levels	3 (min., medium, max.)
Rapid heating function	Yes (during the first 10 minutes)
Automatic shut-off	After 90 minutes
Safety system	Inventum Safety System (ISS) - automatic shut-off in case of overheating
Control	Sliding switch with illuminated level display
Detachable cord	Yes
Dimensions	Approximately 160 x 130 cm (estimate for sofa blanket)
Weight	Approximately 1.5 kg
Cleaning of the cover	Machine wash at 30°C, delicate cycle, max. 10 times
Cleaning of the inner cushion	Do not wash, wipe with a damp cloth
Maintenance of the switch	Wipe with a dry cloth, do not immerse
Storage	In its original packaging, flat, without creases
Warranty	2 years (manufacturer's warranty)
Certification	Oeko-Tex Standard 100 label
Use	On sofa or armchair, to warm the body
Pacemaker compatibility	Consult a doctor before use

Frequently Asked Questions - HNK147 INVENTUM

How to wash the HNK147 heated blanket?

First remove the inner cushion (do not wash it). The cover with integrated heating pad is machine washable at 30°C, delicate cycle, with a delicate laundry detergent. Do not wash it more than 10 times during its lifespan. Do not use bleach, fabric softener, or dry cleaning. After washing, stretch it while damp and let it dry flat out of the sun.

Can I use the heated blanket if I have a pacemaker?

The electric and magnetic fields of the blanket are below safety limits (5000 V/m, 80 A/m, 0.1 mT). However, as a precaution, please consult your doctor and the manufacturer of your pacemaker before use.

How long does the heated blanket stay on?

The blanket has an automatic shut-off after approximately 90 minutes of use. The temperature level indicator then flashes. To turn it back on, set the switch to '0' (off), wait 5 seconds, then select the desired level again.

What temperature levels are available?

There are 3 levels: 1 (minimum heat), 2 (medium heat), 3 (maximum heat). Rapid heating is active during the first 10 minutes, especially at level 3.

What to do if the lights do not turn on?

Check that the switch is properly connected to the heating pad and that the plug is plugged into a working socket. If the switch is set to 1, 2, or 3 and the lights remain off, the ISS safety system has irreversibly disabled the blanket. Contact customer service for a replacement.

Can I use the heated blanket for a child?

The blanket should not be used by children aged 0 to 3 years. For ages 3-8, it can only be used if a parent has set the switch and the child has been informed of safety instructions. Children over 8 can use it under supervision.

How to clean the switch?

The switch must never come into contact with water or liquids. Clean it with a dry, lint-free cloth. Do not use abrasive products or detergents.

Is the heated blanket machine washable?

Yes, the cover with integrated heating pad is machine washable on a very gentle cycle at 30°C (wool cycle). Use a delicate laundry detergent. Do not wash it more than 10 times. The inner cushion is not washable.

What does the ISS safety system mean?

ISS (Inventum Safety System) is an electronic detection system that automatically shuts off the blanket in case of overheating or failure. If the system activates, the blanket can no longer be used and must be returned to customer service.

How to store the heated blanket in summer?

Store it in its original packaging, after unplugging the switch. Let it cool down completely, then fold it without pressing hard. Do not place heavy objects on it to avoid damage.

USER MANUAL HNK147 INVENTUM

Close-up of a black textured surface with a white remote control device attached at the bottom (no text or symbols visible)

explanation of symbols page 10
1. safety instructions
page 11
2. appliance description
page 13
3. intended use
page 13
4. operation
page 13
5. cleaning & maintenance
page 14
6. storage
page 15
7.disposal
page 15
8. problems & solutions
page 15
guarantee & after sales service
page 29

Deutsch

Technical illustration of a mechanical component with a threaded connector and a circular housing (no text or symbols)

4.3 Inschakelen

	Read the instructions!	Woolen!	programme 30°C.
			Do not bleach.
	Do not insert pins! Do not tumdry.
			Do not iron.
	Do not use when folded or creased!		Do not clean chemically.
			The textiles used for this device meet stringent human ecological requirements of Oeko-Tex Standard 100, as verified by Hohenstein Research Institute.
	Not to be used with very young children (0-3 years).
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
	NOTE; Refers to important information.

1 safety instructions

Important safety instructions - read carefully and keep for later use!

WARNING

• Non-observance of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.
• This heating pad must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medication or alcohol).
• This heating pad may not be used by very young children (0-3 years old) due to their inability to react to overheating.
• This heating pad may not be used by young children (3-8 years old) unless the controller has been pre-set by a parent or guardian and unless the child has been adequately instructed how to operate the heating pad safely.
• This heating pad may be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children must not play with the heating pad.
• Cleaning and user maintenance shall not be made by children without supervision.
• This heating pad is not intended for use in hospitals.
• Do not insert needles.
• Do not use folded or bunched up.
• Do not use if wet.
• This heating pad must be used in conjunction with the controller that specified on the label.
• The electrical and magnetic fields emitted by this heating pad may

interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this heating pad.

- Do not pull, twist or make sharp bends in the cables.

- Please check this heating pad frequently for signs of wear and tear or damage. If any such signs are evident, if the heating pad has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.

- If the mains connection cable of the heating pad is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons to avoid any risk.

- While this heating pad is switched on, the following conditions must be observed:

- objects must not be placed on the pad (e.g. suitcase or washing basket)

- heat sources, such as hot water bottles, heating pads or similar, must not be placed on the pad.

- The electronic components in the controller warm up when the heating pad is in use. For this reason, the controller must never be covered or placed on the heating pad when it is in use.

- If you should have any questions about using our devices, please contact Customer Services.

• Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

2 appliance description

HNK147

Electric sofa heating pad

Dimensions: 40 x 30 cm

3 settings with an illuminated switch

Turbo heating

Automatic switch-off after 90 minutes

Detachable cord

100 Watt

Material: fleece

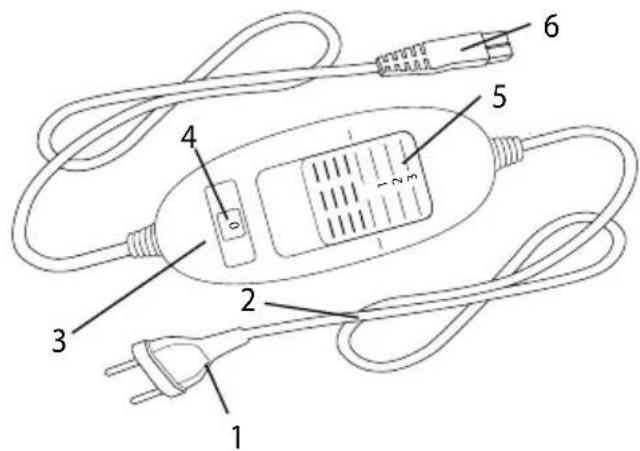

1. Mains plug
2. Mains cable
3. Controller
4. Illuminated display for temperature settings
5. Sliding switch for ON/OFF and temperature settings
6. Plug-in coupling
7. Cover with integrated heating pad
8. Inner pad
9. Zip fastening

3 intended use

CAUTION

This heating pad is only designed to warm up the human body.

4 operation

4.1 Safety

CAUTION

This heating pad is fitted with the INVENTUM SAFETY SYSTEM (ISS). This electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches off the heating pad automatically as a result of a fault, the switch is no longer illuminated even when the heating pad is switched on.

Please note that, after a fault has occurred, the heating pad can no longer be used for safety reasons and must be sent to the service address indicated.

4.2 Initial use

CAUTION

Ensure that the heating pad will not bunch up or become folded during use.

• First, connect the controller to the heating pad by inserting the plug-in coupling.
• Then plug the mains plug into the socket.

NOTE

The side of the cover with integrated heating pad must be turned towards the body for optimum heat transfer.

Technical illustration of a mechanical component with a threaded fastener and a circular housing (no text or symbols)

4.3 Switching on

To switch the heating pad on, set the sliding switch for ON/OFF and temperature settings to setting 1, 2 or 3. The temperature setting is illuminated when switched on.

4.4 Setting the temperature

Setting 0: OFF

Setting1: minimum heat

Setting2: medium heat

Setting 3: maximum heat

NOTE

The fastest way to warm up the heating pad is to initially set the highest temperature setting of the controller, first.

NOTE

This heating pad has a turbo function, which allows the heating pad to warm up faster in the first 10 minutes.

CAUTION

If the heating pad is being used over several hours it is recommended to use the lowest temperature setting (1) on the controller to avoid overheating the heated body part, which may lead to burns to the skin.

4.5 Automatic switch-off

This heating pad is equipped with an automatic switch-off function. This turns off the heat supply approx. 90 minutes after the initial use of the heating pad. The temperature setting display then starts to flash. So that the heating pad can be switched back on, the sliding switch for ON/OFF and temperature settings must first be set to setting 0 (OFF). After about 5 seconds it is possible to switch it on again.

4.6 Switching off

To switch the heating pad off, set the sliding switch for ON/OFF to setting 0 (OFF) position. The temperature settings are then no longer illuminated.

NOTE

If the heating pad is not in use, switch the side sliding switch for ON/OFF and temperature settings to the OFF (0) position and remove the mains plug from the socket. Then disconnect the controller from the heating pad by unplugging the plug-in coupling.

5 cleaning & maintenance

WARNING

Before cleaning, always remove the mains plug from the socket first. Then disconnect the controller from the heating pad by unplugging the plug-in coupling. Otherwise there is a risk of electric shock.

CAUTION

• The controller must never come into contact with water or other liquids. Otherwise, the controller may be damaged.

To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

The heating pad consists of the cover with integrated heating pad (outside) and the inner pad. Always remove the inner pad before cleaning. To do this undo the zip fastening. The inner pad is not washable.

Small marks on the cover of the integrated heating pad can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

The cover with integrated heating pad is machine-washable. For ecological reasons, always wash it together with other textiles. Set the washing machine to a particularly gentle wash cycle at 30^ C (wool cycle). Use a mild laundry detergent and measure it out according to the manufacturer's instructions.

IMPORTANT

- Please note that frequent washing of the cover with integrated heating pad will adversely affect the product. It should therefore be washed in a washing machine a maximum of 10 times during its life.

IMPORTANT

- Please note that the cover with integrated heating pad must not be dry-cleaned, wrung out, tumble dried, put through a mangle or ironed.

Immediately after washing, reshape the cover with integrated heating pad to its original dimensions while it is still damp and spread it out flat over a clothes drying rack to dry.

CAUTION

• Do not attach the cover with integrated heating pad to washing lines with washing pegs or similar. Otherwise the heating pad may be damaged.
• Do not reconnect the switch to the heating pad until the plug-in connection and the heating pad are completely dry. Otherwise the heating pad may be damaged.

Fit the inner pad back into the cover with integrated heating pad.

WARNING

- Never switch the heating pad on to dry it! Otherwise there is a risk of electric shock.

6 storage

If you do not plan to use the heating pad for a long period of time, we recommend that you store it in the original packaging. For this purpose, disconnect the controller from the heating pad by unplugging the plug-in coupling.

CAUTION

Please allow the heating pad to cool down first. Otherwise, the heating pad may be damaged. To avoid sharp folds in the heating pad, do not place any objects on top of it while it is being stored.

7 disposal

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

8 problems & solution

Problem Cause Remedy
The temperature settings are not illuminated while- the controller is fully connected to the heating pad;- the supply plug is connected to the mains outlet with correct function;- the setting is 1, 2 or 3.	The safety system switched off the heating pad irreversible.	Send the heating pad together with the controller to the service department.

Technical illustration of a mechanical component with a threaded shaft and a circular housing (no text or symbols)

4.3 Einschalten

Dimension: 40 x 30 cm

Technical illustration of a mechanical component with a gear and housing (no text or symbols)

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
