Product type	Heated blanket
Brand	Inventum
Model	HNL4212Z
Dimensions	Approx. 160 x 140 cm
Weight	Approx. 1.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	120 W
Outer material	Soft fleece
Number of heat levels	6 levels
Timer	Yes, adjustable automatic shut-off (1 to 9 hours)
Machine washable	Yes, after removing the cable, wash at 30°C
Safety	Overheat protection and automatic shut-off
Repairability	Spare parts available on request, repair by professional
Warranty	2 years
Color	White or gray (depending on availability)

Frequently Asked Questions - HNL4212Z INVENTUM

How do I wash my Inventum HNL4212Z heated blanket?

Remove the power cable, then wash the blanket in the machine at 30°C with a gentle cycle. Do not use fabric softener or bleach. Air dry, do not iron.

Can I use the heated blanket all night?

Yes, thanks to the automatic shut-off timer (up to 9 hours). It is recommended to turn it off before going to sleep to save energy.

Is the heated blanket safe for the elderly?

Yes, it is equipped with overheat protection and automatic shut-off. However, check the condition of the cable and do not use if there is pain or numbness.

What should I do if the heated blanket stops heating?

First check the power outlet and connection. If the problem persists, contact Inventum customer service. Do not attempt to repair it yourself.

Can I fold the heated blanket?

Avoid folding the blanket when it is plugged in or hot. For storage, fold it loosely and store in a dry place.

Does the heated blanket consume a lot of electricity?

No, with a power of 120 W, it consumes about 0.12 kWh per hour of use, which is economical.

How long does it take for the blanket to heat up?

About 10 to 15 minutes to reach the set maximum temperature.

Can I use the heated blanket with a memory foam mattress?

Yes, but place it on top of the mattress, not underneath. Make sure the blanket is flat to avoid overheating.

Does the heated blanket have a warranty?

Yes, Inventum offers a 2-year warranty against manufacturing defects. Keep your receipt.

Where can I find spare parts for model HNL4212Z?

Contact Inventum customer service or visit their website. Parts such as the power cable or connectors can be ordered.

USER MANUAL HNL4212Z INVENTUM

Medical device with digital display and charging cable placed on a light blue textured surface (no text or symbols visible)

explanation of symbols page 13

1. safety instructions page 15
2. appliance description page 17
3. intended use page 17
4. operation page 17
5. cleaning & maintenance page 18
6. storage page 19
   7.disposal page 19
7. problems & solutions page 20 general terms and conditions of service and warranty page 41

Deutsch

explanation of symbols

	Read the instructions!		Woolens programme 30 °C.
			Do not bleach.
	Do not insert pins! Do not turn dry.
	Do not use when folded or creased!		Do not clean chemically.
			The textiles used for this device meet stringent human ecological requirements of Oeko -Tex Standard 100, as verified by Hohenstein Research Institute.
	Not to be used with very young children (0-3 years).
	Dispose of packaging in an environmentally friendly manner		Manufacturer
	This product satisfies the requirements of the applicable European and national directives.		A quality mark for electrical appliances that meet the safety requirements of DEKRA SE (formerly KEMA).
	The device has double protective insulation and therefore complies with protection class 2.		Please dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment).
	The heated underblanket is suitable for 1 person.
	The heated underblanket is suitable for 2 persons.
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
	NOTE; Refers to important information.

Important safety instructions - read carefully and keep for later reference!

WARNING

• Non-observance of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.
• This heated underblanket must not be used by persons who are not sensitive to heat or by other vulnerable persons who may not be able to react to overheating (e.g. diabetics, people with skin alterations due to illness or scarred tissue in the application area, after taking pain relief medication or alcohol).
• This heated underblanket must not be used by very young children (0-3 years old) as they are unable to respond to overheating.
• The heated underblanket can be used by children older than 3 and younger than 8 years of age provided they are supervised. For this, the control must always be set to the minimum temperature.
• This heated underblanket may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised and have been instructed on how to use the heated underblanket safely, and are fully aware of the consequent risks of use.
  • Children must not play with the heated underblanket.
• Cleaning and user maintenance must not be performed by children unless supervised.
• This heated underblanket is not designed for use in hospitals.
• This heated underblanket is only intended for domestic/private use, not for commercial use.
• Do not insert pins.
• Do not use when folded or bunched up.
• Do not use if wet.

• Before using it on an adjustable bed, check that the heated underblanket and the cables are not, for example, trapped in a hinge or bunched up.

• This heated underblanket may only be used in conjunction with the control specified on the label.

• This heated underblanket must only be connected to the mains voltage that is specified on the label.
• The electrical and magnetic fields emitted by this heated underblanket may interfere with the function of a pacemaker. However, they are still well below the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please therefore consult your doctor and the manufacturer of your pacemaker before using this heated underblanket.
• Do not pull, twist or make sharp bends in the cables.
• If the cable and control are not positioned properly, there may be a risk of becoming entangled in, being strangled by, tripping over, or stepping on the cable and control of the heated underblanket. The user must ensure that excess lengths of cable, and cables in general, are safely routed.
• Please check this heated underblanket frequently for signs of wear and tear or damage. If any such signs are evident, if the heated underblanket has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.
• Under no circumstances should you open or repair the heated underblanket (including the accessories) yourself because faultless functionality can no longer be guaranteed thereafter. Failure to observe this will invalidate the warranty.
• The appliance may not be used with an external timer or a separate remote control.
• If the mains connection cable of this heated underblanket is damaged, it must be disposed of. If it cannot be removed, the heated underblanket must be disposed of.
• When this heated underblanket is switched on:
• Do not place any sharp objects on it
• Do not place any heat sources, such as hot water bottles, heat pads or similar, on it
• The electronic components in the control warm up when the heated underblanket is in use. For this reason, the control must never be covered or placed on the heated underblanket when it is in use.
• It is essential to observe the information relating to the following chapters: Operation, Cleaning and maintenance, Storage.
• If you should have any questions about using our devices, please contact our Customer Services department.

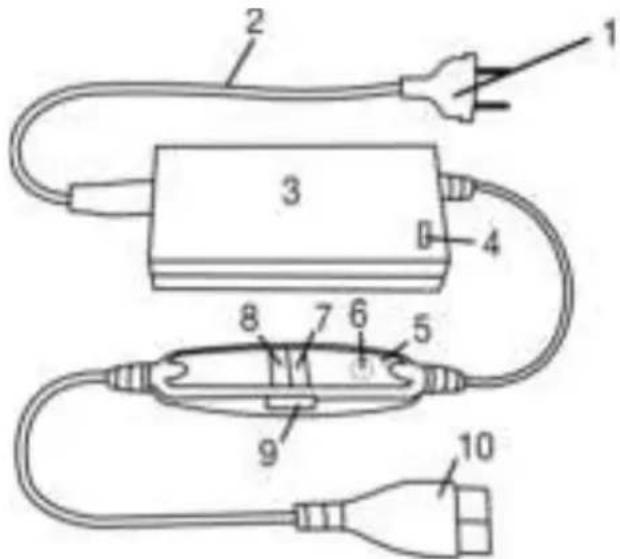

2 appliance description

HNL4112Z has 1 transformer HNL4212Z has 2 transformers

1. Mains plug
2. Mains cable
3. Transformer
4. LED-/indicator lamp for transformer
5. Control
6. LED-/temperature settings indicator
7. Button for increasing the temperature
8. Button for reducing the temperature
9. ON/OFF switch
10. Plug-in connector

Note: This heated underblanket is operated via the transformer with a safety extra-low voltage of 24V.

3 intended use

CAUTION

This heated underblanket is intended only for warming beds.

4 operation

4.1 Safety

CAUTION

• This heated underblanket is equipped with the INVENTUM SAFETY SYSTEM (ISS). This sensor technology prevents the entire surface of the heated underblanket from overheating by automatically switching off the heated underblanket in the event of a fault. If the safety system has switched off the heated underblanket, the temperature setting is not illuminated any more even when the heated underblanket is switched on.
• Please note that the heated underblanket is not operable any more due to safety reasons in this case and has to be sent to the service address indicated.
• Do not connect the defective heated underblanket with another control of the same type. This would trigger a permanent switch off via the control's safety system.

4.2 Initial use

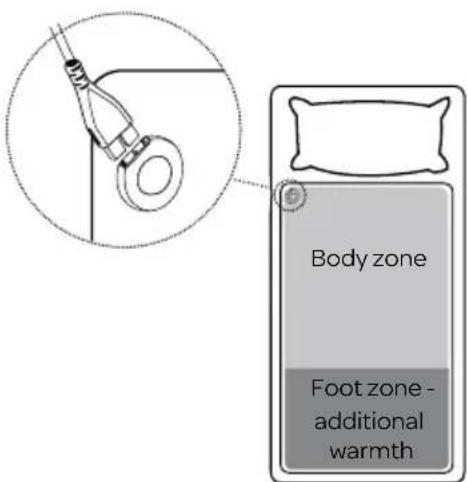

• Spread the heated underblanket flat out on your mattress so that the cable entrance is located approximately at shoulder height. The heated underblanket can be used on both sides.
• First, connect the control to the blanket by inserting the plug-in connector.
• Then connect the mains cable to the transformer.
• Then plug the mains plug into the socket.
  • The red indicator lamp on the transformer lights up.
• Then put on your bedsheet in the usual manner so that the heated underblanket is between your mattress and the bedsheet.

CAUTION

Make sure that the heated underblanket is spread out entirely flat and that it will not rumple up or crease when in use. Check its position when making the bed.

4.3 Switching on

Slide the on-/off button (9) on the side of the control (2) to position 1 (1), to switch the heated underblanket on.

When it is switched on, the LED-indicator for temperature setting 1 lights up.

4.4 Setting the temperature

Press the button (7) to increase the temperature.

Press the button (8) to decrease the temperature.

Position 1: minimum warmth

Position 2-5: individual warmth

Position 6: maximum warmth

NOTE

• The foot area of this heated underblanket is heated to a greater temperature than the rest of the blanket.
• The fastest way to warm up the heated underblanket is to initially set the highest temperature setting.
• We strongly recommend switching on the heated underblanket approx. 30 minutes before going to bed and covering it with the duvet in order to prevent heat loss.

CAUTION

If the heated underblanket is used continuously (for several hours) it is recommended to use the lowest setting (1) of the control to avoid the body overheating and thereby any potential burns to the skin or heat stroke.

4.5 Switching off

Slide the on-/off button (9) at the side of the control to position 0, to switch the heated underblanket off.

Only the red LED on the transformer is then lit. When you remove the mains plug from the socket, the red LED on the transformer also switches off.

NOTE

If the heated underblanket is not being used for several days, slide the ON/OFF switch [9] to the OFF (0) position and remove the mains plug from the socket.

4.6 Automatic switch off

This heated underblanket switches off automatically after 12 hours. Once the heated underblanket has switched off, it is no longer heated and the LED for temperature setting 1 flashes.

To switch on the heated underblanket again, first set the ON/OFF switch on the side of the control to the OFF (0) position for 5 seconds. Then set the ON/OFF switch back to ON (1) and select the desired temperature setting.

5 cleaning & maintenance

WARNING

Always remove the supply plug from the mains outlet and remove the control from the heated underblanket by disconnecting it at the connector. Otherwise there is a risk of an electric shock.

CAUTION

The control and the transformer must never come into contact with water or other liquids. Otherwise, this could damage them.

• To clean the control and transformer, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.
- Small marks on the heated underblanket can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

CAUTION

The heated underblanket should not be dry cleaned, wrung out, dried in the machine, mangled or ironed. Otherwise the heated underblanket could get damaged.

• In case of heavier soiling, this heated underblanket can be washed in a washing machine.
• Set the washing machine to a particularly gentle, 30 °C cycle (woolens programme). Use a wool laundry detergent and follow the manufacturer's instructions.

CAUTION

Note that excessive washing will wear out the heated underblanket. For this reason, the heated underblanket should only be machine-washed a maximum of 5 times throughout its entire life.

- While the heated underblanket is still damp after washing, shape it to its original form and size and place it flat over a clothes drying rack to dry.

CAUTION

• Do not attach the heated underblanket to washing lines with washing pegs or similar. Otherwise the heated underblanket may be damaged.
• Only reconnect the control to the heated underblanket after the connector and the heated underblanket are completely dry. Otherwise the heated underblanket may be damaged.

WARNING

Under no circumstances switch on the heated underblanket to dry it. Otherwise, there is a risk of an electric shock.

6

storage

If you are not going to use the heated underblanket for some time, we recommend storing it in its original packaging in a dry place without weighing it down. For this purpose, disconnect the control from the heated underblanket by unplugging the plug-in coupling.

CAUTION

• Please allow the heated underblanket to cool down first. Otherwise, the heated underblanket may be damaged.
• To avoid sharp folds in the heated underblanket, do not place any objects on top of it while it is being stored.

7

disposal

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

8 problems & solutions

Display Cause Action
The LEDs for the temperature settings 1, 3 and 5 blink. The	control is not fully connected to the plug-in connector of the heated underblanket.	Connect the plug-in connector fully. Set the ON/OFF switch to the OFF (0) position for 5 seconds. Then set it back to the ON (I) position.
The LEDs for the temperature settings 1, 3 and 5 still blink.	The device is faulty.	Send the complete transformer, control and heated underblanket to the Service Department.
No LEDs light up even though- the mains plug is connected to a functioning socket- the control is fully connected to the heated underblanket via the plug-in connector- the ON/OFF switch is set to the ON (I) position.	The device is faulty. Send the	complete transformer, control and heated underblanket to the Service Department.

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
