| Product Type | External Blu-ray Writer |
| Brand | Pioneer |
| Model | BDR-XS07UHD |
| Interface | USB 3.0 (USB Type-C) |
| BD-R Write Speed | 6X max |
| DVD-R Write Speed | 8X max |
| CD-R Write Speed | 24X max |
| Ultra HD Blu-ray Playback | Yes (4X) |
| Supported Formats | BD, DVD, CD, M-DISC |
| Loading Type | Slot-in |
| Orientation | Horizontal or vertical (with included stand) |
| Dimensions (approx.) | 13.5 × 13.5 × 1.5 cm (W × D × H) estimated |
| Weight | 0.28 kg |
| Power Supply | Via USB (5V/1A) or optional AC adapter |
| Standby Power Consumption | 0.65 W |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | 5% to 85% (non-condensing) |
| Supported Operating Systems | Windows 10/8.1/8/7 ; macOS 10.11 to 10.14 |
| Special Features | Quiet Drive, PureRead |
| Maintenance and Cleaning | Damp cloth, no liquids or aerosols |
| Laser Class | Class 1 |
| Included Accessories | USB cables, rubber cushion, warranty card |
Frequently Asked Questions - BDR-XS07UHD PIONEER
User questions about BDR-XS07UHD PIONEER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hard Drive in PDF format for free! Find your manual BDR-XS07UHD - PIONEER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BDR-XS07UHD by PIONEER.
USER MANUAL BDR-XS07UHD PIONEER
Operating Instructions
Mode d'emploi
Thank you for buying this Pioneer product. Before using the drive, read all warnings, cautions, notices and other important safety information contained in these Operating Instructions. Please read the entire manual before using this drive as it contains important information, such as regulatory data, software license agreement(s), product registration details, service instructions and guidelines.
WARNING
This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.
D3-4-2-1-3_B_En
Precautions Regarding Use
- Pioneer may not be held liable for the loss of any data or any other direct or indirect damage suffered as the result of the use or breakdown of this product. It is strongly recommended to regularly back up all critical data.
- Care must be taken not to infringe copyright restrictions under the laws of each country. If this device is used to record copyrighted materials, approval must be obtained from the respective copyright holders. The recording of copyrighted materials without the express approval of the respective copyright holders may result in legal penalties. Pioneer disclaims any and all responsibility for any legal damages resulting from the use of this device in the unauthorized copying of copyrighted materials.
- All names of corporations, products, and systems listed herein, even when the (TM) or (®) symbols are omitted, are considered the registered trademarks of the respective owners.
DANGER – VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.
IMPORTANT
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
D3-4-2-1-1_A1_En
CAUTION
This product is a class 1 laser product, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. The following caution label appears on your unit.
CLASS 1 LASER PRODUCT
Location: Top of built-in drive and rear of outer mounting case
Location: Top of built-in drive
D3-4-2-1-8*_C_En
CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. D6-8-2-1_En
For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.
IMPORTANT NOTICE
RECORD THE MODEL NUMBER AND SERIAL NUMBERS OF THIS EQUIPMENT BELOW. THE NUMBERS ARE ON THE REAR.
MODEL NO. BDR-XS07UHD SERIAL NO.
KEEP THESE NUMBERS FOR FUTURE USE.
D1-4-2-6-2*_A1_En
Operating Environment
Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)
D3-4-2-1-7c*A1_En
Machine Noise Information Regulation 3.
GPSGV: The highest sound-pressure level is 70 dB(A) or less in accordance EN ISO 7779.
Information to User
Alterations or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. D8-10-2_A1_En
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2_A1_En
CAUTION
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. D8-10-3b_A1
FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Product
BD/AD/CD WRITER
Model
NBDBXS07UHD
Responsible Party Name: PIONEER ELECTRONICS (USA) INC.
Address: 2050 W. 190th Street, Suite 100, Torrance, CA 90504
Phone:
1-800-421-1404
URL:
https://www.pioneerelectronics.com/PUSA/
D8-10-4*_C1_En
This product was classified under the Safety of laser products, IEC 60825-1:2014
is a trademark of Blu-ray Disc Association.
is a trademark of DVD Format/Logo Licensing Corporation.
Safety instructions
To ensure your personal safety and to maximize the full operating potential of your unit, read and follow these safety instructions.
Read & Retain Instructions – Read all operating and user information provided with this drive.
Cleaning – Use a damp cloth to clean the exterior housing. Avoid using any fluids including liquid, aerosol or alcohol-based cleaning products.
Water or Moisture – Avoid operating or locating this drive near water or other sources of fluid.
Accessories – Do not place this product on an unstable cart, stand, or table. The product may fall and be seriously damaged.
Ventilation – Slots and openings in the chassis are for cooling and proper operation of the unit. Do NOT block or cover the openings. Do NOT place this unit on a bed, rug, etc. as this can block the openings. This unit should not be placed in a built-in installation unless properly ventilated.
Operation - Avoid moving, lifting or reorienting this drive while a disc is rotating inside.
Environment – Avoid installing this drive in a location with exposure to large quantities of dust, high temperatures, high humidity, or subject to excessive vibrations or shocks.
Power Sources – Operate this drive only from the recommended power sources. If you are unsure of the power source, consult an authorized Pioneer representative.
Power-Cord Protection – When unplugging the unit, pull on the plug – not on the cord. Do not handle the cord or plug with wet hands; doing so could cause an electric short or shock. Do not allow anything to pinch or rest on the power cord and do not place in a walkway.
Object & Liquid Entry – Never push inappropriate objects into the device. Avoid spilling any liquids into or on the outside of the drive.
Condensation – Moisture can form in the operating section of the product if the drive is taken from cool surroundings to a room with a warmer temperature. Let the drive stand for one to two hours in the new location before turning it ON.
Servicing – Opening or removing the cover exposes you to possible electrical shock or other danger. Contact a Pioneer authorized service representative for repairing this drive (refer to the enclosed Service & Support Card).
Damage Requiring Service – Unplug the unit and refer servicing to qualified service personnel in the following situations:
- When the power cord, plug, or chassis is damaged.
• If liquid has been spilled. - If the product has been exposed to rain or water.
- If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and can require extensive work by a qualified technician to restore the unit to its normal operation.
- When the product exhibits a distinct change in performance – this indicates a need for service.
About DualDisc Playback – DualDisc is a two-sided disc with one side containing DVD video/audio/etc. content and the opposite side containing non-DVD content such as digital audio material. The non-DVD audio side is not compliant with the CD Audio Specification; therefore, may not play. The DVD side of DualDisc media plays in this unit. For more details about the DualDisc specification, please refer to the disc manufacturer or your retailer.
- Avoid touching or scratching the signal surface (shiny side) of the disc.
- Hold the disc by the edges or by the center hole and one edge.
- Do not affix paper or labels to the disc.
- Discard warped or cracked discs as they may cause damage to the drive.
- Avoid specially shaped discs such as hearts or polygons.
- Remove dust or lint from the disc with a soft cloth by wiping from the inside to the outside edge rather than in a circular motion.
- Do not use record-cleaning or anti-static agents as the solutions may cause damage to a disc.
Always be sure to store your discs in proper disc storage cases when not in use, and always be sure to check for dirt or dust on discs (especially on the signal surface) before use.
Note
Some discs may not be playable due to different recording formats or the physical condition of the disc at the time of recording or playback.
Operating environment
The operating environment below is only for reference. It does not guarantee the operation.
During DVD/CD disc writing and reading
- Supported OS: Windows 10, Windows 8.1, Windows 8, Windows 7, macOS Mojave 10.14, macOS High Sierra 10.13, macOS Sierra 10.12, Mac OS X 10.11 standard loaded model
• CPU: Pentium III 800 MHz or above (Pentium 4, 2.2 GHz or above*)
• Memory: 128 MB or above (256 MB or above*) - Hard disk free space: 2 GB or above (7 GB or above*)
• Sound card: 16 bit or above
• Graphic: 1024 × 768, 32 bit or above display - Devices: Arrange for a separate video input device (video cassette recorder and camcorder, etc.) and capture card.
*: Recommended operating environment
During Blu-ray disc writing and reading
- Supported OS: Windows 10, Windows 8.1, Windows 8, Windows 7, macOS Mojave 10.14, macOS High Sierra 10.13, macOS Sierra 10.12, Mac OS X 10.11 standard loaded model
• CPU: Core Duo T2700/Core 2Duo E6300 or above
• Memory: 1 GB or above - Hard disk free space: During recording 25 GB (50 GB or above*), during playback 120 MB
- Graphic: During digital output of BD-Video videos, an HDCP-compatible graphic function and monitor are required.
*: Recommended operating environment
During Ultra HD Blu-ray reading\*
For details on the playback environment, visit the Pioneer website.
https://www.pioneerelectronics.com/PUSA/Computer/Computer+Drives/BDR-XS07UHD
*: Supplied software application is only for Windows OS.
The required environment varies depending on your OS and applications.
For answers to your queries on the OS and applications, contact the consultation desk of each software manufacturer.
Blu-ray Disc, BDXL, the Blu-ray Disc and BDXL logos are trademarks of the Blu-ray Disc Association.
Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.
Mac, Mac logo, Mac OS, OS X, macOS, Sierra and Mojave are trademarks of Apple Inc., registered in the U.S. and other countries.
Other company and product names used herein might be the trademarks or registered trademarks of their respective companies.
Features
Maximum Write Speed* Maximum Read Speed*
| BD-R | 6X | BD-ROM SL/DL | 6X |
| BD-R DL | 6X | BD-ROM DL/TL(Ultra HD Blu-ray) | 4X |
| BD-R TL | 4X | BD-R | 6X |
| BD-R QL | 4X | BD-R DL | 6X |
| BD-R (LTH) | 6X | BD-R TL/QL | 4X |
| BD-RE | 2X | BD-R (LTH) | 6X |
| BD-RE DL | 2X | BD-RE | 6X |
| BD-RE TL | 2X | BD-RE DL | 6X |
| M-DISC BD-R SL/TL | 4X | BD-RE TL | 4X |
| M-DISC BD-R DL | 6X | M-DISC BD-R SL/DL | 6X |
| M-DISC BD-R TL | 4X | ||
| DVD-R | 8X | ||
| DVD-R DL | 6X | DVD-ROM | 8X |
| DVD-RW | 6X | DVD-ROM DL | 8X |
| DVD+R | 8X | DVD-R | 8X |
| DVD+R DL | 6X | DVD-R DL | 8X |
| DVD+RW | 8X | DVD-RW | 8X |
| DVD-RAM | 5X | DVD+R | 8X |
| M-DISC(DVD) | 4X | DVD+R DL | 8X |
| DVD+RW | 8X | ||
| CD-R | 24X | DVD-RAM | 5X |
| CD-RW | 24X | M-DISC(DVD) | 8X |
| CD-ROM, CD-R, CD-RW | 24X |
* When using a USB 2.0 port, BD writing/reading speed doesn't achieve 6X.
Buffer Memory Size Interface
4 MBytes (Read/Write) USB 3.1 Gen1(3.0)/2.0
Disc Format
• Ultra HD Blu-ray (BD-ROM Dual/Triple layer)
• BD-ROM(Single/Dual layer)
• BD-R(Single/Dual/Triple/Quadruple layer)
• BD-RE(Single/Dual/Triple layer)
• M-DISC BD-R (Single/Dual/Triple layer)
• DVD-ROM (Single/Dual layer)
• DVD-Video (Single/Dual layer)
• DVD - R
• DVD - RW
• DVD + R
• DVD + RW
• DVD-RAM (Non-cartridge), ver2.0&2.1&2.2
• M - D I S C ( D V D )
- CD-ROM Mode 1&2
• CD-ROM XA Mode 2 (form 1, form 2)
• KODAK Photo CD (Single and Multi-session) - CD - Extra (CD PLUS)
- C D t e x t
• C D - R
• CD-RW (MS/HS/US/US+) - CD-DA
• Video CD
RAM2 media is supported only reading.
Note
- A specific application software is necessary to write the formats listed above.
• Supported media required for specific BD, DVD and CD writing speeds.
•Average writing speed may decrease when multiple discs are written during the same session.
•The Pioneer's Drive Utility is needed to configure the Quiet Drive and PureRead features. https://pioneer.jp/support/download/index-e.html - Supplied software application is only for Windows OS.
Interface

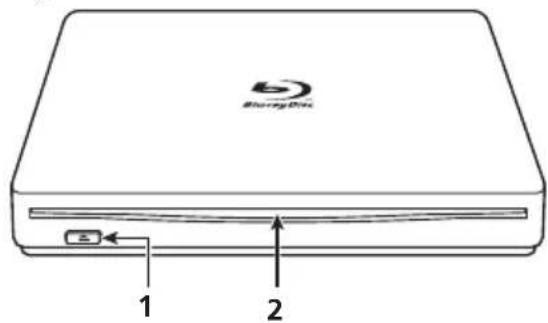

Front/Top view
1 Eject Button ( ▲)
Press to eject a disc.
* If this device is connected to Mac, you will not be able to use this function due to the specifications of macOS.
2 Disc Loading Slot
Insert disc (only a BD, DVD or CD) slowly; when inserted a certain distance, the disc will automatically be pulled into the drive.
The disc should be inserted flatly, parallel with the surface of the drive.
Do not insert objects other than specified discs into the loading slot.

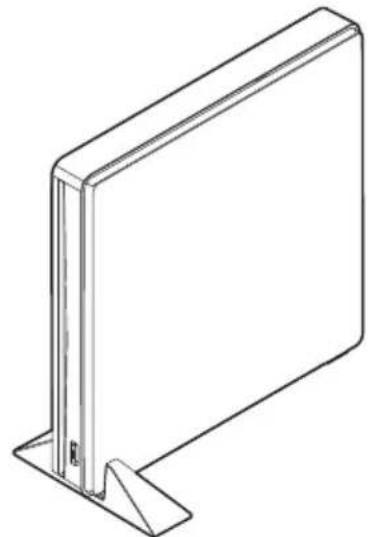

In the case of vertical installation
Installation of the stand and pasting of the rubber cushion (recommended example)
Insert the drive right till the end of the stand.
If you do not paste a rubber cushion, the vibrations could result in noise and poor operation.
Rear view
3 D C ⊕ ⊖ ⊖
AC Adapter Connector
Some computers may not provide enough power through a USB port to operate the drive. An AC adapter (not included) can be connected to the drive through the DC IN connector to provide power. For more details, visit or contact
https://www.pioneerelectronics.com/PUSA/
Phone: 1-800-421-1404
Do not connect any AC adapter other than specified by Pioneer.
4 USB Connector
USB 3.1 Gen1(3.0) Type-C Connector
About Region codes
- The region code can only be changed five (5) times, including the initial setting. Please be aware that the fifth change becomes PERMANENT. Therefore, avoid changing the region code unless absolutely necessary.
- Region codes are part of the DVD Standard. However, region codes on DVD discs are optional. DVD discs with no specified region code can be played on all compliant players and/or application.
Connection

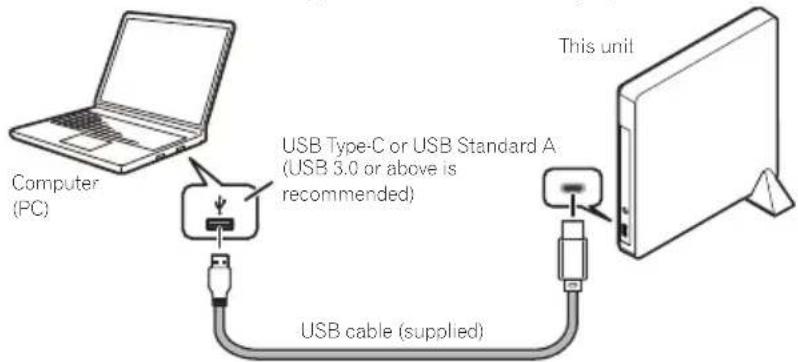

This is a hot-plug unit. Connect the unit to the supplied USB cable.
1 Confirm that your computer (PC) has available USB port.
2 With your Windows® or Mac operating system running, use the supplied USB cable to connect this unit to the PC.
Caution
- Do not disconnect the USB cable during data transfers.
- Do not disconnect the USB cable during the PC start nor any operation with the unit.
Note
- It is recommended to connect to USB 3.0 port or above, since when a USB 3.0 cable is connected to a USB 2.0 port, the connection will be limited to USB 2.0 performance standards.
- This unit can operate with USB 1.1 but will not provide optimum performance.
- Connecting this unit through a USB HUB or using unspecified cables may not guarantee proper operation.
- If power is insufficient when using a USB port, connect an AC adapter (not included) through the DC IN connector on the unit's rear panel and plug into a wall outlet to deliver power. Connect the USB cable (included) after connecting the AC adapter for proper operation. For more details about the AC adapter connection, visit or contact https://www.pioneerelectronics.com/PUSA/ Phone: 1-800-421-1404
- Do not connect any AC adapter other than specified by Pioneer.
This unit is for use only with compatible UL Listed personal computers that have Installation Instructions detailing user installation of USB accessories. UL Listed, Class 2 AC Adapter (Output 5 V, min. 1.0 A) shall be used.
About disc insertion and removal
- Disc insertion
Insert the disc horizontally into the disc insertion slot. Once the disc has been inserted up to a certain point, it will be automatically pulled in.
* Do not forcibly push in the disc during insertion.
- Removing the disc
In general, use the eject function of the application, or the disc eject button.
- When you are unable to remove the disc by the normal operation
Use forced ejection of drive utility.
For macOS
- Removing the disc
Either perform command + click, or right-click on the disc icon to display the menu, and then select "Remove
* For details on "How to Remove an Unformatted Disc" in macOS Mojave, refer to the website of the device.
https://www.pioneerelectronics.com/PUSA/
- When you are unable to remove the disc by the normal operation
Use forced ejection of drive utility.
* Also try reconnecting the USB connector.
* Depending on the specifications of macOS, you may not be able to use the eject button in the front.
Downloading and Installing CyberLink Media Suite (with Product Key)
*This is an application specially for Windows. It cannot be used with macOS.
1 Access the website shown on the back of this manual.
2 Check the content of the License Agreement, and click "Agree" to proceed to the CyberLink webpage.
<>
1 After accessing the download website, sign in with your CyberLink member e-mail address and password.
(If you have not registered as a CyberLink member, click "Register now" and register to be a member.)
2 After signing in, the product key input screen will be displayed. Enter the provided product key and click "Submit".
The product key is on the back of this manual.
(The 16-character key printed on the label.)
3 If the product key has been entered correctly, the screen to download the downloader will be displayed. Click the download link to download the downloader.
*Re-downloading the downloader
After registering the product key on the download website, an e-mail will be sent to your registered CyberLink member e-mail address.
The downloader can be re-downloaded from the Link in the e-mail for 30 days from registration of the product key.
<>
1 Connect the drive to Windows PC.
2 Run the downloaded file to start downloading the program.
3 After the download is complete, the installation message will be displayed in the dialog box. Click "Install" to start up the installer.
(Even if you do not click "Install", the installer will automatically start up after 1 minute.)
4 After the installer starts up, follow the instructions on the installer to install the product.
Specifications
| Orientation | This device supports both vertical installation and horizontal. |
| Disc Size | 4.72 inch (12 cm) |
| (Drive does not support non-standard shapes such as business cards, diamond, etc.) | |
| (Drive does not support 8 cm adapter.) |
Data Transfer Rate * Media that is dirty or damaged can affect the transfer rate.
| Data Read (sustained) | BD | Max. 27.00 MBytes/sec. |
| DVD | Max. 10.80 MBytes/sec. | |
| CD | Max. 3.60 MBytes/sec. | |
| Data Write (sustained) | BD | Max. 27.00 MBytes/sec. (6X BD-R) |
| DVD | Max. 10.80 MBytes/sec. (8X DVD-R) | |
| CD | Max. 3.60 MBytes/sec. (24X CD-R) |
Access Time/Seek Time (Random Averages)
| Access Time | BD-ROM | 210 ms |
| DVD-ROM | 200 ms | |
| CD-ROM | 190 ms | |
| Seek Time | BD-ROM | 190 ms |
| DVD-ROM | 180 ms | |
| CD-ROM | 170 ms |
Power
| Standby. | 0.65 W |
| DC IN Connector | |
| Power Supply. | DC +5 V, 1.0 A (AVE) |
Physical Information
| Dimensions (excluding foot pad) | 5.31 inch (W) x 5.31 inch (D) x 0.7 inch (H) |
| 135 mm (W) x 135 mm (D) x 18 mm (H) | |
| Weight (Drive only) | 0.62 lbs/0.28 kg (Typ.) |
| Operation Temperature | +41 °F to +95 °F (+5 °C to +35 °C) |
| Operation Humidity | 5 % to 85 % (no condensation) |
| Storage Temperature | −40 °F to +140 °F (−40 °C to +60 °C) |
| Storage Humidity | 5 % to 90 % (no condensation) |
Accessories
| Instruction manual (This document) | |
| USB Standard A to USB Type-C 35 cm | 1 |
| USB Type-C to USB Type-C 35 cm | 1 |
| Vertical stand | 1 |
| Rubber cushion | 2 |
| Warranty Card | 1 |
Note
Specifications and designs are subject to possible modifications without notice, due to improvements.
© 2019 PIONEER CORPORATION.
All rights reserved.
Remarque
4 Mo (Lecture/Écriture) USB 3.1 Gen1 (3.0)/2.0
Format du Disque
- Ultra HD Blu-ray (BD-ROM double/triple couche)
• BD-ROM (simple/double couche) - BD-R(simple/double/triple/quadruple couche)
• BD-RE (simple/double/triple couche)
• M-DISC BD-R (simple/double/triple couche)
• DVD-ROM (simple/double couche)
• DVD-Video (simple/double couche)
• DVD - R
• DVD - R W
• DVD + R
• DVD + RW
• DVD-RAM (Non-cartouche), ver2.0&2.1&2.2
• M - D I S C (D V D)
• Mode CD-ROM 1 & 2
• CD-ROM XA Mode 2 (form 1, form 2)
• KODAK Photo CD (Simple et Multi-session)
• CD-Extra (CD PLUS)
- C D t e x t
• C D - R
• CD-RW (MS/HS/US/US+)
• C D - D A
• Video CD
Line drawing of a rectangular electronic device with labeled ports (no text or symbols beyond labels)Attention
- Retrait du disque
Dimensions (talon non compris).... 135 mm (L) x 135 mm (P) x 18 mm (H)
Support vertical....1
© 2019 PIONEER CORPORATION.
Nota
• M - D I S C (D V D)
- Modo CD-ROM 1 y 2
• CD-ROM XA Modo 2 (forma 1, forma 2)
• KODAK Photo CD (Sencillo y Multisesión)
• CD Extra (CD PLUS) - C D t e x t o
• C D - R - CD-RW (MS/HS/US/US+)
• C D - D A
• Video CD
Telf.: 1-800-421-1404
Precaución
https://www.pioneerelectronics.com/PUSA/
© 2019 PIONEER CORPORATION.
AFTER SALES SERVICE FOR PIONEER PRODUCTS
Please contact the dealer or distributor where you purchased this product for its after-sale service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiarity (regional service headquarters) listed below.
PIONEER ELECTRONICS (USA) INC. P.O.BOX 1720, Long Beach, California 90801 U.S.A.
® PIONEER CORPORATION
Website for downloading application / Site Web de téléchargement de l'application / Sitio web para descargar la aplicación
https://jpn.pioneer/ja/pcperipherals/bdd/eula/cyberlink\_media\_suite/en.php
The downloader can be re-downloaded from the Link in the e-mail sent from CyberLink for 30 days from registration of the product key.
CyberLink Media Suite Product key for free download
© 2019 PIONEER CORPORATION. All rights reserved.
28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan
PIONEER ELECTRONICS (USA) INC.
P.O.BOX 1720, Long Beach, California 90801 U.S.A.
For BDR-XS07UHD support, go to:
https://www.pioneerelectronics.com/PUSA/
- WARNING
- Precautions Regarding Use
- IMPORTANT
- CAUTION
- CAUTION:
- CLASS 1 LASER PRODUCT
- IMPORTANT NOTICE
- Operating Environment
- Information to User
- NOTE:
- FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY
- Safety instructions
- Note
- During DVD/CD disc writing and reading
- During Blu-ray disc writing and reading
- During Ultra HD Blu-ray reading\*
- Features
- Buffer Memory Size Interface
- MBytes (Read/Write) USB 3.1 Gen1(3.0)/2.0
- Disc Format
- Interface
- Front/Top view
- Eject Button ( ▲)
- Disc Loading Slot
- Rear view
- D C ⊕ ⊖ ⊖
- USB Connector
- Connection
- About disc insertion and removal
- - Disc insertion
- For Windows
- - Removing the disc
- - When you are unable to remove the disc by the normal operation
- For macOS
- Downloading and Installing CyberLink Media Suite (with Product Key)
- <>
- Remarque
- Mo (Lecture/Écriture) USB 3.1 Gen1 (3.0)/2.0
- Format du Disque
- Attention
- Systèmes Windows
- - Retrait du disque
- Nota
- Precaución
- Para Windows
- AFTER SALES SERVICE FOR PIONEER PRODUCTS
- Website for downloading application / Site Web de téléchargement de l'application / Sitio web para descargar la aplicación
- https://jpn.pioneer/ja/pcperipherals/bdd/eula/cyberlink\_media\_suite/en.php
Brand : PIONEER
Model : BDR-XS07UHD
Category : Hard Drive
