User Guide

Caution!

WARNING: Please use this product as instructed. Misuse may cause injury or death.

DO NOT use while driving

DO NOT expose to water or wet surfaces. Electric shock may occur

DO NOT expose the projected LED image to your eyes or the eyes of others

DO NOT block or restrict airflow from ventilation holes as this may cause the projector to overheat

Keep the projector, battery, or charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery with sharp objects
• Do not heat the product or expose it to high temperature.
• Do not wet it or place it in any liquid

Caution for Headphone Use

• Prolonged use at high volume may impair your hearing.
  • High volume during walking or driving may cause distractions and result in injury or death

Table of Contents

Chapter 1: M6 at a Glance

M6 Introduction 1

Remote & Keypad 2

Accessories 3

Chapter 2: Getting Started

Powering On / Off 4

Focus Adjustment / Throw

Distance 5

External Input/Outputs 6

Connecting to a Computer VGA · · 7

Connecting to a Digital Input 9

Connecting to Composite Video • • 11

Connecting to Digital Input Video • 13

Connecting to Speaker or

Headphones 15

Connecting a USB Stick 18

Chapter 3: Menu Screens

Main Menu 20

Video Player Menu 21

Photo Viewer Menu 25

Music Player Menu 29

Text Viewer Menu 32

Chapter 4: Setup Menu

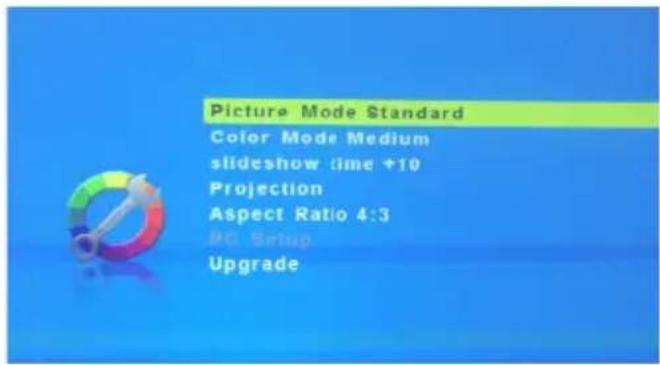

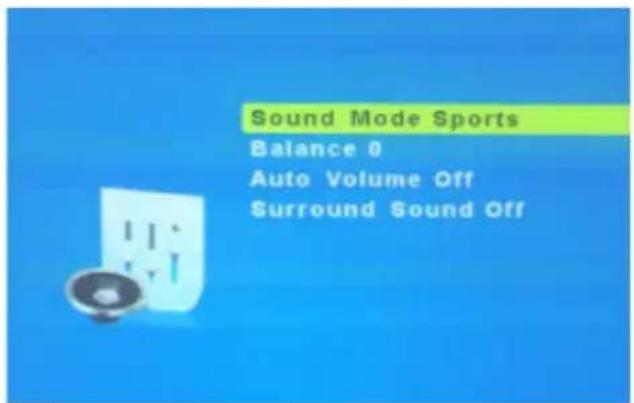

Settings 33

Brightness Feature 37

Chapter 5: Technical Details

Troubleshooting 38

Specifications 40

Notes 41

M6 at a Glance

Chapter 1

Main Unit Front/Back

DC Port Digital Input Headphone Out AVPort VGA Port Infrared Receiver (Remote Control) Power Button Power Switch TF Card Focus Adjustment USB Port

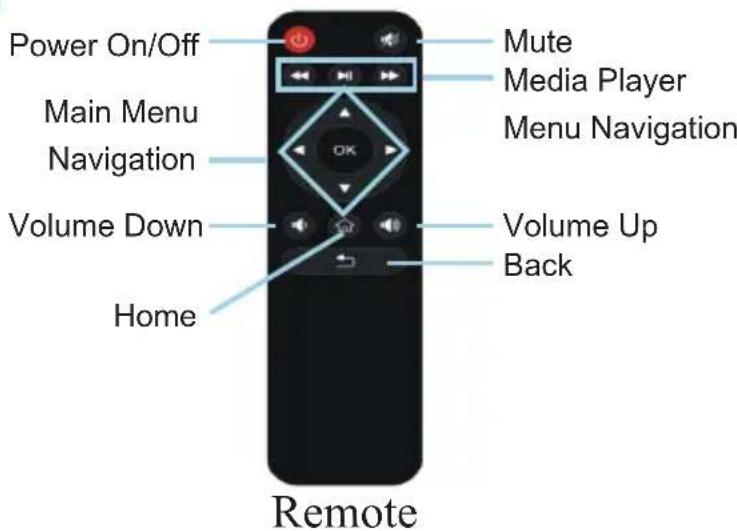

Remote & Keypad

Power On/Off Main Menu Navigation Volume Down Home Mute Media Player Menu Navigation Volume Up Back Remote

LED Lights Direction Pad OK Input Exit/Back/ Off

Both the keypad and remote can be used to navigate through the menus. The Main Menu Navigation on the remote functions exactly the same as the directional pad on the M6 unit.

NOTE: Pressing power on the remote will only put the projector in STANDBY mode. Toggle the "ON/OFF" switch on the side of the projector to fully turn the projector off.

*Keystone function is not available.

Accessories

Remote

Diagram of a multi-pin connector with multiple Ethernet ports (no text or labels)

A/V Cable

Line drawing of a cable and connector with connectors (no text or symbols)

Power Adapter

Black rectangular object with a handle, resembling a briefcase or case (no text or symbols visible)

Carrying Case

*Under various circumstances, the actual accessories may be different from those shown in the pictures above.

Additional accessories are available for purchase at www.aaxatech.com

Getting Started

Chapter 2

Powering ON the projector

1. Connect the power cord to the M6.
2. Connect the other end of the power cord into the wall power source.
3. Toggle the On / Off switch on the side of the projector to the "ON" position -- the projector should automatically turn on.
4. If the projector does not automatically turn on with the "Power Switch" toggled to the "ON" position, press the "ON/OFF POWER" ⏻ button on the keypad and hold for 2-3 seconds to start the projector.

Standby Mode

1. To transition to "STANDBY" mode, press the power button ⏻ on the keypad or the remote control.
2. The optical engine should power off and the fan should stop spinning. The projector is now in "STANDBY" mode and can be turned on using the remote control.
   *Note: Standby mode will still consume a small amount of power.

Powering OFF the projector

1. To turn off the projector, toggle the "Power Switch" to the "OFF" position. This will fully turn off the projector.

Focus Adjustment / Throw Distance

Focus Adjustment

- Spin the focus wheel up or down until the image becomes clear.

Throw Distance Chart

Throw Distance	Diagonal Size
Units: Inches	Units: Inches
19	20
38	40
58	60
77	80
96	100
115	120
153	160
192	200

Throw Ratio 1.10

Projection Angle: 100% Offset

*minimum throw distance: 12 inches

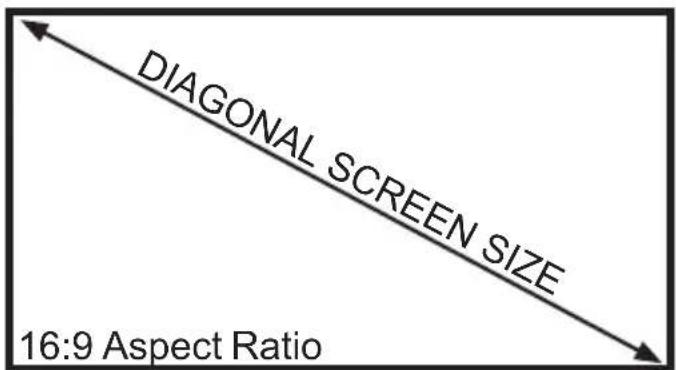

DIAGONAL SCREEN SIZE 16:9 Aspect Ratio

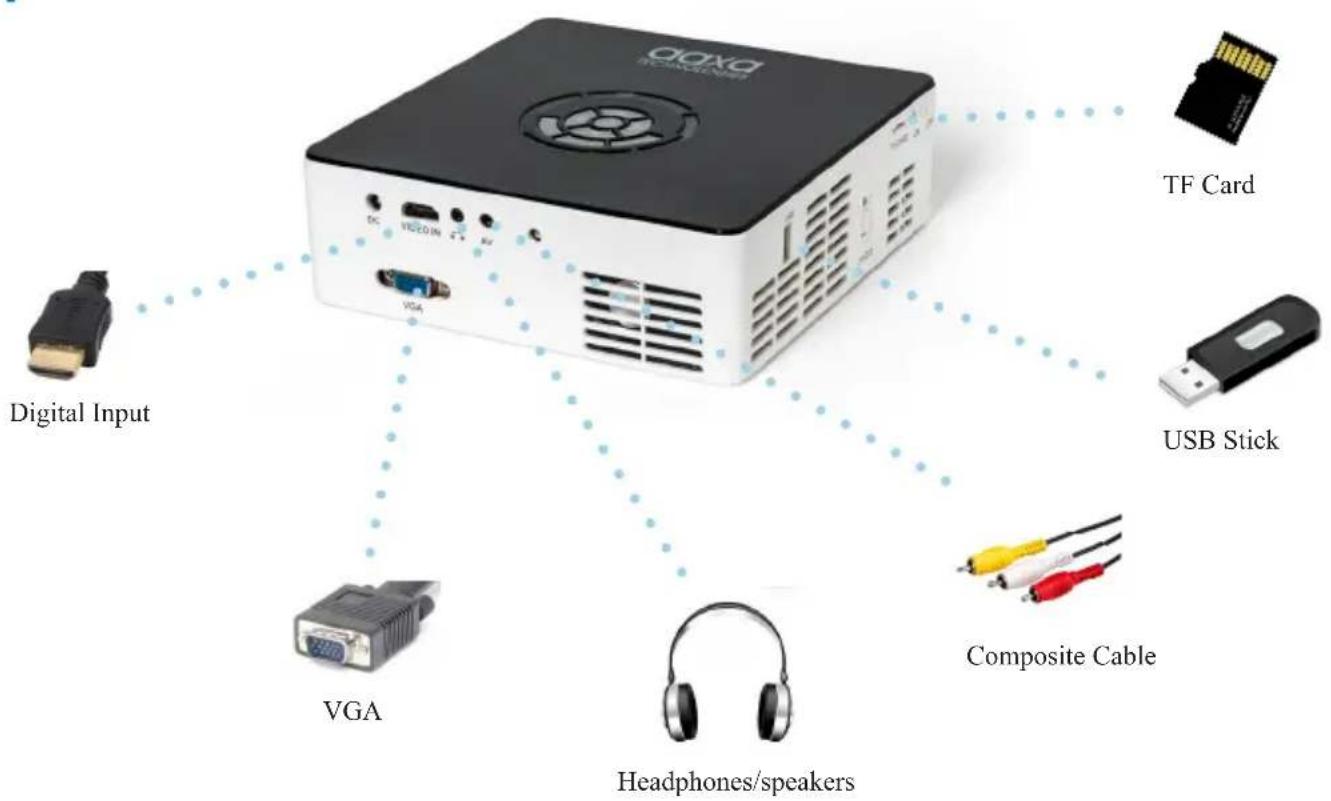

External Inputs and Outputs

Connecting to a Computer via VGA

Step 1:

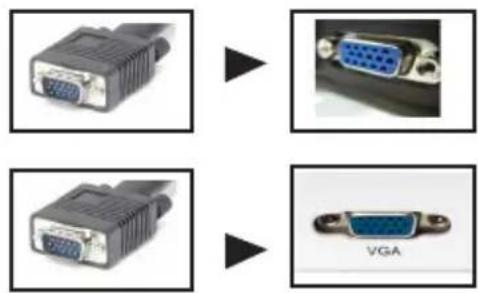

Connect one end of the VGA Cable to your computer's VGA Adapter.

Step 2:

Connect the other end of the VGA Cable to your M6's VGA port.

Step 3:

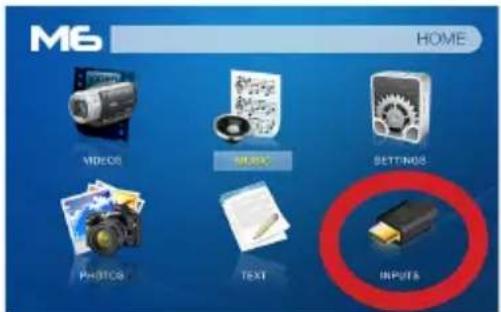

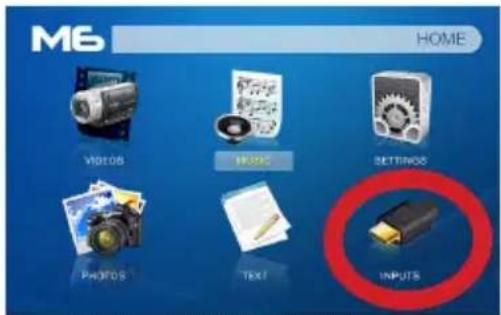

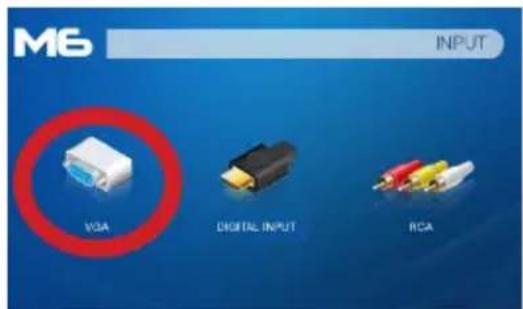

In the Main Menu, select the "Inputs" icon and then the "VGA" Icon.

MS HOME VIDEO 图像 BIMINGS PHOTOS TEXT INPUTS

MG INPUT VGA DIGITAL INPUT RCA

Select "VGA" icon Select "INPUT" icon

Connecting to a Computer Cont.

Step 4:

Enabling VGA on your Computer – To enable VGA output on your computer, most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA output. Below are standard instructions for a Windows 10 computer – not all systems are the same.

Step 5:

I O P K L M < > ? S A1 A2

Press Windows+P to toggle through display settings. Select either "Duplicate" or "Extend" depending on your viewing option

*NOTE: different operating systems may differ

Step 6:

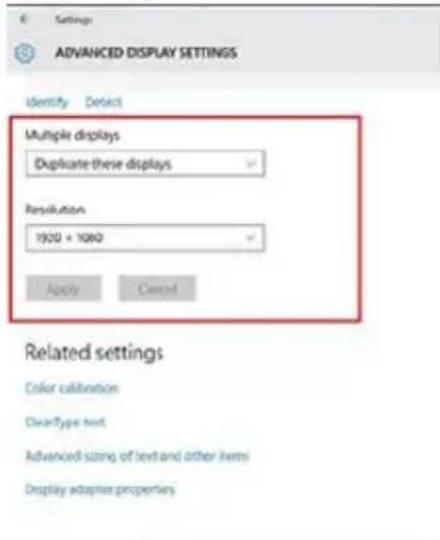

OPTIONS ADANCED DISPLAY SETTINGS Identify Detect Multiple displays Duplicate-these displays Resolution 1920 × 1080 Apply Cancel Related settings Color calibration ClearType text Advanced sizing of text and other items Display adapter properties

1. Right click on computer desktop and select "Screen Resolution"
2. Display Properties window will pop up
3. If a secondary monitor is grayed out, click on it and select "Extend these displays" in the "Multiple Displays" drop down
4. If the image is blurry or the text is not legible, adjust the screen resolution. We recommend 1920x1080

Connecting to a Computer via Digital Input

Step 1:

Connect one end of the Digital Input Cable to your computer's Digital Input Adapter.

Step 2:

Connect the other end of the Digital Input Cable to your M6's Digital Input port.

Step 3:

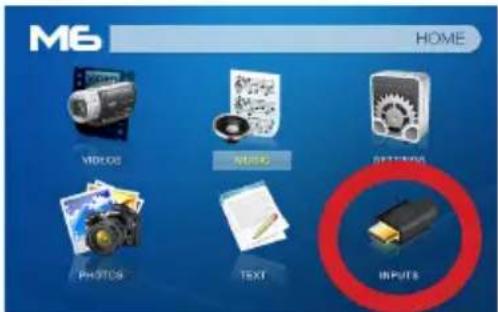

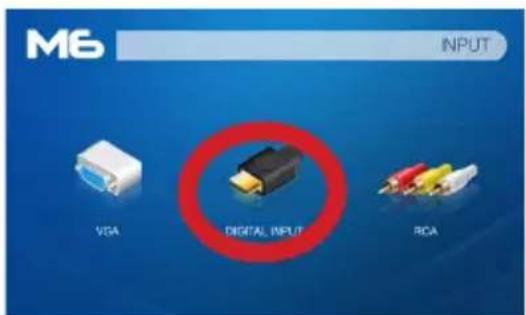

In the Main Menu, select the "Inputs" icon and then the "Digital Input" Icon.

MS HOME VIDEOS INPUTS PHOTOS TEXT SETTINGS

MG INPUT VGA DIGITAL INPUT RCA

Select "INPUT" icon Select "Digital Input" icon

Connecting to a Computer Cont.

Step 4:

Enabling Digital Video output on your Computer – To enable Digital Video output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable Digital Video output. Below are standard instructions for a Windows 10 computer – not all systems are the same.

Step 5:

I O P K L M < > ? A1 B

Press Windows+P to toggle through display settings. Select either "Duplicate" or "Extend" depending on your viewing option

*NOTE: different operating systems may differ

Step 6:

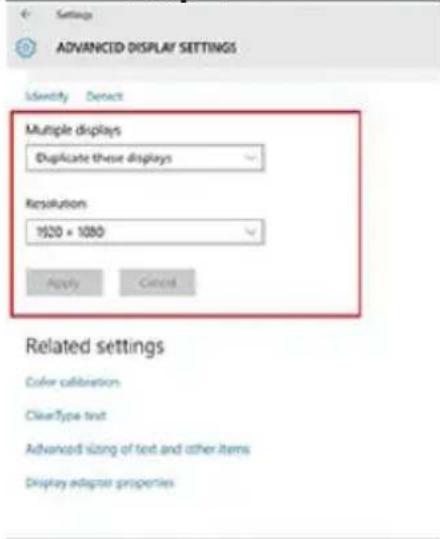

Settings ADVANCED DISPLAY SETTINGS Identity Detect Multiple displays Duplicate these displays Resolution 1920 = 1080 Apply Cancel Related settings Color calibration ClearType text Advanced sizing of text and other items Display adaptor properties

1. Right click on computer desktop and select "Screen Resolution"
2. Display Properties window will pop up
3. If a secondary monitor is grayed out, click on it and select "Extend these displays" in the "Multiple Displays" drop down
4. If the image is blurry or the text is not legible, adjust the screen resolution. We recommend 1920x1080

Connecting to Composite Video

Step 1:

Connect the 3.5mm Composite AV Cable to the back of the M6.

Two-panel image showing a black audio jack and a labeled component 'AV' (no text or symbols on the device itself)

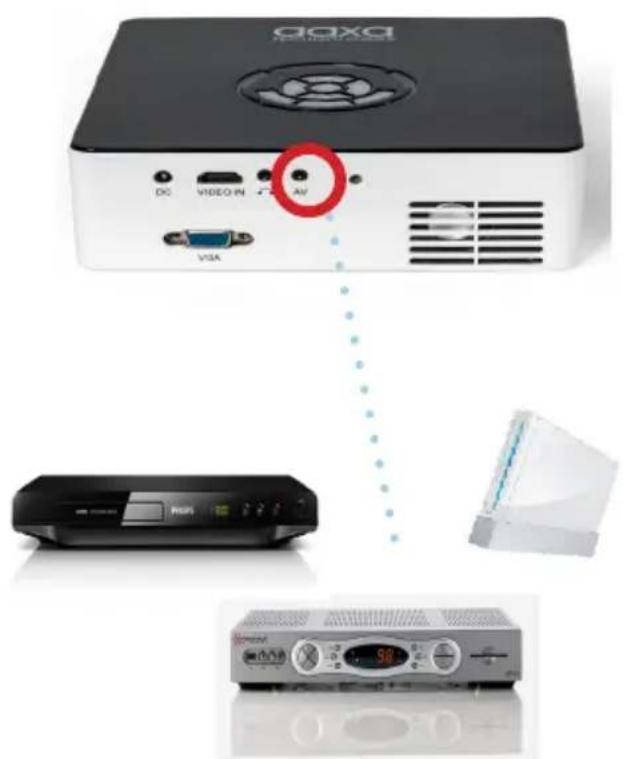

Step 2:

Connect the composite end of the AV Cable (Red, White, Yellow) to your device.

Two images showing a red and white audio/video cables connected by black cables, with no visible text or symbols.

doxq VIDEO IN AV VISA

Connecting to Composite Video Cont.

Step 3:

In the Main Menu

M6 HOME VIDEO IMAGE SETTINGS PHOTOS TEXT INPUTS

MS INPUT VGA DIGITAL INPUT RCA

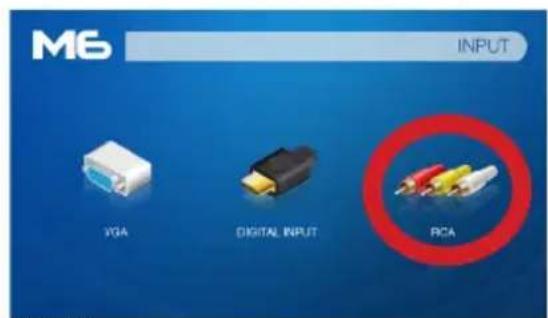

Select "INPUT" icon Select "RCA"

Step 4:

Turn on your multimedia device.

Connectivity with multimedia devices

The M6 can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, Blu-Ray players, smart phones, cameras, video game consoles and other peripherals with ease.

*Some smartphones require video out capabilities to be displayed with the M6. Check with your phone manufacturer.

Connecting to Digital Video Input

Step 1:

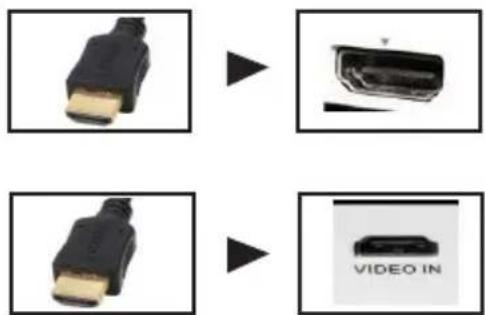

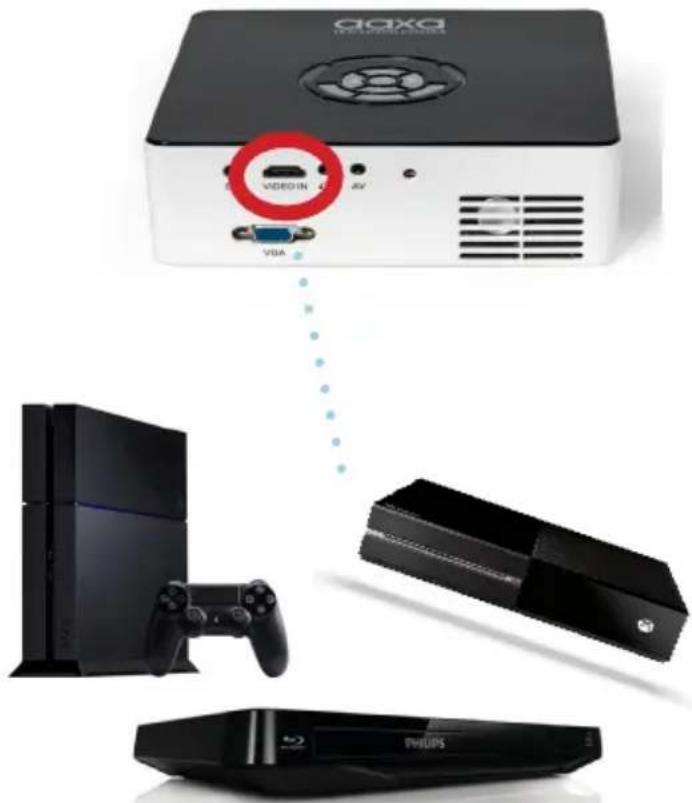

Connect one end of the Digital Input cable to your M6's Digital Video Input Adapter.

Two electronic components: a black USB connector and a labeled video icon (no text or symbols on the devices themselves)

Step 2:

Connect the opposite end of the Digital Video Input cable to your device.

Close-up of a black USB connector with gold connector, shown alongside its corresponding close-up view (no text or symbols visible)

Note: Apple devices require a specialized Digital Input adapter (Sold separately by Apple)

Product line showing a DAXA TV projector connected to PlayStation and PC devices (no visible text or symbols)

Connecting to Digital Video Input Cont.

Step 3:

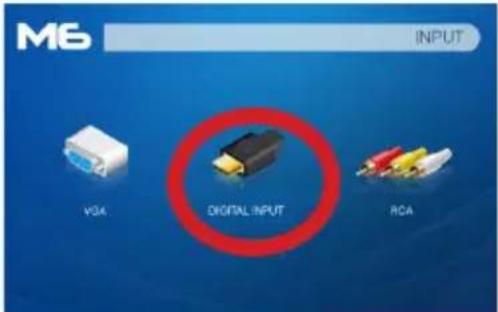

In the Main Menu

MS HOME VIDEOS HENS SETTINGS PHOTOS TEXT INPUTS

Select "INPUT" icon

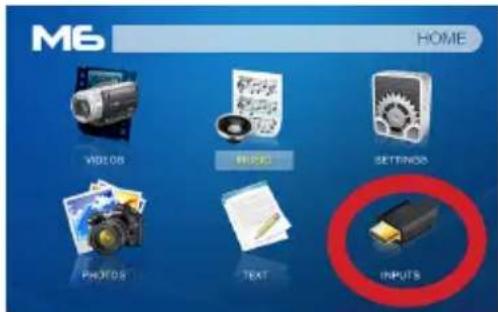

MG INPUT VGA DIGITAL INPUT RCA

Select "Digital Video" Input

Step 4:

Turn on your multimedia device. If available, select 1920x1080.

Connectivity with multimedia devices

The M6 can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, Blu-Ray players, smart phones, cameras, video game consoles and other peripherals with ease.

*Some smartphones require video out capabilities to be displayed with the M6. Check with your phone manufacturer.

Connecting Speakers / Headphones

daxd TECHNICALS DC VGA/DA MV VGA

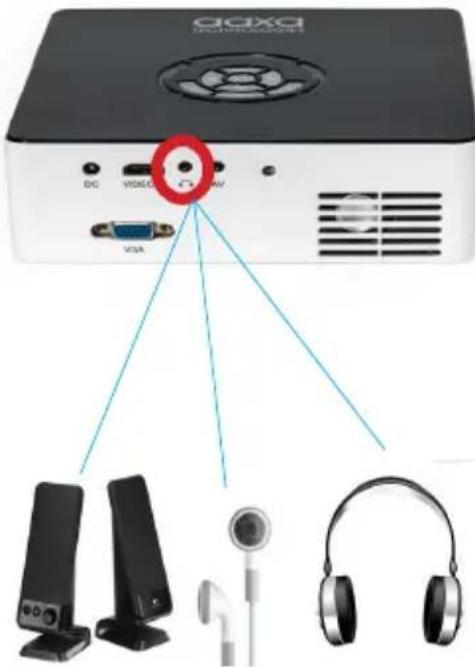

Step 1: Connect your speakers/headphones to the projector's audio port.

Step 2: Ensure that the projector and/or the headphones are powered on.

Step 3: Place the headphones on and enjoy!

*CAUTION: Prolonged use of headphones at a high volume may impair hearing.

Micro TF Card

How to insert your Micro TF Card

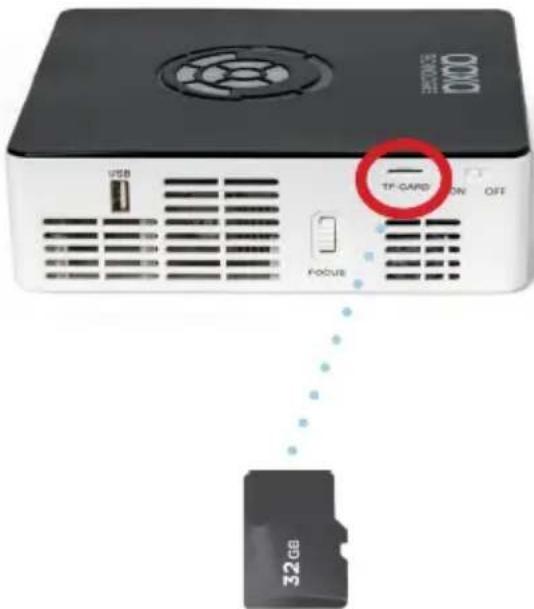

• Slide in your TF card into the TF card slot on the side of the M6 (facing down as shown in picture).
  • Gently slide the TF card until it clicks into place.

How to access your Micro TF Card

• Once your TF Card has been inserted, you can navigate to any media content in the main menu.
  • After selecting the media content, choose the TF card selection.
• You can now access the data on your TF card through the onboard media player

*Review the “Specifications” section of this manual to read about the supported file formats.

OVIDO USB TF CARD ON OFF FOCUS 32 GB

(up to 32 GB)

Note: Microsoft Office and PDF file formats are not supported. To view a slideshow convert your slideshow into JPEG pictures first.

Micro TF Card Cont.

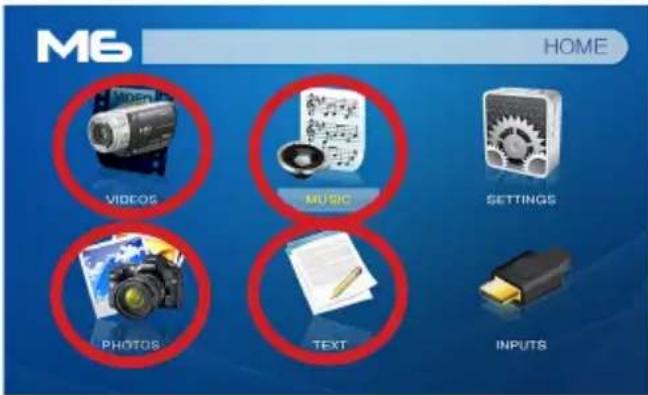

MS HOME VIDEOS MUSIC SETTINGS PHOTOS TEXT INPUTS

Media Player menu

• In the main menu select the type of file you wish to play.

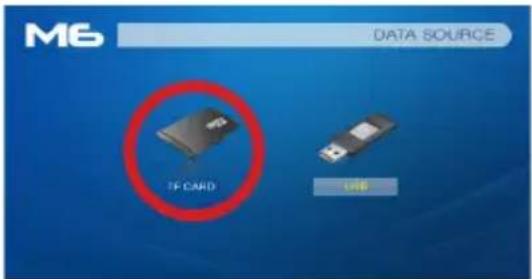

• Select the TF Card icon to access your files.

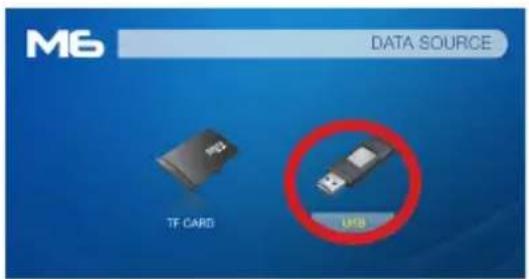

M6 DATA SOURCE TF CARD USB

File Menu System

• The M6 will show all folders and files you have on your TF Card in the C: drive.
• Use the directional buttons to navigate to different folders or files.

Return: Brings you back to the main menu

USB Drive

How to insert your USB Drive

- Slide your USB Drive into the USB port (as shown in picture).

• Gently slide the drive until it cannot go in any further.

How to access your USB Drive

• Insert your USB Drive into the projector.
• Use the navigation pad to choose the USB Drive icon from the main menu to access your files.
• Choose your desired file.

*Review the “Specifications” section of this manual to read about the supported file formats.

White USB flash drive with metallic casing (no visible text or symbols)

(up to 32 GB)

Note: Microsoft Office and PDF file formats are not supported. To view a slideshow convert your slideshow into JPEG pictures first.

USB Drive Cont.

MS HOME VIDEOS MUSIC SETTINGS PHOTOS TEXT INPUTS

Media Player menu

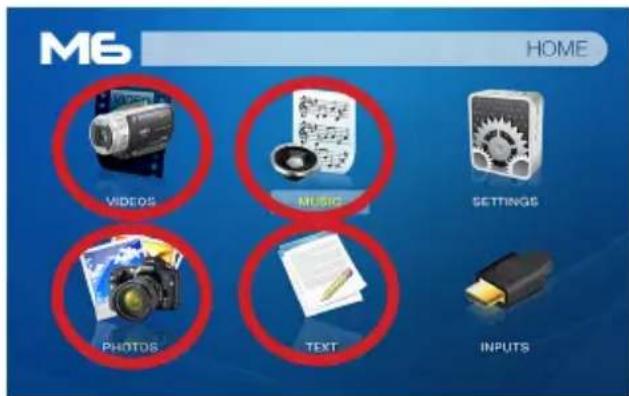

• In the main menu select the type of file you wish to play.
• Select the USB Drive icon to access your files.

MS DATA SOURCE TF CARD USB

File Menu System

• The M6 will show all folders and files you have on your USB Drive.
• Use the directional buttons to navigate to different folders or files.

Return: Brings you back to the main menu

Menu Screens

Chapter 3

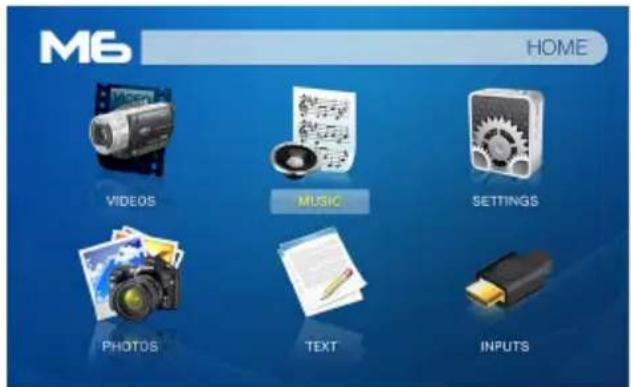

Main Menu

The M6 features a built in PMP (Portable Media Player) function.

This function allows the projector to play videos, pictures, music files, and text directly from your connected devices.

MS HOME VIDEOS MUSIC SETTINGS PHOTOS TEXT INPUTS

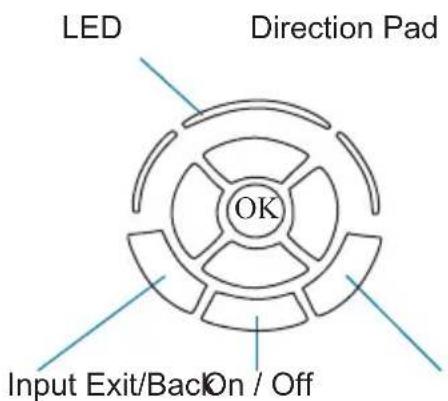

LED Direction Pad OK Input Exit/Back On / Off

• Press the left and right directional buttons to choose an icon from the main menu.
• To select a menu option, press the "OK" button in the middle of the navigation pad.
• To go back to the previous screen, press the "Back" button.
• To Jump back to the submenu, press the "Menu" button once.
• To return to the main menu, press and hold the "Return" button.

Video Player Menu

Opening a file:

• Select the "Video" icon (Fig. 3.1).

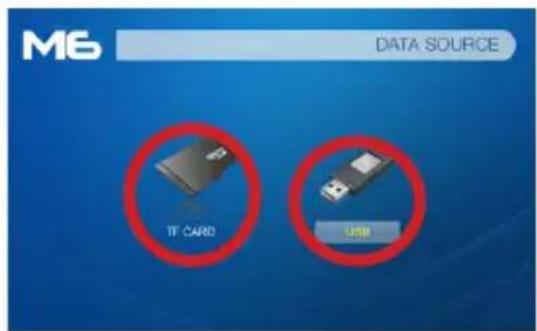

• From the submenu (Fig. 3.2), select the storage media with the stored files.
• Choose which file you wish to play.

Fig. 3.1

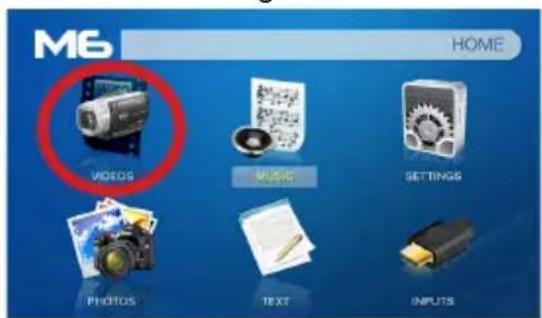

MG HOME VIDEOS MUSIC SETTINGS PHOTOS TEXT INPUTS

Fig. 3.2

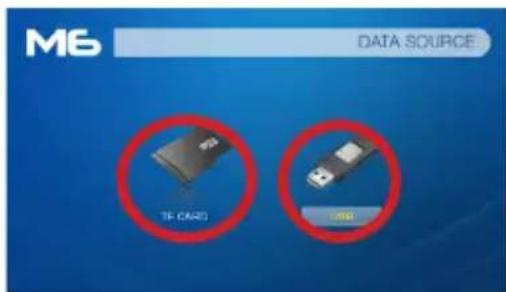

ME6 DATA SOURCE TF CARD USD

The M6 will show all folders and files you have on your USB or TF drive. Use the navigation buttons to select folders or files.

Previewing Files:

• Press the directional keys to highlight the item of interest.
• Wait 2-3 seconds and a preview of the video will show on the screen.

Video Player Menu

While Playing Videos

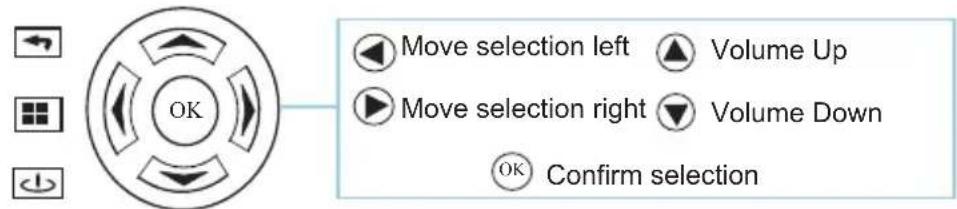

While playing videos, the volume is adjustable. Further controls are available in the video player submenu - which is accessed through the "OK" button.

Circular diagram with directional arrows and central 'OK' label (no text or symbols beyond the label)

Volume Up

Volume Down

Enter Video Player Submenu

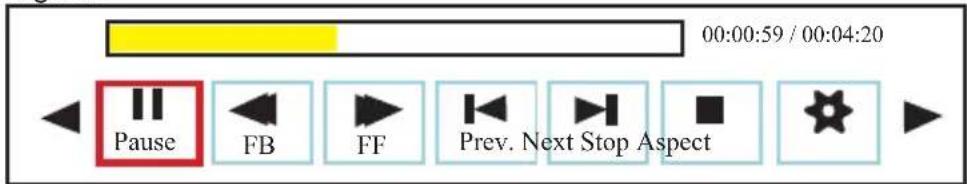

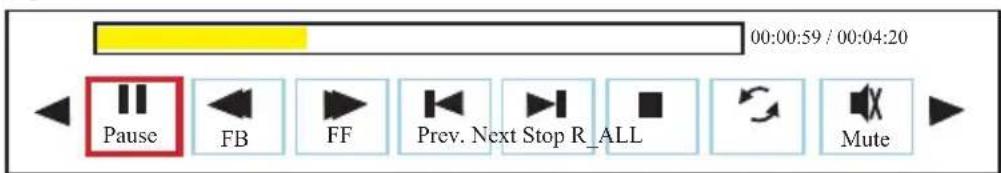

- To open/hide the video playback menu, use the "OK" and "Back" Buttons on the projector.

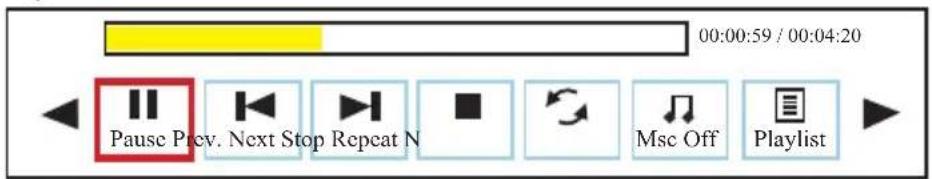

Video Player Submenu

Playing Videos

The Video Player Submenu can be accessed by pressing "OK" during video playback. To exit the Video Player Submenu, press the "Back" button or wait 5 seconds. To navigate the Playback Menu, use the directional buttons on the navigation pad or remote to highlight the option you wish to choose (Fig. 3.3).

- To open/hide the video playback menu, use the "OK" and "Back" buttons on the projector.

Circular diagram with directional arrows and central 'OK' label, no readable text or symbols beyond the label

Move selection left

Move selection right

OK Confirm selection

Fig. 3.3

00:00:59 / 00:04:20 Pause FB FF Prev. Next Stop Aspect

Video Playback FAQ

How do I loop a video?

1. Choose either USB or TF Card for playback

1. Navigate the folders until you reach the file you wish to play.
2. Highlight the file you want to play, then confirm the selection.
3. Move selection on video player menu to "Repeat 1", and confirm the selection.
4. The video will now loop after playback is finished.

How do I preview a video?

1. Choose the "video" option from the main menu
2. Navigate using either remote or onboard buttons to the file you wish to preview.
3. Highlight the file. *Do not select the file, just highlight it.
4. Wait for 3-4 seconds.
5. A preview screen will pop up on the lower right for the video.

Photo Menu

Opening A File:

• Select the "Photo" icon (Fig. 3.4).
• From the submenu (Fig. 3.5), select the storage media with the stored files.
• Choose which file you wish to play.

Fig. 3.4

MG HOME VIDEOS MUSIC SETTINGS PHOTOS TEXT INPUTS

Fig. 3.5

MG DATA SOURCE TF CARD USB

The M6 will show all folders and files you have on your USB or TF Card drive. Use the navigation buttons to select folders or files.

Previewing Files:

• Press the directional keys to highlight the desired file.
• Wait 2-3 seconds and a preview of the picture will show on the screen.

Photo Menu

While Viewing Pictures

While viewing pictures, further controls are available in the Photo Submenu - which is accessed through the "OK" button.

Circular diagram with directional arrows and central 'OK' label, no readable text or symbols beyond the label

Previous Picture

Next Picture

Enter Photo Player Submenu

- To open/hide the Photo Playback menu, use the "OK" and "Back" Buttons on the projector.

Photo Submenu

Viewing Pictures:

The Photo Submenu can be accessed by pressing "OK" during picture slide-show playback. To exit the Photo Submenu, press the "Back" button or wait 5 seconds. To navigate the playback menu, use the directional buttons on the navigation pad or remote to highlight the option you wish to choose (Fig 3.6).

Circular diagram with directional arrows and the word 'OK' at center (no text or symbols beyond the label)

Move selection left
Move selection right
OK Confirm selection

Fig 3.6

00:00:59 / 00:04:20 Pause Prev. Next Stop Repeat N Msc Off Playlist

Photo Slideshow FAQ

How do I play a slideshow?

1. Choose either USB or TF Card for playback

1. Navigate to the folder that contains the pictures you wish to view in the slideshow.
2. Confirm selection of the first picture.
3. Press "play" in the photo menu
4. Slideshow will now play.
5. NOTE: Selecting "Repeat A" will loop slideshow.

How do I manually control the slideshow?

1. After selecting the photo you wish to be displayed, you can press "play" to start the slideshow (as outlined in the previous FAQ).
2. To manually control the slideshow, you must stop the slideshow with the "stop" button.
3. You may use either the controls on your remote or on top of the projector itself to flip through the pictures in the current playlist.
4. You can change the SlideShow duration in the Settings Menu (Main Menu -> Settings -> Picture)

Music Player Menu

Opening A File:

• Select the "Music" icon (Fig. 3.7).
• From the Submenu (Fig. 3.8), select the storage media with the stored files.
• Choose which file you wish to play.

Fig. 3.7

MS HOME WORDS LOGS SETTINGS PHOTOS TEXT INPUTS

Fig. 3.8

MB DATA SOURCE TF CARD USB

The M6 will show all folders and files you have on your USB or TF Card drive. Use the navigation buttons to select folders or files.

Previewing Files:

• Press the directional keys to highlight the desired file.
• Wait 2-3 seconds and a preview of the audio will show on the screen.

Music Player Menu

Listening To Audio:

To adjust the volume, use the left and right button on the projector or the volumes keys on the remote. To navigate the playback menu, push the "OK" button to open the menu and use the directional buttons on the navigation pad or remote to highlight the option you wish to choose (Fig 3.9).

- To open/hide the music playerback menu, use the "OK" and "Back" button on the projector.

Move selection left Volume Up Move selection right Volume Down OK Confirm selection

Fig. 3.9

00:00:59 / 00:04:20 Pause FB FF Prev. Next Stop R_ALL Mute

Music Playback FAQ

How do I loop a song?

1. Choose either USB or TF Card for playback

1. Navigate the folders until you reach the file you wish to play.
2. Highlight the file you want to play, then confirm the selection.
3. Move selection on music player menu to "Repeat 1," and confirm the selection.
4. The song will now loop after playback is finished.

How do I create a song playlist?

1. Insert your media device (either TF card or USB) into computer.
2. Make a new folder on media device (folder name will be the name of the playlist).
3. Transfer songs from computer to the new folder, name accordingly.
4. Remove media device from computer and insert into projector.
5. Navigate to Audio section, then choose appropriate media device.
6. Navigate to your playlist folder.
7. Start at first song.
8. Playback will follow each successive song on the list.

*To create a special order for the list, add numerical numbering to the beginning of each file.

E-Book Viewer Menu

Opening A File:

• Select where the files are located from the main menu.
• Select the "Text" icon (Fig. 3.10)
• Choose the file you wish to play.

MS HOME VIDEOS VUSIC SETTINGS PHOTOS TEXT INPUTS

Fig. 3.10

The M6 will show all folders and files you have on your USB or MicroTF Drives. Use the navigation buttons to select folders or files.

Viewing Text Files:

The M6 Micro Projector allows you to view text files. Select the file you want to view in the file menu for the particular storage device on which the file is stored. You can press the left and right arrow buttons on the directional pad or remote to flip through the pages you have in the present folder.

Note: Microsoft Office and PDF file formats are not supported. To view a slideshow convert your slideshow into JPEG pictures first.

Setup Menu

Chapter 4

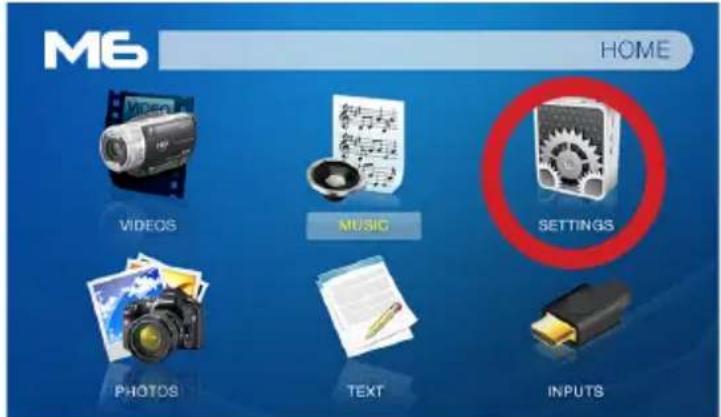

The Settings Menu can be accessed by selecting "Setting" on the Main Menu

M6 HOME VIDEOS MUSIC SETTINGS PHOTOS TEXT INPUTS

Within the settings menu, there are four more submenus that allow you to customize your M6 to the settings you want.


• Picture Mode
• Color Mode
• Slideshow Time
• Projection
• Aspect Ratio
• Upgrade

Sound

• Sound Mode
• Balance
• Auto Volume
• Surround Sound

Brightness

• Eco
• Standard
• Bright

Option

• OSD Language
• Restore Factory Default
• OSD Duration
• Software Version

Picture Settings

Picture Mode

• Changes the picture mode to different settings depending on your usage

Color Mode

- Adjusts the color temperature from warm to cool (red to blue)

Slideshow Time

- Sets the timing of a transition

Projection

• Flips the projected image

Aspect Ratio

- Changes the aspect ratio of the picture - Auto, 4:3, 16:9*, etc.

Upgrade

- Firmware can be upgraded with upgrade file in the USB

Picture Mode Standard Color Mode Medium slideshow time +10 Projection Aspect Ratio 4:3 PC Setup Upgrade

*Caution: Some pictures may be cut off when aspect ratio is set incorrectly

**Boost mode should only be used in low temperature environments with adequate clearance of exhaust / intake vents. A tripod is highly recommended. DO NOT block vents while operating in Boost mode.

Sound Settings

Sound Mode Sports Balance 0 Auto Volume Off Surround Sound Off

Sound Mode

• Changes the sound mode depending on what is currently playing

Balance

- Adjusts the sound balance manually

Auto Volume

- With the Auto Volume On, the video can be opened with volume automatically

Surround Sound

• Supports surround sound

Option Settings

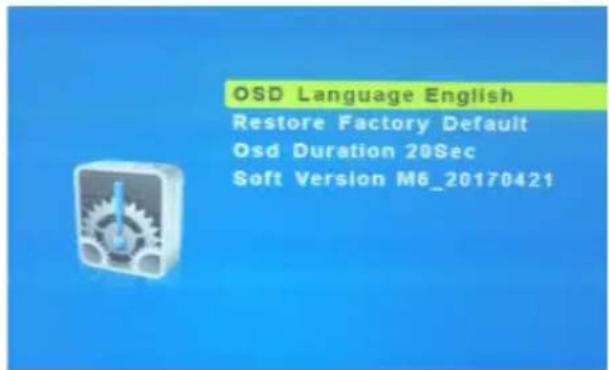

OSD Language English Restore Factory Default Osd Duration 20Sec Soft Version M6_20170421

OSD Language

• Changes the language of the device. Options include English, Spanish, Chinese, German, French, Korean, Japanese

- Restores the projector to factory settings

OSD Duration

- Allows the projector to set a duration for the selected OSD language

Software Version

- Current software version in use

Brightness Feature

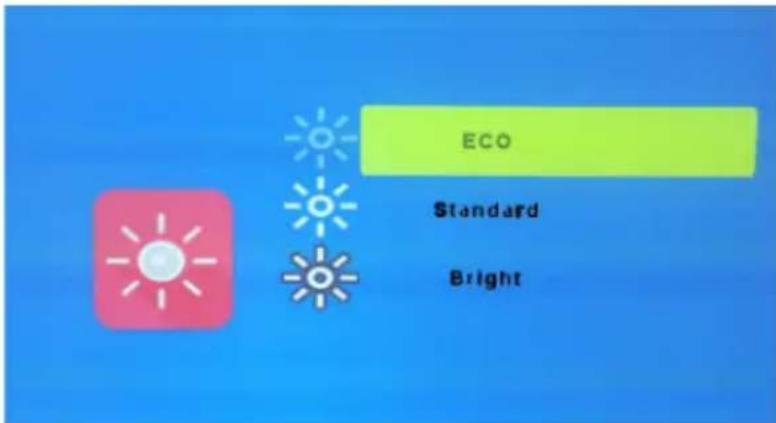

ECO Standard Bright

There are 3 different power modes for the M6: Bright, Standard, and Eco.

• Bright: The brightest mode with the highest Fan Speed. Only available while plugged in.
• Standard: A normal mode. Only available while plugged in.
• Eco: A battery saving mode that reduces picture brightness. 90 minute battery run time.

Technical Details

Chapter 5

Troubleshooting

IMAGE IS BLURRED

Possible Causes Solution
The Projector is not in focus Adjust the focus with the focus adjustment dial until the image comes into focus
The Projector is offset from plane / angle of operation	Move the projector so that it is both 180 degrees and on an evern plane with the screen.

NO SYNC, NO SIGNAL

1. Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the M6 as an external monitor on Windows based systems, this can be done by selecting "extend my desktop to this monitor". The native resolution of the M6 projector is 1920x1080. Depending on the video driver different resolutions may need to be selected for proper output.

Technical Details

Troubleshooting

THE PROJECTOR DOES NOT TURN ON

Possible Causes Solution
There is no power Check to ensure the power outlet source is good.Check the power adapter to ensure a proper connection with the wall outlet as well as the projector. Confirm that the unit is charged and has enough power
The power button was not held long enough To power on the projector, the power button needs to be depressed for a full 3 seconds. Try holding the power button until the optical engine turns on

NO PICTURE / FILE NOT SUPPORTED

Possible Causes Solution
The video source is not properly connected or selected	Check the video source signal to ensure that it is properly connected. Select the current input source by choosing the input desired from the main menu
Incorrect file extension / Video is encoded with incorrect codec	Please refer to “Specifications” page to see which file types and codex are supported. Verify that the file was encoded properly.

Specifications

Brightness:	1200 Lumens
Native Resolution:	1920x1080 (1080P)
Contrast Ratio:	2000:1
Aspect Ratio:	16:9
Projection Lens:	Manual Focus
Image Size:	12~200 inches
Lamp:	Triple RGB LEDs with Vibrant Color Technology Life 30,000hrs
Video in:	Composite A/V VGA Digital Input (Compatible with Full Size HDMITM)
Audio Output:	2.0 W stereo speaker
	3.5 mm audio jack
TF Card:	MicroTF Card Slot (32GB maximum)
USB:	5 Pin USB 2.0 (Full Size) (32GB maximum)
Dimensions:	7” x 7” x 2.1”
Weight:	2.5 lbs
Supported File Formats:	MP3, WMA, OGG, WAV, JPG AVI, BMP, GIF

*HDMI™ is a registered trademark of HDMI Licensing LLC. AAXA Technologies is not affiliated with HDMI Licensing LLC.

Notes

Please direct all customer service inquiries to:

AAXA Technologies, Inc.

17691 Mitchell N., Unit #B

Irvine, CA 92614

[phone]

[e-mail]
