Product Type	Portable LED Video Projector
Model	M8
Brand	AAXA Technologies
Display Technology	DLP
Native Resolution	1280 x 720 pixels (HD)
Brightness	100 ANSI Lumens
Contrast Ratio	1000:1
LED Lamp Life	20,000 hours
Projection Size	10 – 120 inches
Throw Ratio	1.2:1
Focus	Manual
Built-in Battery	Lithium-ion, 4000 mAh (up to 2 hours playback)
Power Supply	AC 100-240V, 50/60Hz (adapter included)
Inputs	1x HDMI, 1x USB-A (media playback), 1x Micro SD, 1x Audio Jack
Outputs	1x Headphone Jack
Wireless Connectivity	None (requires external dongle)
Speakers	Built-in mono speaker (1W)
Dimensions (W x D x H)	4.5 x 4.5 x 1.3 inches (114 x 114 x 33 mm)
Weight	0.56 lbs (255 g)
Operating System	None (external source required)
Maintenance & Cleaning	Clean lens with soft, dry cloth; ensure vents are unobstructed
Safety	Avoid direct eye exposure to lens; do not place near water
Spare Parts	Replacement battery, remote control, power adapter available
Repairability	Designed for repair; contact AAXA for service centers
Warranty	1 year limited warranty

Frequently Asked Questions - M8 AAXA Technologies

How do I connect my laptop to the M8 projector?

Use an HDMI cable to connect from your laptop to the projector's HDMI input. Then select the correct input source using the 'Source' button on the remote or projector.

What is the battery life of the AAXA M8?

The built-in battery provides up to 2 hours of playback at moderate brightness. Actual battery life depends on volume and brightness settings.

Can I play videos directly from a USB drive?

Yes, insert a USB drive formatted as FAT32 into the USB port. Use the media player to navigate and play supported video, audio, and photo files.

What is the optimal projection distance for a 100-inch screen?

With a throw ratio of 1.2:1, place the projector about 9.8 feet (3 meters) from the screen to achieve a 100-inch diagonal image.

Does the M8 support 1080p input?

Yes, the projector accepts 1080p input signals and downscales them to its native 720p resolution for display.

How do I clean the lens?

Use a soft, lint-free cloth (like a microfiber cloth) gently to wipe the lens. Avoid using liquids or abrasive materials.

Is the projector compatible with streaming devices like Chromecast?

Yes, plug a Chromecast or similar HDMI streaming stick into the HDMI port. Ensure the stick's power is supplied separately.

Why is there no sound from the projector?

Check that the volume is not muted and is turned up. Also verify the external device volume is high. If using headphones, the built-in speaker is disabled.

Can I use the projector while charging?

Yes, you can operate the projector while connected to the AC adapter. This allows extended use without draining the battery.

How do I update the firmware?

Firmware updates are not user-serviceable. Contact AAXA support for information on updates or visit the official website.

USER MANUAL M8 AAXA Technologies

Hand holding a device with warning symbol and display (no readable text or symbols)

User Guide

Caution!

WARNING: Please use this product as instructed. Misuse may cause injury or death.

DO NOT use while driving

DO NOT expose to water or wet surfaces. Electric shock may occur

DO NOT expose the projected LED image to your eyes or the eyes of others

DO NOT block or restrict airflow from ventilation holes as this may cause the projector to overheat

Keep the projector, battery, or charger away from any heat sources

Table of Contents

Chapter 1:M8 at a Glance

M8 Introduction 1

Remote & Keypad2

Accessories 3

Chapter 2: Getting Started

Powering On / Off 4

Focus Adjustment / Throw Distance 5

Connecting to Speakers/Headphone 6

Loading External Content 7

Chapter 3: Menu Screens

Main Menu 11

Brightness Menu 12

*Wifi Menu 13

*Mirroring Menu 14

Connecting to Digital Input • • • 27

Chapter 4: Settings Menu 30

Keystone & Projection Direction 34

*Bluetooth Menu 37

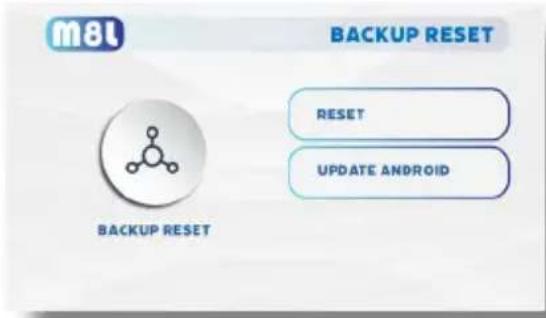

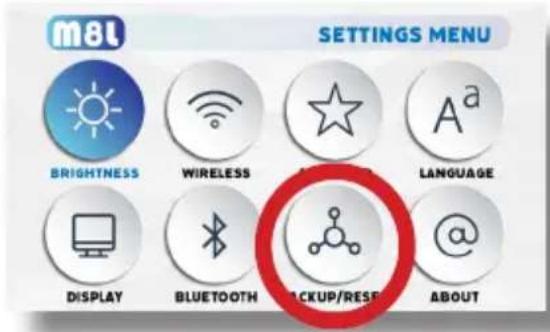

Upgrade/Reset 38

Chapter 5: Technical Details

Troubleshooting 40

Specifications 44

Notes 45

M8 at a Glance

Chapter 1

Main Unit

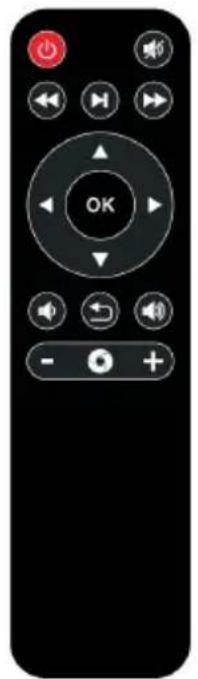

Remote & Keypad

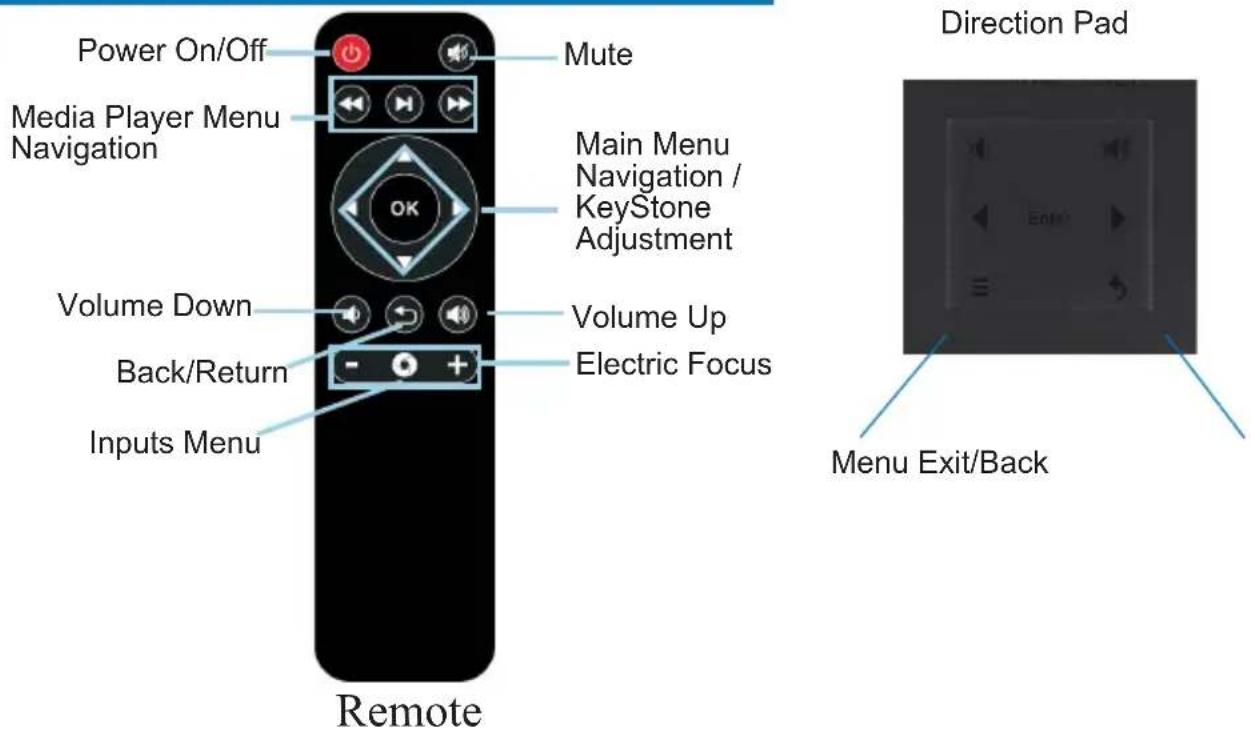

Both the keypad and remote can be used to navigate through the menus. The Main Menu Navigation on the remote functions exactly the same as the directional pad on the M8 unit.

Accessories

Line drawing of a cable and plug assembly (no text or symbols)

Power Adapter

Remote Control

Coiled black cable with metallic connectors (no text or symbols visible)

Type C Cable

*Under various circumstances, the actual accessories may be different from those shown in the pictures above.

Additional accessories are available for purchase at www.aaxatech.com

Getting Started

Chapter 2

Powering ON the projector

1. Connect the power cord to the M8.
2. Connect the other end of the power cord into the wall power source.
3. Toggle the On / Off switch on the side of the projector to the "ON" position - the projector should automatically turn on.

Standby Mode

1. To transition to "STANDBY" mode, press the power button on the remote control.
2. The optical engine should power off and the fan should stop spinning. The projector is now in "STANDBY" mode and can be turned on using the remote control.

*Note: Standby mode will still consume a small amount of power.

Powering OFF the projector

1. To turn off the projector, toggle the "Power Switch" to the "OFF" position. This will fully turn off the projector. The unit can only charge when it is off.

Focus Adjustment / Throw Distance

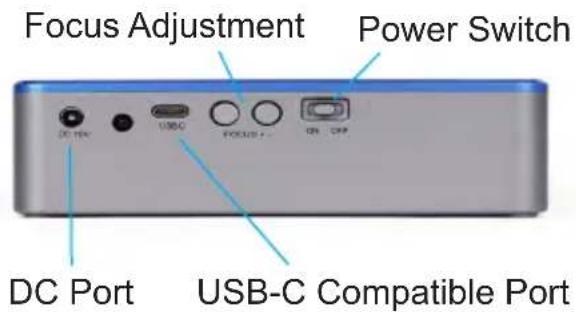

Focus Adjustment

- Spin the focus wheel up or down until the image becomes clear.

Throw Distance Chart

Throw Distance	Diagonal Size
Units: Inches	Units: Inches
20	19
30	29
40	38
50	48
60	57
70	67
80	76
90	86

Throw Ratio 1.20

Projection Angle: 100% Offset

*minimum throw distance: 16 inches

Connecting Speakers / Headphones

Diagram showing connections from a computer monitor to three audio equipment devices (no text or symbols present)

Step 1: Connect your speakers/headphones to the projector's audio port.

Step 2: Ensure that the projector and/or the headphones are powered on.

Step 3: Place the headphones on and enjoy!

*CAUTION: Prolonged use of headphones at a high volume may impair hearing.

Loading External Content

Back view of a computer monitor with ports and a red circle highlighting a port (no visible text or symbols)

The M8 can read files directly from both a TF Card and USB Drive.

Supported file types include:

MP3 / WMA / OGG / WAV / AVI / MP4 /

JPG / GIF

PDF / DOC / XLS / PPT

(up to 128

Black USB flash drive with a metallic port (no text or symbols visible)

(up to 128

Close-up of a computer monitor rear panel with ports and a highlighted rectangular component (no visible text or symbols)

Loading External Content Cont.

How to insert your TF Card

• Slide in your TF card into the TF card slot on the side of the M8 (as shown in picture).
  • Gently slide the TF card until it clicks into place.

Back view of a computer drive showing port and socket (no visible text or symbols)

(up to 128

Loading External Content Cont.

How to insert your USB Drive

• Slide your USB Drive into the USB port.
  • Gently slide the drive until it cannot go in any further.

Loading External Content Cont.

Once your TF Card or USB Drive is inserted into the projector, the TF Card or USB Drive Storage will be loaded automatically and the content can be found through the Files icon on the Main Menu ( See Page 21 for File Viewer Sub-menu).

To load Text documents, select the Office icon. ( See Page 19 to learn more)

Menu Screens

Chapter 3

Main Menu

The M8 features Android 10.0 Onboard and an Onboard Media Player.

This function allows the projector to play videos, pictures, and music files directly from your connected devices.

Menu Exit/Back

• Press the left and right directional buttons to choose an icon from the main menu.
• To select a menu option, press the "OK" button in the middle of the navigation pad.
• To go back to the previous screen, press the "Back" button.
• To Jump back to the submenu, press the "Menu" button once.
• To return to the main menu, press the "Return" button twice.

Brightness Menu

To change the brightness on your M8:

• Select the "Settings" icon (Fig. 3.1) in the Main Menu then choose "Brightness" (Fig. 3.2)
• Select the brightness you wish (Fig. 3.3): Eco Mode/ Standard Mode/ Boost Mode

Fig. 3.1 Fig. 3.2

Fig. 3.3

"Boost mode" should only be used in low temperature, low altitude environments with adequate clearance of exhaust/intake vents. A tripod is highly recommended. DO NOT block vents while operating in Boost mode.

Wifi Menu (How to connect to Wifi)

How To Screen Mirror Smartphone:

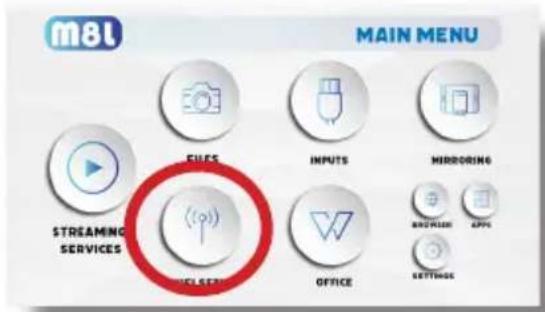

• In the Main Menu, choose the "Wifi Setup" icon (Fig 3.4)
• In the Wifi Menu, toggle the Wifi icon to "On" and select the Wifi network you desire. Enter password and connect. (Fig 3.5)

Fig. 3.4 Fig. 3.5

Mirroring Menu

How To Screen Mirror Smartphone:

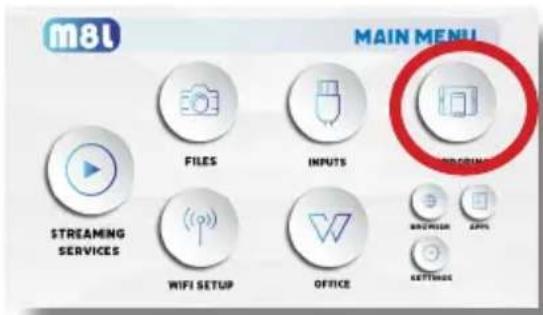

• After connecting the M8 to wifi, in the Main Menu, choose "Mirroring" icon (Fig 3.6)
  • In the Mirroring Menu, choose Android or iOS (Fig 3.7)
• Use built-in AirPlay, AirPinCast, AirPinPCSender to screen mirror from your iOS devices, Android portable devices or Windows PC

Fig. 3.6 Fig. 3.7

Mirroring Menu

To screen mirror, your devices and the M8 have to be connected to the same Wifi network. DMCA (copyright) content cannot be wirelessly mirrored. This includes content from streaming services such as Netflix, Hulu, Disney+, etc.

Mirroring Menu

To screen mirror Android device, after connecting the M8 and your device to the same WiFi network, please use "Smart View".

To screen mirror iOS device, after connecting the M8 and your device to the same WiFi network, please select "AAXA M8" in the Screen Mirroring menu.

Streaming Services Menu

After connecting the M8 to Wifi, select the "Streaming Services" icon in the Main Menu. Select the streaming service you wish to open.

Streaming Services require subscription including paid subscription. Users are responsible for their own subscriptions. Not all streaming apps are compatible in all regions.

Office Menu

In the Main Menu, select the "Office" icon to access the N Docs app.

m8l

MAIN MENU

STREAMING SERVICES

FILES

INPUTS

MIRRORING

WIFI SETUP

BROWSER

APPS

SETTINGS

FAQ: How to load a file in Office

Close-up of a computer RAM module with a highlighted port and an attached USB flash drive (no text or symbols visible)

Load your external content to the M8 by using a USB stick or a Micro SD/ TF Card.

Close-up of a computer RAM module with two ports and a red circle highlighting a specific port (no text or symbols visible)

FAQ: How to load a file in Office

In the main menu, select the "Office" icon. The office documents (Word, Excel, PowerPoint or Templates) should show in "Office - Microsoft"

Select "Microsoft" and choose the file you wish to open. Use the keypad on the top of the M8 or the remote control to nagivate.

Files Menu

Opening A File:

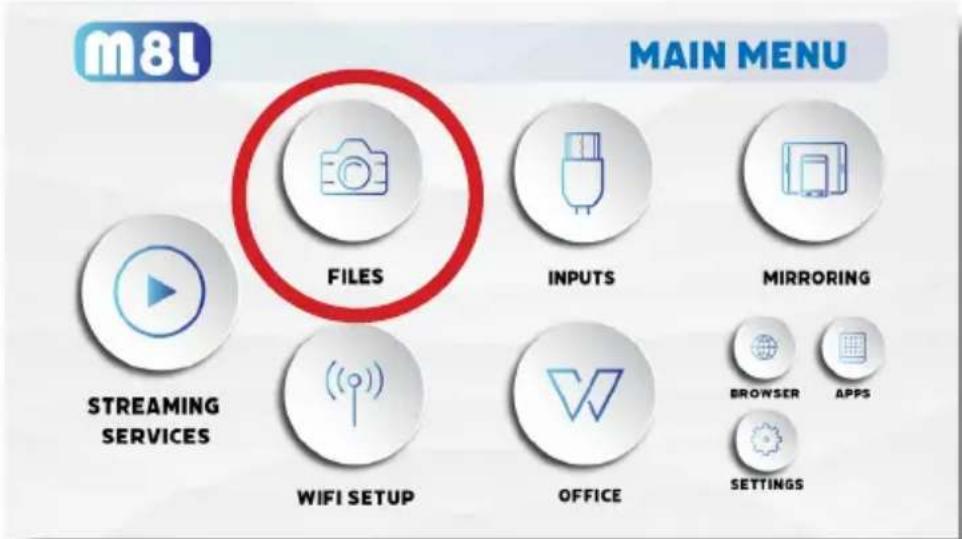

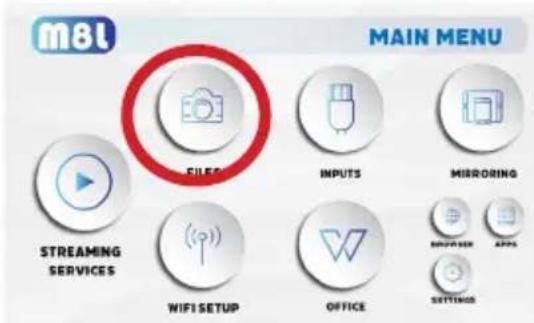

• Select the "Files" icon in the Main Menu (Fig 3.8)
• In the Files Menu, select the external content device (USB/ Micro SD - TF Card) that contains the file you wish to open (Fig 3.9)

Fig. 3.8

Fig. 3.9

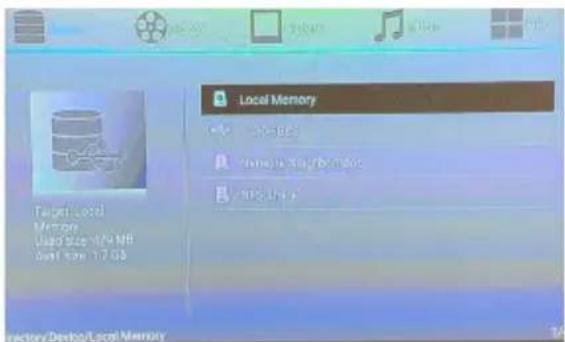

The M8 will show all folders and files you have on your USB or TF Card drive. Use the navigation buttons to select folders or files.

Browser Menu

How to open an internet browser in the M8

In the Main Menu, select the "Browser" icon. Once the Chrome browser opens, press the ◀ button on the navigation pad or the remote control to search or type web address

Apps Menu

To access more apps in the M8:

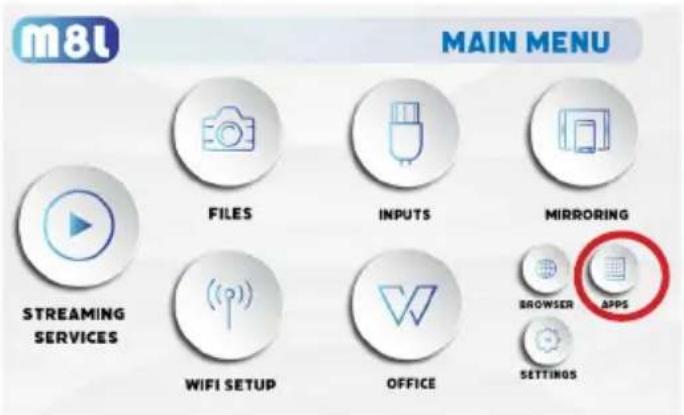

• In the Main Menu, select the "Apps" icon (Fig 3.10)
  • In the Apps Menu, select the app you wish to open (Fig 3.11)

Fig. 3.10 Fig. 3.11

Note: It is not recommended that users load their own apps onto the M8

FAQ: How to view photos as a slideshow FAQ:

How do I play a slideshow?

1. Connect the USB or Micro SD Card to the M8
2. In the Main Menu, select the "Apps" icon
3. In the Apps Menu, select the "Gallery" icon (Fig 3.12)

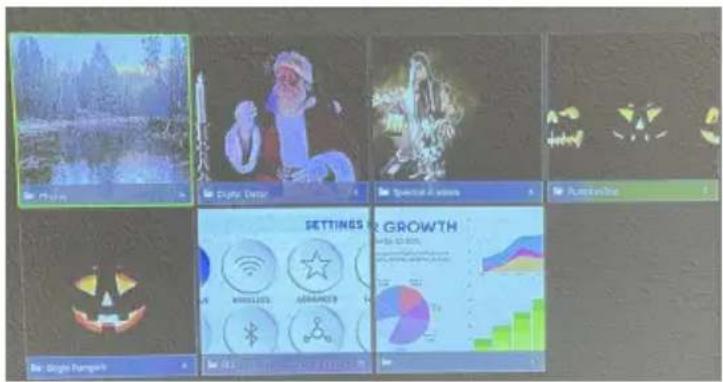

4. In the Gallery app, your photos and videos will be available to view as slideshows. Select the files you wish to open.

Fig. 3.12

Fig. 3.13

FAQ: How to zoom in and zoom out an image

How to zoom in and zoom out an image

• Open the image in the Gallery App
• Use the "up" and "down" button on the remote control to adjust the size of the image
• To "zoom in" an image, press the "down" button on the remote control
• To "zoom out" an image, press the "up" button on the remote control

FAQ: How to adjust brightness of an image FAQ: Hov

How to adjust brightness of an image

• Open the image in the Gallery App
• Use the "up" and "down" button on the remote control to adjust the brightness level of the image
• To make the image brighter, press the "up" button on the remote control
• To make the image dimmer, press the "down" button on the remote control

Increase Brightness

Black remote control with playback buttons and playback controls (no text or symbols)

Decrease Brightness
Remote

Connecting to Device via Digital Input

First, a digital input cable is required from your M8 to your other device.

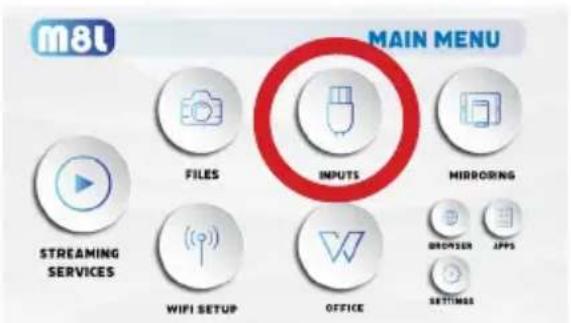

In the Main Menu

Select the "Inputs" Icon Then select the "Digital Video" Icon

Connectivity to Multimedia Devices

The M8 can connect to many media devices including: computers, laptops, iPhones, iPads, DVD players, smart phones, cameras, video game consoles and other peripherals with ease. The M8's digital input is compatible with HDMI interface. The connection type is "full sized".

Connecting to Digital Input Video Devices

Step 1:

Connect one end of the Digital Input Cable to your device's Digital Input port.

Step 2:

Connect the other end of the Digital Input Cable to your M8's Digital Input port.

Step 3:

In the Main Menu, select the “Digital Video” Icon. Your M8 should now be mirroring the content from your device.

Note:

If you're connecting to a computer or laptop and the projector does not automatically mirror it, read onto the next page for more information.

Connecting to a Computer via Digital Input

Step 4:

After connecting your projector to your computer or laptop via a digital input cable, you may need to enable Digital Video output on your computer. To enable Digital Video output on your computer most computers require "turning on" the video output feature. Each computer is different. Please consult your owner's manual for instructions to enable Digital Video output. Below are standard instructions for a Windows 10 computer – not all systems are the same.

Step 5:

Press Windows+P to toggle through display settings. Select either "Duplicate" or "Extend" depending on your viewing option.

*NOTE: Different operating systems may differ

Step 6:

Scale and layout

Change the size of text, apps, and other items

100% (Recommended)

Advanced scaling settings

Display resolution

1920 × 1080 (Recommended)

Display orientation

Landscape

Multiple displays

Multiple displays

Duplicate these displays

1. Right click on computer desktop and select "Screen Resolution."
2. Display Properties window will pop up and select the Advance Display Settings.
3. Please make sure the "Multiple displays" has the "Duplicate these displays" option selected and the Resolution is 1920 x 1080 or below as pictured in the red box.
4. If the image is blurry or the text is not legible, adjust the screen resolution.

Settings Menu

Chapter 4

The Settings Menu can be accessed by selecting "Settings" on the Main Menu.

Within the settings menu, there are eight more submenus that allow you to customize your M8 to the settings you want:

Brightness

• Eco
• Standard
• Boost

Wireless (Wifi Menu)

Advanced

• Boot Signal Input
• Root APP
• Power-on Mode
  • Key Tone
• Eye Safety
• Screen Saver
• Screensaver Timeout Shutdown

Language

Display

• Keystone
• Projection Mode
• Zoom In/Out

Bluetooth

Upgrade/Reset

• Reset
• Update Android

About

Advanced Settings

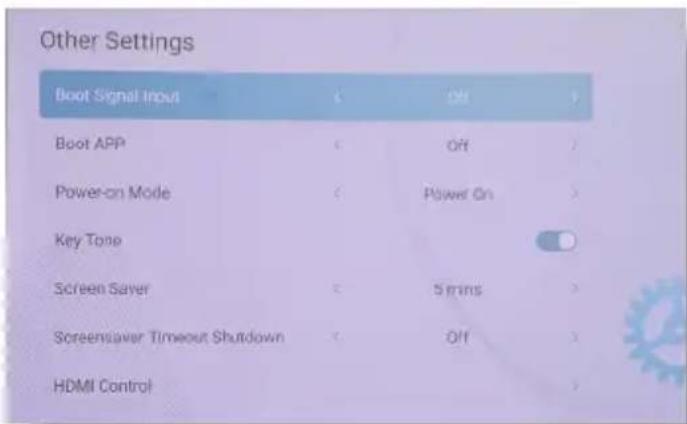

In the Advanced setting menu, you can set up:

• Boot Signal Input
• Root APP
• Power-on Mode
• Key Tone
• Eye Safety
• Screen Saver
• Screensaver Timeout Shutdown

Language

In the Language Settings menu, you can select your preferred language

Display Settings

In the Display setting menu, you can set up:

• Keystone
• Projection Mode
• Zoom In/Out

Keystone

• Vertical Correction, Horizontal Correction, Corner Correction

Projection Mode

- Front Vertical, Rear Vertical, Rear Inverted, Front Inverted

Keystone & Projection Direction

Keystone reset

- Reset keystone in the M8

Keystone up

- Add Keystone Up to the projection

Keystone down

- Add Keystone Down to the projection

• Front Vertical
• Rear Vertical
• Rear Inverted
• Front Inverted

Keystone Adjustments FAQ

Three sequential photos of a zebra standing in a dry savanna, showing change from left to right (no text or symbols)

What is Keystoneing?

"Keystoning" occurs when a projector is aligned non-perpendicularly to a screen, or when the projection screen has an angled surface. The image that results from one of these misalignments will look trapezoidal rather than square.

Digital Keystone Adjustments

By adding a special, selectable algorithm to the scaling, some new projectors are able to alter the image before it reaches the projection lens. The result is a squared image, even at an angle.

Keystone Adjustments FAQ

How to Correct Keystone

• If the image looks trapezoidal with the base larger (as picture right), press the top button on the directional pad on the top of the M8 or the up button on the remote control until the keystone effect corrects and the picture turns into a square projection.
• If the image looks trapezoidal with the top larger (as pictured right), press the bottom button on the directional pad on the top of the M8 or the down button on the remote control until the keystone effect corrects and the picture turns into a square projection.

Keystone Adjustment

Black remote control with playback buttons and playback controls (no text or symbols)

Remote

Keystone Adjustment

Bluetooth Menu

How to connect the M8 to bluetooth for audio out

• In the Settings Menu, go to the Bluetooth menu by selecting the bluetooth icon
• In the Bluetooth submenu, toggle the "On/Off" switch beneath the bluetooth icon to "On"
• Select the desired bluetooth device. Make sure that your device is not connected to any other devices and it is placed near the M8.
• Note: Bluetooth is for audio output only – does not accept audio input or video streaming

Upgrade/Reset Menu

How to reset the M8

• In the Settings Menu, go to the Upgrade/Reset menu by selecting the Upgrade/Reset icon
• In the Backup Reset menu, you can choose to Reset the M8, or Update Android

About Menu

How to view M8 "About" information

• In the Settings Menu, go to the About Menu by selecting the about icon
• In the About menu, you can Update System, check Device Name, Restart, Check Status & Legal Information, check Model Name & Android Version, check Android Security Patch Level, Kernel version and Build.

Technical Details

Troubleshooting

I cannot connect my iOS devices to the M8

Possible Causes Solution
(For wired connection) Incorrect cables or connectors	To connect your iOS devices to the M8, please use the Official Apple Lightning to Digital AV Adapter and connect via the Digital AV port.

AIRPLAY DOES NOT WORK

Be sure to connect your iOS device and the M8 Projector to the same WiFi network. Choose "AAXA M8" as the device you wish to screen mirror from your iOS device, unless you have changed the M8's nickname.

I cannot wirelessly screen mirror Netflix, Amazon Prime, Disney Plus, etc.

Possible Causes Solution
For wireless connection, DMCA content including Netflix, Amazon Prime, Disney Plus content is not sharable wirelessly).	Please use the built-in apps to stream DMCA Content or connect your devices to the M8 using the proper cables/ converters.

Technical Details

Troubleshooting

IMAGE IS BLURRED

Possible Causes Solution
The Projector is not in focus. Adjust the focus with the focus adjustment buttons on the remote control until the image comes into focus, or use the focus adjustment buttons on the side of the projector
The Projector is offset from plane / angle of operation.	Move the projector so that it is both 180 degrees and on an evern plane with the screen or adjust the keystone through the remote, keypad or Settings Menu

NO SYNC, NO SIGNAL

Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the M8 as an external monitor on Windows based systems, this can be done by selecting “extend my desktop to this monitor”. Depending on the video driver different resolutions may need to be selected for proper output.

Technical Details

Troubleshooting

THE PROJECTOR DOES NOT TURN ON

Possible Causes Solution
There is no power. Check to ensure the power outlet	source is good.Check the power adapter to ensure a proper connection with the wall outlet as well as the projector.
Cannot power on the projector from the remote control.	To power on the projector, toggle the “On/ Off” switch to the “ON” Position. Next, if the projector is not powered on, press the Power button on the remote control.

NO PICTURE / FILE NOT SUPPORTED

Possible Causes Solution
The video source is not properly connected or selected	Check the video source signal to ensure that it is properly connected. Select the current input source by choosing the input desired from the main menu
Incorrect file extension / Video is encoded with incorrect codec	Please refer to “Specifications” page to see which file types and codex are supported. Verify that the file was encoded properly.

Technical Details

Troubleshooting

Projector not charging

Possible Causes Solution
There is no power. Check to ensure the power outlet	source is good.Check the power adapter to ensure a proper connection with the wall outlet as well as the projector.
The projector is not set to the “OFF” Mode. Connect	the power cord to the M8. Connect the other end of the power cord into the wall power source. Toggle the “On/ Off” switch to the “OFF” Position.When the projector is fully charged, the LED light on the side of the projector will turn green. Allow approximately 3-4 hours to fully charge the the projector.

Specifications

Brightness:	1200 Laser Lumens (Boost Mode)
Native Resolution:	1920x1080 (1080p)
Contrast Ratio:	2000:1
Aspect Ratio:	16:9
Projection Lens:	Electric Focus
Image Size:	16~200 inches
Light Source:	30,000 Hour RGB Laser Light Source
Video in:	HDMI (Compatible) 4K 30FPS, Type-C Compatible, Composite AV
File Play Back	USB Memory Stick reader (up to 128GB)Micro SD/TF Card Reader (up to 128GB)
Audio Output:	4W High-Low Frequency Speaker3.5mm Stereo Headphone Jack
Operating System:	Android
USB:	Full-sized USB 2.0 (Full Size)
Power Consumption:	44 Watts
Dimensions:	5.78in×5.9in×1.73in
Weight:	1.87 lbs
Supported File Formats:	MP3 / WMA / OGG / WAV / AVI / MP4 / JPG / GIF PDF / DOC / XLS / PPT
Wireless Mirroring:	Supports iOS, Android
Bluetooth Output:	4.0 Supported
Wirless (WiFi)	2.4ghz/ 5 ghz
Battery Run Time:	Approximately 2.5 Hours (Eco Mode)

Notes

Please direct all customer service inquiries to:

AAXA Technologies, Inc. 17781 Sky Park Circle, Suite #F Irvine, CA 92614 [phone]

[e-mail]
