Product Type	Fitness Inline Skates
Brand	Crivit
Model	IAN 292796
Available Sizes	42 - 43
Maximum User Weight	100 kg
Wheel Size	90 x 22 mm
Bearing Type	ABEC 7 Chrome
Brake	Yes, with spare brake included
Shoe Material	Textile with HeiQ® Pure dynamiq technology (antibacterial)
Intended Use	Fitness skating, not for hockey or aggressive skating
Warranty	3 years from the date of purchase
Care and Cleaning	Clean and dry after use, lubricate bearings externally
Available Spare Parts	Brakes, wheels, bearings
Included Accessories	User manual, spare brake, Allen keys
Safety Class	Class A (20 - 100 kg)

Frequently Asked Questions - IAN 292796 CRIVIT

How to properly put on the Crivit IAN 292796 skates?

First open the quick-release closure, the micro-adjustable buckle, and the Velcro strap. Loosen the quick lacing, put on the skate using the shoehorn, tighten the laces by pulling upward, then lock the lacing. Close the closures in reverse order, ensuring a comfortable fit without forcing.

How to replace the brake on the skates?

Unscrew the brake pad screw with the supplied Allen key. Remove the worn pad and place the new brake on the bracket. Screw it back firmly. Ensure the angle between the frame and the ground is less than 40°.

How to change the wheels on the Crivit skates?

Unscrew the axle screws with the Allen key. Remove the worn wheel and install the new wheel. Retighten the axle screws, applying threadlocker if necessary. After the first few meters, retighten the wheels to avoid noise.

What is the maximum weight supported by these skates?

The maximum user weight is 100 kg, according to class A.

How to maintain the ball bearings?

Clean the bearings with a dry cloth after use. If wet, dry them thoroughly. Grease the outside with suitable grease to prevent rust. Sealed bearings cannot be lubricated from the inside.

What to do if the wheels are noisy?

Remove the wheel from the frame, clean the bearing with a dry cloth. If the noise persists, replace the bearing. Make sure the axle screws are not too tight.

The skates pull to the left or right, what to do?

This may be due to uneven wheel wear. Replace wheels that show wear on one side. Also check that the wheels are properly aligned and the screws are tight.

What is the recommended braking technique?

Use the heel brake if your skate is equipped with one: slightly lift the toe and press the brake to the ground while bending your knees. For advanced skaters, the T-stop technique is possible: place one skate perpendicular behind the other and brake with the inside edge of the wheels.

Can I use these skates for hockey or aggressive skating?

No, these skates are designed for fitness skating. They are not suitable for street hockey or aggressive skating. Incorrect use may damage the skates and pose a risk of injury.

How to clean and store the skates?

After use, clean the skates with a damp cloth and dry them. Remove any stones stuck in the wheels. Store them in a dry place. Avoid water, oil, and rough surfaces to extend their lifespan.

USER MANUAL IAN 292796 CRIVIT

Two black-and-white photo of a modern rollerblading skates with visible branding and branding text (www.lidl-sen) in the corner.

www.lidl-service.com

SOFTBOOT-INLINESKATES SOFT BOOT INLINE SKATES ROLLERS SOFTBOOT

DE AT CH

SOFTBOOT-INLINESKATES

Bedienungsanleitung

FR BE

ROLLERS SOFTBOOT

Instructions for use

NL BE

SOFTBOOT INLINESKATES

Gebruiksaanwijzing

ES

PATINES EN LÍNEA DE BOTA BLANDA

Line drawing of a person in motion, possibly speed skating or ice skating, with no text or symbols present.

Line drawing of a rollerblading skates (no text or symbols)

Line drawing of a roller skates with wheels and seat (no text or symbols)

Diagram of a car interior with directional arrows indicating movement or flow (no text or symbols)

Technical diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a car's seatbelt mechanism showing angle and direction (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical illustration showing two mechanical assembly steps with a tool inserted into a circular component (no text or symbols)

DE AT CH

Scope of delivery/names of parts 11

Technical Data 11

Correct use 11

HeiQ® Pure dynamiq 11

Safety notes 11

Skating tips 12

Putting the skates on 12-13

Removing the skates 13

Maintenance 13-14

Care, Storage 14

Trouble-shooting 14

Disposal 14

Notes on the guarantee and service handling .... 15

NL BE

Fersenbremse (Abb. C):

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery/ names of parts (figure A)

1 x Instructions for use
1 x Soft Boot Inline Skates
1 x Replacement stopper
2 x Allen key

(1) Pressure sliders
(2) Quick-release fastener
(3) Laces
(4) Rocker closure
(5) Ratchet strip
(6) Hook-and-loop power strap
(7) Slider on the fast lace system closure
(8) Pull strap

Technical data

Sizes: 42-43

Class A, 20 - 100kg

Rollers: 90 x 22mm

Ball bearings: ABEC 7 chrome bearings

Date of manufacture (month/year):

2017

Correct use

These inline skates are designed as fitness skates for private use and are not suitable for street hockey or aggressive skating.

HeiQ® Pure dynamiq

PURE Textile freshness

Experience the feeling of lasting freshness through the power of silver, keeping you odour-free all day long.

ADAPTIVE Thermal control

Feel good all over. The textile will cool you down when you're hot, and keep you dry longer in cold weather. Cools and minimises perspiration.

The inner lining of the article contains a biocidal active ingredient (PURE TF by HeiQ®) as an antibacterial finish in the inner lining.

Active ingredient: silver adsorbed on silicon dioxide (nano).

Safety notes

Risk of injury!

• Always pay attention to other road users and follow the road traffic regulations.
- Choose the right surface for inline skating. Surfaces should be smooth, clean, and dry.
- Make sure that screws and bolts are secure before skating.
- Ensure that screws and bolts retain their self-locking properties.
- Do not modify the inline skates in such a way that poses risk to your safety.
- Remove sharp edges that may form during skating.
- Always wear appropriate protective equipment (helmet, protectors for palms, wrists, elbows and knees).
- Avoid areas with heavy traffic.
- Remain vigilant at all times and be careful.
- Avoid excessive speeds. As a rule of thumb: never skate faster than you can run.
- Exchange the brakes, rollers, and ball bearings regularly if they are worn.
• Always wear reflective clothing so that you are visible to others.
- Do not use this article barefoot.

Avoid property damage!

• Look after your inline skates.
• Avoid water, oil, potholes, and very rough surfaces.

Skating tips

Note:

We recommend skating in skate parks and taking a skating course with an instructor.

First attempts

Initial position:

Keep your feet shoulder-width apart and bend your knees slightly to avoid falling backwards.

Accelerating:

As a beginner, start by taking small steps forwards with your toes pointing outwards at an angle.

Rolling:

If you take a few steps in succession you will then have enough momentum to place your skates next to one another and roll.

Bend your knees slightly while doing this.

How to fall

Important! Practise falling initially onto a soft surface using protective equipment without your inline skates. Always try to fall forwards, and never backwards! Fall onto your protective knee pads. Then catch yourself using the elbow and wrist protectors. Spread your fingers in order to avoid injury.

Mastering curves

At low speeds:

Shift your weight as in riding a bicycle.

Move your weight onto your left foot for a left curve and onto your right foot for a right curve.

At high speeds:

Cross your feet as in ice-skating (figure B).

Braking techniques

Note:

Practise various braking techniques on a smooth surface without traffic or pedestrians. Avoid slopes until you are confident about braking.

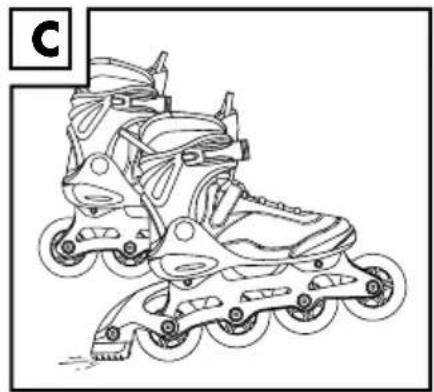

Heel brake (figure C):

If your inline skates are fitted with brakes then remember to use them. Lift the point of the skate where the brake is mounted and push the brake into the ground.

Shift your weight forwards slightly and bend your knee. The braking effect can be intensified if you bend your knee more and shift your weight further forwards, while increasing at the same time the pressure on the skate you are braking with.

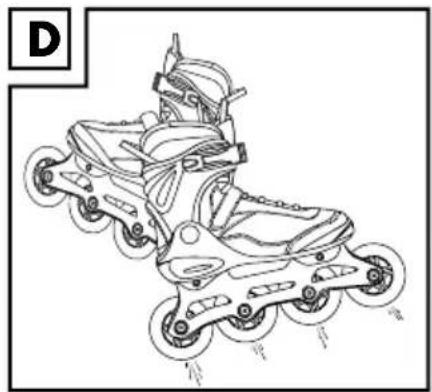

T-stopping (figure D):

If your inline skates are not fitted with a brake or if you have removed the brake, then we recommend using the 'T-stop' technique.

However this is only suitable for advanced skaters! To brake using the 'T-stop' technique, shift your entire weight onto one foot.

Now move the other skate behind the front skate at a right angle. Then shift your weight from the front to the inside of the rollers of your back skate and brake with increasing pressure.

Putting the skates on

Preparation from unpacking to putting the skates on Important! Ensure that your inline skates fit properly. The outer boot should not deform when the quick acting-fastener is closed. Do not use force to close the quick-acting fastener.

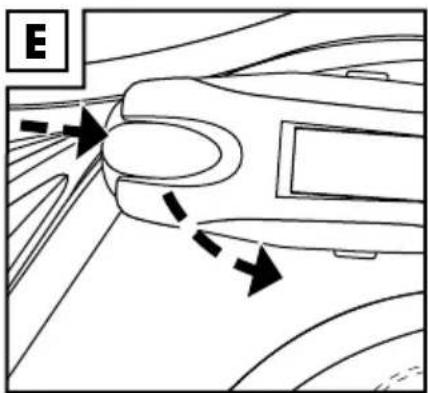

1. Press the slider (1) on the fast closure (2) inwards in the direction of the arrow and open the fast closure (see fig. E).

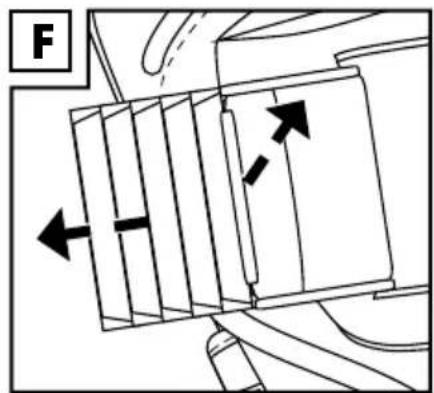

2. Press the rocker closure (4) and pull the ratchet closure (5) out of the opening on the rocker closure (see fig. F).

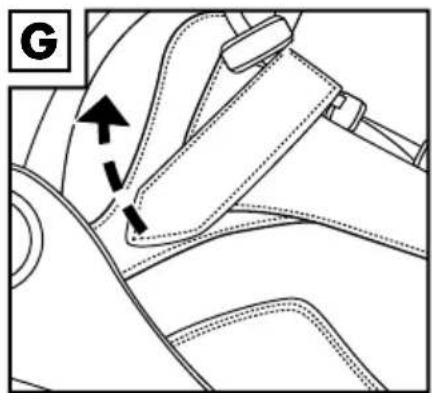

3. Release the hook-and-loop power strap (6) (fig. G).

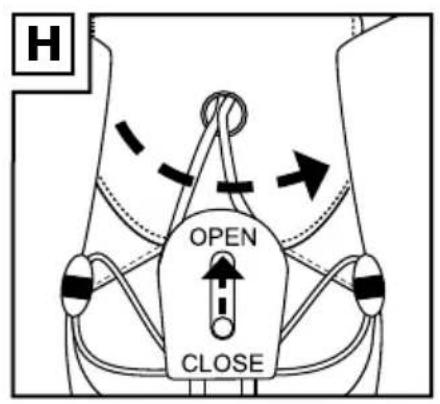

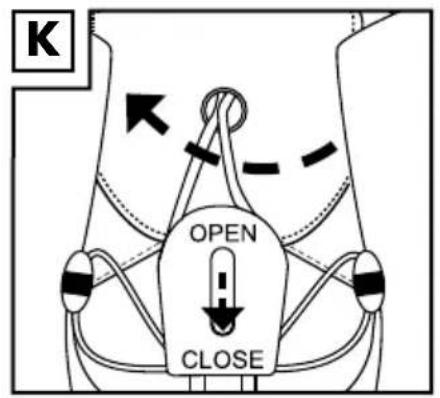

4. Set the slider on the fast lace system closure (7) to OPEN and loosen the fast lace system (fig. H).

5. Pull the inline skates on using the pull strap (8) (fig. 1).

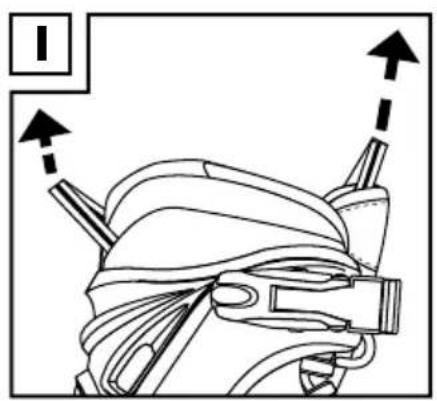

6. Pull the laces (3) out from behind the tongue and pull them tightly upwards (fig. J). Pull alternately on the laces to achieve this (3).

7. Lock the fast lace system closure (7) and push down the stopper on the fast lace system closure to CLOSE (fig. K).

8. Tie a bow with the ends of the laces and push these back behind the tab.

9. Close the hook-and-loop power strap (6).

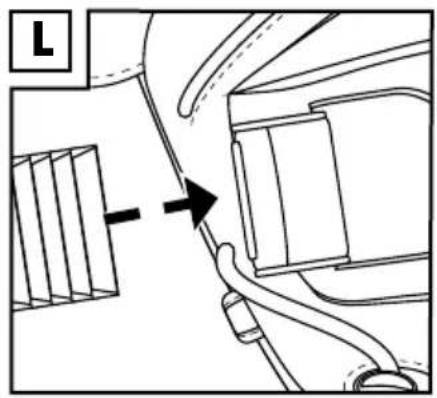

10. Push the ratchet strip into the intended opening under the rocker closure and set the correct tension (fig. L).

Note! To find the right tension for your foot, pull the rocker stopper upwards at an angle and move the ratchet buckle to the correct position for you.

1. Close the quick-acting fastener ('CLICK').

Removing the skates

1. Press the stopper (1) on the quick-acting fastener (2) in the direction of the arrow and open the quick-acting fastener (see figure E).
2. Push the rocker fastener (4) down and pull the ratcheted strip (5) out of the opening on the rocker fastener (figure F).
3. Release the hook-and-loop power strap (6) (fig. G)
4. Set the slider on the fast lace system closure (7) to OPEN and loosen the fast lace system (fig. H).

Maintenance

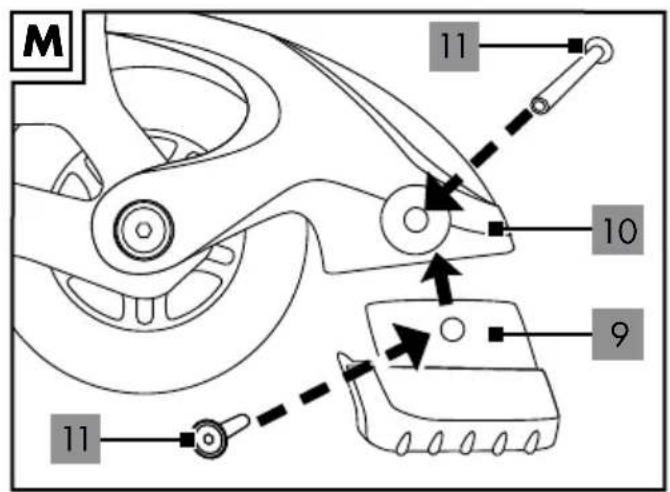

Changing the brake (figure M) Note:

Worn brakes do not function correctly. An angle of more than 40 degrees between the frame and the surface is a sign of worn brakes. If the distance between the brake block and the ground becomes too large (more than 17mm), then the brake block must be exchanged.

• Unscrew the brake pad screw (11) on the inline skate with the included Allen key.
• Remove the brake pad screw and remove the brake block (9) from the brake pad mount (10).
• Attach the new brake block tightly back onto the brake block mount using the brake block screws.

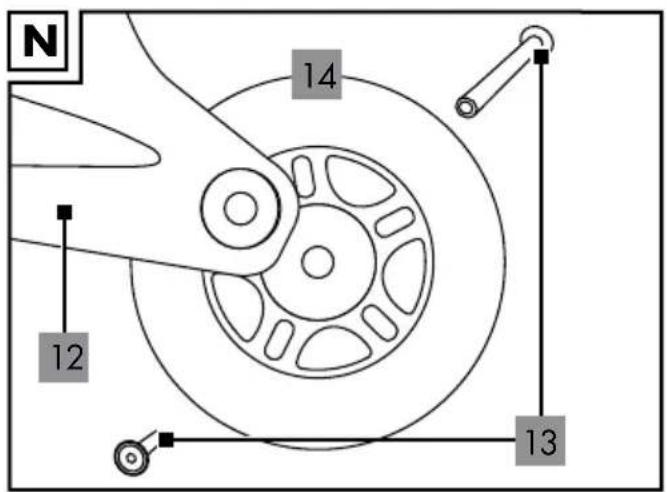

Changing the rollers (figure N) Important!

• Please observe the chapter on technical data:
  Rollers with a different diameter could change the handling characteristics and could mean a risk to the user in some circumstances. You should therefore not use the skates if the rollers cannot be fitted perfectly. Never install larger rollers then those originally used in the inline skates.
• Please observe the following with regard to the axle bolts:
  Self-sealing lacquer must be re-applied to the screw thread after the screw connection has been released. We recommend always doing this step as a precautionary measure. Self-sealing lacquer is available from DIY stores or specialist retailers.

Rollers become worn. The wear depends on many factors such as skating style, surfaces, the size and weight of the user, weather conditions, the roller material and its degree of hardness. It is therefore necessary to exchange them every so often.

1. Unscrew the axle bolt (13) on the inlineskate from the frame (12) using the Allen key.
2. Remove the axle bolt and remove the roller (14).
3. Re-fit the new roller into the frame and attach it with the axle bolts.

After changing the rollers:

If the roller scrapes on the side after the exchange, or if it touches the edge of the frame, please do not use the roller! Please ensure that all screws are still secure after the first few minutes of use and that nothing has become detached or loosened.

Re-install the rollers in order to ensure that they are running smoothly and no sounds are emitted from the bearings.

Important!

New rollers make the inline skates taller. This changes the distance to the ground therefore also the braking characteristics. For this reason, you must adjust or exchange the brake block.

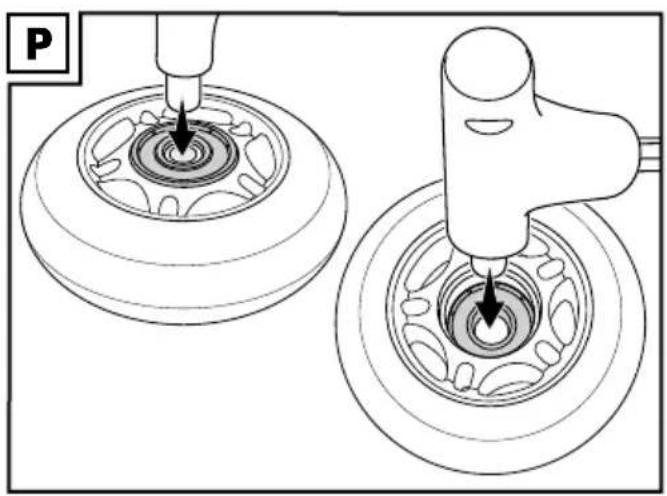

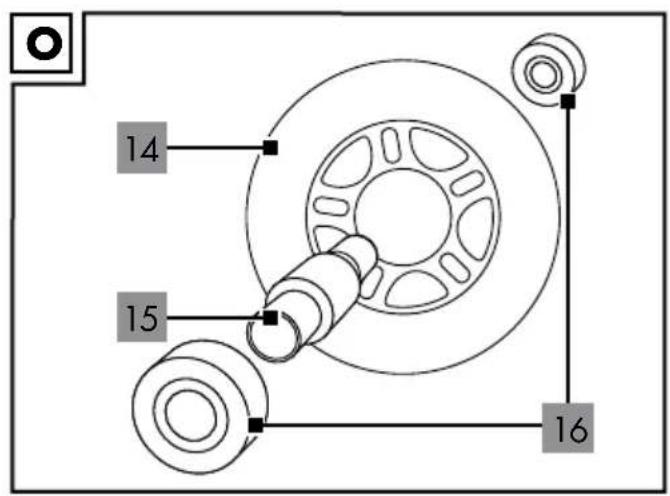

Changing the ball bearing (figure O / P)

Note: The quality of the ball bearing and its maintenance are extremely important for the smooth running of the inline skates.

• Dismantle the roller (14), as described in the section 'changing rollers'.
• Position the Allen key (with handle) using the extra appliance above the spacer (15) and push the spacer out. Remove the bearing (16).
• Push the other bearing out by pressing on it with an Allen key.
• Push in a new bearing. Turn the roller around, insert the spacer, and then push in a second new bearing.
• Re-attach the roller to the frame, as described in the paragraph 'exchanging the rollers'.

Care, storage

Inline skates are pieces of technical sports and leisure equipment and they therefore become worn depending on the skill and style of each skater. We recommend that you clean and dry the inline skates thoroughly after use.

Remove any small stones and other objects that may have become trapped in your rollers.

Remove any sharp edges that may have formed during skating. Always keep the inline skates in a dry place.

• Clean your ball bearings with a dry cloth after skating. Wet or damp ball bearings must be dried using a clean cloth. Lubricate the bearings from the outside with a suitable bearing grease to prevent the formation of external rust.
• Bearings are usually closed and cannot be lubricated inside. Worn ball bearings must be replaced.

Trouble-shooting

• Rollers or ball bearings are noisy
  Dismantle the roller from the frame, remove it, and clean the ball bearing with a clean cloth.
• Rollers wear quickly
  Smooth surfaces extend the life of the rollers. Try harder rollers for harder surfaces and for use in difficult conditions.
• Rollers block
  Do not fasten the axle bolts too tightly.
  • Skate pulls to the left or right
  This can depend on the user. Exchange the rollers that show signs of one-sided wear.
  • The brake is not working properly
  Change the brake if the angle between the brake and the ground is greater than 40 degrees, i.e. if the distance between the brake block and the ground becomes too great (more than 17mm). Rounded brakes need to be changes for new blocks.
• Brake problems
  Always keep sufficient distance. The faster you skate the longer your braking distance. Ensure that you understand the braking techniques and practise them on a level ground.
• Ankles get twisted frequently
  Make sure the laces are tight enough.
• Problems with the foot bed
  You may not be accustomed this kind of movement. Check the areas that are causing you problems and re-adjust the inline skates.
  Try wearing thick socks.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.
