Product type	Snowshoes
Brand	Crivit
Model	IAN 75493
Maximum user weight (with equipment)	100 kg
Compatible shoe size	36 to 47
Frame material	Aluminum
Spikes	Metal ice spikes
Climbing aid	Foldable rod
Protective cover	Yes, included
Minimum operating temperature	-20 °C
Use	Adults, snow hiking, non-commercial use
Binding	Heel strap and quick-release straps
Recommended walking techniques	Step-by-step, Duck-step, Kick-step, Line-step
Package contents	Snowshoes, protective cover
Care	Clean with warm water, air dry (away from heat)
Storage	Cool, dry place away from sunlight
Warranty	3 years
Customer service France	Phone: [phone], email: [e-mail]
Customer service Belgium	Not specified in the manual (contact France service)

Frequently Asked Questions - IAN 75493 CRIVIT

How to properly put on the snowshoes?

Place the snowshoe flat, binding open. Insert your foot pushing forward, then pull the heel strap up to your heel. Tightly pull the tightening straps and secure the strap to the retaining clips. Your foot should be straight and firm.

How to adjust the shoe size of the snowshoes?

The heel strap has size markers. Adjust it to your shoe size (from 36 to 47) before putting on the snowshoe.

How to use the climbing aid?

Fold the climbing aid rod upward to make walking uphill easier. On flat terrain, fold it down. Make sure the climbing aid is centered under the heel.

What are the recommended walking techniques?

Techniques include: Step-by-step (regular steps), Duck-step (duck-like steps for climbing), Kick-step (stair-like steps, body upright), and Line-step (steps in line, zigzag climbing).

How to maintain the snowshoes?

Clean them with warm water after each use. Let them air dry, never on a heater. Store them in a cool, dry place away from sunlight. Do not use abrasive cleaners.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects. Keep the receipt.

Can I use the snowshoes on black ice?

No, the ice spikes are designed for snow or icy snow, not for pure black ice. They do not replace crampons.

What is the maximum supported weight?

The total weight of the user with equipment must not exceed 100 kg.

Can I use hiking boots?

Yes, use sturdy, suitable hiking boots. Mountaineering or trekking boots are also suitable.

How to install the protective cover for the spikes?

Place the cover on the pointed rear spikes. Pull the end with the shorter rubber strap backward, then pass the rear strap twice around the front of the snowshoe. Do not open the rubber straps.

USER MANUAL IAN 75493 CRIVIT

Black and silver snowboard with mechanical straps and decorative cutouts (no text or symbols visible)

Raquettes à neige

FR BE

Raquettes à neige

Instructions for use

Instructions for use

Contents....5

Technical Data 18

Intended Use....18

Safety Instructions....18

Important notes for snowshoeing outing 18

Putting on Snowshoes 19

Removing Snowshoes 19

Cleat Cover 19

Gear 19

Stride Techniques....20

Environment 20

Disposal Information 20

Care, Storage 20

3-year warranty 21

Illustration of a boot being installed on a sneaker, showing the sole and base assembly (no text or symbols)

Line drawing of a sneaker on a curved surface with motion arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with springs and a central body, labeled 'DRIVE' (no text or symbols beyond label)

Silhouettes of three skiers in motion, one climbing, one ascending with poles, and one running (no text or symbols)

Silhouettes of four people with skis, standing in a row (no text or symbols)

Silhouettes of three people with crutches, depicted in motion (no text or symbols)

FR BE

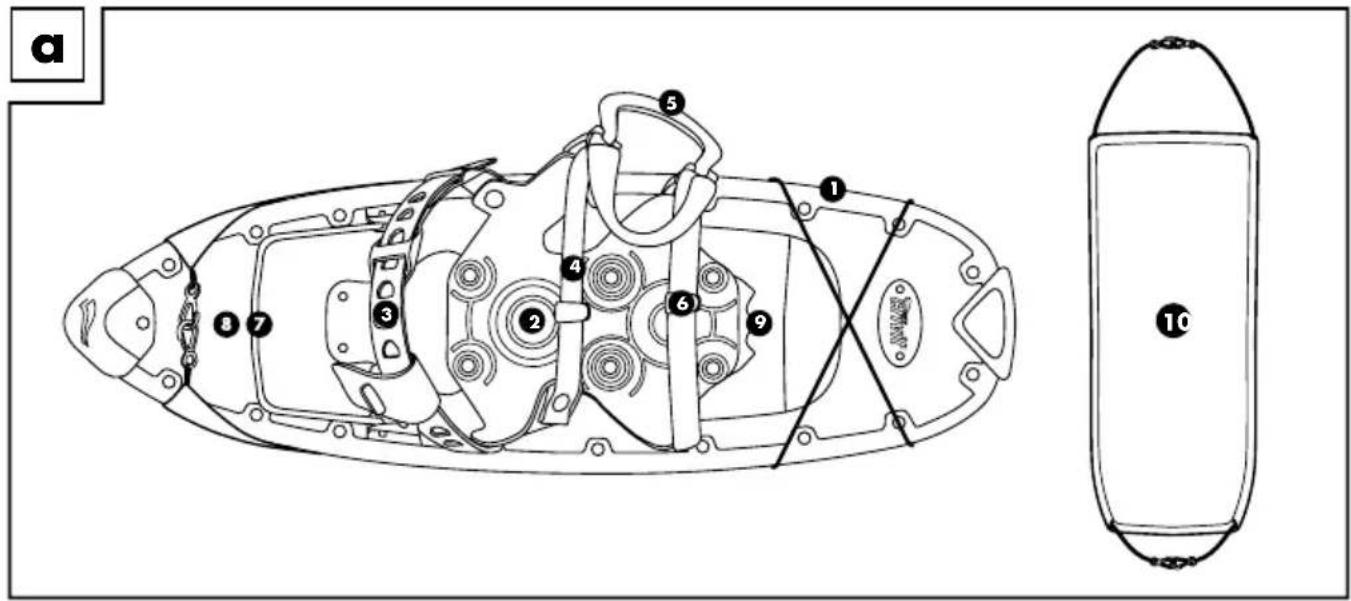

1. Aluminium frame
2. Binding
3. Heel strap
4. Tension strap
5. Quick release opening
6. Clips for tension straps
7. Heel lift
8. Decking
9. Crampon
10. Cleat guard

Félicitations !

Technical line drawing of a snowboard with internal components and mounting holes (no text or symbols)

Simple line drawing of a stylized object resembling a pen or tool, with no text or symbols present.

Équipement

Chaussures

Technical line drawing of a snowboard with internal components and no visible text or symbols

Line drawing of a stylized object resembling a boat or container with a handle, no text or symbols present

Uitrusting

Schoenen

Kick-step (trapmethode) (afb. G)

Top-down schematic of a snowboard with internal components and no visible text or symbols

Simple line drawing of a stylized object resembling a device or container with a handle, no text or symbols present.

Ausrüstung

Schuhe

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Technical Data

User weight including gear: max. 100kg

Intended Use

This product assists adults in crossing heavy snowed areas. Not suitable for commercial purposes! This product is suitable for shoe sizes 36 to 47.

Safety Instructions

• Check product for possible defects before every use. This includes mounting bolts and tears or other visible damage. Discontinue use if snowshoes are defective!
• Check the condition of the anti-skid before and after every use. If severely worn (metal claws less than 50% of original condition) the product must be disposed of.
• Hiking boots must be firm and completely connected with the snowshoe binding, and the foot have a firm grip inside the hiking boot. You may otherwise twist your foot and fall.
• Do not use this product in outdoor temperatures below -20°C.
• Do not use this product: • for mountain hikes in steep, alpine terrain or for expeditions. • for occupational safety.

• Do not exceed the max. weight limit including gear of 100kg

• The crampons provide grip in snow or on icy snow. However, they do not take the place of ice cleats on solid ice!

• Only use snowshoes in snow to prevent damaging the snowshoes and possibly the ground.
• Only use the snowshoes with suitable, solid hiking boots.
• Always select avalanche protected, marked and cleared routes.
• Heed winter and alpine advisories, e.g. avalanche warnings.
• When transporting snowshoes inside the rucksack carrier on your back the metal claws must always be pointed away from the back.

Important notes for snowshoeing outing

• Always select avalanche protected, marked and cleared routes.
• Check the weather forecast for your route before starting on your outing. Especially check the avalanche risk.
• Match the length and difficulty of the route to your abilities.
• Preferably hike in groups, not by yourself.
• Wear noticeable clothing.
• Correct gear for hikes includes:
• Rations
• Sun protection
• Correct clothing for the temperatures and activity
• First aid supplies
  • Sturdy mountain or hiking boots
• If applicable, suitable eye protection

Putting on Snowshoes

Note

Before starting on your first snowshoeing outing you should practice putting the snowshoes on. Preferably outdoors to prevent scratches indoors.

Please note the right and left marking on the snowshoes.

1. Adjust the heel strap (3) to your shoe size. The shoe size is marked on the heel strap.

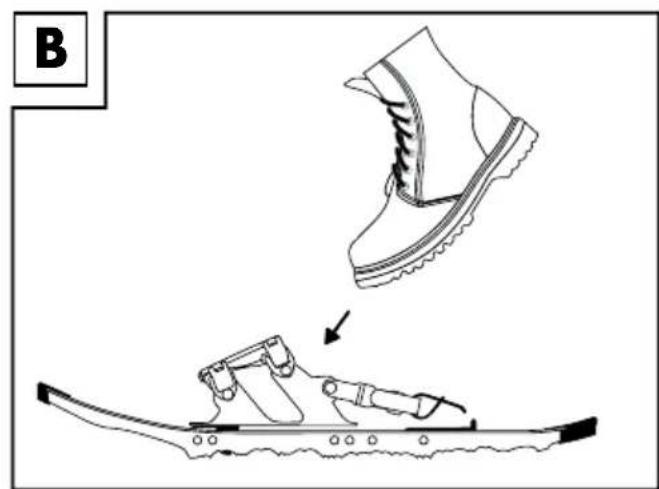

2. Place the snowshoe on a level surface with the binding open. Insert the foot into the snowshoe with your foot pointing straight forward (Fig. B). Pulling by the flap, pull the heel strap upward to ankle height.

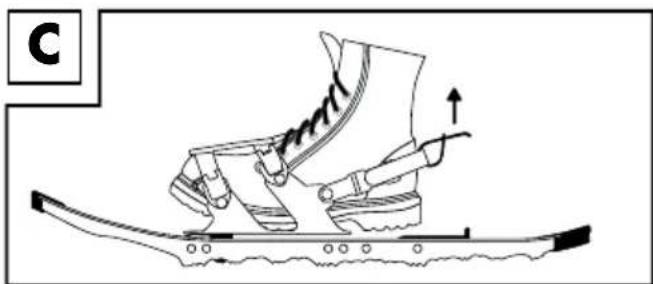

   Now firmly place your foot all the way back against the heel strap (Fig. C).

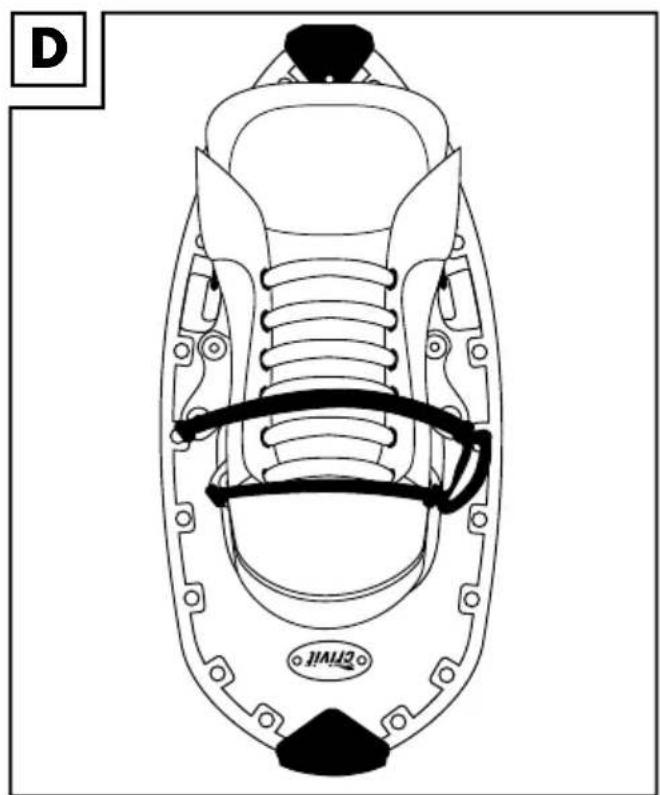

3. Now pull the tension strap (4) tight (Fig. D). Tighten the binding so the shoe is straight and firm.

Then secure the tension strap loop to the attached clips (6).

Note!

Verify your foot is correctly positioned by flipping the heel lift up. When flipped up the heel lift should be positioned at the centre of the heel.

Removing Snowshoes

Press the quick-release lever (5) outward to release the tension strap (4). You will now be able to slide your foot out of the binding.

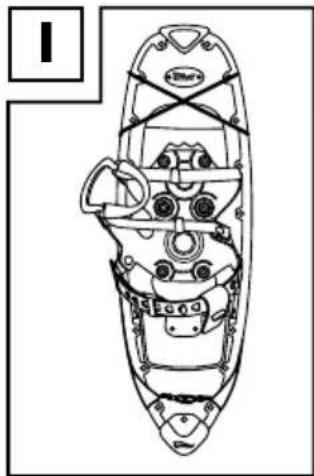

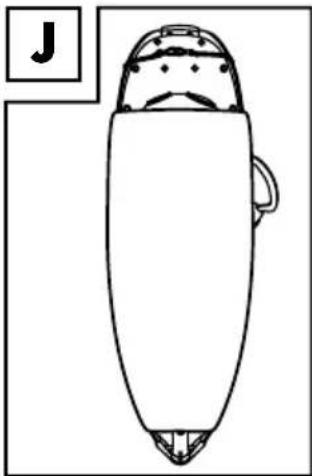

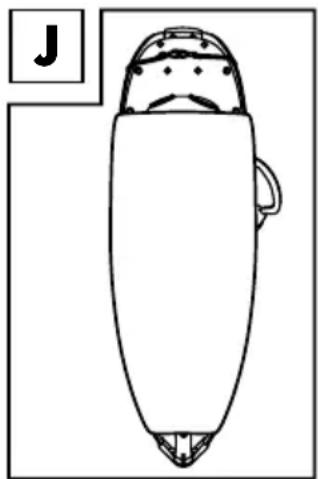

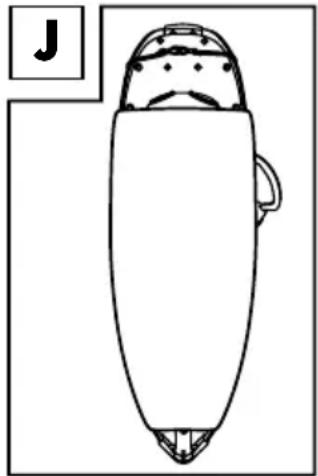

Cleat Cover

When the item is not in use please cover with the included cleat guard. The elastic bands do not need to be released. Place the end of the cleat cover with the shorter elastic band over the rear pointed end of the snowshoe. Then place the sheet over the snowshoe crampons. Once the cleat cover is correctly positioned, double wrap the elastic around the front part of the snowshoe.

Top-down line drawing of a snowboard with internal components and no visible text or symbols

Line drawing of a stylized object resembling a boat or container with a handle, no text or symbols present

Gear

Shoes

Use conventional mountain, hiking or trekking shoes.

Clothing

Adapt your clothing to weather conditions. In changing weather you may choose to wear layers of clothing. This will allow you to quickly adjust your clothing to conditions.

Poles

Ski or trekking poles will make it easier to snowshoe. They will help with balance, thus enhancing stability. Use poles with large baskets to minimise sinking in deep snow.

Stride Techniques

Note

When using the step-by-step and duck-step method the heel lift can make it easier to walk on inclines. Simply flip the heel lift up when needed. Then on level terrain flip it back down.

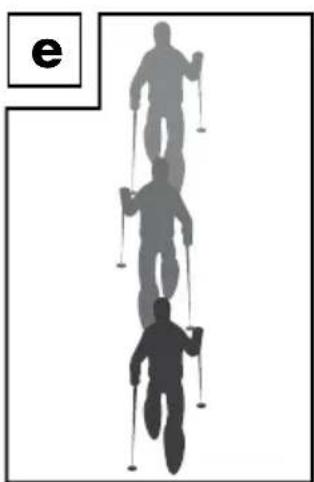

Step-by-Step (Normal gait) (Fig. E)

On level terrain, gentle slopes or uphills.

Simply take smooth parallel steps. The width of the step is determined by the width of the snowshoes.

Duck Step (Fig. F)

This stride technique, similar to skating step in skiing, used on inclines to prevent stepping on your own feet. Firmly plant each step to ensure the snowshoes grip securely.

Kick Step (Fig. G)

In kick-step you will be walking up steep inclines perpendicular similar to a crab. Keep your body straight. Plant each step firmly. Keep looking directly at your goal (e.g. the top of the hill).

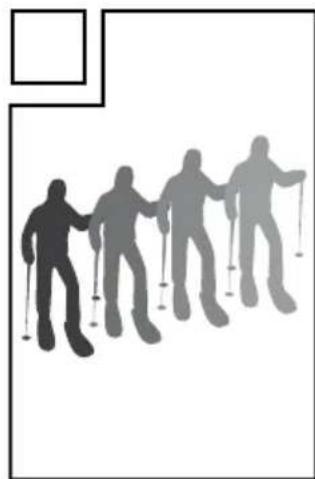

Line Step (Fig. H)

Use this technique to climb hills switchback style. Place one foot in front of the other parallel to the hill. To conserve energy the switchbacks can be drawn out.

Environment

Especially during winter months when we humans start to enjoy winter sports animals are struggling in their search for food.

Please keep in mind:

• Avoid routes through forest reserves and game reserves.
• Stay on marked routes and trails in forests.
• Keep dogs on a leash, especially in the forest, to protect wild animals.
• Avoid the outskirts of forests and snow free areas, as this may be an area for wild animals.

Disposal Information

Please dispose of packaging and the product in an environmentally friendly, sorted fashion! Dispose of the product through an approved waste management company or your municipality. Please follow the applicable current regulations.

Care, Storage

Do not use abrasive or caustic cleaners or hard bristled brushes, etc. to clean.

After use clean snowshoes with lukewarm water. Allow to dry well before storing. Do not dry on heaters!

Keep snowshoes in a cool and dry place, inside the transport- and storage bag. Keep snowshoes out of direct sunlight. Sunlight may make the plastic brittle and fragile, or bleach it.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 75493

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6

D-22397 Hamburg

Version: 10/2012
