GB Frost protection device/Mini-convector Mounting and operating instructions

Please pay your attention to the following points before using the heater. These instructions for use belong to the appliance and must be kept in a safe place. When changing owners, these instructions must be surrendered to the new owner!

Technical data

Voltage 230 V ~	Weight approx. 1,0 kg
Power 500 W Height approx. 24 cm
Safety system IP	21 (dripping water) Width approx. 24 cm
Safety class I (protective conductor) Depth approx. 10,5 cm
Power cable H0	3V2V2-F3G0,75 mm ^2 Thermostat approx. 5°C to approx. 16°C

Usage

The frost protector with thermostat is used to keeping small rooms free from frost until max. 16^ C. It is for use within the home or for similar purposes. The heater may only be used in a fixed position and only for the purposes described. It is not for outdoor use.

Safety- and Warning Regulations

The appliance must only be used as described in the instructions for use. Read these instructions carefully, in conjunction with the illustrations before using the appliance. Use for any other purpose is inadmissible! Any damage attributed to incorrect operation, improper use or non-observance of the safety information will invalidate all liability and the warranty!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance, cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• Before connecting the appliance check that the voltage indicated on the type plate corresponds to the mains voltage in your home.

• Do not use the frost protector when the unit, power cord or plug is defective. Repairs are only to be carried out by a specialist!
• The frost protector should not be installed in areas which are a fire risk, such as garages, stables, or wooden shed. This is applicable also for rooms in which highly inflammable gasses or dust can develop. Danger to fire!
• The room which is to be heated should not contain any easily inflammable materials (e.g. petrol, solvent, spray canisters etc.) or other easily combustible materials (e.g. wood or paper). L'EEP such materials away from equipment. Danger of fire!
• WARNING: In order to avoid overheating, do not cover the heater! Risk of fire or danger of overheating.
• Do not cover with clothing, towels or similar to be dried. Overheating and Fire hazard!
• The heater must be not located immediate below a socket-outlet.
• Never touch live parts! Danger to life!
• L'eep the minimum distance specified when mounting (refer to figures).
• If the frost protector is to be installed in a shower or bathroom, the appropriate national regulations of the country regarding of electrical equipment in such areas must be adhered to. To make sure, call a competent specialist. The frost protector must be so installed that any persons using the shower or bath do not come into contact with it.
• The device may not be fixed on walls of plastic, synthetic material or other easily flammable materials as for example wood, panels, paper or similar. By disregard it can come to the fire risk!
• Important! Do not insert any foreign objects into the appliance openings or do not insert any objects into the heater! Risk of injury (electric shock) and damage to the appliance! Never place any objects between appliance and wall.

• If the heater is to be connected with a plug, the plug must be easily accessible to enable the mains plug to be disconnected as quickly as possible!

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• The power cable must not come into contact with the unit during heating operation. Do not put the cable on or around the hot appliance and do not pull it over sharp edges or bend it.
• Do not use the heater outdoors.
• The product is for household use only and not for commercial use.
  • The appliance is not suitable for animal breeding purposes!
• Do not operate the heater with an extension-cord.
• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Attention! d'ven on the lowest setting level the unit is always ready for use. In order to switch off the frost protector, pull out the power supply plug or turn off the permanently installed disconnecting switch (e.g. automatic cut-out, installation switch etc.).

Description

The frost protector is an electrical convector heater. It is fitted with a thermostat for the correct temperature and a safeguard against overheating. A control lamp lights up when the frost protector starts to heat up. The thermostat controls the room temperature and switches the heater on or off as necessary. The built-in fixture for guarding against overheating switches the unit off if too hot and switches itself on again after the unit has cooled down.

Mounting and electrical connection

Refer to the figures on the last pages. Be aware of keeping to the minimum distances specified. Fix the mounting fixture to the wall (see figure). Two dowels and matching screws are included on delivery. Drill the holes on the wall according to the distances specified in fig. 3. Use the bracket as a template for the 2 upper holes. Insert the raw plugs and screws (you will find them inside the box) and then fix the wall bracket you find on the back of this item. Then hang the heater to the bracket and drill the side screw which fixes the appliance to the bracket.

After connecting the plug to the socket the heater is now ready for use.

The frost protector can also be permanently connected to the power supply by means of a suitable junction box. This must only be carried out by a specialist. Protective conductor necessary! It must be ensured that heaters which are permanently connected to the power supply can be cut off by means of a disconnecting device with a minimum 3 mm contact gap (e.g. automatic cut-out, installation switch, contactor etc.).

Operating instructions

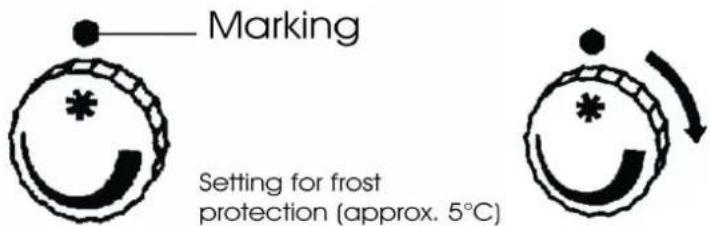

The rotary knob and the marking on the casing show the setting of the thermostat.

Setting for frost protection (approx. 5°C)

Setting of the required room temperature (max. 16°C)

To set the required room temperature: turn the knob in the direction of the arrow to the right as far as it will go (ca. 90°) and wait until the required temperature has been reached. Turn the knob then slowly back again until the control lamp has been extinguished. The position of the knob now corresponds to the required temperature.

Taking care of your frost protector / Cleaning and maintenance

Before each cleaning, maintenance or repair disconnect the heater from the power supply. Unplug the power cord from socket outlet or turn off the permanently installed disconnecting switch (e.g. automatic cut-out, installation switch etc.) and let the heater cool down. Clean the casing occasionally with a damp cloth and then wipe it dry. Do not use any strong abrasive cleaning materials and do not let water get into the inside. Do not immerse the heater, power cord or plug in water or other liquids. Danger of life!

Troubleshooting

Fault	Possible cause	Measures
Does not heat up(control lamp does not light up)	Fuse blownPlug disconnectedRoom temperature higher than the settingOverheating device has reacted.	Check fuse boxReconnect plugIf possible, set a higher temperatureDo not cover frost protector with any objects. Keep to min.specified distances!

If the fault cannot be corrected by any of the above measures, contact your local specialist or get in touch with our after-sales service. Repairs may only be made by authorised specialist or our after-sales-service.

Guarantee

• If problems occur with the device never try to open or repair by yourself. Every intervention in the unit for the change of original condition leads inevitably to the loss of the guarantee claim. Contact the retailer where you have purchased the appliance. The guarantee for this device is based on the guarantee instructions.
• Damages which occur to transport, overloading, natural erosion, non observance of the mounting-/operating instructions or improper treatment will be excluded from the guarantee. The manufacturer is not liable for any indirect consequential or financial damages.
• Technical changes concerning the advancement are reserve.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local authority,

your household waste disposal service or the shop where you purchased the product. This symbol is only valid in the European Union.

F

Simple circular diagram with a star and curved arrow, no text or symbols present

Technical diagram showing a mechanical component with labeled dimensions and an inset cross-section view.

Simple line drawing of a vehicle or vehicle with a vertical grille and side-mounted components, no text or symbols present.

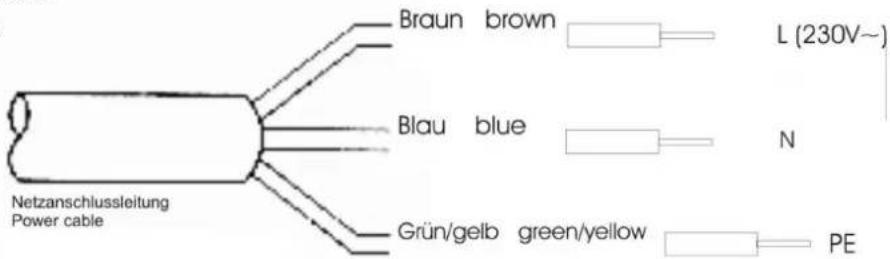

(D) Anschluss-Schema
(GB) Connection diagram
(F) Con. de raccordement
(NL) Aansluitschema

Line drawing of a portable electric heater with ventilation grille and control knob (no text or symbols)

Luftaustrittsgitter

Air exit grid
