USER MANUAL THC-T140-P HiLook

Abstract geometric design with blue and gray diamond shapes, a globe icon, and a blue square (no text or symbols)

HD Turret and Bullet Camera

User Manual

User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Type	Model
Type I Camera	THC-T140-P/THC-T140
Type II Camera	THC-T240-P/THC-T240
Type III Camera	THC-T140-M
Type IV Camera	THC-T240-M
Type V Camera	THC-B240-M/THC-B240
Type VI Camera	THC-B140-P/THC-B140-M

This manual may contain several technical incorrect places or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

0100001071128

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info. 2006/66/EC (baery direcve): This product contains a

baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specic baery informaon. The baery is marked with this symbol, which may

include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into "Warnings" and "Cauons".

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical speciaons for detailed informaon.
• The output current of the power adapter must be no more than 6A.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
• Make sure that the plug is rmly connected to the power socket.
• Make sure that the device is rmly fixed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cord, and then contact the service center.
• Never attempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not place the camera in extremely hot, cold (the operang temperature shall be -40^ to 60^ ), dusty or damp locaons, and do not expose it to high electromagnetic radiation.
• Do not touch senor modules with ngers.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.

• Do not expose the device to high electromagnec radiaon or extremely hot, cold, dusty or damp environment.

• To avoid heat accumulation, good venlaon is required for the operang environment.

• Keep the camera away from liquid while in use for non-water-proof device.
• While in delivery, the camera shall be packed in its original packing, or packing of the same texture.

Mark Descripon

Table 0-1 Mark Descripon

Mark	Descripon
— — —	DC Voltage

1 Introducon

1.1 Product Features

The main features are as follows:

• High performance CMOS sensor
- IR cutIter with auto switch
- OSD menu with congorable parameters
• Auto white balance
• Internal synchronizaon
- SMART IR mode
• 3-axis adjustment

1.2 Overview

This manual applies to six types of cameras. The overviews of each type are shown in the gures below.

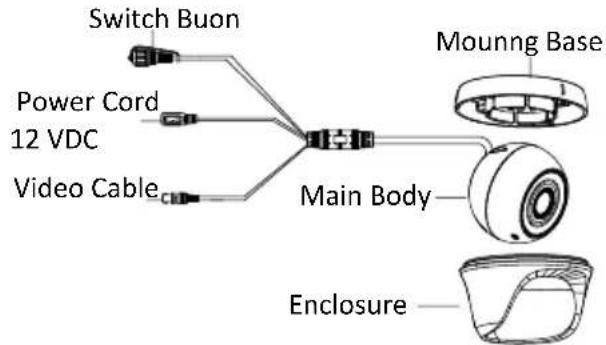

1.2.1 Overview of Type I Camera

Switch Buon Power Cord 12 VDC Video Cable Main Body Moung Base Enclosure

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

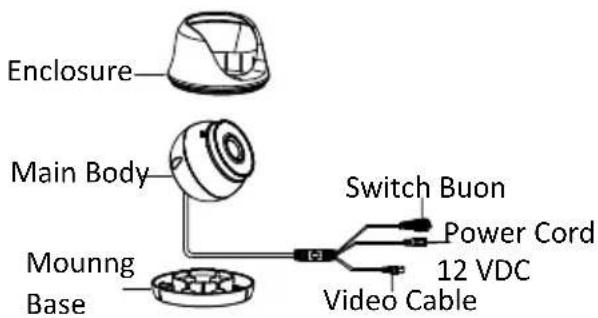

1.2.2 Overview of Type II Camera

Enclosure Main Body Moung Base Switch Buon Power Cord 12 VDC Video Cable

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

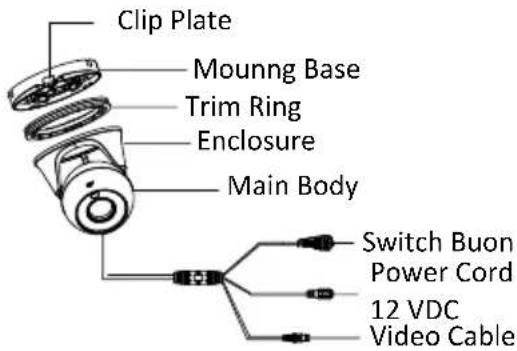

1.2.3 Overview of Type III Camera

Clip Plate Mounng Base Trim Ring Enclosure Main Body Switch Buon Power Cord 12 VDC Video Cable

Figure 1-3 Overview of Type III Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

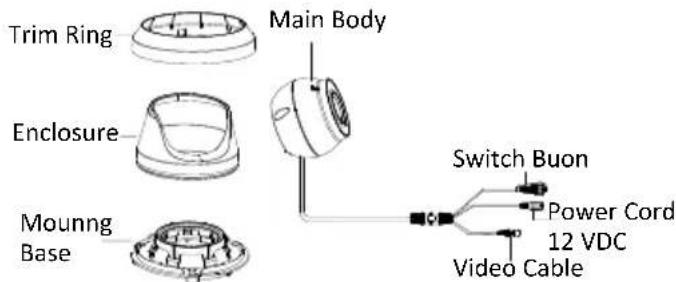

1.2.4 Overview of Type IV Camera

Trim Ring Enclosure Mouning Base Main Body Switch Buon Power Cord 12 VDC Video Cable

Figure 1-4 Overview of Type IV Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.5 Overview of Type V Camera

Main Body Lens Mounng Base Switch Buon Power Cord 12 VDC Video Cable

Figure 1-5 Overview of Type V Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

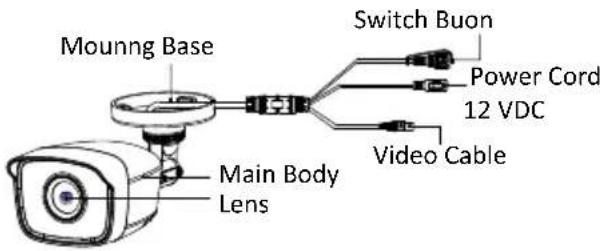

1.2.6 Overview of Type VI Camera

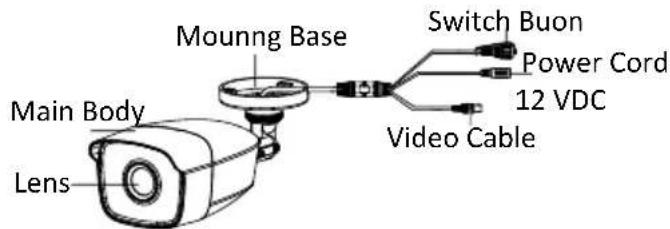

Moung Base Switch Buon Power Cord 12 VDC Video Cable Main Body Lens

Figure 1-6 Overview of Type VI Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

2 Installaon

Before you start:

• Make sure that the device in the package is in good condion and all the assembly parts are included.
• Make sure that all the related equipment is power-off during the installaon.
• Check the specicaon of the products for the installaon environment.
• Check whether the power supply is matched with your power output to avoid the damage.
• Make sure the wall is strong enough to withstand three mes the weight of the camera and the mount.
• If the wall is cement, insert expansion bolts before installing the camera. If the wall is wooden, use self-tapping screws to secure the camera.
• If the product does not funcon properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.

2.1 Installaon of Type I and Type II Camera

Before you start:

Type I and type II cameras share the same installaon, and we take type I camera as the example to describe the installaon method.

Both wall moung and ceiling moung are suitable for the camera. We take ceiling moung as an example in this secon. You can take the steps of ceiling moung as a reference, when adopng wall moung.

Steps:

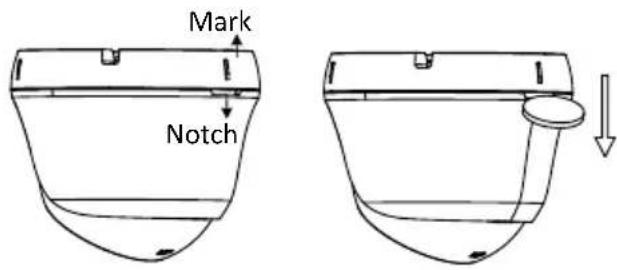

1. Disassemble the turret camera by rotang the camera to align the notch to one of the marks, as shown in the gure below.

Mark Notch

Figure 2-1 Disassemble the Camera

1. Remove the moung base from the camera body with a at object, e.g., a coin.

2. Paste the drill template (supplied) to the place where you want to install the camera.

3. Drill the screw holes, and the cable hole (oponal) on the ceiling according to the drill template.

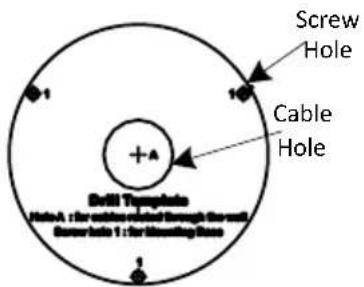

Drill Template Cable Hole Screw Hole Hole A: Route cables through the ceiling Hole B: Side outlet Hole 1: Fix the mounting base Please use of 5.5mm drill to install expansion screws Side Opening Code:102006783

Figure 2-2 Drill Template

Note:

Drill the cable hole, when adopng the ceiling outlet to route the cable.

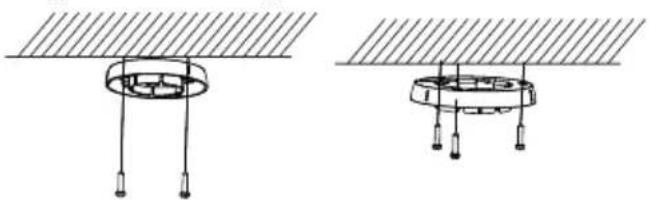

1. Aach the moung base to the ceiling, and secure them with supplied screws.

Type I Camera Type II Camera

Two technical diagrams showing structural components mounted on a platform, with no visible text or symbols.

Figure 2-3 Attach the Mounng Base to the Ceiling Note:

• The supplied screw package contains self-tapping screws, and expansion bolts.

• For cement ceiling, expansion bolts are required to x the camera. For wooden ceiling, self-tapping screws are required.

• Route the cables through the cable hole, or the side opening.

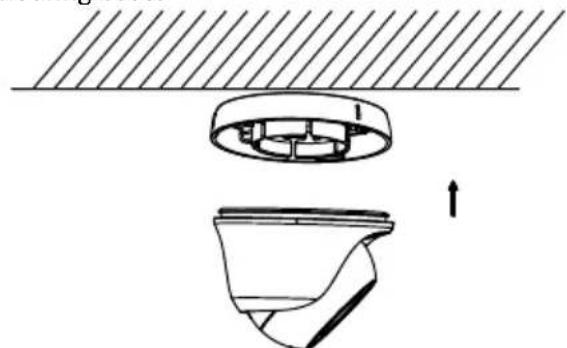

• Align the camera with the moung base, and tighten the screws to secure the camera on the moung base.

Technical diagram showing a mechanical assembly with a cylindrical component and a base component, no text or symbols present.

Figure 2-4 Secure the Camera with Mounng Base

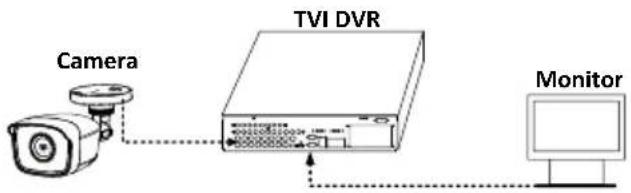

1. Connect the corresponding cables, such as power cord, and video cable.
2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

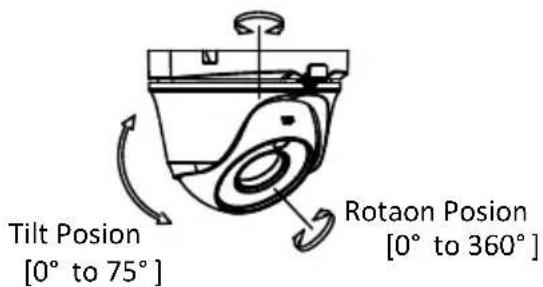

Pan Posion [0° to 360°]

Diagram of a mechanical component with rotating parts and a central hub (no text or symbols)

Rotaon Posion [0° to 360°]

Tilt Posion [0° to 75°]

Figure 2-5 3-axis Adjustment

1). Hold the camera body and rotate the enclosure to adjust the pan posion [0° to 360°].
2). Move the camera body up and down to adjust the lt posion [0° to 75°].
3). Rotate the camera body to adjust the rotaon posion [0° to 360°].

2.2 Installaon of Type III Camera

Before you start:

Both wall moung and ceiling moung are suitable for the camera. We take ceiling moung as an example in this secon. You can take the steps of ceiling moung as a reference, when adopng wall moung.

Steps:

1. Disassemble the turret camera.

1). Use the screw driver to loosen the screw on the mounng base.
2). Align the notch to the clip plate to separate the moung base from the camera body.

Technical diagram of a mechanical component with arrows indicating direction (no text or symbols)

Clip Plate

Line drawing of a toilet fan with handle and seat (no text or symbols)

Notch
Figure 2-6 Disassemble the Camera

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. Drill the screw holes and the cable hole (oponal) on the ceiling according to the drill template.

Drill Template Screw hole All : for Mounting Base

Figure 2-7 Drill Template

Note:

Drill the cable hole, when adopng the ceiling outlet to route the cable.

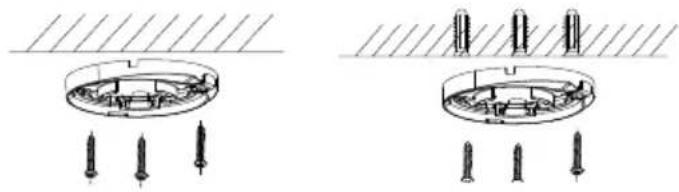

1. Aach the moung base to the ceiling, and secure them with supplied screws.

Technical line drawing showing two mechanical assembly configurations with screws and a circular component (no text or symbols)

Figure 2-8 Aach the Mounng Base to the Ceiling Note:

• The supplied screw package contains self-tapping screws, and expansion bolts.

• For cement ceiling, expansion bolts are required to x the camera. For wooden ceiling, self-tapping screws are required.

• Route the cables through the cable hole, or the side opening.

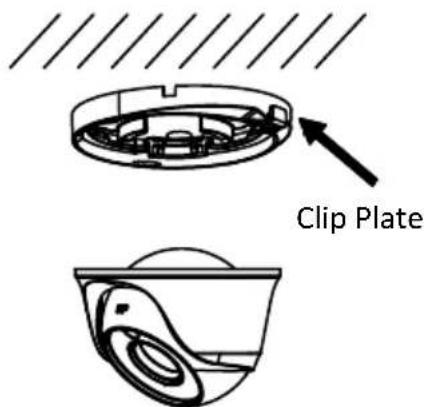

• Combine the camera body with the moung base.
  1). Put the camera body in the moung base.
  2). Align the notch to the clip plate, and rotate the enclosure a lile bit.
  3). Tighten the screw to secure the camera on the moung base.

Clip Plate

Figure 2-9 Secure the Camera with Mounng Base

1. Connect the corresponding cables, such as power cord, and video cable.
2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

Pan Posion
[0^ to 360^]

Tilt Posion [0° to 75°] Rotaon Posion [0° to 360°]

Figure 2-10 3-axis Adjustment

1). Rotate the enclosure to adjust the pan posion [0° to 360°].
2). Move the camera body up and down to adjust the lt posion [0° to 75°].
3). Rotate the camera body to adjust the rotaon posion [0° to 360°].

2.3 Installaon of Type IV Camera

Before you start:

Both wall moung and ceiling moung are suitable for the camera. We take ceiling moung as an example in this secon. You can take the steps of ceiling moung as a reference, when adopng wall moung.

Steps:

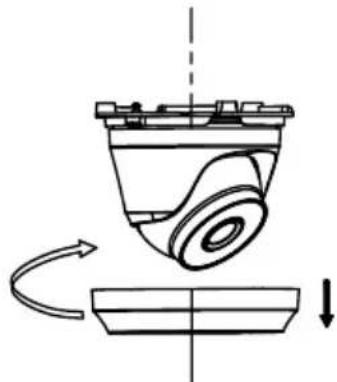

1. Disassemble the turret camera by rotang the trim ring anclockwise to get the trim ring out of the camera as shown in the gure below.

Diagram of a mechanical component with rotation arrows indicating motion (no text or symbols)

Figure 2-11 Get the Trim Ring out

1. Paste the drill template (supplied) to the place where you want to install the camera.

Screw Hole Cable Hole + A Shell Topoole Hole A: for cabling related through screen Screw Hole 1: for mounting base

Figure 2-12 Drill Template

Note:

Drill the cable hole, when adopng the ceiling outlet to route the cable.

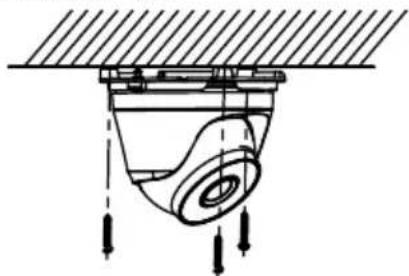

1. Aach the camera to the ceiling, and secure them with supplied screws.

Diagram of a mechanical component with downward force arrows, no text or symbols present

Figure 2-13 Aach the Camera to the Ceiling

Note:

• The supplied screw package contains self-tapping screws, and expansion bolts.

• For cement ceiling, expansion bolts are required to x the camera. For wooden ceiling, self-tapping screws are required.

• Route the cables through the cable hole, or the side opening.

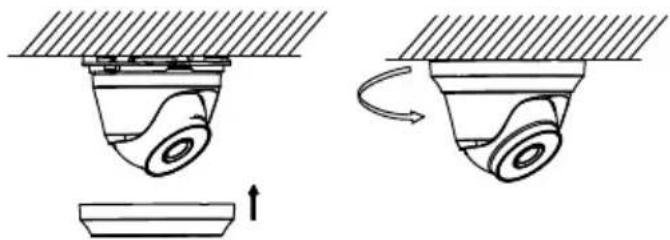

• Put the trim ring back, and ghten it by rotang it clockwise.

Diagram showing two mechanical components with curved arrows indicating rotation or movement (no text or symbols)

Figure 2-14 Put the Trim Ring Back and Tighten It

1. Connect the corresponding cables, such as power cord, and video cable.

2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

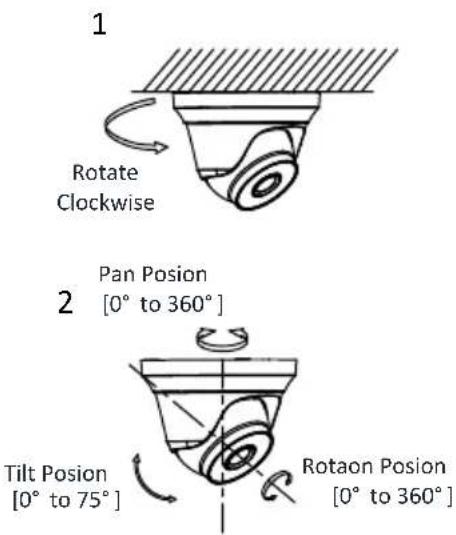

1 Rotate Clockwise 2 Pan Posion [0° to 360°] Tilt Posion [0° to 75°] Rotaon Posion [0° to 360°]

Figure 2-15 3-axis Adjustment

2.4 Installaon of Type V and Type VI Camera

Before you start:

Type V and Type VI cameras share the same installaon, and we take Type VI camera as the example to describe the installaon method.

Both wall moung and ceiling moung are suitable for the camera. Ceiling moung will be taken as an example in this secon. You can take the steps of ceiling moung as a reference, when adopng wall moung.

Steps:

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. Drill the screw holes and the cable hole (oponal) in the ceiling according to the drill template.

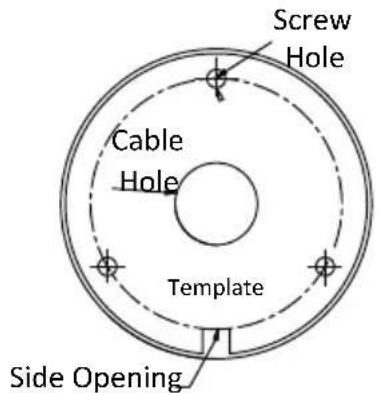

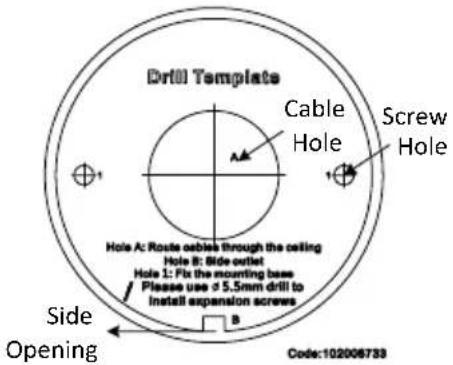

Screw Hole Cable Hole Template Side Opening

Figure 2-16 Drill Template

Note:

Drill the cable hole, when adopng the ceiling outlet to route the cable.

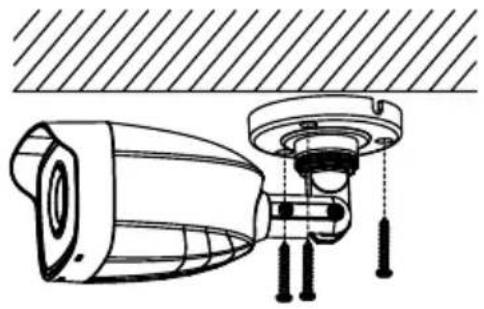

1. Aach the bracket to the ceiling and secure the camera with supplied screws.

Technical line drawing of a security camera with no visible text or symbols

Figure 2-17 Fix the Camera to the Ceiling

Note:

• The supplied screw package contains self-tapping screws, and expansion bolts.

• For cement ceiling, expansion bolts are required to x the camera. For wooden ceiling, self-tapping screws are required.

• Route the cables through the cable hole, or the side opening.

• Connect the corresponding power cord, and video cable.

• Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

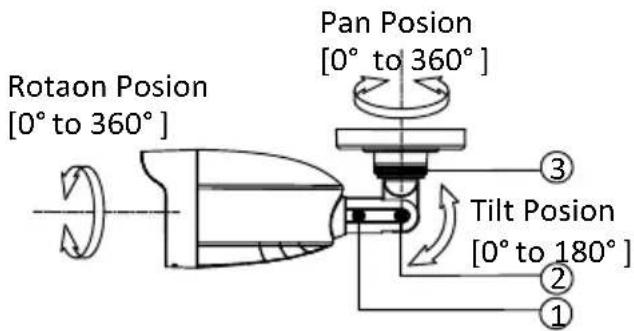

Rotaon Posion [0° to 360°] Pan Posion [0° to 360°] Tilt Posion [0° to 180°] ① ② ③

Figure 2-18 3-axis Adjustment

1). Loosen the No.3 screw to adjust the pan posion [0° to 360°]. Tighten the screw aer compleng the adjustment.
2). Loosen the No.2 screw to adjust the lt posion [0° to 180°]. Tighten the screw aer compleng the adjustment.
3). Loosen the No.1 screw and rotate the camera [0° to 360°]. Tighten the screw aer compleng the adjustment.

3 Menu Descripon

Purpose:

Call the menu by clicking button ☐ on the PTZ Control interface, or click Iris+.

Steps:

1. Connect the camera with the TVI DVR, and the monitor, shown as the gure 3-1.

Camera TVI DVR Monitor

Figure 3-1 Connecon

1. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking ☐ buon, or click Iris+.

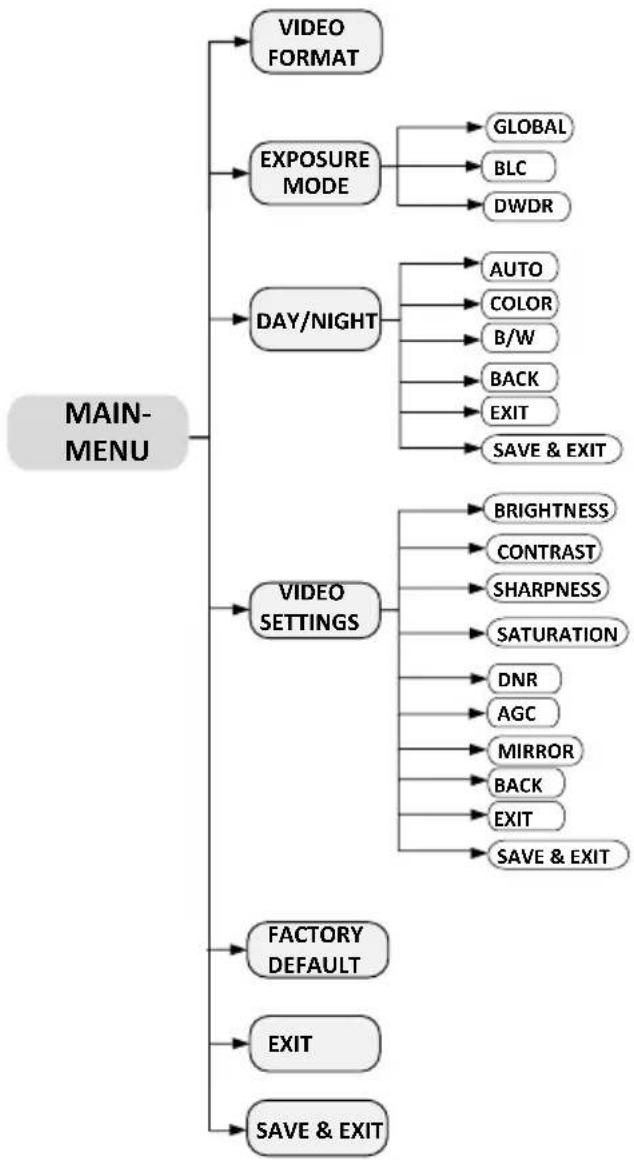


Figure 3-2 Main Menu Overview

1. Click the direcon arrow to control the camera.

1) Click up/down direcon buon to select the item.
2) Click Iris + to conrm the selecon.
3) Click le/right direcon buon to adjust the value of the selected item.

3.1 FORMAT

You can set the format as 4MP@30fps, 4MP@25fps, 2MP@30fps, or 2MP@25ps.

3.2 EXPOSURE

Exposure describes the brightness-related parameters, which you can set the EXPOSURE MODE as GLOBAL, BLC, or DWDR.

- GLOBAL

GLOBAL refers to the normal exposure mode which performs exposure according to the whole image brightness.

• BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensates light for the front object to make it clear, but this may cause the over-exposure of the background, where the light is strong.

- DWDR (Digital Wide Dynamic Range)

DWDR helps the camera provide clear images even under backlight circumstances. When both very bright and very dark areas simultaneously exist in the image, DWDR balances the brightness level of the whole image to provide clear images with details.

3.3 DAY/NIGHT

COLOR, BW (Black White), and AUTO are selectable for DAY/NIGHT switch.

COLOR

The image is colored in day mode all the me.

B & W (Black and White)

The image is black and white all the me, and the IR LIGHT turns on in the poor light conditions. You can turn on/o the IR LIGHT and set the value of SMART IR in this menu

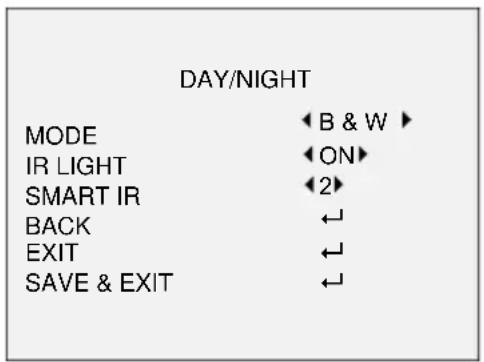

DAY/NIGHT MODE ←B & W → IR LIGHT ←ON→ SMART IR ←2→ BACK ←↓ EXIT ←↓ SAVE & EXIT ←↓

Figure 3-3 B & W

- IR LIGHT

You can turn on/o the IR LIGHT to meet the requirements of dierent circumstances.

- SMART IR

The SMART IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 0 to 3. The higher the value is, the more obvious eects are.

AUTO

Automacally switch Color, or BW (Black and White) according to actual scene brightness.

You can turn on/o the IR LIGHT, and set the value of SMART IR in this menu.

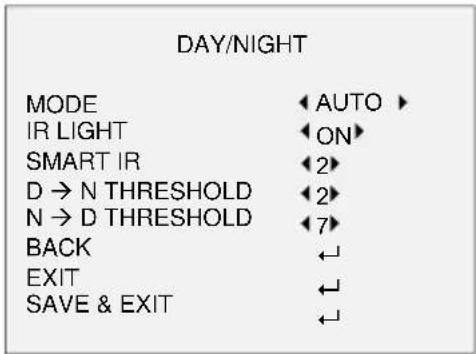

DAY/NIGHT MODE (AUTO) IR LIGHT (ON) SMART IR (2) D → N THRESHOLD (2) N → D THRESHOLD (7) BACK ← EXIT ← SAVE & EXIT ←

Figure 3-4 AUTO

- IR LIGHT

You can turn on/o the IR LIGHT to meet the requirements of dierent circumstances.

• SMART IR

The SMART IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 0 to 3. The higher the value is, the more obvious eects are.

• D→ N Threshold (Day to Night Threshold)

Day to Night Threshold is used to control the sensitivity of switching the day mode to the night mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is.

- N→D Threshold (Night to Day Threshold)

Night to Day Threshold is used to control the sensitivity of switching the night mode to the day mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is.

3.4 VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, DNR, AGC and MIRROR are adjustable.

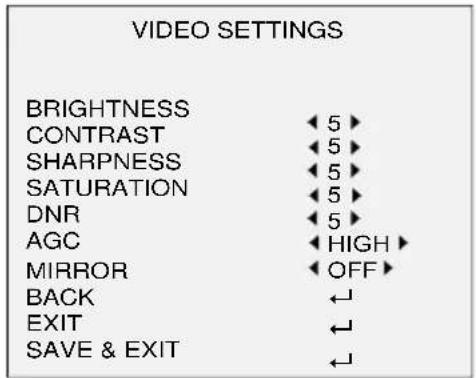

VIDEO SETTINGS BRIGHTNESS CONTRAST SHARPNESS SATURATION DNR AGC MIRROR BACK EXIT SAVE & EXIT 5 5 5 5 5 HIGH OFF

Figure 3-5 VIDEO SETTINGS

BRIGHTNESS

Brightness refers to the brightness of the image. You can set the brightness value from 1 to 9 to darken or brighten the image. The higher the value is, the brighter the image is.

CONTRAST

This feature enhances the dience in color and light between parts of an image. You can set the CONTRAST value from 1 to 9.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 9.

SATURATION

Adjust this feature to change the saturaton of the color. The value ranges from 1 to 9.

DNR (Digital Noise Reducon)

The DNR funcon can decrease the noise eect, especially when capturing moving images in poor light conditions and delivering more accurate and sharp image. You can set the DNR as HIGH, MEDIUM, or LOW.

AGC

It optimizes the clarity of the image in poor light conditions. The AGC level can be set as HIGH, MEDIUM, or LOW. Select OFF to disable the AGC funcon.

Note:

The noise will be amplified when the AGC is on.

MIRROR

OFF, H, V, and HV are selectable for mirror.

OFF: The mirror funcon is disabled.

H: The image ips 180° horizontally.

V: The image ips 180° vercally.

HV: The image ips 180° both horizontally and vercally.

3.5 FACTORY DEFAULT

Move the cursor to FACTORY DEFAULT and click Iris+ to reset all the sengs to the factory default.

3.6 EXIT

Move the cursor to EXIT and click Iris+ to exit the menu without saving.

3.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the sengs, and exit the menu
