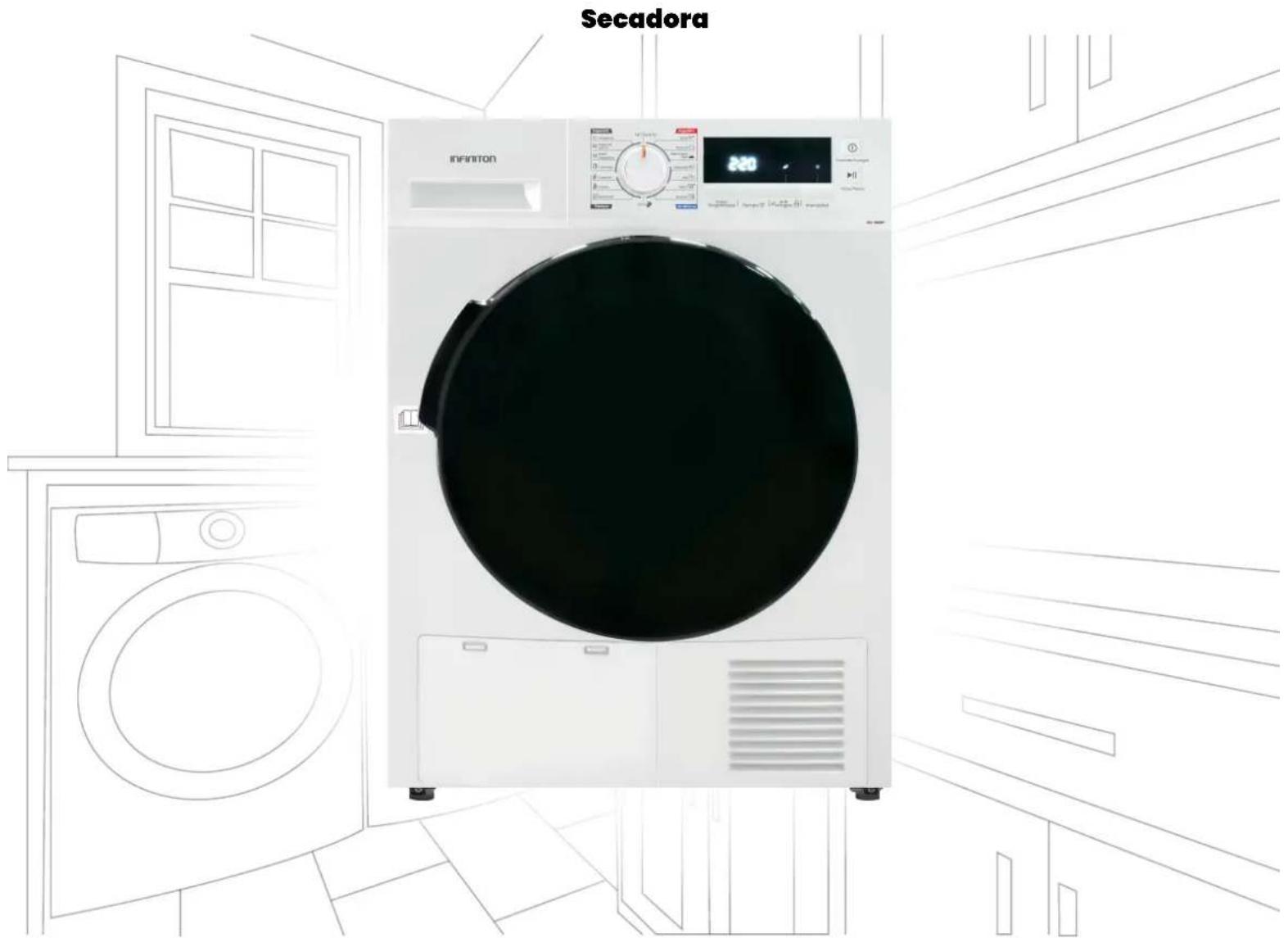

USER MANUAL SD-8NDP Infiniton

Line drawing of an Infiniton washing machine with front door and side door, no text or symbols on the device itself

SD-8NDP
ean: 8436546192282

Simple line drawing of a container with a cross mark on a textured surface (no text or symbols)

Simple line drawing of a container with a circular top and cross mark, resting on a curved surface (no text or symbols)

Simple line drawing of a container with a circular inlet and cross mark, placed on a surface (no text or symbols)

¡ADVERTENCIA!

on no himas W W W≥20mm

Transporte

Two stick figures pulling a large gray rectangular object (no text or symbols)

Close-up of a white mechanical component with a metallic handle, no visible text or symbols

Diagram of a washing machine with a screwdriver inserted, showing no text or symbols on the device itself.

Conexión eléctrica

Diagram illustrating cable installation steps with labeled components and directional arrows

Illustration of a box with an arrow pointing upward, alongside a magnified inset showing a small structure labeled 'A' (no text or symbols on the diagram itself)

Symbol of a trash bin crossed with two crossed lines, representing waste sorting or disposal (no text or labels)

Logo of 'easyplay' play button with red triangle and multicolored segments (no text beyond logo design)

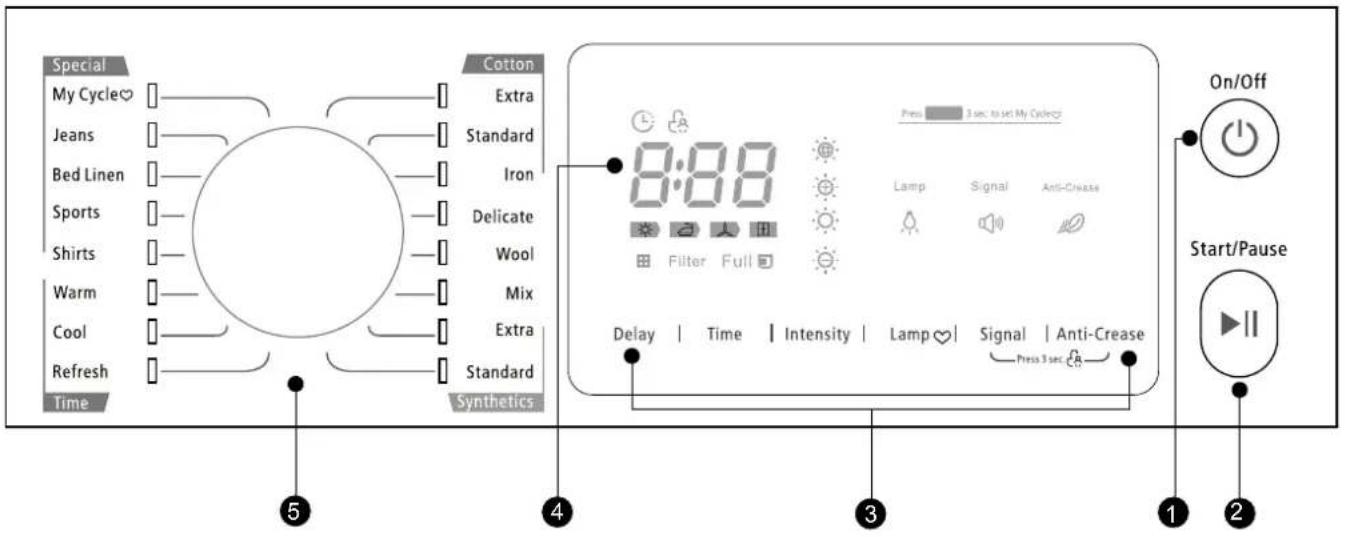

Special My Cycle♥ Jeans Bed Linen Sports Shirts Warm Cool Refresh Time Cotton Extra Standard Iron Delicate Wool Mix Extra Standard Synthetics 8:00 Delay | Time | Intensity | Lamp♥ | Signal | Anti-Creuse Press 3 sec 20 Lamp | Signal | Anti-Creuse On/Off Start/Pause

Line drawing of a washing machine with an open door and a circular vent, showing internal components (no text or symbols)

Two-step diagram showing hand positioning and pouring liquid into a container (no text or symbols)

Technical illustration showing a hand pressing down on a curved component with an arrow indicating force (no text or symbols present)

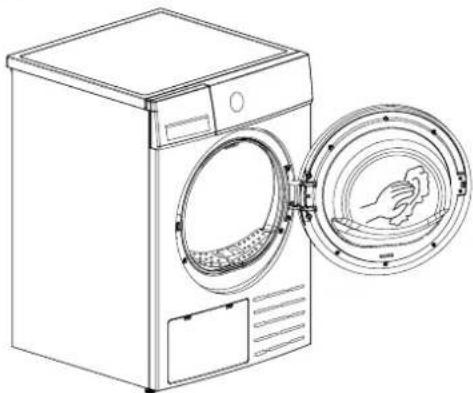

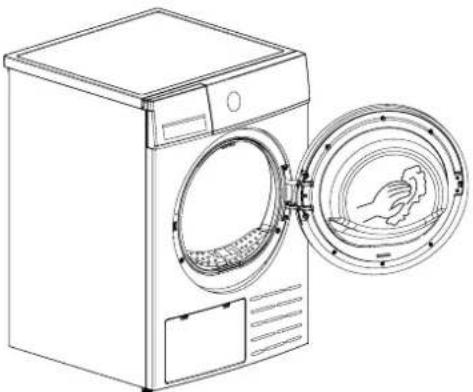

Line drawing of a washing machine with an open door and a hand washing inside (no text or symbols)

Line drawing of an Infiniton washing machine with front door and laundry cabinet (no text or symbols on main body)

SD-8NDP
ean: 8436546192282

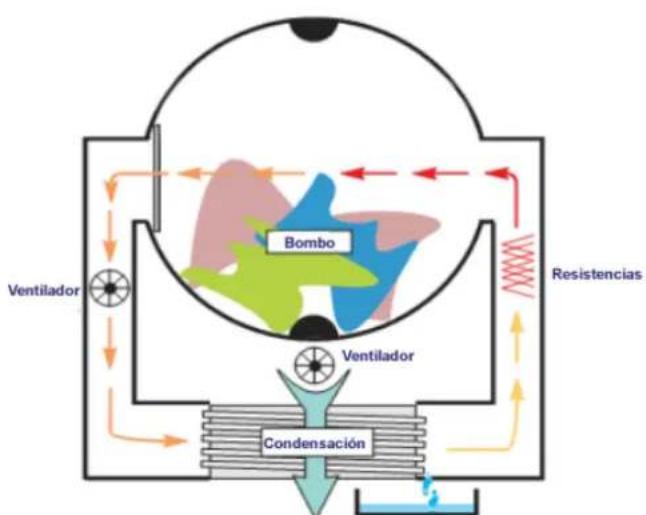

How does a condenser dryer work?

These dryers are a little more sophisticated than the evacuation dryers, the air is also heated by electrical heating elements, but after passing it through the drum (hot and humid air) the humidity is extracted by passing it through a cooled exchanger with the outside air, which causes the humidity to condense in it and fall into a water accumulation tray.

The evacuation dryers we have had up to now work with 100% outside air, which means that a lot of hot, humid air, and therefore energy, is discharged to the outside. In condenser dryers, this air, once dehumidified in the exchanger, is returned to the drum and, although it may be necessary to increase the temperature a few degrees, it is not the same as sucking in cold air from outside again, which saves energy compared to evacuation dryers.

Deodorisation and disinfection

These dryers use steam, which is even hotter than boiling water itself and acts as a disinfectant for the laundry. This is an excellent advantage if your clothes are exposed to bacteria.

Apart from bacteria, the steam also removes odours that have been left on your clothes due to wear and tear.

Wrinkle removal

If you are a busy person and don't have time to iron your clothes or simply don't feel like it, don't worry. With these dryers you only have to put your clothes inside for up to 20 minutes and the steam will make your shirts look fresh, new and wrinkle-free.

This special function makes ironing clothes a quick and easy task.

Installation	29
Safety information	32
Before drying	35
How to use	37
Cleaning & Maintenance	42

WARNING! Specifications for heat pump tumble dryers

1. These tumble dryers must operate in temperatures between 10^ and 25^ ambient temperature.
2. They are not designed for outdoor use.
3. The division of the fabrics prior to the drying process will define the drying result. If you wish to mix types of fabrics, you must operate the dryer in manual format.

Do you have problems with the drying of your laundry?

Here we explain how to solve the main questions that arise among users of these products that require special knowledge and extreme care in use. This dryer works by condensation. A temperature sensor will

detect the load of laundry and its humidity.

We have two TYPES OF FUNCTIONS:

• Synthetic

• Cotton

• When using the synthetic function, the garment material should also be synthetic.

• When using the cotton function, the garment material should also be cotton.

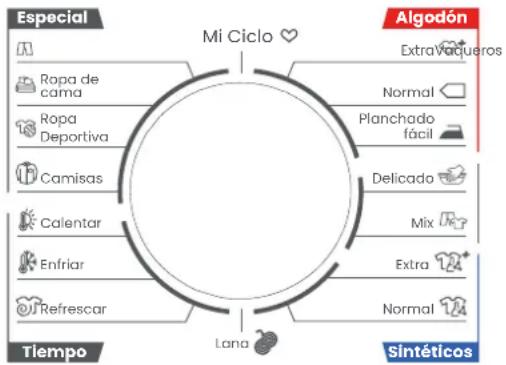


In this first point, we must take into account that the nominal load of the dryer must be wet. For example, 8KG of dry towels is not the same as 8KG of wet towels (where there will be much less towels if they are wet).

The humidity sensor is designed to work with this load, so in many occasions we will find:

• An inferior load of laundry.
• Clothes that are too small (underwear or small garments).

These parameters will not be detected by the sensor and it will "think" it is dry after a few minutes of work, leaving the clothes damp or without drying.

How do we solve this problem? By running the dryer by the minute and not by sensor.

To do this, select the programme for heating. After this, we select the time and increase it to:

• 60 minutes for light laundry.
  • 120 minutes for a medium load of 5KG.
  • 160 minutes for a 7KG load.

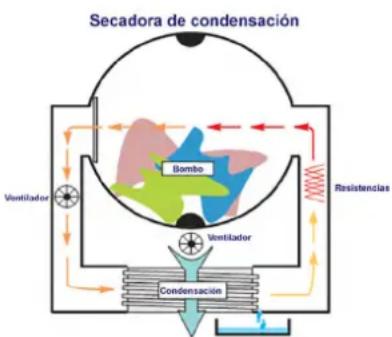

These dryers are a little more sophisticated, as they heat the air by means of electrical resistances, but after passing it through the drum (hot and humid air) they extract the humidity by passing it through an evaporator cooled by the outside air, which causes the humidity to condense in it and fall into a water collection tray.

In these dryers, the air, once dehumidified in the evaporator, is sent back to the drum so that it does not have to take in cold outside air again, saving energy compared to evacuation dryers.

Location

Before installing this Infiniton appliance, you must choose a location that meets the following requirements:

1. Rigid, dry and level surface

2. Avoid direct sunlight

3. Sufficient ventilation

4. The ambient temperature must be above 0°C

5. Keep the appliance away from any heat source (cookers, boilers, radiators, etc.).

6. Install the appliance in a clean place, where there is no accumulation of dirt. Do not obstruct the air inlets of the product.

WARNING! Stability is important to prevent the appliance from moving. Ensure that the product is level and stable. To ensure that the vibration and noise levels emitted by the appliance during operation are normal, the appliance should be placed on a firm and level surface.

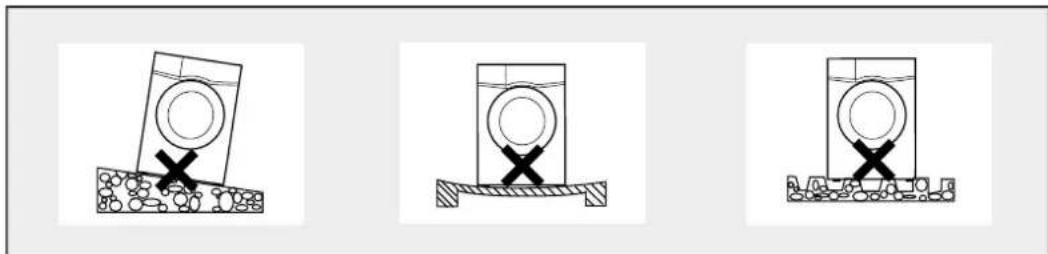

Three diagrams showing a container with cross marks placed on a surface, no text or symbols present.

WARNING! Make sure the power cable is not trapped or damaged is not trapped or damaged.

WARNING! Be sure to maintain the minimum distances from the walls, as shown in the picture on the right.

om the W W≥20mm

Transport

Move the appliance with extreme care. Do not grip any protruding parts of the product. The door of the product must not be used as a carrying handle under any circumstances. If the appliance cannot be transported in an upright position, it can be tilted to the right less than 30^ .

Risk of damage and injury! Improper handling of the appliance may cause injury.

⚠️ Important! The appliance is very heavy, please never carry the appliance alone;

always do so with the help of another person.

Remove all obstacles from the transport route and the installation site:

- Open doors and remove objects on the floor.

Do not use the open door as a support point.

Remove all packing materials before using the appliance.

Before installing the product, check it for externally visible damage.

Do not install or use the appliance if it is damaged.

Two stick figures pulling a large gray rectangular block (no text or symbols)

Do not install the appliance in a room where there is a risk of frost. At temperatures close to freezing point, the product may not operate properly. There is a risk of damage if condensed water is allowed to freeze in the pump and hoses.

Levelling

Once you have positioned the appliance in its normal place of operation, make sure that it is completely level. To do this, you should use a spirit level. If the appliance is not completely level, you should adjust the legs according to the following figure:

Close-up of a white mechanical component with a metallic handle, no visible text or symbols

1. Loosen the counter nut
2. Turn the foot until it reaches the floor
3. Adjust the feet and lock the nuts with a spanner.

It is possible that the levelling feet adjustment system may be different from the illustration above and may be more in line with the following:

Diagram of a washing machine with a screwdriver inserted, showing mounting base and door panel (no text or symbols)

Electrical connection

This appliance must be grounded for safety. The power cord of this appliance is equipped with a three-prong plug that fits into a standard three-prong outlet to minimize the possibility of electric shock. Do not, under any circumstances, cut or remove the third grounding prong from the supplied power cord.

Do not cut or remove the third grounding prong of the supplied power cord under any circumstances. This appliance requires a standard 220-240V-50/60Hz three-prong grounded outlet. The cord must be secured behind the appliance and must not be left unattended. appliance and should not be left exposed or dangling, thus avoiding accidents and/or injuries.

Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull it out. Do not use an extension cord with this appliance. If the power cord is if the power cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. The use of an extension cord may adversely affect the performance of the unit.

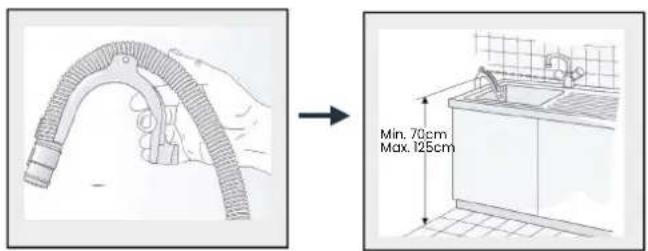

Drain hose connection

The end of the drain hose must be connected directly to the drain or sink.

WARNING! Do not kink or lengthen the drain hose, otherwise it may be damaged due to possible water leakage.

If the drain hose comes out of its housing during water drainage, your home could be flooded and you could suffer burns due to the high water temperatures during the washing process. during the washing process. Securely fix the drain hose to avoid these situations and to ensure that the drainage situations and ensure that the water intake and drainage processes take place safely.

There are two ways of attaching the intake end of the drain hose:

Min. 70cm Max. 125cm

Option 1. Place the end of the drain hose into the sink, using the clamp provided, as shown in the picture.

Max. 100cm Min. 60cm

Option 2. Connect the end of the drain hose directly to the sink drain socket, as illustrated in the picture.

Note: In case you connect the drain hose as option 1, To prevent backflow of dirty water into the machine and to facilitate draining, do not immerse the end of the hose into the dirty water and do not insert it into the drain more than 15 ~cm .

Quick start

Before use, make sure that the dryer is installed correctly.

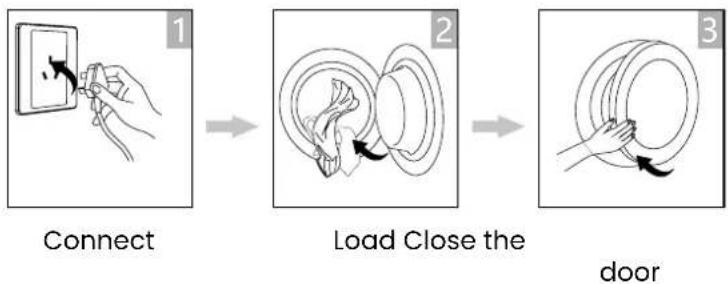

Before each drying

Drying

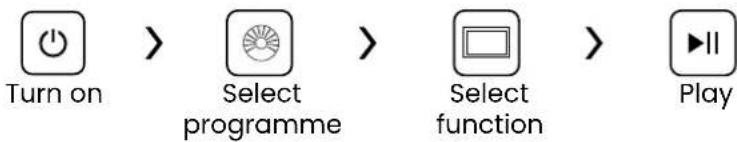


After drying

When the drying programme is finished, a beep will sound and the display will show "0:00".

Diagram illustrating cable installation steps with labeled components and directional arrows

Note: If using the socket with a switch, press the switch to turn off the power directly.

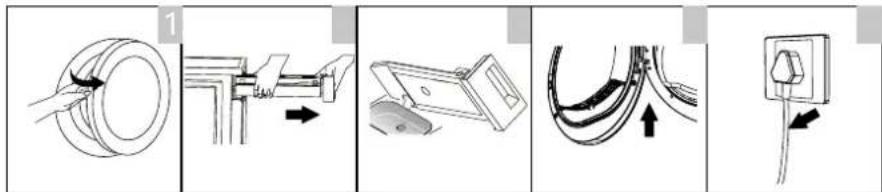

1. Open the door and take out the clothes.

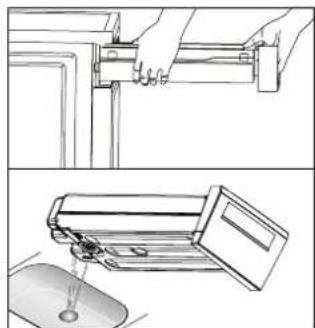

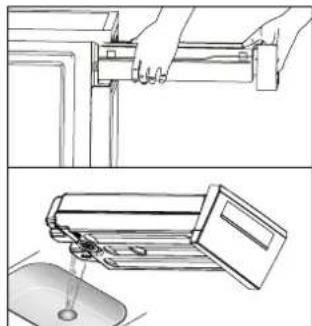

2. Take out the tank.
3. Pour out the condensed water.

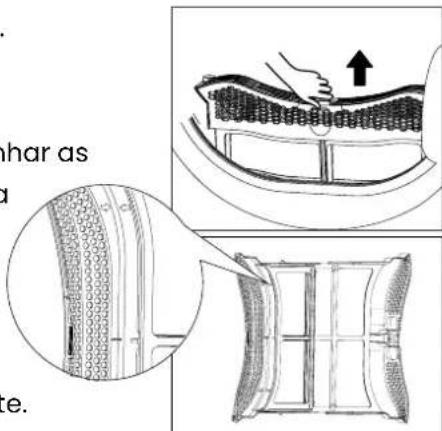

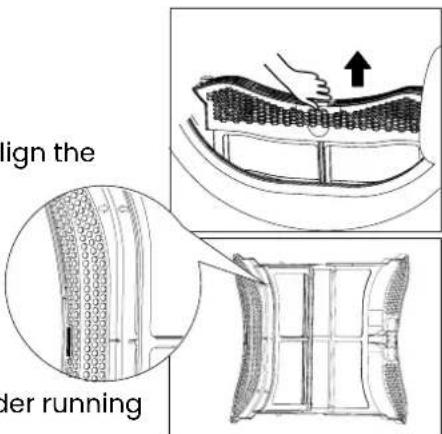

4. Clean the door filter.
5. Switch off.

General security information

For your safety and to ensure correct use, before installing and using the device for the first time, please read this user manual carefully, including its tips and warnings. To avoid unnecessary errors and accidents, it is important to ensure that all persons using the device are thoroughly familiar with its operation and safety features. Keep these instructions and ensure that they remain with the device if it is moved or sold, so that all those who use it throughout its lifetime are properly informed about the use and safety of the device.

For the safety of life and property, observe the precautions in these user instructions, as the manufacturer is not liable for damage caused by omission.

Safety of children and vulnerable people

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children up to 8 years of age can charge and discharge this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are 8 years of age or older and supervised.
• Keep all containers away from children. There is a risk of suffocation.
• If you are discarding the appliance, pull the plug out of the socket, cut the power cord (as close to the appliance as possible) and remove the door to prevent children from getting an electric shock if it falls or closes.

Electrical connections

• Make sure that the power cord is not trapped by the appliance, as this could damage it.
• Connect the appliance to a grounded socket outlet protected by a fuse that complies with the values in the "Technical specifications" table.
• The installation of the earth connection must be carried out by a qualified electrician.
• Ensure that the machine is installed in accordance with local regulations.
• Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

WARNING! Do not use multiple plugs or extension cords.

WARNING! The product must not have an external switching device, such as a timer or be connected to a circuit timer or connected to a circuit that switches on and off regularly.

WARNING!

WARNING!

WARNING!

WARNING!

Do not disconnect the plug from the socket if there are flammable gases nearby.

Never pull out the plug with wet hands.

Always pull the plug, not the cable.

Always unplug the product when not in use.

Unpacking the appliance

WARNING! Packaging material (e.g. film, polystyrene foam) can be dangerous for children.

Risk of suffocation! Keep all packaging out of the reach of children.

1. Remove the cardboard box and the Styrofoam packaging.
2. Lift the washer and remove the packaging from the base.
3. Make sure to remove the small triangular foam (A) together with the bottom packaging. Otherwise, place the unit on a side surface and remove it manually.
4. Remove the tape securing the power cord and drain hose.
5. Remove the inlet hose from the drum.

Diagram of a box with an arrow pointing upward, showing a magnified view of a small structure labeled 'A' (no text or symbols present)

Service & Disposal

• Any electrical work required to service the appliance must be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🙏 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Twist and go!

Normally washing machines come with dozens of programmes, and Infiniton does too, but the reality is that we only use 3 of them. Synthetic, cotton and 30/40 degrees. That's why simplifying things is thinking about the customer. We assure you that our seniors will appreciate the efficiency and simplicity. Put Easy Play in your life. Turn the wheel, press play and that's it. Your clothes will be washed to perfection depending on the time you have available.

Colorful play button logo with triangular design and 'easyplay' text (no additional symbols or text)

What's Easy play technology?

Introducing the easiest to use Infiniton washing machines. Infiniton washing machines with Easy Play technology are essentially the solution to do the laundry quickly and optimally.

At Infiniton we have a clear philosophy; technology should be within everyone's reach to improve our lives. An accessible and non-exclusive good.

Easy Play, a child's game!

With Easy Play technology in Infiniton washing machines, doing the laundry will be easier than ever. This technology helps you to program the washing machine in an intuitive way so that you don't have any problems in your day-to-day life. Select the temperature and type of fabric depending on the clothes you are going to wash, so you can be sure that your clothes will be perfect.

1

Turn on Select the

the right programme

8:88 3

Select the function or keep the default settings

Hand icon showing a finger pressing a play button with a double vertical line, labeled with number 4 in the corner.

Press Start/Pause to start the programme

Why Easy Play is essential?

Infiniton simplifies your life with our washing machines. These washing machines develop the best technology to make your life much easier.

Doing the laundry is no longer a chore. Make Easy Play and spend your time on the things that really matter. These washers not only take care of your most delicate clothes, they also protect everyday fabrics and textures.

Allow to stand for 2 hours after transport and before the first use, use a soft cloth to clean the inside of the drum.

Place some clean cloths in the drum.

Connect it to the power supply, press On / Off.

Select a programme and press Start / Pause button.

After finishing this programme, follow the "cleaning and care" instructions to clean the filter door.

During drying, the compressor and water will generate a noise which is completely normal.

1. Before drying, spin the laundry well in the washing machine. Centrifuging the laundry at high speed shortens the drying time and saves energy.
2. To obtain an even drying result, sort the laundry according to the type of fabric and select the appropriate drying programme.
3. Before drying, close zips, hooks, buttons, fabric belts, etc.
4. Remove all items from pockets, such as lighters and matches.
5. Sew or remove rings from zips.
6. Close duvet and pillow cases to prevent small items from rolling around inside.
7. Leave jackets open and undo long zips to allow textiles to dry evenly.
8. Do not over-dry clothes, as clothes that are too dry can easily wrinkle.
9. Do not dry garments containing rubber or similar elastic materials.
10. Keep the area around the dryer clean. Coal dust or flour may cause an explosion.
11. The door should only be opened after the end of the tumble dryer programme to avoid steam burns.
12. Clean the lint filter and empty the water container after each use to avoid prolonged drying time and increased energy consumption.
13. Do not dry the laundry after the dry-cleaning process.

Jersey(mixed 800g)	Jackets(800g cotton)	Jeans(800g)	Towels(900g cotton)
Bed linen(Cotton 600g)	Daily clothing(1120g)	Pyjamas(200g)	Shirts(300g cotton)
T-shirts(cotton 180g)	Underwear(cotton 70g)	Socks(mixed fabric 50g)

Note: We recommend not to use more load than the recommended nominal load. Do not dry laundry that is too wet, as this may damage the dryer.

Labelling

The following icons provide care instructions for each garment. The garment label contains symbols for washing, bleaching, drying and ironing, or dry cleaning if necessary. Follow the instructions on the label to prolong the life of the garment and reduce laundry problems.

Washing

Boiling wash at 95°C

Colour wash at 60°C

Colour and delicate wash at 60°C

Colour wash at 40°C

Gentle wash at 40°C

Very gentle wash at 40°C

Delicate wash at 30°C

Gentle delicate wash at 30°C

Very gentle delicate wash at 30°C

Hand wash

Do not wash

Note: The number shown in the drawing specifies the maximum wash temperature in degrees Celsius which must not be exceeded.

Ironing

Ironing at a max. temperature of 200°C.

Ironing at a max. temperature of 150^ C.

Ironing at a max. temperature of 100^ C.

Do not iron

Note: Dots indicate ironing temperature ranges (regulator, steam, travel irons and ironing machines).

Drying

Suitable for tumble dryer

Tumble dry/ tumble dry at 80°C normal

Tumble dry/ tumble dry at 60°C mild

Do not tumble dry

Line drying

Line drip dry

Flat tumble drying

Fet drip-drying

Line drying in the shade

In-line drip-drying in the shade

Horizontal shade drying

Horizontal drip-drying in the shade

Note: The dots indicate the drying level of the tumble dryer and the lines indicate the type and position of drying.

Bleach

Any type of bleach

Oxygen bleach only

Do not use bleach

Note: Do not use more detergent than recommended by the product manufacturer.

Note: Use stain and bleach removers before the washing cycle and only when necessary.

Note: Save water and electricity by always loading the washing machine to the maximum load (the exact amount of laundry depends on the programme used).

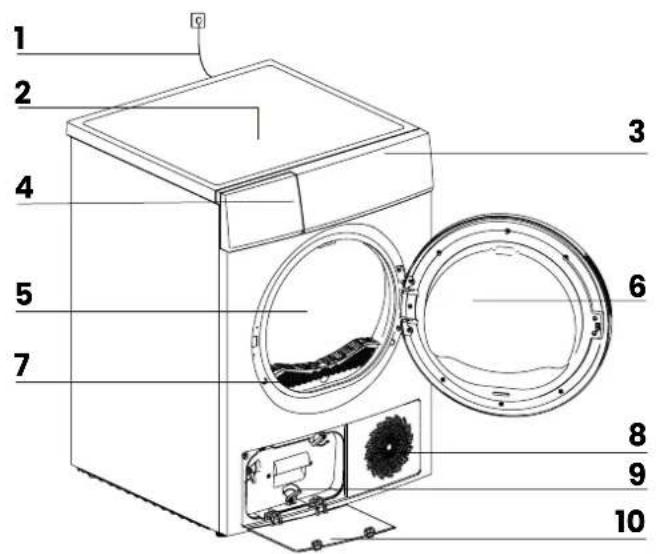

Product parts

Due to technological innovations, the product description in this manual may not completely match your appliance. More detailed information corresponds to the final product.

Labeled diagram of a washing machine with numbered parts for identification

1 Power cable

2 Top cover

3 Control panel

4 Water tank

5 Drum

6 Door

7 Door filter

8 Air inlet

9 Filter in base

10 Protective cover

Accesories

The following parts are optional for specific models. If your tumble dryer has the following parts, use gloves to install them according to the instructions below.

Hose holder

Condensation drain hose Connector

Model SD-8NDP
Drying type Condenser
Product dimensions (height x width x depth) 845 x 595 x 615mm
Maximum load capacity (Kg) 8
Rated voltage and frequency 220-240V ~ 50Hz
Ambient operating temperature 5°C ~ 35°C
Net weight (Kg) 41
Power 2700W
Number of programmes 9

Note

The rated capacity is the maximum capacity of laundry that can be dried at one time. Make sure that the laundry loaded in the product does not exceed the rated capacity.

Do not install the dryer in a room where there is a risk of frost. At temperatures close to freezing point, the dryer may not work properly.

There is a risk of damage if condensed water is allowed to freeze in the pump, hoses and/or condensed water container.

Control panel

Special My Cycle♥ Jeans Bed Linen Sports Shirts Warm Cool Refresh Time Cotton Extra Standard Iron Delicate Wool Mix Extra Standard Synthetics 8:00 Delay | Time | Intensity | Lamp♥ | Signal | Anti-Crease Press 3 sec. to set My Colorz Lamp Signal Anti-Crease Filter Full On/Off Start/Pause 1 2

1 ON / OFF

2 START / PAUSEPress the button to start or pause the drying cycle.

3 OPTIONSThese buttons are configured to add special functions.

4 D SPLAYThe display shows the settings, estimated remaining programme time and status messages of your tumble dryer.

5 PROGRAMMESDifferent drying cycles can be selected according to the user's needs and the type of laundry to be dried.

Options for special functions

Programmed start

This function allows you to delay the start of the drying programme for up to 24 hours. When this programme is started, the time starts to decrease on the display and the programmed start icon flashes.

1. Load the laundry and make sure that the door of the dryer is closed.
2. Press the (On/Off) button and then use the programme selector knob to select the desired programme.
3. You can also select the (Wrinkle Control) or (Signal) function according to your needs.
4. Press the (Delay) button.
5. Press the (Delay) button repeatedly to select the desired delay time.
6. After pressing the (Start/Pause) button, the dryer is ready for operation. The drying procedure will be performed automatically when the delay time is over.
7. If you press the (Start/Pause) button again, the delay function will be paused.
8. If you want to cancel the function, press (On/Off) button.

Time

When (Warm) or (Cool) or (Refresh) programme is selected, you can use (Time) button to set the drying time in 10-minute intervals.

Intensity

You can adjust the drying level of the laundry by pressing the (Intensity) button.

There are four levels.

1. The Intensity function can only be activated before the programme starts.
2. Press the (Intensity) button repeatedly to increase the degree of drying.
3. Except for the programmes (Cotton), (Delicate), (Wool), (Hot), (Cold), (Cool), all other programmes can be set with the (Intensity) function.

Light

The drum light will be on for 3 minutes when the button is pressed and for 1 minute when the door is open.

Acoustic signal

Activates or deactivates the acoustic signal. By default, the signal is activated.

When the signal is activated:

1. The dryer will beep to indicate that the function button has been pressed.
2. If the programme button is turned while the dryer is running, the acoustic signal will remind the user that this is an invalid operation.
3. When the drying programme is finished, a beep will sound.

Anti-wrinkle

At the end of the drying cycle, the crease prevention time is 30 minutes (default) or 120 minutes (selected). This function prevents the laundry from creasing. Laundry can be removed during the crease prevention phase.

Except for (Cold), (Wool) and (Refresh), all other programmes have this function.

My Cycle

Used to define and save your favourite, most frequently used programme.

1. Select the desired programme and other drying functions.
2. Press and hold (Light) for 3 seconds until a beep sounds and the desired programme is saved.
3. Turn the programme selector to position (My Cycle) and you can start your favourite programme. If you want to change the setting (My Cycle), repeat steps (1) and (2).

Child Lock

1. This dryer is equipped with a special child safety lock, which can prevent children from inadvertently pressing the buttons or performing an incorrect operation.
2. When the drying cycle is running, press the (Anti-wrinkle) and (Signal) buttons at the same time for 3 seconds to start the child lock function.
3. When the child lock function is activated, the display will show the child lock icon and all buttons will be disabled except the (On/Off) button.
4. To deactivate the child lock function, press the (Anti-wrinkle) and (Signal) buttons at the same time for 3 seconds.

Display

	Programmed start
	Child Lock
	Remaining time indicator / error message
	Cycle phase status
	Clean filters (warning)
	Empty water container (warning)
	Intensity (four grades)
	Light
	Acoustic signal
	Anti-wrinkle
	My Cycle

Programmes

Programme selector

1. When the LED display lights up, turn the programme selector to select the desired programme.
2. Select (Programmed Start), (Time), (Intensity), (Wrinkle Control) or (Lamp) functions for additional options.
3. Press the (Start/Pause) button.
4. Press the (On/Off) button when the programme is finished.

Starting the selected programme

Once the programme has started, the drum will rotate. The cycle phase LED on the display will light up and the remaining programme time will be shown.

End of selected programme

1. Once the programme has finished, the drum will stop rotating. The display will show "0:00", the cycle phase LED will show "End" and the corresponding LED will also light up. The dryer will start the (Anti-wrinkle) function if the user does not remove the load (See page 17).

Press the (On/Off) button after unloading the tumble dryer to turn off the power and unplug the tumble dryer.

1. Troubleshoot the problem according to the "Troubleshooting" section, if an unexpected stop occurs during the drying process or if the dryer displays an error code (See page 27).

Programme's table

PROGRAMME MAX.		LOAD	USE DELAY TIME
Cotton Extra	8.0Kg		For single or multi-layered cotton clothing that must be completely dry for direct storage.	Yes No
	Standard
	Iron
Delicate 1.0Kg			For single ply cotton linen to remain damp for ironing.	Yes Yes
Mix 3.5Kg			For cotton/synthetic blended fabrics.	Yes No
Synthe-tics	Extra 3.5Kg		For complete drying of thick or multi-laye-red synthetic fabrics.	Yes No
	Standard		For drying thin synthetic fabrics, which are not ironed, such as soft care shirts, baby cloths or socks.
Wool 1.0Kg			To refresh your woollen garments and make them cooler and fluffier.	Yes No
Special Jeans 4.0Kg			For drying jeans or sportswear that are spun at high speed in the washing machine.	Yes No
Shirts 1.0Kg			For soft care laundry, such as shirts and blouses equipped with anti-wrinkle function to minimise ironing effort. Place clothes loosely in the tumble dryer. Once dry, take them out quickly and hang them on a hanger.
My Cycle ----			Set and save your favourite programme	Yes ----
Time Warm	----		To dry single items or to complete the drying process of multi-layer fabrics with different drying behaviour, such as jackets, pillows or bulky items. Min. 10 min. to max. 150 min. (in steps of 10 min.)	Yes Yes
	Cool ----		For airing items without heating. Min. 10 min. to max. 30 min.(in steps of 10 min.)
	Refresh	1.0Kg	To freshen clothes stored in a closed environment for a long time or to remove odours. Min. 20 min. to max. 220 min.(in steps of 10 min.)

NORMAL programme test according to Regulation 392/2012/EU for energy labelling, measured according to EN 61121 and suitable for normal load drying of cotton at nominal load capacity.

WARNING! Before cleaning, unplug the power plug first; do not connect or disconnect the power plug with wet hands, as there is a risk of electric shock and injury.

Do not spill water directly on the appliance, thus avoiding rust, electricity leakage and accidents.

Regular cleaning of this appliance helps to prolong its life.

External cleaning

Clean dust accumulated on the surface of the appliance frequently.

After using detergent, be sure to rinse it with clean water and then wipe it dry with a cloth.

Note: Never use metal scouring pads as this may damage painted, chrome and plastic surfaces.

WARNING! Do not use bristle brushes, wire brushes, detergent, soap powder, alkaline detergent, benzene, gasoline, acid, hot water and other corrosive or soluble elements to clean the surface of the appliance, door gasket, plastic decorative parts, etc. to avoid damage. Carefully dry the door gasket, clean the groove with a wooden stick wrapped with cotton thread.

Cleaning the door

Clean the glass and door gasket after each wash to remove possible lint and/or detergent/softener residues, as leaks may occur.

If any rust stains are found inside the drum, they should be removed with non-chlorine detergent.

Line drawing of a washing machine with a hand cleaning the door (no text or symbols)

Cleaning the water tank

Pull out and hold the water container with both hands.

Tilt the water container, pour the condensed water into the sink. Install the water container.

Note:

Empty the water container after each use. Once the water container is completely full, the programme will stop and the word "Ful" will appear on the display.

After emptying the container, the dryer can be restarted by pressing the Start / Pause button.

- Do not drink the condensed water.

- Do not use the dryer without the water container.

Two-step diagram showing hand positioning and pouring liquid into a container (no text or symbols)

Cleaning the filters

This tumble dryer has a main lint filter in the door.

Be sure to clean the door filter after each cycle.

Note:

In order for the double-layer filter to close smoothly, it is necessary to align the arrows at both ends, as well as the centre slot and the side slot.

slot.

Cleaning the door filter

1. Open the door.

2. Remove the door filter.

3. Open the filter and remove the lint from the filter, you can clean it under running water.

4. Dry the door filter thoroughly before reinstalling it.

Observe the correct orientation before inserting the door filter.

align the der running

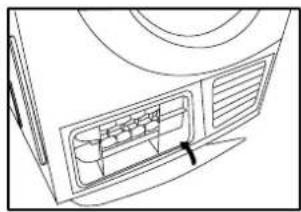

Cleaning the air condenser

Let the dryer cool down.

Some water may come out, place a cloth or absorbent paper.

Line drawing of a computer monitor with ventilation slots and a scroll wheel (no text or symbols)

Diagram of a computer monitor with internal components and directional arrows indicating flow (no text or symbols)

Diagram showing airflow or ventilation process with a fan, vent, and exhaust pipe (no text or symbols)

Line drawing of a computer monitor with ventilation slots and an arrow pointing to the front panel (no text or symbols)

1. Open the cover and the lid on the bottom of the tumble dryer.
2. Leave the cover fully open.
3. Insert the two locking levers.
4. Put the air condenser into water.
5. Clean the air condenser thoroughly and drain it well.
6. Clean and dry the gaskets.
7. Reinsert it.
8. Loosen the two locking levers.
9. Close the bottom cover until it clicks into position.

- Clean only with lukewarm water; do not use hard or sharp-edged objects in the dryer without the air condenser!

- During drying, water may accumulate between the groove and the gasket, but this does not affect the operation of the dryer.

Drum cleaning

• Disconnect the power cord before cleaning.
• Clean the dryer with a damp cloth that is moistened with clean water only.
• Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. They may damage plastic surfaces and other parts.
  • Use gloves for cleaning.

Line drawing of a front-loading washing machine with a hand washing the door (no text or symbols)

• Prepare a damp cloth dampened with clean water.
- Clean the door, especially the inner window.
- Clean the seal around the door opening.
- Clean the humidity sensor inside the drum.
- Remove all filters, clean the seal and air flow openings.
• Before starting the dryer, dry all parts with a soft cloth.

Troubleshooting

Whenever there is a problem with the appliance, check if you can solve it by following the tables below. If the problem persists, contact customer service.

DESCRIPTION SOLUTION
Display does not light up Check if the power supply is working.Check if the mains plug is inserted.Check the selected programme.Press the (On/Off) button.
"Ful" is flashing Check the water tank. If it is full, pour out the condensed water and restart the dryer. If the tank is not full, restart the dryer directly.If the "ful" icon is still on after performing the first two steps, please call for service.
Filter icon is flashing Clean the lint filter
Dryer does not start Connect the tumble dryer to the mains.Switch on the dryer.Check that the door is closed.Check that the programme is set.Press the (Start / Pause) button.
Dryness degree was not reached or drying time was too long	Clean the lint filter and the evaporator.Empty the water tank.Check the drain hose.Check that the installation location is suitable.Keep the air inlet clean.Use a programme with a higher drying intensity level or a time programme.
Buzzing sounds are heard The compressor is running. These noises are quite normal and do not indicate a fault.
Dryer switches off at the end of each programme	The dryer switches off automatically to save energy. This is not a fault, but a normal function.

Note

If you cannot solve the problems yourself and need help:

- Press the button (On / Off).

- Disconnect the mains plug from the mains and call for service.

Error code

Many faults and malfunctions that can occur in daily operation can be easily remedied. You will save time and money because there is no need to call a service technician.

The following guide can help you find the reason for a malfunction and correct it.

DESCRIPTION	POSSIBLE CAUSE SOLUTION
E32	Humidity sensor error Contact your	local service centre if this pro-blem occurs.
E33	Temperature sensor error
E82	Communication error

Note

Repairs may only be carried out by authorised technicians.

- If the LED shows another indication and the dryer does not work, call for service.

Before calling for service, check whether you have solved the problems yourself by referring to the operating instructions.

by referring to the operating instructions.

Product sheet

Model SD-8NDP
Rated capacity 8.0kg
Dryer type Condensación
Energy efficiency class B
Weighted Annual Energy Consumption (AE) 560.2kWh/year
Automatic or non-automatic Automático
EU Ecolabel N/A
Energy consumption of standard cotton programme
Weighted energy consumption of the standard cotton programme at full load 4.73kWh
Energy consumption of the standard cotton programme at partial load 2.55kWh
Power consumption of off mode (Po) 0.4W
Power consumption of on mode (PI) 0.6 W
Duration of left-on mode 10 min
Programme time of the "cotton standard programme"
Weighted programme time of the cotton standard programme at full and partial load	111min
Programme time of the cotton standard programme at full load 140min
Programme time of the cotton standard programme with partial load 90min
Condensation efficiency class from A (most efficient) to G (least efficient) B
Average condensing efficiency of the cotton standard programme at full load
Average condensing efficiency of the standard cotton programme at part load	81%
Weighted condensing efficiency for cotton standard programme at full and partial load	81%
Sound power level of cotton standard programme at full load	65dB

(*) Energy consumption per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low power modes.

Actual energy consumption per cycle will depend on how the product is used. The "Standard Cotton" programme used at full and partial load is the standard drying programme referred to in the information on the label and in the fiche.

This programme is suitable for drying normal damp cotton laundry and is the most energy efficient programme for cotton.

INFINITON

Secadora INFINITON

SD-8NDP
ean: 8436546192282

Simple line drawing of a mechanical component with a cross mark, no text or symbols present

Simple line drawing of a container with a cross mark on a base, no text or symbols present.

Simple line drawing of a washing machine with a circular component and cross symbol, placed on a surface (no text or labels)

do mas W W W≥20mm

Transporte

Two stylized human figures carrying a large gray block, no text or symbols present

Diagram of a washing machine with a red-handled tool inserted, showing no text or symbols on the device itself.

Conexão eléctrica

Diagram illustrating cable installation steps with labeled components and directional arrows

Illustration of a box with an arrow pointing upward, next to a magnified inset showing a building labeled 'A' (no text or symbols on the main diagram)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Logo featuring a red play button inside a triangular shape with multicolored segments and the word 'easyplay' below (no additional text or symbols)

Labeled diagram of a washing machine with numbered parts for identification

Special My Cycle♥ Jeans Bed Linen Sports Shirts Warm Cool Refresh Time Cotton Extra Standard Iron Delicate Wool Mix Extra Standard Synthetics 8:00 Delay | Time | Intensity | Lamp♥ | Signal | Anti-Creuse Press 3 sec. to set My Cycling Lamp Signal Anti-Creuse Filter Full On/Off Start/Pause

Line drawing of a front-loading washing machine with a hand cleaning the door (no text or symbols)

Two-step diagram showing a hand holding a mechanical component and a close-up of a device with liquid being poured into a basin (no text or symbols)

har as e.

Limpeza do condensador de ar

Deixar arrefecer a máquina de secar roupa.

Line drawing of a projector with internal components and a paperclip (no text or symbols)

Diagram of a computer monitor with ventilation slots and airflow arrows (no text or symbols)

Diagram showing airflow or heat transfer between a device and a chamber (no text or symbols)

Line drawing of a projector with internal components and a handle (no text or symbols)

Line drawing of a washing machine with an open door and a circular vent, showing internal components (no text or symbols)

QR code image with a central logo, likely linking to a website or digital content.

¿Necesitas ayuda?

QR code image with a central logo, likely linking to a digital resource or website.

QR code image containing encoded data, with a central logo or watermark

Silhouette icon of a person wearing a headset with a crossed wrench symbol (no text or numbers)

QR code image with a central logo, likely linking to a website or digital content.

QR code with central logo, likely linking to a digital service or website

QR code with central Facebook logo, likely linking to a social media or digital content platform

INFINITON

QR code image containing encoded data, with a central logo or watermark

TÉRMINOS Y REGISTRO DE GARANTÍA

QR code image containing encoded data, with a central logo or watermark symbol
