| Product type | Professional laser projector |
| Brand | Optoma |
| Model | ZU860 |
| Display technology | Single-chip DLP® |
| Light source | Phosphor laser (lifespan up to 20,000 hours) |
| Native resolution | WUXGA (1920 x 1200) |
| Brightness | 8,000 ANSI lumens |
| Contrast ratio | 2,000,000:1 (dynamic) |
| Dimensions (W x D x H) | 500 x 600 x 200 mm |
| Weight | 28 kg |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 860 W (typical) |
| Keystone correction | Vertical ±30°, horizontal ±30° |
| 3D functions | 3D support (DLP Link™) |
| Maintenance and cleaning | Air filter cleaning every 1,000 hours; maintenance by qualified personnel |
| Safety | Kensington lock, password protection, Class 1 laser (IEC 60825-1) |
| Spare parts and repairability | Air filter, fans, sealed optical block; repair by authorized center |
| General information | Manufacturer's warranty 3 years; standard NMB-003 Class A (Canada) |
Frequently Asked Questions - ZU860 OPTOMA
User questions about ZU860 OPTOMA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Projector in PDF format for free! Find your manual ZU860 - OPTOMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZU860 by OPTOMA.
USER MANUAL ZU860 OPTOMA
SAFETY 4
Important safety instruction 4
Laser radiation safety information 5
Laser safety precautions 5
Laser labels 5
Light Intensity Hazard Distance....6
User definition....6
Copyright 6
Disclaimer....6
Trademark recognition....7
FCC 7
Declaration of conformity for EU countries 7
WEEE 7
INTRODUCTION 8
Package overview 8
Standard accessories....8
Optional accessories 8
Product overview 9
Connections.... 10
Keypad 11
Remote control 12
SETUP AND INSTALLATION.... 13

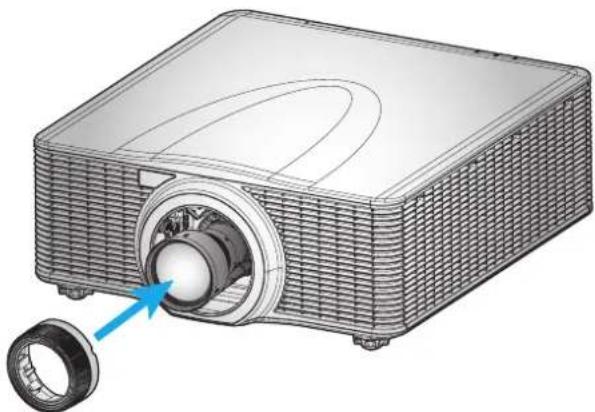

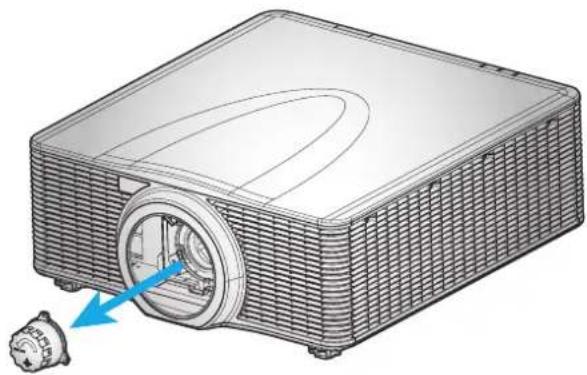

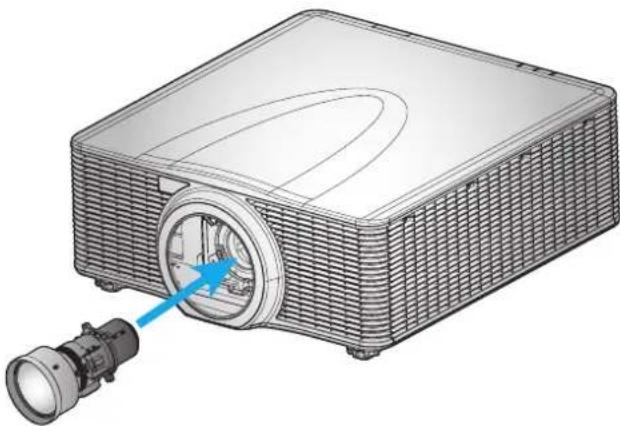

Installing the projection lens 13
Adjusting the projector position 15

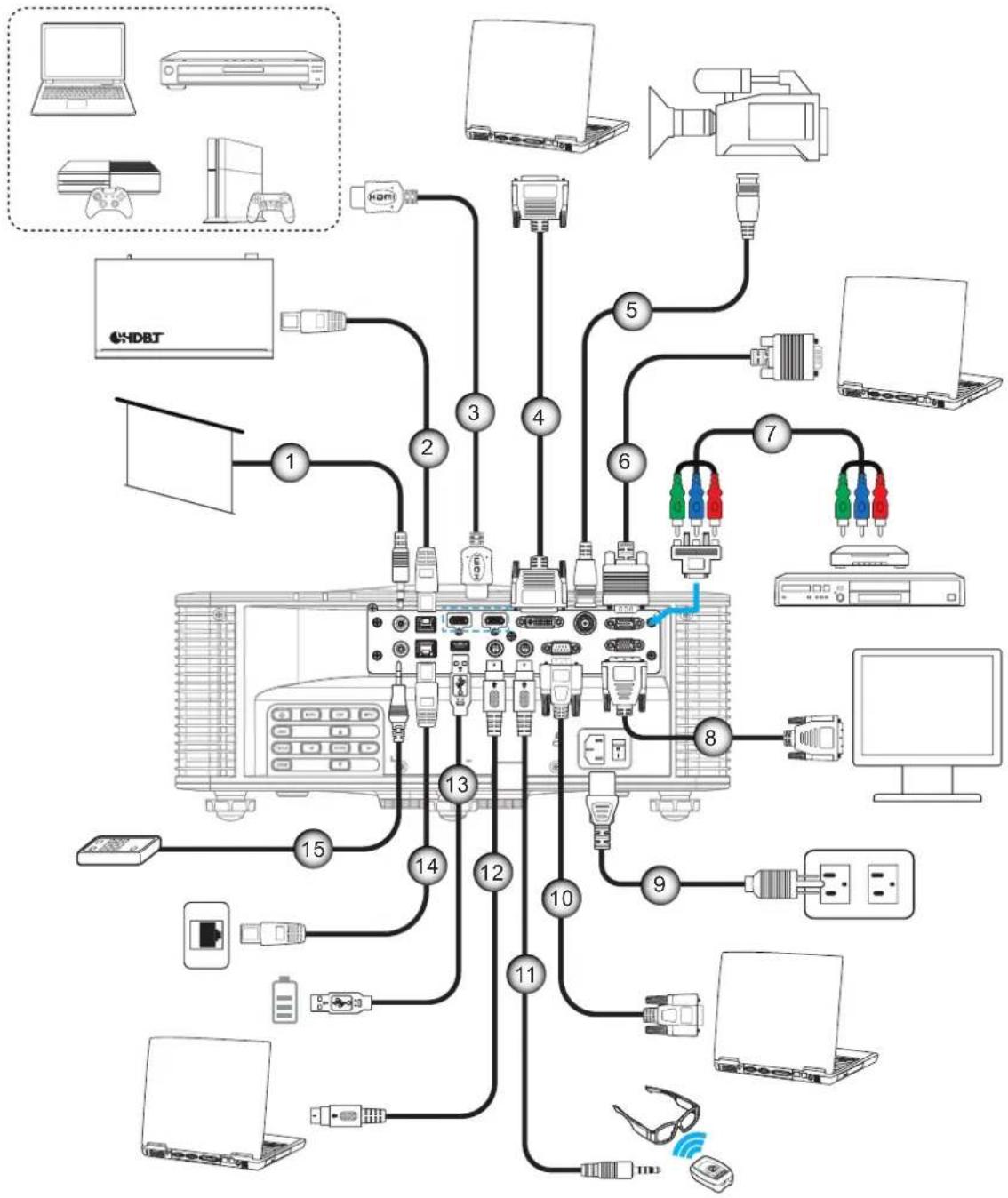

Connecting sources to the projector.... 17
Adjusting the projector image 18
Remote setup 19
USING THE PROJECTOR....21
Powering on / off the projector.... 21
Selecting an input source 22
Menu navigation and features 23
OSD menu tree....24
Display menu 28
Image Settings 28
3D menu 31
Aspect Ratio 32
Edge Mask 32
Digital Zoom 32
Image Shift 32
Geometric Correction 32
PIP/PBP 34
Setup menu 36
Projection 36
Lens Settings.... 36
Power Settings 37
Security 37
Test Pattern 37
Remote Settings.... 38
12V Trigger 38
Projector ID 38
Keypad LED Settings 38
Options 38
System Update 39
Reset 39
Network menu 40
WLAN 40
LAN 40
Control 40
Network Reset 41

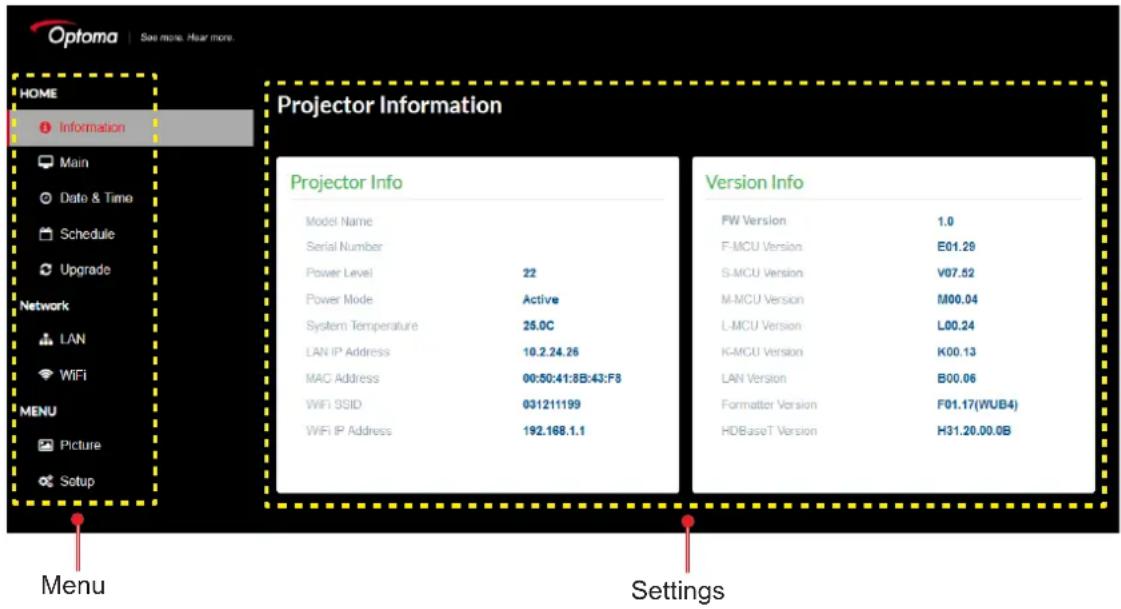

Using the web control panel 41
Using RS232 command by Telnet 43
Information menu....44
ADDITIONAL INFORMATION 45
Compatible resolutions....45
Image size and projection distance 50
Projector dimensions and ceiling mount installation.... 52
IR remote codes 53
Troubleshooting 55
LED status indicators.... 56
Specifications 57
Optoma global offices....58
![]() | The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. |
![]() | The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. |
Please follow all warnings, precautions and maintenance as recommended in this user's guide.
Important safety instruction

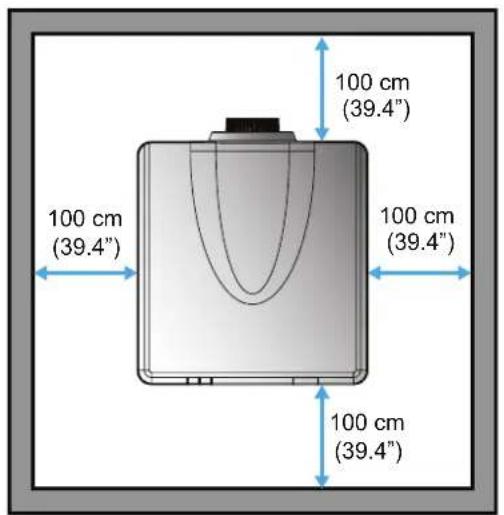

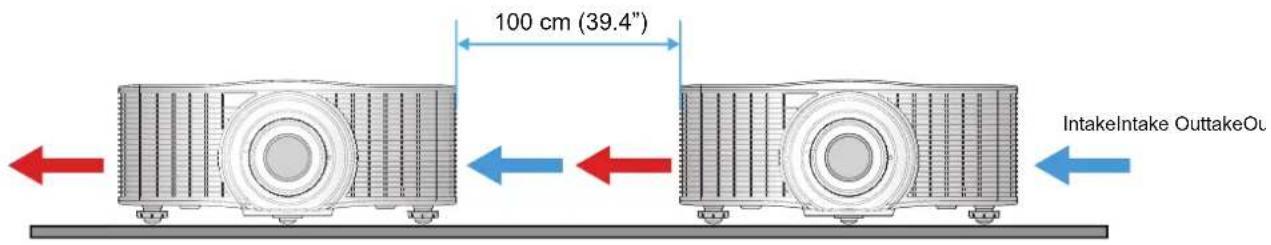

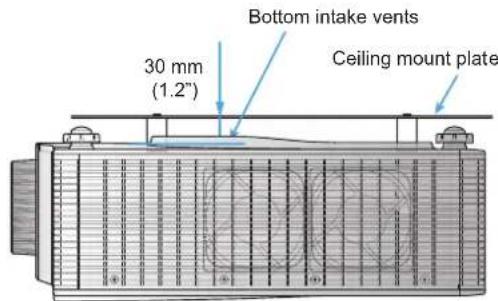

- Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
• To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat. - Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.
- Do not use under the following conditions:
– In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C \~ 40°C
(ii) Relative humidity is 10% \~ 85%
– In areas susceptible to excessive dust and dirt.
– Near any appliance generating a strong magnetic field.
– In direct sunlight.
- Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):
- Unit has been dropped.
– Power supply cord or plug has been damaged.
– Liquid has been spilled on to the projector.
– Projector has been exposed to rain or moisture. - Something has fallen in the projector or something is loose inside.
- Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the projector may become damaged.
- Do not block the light coming out of the projector lens when in operation. The light will heat the object and cause melt, burns or start a fire.
- Please do not open or disassemble the projector as this may cause electric shock.
- Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.
• See projector enclosure for safety related markings.
- The unit should only be repaired by authorized service personnel.
- Only use attachments/accessories specified by the manufacturer.
• Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
-
Turn off and unplug the power plug from the AC outlet before cleaning the product.
-
Use a soft dry cloth with mild detergent to clean the projector housing. Do not use abrasive cleaners, waxes or solvents to clean the unit.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time. -
Do not setup the projector in places where it might be subjected to vibration or shock.
- Do not touch the lens with bare hands.
- Do not clean the lens when the projector is turned on. Any damage resulting from doing so will void the warranty.
- Remove battery/batteries from remote control before storage. If the battery/batteries are left in the remote for long periods, they may leak.
- Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can adversely affect the quality of the projector performance.

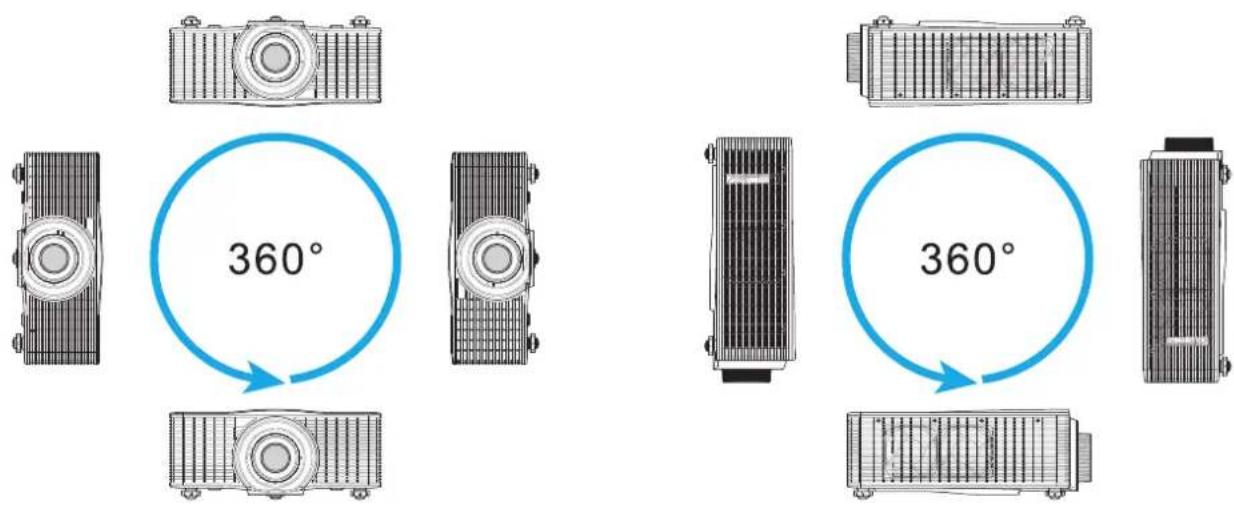

- Please follow the correct projector orientation installation as non standard installation may affect the projector performance.
- Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
Laser radiation safety information
This product is classified as Class 1 Laser Product-Risk Group 3 of IEC 60825-1:2014 and Class 3R Laser product of IEC 60825-1:2007, complying with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.
Laser safety precautions
To ensure safety operation and prevent personal injuries, read laser safety precautions before installation and operation.

Failure to comply with the following could result in death or serious injury.
- This projector uses extremely high brightness laser. Never attempt to look directly into the lens or at the laser beam. The bright light may result in permanent eye damage.
- Possibly hazardous optical radiation emitted from this product.
- This projector has a built-in Class 4 laser module. Never attempt to disassemble or modify the laser module.
- Any operation or adjustment not specifically instructed in the User manual creates the risk of hazardous laser radiation exposure.
- Do not stare into beam when the projector is on. When turning on the projector, make sure no one within projection range is looking into the lens.
- Follow the control, adjustment, or operation procedures to avoid damage or injury from exposure of laser radiation.
- The instructions for the assembly, operation, and maintenance include clear warnings concerning precautions to avoid possible exposure to hazardous laser radiation.
Laser labels
Learn about the laser labels used on the projectors.

![Optoma Technology Inc. 47697 Westinghouse Drive, Fremont, CA 94539, USA This product complies with performance standards for laser products under 21 CFR Part 1040 except with respect to those characteristics authorized by Variance Number XXXX-X-XXXX effective [insert the date of the variance approval] U.S.A. Only](/content/2026/05/811495/images/220ccb35b3d1a660e254a922bca6110357fbf697204fb9568849c76acd1c151d.jpg)
Do not look directly into the lens. The extremely high brightness can cause permanent eye damage.
Do NOT deliberately look into or stare into the beam, which can cause injury to the retina in the back of the eye.
FDA laser variance (US projectors only)

IEC 60825-1:2014, CLASS 1 LASER PRODUCT - RISK GROUP 3
Class 3R Laser product of IEC 60825-1:2007 and complying with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.
Do not loot at the projector lens when the light is on. The extreme high brightness can cause permanent eye damage.
Do not look at operating beam. Eye injury may result.
Light Intensity Hazard Distance
This projector will be CLASS 1 LASER PRODUCT - RISK GROUP 3. Permanent eye injury is possible when exposed to the high intensity laser beam within the hazard distance.
| Lens Throw Ratio | Classification | ||
| IEC 60825-1:2014 IEC | 62471:2006 Hazard Distance | ||
| A13 2.90-5.50 | Class 1 Risk Group | 3 9.32 meters | |
| A03 1.52-2.92 | |||
| A06 1.22-1.52 | |||
| A01 0.95-1.22 | |||
| A15 0.75-0.95 | |||
Follow the precautions to avoid light intensity hazard.

Failure to comply with the following could result in death or serious injury.
- NEVER look into the lens! High intensity laser beam.
- Permanent eye injury is possible when exposed to the high intensity laser light within the hazard distance.
- Do not place any refelective objects in the light path of the projector.
User definition
Throughout this manual, the term SERVICE PERSONNEL refers to Optoma or authorized persons having appropriate technical training and experience necessary to be knowledgeable of potential hazards to which they are exposed in performing a task, and of measures to minimize the potential risk to themselves or other persons. Only Optoma authorized SERVICE PERSONNEL, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure.
The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL. Such combination of projector and lens are intended for professional use only, and are not intended for consumer use.
FOR PROFESSIONAL USE ONLY means installation can only be carried out by Optoma AUTHORIZED PERSONNEL familiar with potential hazards associated with high intensity light beams.
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.
© Copyright 2018
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.
Trademark recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
DLP®, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
FCC
This device has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference and
- This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class A digital apparatus complies with Canadian ICES-003.
Declaration of conformity for EU countries
• EMC Directive 2014/30/EU (including amendments)
• Low Voltage Directive 2014/35/EU
- Radio Equipment Directive 2014/53/EU (if product has RF function)
• RoHS Directive 2011/65/EU
WEEE

Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
INTRODUCTION
Package overview
Carefully unpack and verify that the projector comes with all the standard accessories shown below. Some accessories may not be available depending on the projector model, specification and your region of purchase. The warranty card is only supplied in specific regions. Please check with your place of purchase or consult your dealer for more information.
Standard accessories

Optional accessories
Note:
- Accessories vary depending on model, specification and region.
- The standard lens ring is used for or A01, A03, and A13 lens.
INTRODUCTION

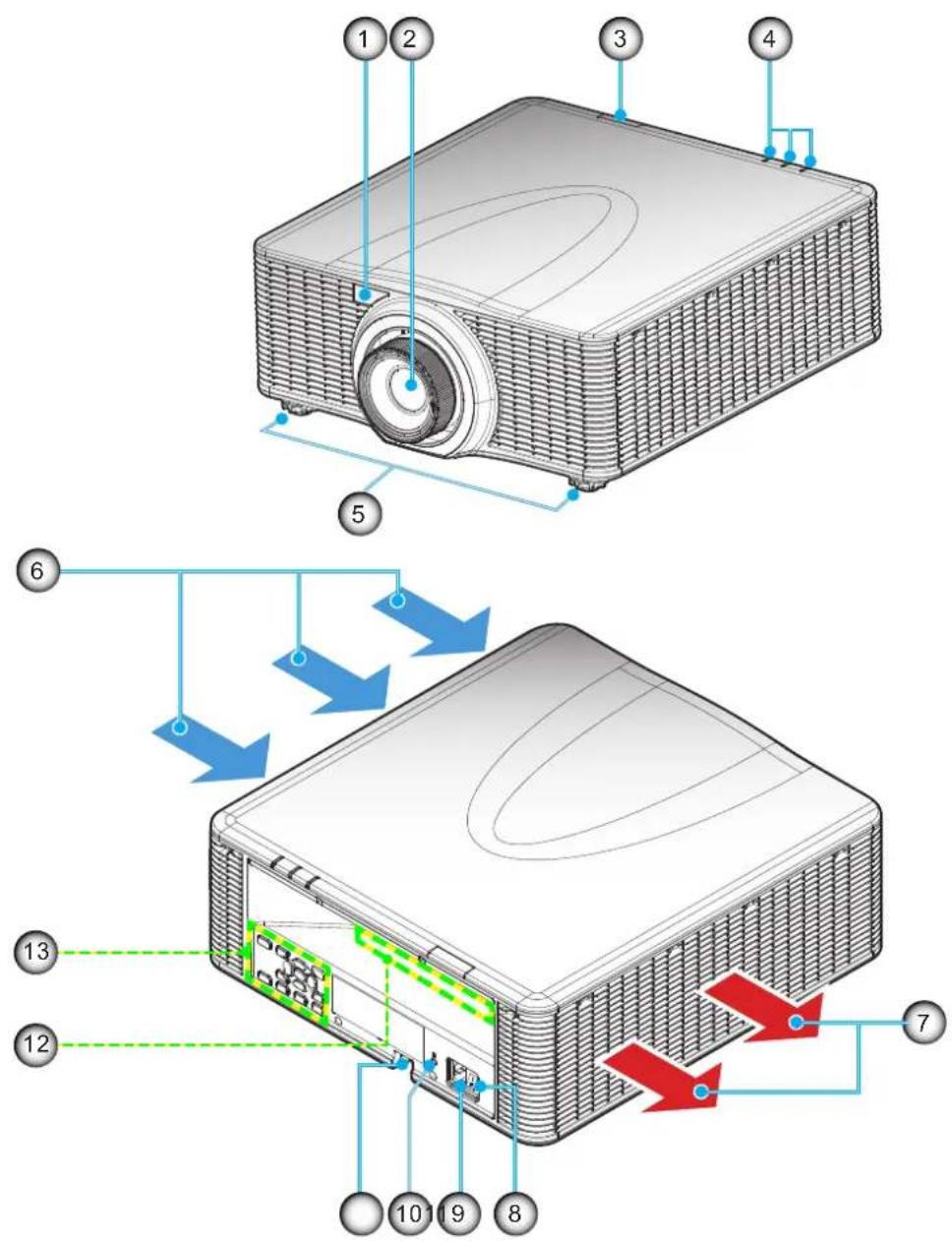

Product overview

| No Item No Item | ||
| 1. Front IR Receiver 8. Power Switch | ||
| 2. Lens 9. Power Socket | ||
| 3. Top IR Receiver 10. Kensington | TM Lock Port | |
| 4. LED Status Indicators 11. Security Bar | ||
| 5. Tilt-Adjustment Feet | 12. Input / Output | |
| 6. Ventilation (inlet) | 13. Keypad | |
| 7. Ventilation (outlet) | ||
Note: Do not block projector inlet or outlet air vents.
INTRODUCTION

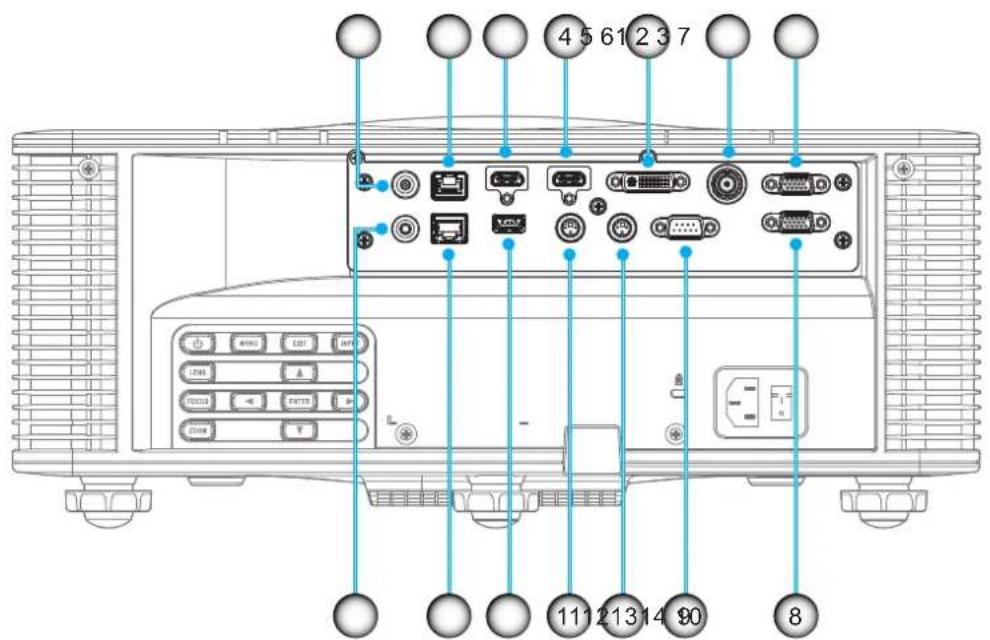

Connections

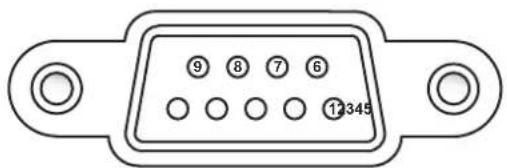

| No Item No Item | |||
| 1. DC-12V Connector 8. VGA-OUT Connector | |||
| 2. HDBaseT Connector | 9. RS232-C Connector | ||
| 3. HDMI-1 Connector | 10. 3D SYNC OUT Connector (5V) | ||
| 4. HDMI-2 Connector | 11. 3D SYNC IN Connector | ||
| 5. DVI-D Connector | 12. USB Type A (Power out 5V, 0.5A) | ||
| 6. 3G-SDI Connector | 13. RJ-45 Connector | ||
| 7 | VGA-IN/YPbPr Connector | 14. Wired Remote Connector | |
INTRODUCTION

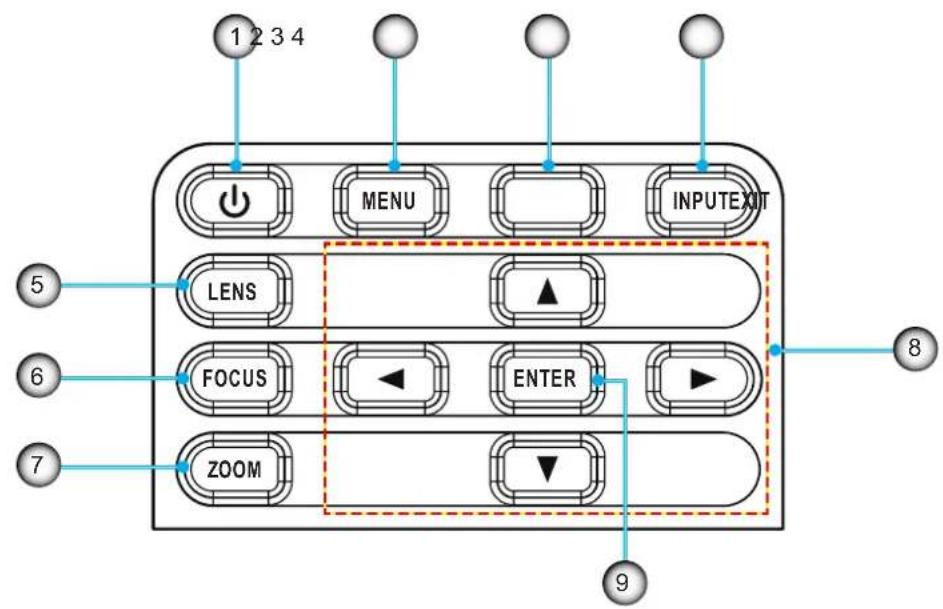

Keypad

No Item No Item
- Power 6. FOCUS
- MENU
- EXIT 8. Arrow keys
- INPUT 9. ENTER
-
LENS
-
ZOOM
INTRODUCTION

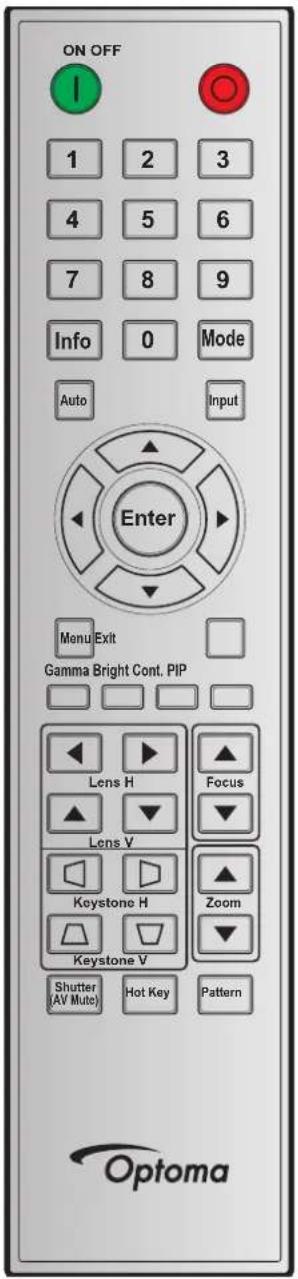

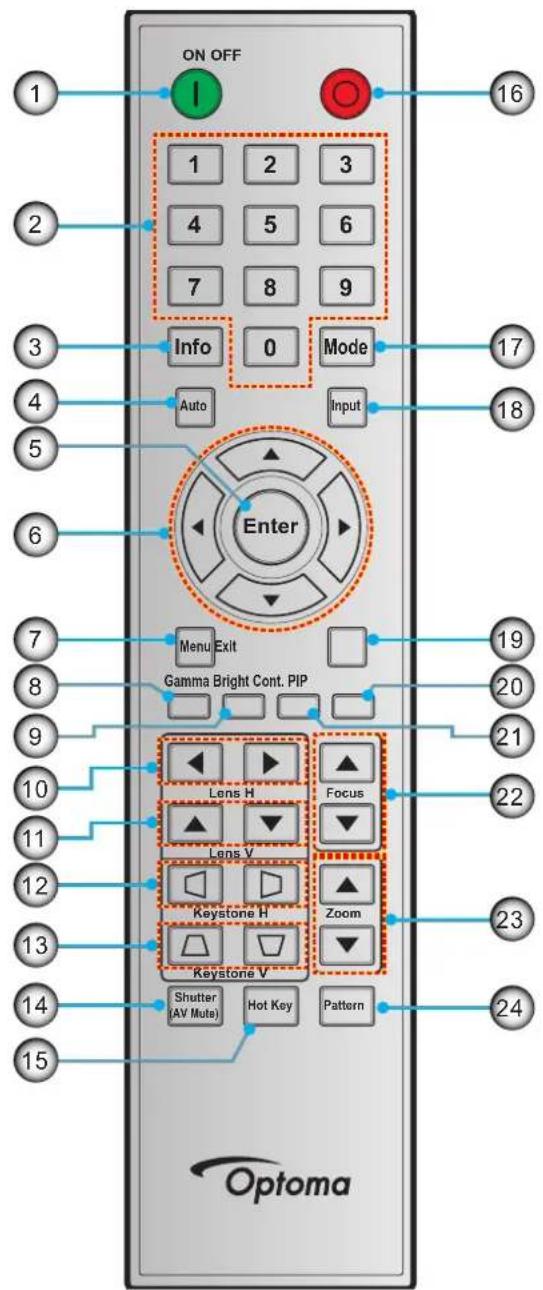

Remote control

| No | Item |
| 1. | Power On |
| 2. | Number Keys |
| 3. | Info |
| 4. | Auto |
| 5. | Enter |
| 6. | Arrow keys |
| 7. | Menu |
| 8. | Gamma |
| No | Item |
| 9. | Bright |
| 10. | Lens H |
| 11. | Lens V |
| 12. | Keystone H |
| 13. | Keystone V |
| 14. | Shutter (AV Mute) |
| 15. | Hot Key |
| 16. | Power Off |
| No | Item |
| 17. | Mode |
| 18. | Input |
| 19. | Exit |
| 20. | PIP |
| 21. | Cont. (Contrast) |
| 22. | Focus |
| 23. | Zoom |
| 24. | Pattern |
SETUP AND INSTALLATION
Installing the projection lens
Before setting up the projector, install the projection lens in to the projector.
在安装或替换镜头前,关掉投影机的电源。
Before install or replacing the lens, switch off the power to the projector.
Avoid using the remote control or projector keypad button to adjust the lens shift or zoom/focus while the lens attachment process is carried out.
IMPORTANT!
- Before installing or replacing the lens, make sure the projector's power switch is turned off.
- During lens installation, do not adjust the lens shift, zoom, or focus either using the remote control or the projector keypad.
• To prevent damage to the lens and avoid personal injury, do not clean the lens when the projector is turned on. Any damage resulting from doing so will void the warranty.

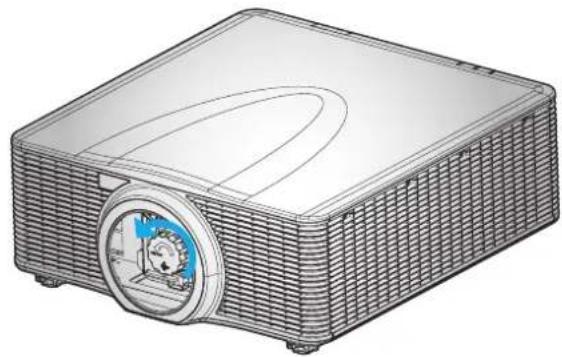

Procedure:
- Rotate the lens cap counterclockwise.


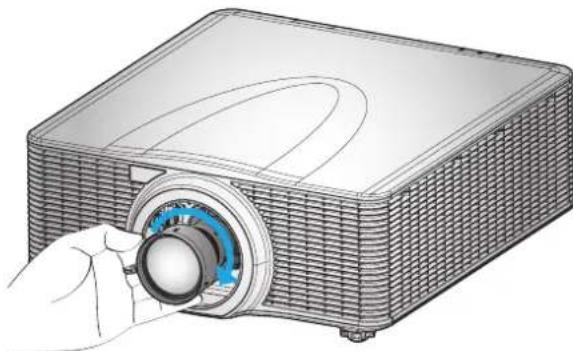

- Install the lens in the projector.
Adjusting the projector position
When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:
- Position the projector on a flat surface at a right angle to the screen. The projector (with the standard lens) must be at least 4.3 feet (1.3 m) from the projection screen.

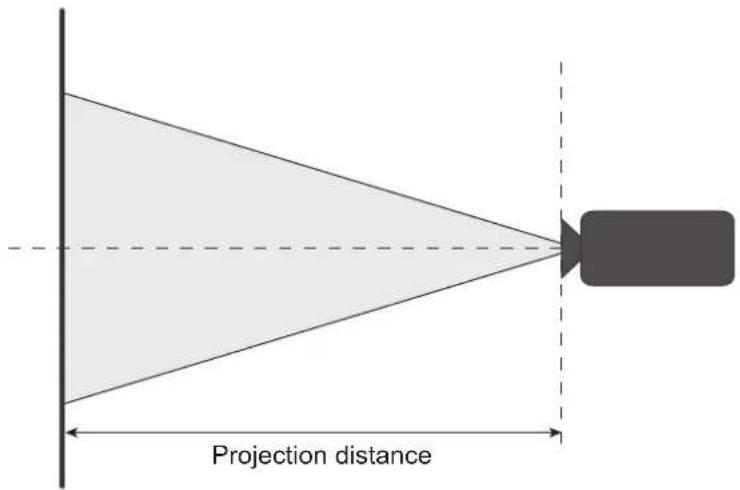

- Position the projector to the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.
• 360 degree free orientation operation

- Allow proper space around the projector is critical for air circulation and cooling. The dimensions shown below indicate the minimum space required for different installations.
- For 360^ installations, keep the projector at least 100 cm (39.4") away from the wall or floor.

SETUP AND INSTALLATION

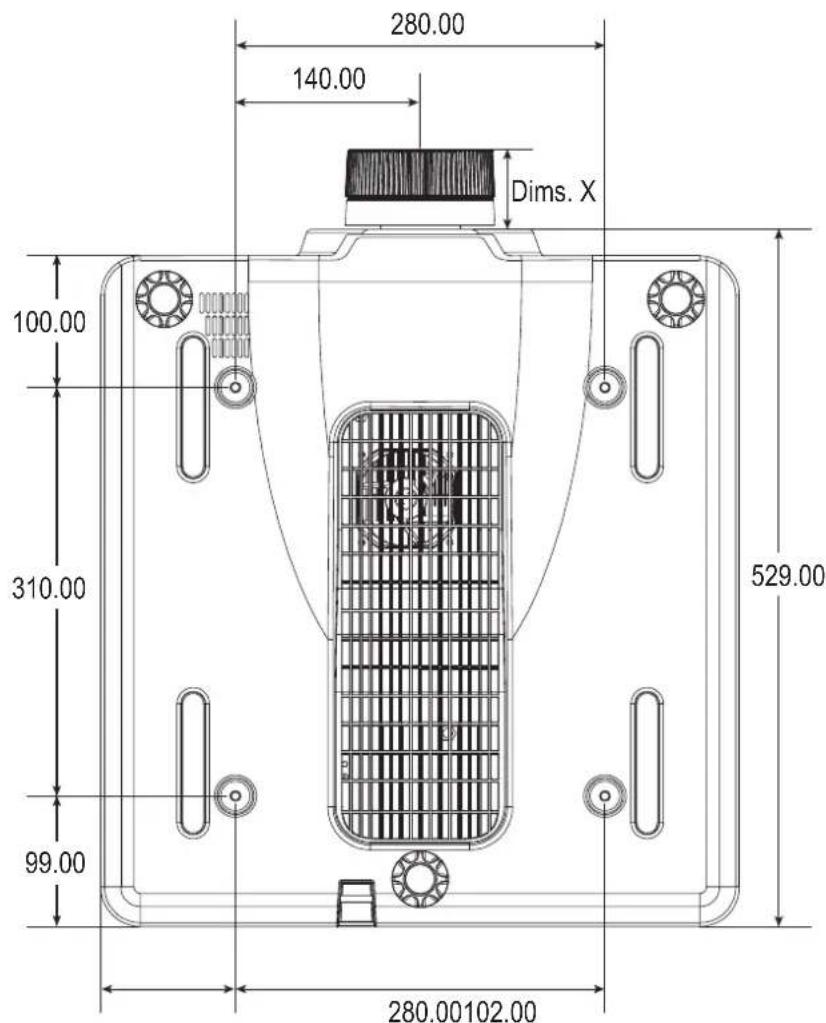

- For ceiling mount installations, make sure to leave 30 mm (1.2") between the ceiling mount and the bottom intake vents of the projector.

- When installing multiple projectors, keep at least 100 cm (39.4") space between the adjacent projectors.

SETUP AND INSTALLATION

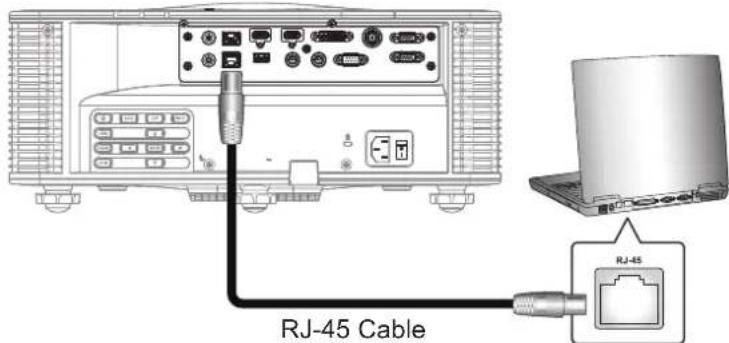

Connecting sources to the projector
No Item No Item
- 12V Trigger Cable 9. Power Cord
- HDBaseT Cable 10. RS-232C Cable
- HDMI Cable 11. 3D Sync Out Cable
- DVI-D Cable 12. 3D Sync In Cable
- 3G-SDI Cable 13. USB Type A Cable (5V, 0.5A)
- VGA-In Cable 14. RJ-45 Cable
- RCA Component Cable 15. Wired Remote-In Cable
- VGA-Out Cable
SETUP AND INSTALLATION
RS232 Pin assignments

| Pin No. | Signal Pin No. | Signal | |
| 1 N/A | 6 N/A | ||
| 2 RXD | 7 N/A | ||
| 3 TXD | 8 N/A | ||
| 4 N/A | 9 N/A | ||
| 5 GND |
Adjusting the projector image

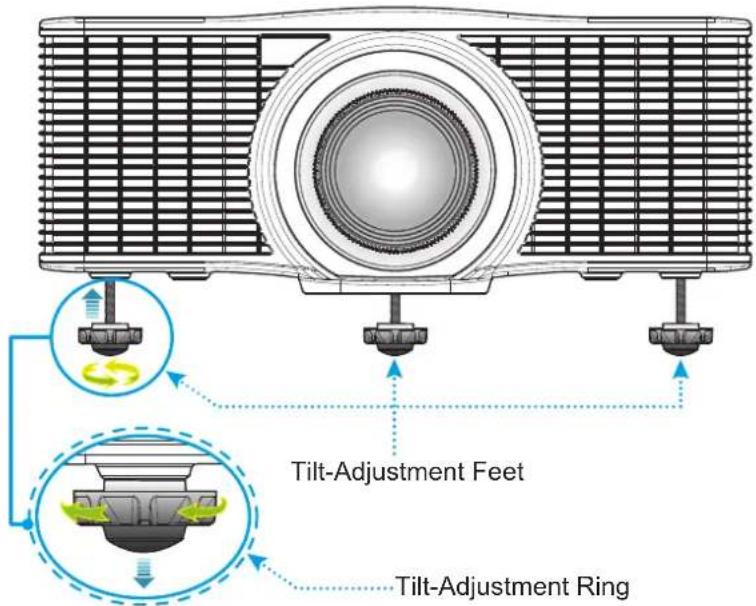

Image height
The projector is equipped with adjustable feet to change the image height.
- Locate the adjustable foot you wish to adjust on the underside of the projector.
- Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Note: The feet of projector are not removable, and the feet can raised up to 45 mm.

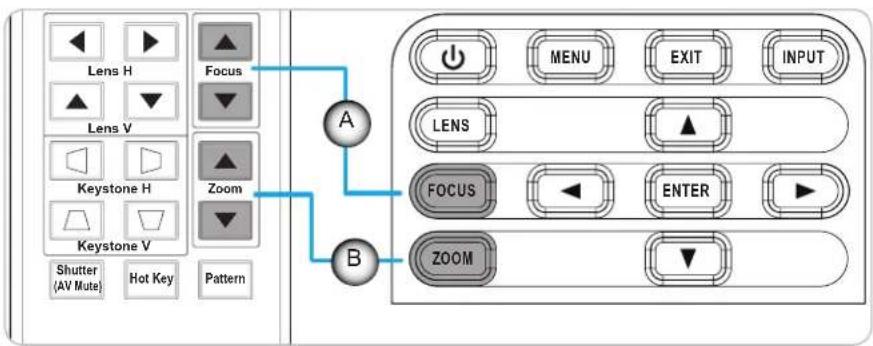

Zoom and Focus
Use the remote control or projector keypad to adjust the zoom and focus of the projected image.
• To adjust the image focus, press Focus and the ▲▼ buttons to improve the image quality.
• To adjust the image size, press Zoom and the ▲▼ buttons to get the required image size. B
subgraph_Panel_A["Panel A"]
Lens_H["Lens H"] --> Focus
Lens_V["Lens V"] --> Focus
Keystone_H["Keystone H"] --> Zoom
Keystone_V["Keystone V"] --> Zoom
Shutter["Shutter (AV Mute)"] --> Hot Key
Hot Key --> Pattern
end
subgraph_Panel_B["Panel B"]
Focus --> MENU["MENU"]
Focus --> EXIT["EXIT"]
Focus --> INPUT["INPUT"]
Focus --> FOCUS["FOCUS"]
Focus --> ENTER["ENTER"]
Focus --> ZOOM["ZOOM"]
end
Lens_H --> Focus
Lens_V --> Focus
Keystone_H --> Zoom
Keystone_V --> Zoom
Shutter --> Zoom
Hot Key --> Zoom
Pattern --> Zoom
A --> B
SETUP AND INSTALLATION
Remote setup

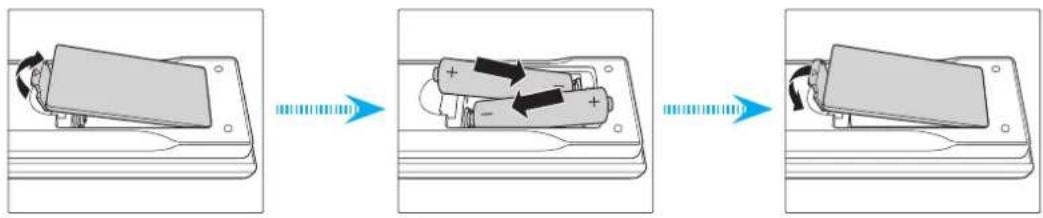

Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
-
Remove the battery cover on the back of the remote control.
-
Insert AAA batteries in the battery compartment as illustrated.
-
Replace back cover on remote control.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
- Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control for an extended period of time, remove the batteries.
- When you dispose of the batteries, you must obey the law in the relative area or country.
Remote control ID setup
The Infra-Red (IR) remote control supports individual addressing of projectors. The remote receiver on the projector can be set with a specific number from 00 to 99, and the projector only responds to the IR remote set to the same number. The default ID code of the IR remote is 00, allowing it to control all projectors within its effective range.
Follow below methods to set up the ID code for the IR remote control:
| ID Code | Change method Customer code | |
| 01 | Press Hot Key for 3 seconds, and press 0 then 1 within 2 seconds. | 0010 |
| 02 | Press Hot Key for 3 seconds, and press 0 then 2 within 2 seconds. | 0011 |
| 03 | Press Hot Key for 3 seconds, and press 0 then 3 within 2 seconds. | 0012 |
| ... ... ... | ||
| 10 | Press Hot Key for 3 seconds, and press 1 then 0 within 2 seconds. | 0019 |
| 11 | Press Hot Key for 3 seconds, and press 1 then 1 within 2 seconds. | 001A |
| ... ... ... | ||
| 98 | Press Hot Key for 3 seconds, and press 9 then 8 within 2 seconds. | 0071 |
| 99 | Press Hot Key for 3 seconds, and press 9 then 9 within 2 seconds. | 0072 |
To have the IR remote control return to default value 00 where all projectors can be controlled, press Hot Key for 3 seconds, and press 0 twice within 2 seconds.
For more information on setting the remote receivers on the projector, see Projector ID from the setup menu on page 44.
SETUP AND INSTALLATION

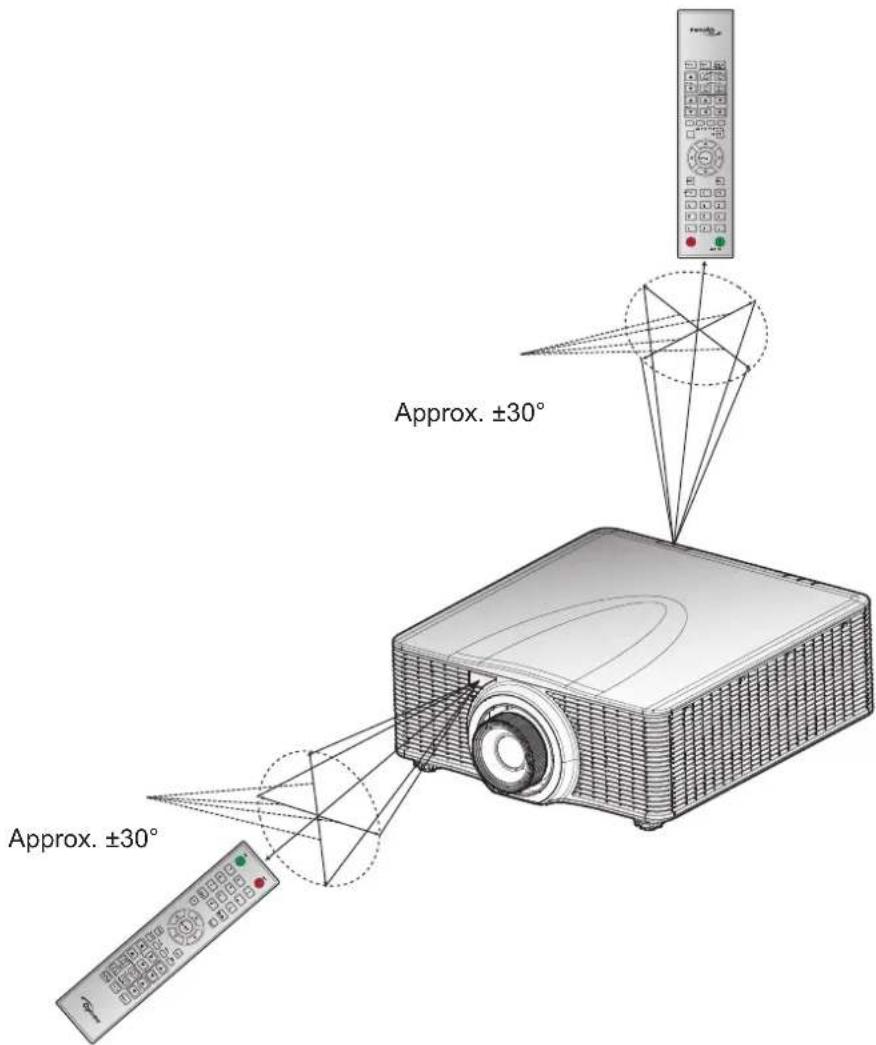

Effective range
The Infra-Red (IR) remote control sensors are located on the front and rear sides of the projector. To have the remote control functions correctly, ensure to hold the remote control at an angle within ± 30^ (horizontally or vertically) to the projector's IR remote control sensor. The distance between the remote control and the sensor should not be longer than 10m (32.8 ft).
• Make sure that there are no obstacles between the remote control and the IR sensor on the projector.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or fluorescent lamps directly.
- Keep the remote control away from fluorescent lamps for over 2 m or it might become malfunction.
• If the remote control is closed to Inverter-Type fluorescent lamps, it might become ineffective from time to time.
• If the remote control and the projector are within a very short distance, it might become ineffective.
- When you aim at a screen, the effective distance is less than 5 m from the remote control to the screen and reflecting the IR beams back to the projector. However, the effective range might change according to screens.

USING THE PROJECTOR

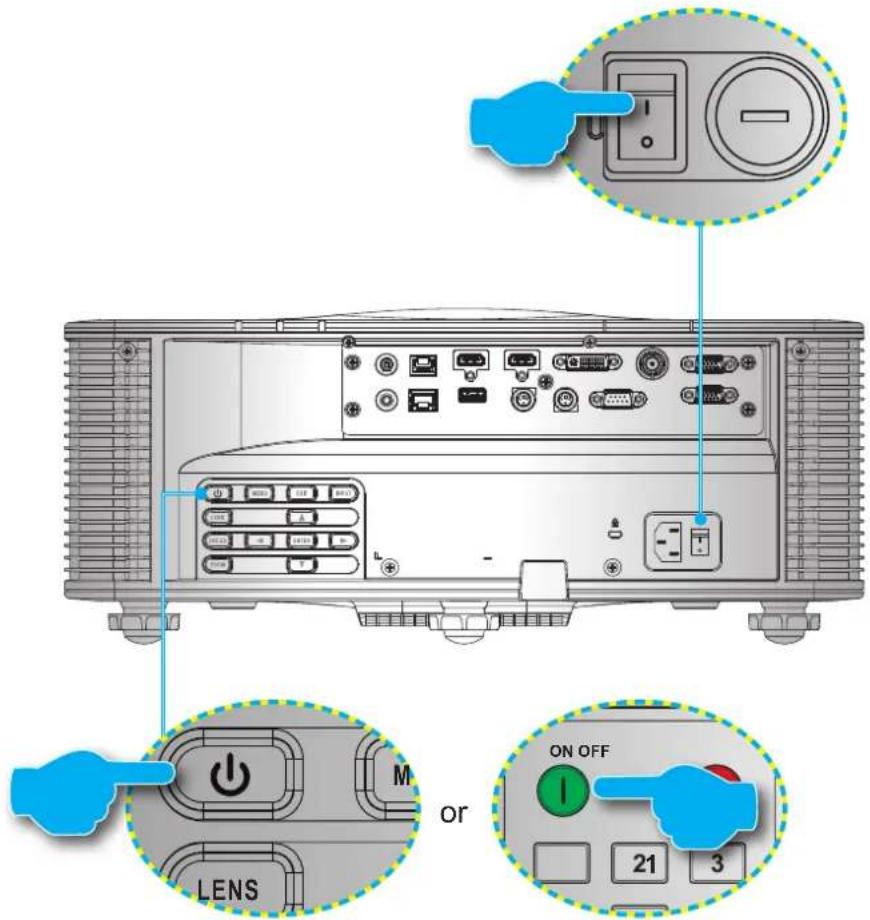

Powering on / off the projector
Powering on
-
Securely connect the AC power cord and signal/source cable to the projector.
-
Set the power switch to the "I" (ON) position and wait until the power button "∅" on the projector keypad is solid orange.
-
Turn on the projector by pressing the ON button "1" on the remote control or the power button "①" on the projector keypad.
The status LED is orange with a long blink and the status LED will turn to solid green.

Note: If the projector is turned on for the first time, you will be prompted to select the projector language, projection orientation, and other settings.
Powering off
-
Turn off the projector by pressing the power button “◀” on the projector keypad or the OFF button “◀” on the remote control. A message will pop up to confirm that you want to turn off the projector.
-
Press the power button or the OFF button again to confirm, otherwise the warning message disappears after 10 seconds and the projector remains on.
-
Set the Power switch to the "o" (OFF) position.
-
Disconnect the power cord from the projector and the electrical outlet.
Note: It is not recommended to turn on the projector immediately after powering off the projector.
USING THE PROJECTOR

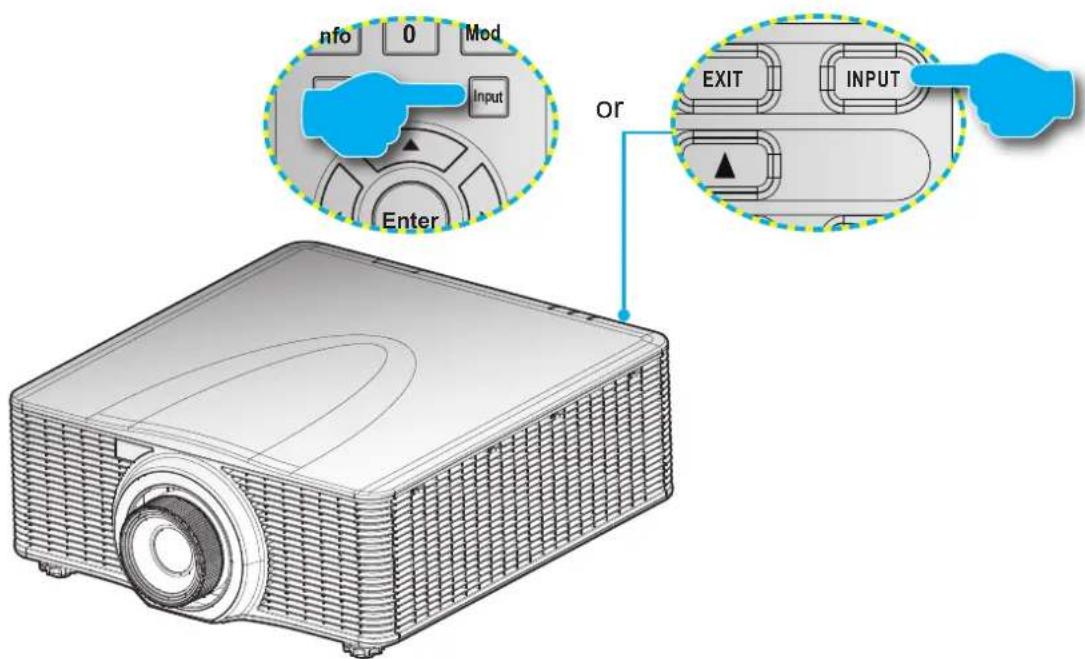

Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, and video player. The projector will automatically detect the input source. If multiple sources are connected, press the Input button on the projector keypad or the remote control to select an input source.

USING THE PROJECTOR

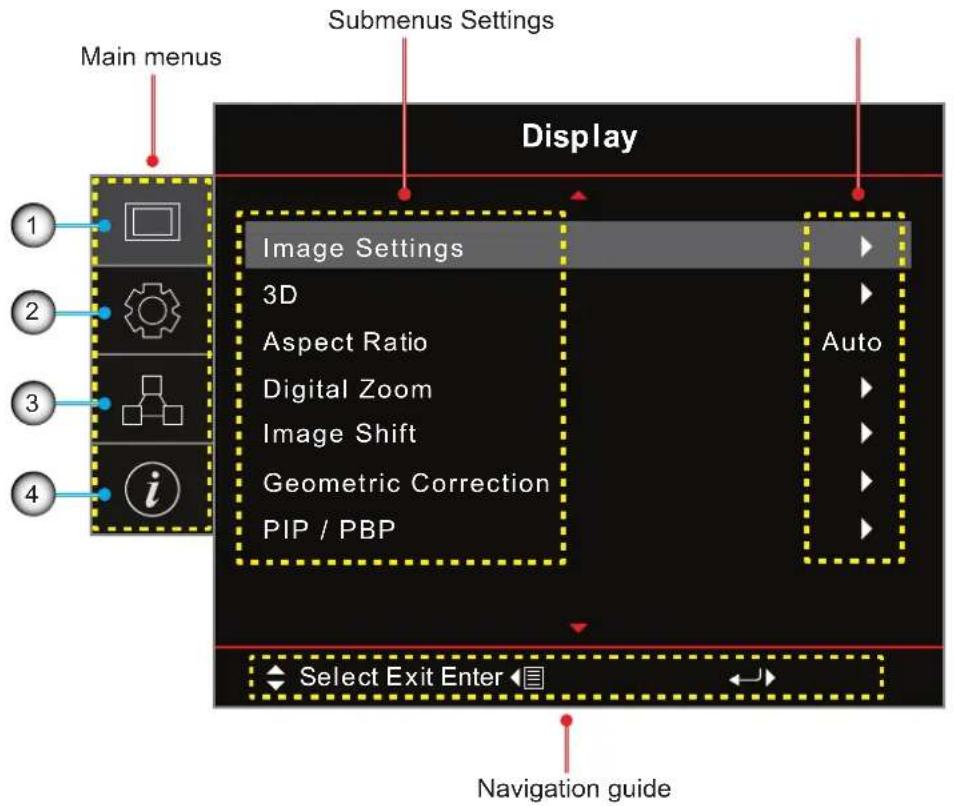

Menu navigation and features
The projector has multilingual on-screen display (OSD) menus that allow you to make image adjustments and change a variety of settings.
- To open the OSD menu, press the Menu key on the remote control or projector keypad.
- To select a main menu or submenu, use the ▲ and ▼ buttons to highlight it. Then, press ▶ or Enter to enter the menu.
- To select a menu item, use the ▲ and ▼ buttons to highlight it. Then, use the ▲ ▼ ◀▶ buttons to adjust that setting and press Enter.
- Press ◀ or Exit to return to the previous menu or exit the OSD menu if at top level.

No Item No Item
- Display menu 3. Network menu
- Setup menu 4. Information menu
OSD menu tree
| Main menu Submenus Settings | |||||||
| Display Image Settings Display Mode Presentation / Bright / Cinema / HDR / sRGB / DICOM SIM. / Blending / 2D High Speed/ User / 3D | |||||||
| Wall Color Off (default) / Blackboard / Light Yellow / Light Green / Light Blue / Pink / Gray | |||||||
| Dynamic Range HDR Off / Auto (default) | |||||||
| HDR Picture Mode Bright / Standard (default) / Film / Detail / SMPTE 2084 | |||||||
| Brightness 0 ~ 100 | |||||||
| Contrast 0 ~ 100 | |||||||
| Sharpness 1 ~ 15 | |||||||
| Color 0 ~ 100 | |||||||
| Tint 0 ~ 100 | |||||||
| Gamma | Film / Video / Graphics / Standard (2.2) / 3D / Blackboard / DICOM SIM. | ||||||
| Color Settings | BrilliantColorTM | 0 ~ 10 | |||||
| Color Temperature | Warm / Standard / Cool | ||||||

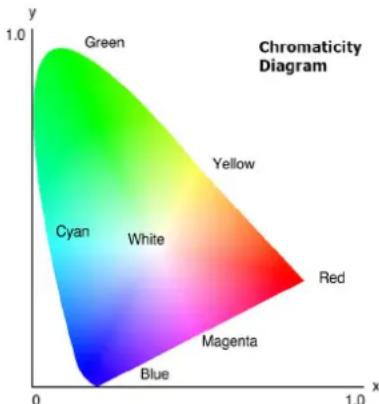

| Color Matching | Color | Red (default) / Green / Blue / Cyan / Yellow / Magenta / White (R / G / B / C / Y / M / W) | |||||
| R / G / B / C / Y / M | Saturation: 0 ~ 254 (default: 127)Hue: 0 ~ 254 (default: 127)Gain: 0 ~ 254 (default: 127) | ||||||
| W | Red: 0 ~ 254 (default: 127)Green: 0 ~ 254 (default: 127)Blue: 0 ~ 254 (default: 127) | ||||||
| Reset | Cancel (default) / Yes | ||||||
| Exit | |||||||
| RGB Gains/ Bias | Red Gain | 0 ~ 100 | |||||
| Green Gain | 0 ~ 100 | ||||||
| Blue Gain | 0 ~ 100 | ||||||
| Red Bias | 0 ~ 100 | ||||||
| Green Bias 0 ~ 100 | |||||||
| Blue Bias | 0 ~ 100 | ||||||
| Reset | Cancel (default) / Yes | ||||||
| Exit | |||||||
| Color Space | Auto (default) / RGB / YUV / RGB (0~255) / RGB (16~235) | ||||||
| Signal | Phase | 0 ~ 31 | |||||
| H.Position | 0 ~ 100 | ||||||
| V.Position | 0 ~ 100 | ||||||
| Exit | |||||||
| Color Wheel Speed | 2X / 3X | ||||||
| Extreme Black | Off (default) / On | ||||||
| Dynamic Black | Off (default) / On | ||||||
| Brightness Mode | Constant Power / Constant Luminance / Eco Mode | ||||||
| Power Level | 1 ~ 100 (30% ~ 100%) (default: 100) | ||||||
| Reset | |||||||
| Display 3D 3D Mode On / Off | |||||||
| 3D Format Auto (default) / Side by Side / Top and Bottom / Frame Sequential / Frame Packing | |||||||
| 3D Tech DLP-link / 3D Sync (default) | |||||||
| 3D-2D 3D (default) / L / R | |||||||
| 3D Sync Invert Off (default) / On | |||||||
| 3D Sync Out To Emitter (default) / To Next Projector | |||||||
| L/R Reference Field GPIO (default) / 1ST Frame | |||||||
| 3D Frame Delay 1 ~ 200 | |||||||
| Reset | |||||||
| Aspect Ratio 4:3 / 16:9 / 16:10 / LBX / Native / Auto | |||||||
| Edge Mask 0 ~ 10 (default: 0) | |||||||
| Digital Zoom | H Zoom | 50% ~ 400 % (default: 100%) | |||||
| V Zoom | 50% ~ 400 % (default: 100%) | ||||||
| Exit | |||||||

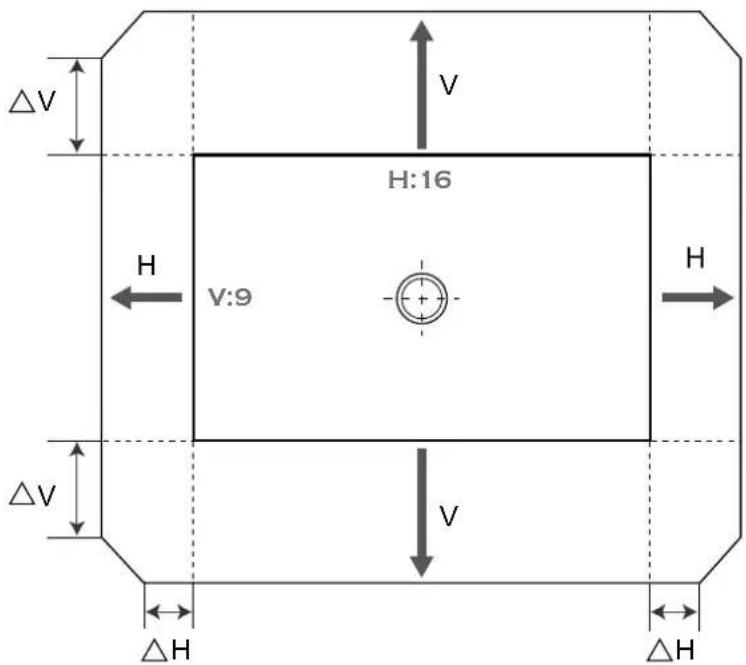

| Image Shift | H (Horizontal) | 0 ~ 100 (default: 50) | |||||
| V (Vertical) | 0 ~ 100 (default: 50) | ||||||
| Geometric Correction | PC Mode | Off (default) / On | |||||
| H Arc | 0 ~ 100 (default: 50) | ||||||
| V Arc | 0 ~ 100 (default: 50) | ||||||
| Four Corners | Top-left / Top-right / Bottom-left / Bottom-right | ||||||
| H Keystone | 0 ~ 40 (default: 20) | ||||||
| V Keystone | 0 ~ 40 (default: 20) | ||||||
| Reset | |||||||
| PIP/PBP | Screen | Off / PIP / PBP | |||||
| Location | • PIP-Bottom Right (default) / PIP-Bottom Left / PIP-Top Left / PIP-Top Right • PBP, Main Left (default) / PBP, Main Top / PBP, Main Right / PBP, Main Bottom | ||||||
| Size | Large / Medium / Small | ||||||
| Main Source | HDMI1 / HDMI2 / DVI-D/ VGA / HDBaseT / 3G-SDI | ||||||
| Sub Source | HDMI1 / HDMI2 / DVI-D / VGA / HDBaseT / 3G-SDI | ||||||
| Swap | |||||||
| Setup | Projection | Front (default) / Rear / Ceiling-top / Rear-top | |||||
| Lens Settings | Zoom | ||||||
| Focus | |||||||
| Lens Function | Lock / Unlock (default) | ||||||
| Lens Shift | Up / Down / Left / Right | ||||||
| Lens Calibration | Normal Yes / No | ||||||
| UST On / Off | |||||||
| UST Pattern Off (default) / Pattern 1 / Pattern 2 / Pattern 3 / Pattern 4 | |||||||
| Lens Memory | Apply Position Record 1 ~ 5 | ||||||
| Save Current Position Record 1 ~ 5 | |||||||
| Reset Yes / No | |||||||
| Power Settings | Direct Power On | Off (default) / On | |||||
| Setup Power Settings Signal Power On Off (default) / On | |||||||
| Auto Power Off (min.) 0 ~ 180 (5 min. increments) (default: 20) | |||||||
| Sleep Timer (min.) 0 ~ 990 (30 min increments) (default: 0) | |||||||
| Always On Yes / No (default) | |||||||
| Power Mode (Standby) Active / Eco. (default) / Communication | |||||||
| Security Security Off / On | |||||||
| Security Timer Month / Day / Hour | MM / DD / HH (RS232 Only) | ||||||
| Change Password | |||||||
| Test Pattern Off / Green Grid / Magenta Grid / White Grid | / White / Black / Red / Green / Blue / Yellow / Magenta / Cyan | ||||||
| Remote Settings | IR Function Front | Off / On (default) | |||||
| Top | Off / On (default) | ||||||
| HDBaseT | Off (default) / On | ||||||
| Remote Code | 00 ~ 99 | ||||||
| Hot-Key Settings Aspect Ratio/Freeze Screen | |||||||
| 12V Trigger | Off (default) / On | ||||||
| Projector ID | 00 ~ 99 | ||||||
| Keypad LED Settings | Off / On (default) | ||||||
| Options | Language | English (default) / Deutsch / Français / Italiano / Español / Português / Polski / Nederlands / Svenska / Norsk/Dansk / Suomi / ελληνικά / 繁體中文 / 筒体中文 / 日本語 / 한국어 / Русский / Magyar / Čeština / پېر ع / ไنپ / Türkçe / يسر اف / Tiếng Việt / Bahasa Indonesia / Română / Slovakian | |||||
| Menu Settings | Menu Location | Top left / Top right / Center (default) / Bottom left / Bottom right | |||||
| Menu Transparency | 0 ~ 9 | ||||||
| Menu Timer | Off / 5 sec / 10 sec / 15 sec (default) | ||||||
| Auto Source | Off (default) / On | ||||||
| Input Source | HDMI1 / HDMI2 / DVI-D / VGA / HDBaseT / 3G-SDI | ||||||
| High Altitude | Off (default) / On | ||||||
| Information Hide | Off (default) / On | ||||||
| Logo | Default / Neutral | ||||||
| Background Color | None / Blue(default) / Red / Green / Gray / Logo | ||||||
| Serial Port Baud Rate | 9600 / 14400 / 19200 (default) / 38400 / 57600 / 115200 | ||||||
| Serial Port Path | RS232 (default) / HDBaseT | ||||||
| HDMI 1 | EDID 1 / EDID 2 (default) | ||||||
| HDMI 2 | EDID 1 / EDID 2 (default) | ||||||
| HDBaseT | EDID 1 / EDID 2 (default) | ||||||
| System Update | Cancel (default) / Yes | ||||||
| Reset | Reset OSD | Cancel (default) / Yes | |||||
| Reset to Default | Cancel (default) / Yes | ||||||
| Network | WLAN | WLAN | Off / On (default) | ||||
| Subnet Mask | Default: 255.255.255.0 | ||||||
| IP Address | Default: 192.168.1.1 | ||||||
Main menu Submenus Settings
| Network WLAN Start IP (Read only) | ||
| End IP (Read only) | ||
| SSID (Read only) | ||
| Apply | ||
| LAN MAC Address (Read only) | ||
| Control | Crestron | Off / On (default) |
| Extron | Off / On (default) | |
| PJ Link | Off / On (default) | |
| AMX Device Discovery | Off / On (default) | |
| Telnet | Off / On (default) | |
| HTTP | Off / On (default) | |
| Network Reset | ||
| Information | Regulatory | (Read only) |
| Serial Number | (Read only) | |
| Main Source | (Read only) | |
| Main Resolution | (Read only) | |
| Main Signal Format | (Read only) | |
| Main Pixel Clock | (Read only) | |
| Main Horz Refresh | (Read only) | |
| Main Vert Refresh | (Read only) | |
| Sub Source | (Read only) | |
| Sub Resolution | (Read only) | |
| Sub Signal Format | (Read only) | |
| Sub Pixel Clock | (Read only) | |
| Sub Horz Refresh | (Read only) | |
| Sub Vert Refresh | (Read only) | |
| Display Mode | (Read only) | |
| Color Space Setting | (Read only) | |
| Power Mode (Standby) (Read only) | ||
| Projection Hours | (Read only) | |
| Remote Code | (Read only) | |
| LAN IP Address | (Read only) | |
| SSID | (Read only) | |
| Projector ID | (Read only) | |
| Brightness Mode | (Read only) | |
| FW Version Global version | (Read only) | |
| F-MCU Version | (Read only) | |
| S-MCU Version | (Read only) | |
| A-MCU Version | (Read only) | |
| Formatter Version | (Read only) | |
| LAN Version | (Read only) | |
USING THE PROJECTOR
Display menu
Learn how to configure the projector display settings.
Submenus
- Image Settings
• 3D - Aspect Ratio
- Edge Mask
- Digital Zoom
- Image Shift
- Geometric Correction
- PIP/PBP
Image Settings
Image Settings menu provides various functions to optimize the projected image to achieve the best image quality in all kinds of surroundings, in consideration of factors such as input source, screen color, and ambient lighting.
Display Mode
There are a number of display modes that are preset for different types of images.
• Presentation: Best for displaying presentation slides in a bright room.
• Bright: Best for the installations requiring high brightness images.
• Cinema: Best for videos projected in a dark room.
• HDR: Best for displaying High Dynamic Range (HDR) content.
- sRGB: Standardized image color that matches the sRGB color standard.
• DICOM SIM.: Best for projecting monochrome medical images, such as X-ray diagram.
• Blending: Best for multiple projector installations.
• 2D High Speed: This mode is used for displaying 2D input signal at 120Hz.
- User: Image settings saved by the user.
• 3D: Best for playing 3D videos.
Wall Color
Set the wall color of the projector to achieve best color performance for a specific wall. The available options are Off, Blackboard, Light Yellow, Light Green, Light Blue, Pink, and Gray.
Dynamic Range
Configure the settings for the High Dynamic Range (HDR) function.
• HDR
- Off: Turn off the projector's HDR function, and the projector announces that it does not support HDR content so that the input device only sends out SDR signals.
– Auto: When receiving HDR signals, the projector automatically changes to HDR display mode.
- HDR Picture Mode
– Bright: Increase the color saturation for bright images.
– Standard: Make the images look more realistic and natural.
– Film: Improve the image details for videos.
– Detail: Improve image details in dark scenes.
- SMPTE 2084: Optimize the image performance to meet the SMPTE 2084 standard.
USING THE PROJECTOR
Brightness
Adjust the luminous brightness of the projected image to adapt to different ambient light.
Contrast
Adjust the contrast ratio of the projected image. The contrast controls the degree of difference between the lightest and darkest parts of the image.
Sharpness
Adjust the clarity of details in the projected image to make the image clearer and sharper.
Color
Transform video images from black and white to fully saturated color.
Tint
Adjust the color balance of red and green in video images.
Gamma
Select an appropriate gamma value to optimize the image conformance to different input sources.
• Film: Best for home theater setting.
• Video: Best for video or TV sources.
• Graphics: Best for projecting photos from PC input.
- Standard (2.2): Standard gamma value.
• 3D: Best for playing 3D videos.
• Blackboard: Best for projecting on to a blackboard.
• DICOM SIM.: Best for projecting monochrome medical images, such as X-ray diagram.
Color Settings
Configure the color settings of the projected image to improve the color performance.
- Brilliant Color™: Advanced image processing algorithm that enables the usage of more colors on the color wheel, resulting in higher brightness while providing truer and more vibrant colors in the projected image.
• Color Temperature: Adjust the color temperature of the projected image. The available options are Warm, Standard, and Cool.
• Color Matching: Change the color of a projected image by adjusting each color component in the image. The adjustable color includes Red, Green, Blue, Cyan, Yellow, Magenta, and White (R / G / B / C / Y / M / W).
– Color: Select a color for further adjustment.
(R / G / B / C / Y / M) Saturation / Hue / Gain: Change the value of hue, saturation, and gain to adjust the red, green, blue, cyan, yellow, or magenta in the projected image.
- Saturation: Adjust the saturation of the selected color. The value indicates the color shifts from or towards the white in the center of the chromaticity diagram.
- Hue: Adjust the hue of the selected color. The value reflect the number of degrees of rotation around the chromaticity diagram from the original color. Increasing value indicates counterclockwise rotation, and decreasing value, clockwise rotation.
- Gain: Adjust the gain of the selected color. Increase the value to brighten the image (add white to a color) or decrease the value to darken the image (add black to a color).

other
| Color | Label | |---------|--------| | Green | | | Yellow | | | Red | | | Magenta | | | Blue | | | Cyan | |– (W) Red / Green / Blue: Change the value of red, green, and blue to adjust the white color.
USING THE PROJECTOR
- Reset: Reset the selected color to factory default settings.
- Exit: Exit the submenu.
- RGB Gains/Bias: Gain and bias are individual controls for each RGB channels used to set greyscale. The Gains calibrate the color of the dark parts and Bias calibrate the white parts.
- Red / Green / Blue Gain: Adjust the color of the image's bright areas.
- Red / Green / Blue Bias: Adjust the color of the image's dark areas.
- Reset: Reset the settings to factory default values.
- Exit: Exit the submenu.
• Color Space: Select a color space that has been specifically tuned for the input signal. The available options are Auto, RGB, YUV, RGB (0-255), and RGB (16-235). Select RGB only for HDMI input.
Signal
Improve the image quality and adjust the image position for the RGB/component signal.
• Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.
• H. Position: Adjust the horizontal position of the image.
• V. Position: Adjust the vertical position of the image.
- Exit: Exit the submenu.
Note: This function is only available for the RGB/component signal.
Color Wheel Speed
The speed of the phosphor color wheel determines the image performance and the service life of the projector.
- 2X: Extends the projector's service life and reduces the noise level during operation.
• 3X: Increases the speed to eliminate the color artifacts for best image quality.
Extreme Black
Automatically increase the contrast ratio by turning off the laser light when black image is detected.
Dynamic Black
Automatically adjust the contrast ratio for video sources. It improves the black level in dark scenes by reducing the light output.
Brightness Mode
Set up the brightness mode depending on the various installation requirements.
- Constant Power: Enable this mode to set the image brightness to a specific level controlled by the laser diode power level. Use Power Level from the upper menu to set the laser diode power level.
- Constant Luminance: Maintain the image brightness that is set in Constant Power. A special algorithm is designed to compensate the natural decay of brightness so that the image can be maintained at a fixed brightness level.
- Eco Mode: Set the image brightness to 50% of the projector's maximum brightness level, which lowers the power consumption and extends the lifetime of the projector. The projector reaches its maximum brightness level when the display mode is set to Bright.
Power Level
Set the power level of the laser diode power to adjust the image brightness. The power value ranges from 1 to 100, which covers the power level from 30% to 100%. The set power value is activated when Constant Power in Brightness Mode is enabled.
Reset
Reset all color settings to factory default values.
USING THE PROJECTOR
3D menu
3D video file combines two slightly different images (frames) of the same scene representing the different views that the left and right eyes see. When these frames are displayed fast enough and viewed with 3D glasses synchronized with the left and right frames, the viewer's brain then assemble the separate images into a single 3D image. 3D Menu provides options to set up the 3D functions to correctly display 3D videos.
3D Mode
Enable or disable the 3D function.
3D Format
Select a proper 3D format for the 3D input signal. The available options are Auto, Side by Side, Top and Bottom, Frame Sequential, and Frame Packing.
3D Tech
Select the 3D technology according to the different types of 3D sync signal.
- DLP-link: Select it when the 3D sync signal is generated by the DLP Link technology built-in the projector. It only works if the used 3D glasses are compatible with DLP 3D technology and the 3D mode is enabled manually.
• 3D Sync: Select it when the projector receives the 3D sync signal from an external source, and the 3D sync signal is sent out to an emitter or another projector through the 3D sync out port.
3D-2D
Transform the 3D content to 2D images.
• 3D: Play the 3D content normally.
• L: Play the left images of the 3D content.
• R: Play the right images of the 3D content.
3D Sync Invert
When the 3D video does not appear correctly, use this function to invert the 3D left and right frames.
3D Sync Out
Set up the transmission of the 3D sync output signal.
• To Emitter: Send the 3D sync signal to the emitter connected to the projector's 3D sync out port.
• To Next Projector: For multiple projector applications, send the 3D sync signal to next projector.
L/R Reference
To ensure the correct 3D synchronisation, use this function to set the signal reference for the left and right (L/R) frames.
• Field GPIO: When receiving an external 3D sync signal from the 3D sync in cable, the projector automatically select this option to synchronize the L/R reference with the 3D sync signal.
- 1ST Frame: When the projector generates 3D sync signal internally, select this option to set the first frame of the input source as the projector's left reference. If the 3D image does not appear correctly, use 3D Invert function to swap the left and right frames.
3D Frame Delay
Set a frame delay value for the projector to correct the time difference between the 3D signal being given and the result being executed. This function works only when L/R Reference is set to Field GPIO.
When performing 3D blending on multiple projectors, set the frame delay for each projector to correct the non-synchronous images.
Reset
Reset all 3D settings.
USING THE PROJECTOR
Aspect Ratio
Set the aspect ratio of the projected image. The available options are 4:3, 16:9, 16:10, LBX, Native, and Auto. Select Auto to display the detected image size.
Edge Mask
Use this function to remove the video encoding noise on the edge of the video images.
Digital Zoom
Adjust the size of the projected image. The image can be resized from 50% to 400%. After resizing the image with this function, use Image Shift to adjust the image position.
• H Zoom: Change the height of the projected area.
• V Zoom: Change the width of the projected area.
- Exit: Exit the submenu.
Image Shift
Adjust the position of the display area within the lens offset range. The available options are H and V that stands for horizontal and vertical shifting.
Geometric Correction
Configure the geometric settings to reshape the image for different projection surface.
PC Mode
Enable PC mode to use PC software for more complicated geometric configuration. When the PC mode is set to On, the projector will automatically load the previously applied PC geometry settings.
H Arc
Correct the projected image with horizontal barrel or pincushion distortion.
Correct the projected image with vertical barrel or pincushion distortion.
Four Corners
Reshape the image by moving the 4 corners of the image to have it fit a specific projection surface.
Adjust the left and right side of the projected image to make it an even rectangle. It is used for the images with unequal left and right sides.
Adjust the top and bottom side of the projected image to make it an even rectangle. It is used for the images with unequal top and bottom sides.
Reset geometric settings to factory default values.
USING THE PROJECTOR
PIP/PBP
PIP/PBP (picture in picture/picture by picture) allows simultaneously displaying two images from two input sources.
Screen
Select the appropriate PIP/PBP mode.
- Off: Disable PIP/PBP mode.
• PIP: Display one input source on the main screen and the other input source in an inset window.
• PBP: Display two images of the same size on the screen.
Location
Adjust the layout of the two images. In the layout chart below, the "P" indicates the main image:
- PIP Layout
| PIP Layout | PIP Size | ||
| Small Medium | Large | ||
| PIP-Bottom Right | ![]() | ![]() | ![]() |
| PIP-Bottom Left | ![]() | ![]() | ![]() |
| PIP-Top Left | ![]() | ![]() | ![]() |
| PIP-Top Right | P | P | P |
| PBP Layout | ||
PBP, Main Left![]() | PBP, Main Right![]() | |
PBP, Main Top![]() | PBP, Main Bottom![]() | |
- PBP Layout
Size
Change the display size of the sub source in PIP mode.
Main Source
Select an input source for the main image. The available input sources are HDMI1, HDMI2, DVI-D, VGA, HDBaseT, and 3G-SDI.
Sub Source
Select an input source for the second image. The available input sources are HDMI1, HDMI2, DVI-D, VGA, HDBaseT, and 3G-SDI.
USING THE PROJECTOR
Swap
Swap the main source and sub source.
Note: See below table for the PIP/PBP compatibility.
PIP/PBP Compatibility
| PIP/PBP Matrix V | GA DVI-D HDMI 1 HDMI 2 HDBaseT 3G-SDI | |||
| VGA — V V V V V | ||||
| DVI-D V — V V V V | ||||
| HDMI 1 V V — V V V | ||||
| HDMI 2 V V V — V V | ||||
| HDBaseT V V V V — V | ||||
| 3G-SDI V V V V V — |
USING THE PROJECTOR
Setup menu
Learn how to configure the projector operation settings.
Submenus
- Projection
- Lens Settings
- Power Settings
- Security
- Test Pattern
- Remote Settings
- 12V Trigger
- Projector ID
- Options
- System Update
- Reset
- Keypad LED Settings
Projection
Change the image direction by selecting a proper projection mode. The available options are Front, Rear, Ceiling-top, and Rear-top, which support front projection, rear projection, front projection inverted for ceiling-top installation, and rear projection inverted for rear-top installation.
Lens Settings
Configure the lens settings to adjust the image quality and position.
Zoom
Use the ▲ and ▼ buttons to adjust the size of the projected image.
Focus
Use the ▲ and ▼ buttons to adjust the focus of the projected image.
Lens Function
Lock the lens to prevent the lens motors from moving, which disables all lens functions.
Lens Shift
Use the ▲▼◀▶ buttons to adjust the lens position to shift the projected area.
Lens Calibration
Calibrate the lens position to return it to the center. To prevent damage to the projector and the lens, always perform lens calibration before replacing the lens.
• Normal: Perform a lens calibration for the non-ultra short throw lens.
• UST: Perform a lens calibration to get the projector ready for the ultra short throw (UST) lens.
• UST Pattern: Choose the test pattern to assist in the UST lens adjustment.
Lens Memory
This projector can save up to five lens settings, which records the lens position, zoom and focus.
• Apply Position: Select a record from 1 to 5 to apply the lens settings.
- Save Current Position: Select a record from 1 to 5 to save the current lens settings.
- Reset: Clear the saved lens records.
Note: Performing a lens calibration will clear the saved lens records.
USING THE PROJECTOR
Power Settings
Adjust the power settings to control the projector's operation time and standby mode.
Direct Power On
When set to On, the projector will automatically turn on after being connected to a power source.
Signal Power On
Turn on this function to have the projector automatically turning on when connected to HDMI input sources. It only applies to the standby projector set to Communication Mode.
Auto Power Off (min)
Set an interval timer for the projector to automatically turn off if no signal is detected within the specified time period. Press the ◀ and ▶ buttons to add or reduce time, 5 minutes for each press.
Sleep Timer (min)
Set an interval timer for the projector to automatically turn off after operating for the specified amount of time.
- Sleep Timer (min): Press the ◀ and ▶ buttons to add or reduce time, 30 minutes for each press.
• Always On
- No: The sleep timer resets to 0 after the projector is turned off.
– Yes: Activate the sleep timer every time when the projector is turned on.
Power Mode (Standby)
Select the power mode for the projector in standby status.
• Eco.: Minimum power consumption (0.5 Watt) which does not allow network controlling.
• Active: Low power consumption (< 2 Watt) which allows the LAN module to enter sleep mode and supports to be woken by Wake on LAN (WoL). When the LAN module is woken by WoL, the projector is ready to receive commands over the network.
• Communication: More power consumption that allows controlling the projector over the network.
Security
Set up security verification to protect the projector.
Security
Select On to protect the projector with a password. If the user enters incorrect password three times, a message will pop up warning that the projector shuts down in 10 seconds.
Security Timer
Specify the length of time the projector can be used without the password. Once the timer counts to 0, the user must enter a password to use the projector. The timer restarts every time the projector is turned on.
Change Password
Change the projector password.
Note: In the last minute before reaching a specified timer, including Auto Power Off (min), Sleep Timer (min), and Security Timer, an on-screen message will pop up warning that the projector shuts down in 60 seconds. Press any button on the remote control or projector keypad to reset the timer and the projector remains on.
Test Pattern
Select a test pattern. The available options are Off, Green Grid, Magenta Grid, White Grid, White, Black, Red, Green, Blue, Yellow, Magenta, and Cyan.
USING THE PROJECTOR
Remote Settings
Configure the settings of the Infra-Red (IR) remote control.
IR Function
Set the remote receiver for the projector to control the communication between the projector and the IR remote.
• Front: Enable or disable the front remote receiver.
• Top: Enable or disable the top remote receiver.
• HDBaseT: Select On to set the HDBaseT terminal as the remote receiver.
Remote Code
Assign an ID code from 00 to 99 for the remote receivers on the projector. The projector only responds to the IR remote control set with the same ID code.
For more details on setting an ID code for the IR remote control, see Remote control ID setup on page 19.
Hot Key Settings
Assign a function to the Hot Key button on the remote control. It allows you to use the function easily without going through the OSD menus. The available functions for the Hot Key button are Aspect Ratio and Freeze Screen.
12V Trigger
When set to On, the projector screen is automatically raised or lowered when the projector is turned on or off. This function only works when the projector is connected to an electrical projector screen.
Projector ID
Assign an ID code for the projector from 00 to 99. Use this code as the projector ID when controlling the projector by RS232, HDBaseT, or other devices. For more information, see Control from the network menu on page 40.
Keypad LED Settings
Enable or disable the projector's keypad LED light.
Options
Adjust the basic projector settings.
Language
Select a language for the OSD menu. The available languages are English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian/Danish, Finnish, Greek, Traditional Chinese, Simplified Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Persian, Vietnam, Indonesian, Romanian, and Slovakian.
Menu Settings
Adjust the settings of the OSD menu.
- Menu location: Select the menu location from Top left, Top right, Center, Bottom left, and Bottom right.
- Menu Transparency: Set the menu transparency level.
- Menu Timer: Set the length of time the menu displays on the screen.
Auto Source
When set to On, the projector automatically detects and selects the input source. Once an input source is selected, press the Input button on the remote control or keypad to switch to other available sources. When set to Off, press Input will bring up the Input Source submenu.
USING THE PROJECTOR
Input Source
Select an input source from the source submenu. The available input sources are HDMI1, HDMI2, DVI-D, VGA, HDBaseT, and 3G-SDI.
High Altitude
Select On to increase the fan speed. To ensure the image quality and prevent damage to the projector, enable High Altitude mode in high temperature, high humidity, or high altitude environment.
Information Hide
Select On to hide the projector status information.
Logo
Set up the startup screen.
- Default: Use the default splash screen with the brand logo.
• Neutral: Disable the logo on the splash screen.
Background Color
Set a background color to display when no input signal is detected. The available options are None, Blue, Red, Green, Gray, and Logo.
Serial Port Baud Rate
Set the serial port baud rate. The available options are 9600, 14400, 19200, 38400, 57600, and 115200.
Serial Port Path
Select a serial port path for the serial commands. The available options are RS232 or HDBaseT.
HDMI 1
When an input device is connected to HDMI IN1, set the EDID compatibility to display the input signal properly. Select EDID 1.4 for the input devices with HDMI 1.4, or EDID 2.0 for the devices with HDMI 2.0.
HDML2
When an input device is connected to HDMI IN2, set the EDID compatibility to display the input signal properly. Select EDID 1.4 for the input devices with HDMI 1.4, or EDID 2.0 for the device with HDMI 2.0.
HDBaseT
When the projector receives HDMI signals from a HDBaseT box, set the EDID compatibility to properly display the HDMI content. Select EDID 1.4 if the input signal is sent by a device with HDMI 1.4, or EDID 2.0 if the device supports HDMI 2.0.
Note: The common HDMI versions are HDMI 1.4 and 2.0. With HDMI 1.4, the rate of 4K is limited to 30 frames per second, whereas HDMI 2.0 plays 4K video without compromise, at 50 and 60 frames per second. This projector supports both HDMI 1.4 and 2.0. In order to play the HDMI content properly, set up the projector EDID for the input devices with different HDMI specifications.
System Update
Select Yes to update the projector system software/firmware.
Reset
Reset the settings to factory default values.
- Reset OSD: Reset OSD settings to default values.
- Reset to Default: Reset all projector settings to default values.
USING THE PROJECTOR
Network menu
Learn how to configure the projector network settings.
Submenus
• WLAN
• LAN
- Control
- Network Reset
Supplemental information
• Using the web control panel
• Using RS232 command by Telnet
WLAN
The projector can connect to a wireless network using a Wifi dongle. Use the WLAN submenu to configure the wireless network settings for the projector.
• WLAN: Select On to enable the wireless connection.
- Subnet Mask: Assign the projector's subnet mask.
• IP Address: Assign the projector's IP address.
• Start IP: Display the Start IP address. (Read only)
• End IP: Display the End IP address. (Read only)
• SSID: Display the network SSID. (Read only)
• Apply: Apply the wireless network settings.
LAN

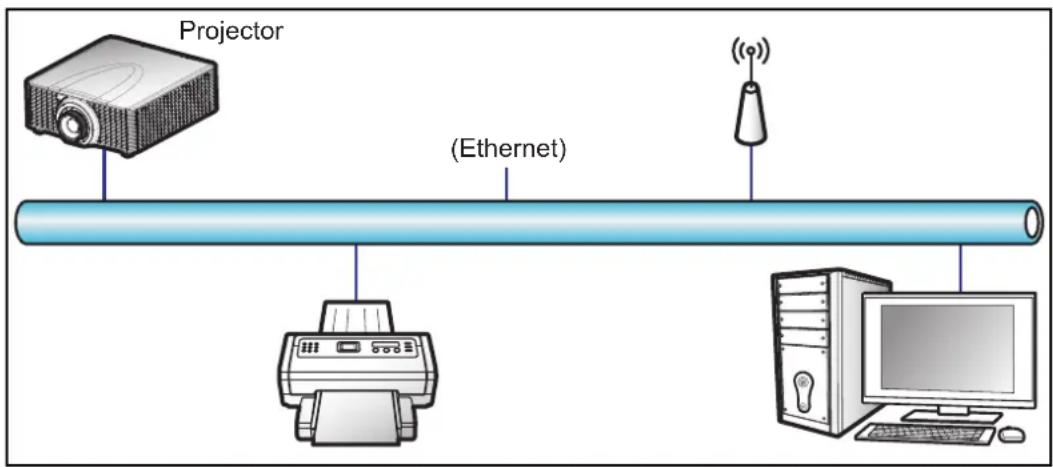

The projector can connect to a wired network using an RJ-45 cable. Use the LAN submenu to configure the wired network settings for the projector.
• MAC Address: Display the MAC address. (Read only)
• DHCP: Turn on DHCP to automatically acquire IP address, subnet mask, gateway, and DNS.
• IP Address: Assign the projector's IP address.
- Subnet Mask: Assign the projector's subnet mask.
- Gateway: Assign the projector's gateway.
- DNS: Assign the projector's DNS.
- Apply: Apply the wired network settings.
Control
This projector can be controlled remotely by a computer or other external devices through wireless or wired network connection. It allows the user to control one or more projectors from a distant control center, such as powering the projector on or off, and adjusting the image brightness or contrast.
Use the Control submenu to select a control device for the projector.
- Crestron: Control the projector with Crestron controller and related software. (Port: 41794) For more information, please visit http://www.crestron.com.
• Extron: Control the projector with Extron devices. (Port: 2023)
For more information, please visit http://www.extron.com.
• PJ Link: Control the projector with PJLink v1.0 commands. (Port: 4352)
For more information, please visit http://pjlink.jbmia.or.jp/english.
USING THE PROJECTOR
• AMX Device Discovery: Control the projector with AMX devices. (Port: 9131)
For more information, please visit http://www.amx.com.
• Telnet: Control the projector using RS232 commands though Telnet connection. (Port: 23)
For more information, see Using RS232 command by Telnet on page 43.
- HTTP: Control the projector with web browser. (Port: 80)
For more information, see Using the web control panel on page 41.

Note:
• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
• Extron is a registered trademark of Extron Electronics, Inc. of the United States.
- AMX is a registered trademark of AMX LLC of the United States.
• PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA.
- For more information about the various types of external devices which can be connected to the LAN / RJ45 port and remotely control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.
Network Reset
Reset all network settings to default factory values.
Using the web control panel
Web control panel allows the user to configure various projector settings using a web browser from any personal computer or mobile devices.
System requirement
To use the web control panel, make sure your devices and software meet the minimum system requirements.
• RJ45 cable (CAT-5e) or wireless dongle
• PC, laptop, mobile phone, or tablet installed with a web browser
- Compatible web browsers:
- Internet Explorer 11 or higher version
– Microsoft Edge 40 or higher version
– Firefox 57 or higher version
– Chrome 63 or higher version
– Safari 11 or higher version
- Operating system of the mobile devices:
– ISO 10 or higher version
- Android 5 or higher version
USING THE PROJECTOR
Overview of the web control panel
Configure the projector settings using web browser.

Menu Submenu Description
| HOME Information View the projector information and firmware version details. | |
| Main • Select the projector input sources.• Direct keys to enable or disable the projector power, shutter, and OSD. | |
| Date & Time Set up the projector date and time. | |
| Schedule Create schedules for the projector to turn on or off automatically. | |
| Upgrade Upgrade the projector firmware. | |
| Network | LAN Set up the wired network and Crestron Control System (CCS) connection. |
| WiFi Set up the wireless network. | |
| MENU Picture Adjust the basic image settings, such as image size and position. | |
| Setup Adjust the projector general settings, lens settings, and power settings. | |
Accessing the web control panel
When network is available, connect the projector and the computer to the same network. Use the projector address as the web URL to open the web control panel in a browser.
- Check the projector address using the OSD menu.
• In a wired network, select Network > LAN > IP Address.
Make sure DHCP is enabled.
• In a wireless network, select Network > WLAN > Gateway.
- Open a web browser and type the projector address in the address bar.
- The web page redirects to the web control panel.
When network is not available, see Directly connect the projector to a computer on page 43.
USING THE PROJECTOR
Directly connect the projector to a computer
When network is not available, connect the projector to the computer directly using a RJ-45 cable, and configure the network settings manually.

- Assign IP address to the projector
• From the OSD menu, select Network > LAN.
- Turn off DHCP, and manually set the projector's IP Address, Subnet Mask, and Gateway.
- Press Enter to confirm the settings.
-
Assign IP address to the computer
-
Set the Default Gateway and Subnet Mask of the computer to match the projector.
-
Set the IP address of the computer to match the first three numbers of the projector.
For example, if the projector IP address is 192.168.000.100, set the computer IP address to 192.168.000.xxx, where xxx is not 100. -
Open a web browser and type the projector address in the address bar.
-
The web page redirects to the web control panel.
Using RS232 command by Telnet
This projector supports using RS232 commands through Telnet connection.
- Set up direct connection between the projector and computer. See Directly connect the projector to a computer on Directly connect the projector to a computer on page 43.
- Disable the fiewwall on the computer.
- Open the command dialogue on the computer. For Windows 7 operating system, select Start > All Programs > Accessories > Command Prompt.
- Input the command "telnet ttt.xxx.yyy.zzz 23". Replace "ttt.xxx.yyy.zzz" with the projector IP address.
- Press Enter on the computer keyboard.
Specification for RS232 by Telnet
- Telnet: TCP
• Telnet port: 23 (contact service team for more details) - Telnet utility: Windows "TELNET.exe" (console mode).
- Disconnection for RS232-by-Telnet control normally: Close
• Below are the limitations for using Windows Telnet utility directly after TELNET connection is ready:
- There is less than 50 bytes for successive network payload for Telnet-Control application.
- There is less than 26 bytes for one complete RS232 command for Telnet-Control.
- Minimum delay for next RS232 command must be more than 200 (ms).
USING THE PROJECTOR
Information menu
View the projector information about its status and settings. The projector information is read only.
- Regulatory
- Serial Number
- Main Source
- Main Resolution
- Main Signal Format
- Main Pixel Clock
- Main Horz Refresh
- Main Vert Refresh
- Sub Source
- Sub Resolution
- Sub Signal Format
- Sub Pixel Clock
- Sub Horz Refresh
- Sub Vert Refresh
- Display Mode
- Color Space Setting
- Power Mode (Standby)
- Projection Hours
- Remote Code
• LAN IP Address - SSID
- Projector ID
- Brightness Mode
- FW Version
- F-MCU Version
- S-MCU Version
- A-MCU Version
- Formatter Version
• LAN Version
ADDITIONAL INFORMATION
Compatible resolutions
Timing table
| Signal Type | Resolution Frame rate (Hz) VGA HDMI1 / 2 DVI 3G-SDI HDBaseT | ||||||||||||
| PC | 640x480 | 60 | V | V | V | V | |||||||
| 640x480 | 72 | V | V | V | V | ||||||||
| 640x480 | 75 | V | V | V | V | ||||||||
| 640x480 | 85 | V | V | V | V | ||||||||
| 640x480 | 66.6 | V | V | V | |||||||||
| 720x400 | 70 | V | V | V | V | ||||||||
| 800x600 | 60 | V | V | V | V | ||||||||
| 800x600 | 72 | V | V | V | V | ||||||||
| 800x600 | 75 | V | V | V | V | ||||||||
| 800x600 | 85 | V | V | V | V | ||||||||
| 800x600 | 120 | V | V | V | V | ||||||||
| 848x480 | 50 | V | V | V | |||||||||
| 848x480 | 60 | V | V | V | |||||||||
| 848x480 | 75 | V | V | V | |||||||||
| 848x480 | 85 | V | V | V | |||||||||
| 1024x768 | 60 | V | V | V | V | ||||||||
| 1024x768 | 75 | V | V | V | V | ||||||||
| 1024x768 | 85 | V | V | V | V | ||||||||
| 1024x768 | 120 | V | V | V | V | ||||||||
| 1152x720 | 50 | V | V | V | |||||||||
| 1152x720 | 60 | V | V | V | |||||||||
| 1152x720 | 75 | V | V | V | |||||||||
| 1152x720 | 85 | V | V | V | |||||||||
| 1152x864 | 60 | V | V | V | V | ||||||||
| 1152x864 | 70 | V | V | V | V | ||||||||
| 1152x864 | 75 | V | V | V | V | ||||||||
| 1152x864 | 85 | V | V | V | V | ||||||||
| 1150x870 | 75 | V | V | ||||||||||
| 1280x720 | 50 | V | V | V | |||||||||
| 1280x720 | 60 | V | V | V | V | ||||||||
| 1280x720 | 75 | V | V | V | V | ||||||||
| 1280x720 | 85 | V | V | V | V | ||||||||
| 1280x720 | 120 | V | V | V | V | ||||||||
| 1280x768 | 60 | V | V | V | V | ||||||||
| 1280x768 | 75 | V | V | V | V | ||||||||
| 1280x768 | 85 | V | V | V | V | ||||||||
| 1280x800 | 50 | V | V | V | V | ||||||||
| 1280x800 | 60 | V | V | V | V | ||||||||
| 1280x800 | 75 | V | V | V | V | ||||||||
| 1280x800 | 85 | V | V | V | V | ||||||||
| 1280x960 | 50 | V | V | V | |||||||||
| 1280x960 | 60 | V | V | V | V | ||||||||
| 1280x960 | 75 | V | V | V | V | ||||||||
| 1280x960 | 85 | V | V | V | V | ||||||||
| 1280x1024 | 50 | V | V | V | |||||||||
| 1280x1024 | 60 | V | V | V | V | ||||||||
ADDITIONAL INFORMATION
| Signal Type Resolution Frame rate (Hz) VGA HDMI1 / 2 DVI 3G-SDI HDBaseT | ||||||
| PC | 1280x1024 75 V V V V | |||||
| 1280x1024 85 V V V V | ||||||
| 1360x768 50 V V V | ||||||
| 1360x768 60 V V V | ||||||
| 1360x768 75 V V V | ||||||
| 1360x768 85 V V V | ||||||
| 1368x768 60 V V V V | ||||||
| 1400x1050 50 V V V | ||||||
| 1400x1050 60 V V V | ||||||
| 1400x1050 75 V V V V | ||||||
| 1440x900 60 V V V V | ||||||
| 1440x900 75 V V V | ||||||
| 1600x900 60 V V V | ||||||
| 1600x1200 60 V V V V | ||||||
| 1680x1050 60 V V V V | ||||||
| 1920X1080 50 V V V | ||||||
| 1920X1080 60 V V V V | ||||||
| 1920X1200RB 60 V V V V | ||||||
| 1920X1200RB 50 V V V V | ||||||
| SDTV | 480i | 60 V V V V | ||||
| 576i | 50 V V V V | |||||
| EDTV | 480p | 60 V V V V | ||||
| 576p | 50 V V V V | |||||
| HDTV | 1080i 25 V V V V | |||||
| 1080i 29 V V V V | ||||||
| 1080i 30 V V V V | ||||||
| 720p | 50 V V V V | |||||
| 720p | 59 V V V V | |||||
| 720p | 60 V V V V | |||||
| 1080p | 23 V V V V | |||||
| 1080p | 24 V V V V | |||||
| 1080p | 25 V V V V | |||||
| 1080p | 29 V V V V | |||||
| 1080p | 30 V V V V | |||||
| 1080p | 50 V V V V | |||||
| 1080p | 59 V V V V | |||||
| 1080p | 60 V V V V | |||||
| Mandatory 3D | Frame Packing 1080p | 24 V V V | ||||
| Frame Packing 720p | 50 V V V | |||||
| Frame Packing 720p | 60 V V V | |||||
| Side by Side 1080i | 50 V V V | |||||
| Side by Side 1080i | 60 V V V | |||||
| Top and Bottom 720p | 50 V V V | |||||
| Top and Bottom 720p | 60 V V V | |||||
| Top and Bottom 1080p | 24 V V V | |||||
ADDITIONAL INFORMATION
| Signal Type Resolution Frame rate (Hz) VGA HDMI1 / 2 DVI 3G-SDI HDBaseT | ||||||
| Frame sequential 3D | 800x600 120 V V V | |||||
| 1024x768 120 V V V | ||||||
| 1280x720 120 V V V | ||||||
| 1080p 120 V V V | ||||||
| 1080p 60 V V V | ||||||
| WUXGA | 60 V V V | |||||
| SD-SDI | 480i YcbCr422 10bit | 59.94 | V | |||
| 576i YcbCr422 10bit | 50 | V | ||||
| HD-SDI | 720p YcbCr422 10bit | 50 | V | |||
| 59.94 | V | |||||
| 60 | V | |||||
| 1080i YcbCr422 10bit | 50 | V | ||||
| 59.94 | V | |||||
| 60 | V | |||||
| 1080p YcbCr422 10bit | 23.98 | V | ||||
| 24 | V | |||||
| 25 | V | |||||
| 29.97 | V | |||||
| 30 | V | |||||
| 1080sF YcbCr422 10bit | 25 | V | ||||
| 29.97 | V | |||||
| 30 | V | |||||
| 3GA-SDI | 1080p YcbCr422 10bit | 50 | V | |||
| 59.94 | V | |||||
| 60 | V | |||||
| 3GB-SDI | 1080p YcbCr422 10bit With 352M Payload ID | 50 | V | |||
| 59.94 | V | |||||
| 60 | V | |||||
| 4K | 3840x2160 | 23.976 | V V V | |||
| 24.000 | V V V | |||||
| 25.000 | V V V | |||||
| 29.970 | V V V | |||||
| 30.000 | V V V | |||||
| 50.000 | V V | |||||
| 59.940 | V V | |||||
| 60.000 | V V | |||||
| 4096x2160 | 23.976 | V V V | ||||
| 24.000 | V V V | |||||
| 25.000 | V V V | |||||
| 29.970 | V V V | |||||
| 30.000 | V V V | |||||
| 50. 000 | V V | |||||
| 59.940 | V V | |||||
| 60.000 | V V | |||||
NRB: means "reduced blanking".
ADDITIONAL INFORMATION
EDID Table
| WUXGA / VGA | ||
| Established Timing: Standard Timing: Detail Timing: | ||
| 720x400 @ 70 Hz 1440x900 @ 75 Hz 1920x1200 @ 59 Hz | ||
| 720x400 @ 88 Hz 1280x800 @ 75 Hz 1920x1080 @ 60 Hz | ||
| 640x480 @ 60 Hz 1280x1024 @ 60 Hz | ||
| 640x480 @ 67 Hz 1360x765 @ 60 Hz | ||
| 640x480 @ 72 Hz 1440x900 @ 60 Hz | ||
| 640x480 @ 75 Hz 1400x1050 @ 60 Hz | ||
| 800x600 @ 56 Hz 1600x1200 @ 60 Hz | ||
| 800x600 @ 60 Hz 1680x1050 @ 60 Hz | ||
| 800x600 @ 72 Hz | ||
| 800x600 @ 75 Hz | ||
| 832x624 @ 75 Hz | ||
| 1024x768 @ 60 Hz | ||
| 1024x768 @ 70 Hz | ||
| 1024x768 @ 75 Hz | ||
| 1280x1024 @ 75 Hz | ||
| 1152x870 @ 75 Hz | ||
| WUXGA / HDMI & HDBaseT | ||
| Established Timing: Standard Timing: Detail Timing: | ||
| 720x400 @ 70 Hz 1024x768 @120 Hz 1920x1080 @ 60 Hz | ||
| 720x400 @ 88 Hz 1280x800 @ 75 Hz 1360x768 @ 60 Hz | ||
| 640x480 @ 60 Hz 1280x1024 @ 60 Hz 1366x768 @ 59 Hz | ||
| 640x480 @ 67 Hz 1360x765 @ 60 Hz 720x480 @ 59 Hz | ||
| 640x480 @ 72 Hz 800x600 @ 120 Hz | ||
| 640x480 @ 75 Hz 1400x1050 @ 60 Hz | ||
| 800x600 @ 56 Hz 1600x1200 @ 60 Hz | ||
| 800x600 @ 60 Hz 1680x1050 @ 60 Hz | ||
| 800x600 @ 72 Hz | ||
| 800x600 @ 75 Hz | ||
| 832x624 @ 75 Hz | ||
| 1024x768 @ 60 Hz | ||
| 1024x768 @ 70 Hz | ||
| 1024x768 @ 75 Hz | ||
| 1280x1024 @ 75 Hz | ||
| 1152x870 @ 75 Hz | ||
ADDITIONAL INFORMATION
WUXGA / DVI-D
| Established Timing: Standard Timing: Detail Timing: | |
| 720x400 @ 70 Hz 1024x768 @ 120 Hz 1920x1080 @ 60 Hz | |
| 720x400 @ 88 Hz 1280x800 @ 75 Hz 1360x768 @ 60 Hz | |
| 640x480 @ 60 Hz 1280x1024 @ 60 Hz 1366x768 @ 59 Hz | |
| 640x480 @ 67 Hz 1360x765 @ 120 Hz 720x480 @ 59 Hz | |
| 640x480 @ 72 Hz 800x600 @ 120 Hz | |
| 640x480 @ 75 Hz 1400x1050 @ 60 Hz | |
| 800x600 @ 56 Hz 1600x1200 @ 60 Hz | |
| 800x600 @ 60 Hz 1680x1050 @ 60 Hz | |
| 800x600 @ 72 Hz | |
| 800x600 @ 75 Hz | |
| 832x624 @ 75 Hz | |
| 1024x768 @ 60 Hz | |
| 1024x768 @ 70 Hz | |
| 1024x768 @ 75 Hz | |
| 1280x1024 @ 75 Hz | |
| 1152x870 @ 75 Hz |
ADDITIONAL INFORMATION
Image size and projection distance
| Aspect Ratio WUXGA (16:10) | |||||||||||||
| DMD 0.67" | |||||||||||||
| Projection Lens A16 A01 A06 | A03 A13 | A15 | |||||||||||
| Throw Ratio | 0.361(120") | 0.95-1.22 | 1.22 | 1.52 | 1.52-2.92 | 2.90 | -5.50 | 0.75-0.95 | |||||
| Zoom Ratio N/A 1.28X 1.25X | 1.9X 1.9X | 1.26X | |||||||||||
| Throw Distance | 0.96-3.01m | 1.02-13.33m | 1.31-16.58m | 1.64-31.70m | 3.12-57.86m | 0.81-10.38m | |||||||
| Projection screen size | Projection distance (m) | ||||||||||||
| Throw Ratio | 0.361(120") | 0.95 | 1.22 | 1.22 | 1.52 | 1.52 | 2.92 | 2.90 | 5.50 | 0.75 | 0.95 | ||
| Diagonal(inch) | Height(m) | Width(m) | (m) | Min (m) | Max(m) | Min(m) | Max(m) | Min (m) | Max(m) | Min (m) | Max(m) | Min (m) | Max(m) |
| 50 | 0.67 | 1.08 | - | 1.02 | 1.31 | 1.31 | 1.65 | 1.64 | 3.14 | 3.12 | 5.92 | 0.81 | 1.02 |
| 60 | 0.81 | 1.29 | - | 1.23 | 1.58 | 1.58 | 1.98 | 1.96 | 3.77 | 3.75 | 7.11 | 0.97 | 1.23 |
| 70 | 0.94 | 1.51 | - | 1.43 | 1.84 | 1.84 | 2.31 | 2.29 | 4.40 | 4.37 | 8.29 | 1.13 | 1.43 |
| 80 | 1.08 | 1.72 | - | 1.64 | 2.10 | 2.10 | 2.64 | 2.62 | 5.03 | 5.00 | 9.48 | 1.29 | 1.64 |
| 90 | 1.21 | 1.94 | - | 1.84 | 2.36 | 2.36 | 2.97 | 2.95 | 5.66 | 5.62 | 10.66 | 1.45 | 1.84 |
| 100 | 1.35 | 2.15 | - | 2.05 | 2.63 | 2.63 | 3.30 | 3.27 | 6.29 | 6.25 | 11.85 | 1.62 | 2.05 |
| 110 | 1.48 | 2.37 | - | 2.25 | 2.89 | 2.89 | 3.63 | 3.60 | 6.92 | 6.87 | 13.03 | 1.78 | 2.25 |
| 120 | 1.62 | 2.58 | 0.96 | 2.46 | 3.15 | 3.15 | 3.95 | 3.93 | 7.55 | 7.50 | 14.22 | 1.94 | 2.46 |
| 130 | 1.75 | 2.80 | 1.04 | 2.66 | 3.42 | 3.42 | 4.28 | 4.26 | 8.18 | 8.12 | 15.40 | 2.10 | 2.66 |
| 140 | 1.88 | 3.02 | 1.11 | 2.86 | 3.68 | 3.68 | 4.61 | 4.58 | 8.81 | 8.74 | 16.59 | 2.26 | 2.86 |
| 150 | 2.02 | 3.23 | 1.18 | 3.07 | 3.94 | 3.94 | 4.94 | 4.91 | 9.43 | 9.37 | 17.77 | 2.42 | 3.07 |
| 160 | 2.15 | 3.45 | 1.26 | 3.27 | 4.20 | 4.20 | 5.27 | 5.24 | 10.06 | 9.99 | 18.95 | 2.58 | 3.27 |
| 170 | 2.29 | 3.66 | 1.33 | 3.48 | 4.47 | 4.47 | 5.60 | 5.57 | 10.69 | 10.62 | 20.14 | 2.75 | 3.48 |
| 180 | 2.42 | 3.88 | 1.40 | 3.68 | 4.73 | 4.73 | 5.93 | 5.89 | 11.32 | 11.24 | 21.32 | 2.91 | 3.68 |
| 190 | 2.56 | 4.09 | 1.48 | 3.89 | 4.99 | 4.99 | 6.26 | 6.22 | 11.95 | 11.87 | 22.51 | 3.07 | 3.89 |
| 200 | 2.69 | 4.31 | 1.55 | 4.09 | 5.26 | 5.26 | 6.59 | 6.55 | 12.58 | 12.49 | 23.69 | 3.23 | 4.09 |
| 250 | 3.37 | 5.38 | 1.91 | 5.12 | 6.57 | 6.57 | 8.24 | 8.18 | 15.72 | 15.62 | 29.62 | 4.04 | 5.12 |
| 300 | 4.04 | 6.46 | 2.28 | 6.14 | 7.88 | 7.88 | 9.89 | 9.82 | 18.87 | 18.74 | 35.54 | 4.85 | 6.14 |
| 350 | 4.71 | 7.54 | 2.65 | 7.25 | 9.32 | 9.28 | 11.59 | 11.60 | 22.17 | 21.41 | 40.54 | 5.71 | 7.26 |
| 400 | 5.38 | 8.62 | 3.01 | 8.29 | 10.66 | 10.61 | 13.25 | 13.26 | 25.35 | 24.45 | 46.31 | 6.53 | 8.30 |
| 450 | 6.06 | 9.69 | - | 9.33 | 11.99 | 11.94 | 14.92 | 14.93 | 28.52 | 27.49 | 52.09 | 7.35 | 9.34 |
| 500 | 6.73 | 10.77 | - | 10.37 | 13.33 | 13.27 | 16.58 | 16.59 | 31.70 | 30.53 | 57.86 | 8.17 | 10.38 |
Note: The optical performance of the image is the best when the image size is below 300 inch. Under certain circumstances, the image quality may not be ideal when the image size is over 300 inch.
ADDITIONAL INFORMATION
Projection distance
The distance between the projector and its screen determines the approximate size of the image. The farther the projector is from the screen, the larger the image will be projected. But the image size also varies depending on the aspect ratio, zoom and other settings.

Powered lens shift range
| Lens type HV ▲H ▲V | ||
| A01, A03, A13 15% 50% 15% 50% | ||
| A06 15% 50% 10% 40% | ||
| A15 15% 50% 5% 25% |
V: Height of the projected image
H: Width of the projected image
□ Projected image

ADDITIONAL INFORMATION
Projector dimensions and ceiling mount installation
- To prevent damage to your projector, please use the Optoma ceiling mount.
- If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:
- Screw type: M6 x 4
• Minimum screw length: 10mm

| Lens | Dims. X |
| A06 | 60.46 |
| A15 | 42.92 |
| A16 | 295.47 |
| A01 | 41.57 |
| A03 | 61.37 |
| A13 | 89.07 |
Dimensions given in millimeters

Warning:
- If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
- Be sure to keep at least 10mm (1cm) gap between the ceiling and the bottom of the projector.
- Avoid installing the projector near a heat source.
- Please note that damage resulting from incorrect installation will void the warranty.
ADDITIONAL INFORMATION
IR remote codes

| Key Legend | Key Position | Repeat Format | Address | Data | Description | ||
| Byte 1 | Byte 2 | Byte 3 | Byte 4 | ||||
| ON (1) | 1 | F1 | 32 | CD | 02 | FD | Press to turn on the projector. |
| OFF (2) | 2 | F1 | 32 | CD | 2E | D1 | Press to turn off the projector. |
| 1 | 3 | F1 | 32 | CD | 72 | 8D | Use as numeric keypad number “1”. |
| 2 | 4 | F1 | 32 | CD | 73 | 8C | Use as numeric keypad number “2”. |
| 3 | 5 | F1 | 32 | CD | 74 | 8B | Use as numeric keypad number “3”. |
| 4 | 6 | F1 | 32 | CD | 75 | 8A | Use as numeric keypad number “4”. |
| 5 | 7 | F1 | 32 | CD | 77 | 88 | Use as numeric keypad number “5”. |
| 6 | 8 | F1 | 32 | CD | 78 | 87 | Use as numeric keypad number “6”. |
ADDITIONAL INFORMATION
| Key Legend | Key Position | Repeat Format | Address Data | Description | |||
| Byte 1 | Byte 2 | Byte 3 | Byte 4 | ||||
| 7 9 F1 32 CD 79 86 Use as numeric keypad number “7”. | |||||||
| 8 10 F1 32 CD 80 7F Use as numeric keypad number “8”. | |||||||
| 9 11 F1 32 CD 81 7E Use as numeric keypad number “9”. | |||||||
| Info | 12 F1 32 CD 82 7D Press to display source image information. | ||||||
| 0 | 13 | F1 | 32 | CD | 25 | DA | Use as numeric keypad number “0”. |
| Mode | 14 F1 32 CD 05 FA Press to select the preset display mode. | ||||||
| Auto | 15 F1 32 CD 04 FB | Press to automatically synchronize the projector to the input source. | |||||
| Input | 16 F1 32 CD 18 E7 Press to select an input signal. | ||||||
| UP (▲) | 17 F1 32 CD 0F F0 | Press to select items or make adjustments to our selection. | |||||
| LEFT (◀) | 18 F1 32 CD 11 EE | Press to select items or make adjustments to our selection. | |||||
| Enter | 19 | F1 | 32 | CD | 14 | EB | Press to confirm your item selection. |
| RIGHT (▶) | 20 F1 32 CD 10 EF | Press to select items or make adjustments to our selection. | |||||
| DOWN (▼) | 21 | F1 32 CD 12 | ED | Press to select items or make adjustments to our selection. | |||
| Menu | 22 F1 32 CD 0E F1 | Press to display the on-screen display menus for projector. | |||||
| Exit | 23 F1 32 CD 2A D5 | Press to return to previous level or exit menus if at top level. | |||||
| Gamma | 24 F1 32 CD 2B D4 Press to adjust mid-range levels.. | ||||||
| Bright 25 F1 32 CD 28 D7 Press to adjust amount of light in the image. | |||||||
| Cont. | 26 | F1 | 32 | CD | 29 | D6 | Press to adjust difference between dark and light. |
| PIP | 27 | F1 | 32 | CD | 43 | BC | Press to turn on/off the PIP/PBP function. |
| Lens H◀ 28 F1 32 CD 41 BE | Press to adjust the position of the image horizontally. | ||||||
| Lens H ▶ | 29 | F1 32 CD 42 | BD | ||||
| Focus ▲ | 30 F1 32 CD 86 79 | Press to adjust focus to improve image clarity as desired. | |||||
| Lens V ▲ | 31 | F1 | 32 | CD | 34 | CB | Press to adjust the position of the image vertically. |
| Lens V ▼ | 32 | F1 | 32 | CD | 32 | CD | Press to adjust the position of the image vertically. |
| Focus ▼ | 33 F1 32 CD 26 D9 | Press to adjust focus to improve image clarity as desired. | |||||
| Keystone □ | 34 F1 32 CD 87 78 Press to adjust the vertical keystone. | ||||||
| Keystone □ | 35 F1 32 CD 51 AE Press to adjust the vertical keystone. | ||||||
| Zoom ▲ | 36 F1 32 CD 52 AD | Press to adjust zoom to achieve a desired image size. | |||||
| Keystone □ | 37 F1 32 CD 53 AC Press to adjust the horizontal keystone. | ||||||
| Keystone □ | 38 F1 32 CD 54 AB Press to adjust the horizontal keystone. | ||||||
| Zoom ▼ | 39 F1 32 CD 55 AA | Press to adjust zoom to achieve a desired image size. | |||||
| Shutter (AV Mute) | 40 F1 32 CD 56 A9 Press to hide/unhide the screen picture. | ||||||
| Hot Key | 41 | F1 | 32 | CD | 57 | A8 | Press to select your preset keys quickly. |
| Pattern | 42 F1 32 CD 58 A7 Press to display a test pattern. | ||||||
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.
Image problems
?
No image appears on-screen
- Ensure all the cables and power connections are correctly and securely connected as described in the Setup and Installation section.
- Ensure the pins of connectors are not crooked or broken.
- Ensure that the Shutter (AV Mute) feature is not turned on.
?
Image is out of focus
- Press the Focus ▲ or Focus ▼ button on the remote control or projector keypad to adjust the focus until the image is sharp and legible.
• Make sure the projection screen is between the required distance from the projector. (Please refer to Image size and projection distance page 50).
?
The image is stretched when displaying 16:10 DVD title
- When you play anamorphic DVD or 16:10 DVD, the projector will show the best image in 16:10 format on projector side.
- If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
- Please setup the display format as 16:10 (wide) aspect ratio type on your DVD player.
?
Image is too small or too large
- Press the Zoom ▲ or Zoom ▼ button on the remote control to adjust the projected image size.
- Move the projector closer to or further from the screen.
• From the OSD menu, select Display > Aspect Ratio to change the aspect ratio.
?
Image has slanted sides:
• If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.
• From the OSD menu, select Display > Geometric Correction > V. Keystone or H. Keystone to adjust the screen shape.
?
Image is reversed
• From the OSD menu, select Setup > Projection > Rear to reverse the image so you can project from behind a translucent screen.
Other problems
?
The projector stops responding to all controls
- If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.
Remote control problems
?
If the remote control does not work
- Check the operating angle of the remote control is pointed within ± 30^ (horizontally or vertically) to the IR receivers on the projector.
• Make sure there are not any obstructions between the remote control and the projector. Move to within 10 m (32.8 ft) of the projector. - Make sure batteries are inserted correctly.
- Replace batteries if they are exhausted.
ADDITIONAL INFORMATION
LED status indicators
The LED status indicators are located on the rear of the projector. Each LED is defined below.
| Message | Light Status AV Mute | |||||||
| Green Orange Red Green Orange Red Green Orange | ||||||||
| Standby State | ||||||||
| Power on (Warm up) | Flashing | |||||||
| Power on &Laser diode on | Steady Steady Steady | |||||||
| Power off (Cooling down) | Flashing | |||||||
| AV mute is off (Image is displayed) | Steady Steady Steady | |||||||
| AV mute is on (Image is black) | Steady Steady Steady | |||||||
| Projector communication | Steady Flashing Steady | |||||||
| Firmware upgrade | Flashing Flashing | |||||||
| Laser diode time has expired | Steady | |||||||
| Unit loses over 60% initial luminance | Flashing | |||||||
| Error (Over temperature) | Steady | |||||||
| Error (Fan failure) | Flashing | |||||||
Note: Power key of the keypad is in steady red light when the projector enters standby mode.
ADDITIONAL INFORMATION
Specifications
| Optical Description | |
| Resolution | Native Resolution: WUXGA (1920x1200)Supported Resolution: Up to WUXGA@60Hz (Reduced Blanking) |
| Lens Power Zoom/Focus and full lens shift | |
| Image size (diagonal) 50~500” | |
| Projection distance Please refer to “Image size and projection distance” table on page 50. | |
| Electrical Description | |
| Inputs | 2 x HDMI In (version 2.0) (with locking screw)1 x DVI-D (only support digital signal)1 x VGA In (D-Sub 15pin) (Computer In or Component)1 x HDBaseT1 x 3D SYNC In1 x 3G SDI |
| Outputs | 1 x VGA Out (Support VGA loops through to monitor) (Monitor Out)1 x DC12V out1 x 3D SYNC Out |
| Control port | 1 x RS232 (D-sub 9 pin) (PC Control)1 x Wired In (3.5mm phone jack) (Remote In)1 x RJ-45 (LAN)1 x USB type A (only for USB power out) |
| Power requirement 100-240 VAC, 50/60 Hz, 7 A | |
| Mechanical Description | |
| Installation orientation 360° rotation, no restrictions | |
| Dimensions 484 (W) x 529 (D) x 195 (H) mm (w/o lens, w/o elevators) | |
| Weight | N.W. 17.6 kg (without lens); 18.1 kg (with standard lens)G.W. 22.6 kg (with package, without lens) |
| Environmental conditions | Operating: 5~40°C; 10~85%RH, non-condensingStorage: -10~60°C; 5~90%RH, non-condensing |
Note: All specifications are subject to change without notice.
Optoma global offices
For service or support, please contact your local office.
USA
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-897-8601
Fremont, Ca 94539 services@optoma.com
Canada
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-897-8601
Fremont, Ca 94539 services@optoma.com
Latin America
Optoma Technology, Inc. 888-289-6786
47697 Westinghouse Drive. 510-897-8601
Fremont, Ca 94539 services@optoma.com
Europe
Unit 1, Network 41, Bourne End Mills
Hemel Hempstead, Herts,
HP1 2UJ, United Kingdom +44 (0) 1923 691 800
www.optoma.eu +44 (0) 1923 691 888
Service Tel : +44 (0)1923 691865 service@tsc-europe.com
Benelux BV
Randstad 22-123 +31 (0) 36 820 0252
1316 BW Almere +31 (0) 36 548 9052
The Netherlands
www.optoma.nl
France
Germany info@optoma.de
Scandinavia
Lerpeveien 25 +47 32 98 89 90
3040 Drammen +47 32 98 89 99
Norway info@optoma.no
PO.BOX 9515
3038 Drammen
Norway
Korea
WOOMI TECH.CO.,LTD. +82+2+34430004
4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430005
Seoul,135-815, KOREA
korea.optoma.com
Japan
東京都足立区綾瀬3-25-18
株式会社オーエス
info@os-worldwide.com
www.os-worldwide.com
Taiwan
12F., No.213, Sec. 3, Beixin Rd.,
Xindian Dist., New Taipei City 231,
Taiwan, R.O.C.
www.optoma.com.tw
+886-2-8911-8600
+886-2-8911-6550
services@optoma.com.tw
asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street,
Cheung Sha Wan,
Kowloon, Hong Kong
+852-2396-8968
+852-2370-1222
www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., +86-21-62947376
Changning District +86-21-62947375
Shanghai, 200052, China
www.optoma.com.cn
