Product Type	Dishwasher
Brand	Hotpoint
Model	HIC 3C41 CW
Energy Class	A+
Capacity (Place Settings)	13
Dimensions (W x H x D)	60 x 85 x 60 cm
Weight	45 kg
Power Supply	220-240 V / 50 Hz
Noise Level	49 dB(A)
Water Consumption (per cycle)	9.5 L
Annual Energy Consumption	245 kWh
Programs	Eco, Intensive, Normal, Quick, Soak
Control Type	Push button
Display	LED indicators
Safety Features	Water stop system, child lock
Salt and Rinse Aid Indicator	Yes
Adjustable Racks	Yes
Self-Cleaning Filter	Yes
Repairability Index	8.0 / 10

Frequently Asked Questions - HIC 3C41 CW HOTPOINT

How do I install my Hotpoint HIC 3C41 CW dishwasher?

Ensure the appliance is placed on a level surface. Connect the water inlet hose to a cold water supply (3/4 inch thread) and the drain hose to a siphon or standpipe. Plug into a grounded outlet. Level the feet to avoid wobbling.

What is the correct way to load dishes?

Place plates facing the center, cups upside down in the top rack, and cutlery with handles down. Avoid blocking spray arms. Ensure large items do not prevent detergent dispenser from opening.

Which program should I use for heavily soiled pots?

Use the Intensive program (70°C) with an increased water pressure to remove baked-on food. Add extra detergent if needed.

How do I clean the filter?

Turn the coarse filter counterclockwise and lift out. Rinse all filters under running water. Reassemble and lock in place. Clean at least once a month to maintain performance.

What does the salt indicator light mean?

It indicates low salt levels. Open the salt container cap and fill with dishwasher salt (up to 1.5 kg). Wipe any excess and close. The light will turn off after a cycle.

Why is my dishwasher not drying properly?

Check that rinse aid is filled and the setting is correct. Use the extra drying option if available. Ensure the final rinse temperature is high enough (Eco program may have lower heat).

Can I use regular dish soap?

No, only use dishwasher detergent (powder, gel, or tablets). Regular dish soap creates excessive foam and may damage the appliance.

How do I activate the child lock?

Press and hold the Start/Pause button for 3 seconds until the child lock indicator lights up. Repeat to deactivate. This prevents accidental button presses.

What should I do if the dishwasher won't start?

Check if the door is fully closed and latched. Verify power supply and water tap is open. Press the Start/Pause button. If still not working, consult the troubleshooting section in the manual.

How do I reset the dishwasher?

Turn off the appliance and wait 10 seconds. Turn back on. If an error code appears, note it and refer to the manual. A common reset is pressing Start/Pause for 5 seconds.

USER MANUAL HIC 3C41 CW HOTPOINT

PRODUCT. In order to receive a more complete assistance, please register your appliance on:

www.hotpoint.eu/register

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO HAVE MORE DETAILED INFORMATION

Before using the appliance carefully read Safety Instructions guide.

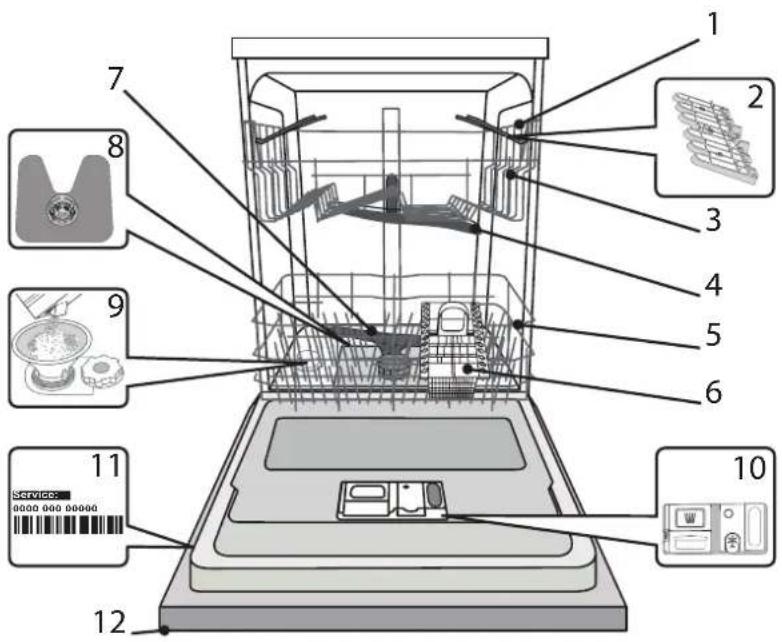

PRODUCT DESCRIPTION

APPLIANCE

1. Upper rack
2. Foldable flaps
3. Upper rack height adjuster
4. Upper spray arm
5. Lower rack
6. Cutlery basket
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel

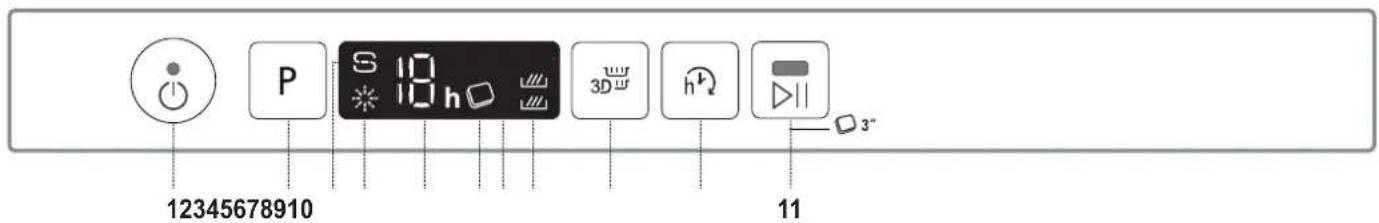

CONTROL PANEL

1. On-Off/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator

6. Tablet indicator light

7. Display

8. 3D Zone Wash indicator lights
9. 3D Zone Wash button
10. Delay button
11. START/Pause button with indicator light / Tab

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

- It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.

- It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light in the control panel is lit.

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced fruit (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button P for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
• The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button.

Setting is complete!

As soon as this procedure is complete, run a program without loading. Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation. Using of Salt is recommended with any type of dishwasher detergent.

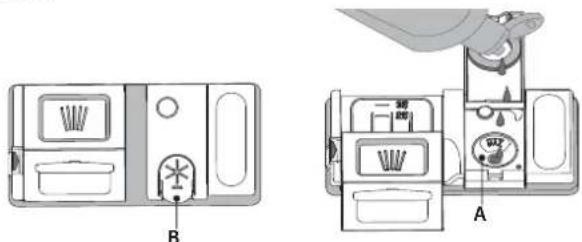

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✦ in the control panel is lit.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
   NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
  • The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO, no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.

- If you see bluish streaks on the dishes, set a low number (1-2).

- If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program			Drying phase	ActiveDry	Available options*)	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco		50°	√	√		3:10 9.5 0.75
2. Auto Intensive 65°			√	√		2:00 - 3:10 14.0 - 17.0 1.50 - 1.85
3. Auto Mixed 55°			√	√		1:30 - 2:30 14.5 - 16.0 1.15 - 1.30
4. Auto Fast Wash		50°	-	-		0:55 - 1:20 13.0 - 14.5 1.15 - 1.25
5. Rapid 30'		50°	-	-		0:30 9.0 0.50
6. Good Night 50°			√	√		3:30 15.0 1.15
7. Sanitizing		65°	√	-		1:40 10.0 1.30
8. Soak		-	-	-		0:12 4.5 0.01
9. Self-Clean		65°	-	-		0:50 8.0 0.85

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 AUTO INTENSIVE

Automatic program for heavily soiled dishes and pans (not to be used for delicate items).

3 AUTO MIXED

Automatic program for normally soiled pans and dishes.

4 AUTO FAST WASH

Automatic program for limited quantity of normally soiled crockery. Ensures optimal cleaning performance in shorter time.

5 RAPID 30'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not have drying phase.

6 GOOD NIGHT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

7 SANITIZING

Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher.

8 SOAK

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

9 SELF-CLEAN

Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance.

Notes:

Please note that cycle Rapid 30' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

[NO TEXT]

3D山

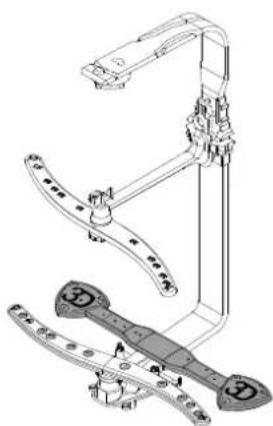

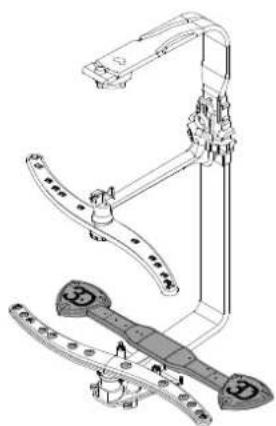

3D ZONE WASH

Option works with one rack at once. In particular, we recommend to use it with Mixed and Intensive cycles - thanks to the additional 3D water jets placed on the bottom o the cavity, 3D ZONE WASH option allows to save energy or to increase the washing performance of the dishwasher:

• 3D ZONE WASH + MIXED CYCLE: it allows to reduce energy consumption up to 40%.
• 3D ZONE WASH + INTENSIVE CYCLE: it increases the washing performances up to 40% . Ideal for very soiled mixed loads, e.g. pans and saucepans, dishes with heavy encrustation or difficult-to-clean crockery (grater, vegetable mill, dirty cutlery).

How to activate the option:

1. Select a compatible cycle
2. By default the appliance washes dishes in all racks. To wash only the specific rack, press this button repeatedly:

shown on the display (only lower rack)

shown on the display (only upper rack)

shown on the display (option is OFF and the appliance will wash dishes in all racks).

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly. If upper rack is removed, please apply detergent directly to tub instead of detergent dispenser.

DELAY

The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding «h» symbol appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.
2. Select the wash program, press the START/Pause button and within 4 seconds close the door: the timer will begin counting down.
3. Once this time has elapsed, the indicator light «h» switches off and the wash cycle begins.

To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light «h» switches off.

The DELAY function cannot be set once a wash cycle has been started.

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used. Press the START/Pause button for 3 seconds (the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

ActiveDry

ActiveDry is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture.

As additional steam protection, special designed protection foil is added together with the dishwasher. To see how to mount protection foil please refer to (INSTALLATION GUIDE).

ActiveDry functionality could be disabled by the user as follows:

1. Go to the Dishwasher software menu pressing and holding P button (6 sec).
2. You switched to ActiveDry Control Menu, you could change status of ActiveDry functionality by pressing P button:

E-enabled d-disabled

To confirm the change and exit from the Control Menu please press and hold P button (3 sec).

LOADING THE RACKS

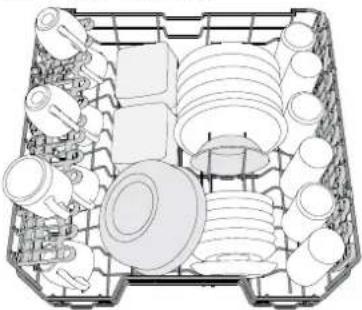

UPPER RACK

Technical line drawing of a mechanical assembly with multiple components and housing (no text or labels)

(loading example for the upper rack)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up supports by creating more space upwards and avoid collision with the items loaded into lower rack.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers A at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded. NEVER raise or lower the basket on one side only.

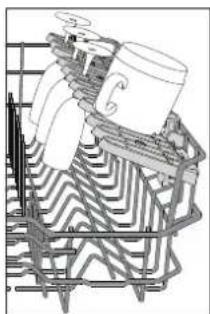

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

Depending on the model:

• to unfold the flaps there is ne-eded to slide it up and rotate or release it from the snaps and pull it down.

- to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

Illustration of a mechanical device with wavy internal structure and a cylindrical component (no text or symbols)

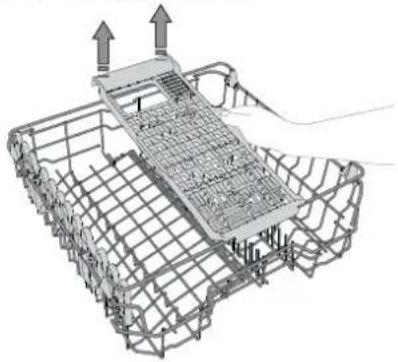

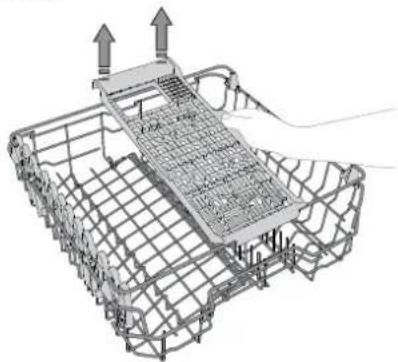

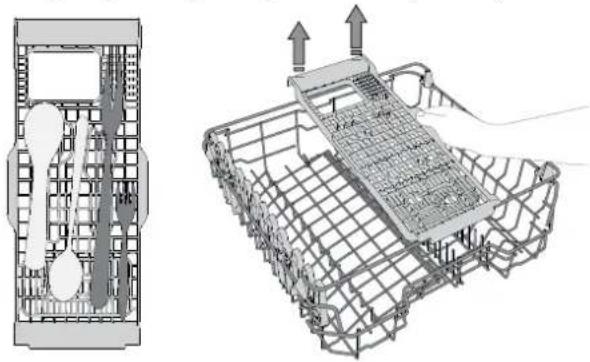

SLIDING TRAY

The upper rack is fitted with a sliding tray which can be used to hold small crockery and cutlery. For optimum washing performance, avoid positioning bulky crockery directly below the tray. The tray is removable.

Technical line drawing of a supermarket refrigerator interior and its internal grid layout (no text or symbols)

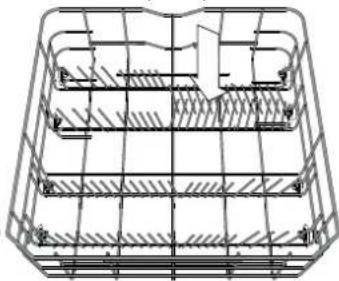

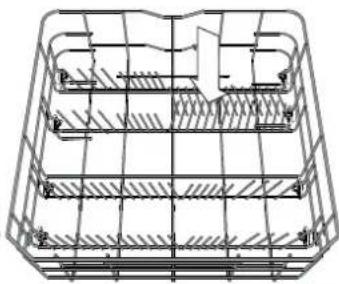

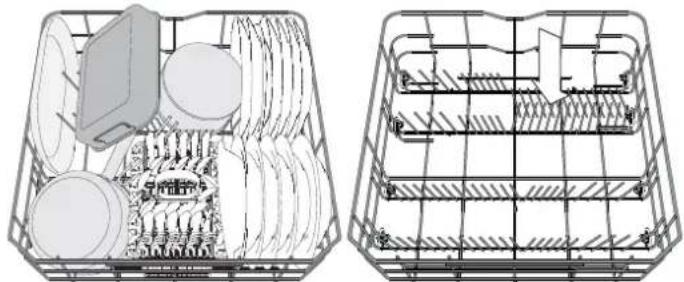

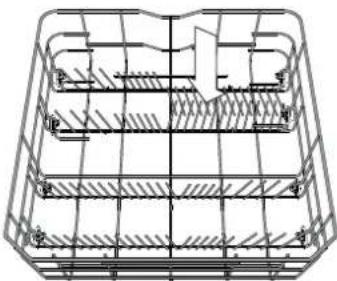

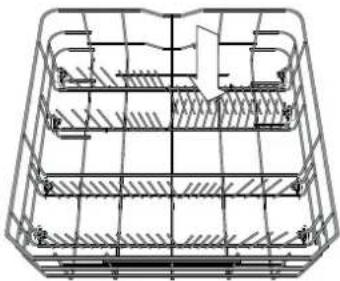

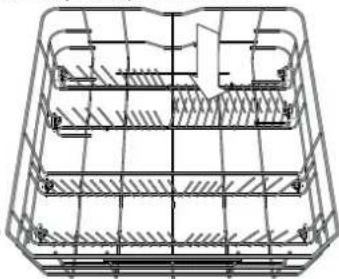

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm. The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

Two technical line drawings of a basket-like device with internal components, shown from top and side views (no text or symbols)

(loading example for the lower rack)

CUTLERY BASKET

The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack.

Line drawing of a hand placing a card into a grid-patterned basket (no text or symbols)

3D ZONE WASH

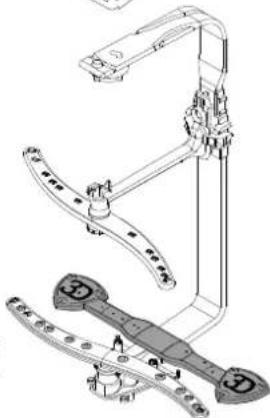

3D Zone Wash uses additional water jets located both: in the lower and upper part of the dishwasher (marked with orange color) to wash more intensively heavily soiled items by increasing water coverage on dishes.

Example: Load pots and casseroles facing lower part of 3D Zone Wash components and activate the 3D Zone Wash option on the panel.

Technical line drawing of a mechanical linkage assembly (no text or symbols)

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Open the door and press the ON/OFF button.

1. LOAD THE RACKS (see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec. When the program starts you hear a single beep. If the door was not closed within 4sec., the alarm sound will be played. In this case, open the door, press START/Pause button and close the door again within 4 sec.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle number on the display. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: open the door, press and hold the ON/OFF button, the machine will switch off.

Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (START/Pause led starts blinking) (be ware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  • Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
  The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

• When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.
• In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

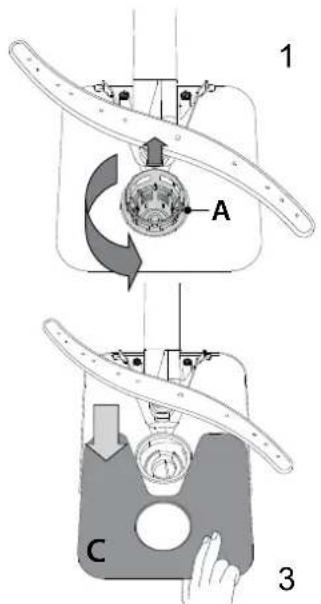

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).

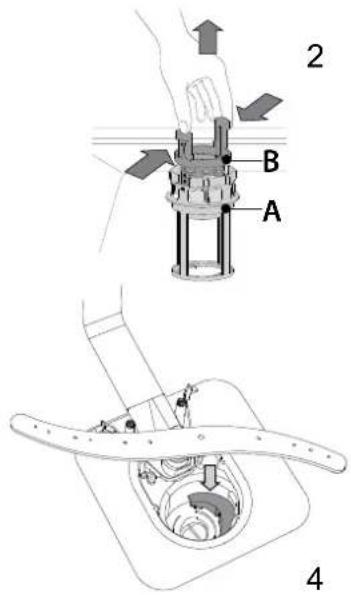

2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

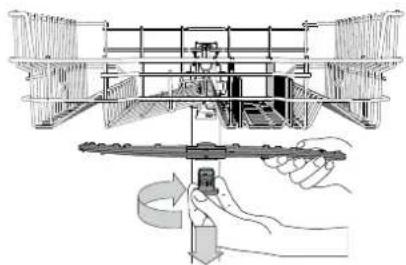

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Diagram of a hand operating a mechanical device with an upward arrow, no text or symbols present

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
  • Takes up to 5 additional minutes for the cycle;
  • Consumes below 0.005kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list.

For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet.

Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty. (After refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2).Adjust water hardness - see table, page 2.
Rinse aid indicator is lit	Rinse aid dispenser is empty. (After refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not re-start automatically when power returns.Open dishwasher door, press START/Pause button and close the door within 4 seconds.
	The dishwasher door is not closed.ActiveDry pin is not pulled in.	Vigorously push the door until you hear the "click".
	Cycle is interrupted by door opening for more than 4 seconds.	Press START/Pause and close the door within 4 seconds.
	It does not respond to commands.Display shows: 9 or 12 and On/Off LED is blinking rapidly	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.Display shows: 3 and On/Off LED is blinking rapidly	The wash cycle has not finished yet. Wait until the	wash cycle finishes.
	The drain hose is bent. Check that the drain hose is	not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.	pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).	the filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dish-washers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).	wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwa-shers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).	bly (see CARE AND MAINTENANCE).
	There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).	THE SALT RESERVOIR).
The dishwasher does not fill the water. Display shows: H, 6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwa-sher and restart a new program.
Dishwasher finishes the cycle prematurely. Display shows: 15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.
- Visiting our website docs.hotpoint.eu and parts-selfservice.whirlpool.com
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet).

When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

GUÍA

Illustration of a hand pouring granular material into a bowl on a stand next to a slice of bread (no text or symbols)

Top-down technical drawing of a mechanical assembly with multiple cylindrical components and housing (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

BANDEJA DESLIZANTE

Technical illustration of a mechanical device with internal components and external force arrows (no text or symbols)

CESTO INFERIOR

Diagram of a shopping basket with plates and accessories (no text or symbols)

Technical line drawing of a multi-tiered mechanical or architectural component (no text or symbols)

Line drawing of a hand placing a plastic component into a grid-patterned container (no text or symbols)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

USO DIARIO

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press a cylindrical component on a stovetop (no text or symbols)

IGAPÄEVANE KASUTUS

JUHEND

TÄNAME, ET OSTSITE HOTPOINT ARISTON TOOTE. Täielikuma tugiteenuse saamiseks registreerige oma seade aadressil: www.hotpoint.eu/register

LISATEABE SAAMISEKS SKANNIGE SEADMEL OLEV QR-KOOD

Illustration of a hand pouring granular material into a bowl on a stand, with a separate cross-section showing a whole grain (no text or symbols)

Top-down technical diagram of a mechanical assembly with multiple components (no text or labels visible)

REGULEERITAVA PAIGUTUSEGA KOKKUKÄIVAD LABAD

Technical line drawing of a mechanical assembly with no visible text or symbols

LIUGRIIUL

Cross-sectional diagram of a device with internal components (no text or symbols)

3D wireframe model of a mechanical assembly with grid structure and directional arrows (no text or symbols)

ALUMINE REST

Cross-sectional diagram of a multi-compartment kitchen unit with plates and fixtures (no text or labels)

Technical line drawing of a multi-tiered mechanical or architectural component (no text or symbols)

Line drawing of a hand placing a component into a grid-patterned basket (no text or symbols)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

IGAPÄEVANE KASUTAMINE

1. VEEÜHENDUSE KONTROLL

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl on a stand, with a separate close-up of a sliced food item nearby (no text or symbols)

OPTIONS ET FONCTIONS

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

VOLETS PLIABLES AVEC POSITIONS AJUSTABLES

Interior view of a room with furniture and fixtures (no visible text or symbols)

3D wireframe diagram of a mechanical cage or rack structure with two upward arrows indicating force or movement (no text or symbols present)

PANIER INFÉRIEUR

Cross-sectional diagram of a multi-compartment kitchen appliance with cutlery and dish arrangement (no text or labels)

Technical line drawing of a multi-tiered mechanical or structural component (no text or symbols)

Line drawing of a hand placing a plastic crate into a grid-patterned basket (no text or symbols)

3D ZONE WASH

Technical line drawing of a mechanical linkage assembly (no text or symbols)

UTILISATION QUOTIDIENNE

1. VÉRIFIER LE BRANCHEMENT DE L'EAU

INTERRUPTIONS IMPRÉVUES

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl with a side dish (no text or symbols)

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram of a mechanical or electrical assembly with labeled components (no readable text or symbols)

SPONDE RIBALTABILI CON POSIZIONE REGOLABILE

Technical line drawing of a mechanical component with wavy internal structure (no text or symbols)

PIANO SCORREVOLE

Top-down schematic of a device layout with no visible text, numbers, or symbols

3D wireframe model of a mechanical cage or rack structure with two upward arrows indicating flow or movement (no text or symbols present)

CESTELLO INFERIORE

Cross-sectional diagram of a washing machine showing internal components and parts (no text or labels)

Technical line drawing of a multi-layered mechanical or architectural structure (no text or symbols)

Line drawing of a hand placing a plastic bag into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

USO QUOTIDIANO

1. VERIFICA DEL COLLEGAMENTO ALLA RETE IDRICA

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

www.hotpoint.eu/register.

JEI REIKIA DAUGIAU IŠSAMIOS INFORMACIJOS, NUSKAITYKITE ANT PRIETAISO PATEIKTĄ QR KODĄ

Illustration of a hand pouring granular material into a bowl on a stand, with a separate cross-section showing a food item (no text or symbols present)

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

REGULIUOJAMOS PADĖTIES UŽLENKIAMI SKYDELIAI

Technical line drawing of a mechanical assembly with no visible text or symbols

STUMDOMASIS PADĖKLAS

Interior view of a kitchen appliance with cutlery and a plate (no text or symbols visible)

3D wireframe model of a mechanical assembly with grid structure and upward arrows (no text or symbols)

APATINÉ LENTYNÉLÉ

Diagram of a shopping basket with circular items and a tray, no visible text or symbols

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

(indu dejimo apatinje lentynelje pavyzdys)

IRANKIŲ KREPŠYS

Line drawing of a hand placing a grid-like object into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

KASDIENIS NAUDOJIMAS

1. PATIKRINKITE PRIJUNGIMA PRIE VANDENTIEKIO

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Illustration of a hand using a tool to press a mechanical component on a base (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl on a stand, with a slice of food nearby (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

ATLOKÄMIE PLAUKTI AR PIELÄGOJAMU NOVIETOJUMU

Technical line drawing of a mechanical component with no visible text or symbols

BĪDĀMAIS TRAUKS

Cross-sectional diagram of a mechanical or electrical component with internal components (no text or labels)

3D wireframe diagram of a mechanical or structural component with internal grid structure and upward arrows (no text or symbols)

APAKŠEJAIS STATIVS

Diagram of a multi-tiered kitchen appliance with cutlery and dish arrangement (no text or labels)

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Line drawing of a hand placing a patterned object into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

IKDIENAS LIETOŠANA

1. PÄRBAUDIET ÜDENS SAVIENOJUMU

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl with a spoon (no text or symbols)

Cross-sectional diagram of a mechanical assembly with multiple components (no text or labels)

Illustration of a mechanical device with a cylindrical component and wavy internal structure (no text or symbols)

SCHUIFLADE

Top-down schematic of a mechanical or electrical component with internal components (no text or symbols)

3D wireframe model of a mechanical cage or rack structure with two upward arrows indicating flow or movement (no text or symbols present)

ONDERSTE REK

Cross-sectional diagram of a washing machine showing internal components (no text or labels)

Technical line drawing of a mechanical assembly with grid lines and hatching (no text or symbols)

Line drawing of a hand using a tool to cut or install a grid-patterned plastic crate (no text or symbols)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

DAGELIJKS GEBRUIK

1. WATERAANSLUITING CONTROLEREN

Technical line drawing of a mechanical device with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl with a side view of a sliced fruit (no text or symbols)

Exploded view diagram of a mechanical assembly (no text or labels)

SKŁADANE PÓŁECZKI Z REGULOWANYM POŁOŻENIEM

Diagram of a mechanical or electrical component with layered structure and no visible text or symbols

PRZESUWNA TACKA NA SZTUĆCE

Architectural floor plan showing room layouts and structural elements (no text or labels)

3D wireframe model of a mechanical or structural component with grid pattern and directional arrows (no text or symbols)

DOLNY KOSZ

Diagram of a shopping basket with coins and a tray, showing interior compartments (no text or labels)

Technical line drawing of a multi-layered mechanical or architectural component (no text or symbols)

Line drawing of a hand placing a component into a grid-like structure (no text or symbols)

3D ZONE WASH (MYCIE STREFOWE 3D)

Technical line drawing of a mechanical linkage assembly (no text or symbols)

CODZIENNA EKSPLOATACJA

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)
