GAA18V-24N - Charger BOSCH - Free user manual and instructions

Product type	Portable power adapter
Brand	Bosch
Model	GAA18V-24N
Input voltage	18 V (Bosch lithium-ion battery pack)
Output ports	2 USB ports (5 V DC) + 1 port for heated jacket
USB output current (1 port)	2.4 A max
USB output current (2 ports)	1.2 A max per port
Power source	Bosch 18 V lithium-ion battery pack (not included)
Battery compatibility	Bosch 18 V battery packs recommended
Main functions	Powering USB devices, powering Bosch heated jacket
Operation indicator	Power button with LED
Auto shut-off	USB ports deactivated after 30 s without load
Weight (without battery)	Approx. 0.2 kg
Dimensions (L x W x H)	Approx. 12 x 6 x 4 cm
Material	Plastic
Maintenance	Clean with a soft damp cloth; do not immerse
Safety	Do not expose to rain; do not use with uninterruptible power source
Warranty	1 year (parts and labor)
Included accessories	Belt clip
Certification standards	UL, CSA, Intertek (depending on version)
Intended use	Powering portable USB devices and Bosch heated jacket
Repairability	To be serviced by an authorized Bosch service center

Frequently Asked Questions - GAA18V-24N BOSCH

Which battery packs are compatible with the GAA18V-24N adapter?

Use only recommended Bosch 18 V lithium-ion battery packs. Using other batteries may cause injury or fire.

How to insert and remove the battery pack?

Align the battery and slide it into the adapter until it locks (click). To remove, press the release button and slide it out of the adapter.

How to charge a USB device with this adapter?

Connect your device's charging cable to a USB port on the adapter. Press the power button to activate. If no cable is connected, the ports deactivate after 30 seconds.

Can I use both USB ports at the same time?

Yes, but the maximum current per port is then limited to 1.2 A (instead of 2.4 A for a single port). Make sure your devices are compatible.

How to use the adapter with a Bosch heated jacket?

Connect the jacket's power cable to the dedicated power port. Activate the adapter via the power button, then adjust the heating level using the jacket's control.

What to do if my USB device does not charge?

Check that the battery pack is charged, the cable is properly connected, and the adapter is activated. Ensure your device does not require more than 5 V / 2.4 A (or 1.2 A if two ports are used).

How to clean the portable power adapter?

Wipe off dirt with a soft damp cloth. Do not use cleaners or solvents. Never immerse the adapter in water or other fluids.

Is the adapter waterproof?

No, it is not waterproof. Do not expose to rain or moisture. Water increases the risk of electric shock.

Where can I get my Bosch GAA18V-24N adapter repaired?

Have repairs carried out by an authorized Bosch service center using original parts. Do not attempt to disassemble it yourself.

What is the warranty of this adapter?

The limited warranty is 1 year from the date of purchase for defects in materials or workmanship. It does not cover accessories or damage caused by misuse.

USER MANUAL GAA18V-24N BOSCH

IMPORTANT Read Before Using

IMPORTANT Read Before Using

IMPORTANT Read Before Using

Operating/Safety Instructions Consignes de fonctionnement/sécurité Instrucciones de funcionamiento y seguridad

GAA18V-24

BOSCH

Call Toll Free for Consumer Information & Service Locations Pour obtenir des informations et les adresses de nos centres de service après-vente, appelez ce numéro gratuit Llame gratis para obtener información para el consumidor y ubicaciones de servicio

1-877-BOSCH99 (1-877-267-2499) www.boschtools.com

For English Version See page 2

Safety SymbolsThe definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
	WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, will result in minor or moderate injury.

GENERAL PRODUCT SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

PERSONAL SAFETY

Stay alert, watch what you are doing and use common sense when using the portable power adapter. Do not use while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention may result in serious personal injury.

Do not expose portable power adapter to rain or wet conditions. Portable power adapter is not waterproof. Water will increase the risk of electric shock.

Do not use portable power adapter with uninterrupted power sources (e.g. 12VDC automotive outlets, automotive charger). Use of uninterrupted power sources may create a risk of portable power adapter malfunctions, injury and fire.

Do not plug power source to USB port or heating element power port on the portable power adapter. The portable power adapter is not designed as a charger to charge the battery pack. Charging the battery pack through the portable power adapter creates a risk of injury and fire.

PRODUCT USE AND CARE

Disconnect the battery pack from the portable power adapter when not in use. Such preventative safety measures reduce the risk of injury.

Store out of reach of children and do not allow persons unfamiliar with these instructions to use portable power adapter. Portable power adapter misuse can result in personal injury and property damage hazards.

Periodically check portable power adapter for wear and damage to parts. If damage or excessive wear is discovered, have the portable power adapter repaired before use.

BATTERY TOOL USE AND CARE

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

If battery release tabs are cracked or otherwise damaged, do not insert into tool. Battery can fall out during operation.

SERVICE

Have your portable power adapter serviced by a qualified Bosch repair person using only identical replacement parts. This will ensure that the safety of the portable power adapter is maintained.

SAFETY RULES FOR PORTABLE POWER ADAPTER

Use only with Bosch recommended battery packs. Use of any other battery packs may create a risk of jacket malfunctions, injury and fire.

Disconnect battery when not in use or when battery is moist or wet. Moisture could damage the battery pack and create a risk of fire.

Disconnect and remove battery pack and portable power adapter from Bosch heated packet pocket before washing. Wetting of the battery pack and portable power adapter can result in product damage, injury or fire.

Symbols

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation / Explanation
V Volts (voltage)
A Amperes (current)
Hz Hertz (frequency, cycles per second)
W Watt (power)
kg Kilograms (weight)
min Minutes (time)
s Seconds (time)
∅	Diameter (size of drill bits, grinding wheels, etc.)
n0	No load speed (rotational speed at no load)
n Rated speed (maximum attainable speed)
.../min	Revolutions or reciprocation per minute (revolutions, strokes, surface speed, orbits etc. per minute)
0 Off position (zero speed, zero torque...)
1, 2, 3, ...I, II, III,	Selector settings (speed, torque or position settings. Higher number means greater speed)
0	Infinitely variable selector with off (speed is increasing from 0 setting)
→	Arrow (action in the direction of arrow)
~	Alternating current (type or a characteristic of current)
---	Direct current (type or a characteristic of current)
~	Alternating or direct current (type or a characteristic of current)
□	Class II construction (designates double insulated construction tools)
⊕	Earthing terminal (grounding terminal)

Symbols (continued)

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation / Explanation
	Designates Li-ion battery recycling program
	Designates Ni-Cad battery recycling program
	Alerts user to read manual
	Alerts user to wear eye protection
	This symbol designates that this tool is listed by Underwriters Laboratories.
	This symbol designates that this component is recognized by Underwriters Laboratories.
	This symbol designates that this tool is listed by Underwriters Laboratories, to United States and Canadian Standards.
	This symbol designates that this tool is listed by the Canadian Standards Association.
	This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards.
	This symbol designates that this tool is listed by the Intertek Testing Services, to United States and Canadian Standards.
	This symbol designates that this tool complies to NOM Mexican Standards.

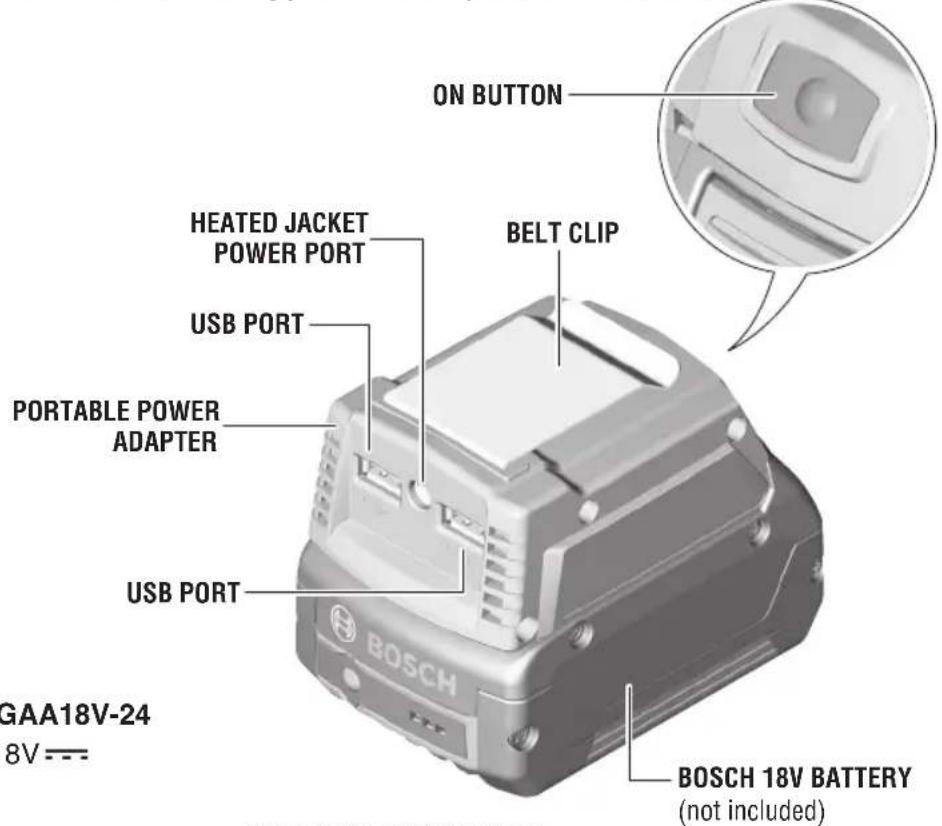

Functional Description and Specifications

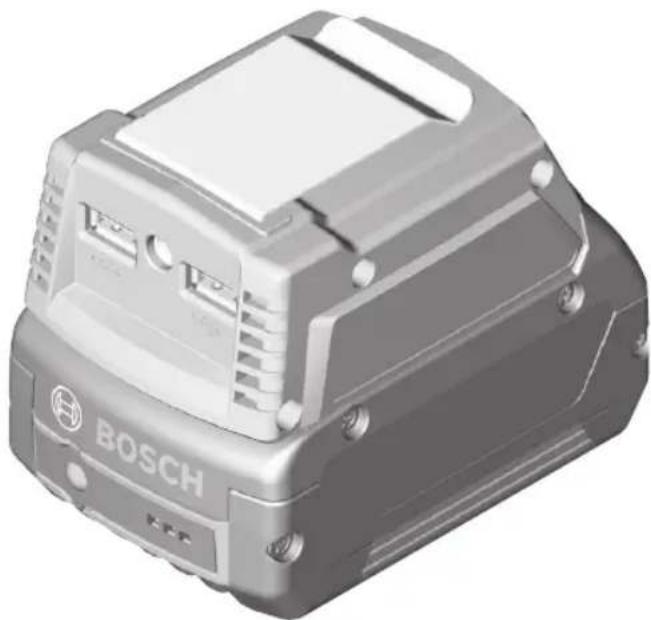

The portable power adapter is intended for using a Bosch 18 V lithium-ion battery as the voltage source. With the portable power adapter a maximum of two USB devices and one heating element for the Bosch heating jacket can be powered simultaneously.

FIG. 1

Battery Packs/Chargers Please refer to the Charger Manual included with your tool. NOTE: For tool specifications refer to the nameplate on your tool.

Assembly

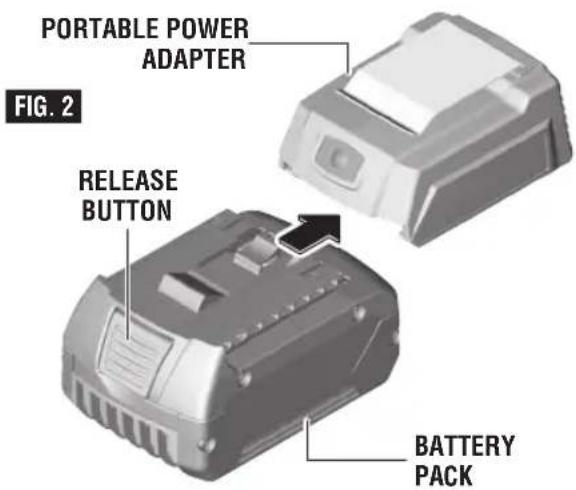

INSERTING AND RELEASING BATTERY PACK

WARNING

For use only with Bosch recommended batteries.

Use of any other battery packs may create a risk of jacket malfunctions, injury and fire.

To insert battery, align battery and slide battery pack into portable power adapter until it locks into position (an audible click sound is an indication that the battery is locked) (Fig. 2). Do not force.

To remove the battery pack, press the battery pack release button and slide the battery pack completely off of the portable power adapter.

Operating Instructions

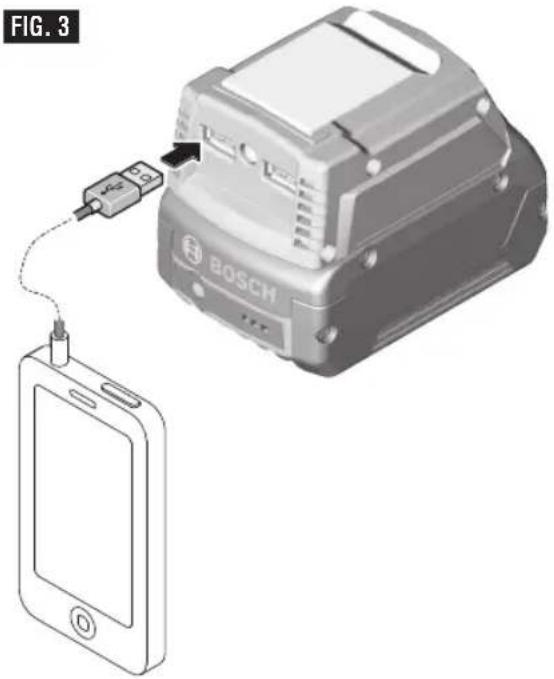

CHARGING EXTERNAL USB DEVICES (SEE FIGURE 3)

You can use the USB ports on the portable power adapter to increase the battery runtime of various battery-operated USB devices, e.g. mobile phone, MP3 player or tablet PC.

Ensure that your external USB device can be charged using the USB port on the portable power adapter.

WARNING Do not connect any device that is not compatible with 5VDC, 2.4A power source to the USB port on the portable power adapter. Charging of non-compatible devices may create a risk of portable power adapter malfunction.

1. Plug the charging cable of your USB device into the USB port on the portable power adapter.
2. Press the On button for activation of portable power adapter. The On button lights up.

If no charger cable is connected, the USB ports are automatically disabled after 30 seconds. The On button light goes out.

The USB ports are disabled automatically to save power when no power is being used from the USB port.

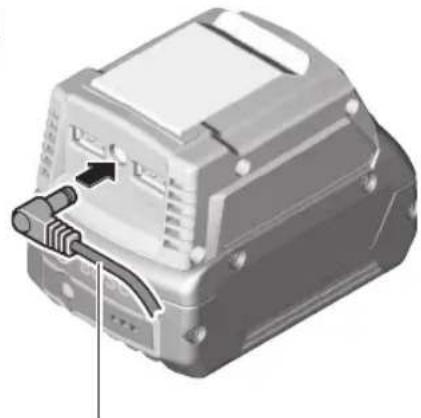

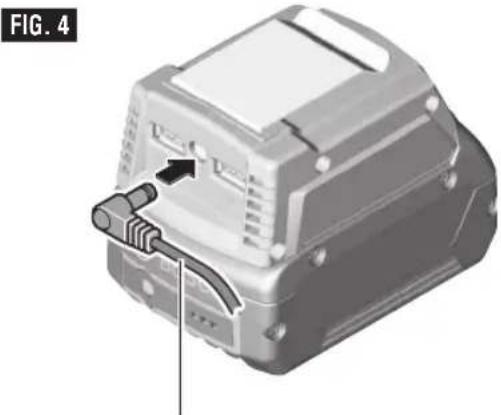

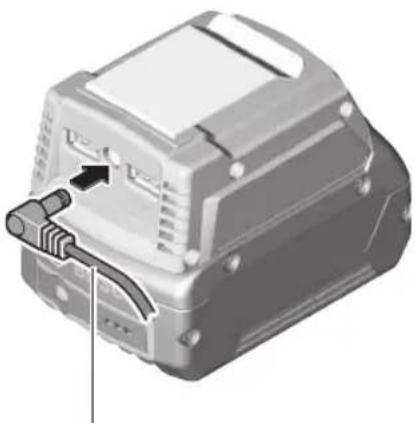

CONNECTING THE HEATED JACKET POWER CABLE (SEE FIGURE 4)

WARNING Connect only Bosch heated jacket heating

element power cable to the heating element power port of the portable power adapter. Connecting any other device may create a risk of fire or personal injury.

1. Plug the heated jacket power cable into the heated jacket power port of the portable power adapter.
2. Press the On button for activation of portable power adapter. The On button lights.
3. Press the power button and heat level controller of the heated jacket once for each heat level. 4. Slide the portable power adapter into the pocket provided in the garment or hang the portable power adapter on your belt using the belt clip.

HEATED JACKET POWER CABLE

Troubleshooting

Problem Corrective Measure
External USB device cannot be charged using the USB port.	Check that the battery pack is charged.
	Connect the charging cable of the external USB device to the USB port on the portable power adapter. Activate the portable power adapter by pressing On button.
	Check that your device does not require any more than the following...a) when one USB port is used:5V DC, 2.4 Amp Maximum Outputb) when two USB ports are used:5V DC, 1.2 Amp Maximum OutputUnfortunately, not all devices can be tested for compatibility and your device may not be compatible.
Heated jacket heating element does not heat up.	Check that the battery pack is charged.
	Connect the cable of the heated jacket to the port on the portable power adapter. Activate the portable power adapter by pressing On button.

Maintenance

WARNING

To reduce the risk of injury, always unplug the portable

power adapter and remove the battery pack before performing any maintenance. Never disassemble the battery pack or portable power adapter. Contact a Bosch service facility for all repairs.

Keep the portable power adapter, battery and charger clean at all times.

Do not immerse the portable power adapter, battery and charger into water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

The battery is not serviceable and should be repaired by an authorized service center.

FIG. 4

HEATED JACKET POWER CABLE

Troubleshooting Guide

FIG. 4

POWER CORD OF THE HEATED JACKET

Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all BOSCH portable and benchtop power tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Station. To make a claim under this Limited Warranty, you must return the complete portable or benchtop power tool product, transportation prepaid, to any BOSCH Factory Service Center or Authorized Service Station. For Authorized BOSCH Power Tool Service Stations, please refer to your phone directory.

THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.

ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. SOME STATES IN THE U.S., SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE AND BENCHTOP ELECTRIC TOOLS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL BOSCH DEALER OR IMPORTER.
