ALERT 700I - Surveillance Camera LOGITECH - Free user manual and instructions

Product type	Indoor surveillance camera (add-on)
Brand	LOGITECH
Model	ALERT 700I
Dimensions	Approx. 10 x 6 x 6 cm
Weight	Approx. 200 g
Power supply	Electrical network via HomePlug® adapter (included)
Connectivity	Electrical network (HomePlug®)
Viewing angle	130 degrees (wide angle)
Built-in microphone	Yes
Motion detection	Yes, with customizable zones
Recording	On microSD card (2 GB included) and backup on computer
Alerts	By email and mobile notification
Remote viewing	Via Commander software, Web Commander, mobile apps (free)
Expandability	Up to 6 cameras (indoor and outdoor)
Software	Logitech Alert Commander (free)
Mobile apps	iPhone, Android, Blackberry
microSD card	2 GB included, expandable
Audio	Built-in audio recording (subject to legislation)
Maintenance	Clean with a soft, dry cloth
Security	Comply with local laws for audio recording
Replacement parts	Replaceable microSD card
General information	Intelligent video security system, easy to install

Frequently Asked Questions - ALERT 700I LOGITECH

How to set up the Logitech Alert 700i camera?

Plug the camera into a power outlet, connect the HomePlug® adapter to your router, then install the Logitech Alert Commander software. Follow the on-screen instructions to pair the camera.

Can I view images remotely?

Yes, via free remote viewing at http://alert.logitech.com or via free mobile apps for iPhone, Android, and Blackberry.

How to install the microSD card?

Insert the microSD card (2 GB included) into the slot on the camera. The camera records videos directly onto the card even when powered off.

How to set up motion alerts?

In the Commander software, set motion detection zones. When motion is detected, you can receive an alert by email and/or mobile notification.

What to do if the camera does not detect motion?

Check that the detection zones are correctly configured and the camera is well positioned. Make sure the microSD card is inserted and the software is active.

Can I use the camera outdoors?

The ALERT 700I camera is designed for indoor use. For outdoors, use the Logitech Alert 700e Outdoor model.

How to expand the system with multiple cameras?

The system can manage up to 6 cameras (indoor and outdoor). Add additional cameras by plugging them into the electrical network and pairing them via the software.

How to clean the camera lens?

Use a soft, dry cloth to clean the lens. Do not use chemical or abrasive products.

Is audio recording legal?

The camera has a built-in microphone. Audio recording is subject to local laws. Ensure you comply with your country's legislation.

What is the warranty for this product?

The manual does not specify the warranty period. Please consult the Logitech website or retailer for warranty information.

USER MANUAL ALERT 700I LOGITECH

Logitech Alert™ Video Security System

English Getting Started Guide

Contents 2
Introduction 3
Live Mode Viewing 4
Viewing Recorded Video 5
Motion Detection Zones and Recording 6
Alerts. 7
Free Web Viewer. 8
Free Mobile Viewer 9
microSD Card 10
Audio 11
Digital Pan-Tilt-Zoom. 12
Expand Your System 13
Logitech AlertTM Web Commander 14
Logitech AlertTM Mobile Commander 15

Introduction

Help protect what matters most, even when you can't be there.

Logitech Alert™ Video Security System comes with everything you need to help protect what's important to you—smart cameras, powerful software, and the ability to keep you informed.

Set up is simple and takes just minutes. HomePlug® networking uses your existing electrical wiring and outlets to connect the camera to your network without new wires or configuration hassles.

You can view live video from your system from Internet-connected computers. And if someone or something moves in front of a camera, video is recorded directly to the camera's microSD™ card. You can receive an alert in e-mail, on your mobile phone, or both.

Logitech Alert Video Security System. Set it up yourself, count on it when you need it.

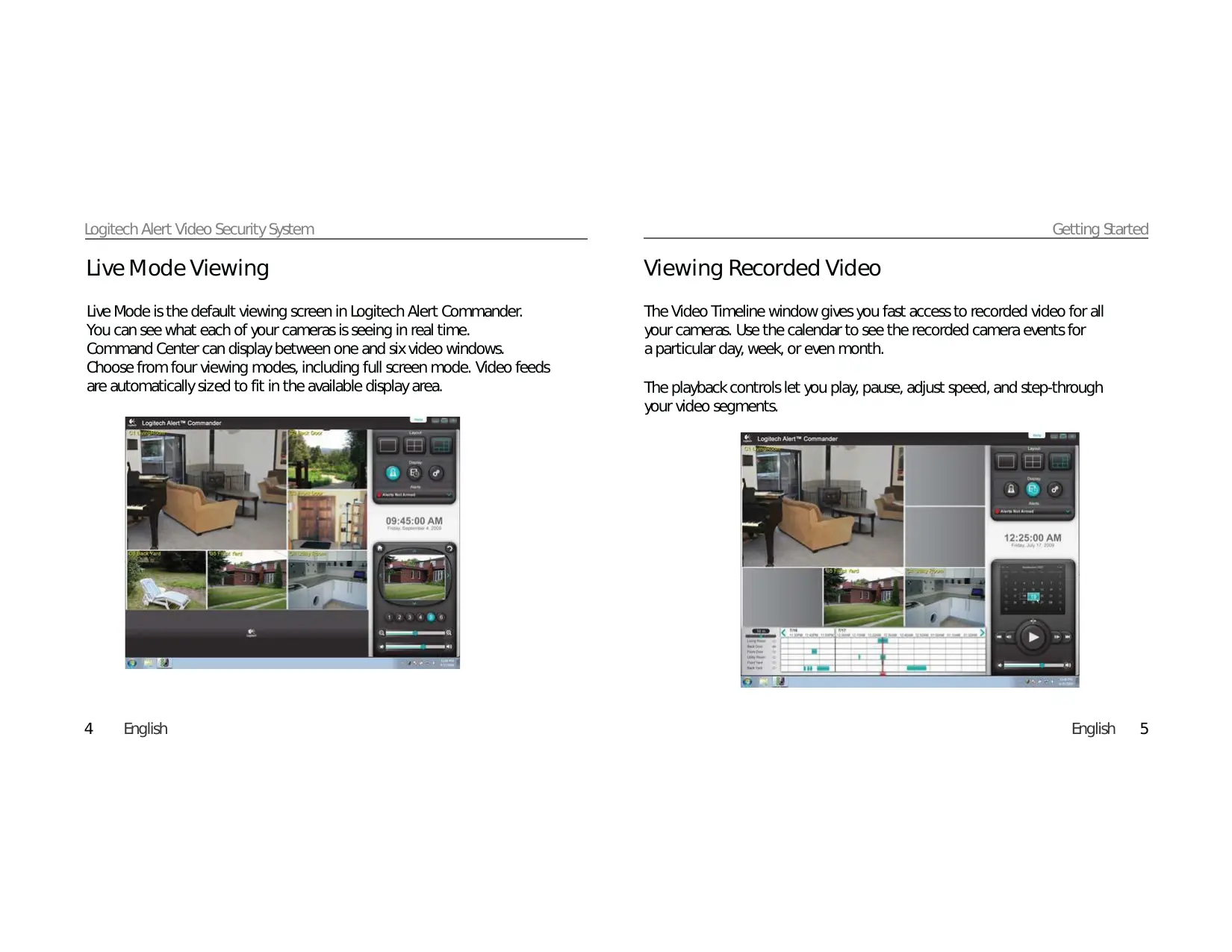

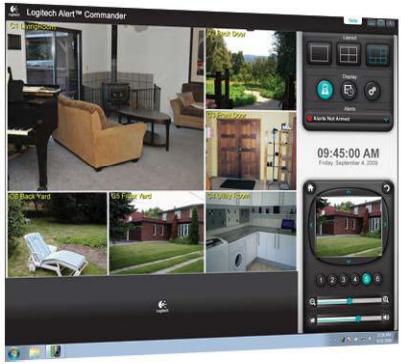

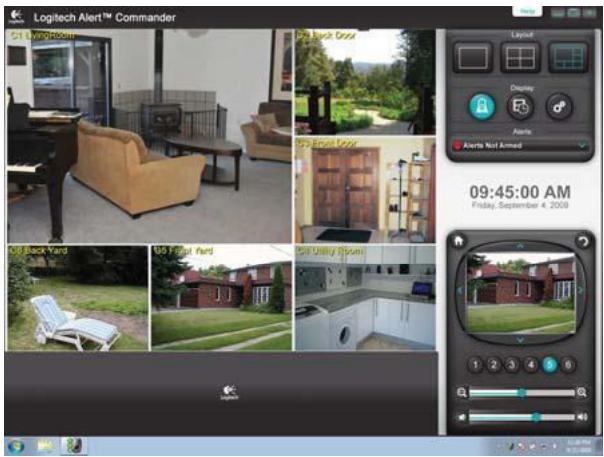

Live Mode Viewing

Live Mode is the default viewing screen in Logitech Alert Commander.

You can see what each of your cameras is seeing in real time.

Command Center can display between one and six video windows.

Choose from four viewing modes, including full screen mode. Video feeds are automatically sized to fit in the available display area.

4 English

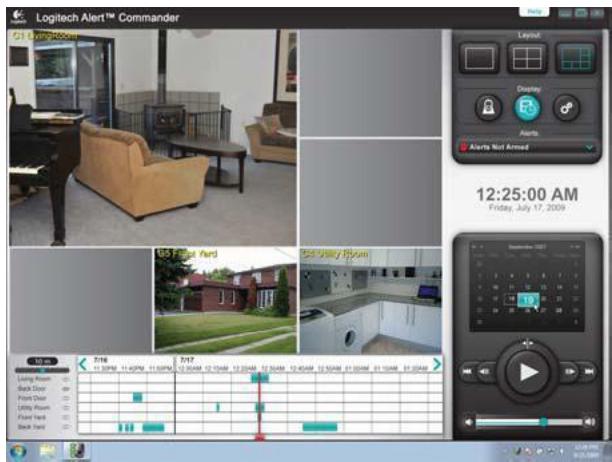

Viewing Recorded Video

The Video Timeline window gives you fast access to recorded video for all your cameras. Use the calendar to see the recorded camera events for a particular day, week, or even month.

The playback controls let you play, pause, adjust speed, and step-through your video segments.

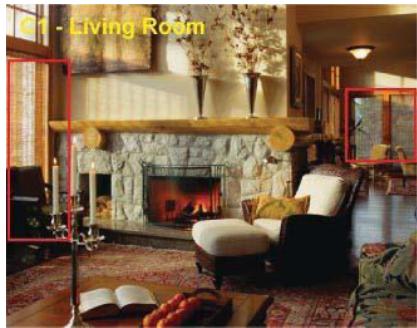

Motion Detection Zones and Recording

Each camera automatically records video anytime it detects motion.

Plus, Commander allows you to draw motion detection zones on the viewable video. When movement is detected in any of these zones, the camera records the action.

Alerts

You can set up alerts that will automatically send notifications to your e-mail address and mobile phone whenever a camera detects motion, keeping you informed.

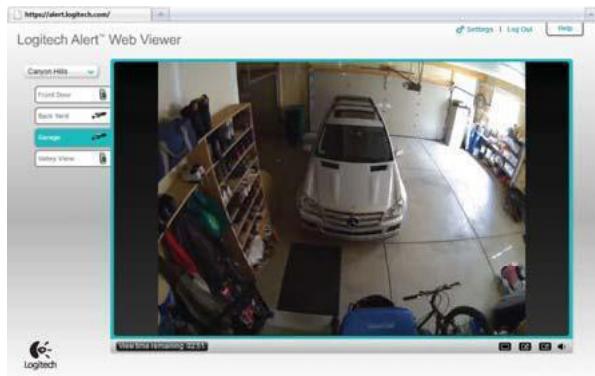

Free Web Viewer

All of our master systems include free remote viewing that allows you to see live video from your cameras. Just log in to http://alert.logitech.com from Internet-connected computers, anywhere in the world.

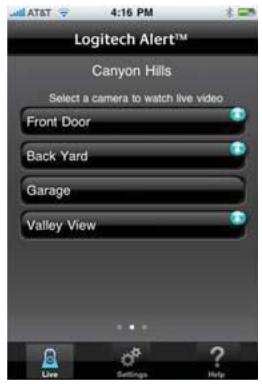

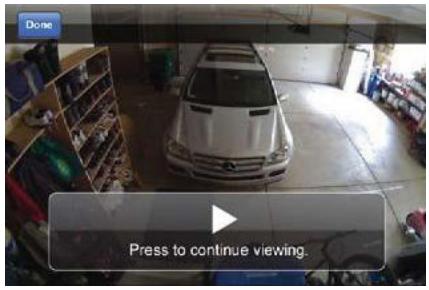

Free Mobile Viewer

iPhone, Android, and Blackberry users can use our free apps to watch live video from their cameras right on their mobile devices.

Login to http://alert.logitech.com for details.

microSD™ Card

The camera records video to a microSD card—even when your PC is turned off. The included 2 GB card gives you enough space for up to a week of video and audio, or upgrade to a larger microSD card for months of recording time.

All video is backed up to your PC when Commander is connected to your network.

Audio

The camera has a built in microphone to record audio for regions where audio recording is legally permitted. (Be sure to comply with the laws in your country/ state/locality when using Logitech Alert products and services.)

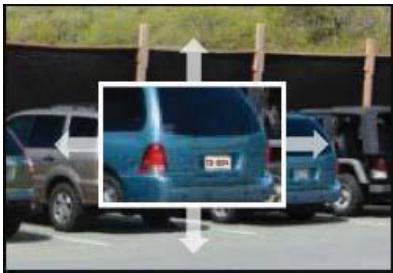

Digital Pan-Tilt-Zoom

The 130-degree wide-angle lens captures high-quality images, making it easier to recognize people and objects. You can even pan-tilt and zoom into the image for even more detail.

Expand Your System

No need to limit your security coverage to a single camera. Your Logitech Alert system is designed to be easily expandable. You can mix and match up to six cameras—indoors and out.

Logitech Alert™ 700i Add-On Camera Expand your Logitech Alert master system and get a more complete picture of what's happening when you aren't around.

Logitech Alert™ 700e Outdoor Add-On Camera

Expand your Logitech Alert master system with a smart camera that's weatherproof and has night vision to see in complete darkness.

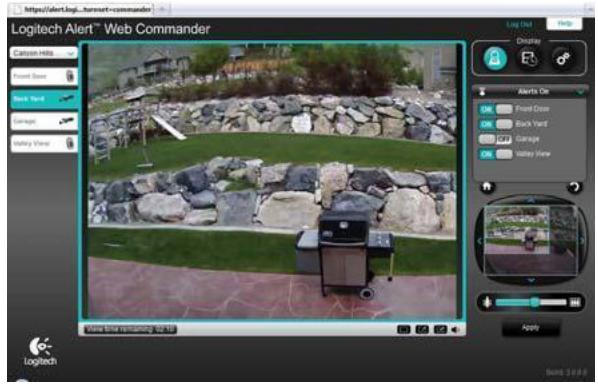

Logitech Alert™ Web Commander

Web Commander turns any Internet-connected computer into a control center for your system. Your paid subscription lets you manage your cameras, review your recorded video, and get notices of system status. Comes bundled with Mobile Commander. Visit http://alert.logitech.com for subscription and availability information. Free trial available.

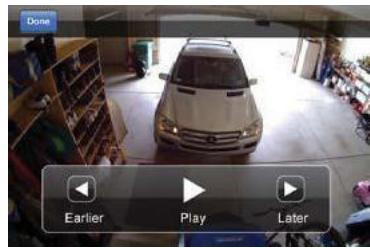

Logitech Alert™ Mobile Commander

When you can't be at a computer, you can check on your system from iPhone, BlackBerry, or Android phones using Mobile Commander. Your paid subscription lets you manage your cameras, review your recorded video, and get notices of system status. Comes bundled with Web Commander. Visit http://alert.logitech.com for subscription and availability information. Free trial available.

Inhalt

© 2010 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

microSD Logo is a trademark of SD-3C, LLC.

620-002310.006
