Product type	Wireless headset (Bluetooth Headset)
Brand	NOKIA
Model	BH-100
Bluetooth technology	Bluetooth 2.0 + EDR
Supported Bluetooth profiles	Headset Profile 1.1, Hands-Free Profile 1.5
Maximum range	10 meters (30 feet)
Talk time	Up to 6 hours 30 minutes
Standby time	Up to 150 hours
Charging time	Up to 1 hour 30 minutes
Battery type	Internal non-removable rechargeable battery
Compatible chargers	Nokia AC-3, AC-4, DC-4
Control buttons	On/off, answer/end
Indicator light	Green (on/full charge), Red (charging/low battery)
Microphone	Built-in
Earpiece	Interchangeable, available in multiple colors
Compatibility	Bluetooth-enabled phones with Headset/Hands-Free profiles
Recommended storage temperature	Between 15°C and 25°C
Care	Keep dry, avoid dust and extreme temperatures
Safety	Do not open, do not expose to fire, recycle according to regulations
Box contents	BH-100 headset, spare earpiece(s), user guide

Frequently Asked Questions - BH-100 NOKIA

How do I pair the BH-100 headset with my phone?

Make sure the headset is off. Press and hold the power button until the green light flashes quickly. Enable Bluetooth on your phone and search for devices. Select 'Nokia BH-100' from the list. Enter code 0000 if prompted. The headset will beep and is ready to use.

How do I charge the battery?

Detach the earpiece from the left side of the headset. Plug the charger (Nokia AC-3, AC-4 or DC-4) into a power outlet and connect the cable to the headset charging connector. The red light turns on during charging. When it turns green, charging is complete. Full charge takes up to 1h30.

What is the battery life?

Talk time is up to 6h30 and standby time is up to 150 hours. Performance may vary depending on phone and usage.

How do I turn the headset on or off?

To turn on, press and hold the power button until you hear a beep and see the green light. To turn off, press and hold the same button until a beep and brief red light.

How do I answer or end a call?

Press the answer/end button to answer an incoming call or to end a current call. To reject a call, press this button twice quickly.

How do I make a call using voice dialing?

If your phone supports voice dialing, press and hold the answer/end button when no call is in progress. Then follow your phone's instructions for voice dialing.

What should I do if the headset does not connect?

Check that the headset is on and that your phone's Bluetooth is enabled. If necessary, delete the existing pairing and repeat the pairing procedure. You can also reset the headset by pressing and holding the power button and answer/end button simultaneously while the headset is connected to the charger.

How do I reset the headset?

If the headset is not working properly, plug it into the charger, then press and hold the power button and answer/end button simultaneously until the red and green lights alternate. Release the buttons.

How do I wear the headset on my left or right ear?

For the right ear, detach the earpiece from the right side of the headset (back facing you). For the left ear, detach it from the left side. Slide the earpiece behind your ear and point the microphone toward your mouth.

How do I care for the headset?

Keep the headset dry and avoid dust. Do not expose it to extreme temperatures. Do not use harsh chemicals to clean it. Do not attempt to open the casing. Recycle the battery according to local regulations.

USER MANUAL BH-100 NOKIA

Nokia Bluetooth Headset BH-100

Issue 1

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this HS-78W product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/.

C€0434

© 2007 Nokia. All rights reserved.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you.

Unauthorized changes or modifications to this device may void the user's authority to operate the equipment.

Export Controls

This device may contain commodities, technology or software subject to export laws and regulations from the US and

Introduction

The Nokia Bluetooth Headset BH-100 allows you to make and receive calls while on the move. You can use the headset with compatible phones that support Bluetooth wireless technology.

Read this user guide carefully before using the headset. Also read the user guide for your phone, which provides important safety and maintenance information. Keep the headset out of reach of small children.

Bluetooth wireless technology

Bluetooth wireless technology allows you to connect compatible devices without cables. The phone and the headset do not need to be in line of sight, but they should be within 10 meters (30 feet) of each other. Connections may be subject to interference from obstructions, such as walls, or other electronic devices.

The headset complies with the Bluetooth Specification 2.0 + EDR that supports the Headset Profile 1.1 and Hands-Free Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some locations. Check with your local authorities or service provider.

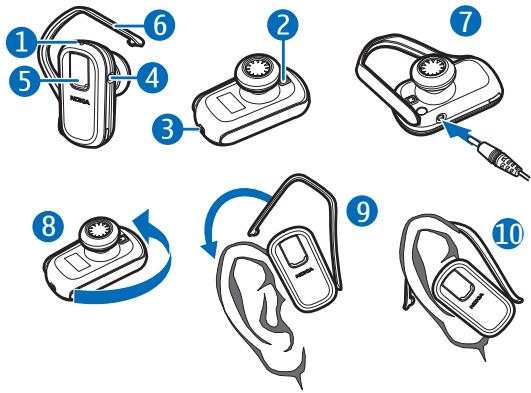

The headset contains the following parts shown on the title page: indicator light (1), power key (2), microphone (3), charger connector (4), answer/end key (5), and changeable earloop (6).

Before using the headset, you must charge the battery and pair the headset with a compatible phone.

Parts of the headset are magnetic. Metallic materials may be attracted to the headset. Do not place credit cards or other magnetic storage media near the headset, because information stored on them may be erased.

Chargers

Check the model number of any charger before using it with this device. The headset is intended for use with the AC-3, AC-4, and DC-4 chargers.

Warning: Use only chargers approved by

Nokia for use with this particular enhancement. The use of any other types may invalidate any approval or warranty and may be dangerous.

For availability of approved enhancements, please check with your dealer. When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

Charge the battery

The headset has an internal, nonremovable, rechargeable battery. Do not attempt to remove the battery from the device, as you may damage the device.

1. When the back of the headset is facing you, detach the earloop from the left of the headset.
2. Connect the charger to a wall outlet.
3. Connect the charger cable to the charger connector (7). The red indicator light is on while

charging. It may take a while before charging starts. If charging does not start, disconnect the charger, plug it in again, and retry. Charging the battery fully may take up to 1 hour and 30 minutes.

1. When the battery is fully charged, the indicator light turns green. Disconnect the charger from the headset and the wall outlet.

The fully charged battery has power for up to 6 hours and 30 minutes of talktime or up to 150 hours of standby time. However, the talk and standby times may vary when used with different mobile phones or other compatible Bluetooth devices, usage settings, usage styles, and environments.

When battery power falls low, the headset beeps and the red indicator light starts to flash.

Switch the headset on or off

To switch on, press and hold the power key until the headset beeps and the green indicator light is displayed.

To switch off, press and hold the power key until the headset beeps and the red indicator light is displayed briefly.

Pair the headset

1. Ensure that your phone is switched on and the headset is switched off.
2. Press and hold the power key until the green indicator light starts to flash quickly.
3. Activate the Bluetooth feature on the phone, and set the phone to search for Bluetooth devices.
4. Select the headset from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your phone. In some phones you may

need to make the connection separately after pairing. You only need to pair the headset with your phone once.

If the pairing is successful, the headset beeps and appears in the phone menu where you can view the currently paired Bluetooth devices. The headset is now ready for use.

Basic use

Place the headset on the ear

The headset has an earloop attached around it. To use the headset without placing the earloop over the ear, plug the earpiece into your ear.

To use the headset with the earloop on the right ear, detach the earloop from the right of the headset (8) when the back of the headset is facing you; to use the headset on the left ear, detach the earloop from the left. Slide the earloop behind your ear (9), and point the headset toward your mouth (10).

Change the earloop

The headset may be supplied with earloops in different colors. To change the earloop, detach it from both sides of the headset, and attach the new earloop by inserting the catches at the ends of the earloop into the corresponding slots in the headset.

Call handling

To make a call, use your phone in the normal way when the headset is connected to your phone.

If your phone supports last number redialing with the headset, press

the answer/end key twice while no call is in progress.

If your phone supports voice dialing with the headset, press and hold the answer/end key when no call in progress, and proceed as described in the user guide of your phone.

To answer or end a call, press the answer/end key. To reject an incoming call, press the answer/end key twice.

To adjust the headset volume during a call, use the volume keys on your phone.

To switch the call between the headset and a compatible phone, press and hold the answer/end key.

Clear settings or reset

To clear the pairing settings from the headset, switch off the headset, and press and hold the power key and the answer/end key until the red and green indicator lights start to alternate.

To reset the headset if it stops functioning, although it is charged, plug the headset into a charger, and press the power key and the answer/end key at the same time.

Battery information

Your device is powered by a rechargeable battery. The battery can be charged and discharged hundreds of times, but it will eventually wear out. Recharge your battery only with Nokia approved chargers designated for this device.

Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time.

Never use any charger that is damaged.

Leaving the device in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged.

Battery performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste.

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage.

• Keep all accessories and enhancements out of the reach of small children.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If

your device does get wet, allow it to dry completely.

• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to

its normal temperature, moisture can form inside the device and damage electronic circuit boards.

• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.

All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service facility for service.
