Product type	Bluetooth wireless headset
Brand	NOKIA
Model	BH-213
Bluetooth technology	Bluetooth 2.0 + EDR
Supported profiles	Headset Profile 1.1, Hands-Free Profile 1.5
Talk time	Up to 10 hours
Standby time	Up to 400 hours
Charging time	Approximately 2 hours
Battery type	Built-in non-removable rechargeable battery
Compatible chargers	AC-3, AC-4, AC-5, DC-4
Maximum range	Up to 10 meters
Indicator light	Red LED (charging), green (charged/connected)
Control keys	Multifunction key, volume key
Microphone	Built-in
Included accessories	Earloop, ear tips
Compatibility	Bluetooth compatible phones
Care	Clean with a soft, dry cloth; avoid liquids and chemicals
Safety	Do not expose to heat, do not open, do not dispose in fire; contains magnets
Compliance	Directive 1999/5/EC
Trademarks	Nokia, Nokia Connecting People, Nokia Original Accessories, Bluetooth

Frequently Asked Questions - BH-213 NOKIA

How to pair the Nokia BH-213 headset with my phone?

Make sure the headset is off. Press and hold the multifunction key for about 5 seconds until the green light flashes rapidly. Turn on your phone's Bluetooth and search for devices. Select the headset from the list and enter the code 0000. The green light flashes slowly once connected.

What to do if the headset does not turn on?

First check that the battery is charged. Plug the charger into the headset: the red light should turn on. If nothing happens, the battery may be completely discharged; wait a few minutes. If the problem persists, try another approved Nokia charger.

How to recharge the headset battery?

Connect the charger to a wall outlet, then plug the cable into the headset's charging connector. The red light indicates charging. Full charge takes about 2 hours. When the light turns green, the battery is full. Then unplug the charger.

What is the battery life?

Talk time can reach 10 hours and standby time up to 400 hours. Actual performance depends on usage, temperature, and battery age.

How to change the ear tip?

Gently pull on the current ear tip to remove it from the earpiece. Align the new ear tip with the earpiece and push it on until it is firmly attached. Ensure it is properly installed for optimal comfort and audio quality.

Can the headset connect to multiple devices?

The headset can be paired with multiple devices, but it can only be connected to one at a time. To switch devices, disconnect the headset from the current device and reconnect to the next via your phone's Bluetooth menu.

How to adjust volume during a call?

During a call, slide the volume key up to increase volume, or down to decrease it. To mute the microphone, briefly press the center of the volume key.

How to use voice dialing?

Make sure your phone supports voice dialing. When no call is in progress, press and hold the multifunction key for about 2 seconds. Then follow your phone's instructions to speak the voice command.

What to do if the headset does not automatically connect to my phone?

Check that your phone's Bluetooth is on and that the headset is on. If the headset was previously paired, it should connect automatically. Otherwise, manually search for the headset in your phone's Bluetooth settings and select it.

How to clean the Nokia BH-213 headset?

Use a soft, dry cloth to wipe the headset. Do not use harsh chemicals, solvents, or strong detergents. Avoid any contact with liquids. Keep the headset in a clean, dry place when not in use.

USER MANUAL BH-213 NOKIA

Nokia Bluetooth Headset BH-213

Issue 1

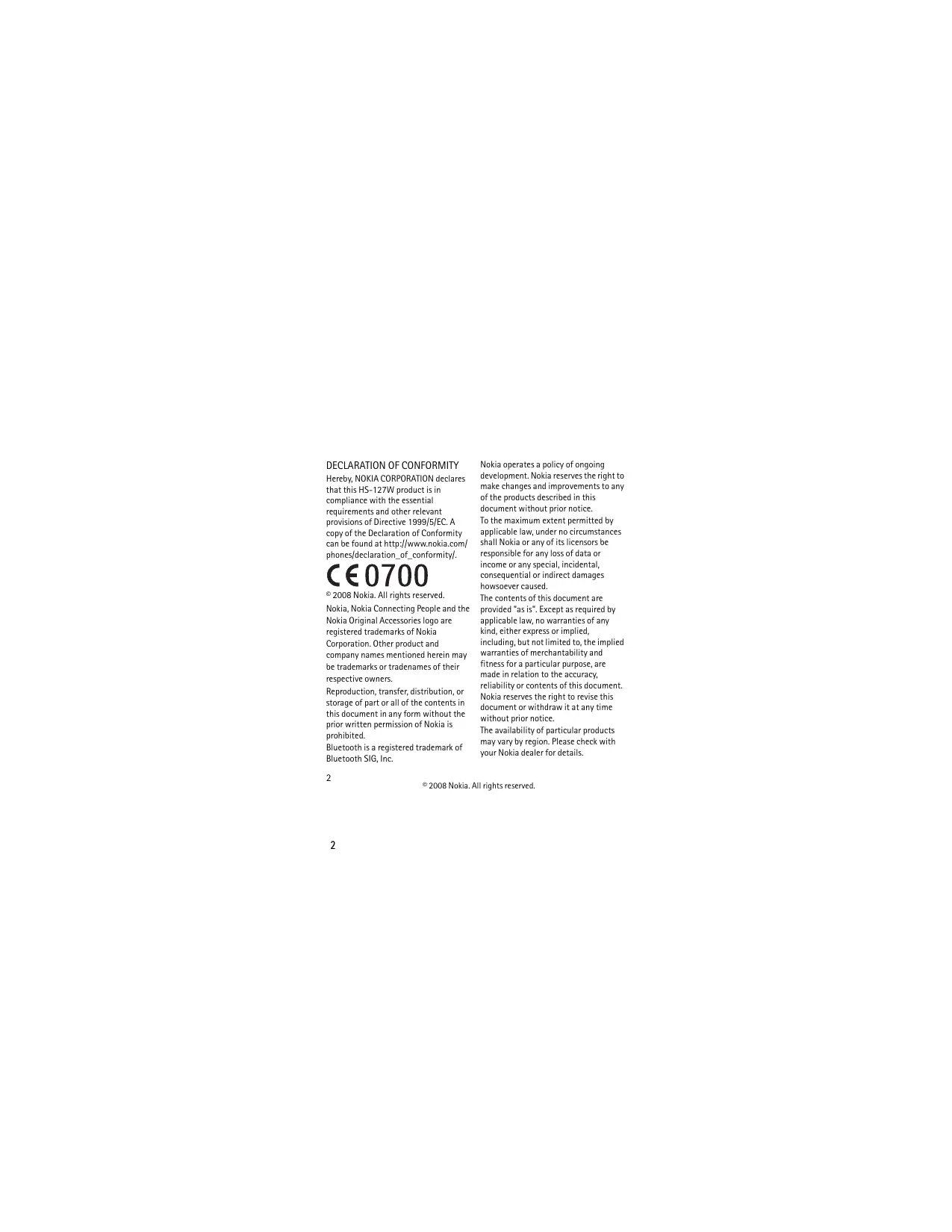

DECLARATION OF CONFORMITY Hereby, NOKIA CORPORATION declares that this HS-127W product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com phones/declaration_of_conformity/.

€0700

© 2008 Nokia. All rights reserved.

Nokia, Nokia Connecting People and the Nokia Original Accessories logo are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region. Please check with your Nokia dealer for details.

Export controls

This device may contain commodities, technology or software subject to export

laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

Introduction

With the Nokia Bluetooth Headset BH-213, you can make and receive calls while on the move.

Read this user guide carefully before using the headset. Also, read the user guide for your phone. It provides important safety and maintenance information.

This product may contain small parts. Keep them out of the reach of small children.

Bluetooth wireless technology

Bluetooth wireless technology allows you to connect compatible devices without cables. The phone and the headset do not need to be

in line of sight, but they should be within 10 metres (33 feet) of each other. Connections may be subject to interference from obstructions, such as walls, or other electronic devices.

The headset complies with the Bluetooth Specification 2.0 + EDR that supports the Headset Profile 1.1 and Hands-Free Profile 1.5.

Check with the manufacturers of other devices to determine their compatibility with this device.

The headset contains the following parts shown on the title page: indicator light (1), multifunction key (2), charger connector (3), earloop (4), earpiece (5), volume key (6), and microphone (7).

Before using the headset, you must charge the battery and pair the headset with a compatible phone.

Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not place credit cards or other magnetic storage media near the device, because information stored on them may be erased.

Chargers

This device is intended for use when supplied with power from the

following chargers: AC-3, AC-4, AC-5, and DC-4.

Warning: Use only chargers approved by Nokia for use with this

particular enhancement. The use of any other types may invalidate any approval or warranty, and may be dangerous.

When you disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

Charge the battery

Before charging the battery, carefully read "Battery information".

1. Connect the charger to a wall outlet.
2. Connect the charger cable to the charger connector. The red indicator light is on during

charging. Charging the battery fully may take up to 2 hours.

1. When the battery is fully charged, the green indicator light is displayed. Disconnect the charger from the headset, then the wall outlet.

The fully charged battery has power for up to 10 hours of talk time or up to 400 hours of standby time.

When the battery is discharged, the headset beeps every minute and the red indicator light flashes quickly.

Switch on or off

To switch on, press and hold the multifunction key for about 2 seconds. The headset beeps, and the green indicator light is displayed. The headset tries to connect to a paired phone.

To switch off, press and hold the multifunction key for about 5 seconds. The headset beeps, and the red indicator light is briefly displayed.

Pair the headset

1. Ensure that your phone is on and the headset is off.
2. Press and hold the multifunction key (for about 5 seconds) until the green indicator light starts to flash quickly.
3. Activate the Bluetooth feature on the phone, and set it to search for Bluetooth devices.
4. Select the headset from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your phone. In some phones, you may need to make the

connection separately after pairing.

When the headset is connected to your phone and is ready for use, the green indicator light flashes slowly.

Basic use

Place the headset on the ear

To use the headset with the earloop, attach the earloop to it (8). To detach the earloop, gently pull it from the headset (9).

Slide the earloop behind your ear (10), and point the headset toward your mouth. Carefully bend the earloop around your ear for the best fit (11).

To change the earplug, pull the current earplug from the earpiece, and push the new earplug over the earpiece in the same position.

Calls

To make a call, use your phone in the normal way when the headset is connected to it.

To redial the number you last called (if your phone supports this feature with the headset), when no call is in progress, press the multifunction key twice.

To activate voice dialling (if your phone supports this feature with the headset), when no call is in progress, press and hold the multifunction key for about 2 seconds. Proceed as described in the phone user guide.

To answer or end a call, press the multifunction key. To reject a call, press this key twice.

To adjust the volume during a call, slide the volume key up or down.

To mute or unmute the microphone during a call, briefly press the middle of the volume key.

To switch a call from the headset to a compatible phone, press and hold the multifunction key for about 5 seconds (the headset switches off). To switch the call back to the headset, press the

Battery information

This device has an internal, nonremovable, rechargeable battery. Do not attempt to remove the battery from the device as you may damage the device. The battery can be charged and discharged hundreds of

multifunction key for about 2 seconds (the headset switches on).

Clear settings or reset

To delete the pairings from the headset or reset the headset, switch off the headset, and press and hold the multifunction key for over 8 seconds.

Troubleshooting

If you cannot connect the headset to your compatible phone, check that the headset is charged, switched on, and paired with the phone.

times, but it will eventually wear out. Recharge your battery only with Nokia approved chargers designated for this device. Use of an unapproved charger may present a risk of fire, explosion, leakage, or other hazard.

If a battery is being used for the first time or if the battery has not been used for a prolonged period, it may be necessary to connect the charger, then disconnect and reconnect it to begin charging the battery. If the battery is completely discharged, it may take several minutes before the charging indicator light is displayed. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time.

Always try to keep the battery between 15^ and 25^ (59°F and 77°F). Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily. Battery performance is particularly

limited in temperatures well below freezing.

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged.

Never use any charger that is damaged.

Important: Battery talk and standby times are estimates only and

depend on network conditions, features used, battery age and condition, temperatures to which battery is exposed, and many other factors. The amount of time a device is used for calls will affect its standby time. Likewise, the amount of time that the device is turned on and in the standby mode will affect its talk time.

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage.

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, allow it to dry completely.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to

its normal temperature, moisture can form inside the device and damage electronic circuit boards.

• Do not attempt to open the device.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.

These suggestions apply equally to your device, charger, or any enhancement. If any device is not working properly, take it to the nearest authorised service facility for service.
