Product Type	Upright Vacuum Cleaner
Brand	Hoover
Model	VR81 VR84011
Carpet Care Control	Yes, 4-position height selector plus tool mode
Floor Types Supported	Carpets (short, medium, long pile), hard floors (wood, vinyl, linoleum) use caution
Attachments Included	Parquet nozzle, pet hair & allergen remover, crevice tool, dusting brush, extension tube, long crevice tool, flexible crevice tool (some model-dependent)
Hose Type	Two stretch hoses (short and long)
Filter Type	Washable pre-motor foam filter and mesh frame; washable exhaust filter
Bin Emptying	Press easy-open button, door opens for dust-free disposal
Safety Features	Thermal cut-out, cord clip, handle release
Maintenance	Wash pre-motor filter every 5 bin empties; wash exhaust filter monthly; belt and brush replacement as needed
Energy Efficiency	Complies with EU Regulation 665/2013 (energy label)
Spare Parts Available	Filter kit (U71-3560), hose (D146-35601418), extension tube (D145-35601416), crevice tool (D152-35601659), agitator (Y31-35601419), dust brush (P15-35601415), pet hair remover (J61-35601417), belt (V29-35600744)
Guarantee	As defined by local representative; subject to terms and conditions

Frequently Asked Questions - VR81 VR84011 HOOVER

How do I empty the dust bin?

Press the bin release button to remove the bin. Hold the bin over a trash container and press the easy open button; the bin door will open, allowing you to empty it without touching dust. Do not overfill above the max level line.

How often should I clean the filters?

The pre-motor filters should be washed after every 5 bin empties. The exhaust filter should be washed every month. Remove excess water and allow to dry for 24 hours before refitting.

How do I change the belt or brushes?

Switch off and unplug the cleaner. Turn it over and remove the 6 screws on the brush guard. Remove the brush assembly, check the belt, and loop a new belt around the motor and brush channel. Refit the brush and guard.

What should I do if the cleaner overheats?

A thermal cut-out switches off the cleaner to prevent overheating. Switch off, unplug, and correct the cause (e.g., empty bin, clear blockage, clean filters). The cut-out takes about 45 minutes to reset automatically.

How do I use the carpet care control selector?

Ensure the cleaner is upright. Move the selector to the required setting: position 1 for best performance and energy efficiency on short to medium pile carpets and hard floors; position 2 for delicate floors; positions 3-4 for longer pile carpets. Use tool mode for cleaning tools.

What attachments are included with the VR81 VR84011?

Attachments may vary by model but typically include: parquet nozzle, pet hair & allergen remover, crevice tool, dusting brush, extension tube, long crevice tool, and flexible crevice tool.

How do I clean stairs safely?

Always keep the cleaner below you on the lower step. Use the longer stretch hose if needed. Set the nozzle height to tool mode. Never place the cleaner above you.

Where can I find spare parts for my vacuum?

Use only genuine Hoover spares. They are available from your local Hoover dealer or direct from Hoover. Quote your model number when ordering. Common part codes are listed in the manual.

How do I store the vacuum cleaner?

Turn off and unplug. Wind the power cord around the cord storage hooks. Store the cleaner in an upright position.

What is the guarantee for this product?

Guarantee conditions are defined by the representative in the country of sale. Contact the dealer where purchased and present the bill of sale or receipt for any claims.

USER MANUAL VR81 VR84011 HOOVER

Illustration of a vacuum cleaner with handle and control panel (no text or symbols)

USERINSTRUCTIONS(GB) ...... P02

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Hoover service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only attachments, consumables or spares recommended or supplied by Hoover.

When using cleaning tools ensure that the appliance is kept in the upright (parked) position. This will avoid possible damage to the carpet or floor covering. When cleaning stairs, do not position the appliance above you.

Static electricity: some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes,

cigarette ends or other similar items.

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

Hoover service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not use the appliance to clean animals or people.

When using the cleaning tools, ensure to always steady the appliance with your other hand. This will ensure that the appliance does not fall while in use.

WARNING: A thermal cut out switches off the appliance to prevent overheating if it is used when full or there is a blockage or dirty filters. If this should happen then switch off, unplug and correct the fault. It will take approximately 45 minutes for the cut out to automatically reset.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

CE This appliance complies with the European Directives 2006/95/EC, 2004/108/EC and 2011/65/EU.

HOOVER Limited, Pentrebach, Merthyr Tydfil, Mid Glamorgan, CF48 4TU, UK

GB

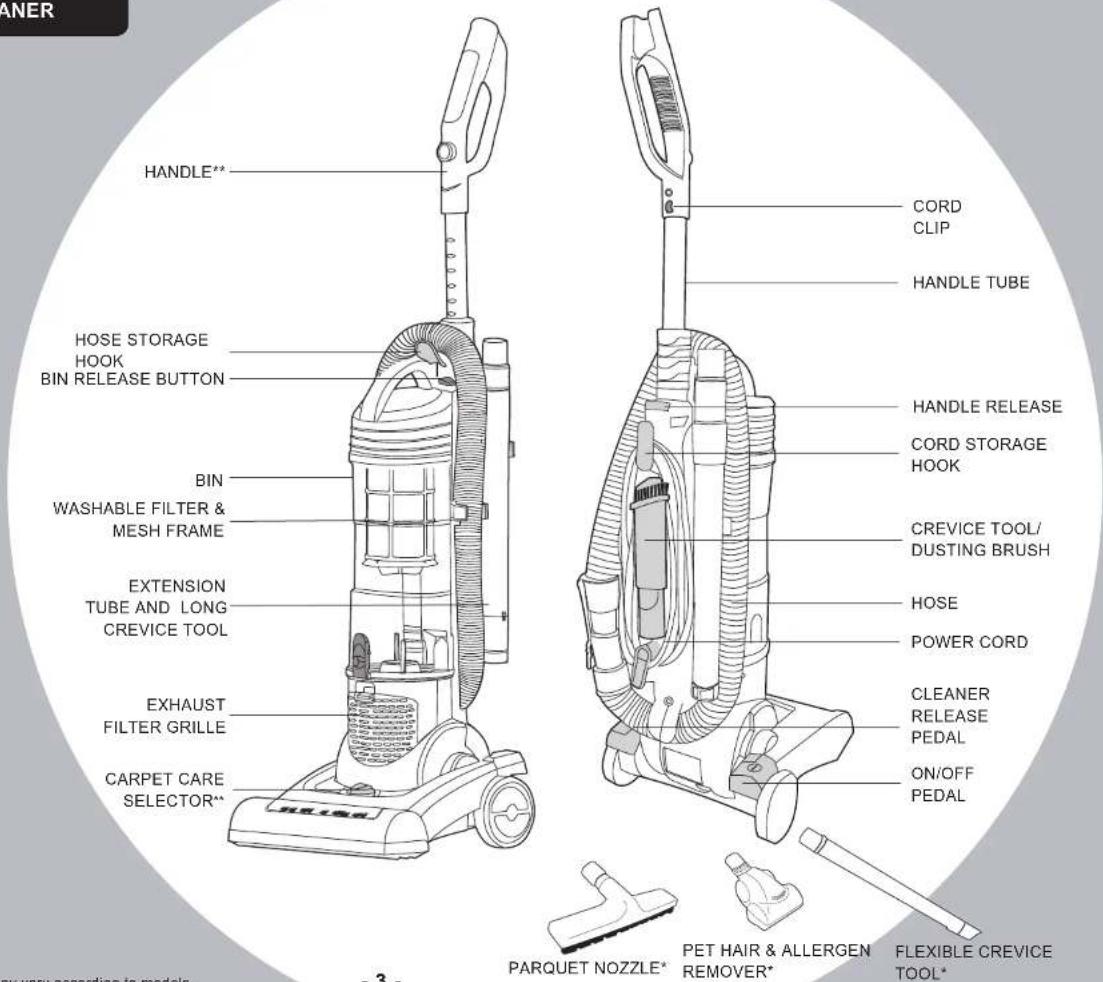

GETTING TO KNOW YOUR CLEANER

Effortless cleaning with your new Hoover

This vacuum cleaner is supplied with an Energy Label as required by European Regulation (EU) 665/2013.

^ Certain models only
**Selector design, top of the bin and handle may vary according to models.

HANDLE** HOSE STORAGE HOOK BIN RELEASE BUTTON BIN WASHABLE FILTER & MESH FRAME EXTENSION TUBE AND LONG CREVICE TOOL EXHAUST FILTER GRILLE CARPET CARE SELECTOR** PARQUET NOZZLE* PET HAIR & ALLERGEN REMOVER* FLEXIBLE CREVICE TOOL* CORD CLIP HANDLE TUBE HANDLE RELEASE CORD STORAGE HOOK CREVICE TOOL/ DUSTING BRUSH HOSE POWER CORD CLEANER RELEASE PEDAL ON/OFF PEDAL PARQUET NOZZLE*

PREPARING YOUR CLEANER

Insert the main handle in the cleaner body and then fix it with the screw provided.

SUPPLY CORD

Do not run over the supply cord.

Clip the supply cord in the cord clip at the back of the handle to avoid accidentally running the cleaner over the cord and causing any damage.

MINI TURBO BRUSH ASSEMBLY\*

Assemble the mini turbo brush holder to the cleaner, then put the mini turbo bush to the holder*.

Line drawing of two identical foot push-ups using a vacuum cleaner, showing mechanical components and base (no text or symbols)

* Certain models only

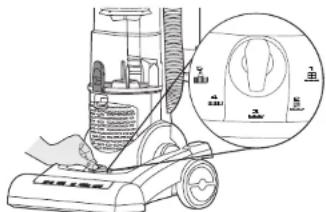

CARPET CARE CONTROL SELECTOR

The carpet care control selector raises and lowers the height of the nozzle.

Diagram of a vacuum cleaner with labeled parts and an inset showing a circular diagram of the device's internal structure.

Ensure that the cleaner is in the upright (parked) position and move the selector to the required setting for the carpet type or floor covering.

To obtain the best performance and energy efficiency ^#1 it is recommended that the adjustment setting position 1 is used for the main cleaning operations. The other adjustment settings are for ease of use, use on longer pile carpets, or for specialist cleaning tasks.

Settings

1. Best performance and energy efficiency, short to medium pile carpets, hard wooden floors, wooden floor boards with crevices, ceramic tiles.

2. Medium pile carpets, delicate floor coverings such as vinyl or linoleum, parquet flooring.

3 or 4. For longer pile carpets the motion resistance may increase. Use these intermediate settings to reduce the force required to push the vacuum cleaner.

1. Luxury carpet and Tool mode

IMPORTANT: Using this cleaner for loop pile carpets with pile greater than 30mm is not recommended. Please consult the floorcare/carpet manufacturer's recommended cleaning instruction before vacuuming.

IMPORTANT: When cleaning delicate hard floors such as vinyl or linoleum the selector switch must be moved to position 2. Failure to do so may cause damage to the floor surface.

This vacuum cleaner is supplied with an Energy Label as required by European Regulation (EU) 665/2013. If the label shows a red prohibition circle on the right covering the hard floor symbol, then this indicates that the vacuum cleaner is not suitable for use on hard floors.

1NOTE: Dust pick up ability carpet, dust pick up ability hard floor, and energy efficiency in accord with Commission Regulations (EU) 665/2013 and (EU) 666/2013.

CLEANER RELEASE

Unlock the cleaner by pressing down on the left pedal with your foot.

Line drawing of a vacuum cleaner with a hand holding a small object nearby (no text or symbols)

POWER SWITCH

To switch the cleaner on or off press down on the right pedal with your foot.

Line drawing of a vacuum cleaner with legs and arm, no text or symbols present

CLEANING TOOLS

Handle

All accessories can fit onto the end of the hose. Combine accessories depending on use.

Pet Hair & Allergen Remover\*

The pet hair & allergen remover is ideal for removing pet hairs.

DO NOT touch the rotating brush.

PARQUET NOZZLE\*

The parquet nozzle is ideal for cleaning delicate surfaces.

1 Remove the short stretch hose from the Hose socket. Plug in the longer stretch hose in the hose socket.

2 Pull out extension tube and long crevice tool.

3 Remove the long crevice tool from the extension tube.

4 Fit the extension tube to the hose.

5 Attach the long crevice tool and flexible crevice tool* to the extension tube or directly to the hose.

Illustration of two hands holding a pen, with arrows indicating movement direction (no text or symbols)

6 Fit the dusting brush or the Pet Hair and Allergen Remover* or parquet nozzle* to the hose or at the end of the extension tube.

Illustration of three hand positions: pressing a block, adding a spring, and adjusting a tool (no text or symbols)

IMPORTANT! When using cleaning tools, the cleaner must be kept in the upright position, particularly when cleaning stairs. The nozzle height should also be set to tool mode.

CLEANING THE STAIRS

Both short and long stretch hoses are supplied with the cleaner. When the user needs to use the longer stretch hose, the short hose should be removed from the hose socket and replaced by the longer stretch hose.

It is dangerous to place the cleaner above you when cleaning stairs.

the cleaner ing stairs. cleaner positioned op.

ALWAYS work with the cleaner below you. Ensure it is positioned up against the bottom step.

STORING THE CLEANER

Turn the cleaner off and remove the plug. Wind the power cord around the cord storage hooks.

Line drawing of a vacuum cleaner with attached tubing and valve (no text or symbols)

EMPTYING THE BIN

1 To remove the bin from the cleaner press the bin release button.

Illustration of a person using a vacuum cleaner on a wheeled cart (no text or symbols visible)

2 Hold the container over the Bin and press the easy open button.

The bin door will open and you can empty into a bin with no dust contact.

3 Once emptied, gently tap or shake the container to release any excess dust from the filters.

Do not overfill the bin above the max level line.

Illustration of a hand pouring liquid into a container with a small object inside (no text or symbols)

CLEANING THE PRE MOTOR FILTERS

1 Rotate the upper part of the dust bin to open.

Illustration of hands holding a container with a lid and arrow indicating direction (no text or symbols)

3 Remove the mesh frame from the filter, then gently tap both filters to release any excess dust.

Three technical line drawings of cylindrical and cylindrical components: a grid-patterned cylinder, a mesh-lined cylindrical cap, and a flat cylinder (no text or symbols)

IMPORTANT! Ensure the mesh frame is reassembled to the filter before use

CLEANING THE EXHAUST FILTER

The exhaust filter should be washed every month. Press down on the latch to remove the exhaust grille. Remove filter and wash with warm water.

Remove excess water by shaking and leave to dry for 24 hours. Refit filters only when completely dry.

GB

2 Remove the filter assembly from the bin top by rotating the filter. It is advisable to wash the filters after every 5 bin empties.

Illustration of two hands holding different types of containers, one with a grid pattern and the other with a cap (no text or symbols)

4 Wash both filter and protective mesh under warm water until the water runs clean. Remove excess water by shaking and leave to dry for 24 hours. Reassemble and refit filters to cleaner, only when they are completely dry.

Illustration of hands holding two cylindrical objects with a tool above them (no text or symbols)

Line drawing of a hand using a vacuum cleaner to press or install a component (no text or symbols visible)

CHANGING THE BELT OR BRUSHES CLE

If your cleaner is not picking up efficiently, the belt or brushes (or both) may need replacing, but first please make sure you have:

• Emptied the bin
• Cleaned the filters
• Checked for blockages

IMPORTANT: Switch the cleaner off and remove the plug from the electricity supply before attempting any maintenance.

1 Turn the cleaner over and remove 6 retaining screws attaching the brush guard to the base.

Line drawing of a mechanical device with a hand operating it (no text or symbols)

4 Hold the brush assembly and stretch the belt until the brush can be slotted back into the cleaner housing.

Technical line drawing of a mechanical device with no visible text or symbols

2 Remove the brush guard

Technical line drawing of a mechanical component with no visible text or symbols

5 Rotate the brush to ensure free movement of the belt.

Line drawing of a hand operating a mechanical device with no visible text or symbols

3 Remove brush assembly and check for wear on the belt. Loop the new belt around the motor and brush channel.

6 Refit the brush guard with 6 retaining screws.

Line drawing of a hand operating a mechanical device with no visible text or symbols

IMPORTANT: Switch the cleaner off and remove the plug from the electricity supply before attempting any maintenance.

Check the cleaning tools and hose for blockages.

The hose can be removed at both ends.

Turn the cleaner over and rotate the brushes to identify any obstructions including hair.

Check for a blockage in the hose socket. Use a flexible rod to remove any obstruction.

To clear a blockage in the Pet Hair & Allergen Remover*, twist the collar at the rear and lift the cover.

*Certain models only

User checklist

If your cleaner is not working properly run through the following checklist.

1. Is there a working electricity supply to the cleaner?

Check with another electrical product.

1. Is the bin full or choked with fine dust?

To empty the bin, see instructions on P6.

1. Is the hose blocked?

To clear a blockage, see instructions on P7.

1. Is there a blockage in the cleaner base?

To clear a blockage, see the instruction on P7.

1. Are the filters blocked?

To clean filters, see the instruction on P6.

1. Is the nozzle height set correctly?

To set the carpet height selector, see the instruction on p4.

1. Are the brushes rotating correctly?

To check the brushes, see the instructions on p7.

1. Has the cleaner overheated?

If so, it will take about 30 minutes to reset.

If there is any doubt call the Hoover Service Office for advice. They may be able to assist you over the telephone. A service charge will be made if the cleaner is examined and found to be in working order, has not been assembled in accordance with these instructions or has been used incorrectly. working order, has not been assembled in accordance with these instructions or has been used incorrectly.

WARNING!

A thermal cut out switches off the cleaner to prevent overheating if it is used when full or there is a blockage or dirty filters. If this should happen switch off, unplug and correct the fault.

It will take about 45 minutes for the cut out to automatically reset.

IMPORTANT: Do not run cleaner over the supply cord as this could damage the supply cord insulation.

IMPORTANT INFORMATION

Hoover Service

Should you require service at any time, please contact your local Hoover Service Office.

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

USE ONLY HOOVER SPARES

CONSUMABLES & SPARE PARTS CODE
PRE-MOTOR & EXHAUST FILTER KIT U71 - 3560	1420
HOSE D146 - 35601418
EXTENSION TUBE & CREVICE LONG TUBE D145	- 35601416
FLEXIBLE CREVICE TOOL D152 - 35601659
AGITATOR Y31 - 35601419
DUST & BRUSH FURNITURE NOZZLE P15 - 3560	1415
PET HAIR REMOVER NOZZLE J61 - 35601417
BELT V29 - 35600744

Quality

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001

GUARANTEE STATEMENT

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

Illustration of two hands performing a manual press or stamping operation on a mechanical base (no text or symbols present)

Diagram showing a vacuum cleaner with labeled parts and a magnified inset showing the interior view of the device.

Line drawing of a vacuum cleaner with a hand operating it, showing no text or symbols

EIN-/AUS-TASTE

Line drawing of a vacuum cleaner with a person standing beside it, showing no text or symbols.

ZUBEHÖR

Handgriff

Illustration of two hands holding a tool, showing motion with arrows indicating movement (no text or symbols)

Illustration of three hands performing a manual task with tools and blocks (no text or symbols)

Line drawing of a vacuum cleaner with attached tubing (no text or symbols)

STAUBBEHÄLTER LEEREN

Line drawing of a vacuum cleaner with attached tubing and handle (no text or symbols)

Illustration of a hand pouring liquid into a container with a small object inside (no text or symbols)

REINIGEN DES VORMOTORFILTERS

Illustration of hands holding a container with a lid and arrow indicating direction (no text or symbols)

Line drawings of three mechanical components: a cylindrical grid, a cylindrical bushing, and a cylindrical base (no text or symbols)

Illustration of two hands holding cylindrical containers, one with a grid pattern and the other pouring liquid (no text or symbols)

Illustration of hands holding two containers with a tool above them (no text or symbols)

Line drawing of a hand pressing down on a small mechanical component (no text or symbols)

Line drawing of a hand using a tool to press or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand operating a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a hand operating it (no text or symbols)
