Product type	Smart electric kettle
Brand	Breville
Model	Smart Kettle Luxe BKE845
Capacity	1.7 L
Power	2200 W
Supply voltage	220-240 V ~ 50/60 Hz
Body material	Stainless steel
Dimensions (L x W x H)	23 x 17 x 25 cm
Weight	1.2 kg
Color	Silver and black
Adjustable temperatures	50°C, 60°C, 70°C, 80°C, 90°C, 100°C
Keep warm function	Yes (up to 20 minutes)
Display	LED screen
Rotating base	360°
Lid	Soft-touch button opening
Anti-scale filter	Removable
Water level indicator	Transparent window
Cord	Removable, length ~75 cm
Automatic shut-off	Yes
Overheat protection	Yes
Maintenance	Regular descaling recommended
Warranty	2 years
Country of manufacture	China

Frequently Asked Questions - the Smart Kettle Luxe BKE845 BREVILLE

How to set the water temperature on the Breville Smart Kettle Luxe BKE845?

Press the Temperature button to scroll through the options: 50°C, 60°C, 70°C, 80°C, 90°C, and 100°C. The LED screen displays the selected temperature. The kettle then heats to that temperature and goes into standby or keep-warm mode according to your choice.

What to do if the kettle does not turn on?

Check that the base is properly plugged in and the kettle is correctly placed on the rotating base. Make sure the cord is not damaged. If the problem persists, check the fuse of your electrical installation or contact Breville customer service.

How to clean and descale my kettle?

To descale, fill the kettle with a mixture of white vinegar and water (1:2) or use citric acid. Bring to a boil, let it sit for 15 minutes, then rinse thoroughly. Clean the exterior with a soft damp cloth. The anti-scale filter should be removed and cleaned separately.

Can I use the kettle to heat milk or other liquids?

No, this kettle is designed only for heating water. Heating milk or other liquids can damage the appliance and cause injury. Use it exclusively for water.

The kettle makes an abnormal noise, what to do?

A slight noise during boiling is normal. If the noise is loud or unusual, check if the anti-scale filter is clogged or if limescale has accumulated. Perform descaling. If the noise persists, contact customer service.

How to use the keep-warm function?

After selecting the desired temperature, press the Keep warm button (maintenance symbol). The kettle will keep the water at that temperature for about 20 minutes, then turn off automatically.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 liters. Do not exceed the maximum level indicated on the water level window to avoid overflow.

The kettle stops before boiling, why?

This may be due to necessary descaling or a faulty temperature sensor. Make sure the lid is properly closed. If the problem persists after descaling, contact customer service.

How to replace the anti-scale filter?

The anti-scale filter is located inside the kettle, near the spout. Gently pull it out to remove. Clean it under running water or replace it with a Breville replacement filter. Insert the new filter by pushing until it clicks into place.

Is the kettle compatible with an induction base?

No, this kettle works only with its included rotating base. It is not compatible with induction cooktops because the bottom is not magnetic. Always use the original base.

USER MANUAL the Smart Kettle Luxe BKE845 BREVILLE

Exterior view of a modern stainless steel coffee kiosk with control knobs and a handle (no visible text or symbols)

EN

INSTRUCTION BOOK

FR-CA

MANUEL D'INSTRUCTIONS

ES-MX

2 Breville Recommends Safety First
7 Components
8 Functions
12 Care & Cleaning

BREVILLE RECOMMENDS SAFETY FIRST

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT cULus SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

- Remove and safely discard any packaging material and promotional labels before using the appliance for the first time.

• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance.

• This appliance has been designed specifically for the purpose of heating and boiling drinking quality water only. Under no circumstances should this product be used to heat or boil any other liquids or foodstuffs.

• Do not place the kettle near the edge of a bench or table during operation. Ensure that the surface is level, clean and free of water.
• Do not place the kettle on or near a hot gas burner, electric element or where it could touch a heated oven.
• Keep the kettle clear of walls, curtains and other heat or steam sensitive materials. Minimum 8 inch distance.
• Do not operate the kettle on a sink drain board.
  • Always ensure the kettle is properly assembled before connecting to a power outlet and operating. Follow the instructions provided in this book.
• The kettle must be used only with the power base supplied.

• The kettle is not intended to be operated by means of an external timer or separate remote control system.

• Do not touch hot surfaces. Use the handle for lifting and carrying the kettle.

• Do not place anything on top of the lid.
  • Always remove the power plug from the power outlet before attempting to move the appliance, when the appliance is not in use and before cleaning and storing. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Use caution when pouring water from the kettle, as boiling water and steam will scald. Do not pour the water too quickly.
  • To protect against electric shock, do not immerse the kettle base, power base, power cord or power plug in water or allow moisture to come in contact with these parts.
• Do not remove the kettle from the power base during operation. Ensure the kettle

has switched off after the water has boiled or reached the selected temperature, before removing the kettle from the power base. If the kettle is removed from the power base during the KEEP WARM function, the kettle will automatically switch off.

• Do not move the appliance while it is switched on.
• Do not open the lid during operation as scalding may occur.
• Keep the appliance clean. Refer to care and cleaning.
  • The use of accessory attachments not recommended by Breville may result in fire, electric shock or injury to persons.

IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES

• Fully unwind cord before use.
  • To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.
• Do not let the cord hang over the edge of a bench or table, touch hot surfaces, or become knotted.
• Do not leave the appliance unattended when in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure they do not play with the appliance.

• This appliance is recommended for household use only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.
- It is recommended to regularly inspect the appliance. Do not use the appliance if the power cord, power plug, or appliance becomes damaged in anyway. Immediately cease use and call Breville Consumer Support.
- For any maintenance other than cleaning, call Breville Consumer Support.
- This appliance is equipped with a power cord having a grounding wire with a grounding plug. The appliance must be grounded using a 3-hole properly grounded outlet. In the event of an electrical short circuit, grounding reduces the risk of electrical shock.

• If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord.
• If the power outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord or use an adapter.
• Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

WARNING

Do not operate the kettle on an inclined surface. Do not move the appliance while it is switched on.

SHORT CORD INSTRUCTIONS

Your Breville appliance is fitted with a short power cord to reduce personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Longer detachable power cords or extension cords are available and may be used if care is exercised. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the counter-top or table where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

BREVILLE ASSIST® PLUG

Your Breville appliance comes with a unique Assist® Plug, conveniently designed with a finger hole to ease removal from the power outlet.

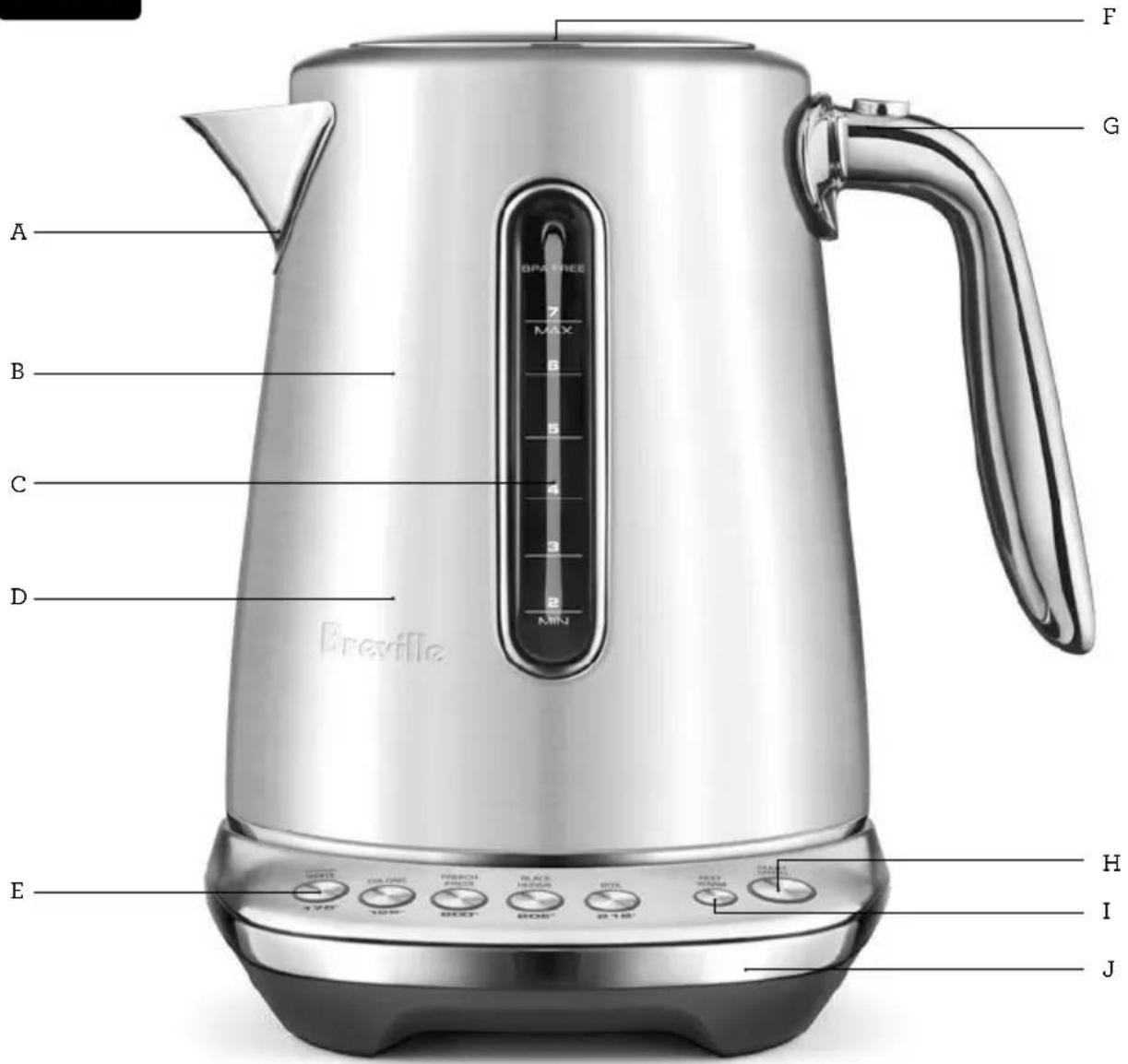

Components

A. Removable Scale Filter

B. Premium Quality Brushed Stainless Steel

C. BPA Free* Dual Water Windows

D. 1.7 Liter / 7 Cup Capacity

E. 5 Temperature Settings

F. Soft Opening ^TM Lid with Viewing Window

G. Stainless Steel Handle with Lid Release Button

H. START/CANCEL button

I. KEEP WARM function

J. Multi-Directional Power Base with Cord Storage

NOT SHOWN

Rapid Boil 1500W Concealed Element

Safety Auto Shut-Off

Boil Dry Protection

Rating Information

120 V\~ 60 Hz 1500 W

Functions

VARIABLE TEMPERATURE CONTROL

The electronic control panel offers five different temperature settings for optimal tea and coffee brewing: 175^ F, 195^ F, 200^ F, 205^ F, and 212^ F.

GREEN	OOLONG	FRENCH	BLACK	BOIL
WHITE		PRESS	HERBAL

175°F 195°F 200°F 205°F 212°F

NOTE

This product is not calibrated for commercial or scientific use. Temperatures may vary +/-3 °C degrees, being within range for optimal brewing for each type of tea or coffee.

OPTIMAL BREWING

Tea varieties are grown and produced in many different environments and require different water temperatures to allow their unique flavor and aroma to develop during brewing. To bring out the optimal quality and taste of more delicate tea leaves, a lower temperature will produce a better flavored cup of tea.

For example, steeping green, white or oolong teas in boiling water may scald the tea leaves and result in a bitter, astringent brew.

Brewing the tea for too long may also result in a bitter, unpleasant taste, while brewing for too short a period may leave the tea bland. For best results always follow the specific directions on the tea/coffee packet.

To bring out the optimal taste and quality of your favourite tea or coffee, we recommend that you use your Breville Smart Kettle™ Luxe at the suggested temperature for your selected tea or coffee.

The table on the following page provides a guide to a range of tea and coffee varieties and the recommended temperature to select on the control panel of the Breville Smart Kettle™ Luxe.

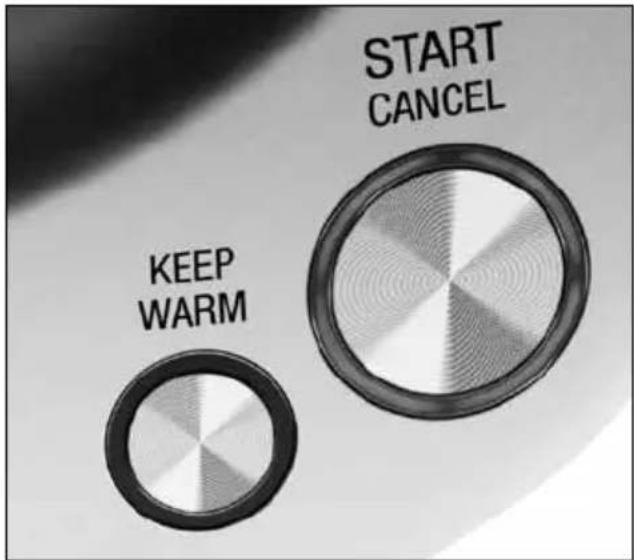

KEEP WARM FUNCTION

The Breville Smart Kettle™ Luxe offers a convenient KEEP WARM function that can be used before, during or on completion of the water heating cycle. When the water has reached the selected temperature, the KEEP WARM function will hold the selected temperature for 20 minutes. If the 212° setting is selected when using the KEEP WARM function, the boiled water will remain at approximately 200°F for 20 minutes.

To activate the KEEP WARM function, first press the desired water temperature button from the five options on the control panel. Then press the KEEP WARM button, followed by the START/CANCEL button to commence heating the water. Alternatively, the KEEP WARM button can be activated at any time during the heating cycle and/or within one minute after the heating cycle has completed.

If the kettle is removed from the power base during the KEEP WARM function the kettle will automatically switch off.

NOTE

If temperature is changed during the KEEP WARM function, the START/CANCEL button surround will illuminate in red.

VARIABLE TEMPERATURE CONTROL TABLE

WHITE TEAS	GREEN TEAS	OOLONG	FRENCH PRESS	BLACK HERBAL	HERBAL, ROOBOS & MATE BLENDS
Suited to 175°F	Suited to 175°F	Suited to 195°F	Suited to 200°F	Suited to 205°F	Suited to 212°F
Silver Needle	Gyokuro Imperial (Japan)	Monkey Picked Oolong		Golden Monkey	Herbal Fruit Infusions
Silver Yin Zhen Pearls	Sencha (Japan)	Maharaja Chai Oolong		English Breakfast	Rooibos
Youthberry Dragonwell		Formosa Oolong		Keemun Chamomile
White Peony	Jasmine Dragon Phoenix Pearls	Da Hong Pao Ceylon Peppermint
Flavored White Teas	China Mao Feng	Jasmine Oolong		Lapsang Souchong	Spearmint
	Flavored Green Teas	Flavored Oolong		Assam Cinnamon
				Yunnan Bagged Tea
				Earl Grey
				Flavored Black Teas

NOTE

This table is a recommended guideline only and may vary depending on personal preference, brand and age of tea/coffee used.

Experiment with your favorite tea/coffee and adjust the temperatures and times to suit personal taste.

BEFORE FIRST USE

Remove and safely discard any packaging material or promotional labels attached to your kettle. It is recommended before first use to fill the kettle to the maximum level with cold tap water, bring to the boil by selecting the BOIL 212° button. Allow the water to boil, then discard the water.

Your kettle will only operate when positioned on the power base. The kettle will automatically switch off when the water has reached the selected temperature.

1. To fill the kettle, remove it from the power base and open lid by pressing the lid release button. Fill with the desired amount of water.

NOTE

Always fill the kettle between the minimum and maximum marks on the water window. Too little water will result in the kettle switching off due to the safety boil dry protection. Filling above the maximum mark (MAX) may result in boiling water splashing from the kettle.

1. Ensure the lid is closed and locked firmly into place. Position the kettle securely onto the power base. Insert the power plug into a 110/120V power outlet. The START/CANCEL and 212° BOIL button surrounds will illuminate in white for one minute. A beep will sound for two seconds. The START/CANCEL button surround will automatically switch off after one minute if not selected.

NOTE

If the START/CANCEL button is pressed (before selecting a temperature button), the START/CANCEL button surround will illuminate in red and the 100° button surround will illuminate and the kettle will start heating.

1. Select the desired setting by pressing one of the five temperature buttons (175°, 195°, 200°, 205°, 212°). The selected button and the START/CANCEL button surround will illuminate in white.

NOTE

The KEEP WARM function can be selected before, during or on completion of the water heating cycle.

1. Press the START/CANCEL button and the surround will illuminate in red, the selected temperature button surround will illuminate and the kettle will start heating. Do not remove the kettle from the power base during operation. Ensure the kettle has switched off after the water has boiled or the selected temperature has been reached before removing the kettle from the power base. If the kettle is removed from the power base during the KEEP WARM function the kettle will automatically switch off.

2. When the kettle has heated the water to the selected temperature, 3 beeps will sound, the START/CANCEL button surround illumination will switch off, and the selected temperature button surround will remain illuminated for 1 minute before switching off.

3. If the KEEP WARM function has been selected, the KEEP WARM button surround will remain illuminated in red, the selected temperature button surround will remain illuminated in white, and the kettle will maintain the desired setting for 20 minutes.

4. If further heating of the kettle is not required, unplug the power cord and empty the water from the kettle. Replace the kettle onto the power base and close the lid.

NOTE

The default temperature setting of the kettle when connected to the power outlet is 212^ .

• When the kettle remains plugged into at the power outlet it will automatically default to the 212^ temperature setting.
• When the kettle remains plugged into the power outlet and different temperature settings have been selected, the kettle will default to the last selected temperature setting.

NOTE

This kettle must be used only with the power base supplied. Use caution when pouring water from your kettle, as boiling / heated water and steam will scald. Do not pour the water too quickly.

NOTE

Always fill the kettle to between the minimum and maximum marks on the water window on the kettle. Filling above the maximum mark on the water window of the kettle may result in boiling/heated water splashing from the kettle.

SAFETY BOIL DRY PROTECTION

The kettle is fitted with a safety device, which protects against overheating should the kettle be operated with insufficient water. If this occurs the kettle will stop heating. Unplug the kettle from the power point and allow kettle to cool before refilling and plugging the kettle back into the power point. The safety device will automatically reset when the kettle has cooled down.

Care & Cleaning

Always unplug the appliance from the power outlet before cleaning.

REMOVABLE FILTER

The Breville Smart Kettle ^™ Luxe features a removable mesh filter to remove scale deposits for cleaner water. To clean the scale deposits from the filter, remove the filter by opening the lid and sliding the filter up and out of the kettle.

The filter can be cleaned by placing under running hot water and rubbing with a cleaning cloth or brush. To replace the filter, simply slide the filter down into the slot behind the spout of the kettle and push back into position.

NOTE

The filter could become damaged with time, so please check regularly and replace if found damaged.

DESCALING

It is essential that regular descaling takes place. Frequency will depend on the usage of the kettle and the hardness of the water in your area. A build-up of scale may cause the inside of the kettle to discolour and ultimately may damage the element. This will affect the efficiency of the appliance and may invalidate the warranty agreement. We recommend the use of Breville Kettle Cleaner as it's specially formulated for descaling kettles. To order, contact Breville Consumer Support.

Follow the instructions for use on the Kettle Cleaner packaging for best results.

Directions for use:

1. Fill the kettle two-thirds full with 1 part vinegar and 2 parts water. Boil and allow to stand overnight.
2. Empty the solution from the kettle. Fill the kettle with clean water, bring to the boil and discard the water. Repeat and the kettle will be ready for use.

TO CLEAN THE EXTERIOR

The outside of the kettle should be wiped with a damp cloth then polished with a soft, dry cloth.

NOTE

Do not use chemicals, steel wool, or abrasive cleaners to clean the inside or outside of the kettle.

STORAGE

Ensure the kettle is unplugged, clean and dry before storing. Ensure that the lid is closed and locked securely into place. Wrap the power cord around the power cord storage under the power base. Stand the kettle upright on the power base. Do not store anything on top.

the Smart Kettle ^TM Luxe

Exterior view of a modern stainless steel coffee kiosk with control knobs and a handle (no visible text or symbols)

FR-CA

MANUEL D'INSTRUCTIONS

Breville®

Table des matières

FICHE BREVILLE ASSIST®

Exterior view of a modern stainless steel Kevada water heater with control buttons and a handle (no visible text or symbols on the device itself)

ES-MX

Breville Consumer Support

USA Mail: Breville USA 19400 S. Western Ave, Torrance CA 90501-1119 Phone: [phone]-BREVILLE Web: breville.com/us/support

Canada Mail: Breville Canada 9800 Boulevard Cavendish, Suite 250, Saint-Laurent Québec, H4M 2V9 Phone: [phone] Web: breville.ca/support

Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.

Copyright Breville Pty. Ltd. 2021.

- Due to continued product improvement, the products illustrated/photographed in this brochure may vary slightly from the actual product. - En raison de son amélioration continue, le produit représenté sur cet emballage peut différer légèrement du produit réel. - Perfeccionamos nuestros productos continuamente, por lo que el artículo podría diferir ligeramente de la ilustración o imagen en este documento.

BKE845 Series • Séries • Serie
