Product Type	Air Purifier
Brand	Honeywell
Model	HPA020B
Filtration Technology	Two-stage: activated carbon pre-filter (odor reduction) + True HEPA filter (captures 99.97% of particles as small as 0.3 microns)
Speed Control	Rotary knob with positions Off (O), Low (I), Medium (II), High (III)
Filter Replacement Indicator	Electronic filter check LED
Filter Light Reset	Filter reset button
Power Supply Voltage	120 V, 60 Hz (estimated for North America)
Power Consumption	Not specified in the manual
Certifications	ENERGY STAR, FCC and Industry Canada compliant
Warranty	5-year limited warranty
Customer Service	1-800-477-0457 / [e-mail]
Replacement Filters	True HEPA filter Type G, odor reduction pre-filter Type A (or Type B for gases and odors)
Filter Replacement Frequency	HEPA filter: every 12 months; pre-filter: every 3 months
Exterior Maintenance	Clean with a dry cloth every 3 months; do not use water, wax, or chemicals
Safety	Polarized plug, do not use with speed control device, do not block openings, unplug before maintenance
Prolonged Storage	Remove filters and place in airtight plastic bags if storing for more than 30 days

Frequently Asked Questions - HPA020B HONEYWELL

My air purifier is noisy and the airflow is weaker. What should I do?

This usually indicates that the filters are dirty. Replace the pre-filter and the True HEPA filter at recommended intervals (pre-filter every 3 months, HEPA every 12 months).

How long should I run my air purifier?

For optimal effectiveness, run it when you are home with doors and windows closed. You can leave it on 24/7 if desired.

Can I wash the filters of my air purifier?

No. The filters are not washable. Washing them would destroy them. Simply replace them with new ones.

When should I replace the filters?

The True HEPA filter should be replaced every 12 months and the pre-filter every 3 months. Periodically check the condition based on your usage.

The filter check light stays on constantly. What should I do?

First replace the pre-filter. Then, with the unit running, press the FILTER RESET button until the light turns off. If it flashes, replace the HEPA filter and reset.

How do I reset the filter replacement indicator after changing the filters?

With the unit running, press the FILTER RESET button for 2 seconds for the pre-filter (flashing light), or hold until off for the HEPA filter. Follow the procedure in the manual.

Can I use the air purifier in a bathroom or outdoors?

No. Do not expose the unit to rain or moisture. Use only indoors, on a flat and level surface.

What is the warranty for this air purifier?

The Honeywell HPA020B air purifier is covered by a 5-year limited warranty from the date of purchase against defects in materials and workmanship.

Where can I buy replacement filters?

You can purchase genuine Honeywell replacement filters (HEPA filter Type G, pre-filter Type A or B) at the store where you bought the unit or online at www.replacementfilters.com.

The air purifier causes radio interference. What should I do?

Try reorienting the receiving antenna, moving the unit away from the receiver, or plugging it into a different circuit. Consult a specialist if needed. This device complies with Part 15 of the FCC.

USER MANUAL HPA020B HONEYWELL

Black Honeysweil air purifier device with grille and control knob (no visible text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

⚠️ READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS AIR PURIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before operating the air purifier.

2. Place air purifier where it is not easily knocked over by persons in the household.

3. Always turn the air purifier controls to the OFF position and unplug from the wall outlet when not in use.

4. To disconnect the air purifier, first turn the control to the OFF position, grip the plug and pull it from the wall outlet when not in use. NEVER pull by the cord.

5. DO NOT use any product with a damaged cord or plug or if product malfunctions, is dropped or damaged in any manner. Keep the cord away from heated surfaces.

6. DO NOT use air purifier outdoors.

7. DO NOT use air purifier unless it is fully assembled.

8. DO NOT run power cord under carpets, and DO NOT cover with throw rugs. Arrange cord such that it will not be tripped over.

9. DO NOT use air purifier where combustible gases or vapors are present.

10. DO NOT expose the air purifier to rain, or use near water in a bathroom, laundry area or other damp location.

11. The air purifier must be used in its horizontal position only.

12. DO NOT allow foreign objects to enter ventilation or exhaust opening as this may cause electric shock or damage to the air purifier. DO NOT block air outlets or intakes.

13. Locate air purifier near the outlet and avoid using an extension cord or power-strip.

14. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

15. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

16. DO NOT sit, stand or place heavy objects on the air purifier.

17. Disconnect power supply before servicing.

18. SAVE THESE INSTRUCTIONS

For FCC compliance information, please see last page of this manual.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Air Purifier With Any Solid-State Speed Control Device.

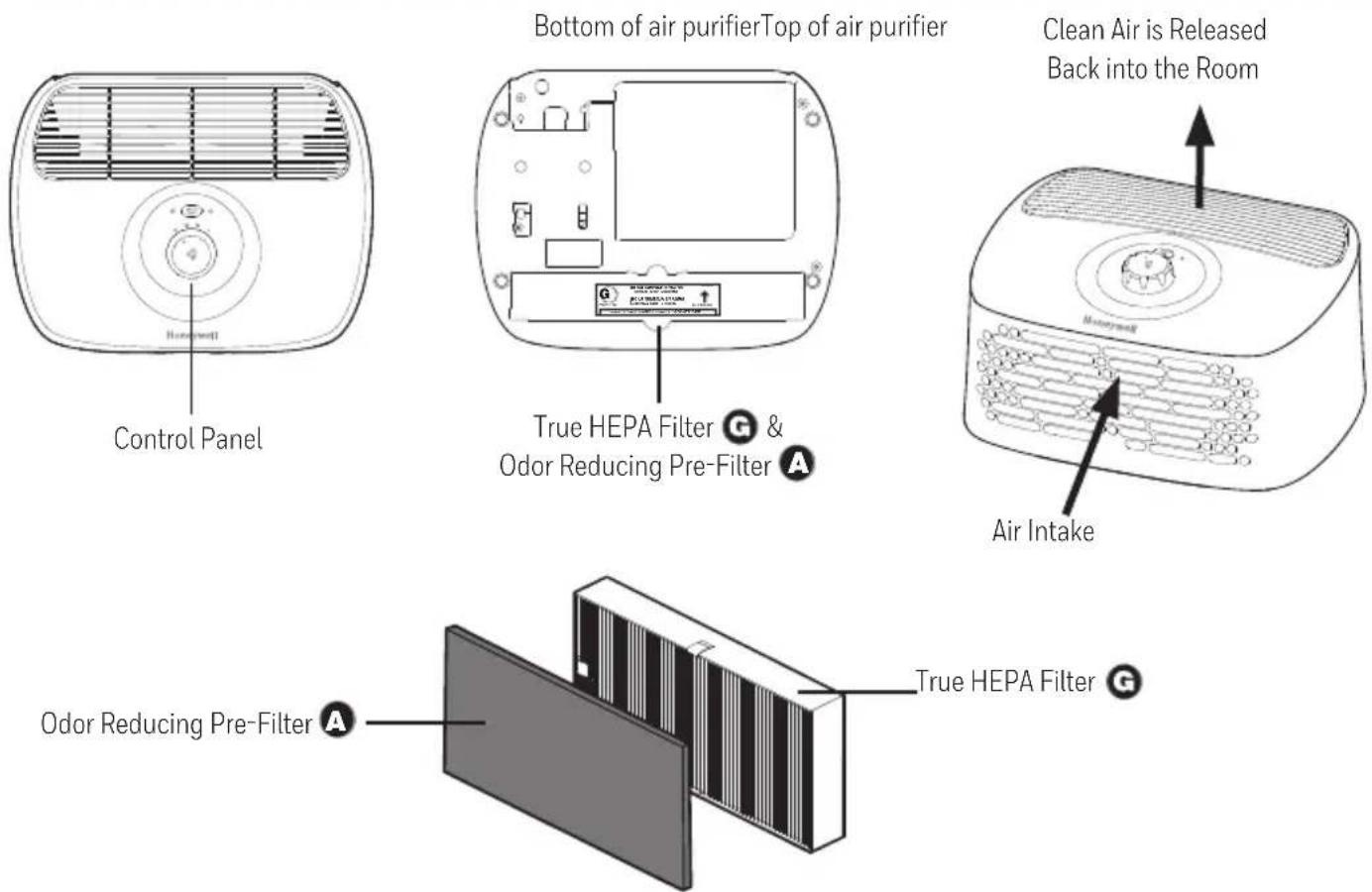

YOUR AIR PURIFIER

HOW YOUR AIR PURIFIER WORKS

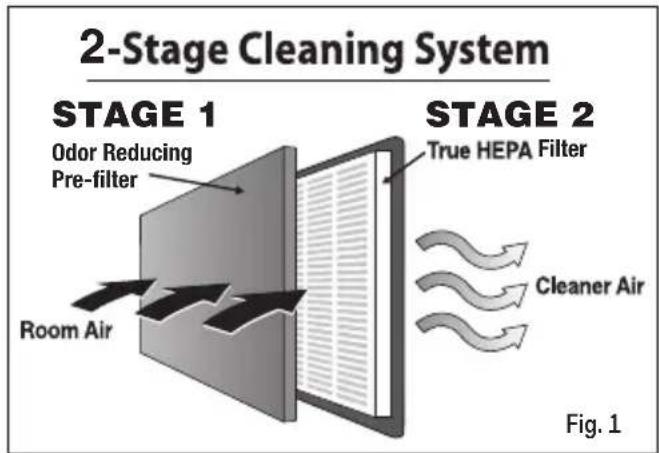

This model air purifier incorporates a 2-stage cleaning system to help clean the air that passes through the filter in the unit (Fig. 1).

Stage 1: Activated Carbon Pre-filter traps larger particles and household odors*

Stage 2: HEPA Filter captures up to 99.97% of microscopic particles, as small as .3 microns*

*From the air that passes through the filter

SET-UP

• Select a firm, level and flat location on the floor at least 6 inches away from wall or furniture.
• When operating, large volumes of air are drawn toward the air purifier. Surrounding areas should be cleaned and/or vacuumed frequently to prevent build-up of dust and other contaminants. This may also help prolong the life of the filter. If the unit is placed on a light colored carpet, a small mat or rug should be used underneath to prevent staining. This is especially important in homes with contamination from smoking, fireplaces, or where candles are burned.
• Ensure the front of the unit faces away from the closest wall or furniture.
• Ensure no grilles are blocked.

INSTALLING THE TRUE HEPA FILTER AND ODOR REDUCING PRE-FILTER

The True HEPA Filter and Odor Reducing Pre-filter are supplied with your air purifier. They are wrapped to ensure purity and are labeled to help identify the proper replacement filter (Type G True HEPA Filter and Type A Odor Reducing Pre-filter).

• Turn off and unplug the air purifier.
- Turn the air purifier upside down on a flat surface. The filter is visible from the bottom of the unit (Fig. 2).
- Remove the True HEPA filter by grasping the filter from the finger notches. There are small molded tabs that secure the filter in place and prevent it from slipping out of the unit. Pull away from tabs and up to remove. When removing a used filter that is not wrapped in plastic, pull the red tab to remove.

- Remove the protective plastic wrap from the HEPA filter and prefilter.

- Install the pre-filter first by sliding it in behind the front grille of the air purifier and securing it in the molded slots.

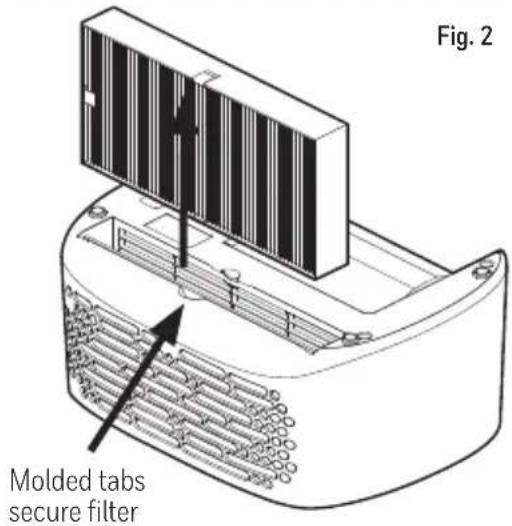

• Install the True HEPA filter by sliding it in the opening on bottom of the air purifier. Ensure that the red tab is accessible for easy removal.

OPERATION

• Ensure the air purifier is plugged into a working electrical outlet

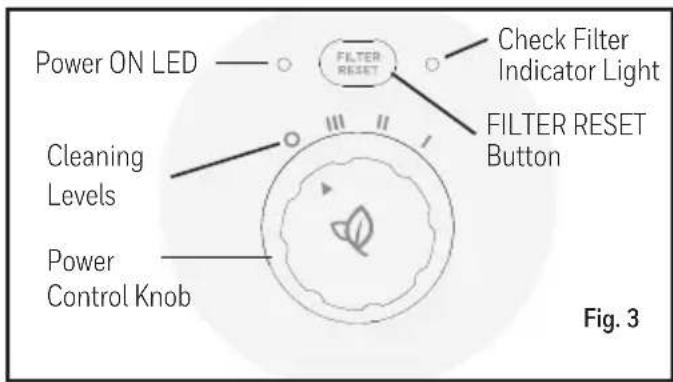

• Turn the Power Knob to desired setting (O = Off, III = High, II = Medium, I = Low)

Portable air purifiers are more effective in rooms where all the doors and windows are closed. It is recommended that you run your air purifier while you are at home to help clean the air.

ENERGY STAR®

This product earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by the U.S. EPA. The U.S. EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.

The energy efficiency of this ENERGY STAR ^® qualified model is measured based on a ratio between the model's CADR for Dust and the electrical energy it consumes, or CADR/Watt.

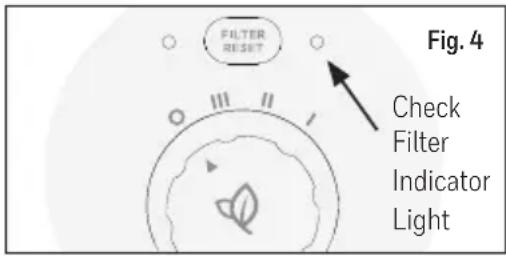

ELECTRONIC FILTER CHECK REMINDER

This model has an electronic filter check to remind you when to check and replace your filters based on the air purifier's hours of use. A red LED will illuminate when it is time to check/replace your filters.

When the HEPA filter or pre-filter needs to be replaced, the light will remain on until it is RESET. You may unplug the air purifier without interrupting the filter check.

You should periodically check the filters depending on operating conditions, the TRUE HEPA filter should be replaced every 12 months and the pre-filter every 3 months.

REPLACE WITH TRUE HEPA FILTER G and ODOR REDUCING PRE-FILTER A

To RESET the Electronic Filter Check:

When the filter check light remains on and solid, it is time to replace the Odor Reducing Pre-filter and reset the filter monitor. With the unit powered ON, press the FILTER RESET button next to the Check Filter LED and hold for approximately 2 seconds until the light turns off (Fig. 4).

When the LED illuminates and is flashing, it is time to replace the True HEPA filter and reset the filter monitor. With the unit powered ON, press FILTER RESET button and hold for approximately 2 seconds until the light turns OFF (Fig. 4).

Manual (or Early) Reset of Electronic Filter Check

Depending on your individual usage (environment and hours used), you may need to replace the filters more or less frequently. Each time you replace your filters, you should reset the filter monitor. You may manually reset the filter monitor for the pre-filter or the HEPA filter, or both. If you change the pre-filter or True HEPA filter before the Check Filter LED is illuminated, it is possible to reset the filter monitor. You must first manually illuminate the Check Filter LED. Follow these steps:

1. With unit powered ON, press the FILTER RESET button for 5 seconds to illuminate the LED in "solid" mode.
2. To reset filter monitor for pre-filter: press and hold FILTER RESET button for 2 seconds until LED changes to flashing mode.
3. TAP FILTER RESET button to shut LED off. The pre-filter monitor is now set to "clean status".
4. To reset filter monitor for HEPA filter: LED must be in "flashing mode". Follow Step 1 above, then TAP FILTER RESET button again to illuminate the LED in "flashing mode".
5. Press and hold FILTER RESET button for 2 seconds until LED shuts off. The HEPA filter monitor is now set to "clean status".
6. To reset filter monitor for both pre-filter and HEPA filter: Follow Steps 1,2, and 5 above.

CLEANING AND STORAGE

We recommend that you clean the air purifier at least once every 3 months and before extended storage. Use only a dry cloth to wipe the external surfaces of the air purifier.

DO NOT USE WATER, WAX POLISH, OR ANY CHEMICAL SOLUTION.

If your Air Purifier will not be used for more than 30 days, we recommend that you:

• Remove the True HEPA filter and the Odor Reducing Pre-filter from the unit.
• Place each filter in separate airtight plastic bags to preserve freshness.

ACCESSORIES AND REPLACEMENT FILTER

You may purchase Honeywell replacement True HEPA filter 📄 and Honeywell Odor Reducing Pre-filter Ⓐ at the store where you purchased your air purifier or, order directly from www.replacementfilters.com. To ensure stated product performance, use only Genuine Honeywell Replacement Filters. You have the option to use the Honeywell Household Gas & Odor Reducing Pre-filter ⚠ instead of the Odor Reducing ⚠ Pre-filter. It is also available at many retailers and on www.replacementfilters.com.

If you have any questions, please call 1-800-477-0457 or email [e-mail].

FREQUENTLY ASKED QUESTIONS

My Air Purifier is starting to make noise and the air output is less. What's wrong?

The filters may be dirty. High amounts of contaminants can block the pores in the filter and stop the air from moving through it. Replace the filters.

How long should I run my Air Purifier?

The unit will be most effective when doors and windows are closed. It is recommended that you run your air purifier while you are at home to help clean the air. If desired or conditions warrant, you may run your air purifier 24 hours a day.

Can I wash any of the filters in my Air Purifier?

No. Washing any of the filters will ruin them.

When should I replace my filters?

You should periodically check the filters depending on operating conditions, the TRUE HEPA filter should be replaced every 12 months and the pre-filter every 3 months.

CONSUMER RELATIONS

We are here to help. Call us toll-free at: 1-800-477-0457 E-mail: [e-mail]

Or visit our website at: www.HoneywellPluggedIn.com

Please be sure to specify the model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE AIR PURIFIER OR PERSONAL INJURY.

5 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

D. This warranty does not cover the True HEPA filters or pre-filters except for material or workmanship defects.

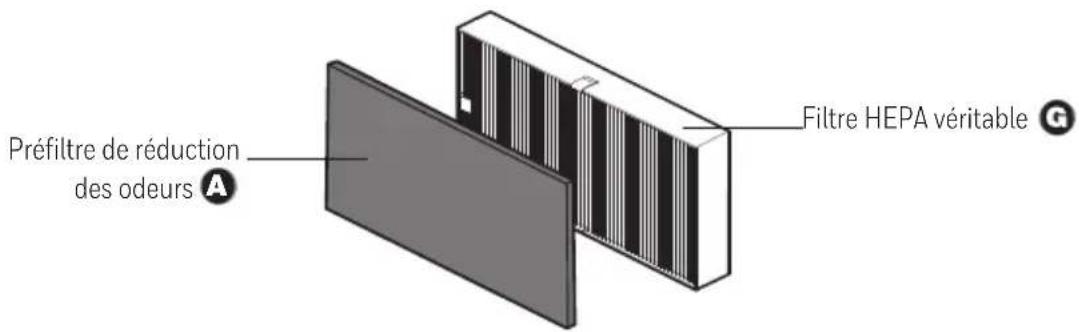

PURIFICAUTEUR D'AIR HEPA VÉRITABLE

Black HPV HPV heater with a rotary knob and ventilation grille (no visible text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and control panel (no text or symbols)

Panneau de commande

Diagram of a device rear panel with labeled components and a central indicator (no readable text or symbols)

Entrée d'air

Black Bosch Freezer air purifier with grille and control knob (no visible text or symbols)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited. Honeywell International Inc. makes no representation or warranties with respect to this product.

The ENERGY STAR ^® name and mark are registered trademarks owned by the U.S. EPA.

© 2018 All rights reserved.

Kaz USA, Inc., a Helen of Troy Company

400 Donald Lynch Blvd., Suite 300, Marlborough, MA 01752

Distributed in Canada by: Kaz Canada, Inc., a Helen of Troy Company

6700 Century Avenue, Suite 210, Mississauga, Ontario L5N 6A4

Contact us at 1-800-477-0457 or www.HoneywellPluggedIn.com
