B5936SS - Range hood BROAN - Free user manual and instructions

Product type	Range hood
Brand	Broan
Model	B5936SS
Width	91.4 cm (36 in)
Recommended installation height	76 to 91.4 cm above cooking surface
Power supply	120 V, 60 Hz (standard plug)
Number of speeds	3 (low, medium, high)
Lighting	4 halogen bulbs 12 V, 20 W max, type JC, base G4
Grease filters	2 washable aluminum filters (dishwasher or hand)
Recirculation filter	1 charcoal filter (replacement every 6 months)
Material	Stainless steel
Installation type	With duct (external exhaust) or without duct (recirculation)
Duct diameter	15.2 cm (6 in) round, metal
Control	Push buttons (on/off, speed, lighting)
Motor protection	Automatic shutoff in case of overheating (overload protection)
Warranty	1 year limited (parts and labor)
Country of origin	Not specified (manufactured for Broan)
Package contents	Range hood, decorative ducts, damper, mounting plate, filters, hardware

Frequently Asked Questions - B5936SS BROAN

What is the recommended installation height for the range hood?

The bottom of the hood should be installed at a minimum height of 76 cm (30 in) and a maximum height of 91.4 cm (36 in) above the cooking surface for optimal efficiency.

How to clean the grease filters?

The aluminum grease filters should be cleaned once a month. You can wash them by hand with a warm detergent solution or in the dishwasher with a phosphate-free detergent. Discoloration may occur but does not affect performance.

How to replace the halogen bulbs?

Turn off the range hood and let the bulbs cool. Gently push the cover upward and turn it counterclockwise to remove it. Replace the defective bulb with a halogen bulb 12 V, 20 W max, type JC, base G4. Replace the cover by pushing and turning clockwise.

Can I use the range hood without an external duct?

Yes, the range hood can be installed in recirculation mode (without duct). You need to purchase the non-duct kit model RK59 (sold separately) which includes a recirculation filter to be replaced every 6 months.

What is the warranty for the Broan B5936SS range hood?

Broan offers a one-year limited warranty from the date of purchase, covering defects in materials and workmanship. Filters, bulbs, and installation accessories are not covered.

What to do if the motor stops intermittently?

The motor is equipped with overload protection that automatically shuts off in case of overheating. It will restart after cooling. If the problem persists, have the range hood repaired by a professional.

What type of duct to use?

Use a round metal duct with a diameter of 15.2 cm (6 in). Seal joints with duct tape. Avoid plastic or non-metallic flexible ducts to reduce fire risk.

How to clean the stainless steel of the range hood?

Clean once a month with a soft cloth dampened with warm water and mild soap, following the grain lines. Rinse with clear water and dry. Never use steel wool, abrasive or chlorinated cleaners.

How often should I replace the recirculation filter?

The recirculation (charcoal) filter should be replaced every six months to ensure optimal performance. Use replacement part number S99527023.

Can I use a speed controller with the range hood?

No, the manual explicitly states do not use a solid-state speed control (dimmer) with this appliance, as it could damage the motor.

USER MANUAL B5936SS BROAN

To register this product visit: www.broan.com

Line drawing of a ceiling-mounted air duct or fixture with a rectangular base and a cylindrical component (no text or symbols)

READ AND SAVE THESE INSTRUCTIONS

⚠️ INTENDED FOR DOMESTIC COOKING ONLY. ⚠️

⚠ WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switch on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any other solid-state speed control device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
   a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
   b) Always turn hood ON when cooking at high heat or when cooking flaming foods (i.e. Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
   c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filters.
   d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

⚠ WARNING

TO REDUCE THE RISK OF INJURY TO PERSON(S) IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TOPREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels – This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
   A. You know you have a Class ABC extinguisher and you know how to operate it.
   B. The fire is small and contained in the area where it started.
   C. The fire department has been called.
   D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impeller, keep drywall spray, construction dust, etc. off power unit.
3. Do not use over cooking equipment greater than 60,000 BTU/hr. as the blower motor will shut down intermittently.
4. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it will cool down. If the motor continues to shut off and restart, have the hood serviced.
5. The bottom of the hood MUST NOT BE LESS than 30" and at a maximum of 36" above cooktop for best capture of cooking impurities.
6. Two installers are recommended because of the size of this hood.
7. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
8. Be careful when installing the decorative flue and hood, they may have sharp edges.
9. Please read specification label on product for further information and requirements.

INSTALL THE DUCTWORK (Ducted Hoods Only)

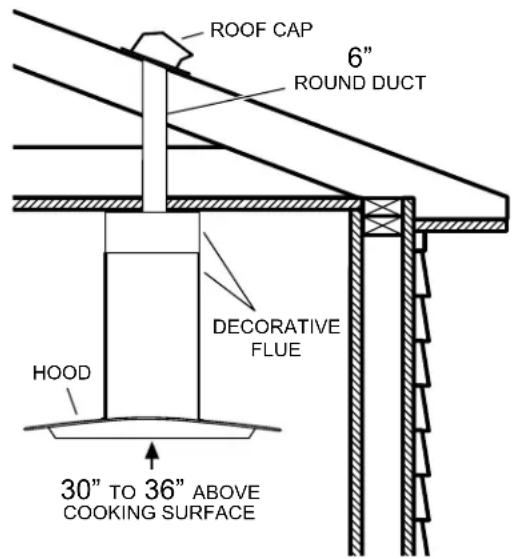

1. Decide where the ductwork will run between the hood and the outside.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
4. Install wall cap or roof cap. Connect round metal ductwork to cap and work back towards the hood location. Use duct tape to seal the joints between ductwork sections.

MEASURE THE INSTALLATION

The minimum hood distance above cooktop MUST NOT BE LESS than 30".

A maximum of 36" above cooktop is highly recommended for best capture of cooking impurities.

Distances over 36" are at the installer and users discretion; providing that the ceiling height permits.

NOTE:

On 8-ft. ceilings

Hood distance above cooktop is:

Minimum 30", Maximum 32¼" (for ducted discharge)

Minimum 30", Maximum 30½" (for non-ducted discharge)

On 9-ft. ceilings

Hood distance above cooktop is:

Minimum 30", Maximum 36" (for both ducted and non-ducted discharge).

On 10-ft. ceilings

Hood distance above cooktop is:

Minimum 30", Maximum 36" (for both ducted and non-ducted discharge).

NOTE: 10-ft. ceilings require 10-ft. Flue Extension, Model FXN59SS for ducted or non-ducted installations (purchase separately).

PREPARE THE HOOD

Unpack hood and check contents. You should receive:

1 - Hood
1 - Metal Canopy
1 - Decorative Flue Assembly (2 pcs.)
1 - Damper / Duct Connector
1 - Ceiling Mounting Plate
8 - Angle Brackets
2 - Aluminum Grease Filters (installed in hood)
1 - Parts Bag containing:
8 - Mounting Screws (M6 x 40mm Pan Head)
46 - Machine Screws (M4 x 8mm Pan Head)
20 - Serrated Flange Nuts (M4)
8 - Sheet Metal Screws (M4 x 8mm Phillips Head)
3 - Wire Nuts

Simple line drawing of a nail with a flat top and pointed tip (no text or symbols)

M6 x 40 mm

M4 x 8 mm

M4 x 8 mm Sheet Metal

M4 Serrated Flange Nut

Wire Nut

INStAll CellING SuPPoRt

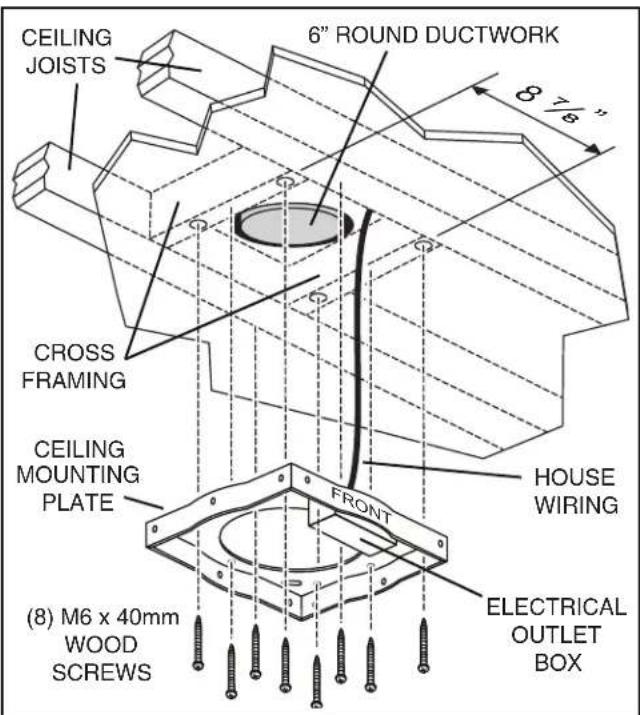

1. At hood location install 2 x 4 cross framing between ceiling joists using dimensions shown. Make sure framing does not interfere with electrical outlet box opening in ceiling mounting plate.
2. Install house wiring and ductwork.
3. Finish ceiling surface. Be sure to mark the location of the ceiling joists & cross framing. Bring house wiring through finished ceiling.
4. Remove cover from electrical outlet box on ceiling mounting plate. Pull house wiring through hole on top of mounting plate and into electrical outlet box. Secure house wiring cable to mounting plate / electrical box with appropriate connector.
5. Install ceiling mounting plate with the side marked "front" at the desired hood location. Secure using (8) M6 x 40mm wood screws. Make sure screws are driven into the center of the framing for maximum strength.

PRePARe tHe Hood

1. Place the hood on flat surface with protection to insure the hood is not damaged.

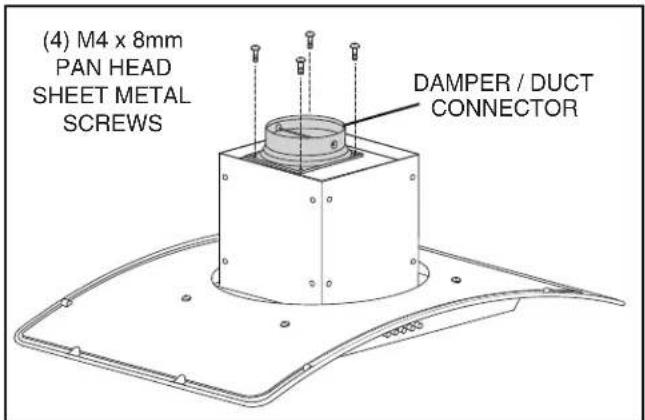

2. Attach the damper / duct connector to the hood with (4) M4 x 8mm pan head sheet metal screws.

INSTALL THE HOOD (Ducted Installation Only)

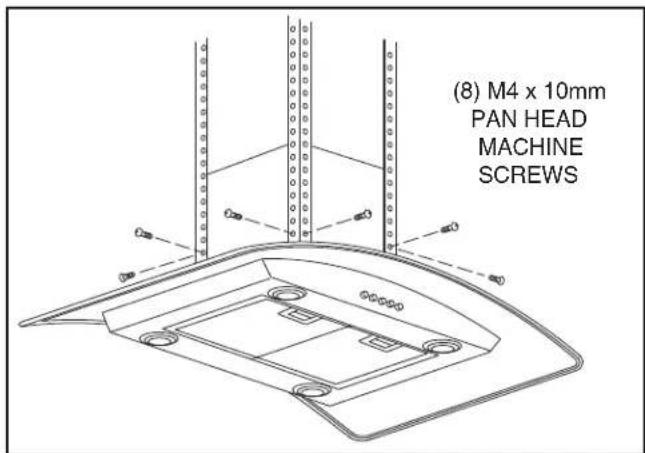

1. Assemble (4) angle brackets to the lower hood mounting locations using (8) M4 x 10mm pan head machine screws (2 for each angle bracket).

1. Determine dimension "H" based upon ceiling height and height of hood installation above cooktop:

8-ft. ceiling Hood 30" above cooktop H = 30" Hood 32¼" above cooktop H = 27¾"
9-ft. ceiling Hood 30" above cooktop H = 42" Hood 36" above cooktop H = 36"
10-ft. ceiling Hood 30" above cooktop H = 54" Hood 36" above cooktop H = 48"

For 10-ft. ceilings: Purchase a 10-ft. flue extension (Model FXN59SS) which includes (4) additional angle mounting brackets, (1) longer upper flue, and additional mounting hardware.

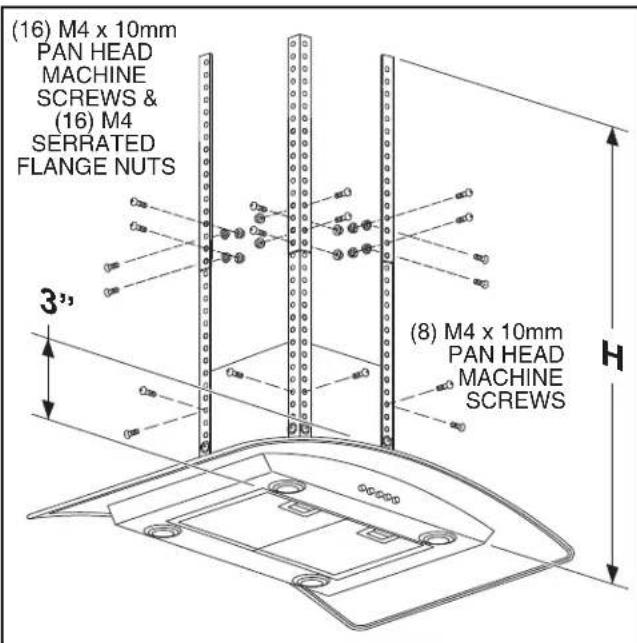

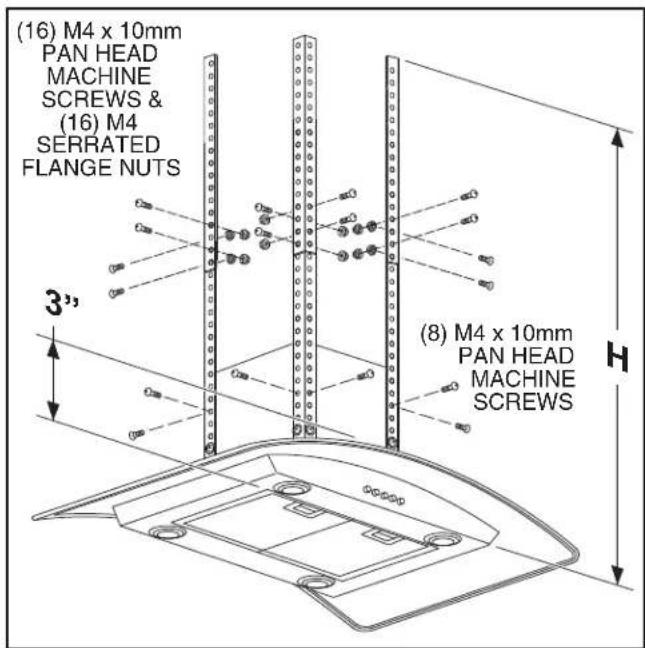

1. Attach the upper set of (4) angle brackets to the outside of the lower angle brackets according to dimension "H". Use (16) M4 x 10mm pan head machine screws and (16) M4 serrated flange nuts (4 at each angle bracket connection).
2. Attach the angle bracket assemblies to the upper hood mounting locations using (8) M4 x 10mm pan head machine screws (2 for each angle bracket).

For 10-ft. ceilings: Attach a third set of (4) angle brackets to the inside of the second set of angle brackets using hardware supplied.

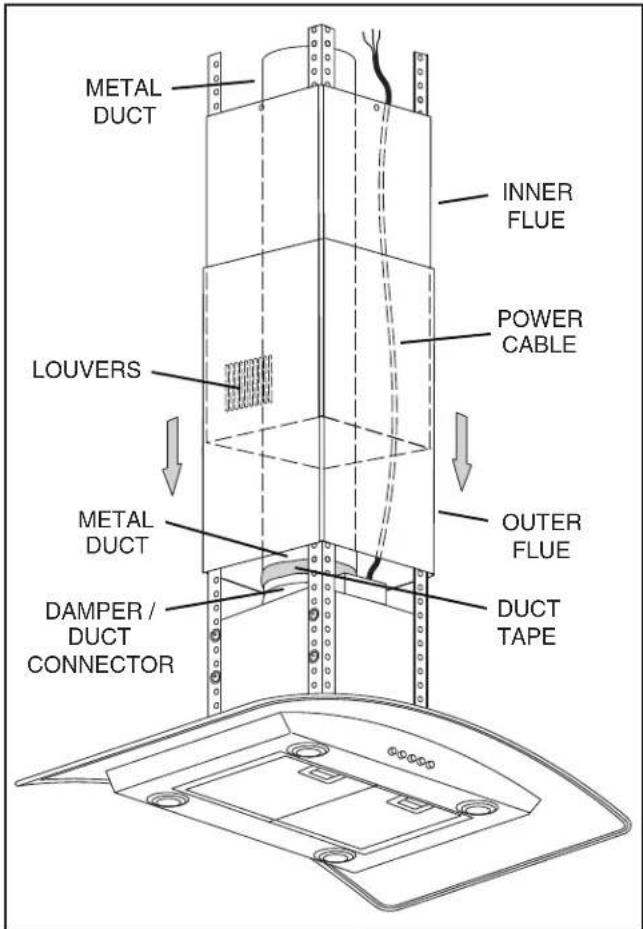

1. Measure the length of 6" round metal duct required from the damper / duct connector to the ductwork rough-in in the ceiling. Connect the duct to the damper / duct connector and seal with duct tape.
2. Remove the protective coating from the inner the flue. Turn the inner flue so that the louvers are at the bottom. Carefully slide the inner flue down into the outer flue. Slide the flues over the angle brackets. Make sure the side marked "front" faces the control side of the hood. Feed the power cable up through the flues.

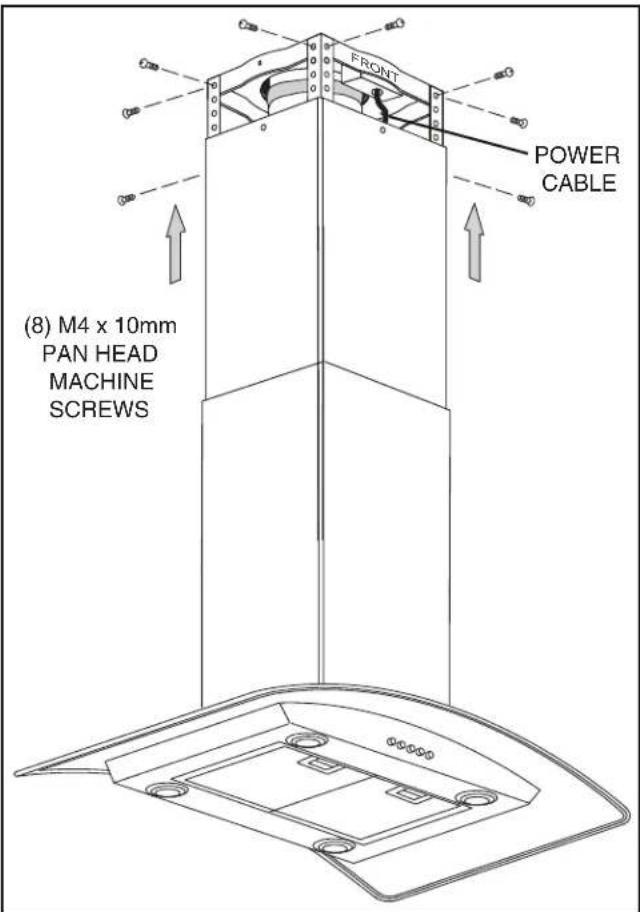

1. Attach the hood assembly to the ceiling bracket using (8) M4 x 10mm machine screws (2 for each support leg).
2. Connect metal duct to ceiling duct and seal with duct tape.
3. Connect power cable to house wiring inside of electrical outlet box. Black to Black, White to White, and Green to Green or Bare wires. Secure power cable to wiring box with appropriate connector and re-attach outlet box cover.

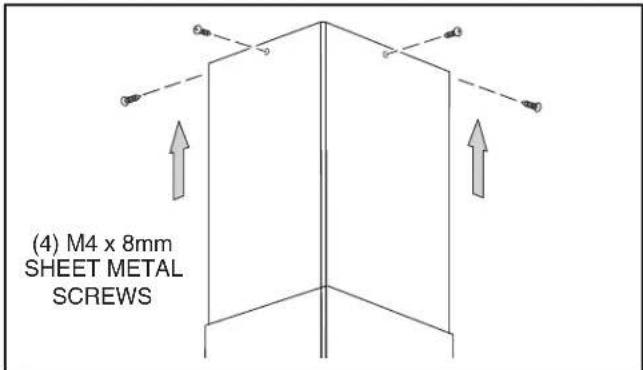

4. Slide the inner flue up to the ceiling and secure with (4) M4

x 8mm sheet metal screws.

1. Remove the protective coating from the hood and the outer flue.

INSTALL THE HOOD (Non-Ducted Installation Only)

NOTE:

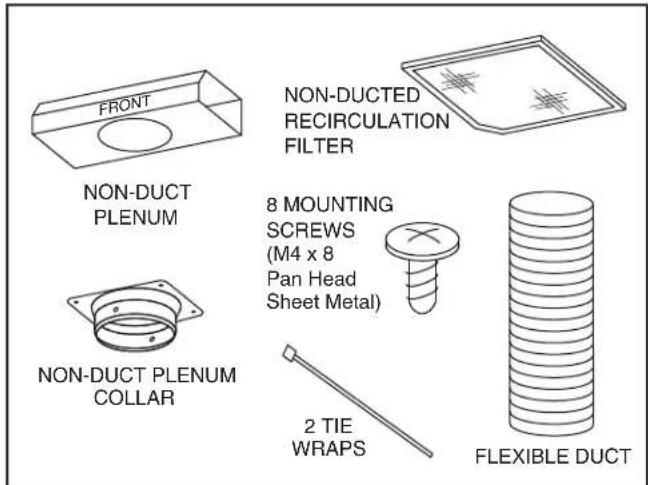

Non-ducted installations require Non-Duct kit; model RK59 (purchased separately).

Do not use plastic or rigid metal duct.

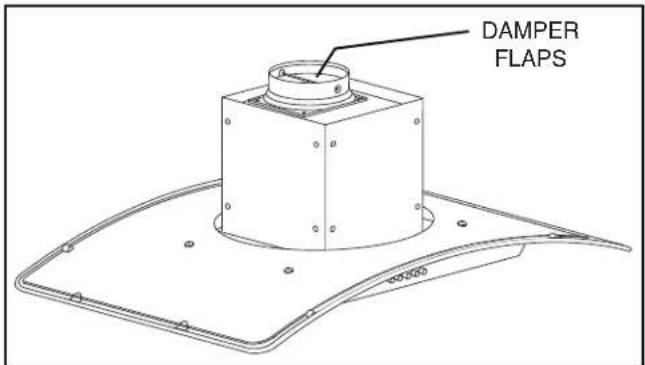

1. Remove the damper flaps from the damper / duct connector and discard flaps.

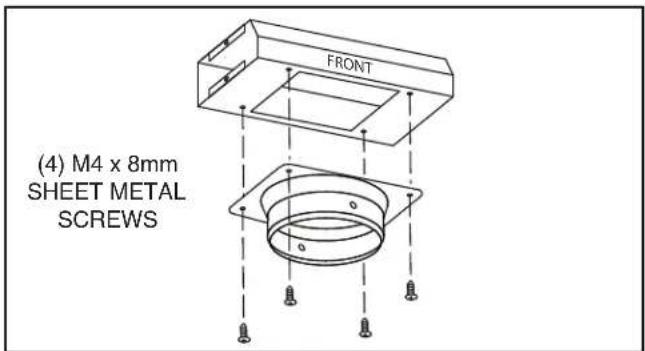

1. Attach non-duct collar to non-duct plenum using (4) M4 x 8mm sheet metal screws.

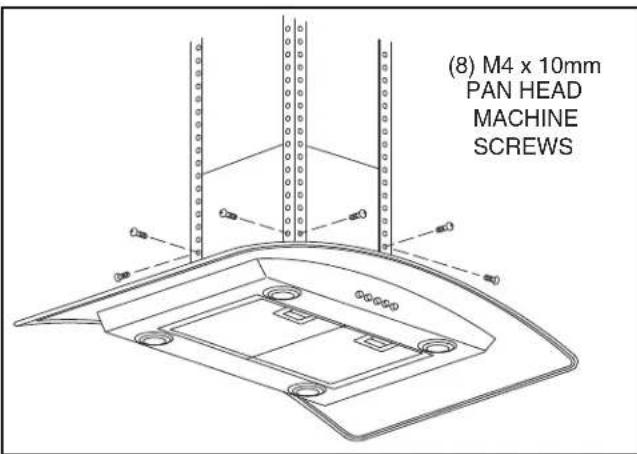

1. Assemble (4) angle brackets to the hood using (8) M4 x 10mm pan head machine screws (2 for each angle bracket).

1. Determine dimension "H" based upon ceiling height and height of hood installation above cooktop:

8-ft. ceiling Hood 30" above cooktop H = 30" Hood 30½" above cooktop H = 29½"
9-ft. ceiling Hood 30" above cooktop H = 42" Hood 36" above cooktop H = 36"
10-ft. ceiling Hood 30" above cooktop H = 54" Hood 36" above cooktop H = 48"

For 10-ft. ceilings: Purchase a 10-ft. flue extension (Model FXN59SS) which includes (4) additional angle mounting brackets, (1) longer upper flue, and additional mounting hardware.

1. Attach the upper set of (4) angle brackets to the outside of the lower angle brackets according to dimension "H". Use (16) M4 x 10mm pan head machine screws and (16) M4 serrated flange nuts (4 at each angle bracket connection).
2. Attach the angle bracket assemblies to the upper hood mounting locations using (8) M4 x 10mm pan head machine screws (2 for each angle bracket).

For 10-ft. ceilings: Attach a third set of (4) angle brackets to the inside of the second set of angle brackets using hardware supplied.

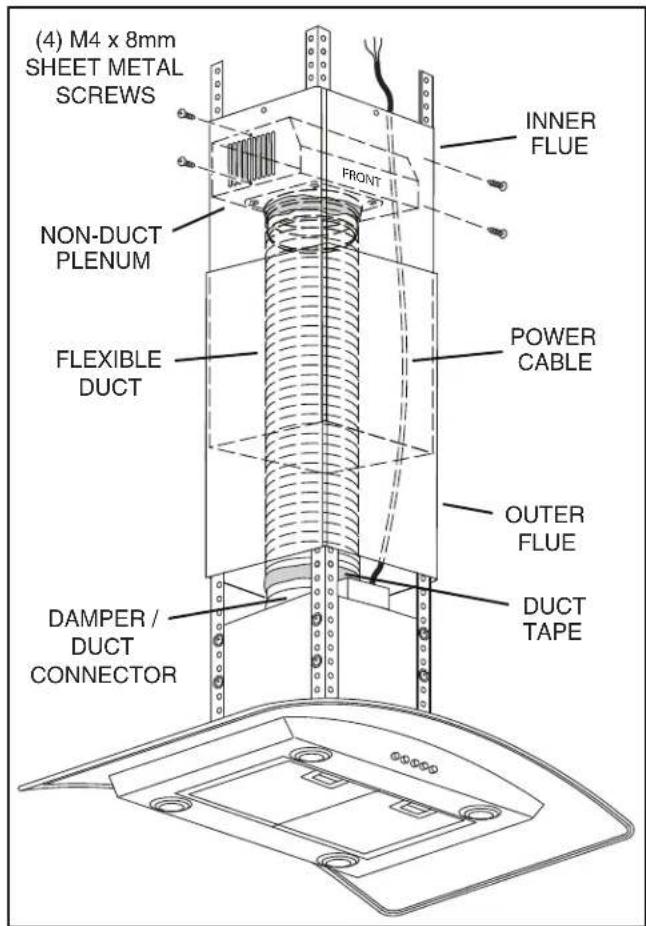

1. Measure the length of 6" round flexible duct required from the damper / duct connector to the ductwork rough-in in the ceiling. Connect the duct to the damper / duct connector, secure with tie wrap and seal with duct tape.
2. Attach the aluminum flexible duct to the non-duct plenum collar. Make sure non-duct plenum "front" is facing front of hood. Secure with tie wrap and seal with duct tape.
3. Remove the protective coating from the inner the flue. Turn the inner flue so that the louvers are at the top. Carefully slide the inner flue down into the outer flue. Slide the flues over the angle brackets. Make sure the side marked "front" faces the control side of the hood. Feed the power cable up through the flues.
4. Pull the inner flue up and attach the non-duct plenum with collar to the upper flue using (4) M4 x 8mm sheet metal screws.

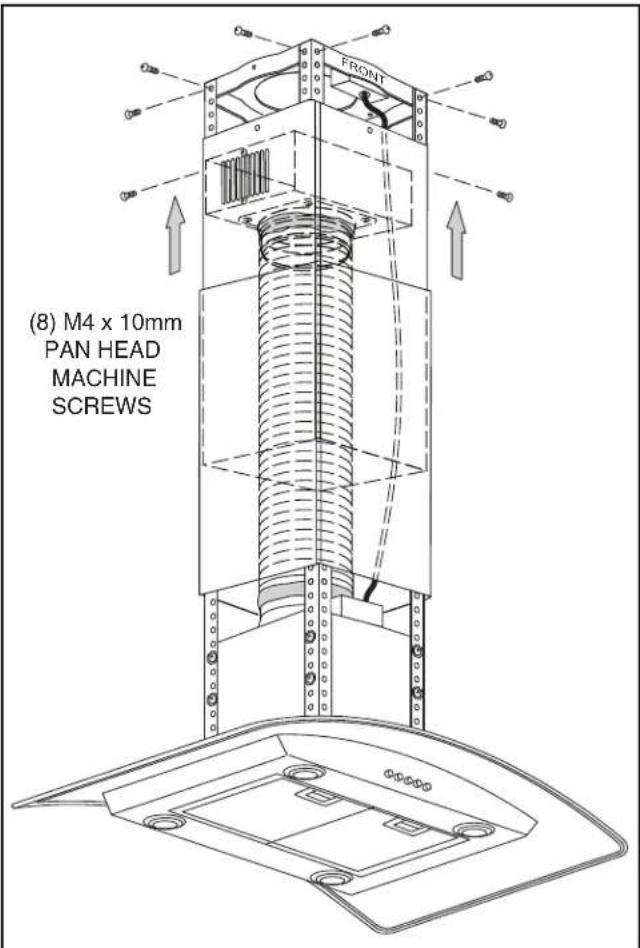

1. Attach the hood assembly to the ceiling bracket using (8) M4 x 10mm machine screws (2 for each support leg).

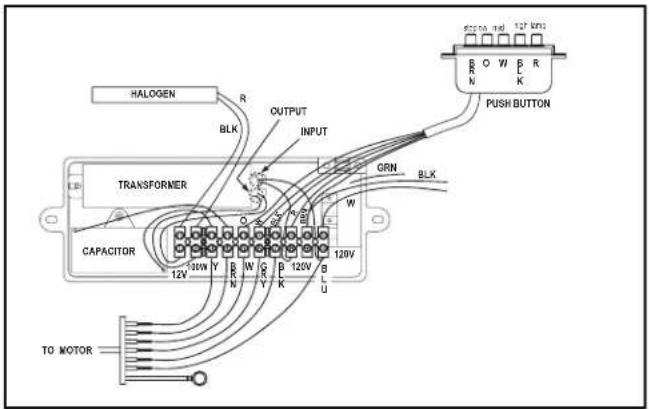

2. Connect power cable to house wiring. Black to Black, White to White, and Green to Green or Bare wires. Secure power cable to wiring box with appropriate connector.

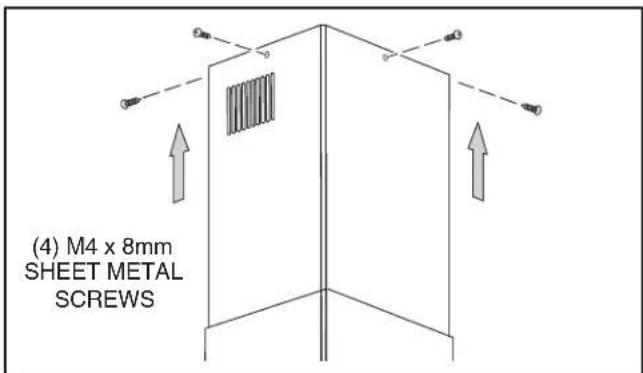

1. Slide the inner flue up to the ceiling and secure with (4) M4 x 8mm sheet metal screws.
2. Remove the protective coating from the hood and the outer flue.

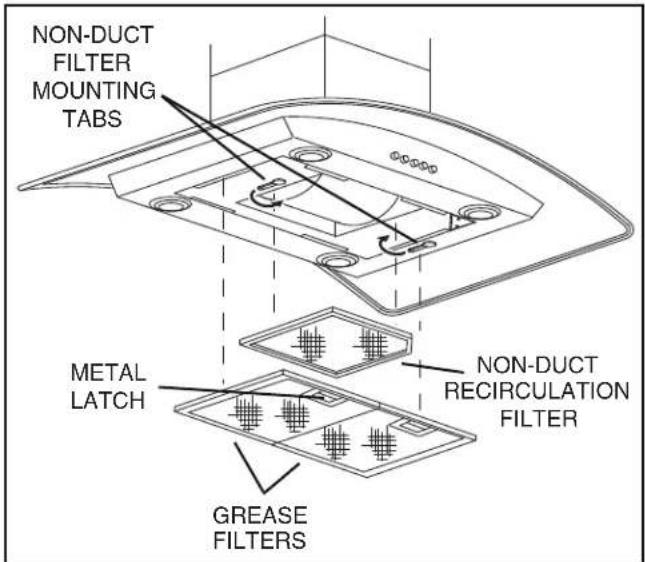

1. Remove the grease filters by pulling down the metal latch tab and tilting the filters downward to remove.
2. Install the non-duct recirculation filter as shown. Turn mounting tabs on hood to secure filter.
3. Reinstall grease filters by aligning rear filter tabs with slots in the hood. Pull down the metal latch tab, push filter into position and release. Make sure filters are securely engaged after installation.

LIGHT BULBS

WARNING

Bulbs may be hot. Always allow bulbs to cool down before removing them.

This range hood requires four halogen bulbs (Type JC, 12V, 20W Max, G-4 Base).

To change bulbs:

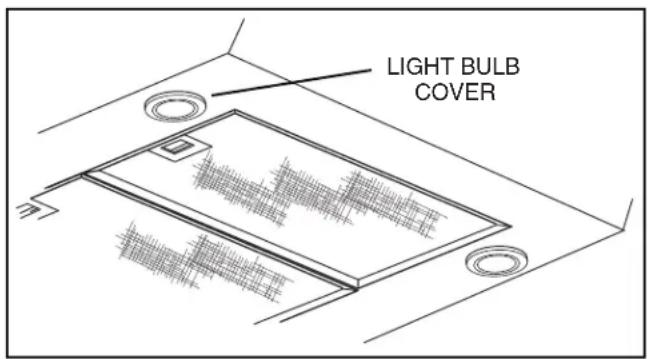

1. Remove light bulb cover by gently pushing it upward and turning it counterclockwise.
2. Replace bulb.
3. Re-install light bulb cover by gently pushing it upward and turning it clockwise.

OPERATION


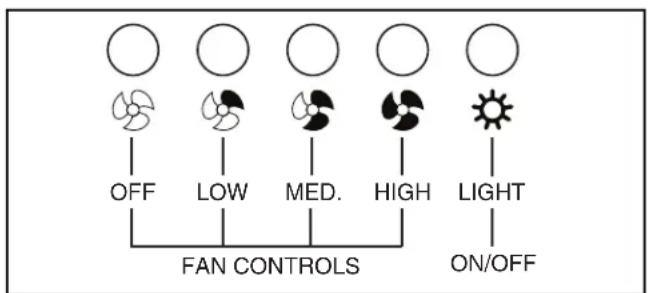

The hood is operated using the push buttons on the front panel.

Push the light button to turn the lights on and off.

Push the fan controls to select low, medium, or high blower speed.

Push the OFF button to turn the blower off.

MAINTENANCE

Grease Filters

Grease filters should be cleaned monthly. Remove grease filters by pulling down on the metal latch tab. This will disengage the filter from the hood. Tilt the filter downward and remove.

To clean all-metal filters: Use a warm detergent solution or put them in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty.

Non-Duct Recirculation Filter

Change the non-duct recirculation filter every 6 months.

Hood Cleaning

How to maintain the bright look of stainless steel and help prevent corrosion.

Dos:

• Once a month, wash surfaces with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don'ts:

• Do not use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Do not use any harsh or abrasive cleansers.
• Do not allow dirt to accumulate.
• Do not let plaster dust or any other construction residues reach the hood. During construction or renovation, cover the hood to make sure no dust sticks to stainless steel surface.

Avoid: when choosing a detergent

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

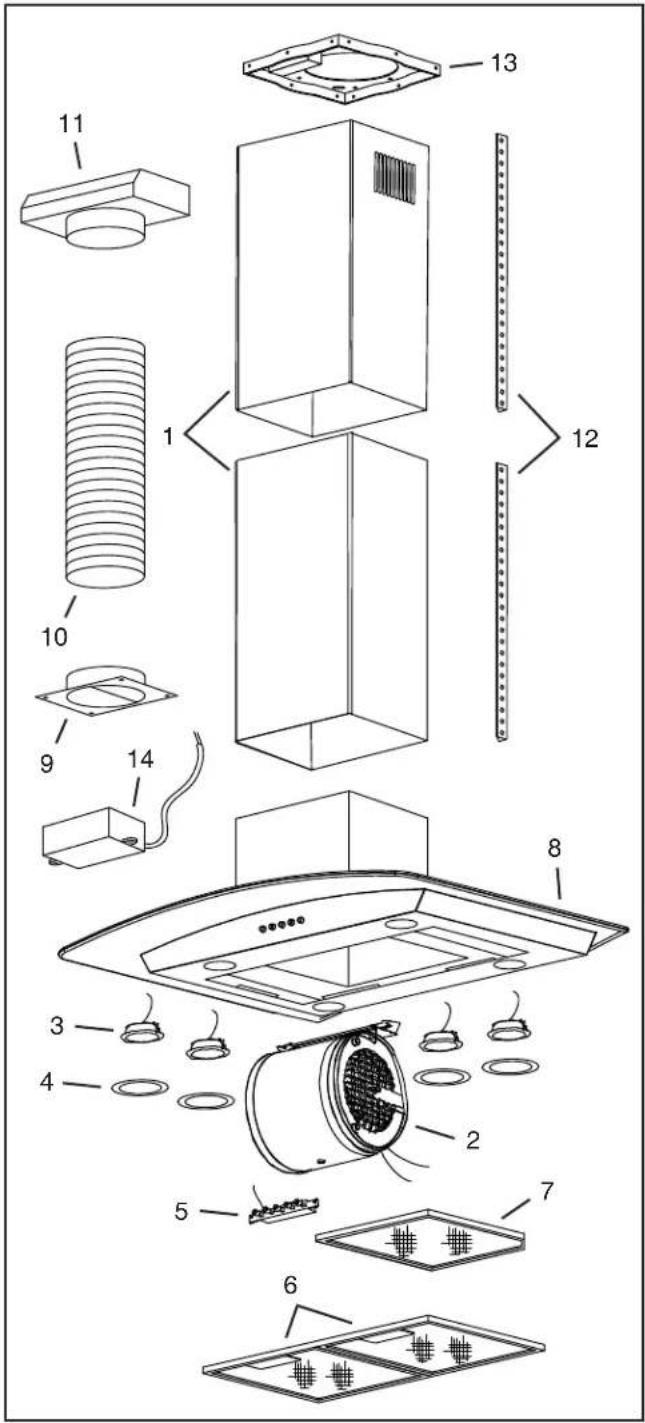

SeRvICe PARtS

KEY PART NO. DESCRIPTION QTY.

1 S99527129 Decorative Upper and Lower Flues 1
2 S99526974 Motor / Blower Assembly 1
3 S99526975 Light Socket Assembly 4
4 S99527010 Light Trim Ring / Lens Assembly 4
5 S99526976 Push Button Assembly 1
6 S97018029 Aluminum Grease Filters (pair) 2
7 S99527023 Non-Duct Recirculation Filter	1
8 S99527131 Curved Metal Plate with Rail	1
9 S99526983 Damper / Duct Connector	1
10 S99526984 6" Dia. Expandable Flexible Aluminum Duct	1
11 S99527021 Non-Duct Plenum Assembly	1
12 S99527130 Angle Mounting Bracket	8
13 S99527022 Ceiling Mounting Bracket w/ Outlet Box	1
14 S99527013 Plastic Cover	1
S99527011 Transformer (not shown)	1
S99527012 Capacitor (not shown)	1
S99527132 Parts Bag (not shown)	1

Order service parts by Part No. - not by Key No.

WIRING dIAGRAM

Replacement parts can be ordered on our website: www.broan.com

HOTTE DE

CUISINE À CHEMINÉE

Line drawing of a ceiling-mounted device with a rectangular base and top panel (no text or symbols)

LIRE CES DIRECTIVES ET LES CONSERVER

POUR USAGE DOMESTIQUE SEULEMENT.

⚠ AVERTISSEMENT

AFIN DE RÉDUIRE LES RISQUES D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES CORPORELLES, VEUILLEZ OBSERVER LES DIRECTIVES SUIVANTES :

Simple line drawing of a screw with no text or symbols

M6 x 40 mm

M4 x 8 mm

M4 x 8 mm Tôle

Line drawing of a ceiling-mounted device with a base and top panel (no text or symbols)

LEA Y GUARDE ESTAS INSTRUCCIONES

⚠️ INDICADA SOLAMENTE PARA COCINAR EN CASA. ⚠️

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIOS, DESCARGAS ELECTRICAS O LESIONES PERSONALES, OBSERVE LAS SIGUIENTES PRECAUCIONES:

Simple line drawing of a screw with a flat top and pointed base (no text or symbols)

M6 x 40 mm

M4 x 8 mm

M4 x 8 mm Metal de hoja

Tuerca de reborde serrado M4

Tuerca para cable

One Year Limited Warranty

WARRANTY OWNER: Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one (1) year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS OR TUBES, FILTERS, DUCT, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions.

The duration of any implied warranty is limited to the one year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.

WARRANTY SERVICE: To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.

Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711

Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
