USER MANUAL 543RS HUSQVARNA
H1154443-30,533,543,553,R.fm Page 1 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 2 Monday, August 15, 2011 1:56 PM SIMBOLOGIA Simboli
H1154443-30,533,543,553,R.fm Page 3 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 4 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 5 Monday, August 15, 2011 1:56 PM CHE COSA C’È?
H1154443-30,533,543,553,R.fm Page 6 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 7 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 8 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 9 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 10 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 11 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 12 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 13 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 14 Monday, August 15, 2011 1:56 PM MONTAGGIO
H1154443-30,533,543,553,R.fm Page 15 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 16 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 17 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 18 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 19 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 20 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 21 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 22 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 23 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 24 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 25 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 26 Monday, August 15, 2011 1:56 PM MANUTENZIONE Carburatore
H1154443-30,533,543,553,R.fm Page 27 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 28 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 29 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 30 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 31 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 32 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 33 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 34 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 35 Monday, August 15, 2011 1:56 PM
H1154443-30,533,543,553,R.fm Page 36 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 37 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 38 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 39 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 40 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 41 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 42 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 43 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 44 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 45 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 46 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 47 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 48 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 49 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 50 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 51 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 52 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 53 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 54 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 55 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 56 Monday, August 15, 2011 1:56 PM MANTENIMIENTO Carburador
H1154443-30,533,543,553,R.fm Page 57 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 58 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 59 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 60 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 61 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 62 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 63 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 64 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 65 Monday, August 15, 2011 1:56 PM COMO SE CHAMA?
H1154443-30,533,543,553,R.fm Page 66 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 67 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 68 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 69 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 70 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 71 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 72 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 73 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 74 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 75 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 76 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 77 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 78 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 79 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 80 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 81 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 82 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 83 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 84 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 85 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 86 Monday, August 15, 2011 1:56 PM MANUTENÇÃO Carburador
H1154443-30,533,543,553,R.fm Page 87 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 88 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 89 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 90 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 91 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 92 Monday, August 15, 2011 1:56 PM Wear sturdy, non-slip boots.
WARNING! A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this operator’s manual.
Noise emission to the environment according to the European
Community’s Directive. The machine’s emission is specified in chapter Technical data and on label.
Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.
A protective helmet where there is a risk of falling objects
Approved hearing protection
Approved eye protection
Keep all parts of your body away from the hot surfaces.
Other symbols/decals on the machine refer to special certification requirements for certain markets.
Max. speed of output shaft, rpm
Switch off the engine by moving the stop switch to the STOP position before carrying out any checks or maintenance.
This product is in accordance with applicable EC directives.
Always wear approved protective gloves.
Watch out for thrown objects and ricochets.
Regular cleaning is required.
The operator of the machine must ensure, while working, that no persons or animals come closer than 15 metres.
50FT Machines fitted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a fixed object. This is called blade thrust. The blade is capable of amputating an arm or leg.
Always keep people and animals at least 15 metres from the machine. Always wear approved protective gloves.
Approved eye protection must always be used.
H1154443-30,533,543,553,R.fm Page 93 Monday, August 15, 2011 1:56 PM CONTENTS Contents
KEY TO SYMBOLS Symbols CONTENTS Contents Note the following before starting: INTRODUCTION Dear Customer, WHAT IS WHAT? What is what on the brush cutter? GENERAL SAFETY PRECAUTIONS Important Personal protective equipment Machine′s safety equipment Cutting equipment ASSEMBLY Assembling the handlebar and throttle Fitting blades and trimmer heads Fitting the transport guard Adjusting the harness and brush cutter FUEL HANDLING Fuel safety Fuel Fueling STARTING AND STOPPING Check before starting Starting and stopping WORKING TECHNIQUES General working instructions MAINTENANCE Carburettor Air filter Fuel filter Bevel gear Spark plug Maintenance schedule TECHNICAL DATA Technical data EC-declaration of conformity
Note the following before starting:
Please read the operator’s manual carefully.
96 97 99 102 102 105 105 106 106 107
WARNING! Long-term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection.
WARNING! Under no circumstances may the design of the machine be modified without the permission of the manufacturer. Always use genuine accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others. WARNING! A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this operator’s manual.
108 110 115 115 116 116 116 117 118 120
H1154443-30,533,543,553,R.fm Page 94 Monday, August 15, 2011 1:56 PM INTRODUCTION Dear Customer,
Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the waterpowered plant. During the more than 300 years of beeing, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today. Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority. The business concept is to develop, manufacture and market motor driven products for forestry and gardening as well as for building and construction industry. Husqvarna′s aim is also to be in the front edge according to ergonomics, usability, security and environmental protection. That is the reason why we have developed many different features to provide our products within these areas. We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very long time to come. The purchase of one of our products gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the address of your nearest service workshop. It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator′s manual as a valuable document. By following its′ content (using, service, maintenance etc) the life span and the second-hand value of the machine can be extended. If you will sell this machine, make sure that the buyer will get the operator′s manual. Thank you for using a Husqvarna product. Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.
H1154443-30,533,543,553,R.fm Page 95 Monday, August 15, 2011 1:56 PM WHAT IS WHAT?
What is what on the brush cutter?
Cutting attachment guard
Start throttle button
22 Operator′s manual

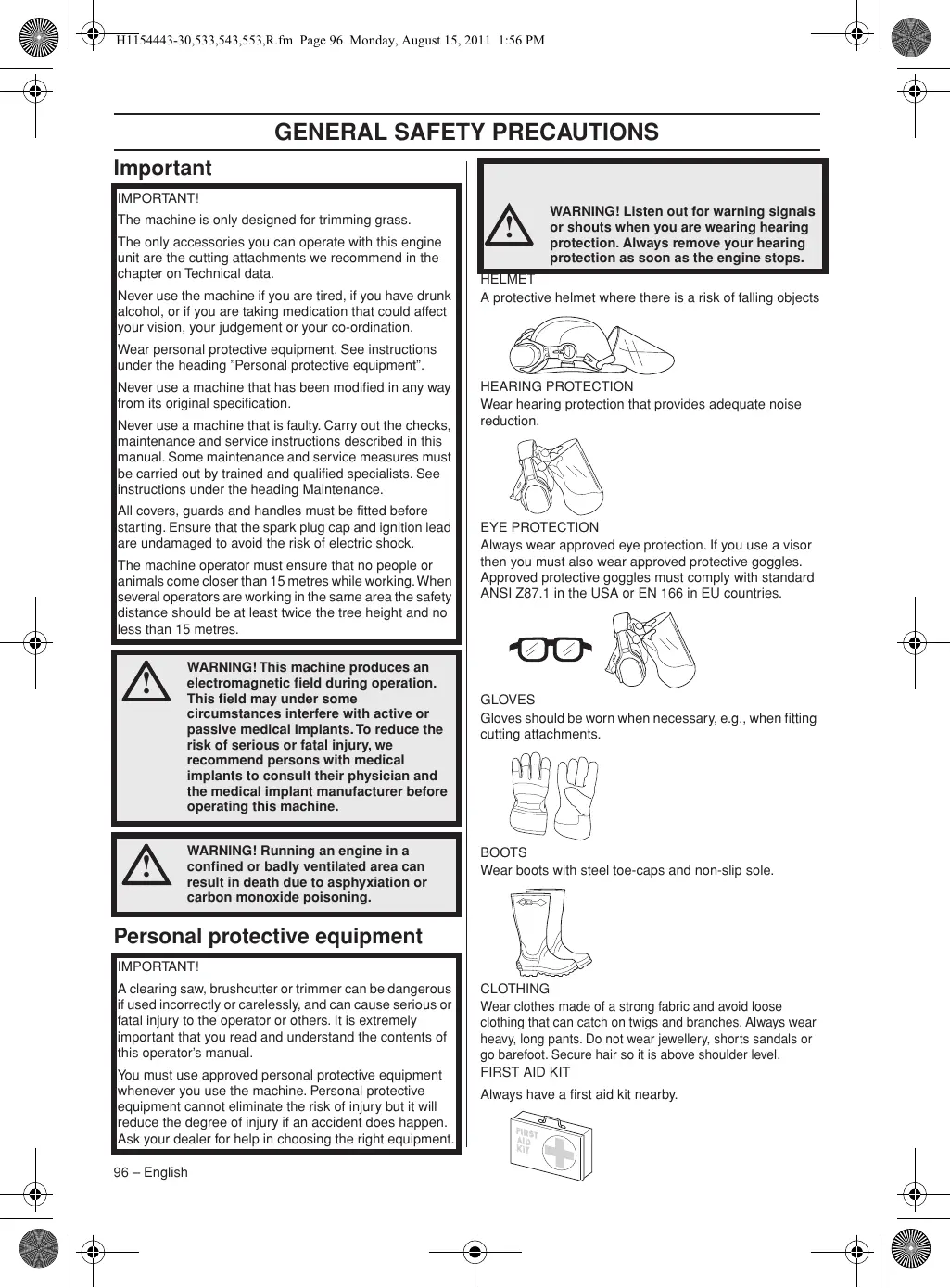

H1154443-30,533,543,553,R.fm Page 96 Monday, August 15, 2011 1:56 PM GENERAL SAFETY PRECAUTIONS Important
IMPORTANT! The machine is only designed for trimming grass. The only accessories you can operate with this engine unit are the cutting attachments we recommend in the chapter on Technical data. Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your co-ordination.
WARNING! Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the engine stops.
HELMET A protective helmet where there is a risk of falling objects
Wear personal protective equipment. See instructions under the heading ”Personal protective equipment”.
Never use a machine that has been modified in any way from its original specification. Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance. All covers, guards and handles must be fitted before starting. Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock. The machine operator must ensure that no people or animals come closer than 15 metres while working. When several operators are working in the same area the safety distance should be at least twice the tree height and no less than 15 metres.
WARNING! This machine produces an electromagnetic field during operation.
This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine. WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.
HEARING PROTECTION Wear hearing protection that provides adequate noise reduction.
EYE PROTECTION Always wear approved eye protection. If you use a visor then you must also wear approved protective goggles.
Approved protective goggles must comply with standard ANSI Z87.1 in the USA or EN 166 in EU countries.
GLOVES Gloves should be worn when necessary, e.g., when fitting cutting attachments.
BOOTS Wear boots with steel toe-caps and non-slip sole.
Personal protective equipment
IMPORTANT! A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this operator’s manual. You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. 96 – English
CLOTHING Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches. Always wear heavy, long pants. Do not wear jewellery, shorts sandals or go barefoot. Secure hair so it is above shoulder level.
FIRST AID KIT Always have a first aid kit nearby.
H1154443-30,533,543,553,R.fm Page 97 Monday, August 15, 2011 1:56 PM GENERAL SAFETY PRECAUTIONS Machine′s safety equipment
Make sure the throttle control is locked at the idle setting when the throttle lockout is released.
This section describes the machine′s safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. See the
”What is what?” section to locate where this equipment is positioned on your machine. The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest service workshop.
Press the throttle lockout and make sure it returns to its original position when you release it.
IMPORTANT! All servicing and repair work on the machine requires special training. This is especially true of the machine′s safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent.
WARNING! Never use a machine with faulty safety equipment. The machine’s safety equipment must be checked and maintained as described in this section.
If your machine fails any of these checks contact your service agent to get it repaired.
Check that the throttle trigger and throttle lockout move freely and that the return springs work properly.
The throttle lockout is designed to prevent accidental operation of the throttle control. When you press the lock (A) (i.e. when you grasp the handle) it releases the throttle control (B). When you release the handle the throttle control and the throttle lockout both move back to their original positions. This movement is controlled by two independent return springs. This arrangement means that the throttle control is automatically locked at the idle setting.
A B See instructions under the heading Start. Start the machine and apply full throttle. Release the throttle and check that the cutting attachment stops and remains at a standstill. If the cutting attachment rotates with the throttle in the idle position then the carburettor idle setting must be checked. See instructions under the heading
H1154443-30,533,543,553,R.fm Page 98 Monday, August 15, 2011 1:56 PM GENERAL SAFETY PRECAUTIONS Stop switch
Vibration damping system
Use the stop switch to switch off the engine.
Your machine is equipped with a vibration damping system that is designed to minimize vibration and make operation easier.
Start the engine and make sure the engine stops when you move the stop switch to the stop setting.
Cutting attachment guard
This guard is intended to prevent loose objects from being thrown towards the operator. The guard also protects the operator from accidental contact with the cutting attachment.
Using incorrectly wound cord or a blunt or incorrect cutting attachment (wrong type or incorrectly filed, see instructions under the heading Filing the blade) increases the level of vibration.
The machine′s vibration damping system reduces the transfer of vibration between the engine unit/cutting equipment and the machine′s handle unit. Check that the vibration damping element is undamaged and securely attached. Contact your Husqvarna dealer to replace the vibration damping system.
Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked. Always use the recommended guard for the cutting attachment you are using. See chapter on Technical data.
WARNING! Never use a cutting attachment without an approved guard.
See the chapter on Technical data. If an incorrect or faulty guard is fitted this can cause serious personal injury.
WARNING! Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists. The risk increases at low temperatures.
There is an easily accessible, quick release fitted at the front as a safety precaution in case the engine catches fire, or in any other situation that requires you to free yourself from the machine and harness. See instructions under the heading Adjusting the harness and brush cutter.
H1154443-30,533,543,553,R.fm Page 99 Monday, August 15, 2011 1:56 PM GENERAL SAFETY PRECAUTIONS Check that the harness straps are correctly positioned.
Once the harness and machine have been adjusted, check that the harness quick release works correctly.
A locking nut is used to secure some types of cutting attachment.
The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to the machine.
When fitting, tighten the nut in the opposite direction to the direction of rotation of the cutting attachment. To remove it, undo the nut in the same direction as the cutting attachment rotates. (CAUTION! The nut has a left-hand thread.) Tighten the nut using the socket spanner.
The nylon lining inside the locking nut must not be so worn that you can turn it by hand. The lining should offer a resistance of at least 1.5 Nm. The nut should be replaced after it has been put on approx. 10 times.
This section describes how to choose and maintain your cutting equipment in order to:
WARNING! The inside of the muffler contain chemicals that may be carcinogenic. Avoid contact with these elements in the event of a damaged muffler.
WARNING! Bear in mind that: The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!
Reduce the risk of blade thrust.
Obtain maximum cutting performance.
Extend the life of cutting equipment.
IMPORTANT! Only use cutting attachments with the guards we recommend! See the chapter on Technical data. Refer to the instructions for the cutting attachment to check the correct way to load the cord and the correct cord diameter. Keep the teeth of the blade correctly sharpened! Follow our recommendations. Also refer to the instructions on the blade packaging. Maintain the correct blade setting! Follow our instructions and use the recommended file gauge.
H1154443-30,533,543,553,R.fm Page 100 Monday, August 15, 2011 1:56 PM GENERAL SAFETY PRECAUTIONS
WARNING! Always stop the engine before doing any work on the cutting attachment. This continues to rotate even after the throttle has been released.
Ensure that the cutting attachment has stopped completely and disconnect the HT lead from the spark plug before you start to work on it. WARNING! Using an incorrect cutting attachment or an incorrectly sharpened blade increases the risk of blade thrust.
Keep the correct setting on the saw blade! Follow our instructions and use the recommended setting tool. An incorrectly set saw blade increases the risk of jamming and blade thrust, and damage to the saw blade.
Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced.
Saw blades are intended for cutting fibrous types of wood.
Grass blades and grass cutters are intended for cutting coarse grass.
A trimmer head is intended for trimming grass.
Sharpening grass cutters and grass blades
See the cutting attachment packaging for correct sharpening instructions. Sharpen blades and cutters using a single-cut flat file.
Sharpen all edges equally to maintain the balance of the blade.
Only use cutting attachments with the guards we recommend! See the chapter on Technical data.
WARNING! Always discard a blade that is bent, twisted, cracked, broken or damaged in any other way. Never attempt to straighten a twisted blade so that it can be reused. Only use original blades of the specified type.
Sharpening the saw blade
Keep the teeth of the blade correctly sharpened! Follow our instructions and use the recommended file gauge. An incorrectly sharpened or damaged blade increases the risk of accidents.
See the cutting attachment packaging for correct sharpening instructions.
H1154443-30,533,543,553,R.fm Page 101 Monday, August 15, 2011 1:56 PM GENERAL SAFETY PRECAUTIONS A correctly sharpened blade is essential for working efficiently and to avoid unnecessary wear to the blade and brush cutter.
IMPORTANT! Always ensure the trimmer cord is wound tightly and evenly around the drum, otherwise the machine will generate harmful vibration.
Make sure that the blade is well supported when you file it. Use a 5.5 mm round file with a file holder.
The filing angle is 15°. File alternate teeth to the right and those in between to the left. If the blade has been heavily pitted by stones it may be necessary to dress the top edges of the teeth with a flat file, in exceptional cases. If so, this should be done before filing with a round file. The top edges must be filed down by the same amount for all the teeth.
Only use the recommended trimmer heads and trimmer cords. These have been tested by the manufacturer to suit a particular engine size. This is especially important when a fully automatic trimmer head is used. Only use the recommended cutting attachment. See the chapter on Technical data.
Smaller machines generally require small trimmer heads and vice versa. This is because when clearing using a cord the engine must throw out the cord radially from the trimmer head and overcome the resistance of the grass being cleared.
The length of the cord is also important. A longer cord requires greater engine power than a shorter cord of the same diameter.
Make sure that the cutter on the trimmer guard is intact. This is used to cut the cord to the correct length.
To increase the life of the cord it can be soaked in water for a couple of days. This will make the line tougher so that it lasts longer.
Adjust the blade setting. This should be 1 mm.
H1154443-30,533,543,553,R.fm Page 102 Monday, August 15, 2011 1:56 PM ASSEMBLY Assembling the handlebar and throttle
Fitting blades and trimmer heads
Fit the handlebar in the handlebar clamp on the shaft using four screws.
Fit the protective sleeve as shown in the diagram.
When fitting the cutting attachment it is extremely important that the raised section on the drive disc/support flange engages correctly in the centre hole of the cutting attachment. If the cutting attachment is fitted incorrectly it can result in serious and/or fatal personal injury.
WARNING! Never use a cutting attachment without an approved guard.
See the chapter on Technical data. If an incorrect or faulty guard is fitted this can cause serious personal injury.
IMPORTANT! If a saw blade or grass blade are to be used the machine must be equipped with the correct handlebar, blade guard and harness.
Fitting the guard extension
CAUTION! The guard extension shall always be fitted when using the trimmer head/plastic blades and combination guard. The guard extension shall always be removed when using the grass blade and combination guard. Hook the blade guard/combination guard (A) onto the fitting on the shaft and secure with the bolt. Enter the guard extension guide in the slot of the combination guard. Then click the guard extension into position on the guard with the four quick-fasteners.
H1154443-30,533,543,553,R.fm Page 103 Monday, August 15, 2011 1:56 PM ASSEMBLY The guard extension is removed easily using a screwdriver, see illustration.
G F E D Fitting a blade guard, grass blade and grass cutter
Hook the blade guard/combination guard (A) onto the fitting on the shaft and secure with the bolt (L). Use the recommended blade guard. See the Technical data section. CAUTION! Ensure that the guard extension is removed.
Fit the drive disc (B) on the output shaft.
Turn the blade shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing.
Insert the locking pin (C) in the hole to lock the shaft.
Place the blade (D), support cup (E) and support flange (F) on the output shaft.
Fit the nut (G). The nut must be tightened to a torque of 35-50 Nm (3.5-5 kpm). Use the socket spanner in the tool kit. Hold the shaft of the spanner as close to the blade guard as possible. To tighten the nut, turn the spanner in the opposite direction to the direction of rotation (Caution! left-hand thread).
H1154443-30,533,543,553,R.fm Page 104 Monday, August 15, 2011 1:56 PM ASSEMBLY Fitting the trimmer guard and trimmer head
blade guard (A) to the adapter using the 4 screws (L) as shown.
CAUTION! Use the recommended blade guard. See the Technical data section.
Fit the correct trimmer guard (A) for use with the trimmer head. CAUTION! Ensure that the guard extension is fitted.
A L Hook the trimmer guard/combination guard onto the fitting on the shaft and secure with the bolt (L).
Fit the drive disc (B) on the output shaft.
Fit the drive disc (B) on the output shaft.
Turn the blade shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing.
Turn the blade shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing.
Insert the locking pin (C) in the hole to lock the shaft.
Insert the locking pin (C) in the hole to lock the shaft.
Screw on the trimmer head/plastic blades (H) anticlockwise.
Place the blade (D) and support flange (F) on the output shaft.
Fit the nut (G). Tighten the nut to a torque of 35-50 Nm
(3.5-5 kpm). Use the socket spanner in the tool kit. Grasp the handle of the spanner as close to the trimmer guard as possible. To tighten the nut, turn the spanner in the opposite direction to the direction of rotation (Caution! left-hand thread).
When loosening and tightening the saw blade nut, there is a risk of injury from the teeth of the saw blade.
You should therefore always ensure that your hand is shielded by the blade guard when doing this. Always use a socket spanner with a shaft that is long enough to allow this. The arrow in the diagram shows the area
To dismantle, follow the instructions in the reverse order.
Fitting the blade guard and saw blade
Remove the mounting plate (H). Fit the adapter (I) and bracket (J) with the two screws (K) as shown. Fit the
H1154443-30,533,543,553,R.fm Page 105 Monday, August 15, 2011 1:56 PM ASSEMBLY where you should operate the socket spanner when loosening or tightening the nut.
situation that requires you to free yourself from the machine and harness.
Fitting the transport guard
Spreading the load on your shoulders
Insert the blade in the transport guard (A).
Snap the two fasteners (B) into the slots (C) to secure the transport guard.
A well-adjusted harness and machine makes work much easier. Adjust the harness for the best working position.
Tension the side straps so that the weight is evenly distributed across both shoulders.
Adjusting the harness and brush cutter
WARNING! When using a brush cutter it must always be hooked securely to the harness. Otherwise you will be unable to control the brush cutter safely and this can result in injury to yourself or others.
Never use a harness with a defective quick release.
Adjust the shoulder strap so that the cutting attachment is parallel to the ground.
Let the cutting attachment rest lightly on the ground. Adjust the position of the suspension ring to balance the brush cutter correctly.
At the front is an easily accessible, quick release. Use this if the engine catches fire or in any other emergency
H1154443-30,533,543,553,R.fm Page 106 Monday, August 15, 2011 1:56 PM FUEL HANDLING Fuel safety
Never start the machine:
If you have spilt fuel on it. Wipe off the spillage and allow remaining fuel to evaporate.
If you have spilt fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.
Transport and storage
Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or naked flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.
CAUTION! Always use a quality petrol/oil mixture at least
90 octane (RON). If your machine is equipped with a catalytic converter (see chapter on Technical data) always use a good quality unleaded petrol/oil mixture. Leaded petrol will destroy the catalytic converter. Use low-emission petrol, also known as alkylate petrol, if it is available.
The lowest octane recommended is 90 (RON). If you run the engine on a lower octane grade than 90 socalled knocking can occur. This gives rise to a high engine temperature, which can result in serious engine damage.
When working at continuous high revs a higher octane rating is recommended.
When storing and transporting fuel always use approved containers intended for this purpose.
When storing the machine for long periods the fuel tank must be emptied. Contact your local petrol station to find out where to dispose of excess fuel.
Ensure the machine is cleaned and that a complete service is carried out before long-term storage.
The transport guard must always be fitted to the cutting attachment when the machine is being transported or in storage.
For best results and performance use HUSQVARNA two-stroke engine oil, which is specially formulated for our air-cooled two-stroke engines.
Secure the machine during transport.
In order to prevent unintentional starting of the engine, the spark plug cap must always be removed during long-term storage, if the machine is not under close supervision and when performing all service measures.
Never use two-stroke oil intended for water-cooled engines, sometimes referred to as outboard oil (rated
Never use oil intended for four-stroke engines.
A poor oil quality and/or too high oil/fuel ratio may jeopardise function and decrease the life time of catalytic converters.
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion and inhaling fumes.
1:50 (2%) with HUSQVARNA two-stroke oil.
1:33 (3%) with oils class JASO FB or ISO EGB formulated for air-cooled, two-stroke engines.
CAUTION! The machine is equipped with a two-stroke engine and must always been run using a mixture of petrol and two-stroke oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the mixture.
WARNING! Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation.
H1154443-30,533,543,553,R.fm Page 107 Monday, August 15, 2011 1:56 PM FUEL HANDLING Mixing
Always mix the petrol and oil in a clean container intended for fuel.
Always start by filling half the amount of the petrol to be used. Then add the entire amount of oil. Mix
(shake) the fuel mixture. Add the remaining amount of petrol.
Mix (shake) the fuel mixture thoroughly before filling the machine’s fuel tank.
WARNING! Taking the following precautions, will lessen the risk of fire:
Do not smoke or place hot objects near fuel. Always shut off the engine before refuelling. Always stop the engine and let it cool for a few minutes before refuelling. When refuelling, open the fuel cap slowly so that any excess pressure is released gently.
Do not mix more than one month’s supply of fuel at a time.
If the machine is not used for some time the fuel tank should be emptied and cleaned.
Tighten the fuel cap carefully after refuelling.
Always move the machine away from the refuelling area and source before starting. •
Always use a fuel container with an anti-spill valve.
Clean the area around the fuel cap. Contamination in the tank can cause operating problems.
Ensure that the fuel is well mixed by shaking the container before filling the tank.
H1154443-30,533,543,553,R.fm Page 108 Monday, August 15, 2011 1:56 PM STARTING AND STOPPING Check before starting
trimmer guard if they have been exposed to impact or are cracked.
Check the blade to ensure that no cracks have formed at the bottom of the teeth or by the centre hole. The most common reason why cracks are formed is that sharp corners have been formed at the bottom of the teeth while sharpening or that the blade has been used with dull teeth. Discard a blade if cracks are found.
Never use the machine without a guard nor with a defective guard.
All covers must be correctly fitted and undamaged before you start the machine.
Starting and stopping
Check that the support flange is not cracked due to fatigue or due to being tightened too much. Discard the support flange if it is cracked.
Ensure the locking nut has not lost its captive force.
The nut lock should have a locking force of at least 1.5 Nm. The tightening torque of the locking nut should be 35-50 Nm.
Check that the blade guard is not damaged or cracked. Replace the blade guard if it is exposed to impact or is cracked.
WARNING! The complete clutch cover and shaft must be fitted before the machine is started, otherwise the clutch can come loose and cause personal injury.
Always move the machine away from the refuelling area and source before starting. Place the machine on a flat surface. Ensure the cutting attachment cannot come into contact with any object. Make sure no unauthorised persons are in the working area, otherwise there is a risk of serious personal injury. The safety distance is 15 metres.
Ignition: Set the stop switch to the start position.
Choke: Set the choke control in the choke position. (533) •
Check that the trimmer head and trimmer guard are not damaged or cracked. Replace the trimmer head or
H1154443-30,533,543,553,R.fm Page 109 Monday, August 15, 2011 1:56 PM STARTING AND STOPPING
CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.
Primer bulb: Press the air purge repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled.
CAUTION! Do not put any part of your body in marked area.
Contact can result in burns to the skin, or electrical shock if the spark plug cap has been damaged. Always use gloves. Do not use a machine with damaged spark plug cap.
For throttle handles with a start throttle lock:
Set the throttle to the start position by first pressing the throttle lockout and the throttle trigger, then pressing the start throttle button (A). Then release the throttle lockout and the throttle trigger, followed by the start throttle button. The throttle function is now activated. To return the engine to idle, press the throttle lockout and throttle trigger again.
WARNING! When the engine is started with the choke in either the choke or start throttle positions the cutting attachment will start to rotate immediately.
Hold the body of the machine on the ground using your left hand (CAUTION! Not with your foot!). Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip), now quickly and powerfully pull the cord. Never twist the starter cord around your hand.
Repeat pulling the cord until the engine starts. When the engine starts. return choke control to run position and apply full throttle; the throttle will automatically disengage from the start setting.
Stop the engine by switching off the ignition.
CAUTION! Stop the engine by switching off the ignition.
H1154443-30,533,543,553,R.fm Page 110 Monday, August 15, 2011 1:56 PM WORKING TECHNIQUES General working instructions
yourself incorrectly or make the cut in the wrong place the tree may hit you or the machine and cause you to lose control. Both situations can cause serious personal injury.
This section describes the basic safety precautions for working with brush cutters and trimmers. If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability. You must understand the difference between forestry clearing, grass clearing and grass trimming before use.
To ensure that people, animals or other things cannot affect your control of the machine.
To ensure that people, animals, etc., do not come into contact with the cutting attachment or loose objects that are thrown out by the cutting attachment.
CAUTION! Do not use the machine unless you are able to call for help in the event of an accident.
Inspect the working area. Remove all loose objects, such as stones, broken glass, nails, steel wire, string, etc. that could be thrown out or become wrapped around the cutting attachment.
Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc.
Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etc.
Make sure you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move suddenly. Take great care when working on sloping ground.
Keep a good balance and a firm foothold. Do not overreach. Keep proper footing and balance at all times.
Always hold the machine with both hands. Hold the machine on the right side of your body. Keep all parts of your body away from the hot surfaces. Keep all parts of your body away from the rotating cutting attachment.
Keep the cutting attachment below waist level.
Switch off the engine before moving to another area.
Fit the transport guard before carrying or transporting the equipment any distance.
10 Never put the machine down with the engine running unless you have it in clear sight.
Take great care when cutting a tree that is in tension.
A tree that is in tension may spring back to its normal position before or after being cut. If you position
Always use the correct equipment.
Make sure the equipment is well adjusted.
Follow the safety precautions.
Organise your work carefully.
Always use full throttle when starting to cut with the blade.
Control the felling direction (take advantage of the wind).
H1154443-30,533,543,553,R.fm Page 111 Monday, August 15, 2011 1:56 PM WORKING TECHNIQUES
WARNING! Neither the operator of the machine nor anyone else may attempt to remove the cut material while the engine is running or the cutting equipment is rotating, as this can result in serious injury.
Stop the engine and cutting equipment before you remove material that has wound around the blade shaft as otherwise there is a risk of injury. The bevel gear can get hot during use and may remain so for a while afterwards. You could get burnt if you touch it.
Avoid cutting with the area of the blade between the 12 o'clock and 3 o'clock positions. Because of the speed of rotation of the blade, blade thrust can occur if you attempt to cut thick stems with this area of the blade.
WARNING! Watch out for thrown objects.
Always wear approved eye protection. Never lean over the cutting attachment guard. Stones, rubbish, etc. can be thrown up into the eyes causing blindness or serious injury. Keep unauthorised persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 15 m. Stop the machine immediately if anyone approaches. Never swing the machine around without first checking behind you to make sure noone is within the safety zone.
WARNING! Machines fitted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a fixed object.
This is called blade thrust. A blade thrust can be violent enough to cause the machine and/or operator to be propelled in any direction, and possibly lose control of the machine. Blade thrust can occur without warning if the machine snags, stalls or binds. Blade thrust is more likely to occur in areas where it is difficult to see the material being cut.
Before you start clearing, check the clearing area, the type of terrain, the slope of the ground, whether there are stones, hollows etc.
Start at whichever end of the area is easiest, and clear an open space from which to work.
Work systematically to and fro across the area, clearing a width of around 4-5 m on each pass. This exploits the full reach of the machine in both directions and gives the operator a convenient and varied working area to work in.
Clear a strip around 75 m long. Move your fuel can as work progresses.
On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
You should plan the strip so that you avoid going over ditches or other obstacles on the ground. You should also orient the strip to take advantage of wind
WARNING! Sometimes branches or grass get caught between the guard and cutting attachment. Always stop the engine before cleaning.
H1154443-30,533,543,553,R.fm Page 112 Monday, August 15, 2011 1:56 PM WORKING TECHNIQUES
3 o’clock and 5 o’clock so that the direction of rotation of the blade pushes the bottom of the tree to the left.
conditions, so that cleared stems fall in the cleared area of the stand.
To fell a tree forwards, the bottom of the tree should be pulled backwards. Pull the blade backwards with a quick, firm movement.
Large stems must be cut from two sides. First determine which direction the stem will fall. Make the first cut on the felling side. Then finish cutting the stem from the other side. Adjust the cutting pressure to match the size of the stem and the hardness of the wood. Small stems require more pressure, while large stems require less pressure.
If the stems are tightly packed, adapt your walking pace to suit.
If the blade jams in a stem, never jerk the machine free. If you do this the blade, bevel gear, shaft or handlebar may be damaged. Release the handles, grip the shaft with both hands and gently pull the machine free.
Forestry clearing using a saw blade
The risk of blade thrust increases with increasing stem size. You should therefore avoid cutting with the area of the blade between 12 o'clock and 3 o'clock.
To fell to the left, the bottom of the tree should be pushed to the right. Tilt the blade and bring it diagonally down to the right, exerting firm pressure. At the same time push the stem using the blade guard.
Cut with the area of the blade between 3 o’clock and 5 o’clock. Apply full throttle before advancing the blade.
To fell to the right, the bottom of the tree should be pushed to the left. Tilt the blade and bring it diagonally up to the right. Cut with the area of the blade between
H1154443-30,533,543,553,R.fm Page 113 Monday, August 15, 2011 1:56 PM WORKING TECHNIQUES Brush cutting with a saw blade
Thin stems and brush are mown down. Work with a sawing movement, swinging sideways.
Try to cut several stems in a single sawing movement.
With groups of hardwood stems, first clear around the group. Start by cutting the stems high up around the outside of the group to avoid jamming. Then cut the stems to the required height. Now try to reach in with the blade and cut from the centre of the group. If it is still difficult to gain access, cut the stems high up and let them fall. This will reduce the risk of jamming.
Try to work rhythmically. Stand firmly with your feet apart. Move forward after the return stroke and stand firmly again.
Let the support cup rest lightly against the ground. It is used to protect the blade from hitting the ground.
Reduce the risk of material wrapping around the blade by following these instructions:
1Always work at full throttle. 2Avoid the previously cut material during the return stroke.
Stop the engine, unclip the harness and place the machine on the ground before you start to collect the cut material.
Grass trimming with a trimmer head
Grass clearing using a grass blade
Grass blades and grass cutters must not be used on woody stems.
A grass blade is used for all types of tall or coarse grass.
The grass is cut down with a sideways, swinging movement, where the movement from right-to-left is the clearing stroke and the movement from left-toright is the return stroke. Let the left-hand side of the blade (between 8 and 12 o’clock) do the cutting.
If the blade is angled to the left when clearing grass, the grass will collect in a line, which makes it easier to collect, e.g. by raking.
Hold the trimmer head just above the ground at an angle. It is the end of the cord that does the work. Let the cord work at its own pace. Never press the cord into the area to be cut.
The cord can easily remove grass and weeds up against walls, fences, trees and borders, however it can also damage sensitive bark on trees and bushes, and damage fence posts.
Reduce the risk of damaging plants by shortening the cord to 10-12 cm and reducing the engine speed.
H1154443-30,533,543,553,R.fm Page 114 Monday, August 15, 2011 1:56 PM The clearing technique removes all unwanted vegetation. Keep the trimmer head just above the ground and tilt it. Let the end of the cord strike the ground around trees, posts, statues and the like.
CAUTION! This technique increases the wear on the cord.
The cord wears quicker and must be fed forward more often when working against stones, brick, concrete, metal fences, etc., than when coming into contact with trees and wooden fences.
When trimming and clearing you should use less than full throttle so that the cord lasts longer and to reduce the wear on the trimmer head.
The trimmer is ideal for cutting grass that is difficult to reach using a normal lawn mower. Keep the cord parallel to the ground when cutting. Avoid pressing the trimmer head against the ground as this can ruin the lawn and damage the tool.
Do not allow the trimmer head to constantly come into contact with the ground during normal cutting.
Constant contact of this type can cause damage and wear to the trimmer head.
The fan effect of the rotating cord can be used for quick and easy clearing up. Hold the cord parallel to and above the area to be swept and move the tool to and fro.
When cutting and sweeping you should use full throttle to obtain the best results.
H1154443-30,533,543,553,R.fm Page 115 Monday, August 15, 2011 1:56 PM MAINTENANCE Carburettor
Adjusting the idle speed (T)
Check that the air filter is clean. When the idle speed is correct, the cutting attachment should not rotate. If adjustment is required, close (turn clockwise) the idle adjustment screw T, with the engine running, until the cutting attachment starts to rotate. Open (turn anticlockwise) the screw until the cutting attachment stops. The idle speed is correctly set when the engine runs smoothly in all positions, and there is a clear margin to the speed at which the cutting attachment starts to rotate. (533)
The air filter must be regularly cleaned to remove dust and dirt in order to avoid:
Carburettor malfunctions
Loss of engine power
Unnecessary wear to engine parts.
Excessive fuel consumption.
543RS Clean the filter every 25 hours, or more regularly if conditions are exceptionally dusty.
Cleaning the air filter
WARNING! If the idle speed cannot be adjusted so that the cutting attachment stops, contact your dealer/service workshop. Do not use the machine until it has been correctly adjusted or repaired.
Remove the air filter cover and take out the filter. Blow clean with compressed air.
(533) Remove the air filter cover and take out the filter. Wash it clean in warm, soapy water. Ensure that the filter is dry before refitting it. An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.
H1154443-30,533,543,553,R.fm Page 116 Monday, August 15, 2011 1:56 PM MAINTENANCE After cleaning the foam plastic filter needs to be oiled. See instructions under the heading Oiling the foam plastic filter.
The grease in the bevel gear does not normally need to be changed except if repairs are carried out.
Oiling the foam plastic filter
(533) Always use HUSQVARNA filter oil, art. no. 531 00 92-48. The filter oil contains a solvent to make it spread evenly through the filter. You should therefore avoid skin contact. Put the filter in a plastic bag and pour the filter oil over it. Knead the plastic bag to distribute the oil. Squeeze the excess oil out of the filter inside the plastic bag and pour off the excess before fitting the filter to the machine. Never use common engine oil. This would drain through the filter quite quickly and collect in the bottom.
The spark plug condition is influenced by:
Incorrect carburettor adjustment.
An incorrect fuel mixture (too much or incorrect type of oil).
These factors cause deposits on the spark plug electrodes, which may result in operating problems and starting difficulties.
(533, 543) If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking any further action. If the spark plug is dirty, clean it and check that the electrode gap is 0,9-1,0 mm. The spark plug should be replaced after about a month in operation or earlier if necessary.
When the engine runs short of fuel supply, check the fuel cap and the fuel filter for blockage.
(553) If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking any further action. If the spark plug is dirty, clean it and check that the electrode gap is 0,6-0,7 mm. The spark plug should be replaced after about a month in operation or earlier if necessary.
The bevel gear is filled with the right quantity of grease at the factory. However, before using the machine you should check that the bevel gear is filled three-quarters full with grease. Use HUSQVARNA special grease.
CAUTION! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/ cylinder. Check that the spark plug is fitted with a suppressor.
H1154443-30,533,543,553,R.fm Page 117 Monday, August 15, 2011 1:56 PM MAINTENANCE Maintenance schedule
The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the Maintenance section. The user must only carry out the maintenance and service work described in this Operator’s Manual. More extensive work must be carried out by an authorized service workshop. Maintenance
Clean the outside of the machine.
X Check that the harness is not damaged.
X Make sure the throttle trigger lock and the throttle function correctly from a safety point of view.
X Check that the handle and handlebar are undamaged and secured correctly.
X Check that the stop switch works correctly.
X Check that the cutting attachment does not rotate at idle.
X Clean the air filter. Replace if necessary.
X Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked.
X Check that the blade is correctly centred, is sharp, and is not cracked. An off-centre blade will cause vibration that could result in damage to the machine.
X Check that the trimmer head is undamaged and not cracked.
Replace the trimmer head if necessary.
X Check that the locking nut of the cutting equipment is tighten correctly.
X Check that the transport guard for the blade is intact and that it can be secured correctly.
X Check that nuts and screws are tight.
X Check that there are no fuel leaks from the engine, tank or fuel lines.
X Weekly maintenance
Check the starter and starter cord.
X Clean the outside of the spark plug. Remove it and check the electrode gap. Adjust the gap to 0,6-0,7 mm or replace the spark plug. Check that the spark plug is fitted with a suppressor.
X Clean the outside of the carburettor and the space around it.
X Check that the bevel gear is filled three-quarters full with lubricant. Fill if necessary using special grease.
X Monthly maintenance
Check the fuel filter from contamination and the fuel hose from cracks or other defects. Replace if necessary.
X Check all cables and connections.
X Replace the spark plug. Check that the spark plug is fitted with a suppressor.
H1154443-30,533,543,553,R.fm Page 118 Monday, August 15, 2011 1:56 PM Cylinder bore, mm
Recommended max. speed, rpm
Speed of output shaft, rpm
Max. engine output, acc. to ISO 8893, kW/ rpm
Sound power level, measured dB(A)
Sound power level, guaranteed LWA dB(A)
Fuel and lubrication system
Fuel tank capacity, litre Weight Weight without fuel, cutting attachment and guard, kg Noise emissions (see note 1)
(see note 2) Equivalent sound pressure level at the operator’s ear, measured according to EN ISO 11806 and ISO 22868, dB(A): Equipped with trimmer head (original)
Equipped with grass blade (original)
(see note 3) Equivalent vibration levels (ahv,eq) at handles, measured according to EN ISO 11806 and ISO 22867, m/s2 Equipped with trimmer head (original), left/right
Equipped with grass blade (original), left/right
Note 1: Noise emissions in the environment measured as sound power (LWA) in conformity with EC directive 2000/14/
EC. Reported sound power level for the machine has been measured with the original cutting attachment that gives the highest level. The difference between guaranteed and measured sound power is that the guaranteed sound power also includes dispersion in the measurement result and the variations between different machines of the same model according to Directive 2000/14/EC. Note 2: Reported data for equivalent sound pressure level for the machine has a typical statistical dispersion (standard deviation) of 1 dB (A). Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s2.
H1154443-30,533,543,553,R.fm Page 119 Monday, August 15, 2011 1:56 PM TECHNICAL DATA
533RS Approved accessories Grass blade/grass cutter
Cutting attachment guard, Art. no.
Grass 255-4 1" (Ø 255 4-teeth)
Scarlet 200-22 1" (Ø 200 22 teeth)
Tricut Ø 300 mm (Separate blades have part number 531 01 77-15)
543RS Approved accessories
Grass blade/grass cutter
Cutting attachment guard, Art. no.
Grass 255-4 1" (Ø 255 4-teeth)
Tricut Ø 300 mm (Separate blades have part number 531 01 77-15)
553RS Approved accessories
Grass blade/grass cutter
Cutting attachment guard, Art. no.
Grass 255-4 1" (Ø 255 4-teeth)
Tricut Ø 300 mm (Separate blades have part number 531 01 77-15)
H1154443-30,533,543,553,R.fm Page 120 Monday, August 15, 2011 1:56 PM TECHNICAL DATA EC-declaration of conformity
(Applies to Europe only) We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare that the brush cutters Husqvarna 533RS, 543RS and 553RS with serial numbers dating from 2011 onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S DIRECTIVE: - of May 17, 2006 "relating to machinery" 2006/42/EC - of December 15, 2004 ”relating to electromagnetic compatibility” 2004/108/EC. - of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC. Conformity assessment according to Annex V. For information relating to noise emissions, see the chapter Technical data. The following standards have been applied: EN ISO 12100-2:2003, CISPR 12:2005, EN ISO 11806:1997 SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, Sweden, has performed voluntary type examination on behalf of Husqvarna AB. The certificates are numbered: SEC/11/2317 - 533RS, SEC/11/2318 - 543RS, SEC/11/2319 - 553RS Huskvarna 30 June 2011.
Bengt Frögelius, Development manager (Authorized representative for Husqvarna AB and responsible for technical documentation.)
H1154443-30,533,543,553,R.fm Page 121 Monday, August 15, 2011 1:56 PM H1154443-30,533,543,553,R.fm Page 122 Monday, August 15, 2011 1:56 PM Super Auto II Super Auto II 1"
H1154443-30,533,543,553,R.fm Page 123 Monday, August 15, 2011 1:56 PM T25
H1154443-30,533,543,553,R.fm Page 124 Monday, August 15, 2011 1:56 PM T35, T35x
H1154443-30,533,543,553,R.fm Page 125 Monday, August 15, 2011 1:56 PM T45, T45x
32' 10 cm 4" 4,3 m 14'
