USER MANUAL 525RX, 553RS HUSQVARNA

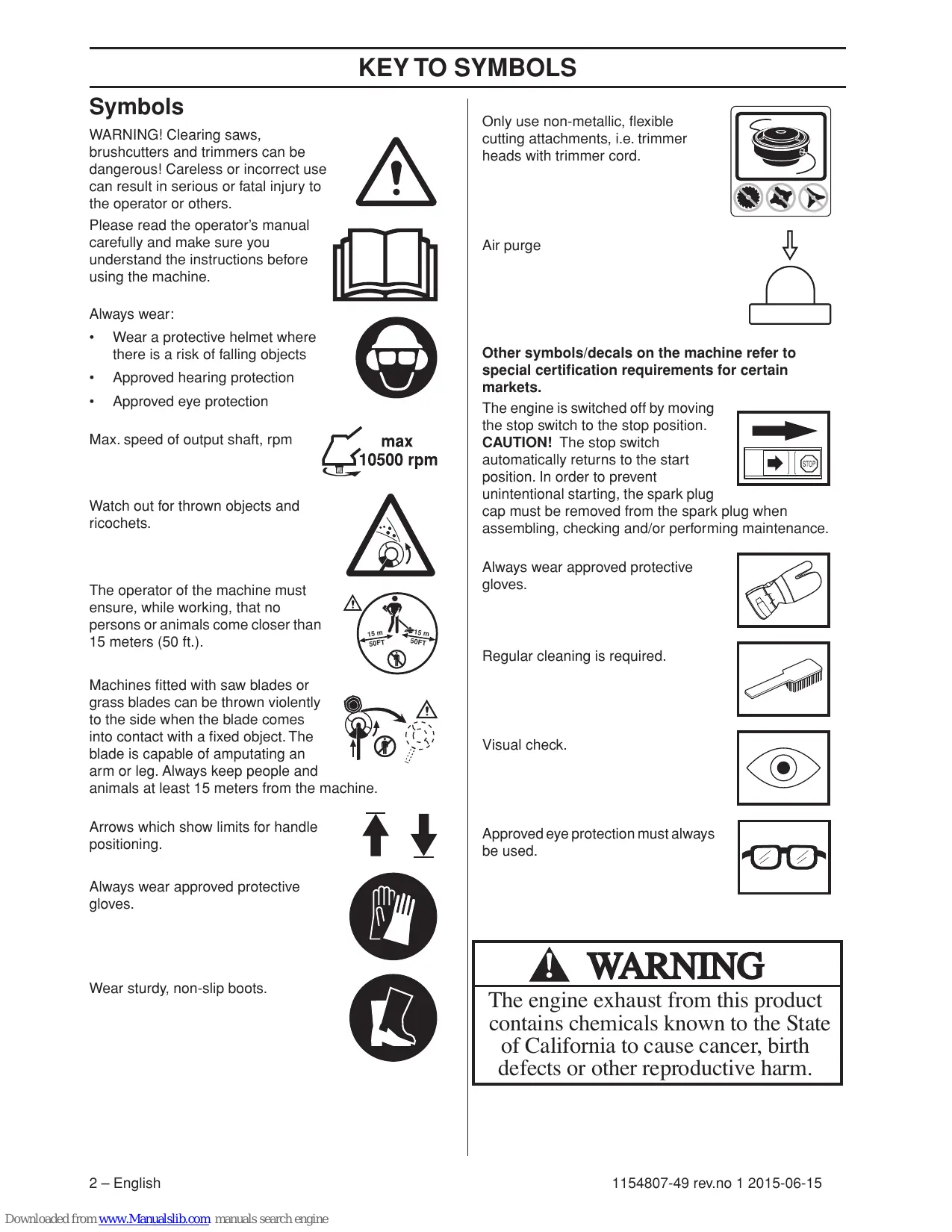

Symbols WARNING Clearing saws, brushcutters and trimmers can be dangerous! Careless or incorrect use can result in serious or fatal injury to the operator or others. Please read the operators manual Always wear: + Wear a protective helmet where there is a risk of falling objects + Approved hearing protection + Approved eye protection Max. speed of output shaft, rpm [£ Watch out for thrown objects and ricochets. The operator of the machine must ensure, while working, that no persons or animals come closer than 15 meters (50 ft.). Machines fitted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a fixed object. The blade is capable of amputating an arm or leg. Always keep people and animals at least 15 meters from the machine.

Arrows which show limits for handle positioning. Always wear approved protective gloves. 2 — English Downloaded from www.Manualsib.com manuals search engine carefully and make sure you understand the instructions before using the machine. Only use non-metallic, flexible cutting attachments, i.e. trimmer e heads with trimmer cord. Air purge Other symbols/decals on the machine refer to special certification requirements for certain markets. The engine is switched off by moving the stop switch to the stop position. D CAUTION! The stop switch automatically returns to the start position. In order to prevent unintentional starting, the spark plug cap must be removed from the spark plug when assembling, checking and/or performing maintenance. Always wear approved protective gloves. Regular cleaning is required. Visual check. Approved eye protection must always be used. À WARNING Wear sturdy, non-slip boots. @ The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. 1154807-49 rev.no 1 2015-06-15

CONTENTS Contents Note the following before KEY TO SYMBOLS starting: Symbols … -2 Please read the operators manual carefully. CONTENTS : : : Maintenance, replacement, or repair of the emission Contents … +3 control devices and system may be performed by any Note the following before starting - 8 nonroad engine repair establishment or individual. INTRODUCTION Dear customer! . 4 WARNING! Long-term exposure to noise 2] can result in permanent hearing WHAT IS WHAT? impairment. So always use approved What is what on the brush cutter? … - 5 hearing protection.

GENERAL SAFETY PRECAUTIONS

Important 6 WARNING! Under no circumstances may Personal protective equipment - 6 the design of the machine be modified Machine’s safety equipment … .7 without the permission of the Cutting equipment … 10 manufacturer. Always use genuine ASSEMBLY accessories. Non-authorized modifications and/or accessories can Fitting the handlebar … 12 result in serious personal injury or the Assembling and dismanting the two-piece shaft . 12 death of the operator or others. Assembling the cutting equipment . 18 Your warranty may not cover damage or Fitting a blade guard, grass blade and grass cutter 13 liability caused by the use of non- Fitting the blade guard and saw blade … 14 authorized accessories or replacement Fitting other guards and cutting attachments 14 parts: Adjusting the harness and brush cutter 15 Standard harness 15 WARNING! A clearing saw, brushcutter FUEL HANDLING or trimmer can be dangerous if used incorrectly or carelessly, and can cause Fuel safety ….. 16 serious or fatal injury to the operator or Fuel … 16 others. It is extremely important that you Fueling 17 read and understand the contents of this tor” I.

Carburetor ….… . 24 \CADJUSTMENTS. EMISSONS COMPLIANCE PERIOD : DS Muffler …. . 24 The Emissions Compliance Period referred to on the Cooling system . 25 Emission Compliance label indicates the number of Spark plug … . 25 operating hours for which the engine has been shown to Le meet Federal and California emissions requirements. Air filter … . 25 Maintenance schedule . 27 TECHNICAL DATA Technical data . 28

INTRODUCTION Dear customer! Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water- powered plant. During over 300 years of continuous operation, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today. Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority. We develop, manufacture and market high quality motor driven products for forestry and gardening as well as for building and construction industry. Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer. Itis our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator’s manual as a valuable document. By following its’ content (using, service, maintenance etc) the life span and the second-hand value of the machine can be extended. If you ever lend or sell this machine, make sure that the borrower or buyer gets the operator's manual, so they will also know how to properly maintain and use it. Thank you for using a Husqvarna product. Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice. 4 — English 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine

Important IMPORTANT! The machine is only designed for trimming grass, grass clearing and/or forestry clearing. National or local regulations may regulate the use. Comply to given regulations. The only accessories you can operate with this engine unit are the cutting attachments we recommend in the chapter on Technical data. Never use the machine if you are tired, if you are ill, if you have consumed alcohol, or if you are taking other drugs or medication that can affect your vision, judgement or co-ordination. Wear personal protective equipment. See instructions under the heading "Personal protective equipment”. Never use a machine that has been modified in any way from its original specification. Never use a machine that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance. All covers, guards and handles must be fitted before Starting. Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock. The machine operator must ensure that no people or animals come closer than 15 meters while working. When several operators are working in the same area the safety distance should be at least twice the tree height and no less than 15 meters. Do an overall inspection of the machine before use, see maintenance schedule. WARNING!This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants consult their physician and the medical implant manufacturer before operating this machine. WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning. 6 — English Downloaded from www.Manualsib.com manuals search engine WARNING! be in the vi: ver allow children to use or ty of the machine. As the machine is equipped with a spring- loaded stop switch and can be started by low speed and force on the starter handle, even small children under some circumstances can produce the force necessary to start the machine. This can mean a risk of serious personal injury. Therefore remove the spark plug cap when the machine is not under close supervision. Personal protective equipment IMPORTANT! A clearing saw, brushcutter or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. lt is extremely important that you read and understand the contents of this operator's manual. You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. WARNING! Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the engine stops. HELMET Wear a protective helmet where there is a risk of falling objects Wear hearing protection that provides adequate noise reduction. EYE PROTECTION Always wear approved eye protection. If you use a visor then you must also wear approved protective goggles. Approved protective goggles must comply with standard ANSI Z87.1 in the USA or EN 166 in EU countries. 1154807-49 rev.no 1 2015-06-15

GLOVES ” WARNING! Never use a machine with Gloves should be worn when necessary, e.g., when fitting faulty safety equipment. The machine’s cutting attachments. safety equipment must be checked and maintained as described in this section. If your machine fails any of these checks contact your service agent to get it repaired. Throttle trigger lockout The throtile lockout is designed to prevent accidental operation of the throttle control. When you press the lock (A) (i.e. when you grasp the handle) it releases the throttle control (B). When you release the handle the throttle control and the throttle lockout both move back to their original positions. This movement is controlled by two independent return springs. This arrangement means that the throttle control is automatically locked at the idle CLOTHING setting. Wear clothes made of a strong fabric and avoid loose clothing that can catch on twigs and branches. Always wear heavy, long pants. Do not wear jewellery, shorts DS sandals or go barefoot. Secure hair so it is above shoulder B level.

Always have a first aid kit nearby. BOOTS ns Make sure the throttle control is locked at the idle setting when the throttle lockout is released. Machine’s safety equipment This section describes the machine’s safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. See the "What is what?” section to locate where this equipment is positioned on your machine. Press the throttle lockout and make sure it returns to its original position when you release it. The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer. IMPORTANT! All servicing and repair work on the machine requires special training. This is especially true of the machine’s safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent. 1154807-49 rev.no 1 2015-06-15 English — 7 Downloaded from www.Manualslib.com manuals search engine

Check that the throttle trigger and throttle lockout move freely and that the return springs work properly. See instructions under the heading Start. Start the machine and apply full throttle. Release the throttle and check that the cutting attachment stops and remains at a standstill. Ifthe cutting attachment rotates with the throttle in the idle position then the carburettor idle setting must be checked. See instructions under the heading Maintenance. Stop switch Use the stop switch to switch off the engine. Start the engine and make sure the engine stops when you move the stop switch to the stop setting. Cutting attachment guard This guardis intended to prevent loose objects from being thrown towards the operator. The guard also protects the 8 — English Downloaded from www.Manualslib.com manuals search engine operator from accidental contact with the cutting attachment. Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked. Always use the recommended guard for the cutting attachment you are using. See chapter on Technical data. WARNING! Never use a cutting attachment without an approved guard. See the chapter on Technical data. If an incorrect or faulty guard is fitted this can cause serious personal injury. Vibration damping system

Your machine is equipped with a vibration damping system that is designed to reduce vibration and make operation easier. Use of incorrectly wound cord or an incorrect cutting attachment increases the level of vibration. See instructions under the heading Cutting equipment. The machine’s vibration damping system reduces the transfer of vibration between the engine unit/cutting equipment and the machine’s handle unit. Regularly check the vibration damping units for cracks or deformation. Check that the vibration damping element is undamaged and securely attached. WARNING! Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. These symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists. 1154807-49 rev.no 1 2015-06-15

Muffler Regularly check that the muffler is securely attached to the machine.

The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user. À muffler fitted with a catalytic converter is also designed to reduce harmful exhaust gases. Ifthe muffler on your machine is fitted with a spark arrestor screen this must be cleaned regularly. À blocked screen will cause the engine to overheat and may lead to serious damage. In countries that have a warm and dry climate there is a significant risk of fire. We therefore fit certain mufflers with a spark arrestor screen. Check whether the muffler on your machine is fitted with this kind of screen. Make sure that the spark arrestor is screwed in place correctly. WARNING! Mufflers fitted with catalytic converters get very hot during use and remain so for some time after stopping. This also applies at idle speed. Contact can result in burns to the skin. Remember the risk of fire! WARNING! The inside of the muffler contain chemicals that may be carcinogenic. Avoid contact with these For mufflers it is very important that you follow the instructions on checking, maintaining and servicing your machine. elements in the event of a damaged Never use a machine that has a faulty muffler. muffler. WARNING! Bear in mind that: The exhaust fumes from the engine are hot and may contain sparks which can Start a fire. Never start the machine indoors or near combustible material! 1154807-49 rev.no 1 2015-06-15 English — 9 Downloaded from www.Manualslib.com manuals search engine

Cutting equipment This section describes how to choose and maintain your cutting equipment in order to: + Reduce the risk of blade thrust. + Obtain maximum cutting performance. + Extend the life of cutting equipment. IMPORTANT! Only use cutting attachments with the guards we recommend! See the chapter on Technical data. Refer to the instructions for the cutting attachment to check the correct way to load the cord and the correct cord diameter. Keep the teeth of the blade correctly sharpenedl! Follow our recommendations. Also refer to the instructions on the blade packaging. Maintain the correct blade setting! Follow our instructions and use the recommended file gauge. WARNING! Always stop the engine before doing any work on the cutting attachment. This continues to rotate even after the throttle has been released. Ensure that the cutting attachment has stopped completely and disconnect the Spark plug cap before you start to work onit. WARNING! Using an incorrect cutting attachment or an incorrectly sharpened blade increases the risk of blade thrust. Cutting equipment Saw blades are intended for cutting fibrous types of wood.

Grass blades and grass knifes are intended for cutting coarse grass.

A trimmer head is intended for trimming grass. 10 — English Downloaded from www.Manualslib.com manuals search engine General rules

Only use cutting attachments with the guards we recommend! See the chapter on Technical data. Ciyi-e- Keep the teeth of the blade correctly sharpened! Follow our instructions and use the recommended file gauge. An incorrectly sharpened or damaged blade increases the risk of accidents. Keep the correct setting on the saw blade! Follow our instructions and use the recommended setting tool. An incorrectly set saw blade increases the risk of jamming and blade thrust, and damage to the saw blade. Check the cutting attachment for damage or cracks. A damaged cutting attachment should always be replaced. blades

+ See the cutting attachment packaging for correct sharpening instructions. Sharpen blades and cutters using a single-cut flat file. Sharpening grass knifes and grass 1154807-49 rev.no 1 2015-06-15

+ Sharpen all edges equally to maintain the balance of the blade. WARNING! Always discard a blade that is bent, twisted, cracked, broken or damaged in any other way. Never attempt to straighten a twisted blade so that it can be reused. Only use original blades of the specified type. Sharpening the saw blade

+ __ See the cutting attachment packaging for correct sharpening instructions. A correctly sharpened blade is essential for working efficiently and to avoid unnecessary wear to the blade and brush cutter. + Make sure that the blade is well supported when you file it. Use a 5.5 mm round file with a file holder. + The filing angle is 15°. File alternate teeth to the right and those in between to the left. If the blade has been heavily pitted by stones it may be necessary to dress the top edges of the teeth with a flat file, in exceptional cases. |f so, this should be done before filing with a 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine round file. The top edges must be filed down by the same amount for all the teeth. Trimmer head IMPORTANT! Always ensure the trimmer cord is wound tightly and evenly around the drum, otherwise the machine will generate harmful vibration. + Only use the recommended trimmer heads and trimmer cords. These have been tested by the manufacturer to suit a particular engine size. This is especially important when a fully automatic trimmer head is used. Only use the recommended cutting attachment. See the chapter on Technical data. + Smaller machines generally require small trimmer heads and vice versa. This is because when clearing using a cord the engine must throw out the cord radially from the trimmer head and overcome the resistance of the grass being cleared. + The length ofthe cordis also important. A longer cord requires greater engine power than a shorter cord of the same diameter. + Make sure that the cutter on the trimmer guard is intact. This is used to cut the cord to the correct length. + To increase the life of the cord it can be soaked in water for a couple of days before use. This will make the cord tougher so that it lasts longer. English — 11

ASSEMBLY Fitting the handlebar + Remove the screw at the rear of the throttle handle. + Slide the throttle handle onto the right side of the handlebar, (see diagram). + Alignthe screw hole in the throttle handle with the hole in the handlebar. + Refit the screw in the hole in the rear of the throttle handle. + Screw the screw through the handle and handlebar. Tighten it. + Loosen the screws on the handle bar bracket. + Position the handle bar bracket as shown. + Tighten the screws. + Unscrew the knob from the handlebar mounting. + Position the handlebar as shown. Fit the mounting components and tighten the knob lightly. 12 — English Downloaded from www.Manualslib.com manuals search engine + __ Putonthe harness and hang the machine from the support hook. Now make a final adjustment so that the machine is in a comfortable working position when it hangs from the harness. Tighten the knob. Assembling and dismantling the two-piece shaft (525RK) Assembly + Loosen the coupling by turning the knob counter- clockwise. + Align the tab of the attachment (A) with the arrow on the coupling (B). -__ Push the attachment into the coupling until the attachment snaps into place. + Before using the unit, tighten the knob securely. 1154807-49 rev.no 1 2015-06-15

ASSEMBLY Dismantling + Loosen the coupling by turning the knob (at least 3 times). + Push and hold the button (C). While securely holding the engine end, pull the attachment straight out of the coupling. Assembling the cutting equipment WARNING! When fitting the cutting attachment it is extremely important that the raised section on the drive disc/support flange engages correctly in the centre hole of the cutting attachment. If the cutting attachment is fitted incorrectly it can result in serious and/or fatal personal injury. WARNING! Never use a cutting attachment without an approved guard. See the chapter on Technical data. If an incorrect or faulty guard is fitted this can cause serious personal injury. IMPORTANT! If a saw blade or grass blade are to be used the machine must be equipped with the correct handlebar, blade guard and harness. 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualsib.com manuals search engine Fitting a blade guard, grass blade and grass cutter

+ Hookthe blade guard/combination guard (A) onto the fitting on the shaft and secure with the bolt. CAUTION! Use the recommended blade guard. See the Technical data section. + Fitthe drive disc (B) on the output shaft. + Turn the output shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing. + Insert the locking pin (C) in the hole to lock the shaft. + Place the blade (D), support cup (E) and support flange (F) on the output shaft. + Fitthe nut (G). The nut must be tightened to a torque of 35-50 Nm (26-36 ft-lb). Use the spanner in the tool kit. Hold the shaft of the spanner as close to the blade guard as possible. To tighten the nut, turn the spanner in the opposite direction to the direction of rotation (Caution! left-hand thread). English — 13

ASSEMBLY Fitting the blade guard and saw in the opposite direction to the direction of rotation blade (Caution! left-hand thread).

+ When loosening and tightening the saw blade nut, there is a risk of injury from the teeth of the saw blade. You should therefore always ensure that your hand is shielded by the blade guard when doing this. Always use a socket spanner with a shaft that is long enough to allow this. The arrow in the diagram shows the area where you should operate the socket spanner when + Remove the mounting plate (H). Fitthe adapter (1) and loosening or tightening the nut. bracket (J) with the two screws (K) as shown. Fit the blade guard (A) to the adapter using the 4 screws (L) as shown. CAUTION! Use the recommended blade guard. See the Technical data section.

Fitting other guards and cutting attachments + Fitthe trimmer guard/combination guard (A) intended for use with the trimmer head/plastic blades. Hook the C guard onto the fitting on the shaft and secure it with the boit (L). + Fitthe drive disc (B) on the output shaft. + Turnthe output shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing. + Insert the locking pin (C) in the hole to lock the shaft. + Place the blade (D) and support flange (F) on the output shaft. + Fitthe nut (G). The nut must be tightened to a torque of 35-50 Nm (26-36 ft-1b). Use the spanner in the tool kit. Hold the shaft of the spanner as close to the blade guard as possible. To tighten the nut, turn the spanner + Fitthe drive disc (B) on the output shaft. + Turnthe output shaft until one of the holes in the drive disc aligns with the corresponding hole in the gear housing. + Insert the locking pin (C) in the hole to lock the shaft. 14 — English 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine

ASSEMBLY + Screw on the trimmer head/plastic blades (H) in the Correct height opposite direction to the direction of rotation. Adjust the shoulder strap so that the cutting attachment is H parallel to the ground. + To dismantle, follow the instructions in the reverse order. Adjusting the harness and brush cutter Correct balance Let the cutting attachment rest lightly on the ground. If you use a saw blade it should balance about 10 cm above the ground to prevent contact with stones and the like. Adjust can result in injury to yourself or others. the position of the suspension ring to balance the brush Never use a harness with a defective cutter correctiy. quick release. WARNING! When using a brush cutter it must always be hooked securely to the harness. Otherwise you will be unable to control the brush cutter safely and this Standard harness

Quick release Atthe front is an easily accessible, quick release. Use this if the engine catches fire or in any other emergency situation that requires you to free yourself from the machine and harness. Spreading the load on your shoulders A well-adjusted harness and machine makes work much easier. Adjust the harness for the best working position. Tension the side straps so that the weight is evenly distributed across both shoulders. 1154807-49 rev.no 1 2015-06-15 English — 15 Downloaded from www.Manualslib.com manuals search engine

FUEL HANDLING Fuel safety Never start the machine: 1 _lfyou have spilled fuel on it. Wipe off the spillage and allow remaining fuel to evaporate. 2 lf you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water. 3 lfthe machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines. In the event of leakage, contact your service agent. Transport and storage + Store andtransportthe machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers. + When storing and transporting fuel always use approved containers intended for this purpose. + When storing the machine for long periods the fuel tank must be emptied. Contact your local gas station to find out where to dispose of excess fuel. Drain the tank into the appropriate containers and in a well ventilated area. + Ensure the machine is cleaned and that a complete service is carried out before long-term storage. + The transport guard must always be fitted to the cutting attachment when the machine is being transported or in storage. + Secure the machine during transport. + Inorderto prevent unintentional starting of the engine, the spark plug cap must always be removed during long-term storage, if the machine is not under close supervision and when performing all service measures. + Allowthe hedge trimmer to cool down after use before putting it away for storage.

WARNING!Take care when handling fuel. Bear in mind the risk of fire, explosion and inhaling fumes. Fuel CAUTION! The machine is equipped with a two-stroke engine and must always be run using a mixture of gasoline and two-stroke engine oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the mixture. 16 — English Downloaded from www.Manualslib.com manuals search engine WARNING! Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin. For this reason observe caution when handling fuel and make sure there is adequate ventilation. WARNING! Always ensure there is adequate ventilation when handling fuel. Gasoline

CAUTION! Always use a quality gasoline/oil mixture with an octane rating of at least 87 octane ((RON+MON)/2). If your machine is equipped with a catalytic converter (see chapter on Technical data) always use a good quality unleaded gasoline/oil mixture. Leaded gasoline will destroy the catalytic converter. Use low-emission gasoline, also known as alkylate gasoline, if it is available.

Ethanol blended fuel, E10 may be used (max 10% ethanol blend). Using ethanol blends higher than E10 will create lean running condition which can cause engine damage. This engine is certified to operate on unleaded gasoline. + The lowest recommended octane grade is 87 ((RON+MON)/2). If you run the engine on a lower octane grade than 87 so-called knocking can occur. This gives rise to a high engine temperature and increased bearing load, which can result in serious engine damage. + Whenworking at continuous high revs a higher octane rating is recommended. Two-stroke oil + For best results and performance use HUSQVARNA two-stroke engine oil, which is specially formulated for our air-cooled two stroke-engines. + Never use two-stroke oil intended for water-cooled engines, sometimes referred to as outboard oil (rated TCW). + Never use oil intended for four-stroke engines. + A poor oil quality and/or too high oil/fuel ratio may jeopardise function and decrease the life time of the catalytic converters. + Mixing ratio 50:1 (2%) with HUSQVARNA two-stroke oil. 1154807-49 rev.no 1 2015-06-15

FUEL HANDLING Gasoline, litre | Two-stroke oil, litre Fueling 2% (50:1) = 5 10 RD) 10 0,20 WARNING! Taking the following 15 0,30 precautions, will lessen the risk of fire: 20 0,40 US gallon US fl. oz. Mix and pour fuel outdoors, where there 1 21/2 are no sparks or flames. 21/2 6 1/2 Do not smoke or place hot objects near 5 12718 (ES Los Always shut off the engine before Mixing refueling. Always mix the gasoline and oil in a clean container intended for fuel. Always start by filling half the amount of the gasoline to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of gasoline. Mix (shake) the fuel mixture thoroughly before filling the machine's fuel tank. Do not mix more than one month's supply of fuel at a time. Ifthe machine is not used for some time the fuel tank should be emptied and cleaned. WARNING! The catalytic converter muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/ or vapors. 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualsib.com manuals search engine Always stop the engine and let it cool for a few minutes before refueling. Mix and pour fuel outdoors, where there are no Sparks or flames. Refuel in a well ventilated area. Never fuel the machine indoors. When refuelling, open the fuel cap slowly So that any excess pressure is released gently. Tighten the fuel cap carefully after refueling. Always move the machine away from the refueling area and source before starting. Always use a fuel container with an anti-spill valve. If you have spilled fuel on it. Wipe off the spillage and allow remaining fuel to evaporate. Clean the area around the fuel cap. Contamination in the tank can cause operating problems. Ensure that the fuel is well mixed by shaking the container before filling the tank. English — 17

Check before starting Check the blade to ensure that no cracks have formed at the bottom of the teeth or by the centre hole. The most common reason why cracks are formed is that sharp corners have been formed at the bottom of the teeth while sharpening or that the blade has been used with dull teeth. Discard a blade if cracks are found. + Check that the support flange is not cracked due to fatigue or due to being tightened too much. Discard the support flange if it is cracked. Ensure the locking nut has not lost its captive force. The nut lock should have a locking force of at least 1.5 Nm. The tightening torque of the locking nut should be 35-50 Nm. + Check that the trimmer head and trimmer guard are not damaged or cracked. Replace the trimmer head or trimmer guard if they have been exposed to impact or are cracked. + Never use the machine without a guard nor with a defective guard. + All covers must be correctly fitted and undamaged before you start the machine. 18 — English Downloaded from www.Manualslib.com manuals search engine Starting and stopping

WARNING!The complete clutch cover and shaft must be fitted before the machine is started, otherwise the clutch can come loose and cause personal injury. Always move the machine away from the refueling area and source before starting. Place the machine on a flat surface. Ensure the cutting attachment cannot come into contact with any object. Make sure no unauthorised persons are in the working area, otherwise there is a risk of serious personal injury. The safety distance is 15 meters (50 ft.). Starting Cold engine (1) Air purge: Press the air purge repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled. WARNING! When the engine is started with the choke in either the choke or start throttle positions the cutting attachment will start to rotate immediately. 1154807-49 rev.no 1 2015-06-15

Hold the body of the machine on the ground using your left hand (CAUTION! Not with your footl). (3) Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip), now quickly and powerfully pull the cord. Never wrap the starter cord around your hand Repeat pulling the cord until engine attemps to start (or maximum 5 pulls). (4) Move choke control down to run position. (5) Pull the cord until engine starts and gradually operate throttle trigger for increasing engine speed to operate speed. Warm engine (1) Air purge: Press the air purge repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled. (5) Pull the cord until engine starts and gradually operate throttle trigger for increasing engine speed to operate speed. CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine. CAUTION! Do not put any part of your body in marked area. Contact can result in burns to the skin, or electrical shock if the spark plug cap has been damaged. Always 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine use gloves. Do not use a machine with damaged spark plug cap. Stopping The engine is stopped by pushing the stop switch to the stop position. CAUTION! The stop switch automatically returns to the start position. In order to prevent unintentional starting, the spark plug cap must be removed from the spark plug when assembling, checking and/or performing maintenance. English — 19

WORKING TECHNIQUES General working instructions IMPORTANT! This section describes the basic safety precautions for working with brush cutters and trimmers. If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability. You must understand the difference between forestry clearing, grass clearing and grass trimming before use. Basic safety rules A©@

Downloaded from: Look around you: To ensure that people, animals or other things cannot affect your control of the machine. To ensure that people, animals, etc., do not come into contact with the cutting attachment or loose objects that are thrown out by the cutting attachment. CAUTION! Do not use the machine unless you are able to call for help in the event of an accident. Inspect the working area. Remove all loose objects, such as stones, broken glass, nails, steel wire, string, etc. that could be thrown out or become wrapped around the cutting attachment. Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and often brings added risks, such as icy ground, unpredictable felling direction, etc. Make sure you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move suddenly. Take great care when working on sloping ground. Take great care when cutting a tree that is under tension. A tree that is under tension may spring back to its normal position before or after being cut. lf you 0 — English wa Manualslib.com manuals search engine position yourself incorrectly or make the cut in the wrong place the tree may hit you or the machine and cause you to lose control. Both situations can cause serious personal injury. Keep a good balance and a firm foothold. Do not overreach. Keep proper footing and balance at all times. Always hold the machine with both hands. Hold the machine on the right side of your body. Connect the machine to the suspension ring on the harness Keep all parts of your body away from the hot surfaces. Keep all parts of your body away from the rotating cutting attachment. Keep the cutting attachment below waist level. Switch off the engine before moving to another area. Fit the transport guard before carrying or transporting the equipment any distance. Never put the machine down with the engine running unless you have it in clear sight. WARNING! Neither the operator of the machine nor anyone else may attempt to remove the cut material while the engine is running or the cutting equipment is rotating, as this can result in serious injury. Stop the engine and cutting equipment before you remove material that has wound around the blade shaft as otherwise there is a risk of injury. The bevel gear can get hot during use and may remain so for a while afterwards. You could get burnt if you touch it. 1154807-49 rev.no 1 2015-06-15

WORKING TECHNIQUES WARNING! Watch out for thrown objects. Always wear approved eye protection. Never lean over the cutting attachment guard. Stones, rubbish, etc. can be thrown up into the eyes causing blindness or serious injury. Keep unauthorised persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 15 m. (50 ft.) Stop the machine immediately if anyone approaches. Never swing the machine around without first checking behind you to make sure no-one is within the safety zone. WARNING! Sometimes branches or grass get caught between the guard and cutting attachment. Always stop the engine before cleaning. Working methods WARNING! Machines fitted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a fixed object. This is called blade thrust. A blade thrust can be violent enough to cause the machine and/or operator to be propelled in any direction, and possibly lose control of the machine. Blade thrust can occur without warning if the machine Snags, stalls or binds. Blade thrust is more likely to occur in areas where it is difficult to see the material being cut. Avoid cutting with the area of the blade between the 12 o’clock and 3 o’clock positions. Because of the speed of rotation of the blade, blade thrust can occur if you attempt to cut thick stems with this area of the blade. + Before you start clearing, check the clearing area, the type of terrain, the slope of the ground, whether there are stones, hollows etc. + Startat whichever end of the area is easiest, and clear an open space from which to work. + Work systematically to and fro across the area, clearing a width of around 4-5 m on each pass. This exploits the full reach of the machine in both directions 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualsib.com manuals search engine and gives the operator a convenient and varied working area to work in. + Clear a strip around 75 m long. Move your fuel can as work progresses. + On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it. + You should plan the strip so that you avoid going over ditches or other obstacles on the ground. You should also orient the strip to take advantage of wind conditions, so that cleared stems fall in the cleared area of the stand. Forestry clearing using a saw blade © DO + The risk of blade thrust increases with increasing stem size. You should therefore avoid cutting with the area of the blade between 12 o'clock and 3 o’clock. © A + To fell to the left, the bottom of the tree should be pushed to the right. Tilt the blade and bring it diagonally down to the right, exerting firm pressure. At the same time push the stem using the blade guard. Cut with the area of the blade between 3 o'clock and English — 21

WORKING TECHNIQUES 5 o'clock. Apply full throttle before advancing the blade. +__ To fell to the right, the bottom of the tree should be pushed to the left. Tilt the blade and bring it diagonally up to the right. Cut with the area of the blade between 3 o'clock and 5 o'’clock so that the direction of rotation of the blade pushes the bottom of the tree to the left. + __ Tofellatree forwards, the bottom of the tree should be pulled backwards. Pull the blade backwards with a quick, firm movement.

+ Large stems must be cut from two sides. First determine which direction the stem will fall. Make the first cut on the felling side. Then finish cutting the stem from the other side. Adjust the cutting pressure to match the size of the stem and the hardness of the wood. Small stems require more pressure, while large stems require less pressure. 22 — English Downloaded from www.Manualslib.com manuals search engine + __lfthe stems are tightly packed, adapt your walking pace to suit. + __lfthe blade jams in a stem, never jerk the machine free. If you do this the blade, bevel gear, shaft or handlebar may be damaged. Release the handles, grip the shaft with both hands and gently pull the machine free. Brush cutting with a saw blade FUN CN © O® + Thin stems and brush are mown down. Work with a sawing movement, swinging sideways. + Try to cut several stems in a single sawing movement. + With groups of hardwood stems, first clear around the group. Start by cutting the stems high up around the outside of the group to avoid jamming. Then cut the stems to the required height. Now try to reach in with the blade and cut from the centre of the group. If it is still difficult to gain access, cut the stems high up and let them fall. This will reduce the risk of jamming. Grass clearing using a grass blade © PIS

+ Grass blades and grass knifes must not be used on woody stems. + A grass blade is used for all types of tall or coarse grass. + The grass is cut down with a sideways, swinging movement, where the movement from right-to-left is the clearing stroke and the movement from left-to- right is the return stroke. Let the left-hand side of the blade (between 8 and 12 o’clock) do the cutting. 115480/-49 rev.no 1 2015-06-15

WORKING TECHNIQUES + lfthe blade is angled to the left when clearing grass, the grass will collect in a line, which makes it easier to collect, e.g. by raking. + Try to work rhythmically. Stand firmly with your feet apart. Move forward after the return stroke and stand firmly again. + Let the support cup rest lightly against the ground. It is used to protect the blade from hitting the ground. + Reducethe risk of material wrapping around the blade by following these instructions: 1Always work at full throttle. 2Avoid the previously cut material during the return stroke. + Stop the engine, unclip the harness and place the machine on the ground before you start to collect the cut material. Grass trimming with a trimmer head © BA Trimming +. Hold the trimmer head just above the ground at an angle. It is the end of the cord that does the work. Let the cord work at its own pace. Never press the cord into the area to be cut.

+ The cord can easily remove grass and weeds up against walls, fences, trees and borders, however it can also damage sensitive bark on trees and bushes, and damage fence posts. + Reduce the risk of damaging plants by shortening the cord to 10-12 cm and reducing the engine speed. Clearing + The clearing technique removes all unwanted vegetation. Keep the trimmer head just above the ground and tilt it. Let the end of the cord strike the ground around trees, posts, statues and the like. CAUTION! This technique increases the wear on the cord.

+ The cord wears quicker and must be fed forward more often when working against stones, brick, concrete, metal fences, etc., than when coming into contact with trees and wooden fences. + Whentrimming and clearing you should use less than full throttle (80%) so that the cord lasts longer and to reduce the wear on the trimmer head. 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine Cutting +__ The trimmeris ideal for cutting grass that is difficult to reach using a normal lawn mower. Keep the cord parallel to the ground when cutting. Avoid pressing the trimmer head against the ground as this can ruin the lawn and damage the tool. \ yk / WWE ANNE l À! +__ Donotallowthe trimmer head to constantly come into contact with the ground during normal cutting. Constant contact of this type can cause damage and wear to the trimmer head. Sweeping + The fan effect of the rotating cord can be used for quick and easy clearing up. Hold the cord parallel to and above the area to be swept and move the tool side to side. + When cutting and sweeping you should use full throttle to obtain the best results. IMPORTANT! To avoid unbalance and vibrations in handles trimmer head cover need to be cleaned every time cord is refilled. In addition, check other part of the head if needed to be cleaned. English — 23

MAINTENANCE Carburetor Your Husqvarna product has been designed and manufactured to specifications that reduce harmful emissions. Adjustment of the idle speed Before any adjustments are made, make sure that the air filter is clean and the air filter cover is fitted. Adjust the idle speed using the idle adjustment screw T, if it is necessary to readjust. First turn the idle adjustment screw T clockwise until the cutting attachment starts to rotate. Then turn the screw counter clockwise until the cutting attachment stops. The idle speed is correctly adjusted when the engine will run smoothly in every position. The idle speed should also be well below the speed at which the cutting attachment starts to rotate. Recommended idle speed: See the Technical data section. WARNING! If the idle speed cannot be adjusted so that the cutting attachment stops, contact your dealer/service workshop. Do not use the machine until it has been correctly adjusted or repaired. Muffler

CAUTION! Some mufflers are fitted with a catalytic converter. See chapter on Technical data to see whether your machine is fitted with a catalytic converter. The muffler is designed to reduce the noise level and to direct the exhaust gases away from the operator. The exhaust gases are hot and can contain sparks, which may 24 — English Downloaded from www.Manualslib.com manuals search engine cause fire if directed against dry and combustible material. Some mufflers are equipped with a special spark arrestor screen. |f your machine has this type of muffler, you should clean the screen at least once a week. This is best done with a wire brush. On mufflers without a catalytic converter the screen should be cleaned weekly, or replaced if necessary. On mufflers fitted with a catalytic converter the screen should be checked, and if necessary cleaned, monthly. If the screen is damaged it should be replaced. If the screen is frequently blocked, this can be a sign that the performance of the catalytic converter is impaired. Contact your dealer to inspect the muffler. A blocked screen will cause the machine to overheat and result in damage to the cylinder and piston. CAUTION! Never use a machine with a defective muffler. WARNING! Mufflers fitted with catalytic converters get very hot during use and remain so for some time after stopping. This also applies at idle speed. Contact can result in burns to the skin. Remember the risk of fire! 1154807-49 rev.no 1 2015-06-15

To keep the working temperature as low as possible the machine is equipped with a cooling system. The cooling system consists of: Air intake on the starter. Fins on the flywheel. Cooling fins on the cylinder. Cylinder cover (directs cold air over the cylinder). Muffler cover Muffler plate Clean the cooling system with a brush once a week, more often in demanding conditions. A dirty or blocked cooling system results in the machine overheating which causes damage to the piston and cylinder. Spark plug

oo 8 & D The spark plug condition is influenced by: + incorrect carburetor adjustment. + Anincorrect fuel mixture (too much or incorrect type of oil). + A dirty air filter. These factors cause deposits on the spark plug electrodes, which may result in operating problems and starting difficulties. Ifthe machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking any further action. If the spark plug is dirty, clean it and check that the electrode gap is 0,026 inch 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine (0,65 mm). The spark plug should be replaced after about a month in operation or earlier if necessary. CAUTION! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/ cylinder. Check that the spark plug is fitted with a suppressor. Air filter

The air filter must be regularly cleaned to remove dust and dirt in order to avoid: + Carburettor malfunctions. + Starting problems. + Loss of engine power. + Unnecessary wear to engine parts + Excessive fuel consumption. Clean the filter every 25 hours, or more regularly if conditions are exceptionally dusty. Cleaning the air filter Close the choke control by setting the choke into a choke position. Remove the air filter cover and take out the filter. Wash it clean in warm, soapy water. Clean also the inside of the filter cover by using air or a brush. Ensure that the filter is dry before refitting it. English — 25

MAINTENANCE Remove the Felt filter from the filter holder and gently brush debris from the filter. Check the rubber sealing surface. Change the filter on the rubber seal if damaged. An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. À damaged air filter must always be replaced. Damaged, very dirty, or fuel- soaked air filter must always be replaced. Bevel gear The bevel gear is filled with the right quantity of grease at the factory. However, before using the machine you should check that the bevel gear is filled three-quarters full with grease. Use HUSQVARNA special grease. The grease in the bevel gear does not normally need to be changed except if repairs are carried out. Two-piece shaft (525RK) The drive shaft end in the lower shaft should be lubricated with grease every 30 hours. There is a risk that the drive Shaft ends (splined coupling) on models with two-piece shafts will seize if they are not lubricated regularly. CAUTION! Use only HUSQVARNA replacement parts. Use of other brands of replacement parts can cause damage to your unit or injury to the operator or others. Your warranty does not cover damage or liability caused by the use of accessories and/or attachments not specifically recommended by HUSQVARNA. 26 — English 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine

MAINTENANCE Maintenance schedule The following is a list of the maintenance that must be performed on the machine. Most of the items are described in the Maintenance section. Daily Weekly Monthly Maintenance maintenance | maintenance | maintenance Clean the outside of the machine. X Make sure the throttle trigger lock and the throttle function correctly from a safety point of view. Check that the stop switch works correctly. Check that the cutting attachment does not rotate at idle. Clean the air filter. Replace if necessary. Check that the guard is undamaged and not cracked. Replace the guard if it has been exposed to impact or is cracked. X [XI x] x) x Check that the trimmer head is undamaged and not cracked. Replace the trimmer head if necessary. Check that nuts and screws are tight. X Check that there are no fuel leaks from the engine, tank or fuel x lines. Check the starter and starter cord. X Check that the vibration damping elements are not damaged. Clean the outside of the spark plug. Remove it and check the electrode gap. Adjust the gap to 0.65 mm (.026”), or replace the X spark plug. Check that the spark plug is fitted with a suppressor. Clean the machine's cooling system. X Clean or replace the spark arrestor screen on the muffler (only x applies to mufflers without a catalytic converter). Clean the outside of the carburettor and the space around it. X Check that the bevel gear is filled three-quarters full with x lubricant. Fill if necessary using special grease. Check the fuel filter for contamination and the fuel hose for cracks x or other defects. Replace if necessary. Check all cables and connections. X Check the clutch, clutch springs and the clutch drum for wear. x Replace if necessary by an autorized service workshop. Replace the spark plug. Check that the spark plug is fitted with a x suppressor. Check and clean the spark arrestor screen on the muffler (only x applies to mufflers fitted with a catalytic converter). 1154807-49 rev.no 1 2015-06-15 English — 27 Downloaded from www.Manualslib.com manuals search engine

TECHNICAL DATA Technical data Technical data 525RX 525RXT 525RK Engine Cylinder displacement, cu.in/cmS 1,55/25,4 1,55/25,4 1,55/25,4 Cylinder bore, inch/mm 1,34/34 1,34/34 1,34/34 Stroke, inch/mm 1.10/28 1.10/28 1.10/28 Idle speed, rpm 3000 3000 3000 Recommended max. speed, rpm 9500/11000 9500/11000 9500/11000 Trimmer head/Grass blade Speed of output shaft, rpm 6500/7500 6500/7500 6500/7500 Trimmer head/Grass blade Max. engine output, acc. to ISO 8893, kKW/ rpm 1.0/8500 1.0/8500 1.0/8500 Catalytic converter muffler Yes Yes Yes Speed-regulated ignition system Yes Yes Yes Emissions Durability Period according to California Air Resources Board, h. 300 300 300 Ignition system Manufacturer of ignition system IKEDA/UK IKEDA/UK IKEDA/UK Spark plug NGK BPMR8Y NGK BPMR8Y NGK BPMR8Y Electrode gap, inch/mm 0.026/0,65 0.026/0,65 0.026/0,65 Fuel and lubrication system Manufacturer/type of carburetor Walbro WTEA-8C Walbro WTEA-8C Walbro WTEA-8C Fuel tank capacity, US pint/litre 1,08/0,51 1,08/0,51 1,08/0,51 Weight Du without fuel, cutting attachment and guard, Lbs/ 112/5,1 11.9/5,4 12.3/5,6 Sound levels (see note 1) Equivalent sound pressure level at the operator's ear, measured according to ISO 22868, dB(A): Equipped with trimmer head (original) 98 98 98 Vibration levels (see note 2) Equivalent vibration levels (as,.-4) at handles, measured according to ISO 22867, m/s: Equipped with trimmer head (original), leftright 2,1/2,3 1,81,9 2.119 NOTE! This spark ignition system complies with the Canadian ICES-002 standard. Note 1: Reported data for equivalent sound pressure level for the machine has a typical statistical dispersion (standard deviation) of 1 dB (A). Note 2: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s?. 28 — English 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine

TECHNICAL DATA Powerhead model Accessories Art No. Hedge trimmer attachment with shaft HA 110 | 537 19 66-01 Hedge trimmer attachment with shaft HA 850 | 537 19 66-02 525RK Clean sweep attachment with shaft SR600 537 19 67-01 Edger attachment with shaft 537 19 69-01 Saw attachment with shaft PA 1100 537 18 33-17 Cultivator attachment with shaft CA 150 537 42 54-01 The accessories are recommended for use in combination with the specified power heads and have been evaluated to applicable ISO- and EN safety requirement standards by the Swedish Machinery Testing Institute. Approved accessories Type Cutting attachment guard, Art. no. Centre hole in blades/cutters, © 25,4 mm Arbor shaît thread M10 Grass blade/grass cutter Grass 255-4 1" (Q 255 4-teeth) 503 93 42-02 Trimmer head T35, T35x (D 2.4 - 3.0 mm cord) 503 93 42-02/ 503 97 71-01 Support cup Fixed - The accessories used in combination with the specified power heads have been evaluated to ANSI B175.3-2003 Grass Trimmers and Brushcutters - Safety Requirements. These combinations have been evaluated by Underwriters Laboratories Inc. (UL) and are consequently UL listed. 1154807-49 rev.no 1 2015-06-15 English — 29 Downloaded from www.Manualslib.com manuals search engine

FEDERAL AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT IMPORTANT: This product is compliant with U.S. EPA Phase 3 regulations for exhaust and evaporative emissions. To ensure EPA Phase 3 compliance, we recommend using only genuine Husqvarna brand replacement parts. Use of non-compliant replacement parts is a violation of federal law.

YOUR WARRANTY RIGHTS AND

OBLIGATIONS The EPA (US. Environmental Protection Agency), CARB (California Air Resources Board), Environment Canada and Husqvarna Forest & Garden are pleased to explain the emissions control system's warranty on your 2015- 2016* small off-road engine. In U.S. and Canada, small off-road engines must be designed, built, and equipped to meet the applicable Federal or California stringent anti- smog standards. Husqvarna Forest & Garden must warrant the emissions control system on your small off- road engine for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine. Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic convertor, fuel tanks, fuel lines, fuel caps, valves, canisters, filters, vapor hoses, clamps, connectors, and other associated emission-related components. For engines less than or equal to 80 cc, only the fuel tank is subject to the evaporative emission control warranty requirements of this section (California only). Where a warrantable condition exists, Husqvarna Forest & Garden will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

MANUFACTURER’S WARRANTY

COVERAGE The emissions control system is warranted for two years. If any emissions-related part on your small off-road engine is defective, the part will be repaired or replaced by Husqvarna Forest & Garden.

RESPONSIBILITIES + As the small off-road engine owner, you are responsible for performance of the required maintenance listed in your operator's manual. Husqvarna Forest & Garden recommends that you retain all receipts covering maintenance on your small off-road engine, but Husqvarna Forest & Garden cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance. + As the small off-road engine owner, you should however be aware that Husqvarna Forest & Garden may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications. + You are responsible for presenting your small off-road engine to a Husqvarna Forest & Garden distribution 30 — English Downloaded from www.Manualslib.com manuals search engine center or service center as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty coverage, you should contact Husqvarna Forest & Garden in USA at 1-800-487-5951, in CANADA at 1- 800-805-5523 or send e-mail correspondence to emissions@husqvarnagroup.com.

WARRANTY COMMENCEMENT DATE

The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser.

Husqvarna Forest & Garden warrants to the ultimate purchaser and each subsequent owner that the engine or equipment is designed, built, and equipped so as to conform with all applicable regulations adopted by EPA and CARB, and is free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

REPAIR OR REPLACEMENT OF PARTS Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty station. Warranty services or repairs will be provided at all Husqvarna Forest & Garden distribution centers that are franchised to service the subject engines. Throughout the emissions warranty period of two years, Husqvarna Forest & Garden must maintain a supply of warranted parts sufficient to meet the expected demand for such parts. WARRANTY PERIOD Any warranted part that is scheduled for replacement as required in the maintenance schedule, is warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part will be repaired or replaced by Husqvarna Forest & Garden at no cost. Any such part repaired or replaced under warranty is warranted for the remainder of the period prior to the first scheduled replacement point for the part. Any warranted part that is not scheduled for replacement as required in the maintenance schedule, is warranted for two years. lf any such part fails during the period of warranty coverage, it will be repaired and replaced by Husqvarna Forest & Garden at no cost. Any such part repaired or replaced under the warranty is warranted for the remaining warranty period. Any warranted part that is scheduled only for regular inspection in the maintenance schedule will be warranted for a period of two years. À statement in such written instructions to the effect of "repair or replace as necessary” will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period. 1154807-49 rev.no 1 2015-06-15

FEDERAL AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT DIAGNOSIS The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station. CONSEQUENTIAL DAMAGES Husqvarna Forest & Garden is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part.

EMISSION WARRANTY PARTS LIST

1 Carburetor and internal parts 2 Intake pipe, airilter holder and carburetor bolts. 3 Airfilter and fuelfilter covered up to maintenance schedule. Spark Plug, covered up to maintenance schedule Ignition Module 6 Fuel tank, line and cap

All failures caused by abuse, neglect or improper maintenance are not covered.

ADD -ON OR MODIFIED PARTS

Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. Husqvarna Forest & Garden will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.

If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Husqvarna Forest & Gardenin USA at 1-800-487-5951, in CANADA at 1-800- 805-5523 or send e-mail correspondence to emissions@husqvarnagroup.com.

WHERE TO GET WARRANTY SERVICE

Warranty services or repairs are provided through all Husqvarna Forest & Garden authorized servicing dealers.

MAINTENANCE, REPLACEMENT AND

REPAIR OF EMISSION-RELATED PARTS

Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of the manufacturer. 1154807-49 rev.no 1 2015-06-15 Downloaded from www.Manualslib.com manuals search engine MAINTENANCE STATEMENT The owner is responsible for the performance of all required maintenance, as defined in the operators manual. “Current and following model year will be updated annually in the warranty statement provided to the consumer. For example, in 2012 model year, 2012-2013 will be specified. English — 31

T35, T35x \ [A Downloaded from www.Manualslib.com manuals search engine
