Lightcycle Morph floor - Lighting DYSON - Free user manual and instructions

Product Type	Floor Lamp
Brand	Dyson
Model	Lightcycle Morph Floor
Power Source	Mains powered (plug-in)
Assembly Required	Yes (vertical stem into base, screw tightening)
Rotation	360° rotation of optical head, arm, and stem
Color Temperature Adjustment	Yes (swipe from warm to cool)
Brightness Adjustment	Yes (swipe to change)
Auto Mode	Adjusts to ambient light for constant brightness
Motion Sensor	Auto-off after 5 minutes of no movement
Bluetooth	Enabled by default, can be disabled
App Control	Dyson Link app (iOS and Android)
USB-C Charging	Up to 1.5A at 5V
Warranty	Standard warranty (serial number on rating plate at bottom)
Manual Included	Digital manual available at dyson.com/support
Cleaning Instructions	Wipe with dry cloth

Frequently Asked Questions - Lightcycle Morph floor DYSON

How do I assemble the Dyson Lightcycle Morph floor lamp?

Place the base on the floor, insert the vertical stem, then tighten the screw with the supplied tool. Insert the power cable into the base, ensuring it sits in the cable guide. Remove protective wrapping, plug in, and switch on. Finally, download the Dyson Link app and add your light.

How do I adjust the color temperature?

Swipe on the light's control to change the color temperature from warm through to cool. Tap to quickly switch between preset temperatures.

How do I adjust brightness?

Swipe on the light's control to change the brightness level. Tap to quickly switch between preset brightness levels.

What is the auto mode?

In auto mode, the light adjusts to background light conditions and keeps the workspace at a constant brightness. When connected via Bluetooth to the Dyson Link app, it automatically changes brightness and color based on your geographical location throughout the day.

How does the motion sensor work?

The light will turn off automatically after five minutes if no movement is detected.

How do I disable Bluetooth?

Press and hold the middle button until the LED lights on the three buttons blink. The main light source will turn off and then on again to confirm Bluetooth has been disabled. To re-enable, repeat the process; the light will blink twice.

How do I charge devices via USB-C?

Plug your mobile devices into the USB-C charging point on the light. It provides up to 1.5A at 5V.

How do I control the light via the app?

Download the Dyson Link app from the App Store or Google Play. Create an account, follow the on-screen instructions to add your light, then you can control how and when it operates.

Where can I find the serial number?

The serial number is located on the rating plate at the bottom of your light. Note it for warranty and support purposes.

What should I do if I need support?

Visit www.dyson.com/support for further information and support. You can also call 866-693-9766.

USER MANUAL Lightcycle Morph floor DYSON

dyson lightcycle morph

User manual

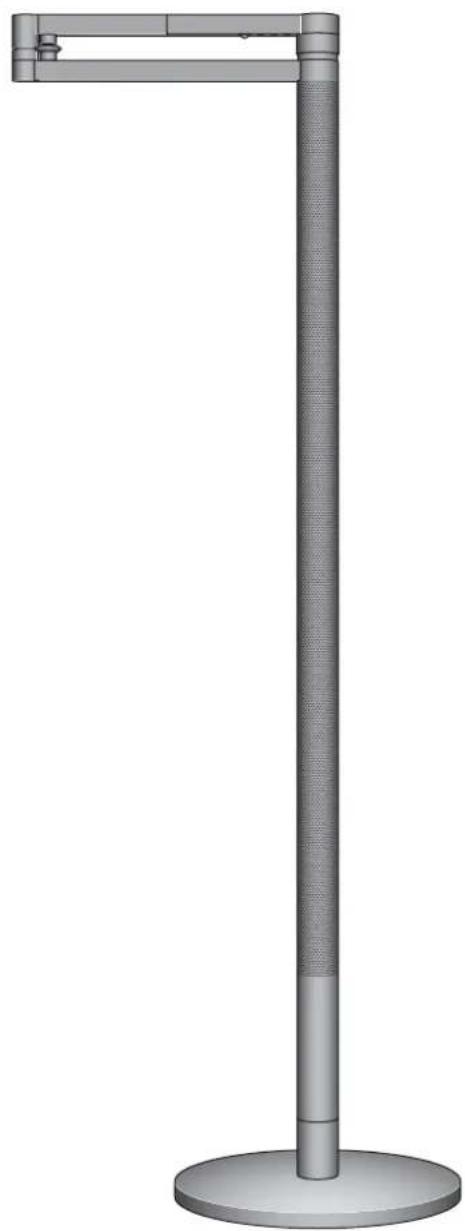

3D rendering of a vertical metallic stand with a circular base (no text or symbols)

2 Warranty information
3 Assembling your light
3 Positioning your light
4 Color temperature and brightness
4 Settings
5 Disabling/Enabling Bluetoothless technology
5 USB-C charging point

Thank you for choosing to buy a Dyson Light

Take full control with the Dyson Link app.

Get step-by-step set up and support.

Control how and when your Dyson Light operates.

Download the Dyson Link app

Download the Dyson Link app from the App store or Google Play.

Open the app and follow the on-screen instructions to create a new account.

For further information and support:

www.dyson.com

866-693-9766

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

Google Play and the Google Play logo are trademarks of Google Inc.

The Bluetooth® word mark and logos are registered trade marks owned by the Bluetooth SIG, Inc. and any use of such marks by Dyson is under license.

Your machine warranty

We don't stop caring about our machines once they're yours.

Even after your warranty has ended, we'll still be on hand to help.

Your serial number can be found on the rating plate located on the bottom of your light.

Note your serial number for future reference.

This illustration is for example purposes only.

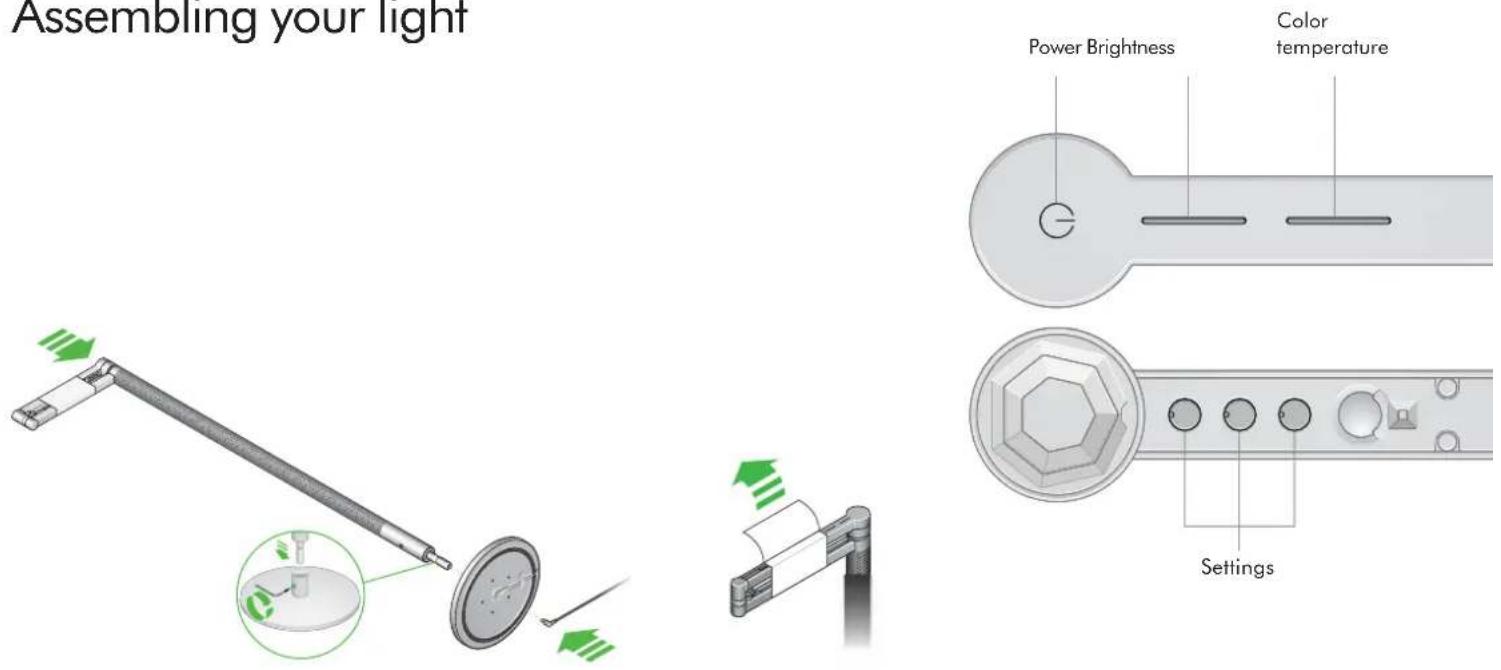

Assembling your light

Don't remove the protective wrapping from the horizontal arm before your light has been assembled.

Place the base on the floor and insert the vertical stem into the base.

Insert the screw into the vertical stem and tighten fully, with the tool supplied.

Insert the power cable into the base, making sure it sits in the cable guide.

Remove any protective wrapping from your light.

Plug in and switch on.

Download the Dyson link app and add your light.

Positioning your light

Illustration of a modern floor lamp with a glowing beam and base (no text or symbols)

3D rendering of a vertical yellow and gray pole with a base (no text or symbols)

Illustration of a standard adjustable floor lamp with a vertical pole and base (no text or symbols)

You can easily change the position of your light by independently rotating the optical head, arm and stem up to 360^ .

Color temperature and brightness

Swipe to change the color temperature of the light from warm through to cool.

Swipe to change the brightness of the light.

Illustration of a thermometer with color-coded indicators (no text or symbols)

Tap to change quickly between color temperatures.

Tap to change quickly between brightness levels.

To find out more about color temperature and brightness levels, and to get the best from your light, go to the Dyson Link app or online at: www.dyson.com/support

Settings

AUTO

The light will adjust to background light conditions and keep the workspace at a constant brightness.

Automatically changes the brightness and color, according to your geographical location, throughout the day when connected by Bluetooth® wireless technology to the Dyson Link app.

Illustration of a vertical metallic device with four circular buttons and a hexagonal base (no text or symbols)

The light will turn off after five minutes if no movement is detected.

For more information about using your light without connecting to the Dyson Link app: www.dyson.com/support

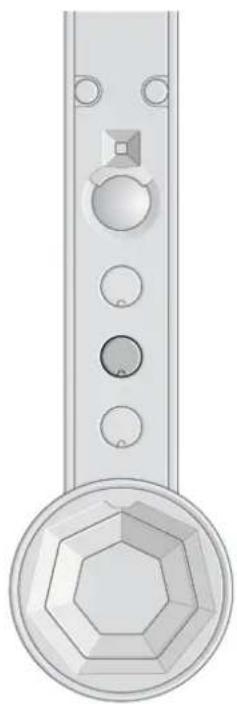

Disabling/Enabling Bluetooth® wireless technology

Your light has Bluetooth® wireless technology enabled by default.

Press and hold the middle button until the LED lights on the three buttons blink. The main light source will turn off and then on again to show that Bluetooth has been disabled.

To re-enable Bluetooth, repeat the instructions above. The main light will blink twice to show that Bluetooth has been re-enabled.

Illustration of a vertical metallic device with circular components and mounting holes (no text or symbols)

USB-C charging point

Plug in your mobile devices to charge up to 1.5A at 5V.
