Product type	Extractor hood
Brand	Pelgrim
Model	BSK962MAT
Width (cm)	90
Depth (cm)	50
Height (cm)	65 – 110 (extendable)
Net weight (kg)	15
Power supply	220-240 V ~ 50 Hz
Motor power (W)	200
Max airflow (m³/h)	600
Max noise level (dB)	65
Control type	Electronic push buttons
Number of speeds	3 + intensive
Lighting	LED, 2 x 3 W
Evacuation type	External evacuation or recirculation (optional charcoal filter)
Grease filter	Dishwasher safe
Charcoal filter (optional)	Reference: CH121, replace every 3-6 months
Repairability index	8/10
Spare parts available	Yes, via Pelgrim after-sales service
Warranty	2 years

Frequently Asked Questions - BSK962MAT Pelgrim

How to install the Pelgrim BSK962MAT hood?

Installation must be carried out by a qualified professional. Maintain a minimum distance of 65 cm between the hood and an electric hob, and 75 cm for a gas hob. Ensure that the exhaust duct is properly connected.

How to clean the grease filters?

The grease filters are dishwasher safe at 65 °C. Remove them, wash them, then dry them thoroughly before reinstalling. Regular cleaning (monthly) maintains performance.

When should the charcoal filter be replaced?

The charcoal filter (ref. CH121) must be replaced every 3 to 6 months depending on use, or when cooking odors persist. It is not washable.

The hood makes noise, is it normal?

A noise level up to 65 dB at maximum speed is normal. If the noise becomes abnormal, check that the filters are not clogged and that the installation is stable.

Can I use the hood without external evacuation?

Yes, in recirculation mode. You must install a charcoal filter (sold separately) and ensure the room is adequately ventilated.

How to change the LED bulbs?

The LED bulbs are integrated and must be replaced by the after-sales service. Call a qualified technician if the lighting no longer works.

The remote control does not work, what to do?

Check the remote control batteries and replace them if necessary. Ensure there is no obstacle between the remote and the hood. If the problem persists, contact after-sales service.

How to adjust the hood speed?

Use the buttons on the control panel: press the speed button to switch from 1 to 3, or activate the intensive speed for a peak suction.

Where to find spare parts for this model?

Spare parts are available from Pelgrim after-sales service or on the official website. You can order filters, bulbs, and accessories.

How to know if the hood is in evacuation or recirculation mode?

Check the installation manual: if an exhaust duct is connected to the outside, it is evacuation mode. Otherwise, the hood is in recirculation with an activated charcoal filter.

USER MANUAL BSK962MAT Pelgrim

Hand inserting a plastic tray into a metal filing cabinet (no text or symbols visible)

BSK662RVS

BSK662MAT

BSK962RVS

BSK962MAT

Handleiding

Afzuigkappen

Instructions for use

Cooker hood

Illustration of a microwave oven with a door and front panel, next to a pair of plates (no text or symbols)

Koolstofffilter

Diagram illustrating a mechanical assembly process with labeled steps and component illustrations

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below (no text or labels)

Illustration of a microwave oven with a hand inserting a clip into it (no text or symbols)

Filtre à charbon

Diagram illustrating a mechanical assembly process with labeled steps and component illustrations

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Illustration of a microwave oven with a hand inserting a clip into it (no text or symbols)

Kohlefilter

Technical diagram illustrating a mechanical assembly process with labeled steps and component illustrations

Symbol of a trash bin with crossed lines indicating no waste or discharge, no text or numbers present.

	Introduction		4
	Description		4
Use
	Operation		5
Maintenance
	Cleaning		6
	Grease	filters	7
	Carbon	filter	7
	Lighting		8
Appendix
	Disposal		9

Introduction

On reading these user manuals you will soon become familiar with the features of this appliance. Please read the appliance's safety and maintenance instructions.

Please retain the operating and installation instructions as these may be useful for future reference.

Read the separate safety instructions before using the device!

You can find the most recent version of the instructions for use on our website.

Description

① 1 2 3 4 5 6 2 3 B

1. Switching fan off
2. Speed setting 1
3. Speed setting 2
4. Speed setting 3
5. Intensive mode
6. Lighting

Operation

2

①

B

[Non-Text]

Switching extraction on and off

1. Select the desired extraction setting by pressing the corresponding speed setting buttons.
   The cooker hood switches on.
2. Press the intensive mode button to select the highest setting (boost) (see switching on intensive setting).
3. Quickly press and release the on/off button.
   The cooker hood switches off.

Switching on intensive setting

1. Quickly press and release the intensive mode button.
   The intensive setting (boost setting 'B') is switched on for 5 minutes. The previous extraction setting will be reactivated after this period.
2. Press the on/off button or any other button to stop the intensive setting at any time.

Switching the lighting on and off

1. Quickly press and release the lighting button.
   The light switches on.
2. To turn off the lighting, quickly press and release the lighting button again.

Timer function

When the cooker hood is switched off, the boost function can be activated. After 5 minutes, the exhaust system switches off automatically.

Cleaning

Important!

For all maintenance first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least in the same frequency as the grease filter cleaning). Do not use abrasive cleaning products. Do not use alcohol!

Important!

If the instructions regarding cleaning the appliance or replacing the filters are not followed, this can cause a fire. These instructions should be followed! The manufacturer is not liable for damage to the hood or fire damage resulting from incompetent maintenance or from non-adherence to the above safety instructions.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wash off with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker hood finish stays in good condition if it is buffed periodically following the application of wax.

Stainless steel cooker hoods

Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with a non-abrasive, non-polishing agent and buff the stainless steel in the direction of the grain.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator – if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminium grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Grease filters

Illustration of a microwave oven with a hand inserting a clip into it (no text or symbols)

Carbon filter

Diagram illustrating a mechanical assembly process with labeled steps and component illustrations

Removing the grease filters

1. Switch off the motor and lighting.
2. Remove the grease filters from the hood by pulling the special handle.

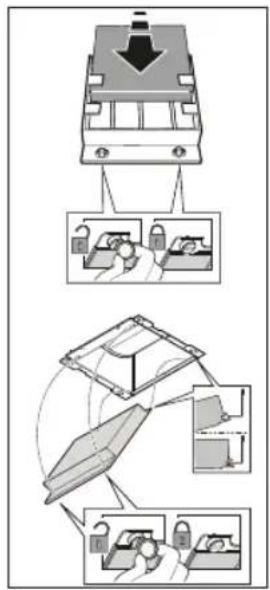

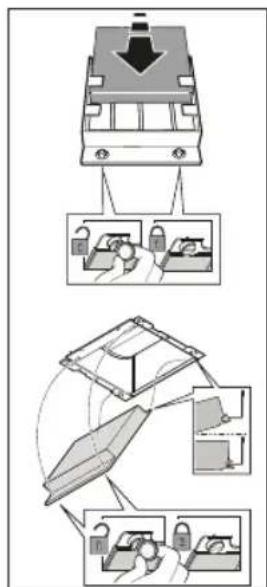

Replacing the carbon filter

The carbon filter must always be used if the cooker hood is not ducted.

Disassembly

Remove the carbon filter by turning the twist locks on the front 90°. Carefully remove the filter.

Assembly

First hook the carbon filter on the metal tab on the back of the hood and then secure the front, with the two twist locks, by turning them a quarter turn.

Note:

• The regenerable activated carbon filter can be washed by hand or in the dishwasher at a maximum temperature of 65 °C. The washing cycle must be done without other dishes and without dishwasher detergent. Do not use any cleaning agents!
• Remove excess water. Be careful to avoid damaging the filter. Let the filter dry in the oven for at least 1 hour at a maximum temperature of 80 °C. After a maximum of 3 years (or when the filter is damaged), the filter will need to be replaced.
• It is important that the grease filters and the regenerable activated carbon filter are properly dried before installation.

The functioning:

• More noise is produced when a carbon filter is used than when the cooker hood is used with an exhaust vent.
• A carbon filter functions optimally at a lower motor speed. For this reason, avoid the boost function.
  Dispose of the old carbon filter properly, with non-recyclable waste.

Lighting

This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

Disposal

Disposal of appliance and packaging

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The local authorities can provide you with the relevant information.

The packaging of this appliance is recyclable. It could have been made from:

• cardboard;
• polythene foil (PE);
• CFK-free polystyrene (PS-hard foam).

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a black rectangular block below (no text or labels)

You need to dispose of these materials responsibly in accordance with official regulations.

To draw attention to the fact that the segregated processing of electric household appliances is compulsory, this appliance carries the symbol of a crossed-out dustbin. This means that at the end of its working life, you may not dispose of the appliance as household refuse. Instead, you should hand it in at a special refuse collection centre run by the local authority or at a dealer's providing this service.

Segregated processing of household appliances avoids any negative effects on the environment and public health that might otherwise occur. It enables the recovery of the materials used in the production of this appliance, thus realising considerable savings in terms of raw materials and energy.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.
