BSK962RVS - Range hood Pelgrim - Free user manual and instructions

Brand	Pelgrim
Model	BSK962RVS
Product type	Chimney hood
Material	Stainless steel
Number of speeds	3 + intensive mode (Boost)
Intensive mode	Yes (5 minutes, automatic return to previous speed)
Lighting	Integrated lighting system (replacement by certified technician)
Grease filters	Metal, dishwasher-safe
Carbon filter	Regenerable, washable at 65 °C, oven-dryable at 80 °C, replace every 3 years
Control	Touch electronic
Functions	Automatic shut-off (5 min timer), intensive mode, lighting on/off
Power supply	220-240 V, 50 Hz (estimate)
Motor power	Approximately 200 W (estimate)
Use with exhaust	Possible (recirculation or extraction)
Maintenance	Clean exterior with soapy water, do not use abrasive products
Safety	Disconnect before maintenance; do not use alcohol
Disposal	Do not dispose of with household waste; take to recycling center
Warranty	Compliant with European directives (manufacturer's declaration)

Frequently Asked Questions - BSK962RVS Pelgrim

How to turn the extraction on and off?

To turn on, press one of the speed keys (1-3). The hood starts. To turn off, briefly press the on/off key.

How to activate the intensive mode (Boost)?

Press the intensive mode key. It runs for 5 minutes, then automatically returns to the previous speed. You can stop it earlier by pressing another key.

How to use the timer?

When the hood is off, press the intensive mode: the extraction runs for 5 minutes then stops automatically.

How often to clean the grease filters?

The metal filters should be cleaned at least once a month, by hand or in the dishwasher at low temperature. Place them opening downwards.

How to replace the carbon filter?

Remove the grease filters. Turn the rotating locks 90° to release the used carbon filter. Hook the new one at the back on the metal tab, then secure the front with the locks.

Is the carbon filter washable?

Yes, it is regenerable. Wash it by hand or in the dishwasher at 65 °C without detergent. Dry it in the oven at 80 °C for at least 1 hour. Replace after 3 years.

How to clean the exterior of the hood?

Use soapy water and a soft cloth. Rinse with clean water. For stainless steel, rub in the direction of the grain with a non-abrasive product.

What to do if the lighting stops working?

The lighting must be replaced by a certified technician. Do not attempt to do it yourself.

Can the hood operate without an exhaust duct?

Yes, you must then use a carbon filter to recirculate the air. In this case, avoid the Boost mode for optimal operation.

How to dispose of the old hood?

Do not dispose of it with household waste. Take it to a selective collection center or to a retailer that offers take-back.

USER MANUAL BSK962RVS Pelgrim

Hand inserting a plastic sheet into a metal-framed cabinet (no text or symbols visible)

BSK662RVS

BSK662MAT

BSK962RVS

BSK962MAT

Handleiding

Afzuigkappen

Instructions for use

Cooker hood

Illustration of a microwave oven with a door and front panel, next to two panels (no text or symbols)

Koolstofffilter

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below (no text or labels)

Illustration of a microwave oven with a hand inserting a clip into it (no text or symbols)

Filtre à charbon

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Illustration of a microwave oven with a hand inserting a clip into it (no text or symbols)

Kohlefilter

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below (no text or labels)

	Introduction		4
	Description		4
Use
	Operation		5
Maintenance
	Cleaning		6
	Grease	filters	7
	Carbon	filter	7
	Lighting		8
Appendix
	Disposal		9

Introduction

On reading these user manuals you will soon become familiar with the features of this appliance. Please read the appliance's safety and maintenance instructions.

Please retain the operating and installation instructions as these may be useful for future reference.

Read the separate safety instructions before using the device!

You can find the most recent version of the instructions for use on our website.

Description

1. Switching fan off
2. Speed setting 1
3. Speed setting 2
4. Speed setting 3
5. Intensive mode
6. Lighting

Operation

2

①

B

[Non-Text]

Switching extraction on and off

1. Select the desired extraction setting by pressing the corresponding speed setting buttons.
   The cooker hood switches on.
2. Press the intensive mode button to select the highest setting (boost) (see switching on intensive setting).
3. Quickly press and release the on/off button.
   The cooker hood switches off.

Switching on intensive setting

1. Quickly press and release the intensive mode button.
   The intensive setting (boost setting 'B') is switched on for 5 minutes. The previous extraction setting will be reactivated after this period.
2. Press the on/off button or any other button to stop the intensive setting at any time.

Switching the lighting on and off

1. Quickly press and release the lighting button.
   The light switches on.
2. To turn off the lighting, quickly press and release the lighting button again.

Timer function

When the cooker hood is switched off, the boost function can be activated. After 5 minutes, the exhaust system switches off automatically.

Cleaning

Important!

For all maintenance first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least in the same frequency as the grease filter cleaning). Do not use abrasive cleaning products. Do not use alcohol!

Important!

If the instructions regarding cleaning the appliance or replacing the filters are not followed, this can cause a fire. These instructions should be followed! The manufacturer is not liable for damage to the hood or fire damage resulting from incompetent maintenance or from non-adherence to the above safety instructions.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wash off with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker hood finish stays in good condition if it is buffed periodically following the application of wax.

Stainless steel cooker hoods

Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with a non-abrasive, non-polishing agent and buff the stainless steel in the direction of the grain.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator – if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminium grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Grease filters

Illustration of a microwave oven with a hand inserting a clip into it (no text or symbols)

Carbon filter

Removing the grease filters

1. Switch off the motor and lighting.
2. Remove the grease filters from the hood by pulling the special handle.

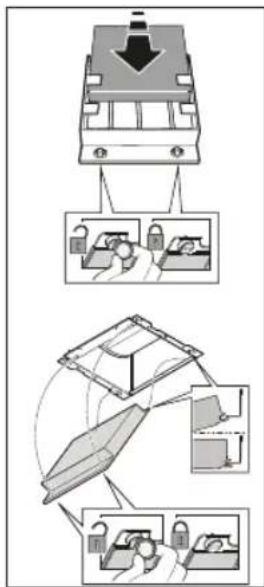

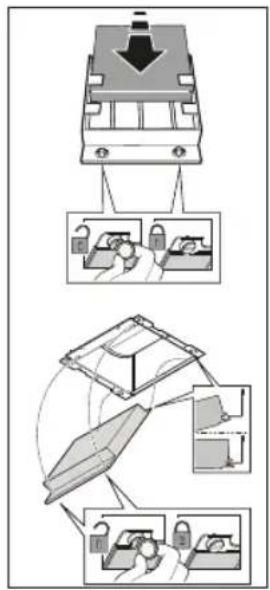

Replacing the carbon filter

The carbon filter must always be used if the cooker hood is not ducted.

Disassembly

Remove the carbon filter by turning the twist locks on the front 90°. Carefully remove the filter.

Assembly

First hook the carbon filter on the metal tab on the back of the hood and then secure the front, with the two twist locks, by turning them a quarter turn.

Note:

• The regenerable activated carbon filter can be washed by hand or in the dishwasher at a maximum temperature of 65 °C. The washing cycle must be done without other dishes and without dishwasher detergent. Do not use any cleaning agents!
• Remove excess water. Be careful to avoid damaging the filter. Let the filter dry in the oven for at least 1 hour at a maximum temperature of 80 °C. After a maximum of 3 years (or when the filter is damaged), the filter will need to be replaced.
• It is important that the grease filters and the regenerable activated carbon filter are properly dried before installation.

The functioning:

• More noise is produced when a carbon filter is used than when the cooker hood is used with an exhaust vent.
• A carbon filter functions optimally at a lower motor speed. For this reason, avoid the boost function.
  Dispose of the old carbon filter properly, with non-recyclable waste.

Lighting

This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

Disposal

Disposal of appliance and packaging

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The local authorities can provide you with the relevant information.

The packaging of this appliance is recyclable. It could have been made from:

• cardboard;
• polythene foil (PE);
• CFK-free polystyrene (PS-hard foam).

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a black rectangular block below (no text or labels)

You need to dispose of these materials responsibly in accordance with official regulations.

To draw attention to the fact that the segregated processing of electric household appliances is compulsory, this appliance carries the symbol of a crossed-out dustbin. This means that at the end of its working life, you may not dispose of the appliance as household refuse. Instead, you should hand it in at a special refuse collection centre run by the local authority or at a dealer's providing this service.

Segregated processing of household appliances avoids any negative effects on the environment and public health that might otherwise occur. It enables the recovery of the materials used in the production of this appliance, thus realising considerable savings in terms of raw materials and energy.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

www.pelgrim.nl

www.pelgrim.be

Pelgrim

828069
