EDS-SSM 600 C2 - Hand blender SILVERCREST - Free user manual and instructions
Find the device manual for free EDS-SSM 600 C2 SILVERCREST in PDF.
| Brand | SilverCrest |
| Model | EDS-SSM 600 C2 |
| Product type | Immersion blender |
| Rated power | 600 W |
| Mains voltage | 220 – 240 V ~, 50 Hz |
| Protection class | II |
| Speed control | Variable from 1 to 5 |
| Turbo function | Yes, instant maximum speed |
| Blade material | Stainless steel (estimate) |
| Included accessories | Motor unit, blending foot, instruction manual |
| Maximum continuous use | 1 minute |
| Recommended cooling time | 2 minutes |
| Cleaning | Motor unit: damp cloth; blending foot: soapy water, dry thoroughly. Do not put in dishwasher. |
| Safety | Double insulation, very sharp blade, unplug before cleaning or changing accessories |
| Warranty | 3 years (domestic use) |
| After-sales service | France: 0800 919270, email: kompernass@lidl.fr |
| IAN number | 90961 |
| Country of origin | Not specified |
Frequently Asked Questions - EDS-SSM 600 C2 SILVERCREST
User questions about EDS-SSM 600 C2 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hand blender in PDF format for free! Find your manual EDS-SSM 600 C2 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EDS-SSM 600 C2 by SILVERCREST.
USER MANUAL EDS-SSM 600 C2 SILVERCREST
Operating instructions
DE AT CH
STABMIXER
Bedienungsanleitung
IAN 90961
2
FR BE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.


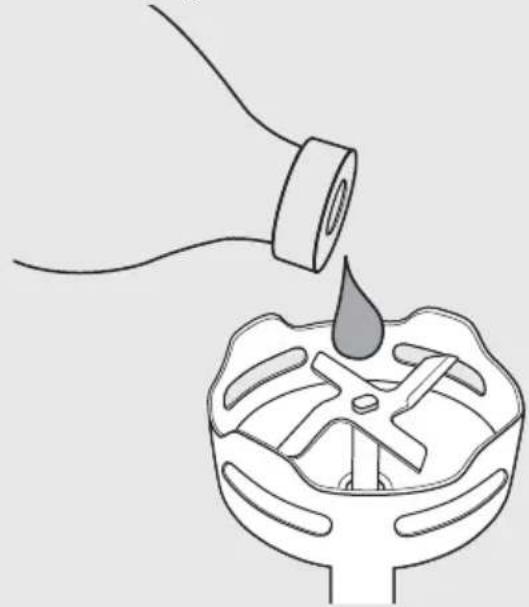

Line drawing of a bottle pouring liquid into a mechanical component (no text or symbols)Nettoyage
RISQUE DE CHOC ÉLECTRIQUE !
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Garantie
Kräuter-Vinaigrette 31
Joghurt - Bananen - Milchshake.... 31
Einleitung
STROMSCHLAGGEFAHR
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Garantie
Safety instructions 35
Items supplied 37
Disposal of the packaging....37
Technical data 38
Description of appliance / Accessories 38
Utilisation 38
Assembling 39
Holding the appliance ....39
Operation 40
Cleaning 41
Disposal of the appliance .... 41
Notes on the EC Declaration of Conformity 41
Importer 42
Warranty 42
Service 42
Recipes 43
Cream of Vegetable Soup 43
Pumpkin Soup 44
Sweet Fruit Spread. 45
Herb Vinaigrette 46
Yoghurt banana milk shake 46
GB
Introduction
Congratulations on the purchase of your new appliance.
You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.
Copyright
This documentation is copyright protected.
Any copying or reproduction, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.
Intended use
This appliance is intended exclusively for processing foodstuffs in small quantities. It is intended exclusively for use in domestic households. Do not use it for commercial applications!
WARNING
Danger from unintended use!
Danger can come from the appliance if used for unintended purposes and/or other types of use.
▶ Use the appliance exclusively for intended purposes.
▶ Observe the procedures described in these operating instructions.
NOTICE
Risks can can be engendered if the appliance if used for unintended purposes and/or other types of use. Use the appliance exclusively for its intended purposes. Observe the procedures described in these operating instructions. Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorized modifications or the use of non-approved spare parts will not be acknowledged. The operator alone bears liability.
Safety instructions
RISK OF ELECTRIC SHOCK
- Connect the appliance only to mains power sockets supplying a mains power voltage of 220 - 240 V \~ / 50 Hz.
In event of operating malfunctions and before cleaning the appliance, remove the plug from the mains power socket. - Do not expose the appliance to moisture and do not use it outdoors.
If liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.
▶ Always pull on the plug to disconnect the appliance from the mains; never pull on the power cable itself. - Do not kink or crush the power cable, and route the cable so that it cannot be stepped on or tripped over.
▶ To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department. - Do not attempt to open the hand blender's motor casing. If you do so, the safety of the appliance is no longer assured and the warranty will become void.
GB
⚠ STROMSCHLAGGEFAHR
This appliance may be used by people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in how to use the appliance safely and have understood the potential risks.
The appliance and its connecting cable must be kept away from children.
Never immerse the motor unit in liquids, or allow liquids to get into the motor unit housing.
⚠ WARNING! THERE IS A RISK OF INJURY!
Before changing accessories or additional parts that are in motion during operation, the appliance must be switched off and disconnected from mains power.
- Disconnect the appliance from the mains power supply,...
-when the appliance is unsupervised,
-when you clean the appliance,
-when you are assembling or dismantling it.
- This appliance may not be used by children. Children shall not play with the appliance.
⚠ WARNING! THERE IS A RISK OF INJURY!
The blade is extremely sharp! Handle it with great care.
- Handle the extremely sharp blade with caution as it can cause injuries.
▶ Clean the hand blender very carefully The blade is extremely sharp!
Items supplied
The appliance is delivered with the following components as standard:
- HandBlender
- Operating instructions
1) Remove all parts of the appliance and these operating instructions from the box.
2) Remove all packing material.
3) Clean all parts of the appliance as described in the chapter "Cleaning".
NOTICE
▶ Check the contents to make sure everything is there and for visible damage.
▶ If the contents are incomplete, or have been damaged due to defective packaging or transportation, contact the Service Hotline (see chapter Service).
Disposal of the packaging
The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.
The recirculation of packaging into the material circuit saves on raw material and reduces generated waste. Dispose of packaging material that is no longer needed according to the regionally established regulations.
NOTICE
▶ If possible preserve the appliance's original packaging during the warranty period so that in the case of a warranty claim you can package the appliance properly for return.
Technical data
| Voltage 220 - 240 V | ~, 50 Hz |
| Nominal Power Rating 600 W | |
| Protection Class |  |
We recommend that you let the hand blender cool down for 2 minutes after about 1 minute of running time.
Description of appliance / Accessories
Illustration A:
① Speed regulator
② Switch (Standard Speed)
③ Turbo-Switch (High Speed)
4 Motor unit
5 Hand blender
Utilisation
■ With this hand blender ⑤ you can prepare dips, sauces, soups or baby food. We recommend using the hand blender ⑤ for a maximum of 1 minute at a time and then letting it cool down.
WARNING - PROPERTY DAMAGE!
Do not use this hand blender ⑤ for the preparation of solid foods. This would lead to irreparable damage to the appliance!
Assembling
WARNING! RISK OF INJURY!
▶ Only insert the plug into the power socket after you have assembled the appliance for use.
NOTICE
Before the first use, clean all parts as described in the chapter "Cleaning".
WARNING! RISK OF INJURY!
The blade is extremely sharp! Handle it with great care.
Place the hand blender ⑤ on the motor unit ④ so that the arrow points to the symbol 🚫. Turn the hand blender ⑤ until the arrow on the motor unit ④ points to the symbol 🔒.

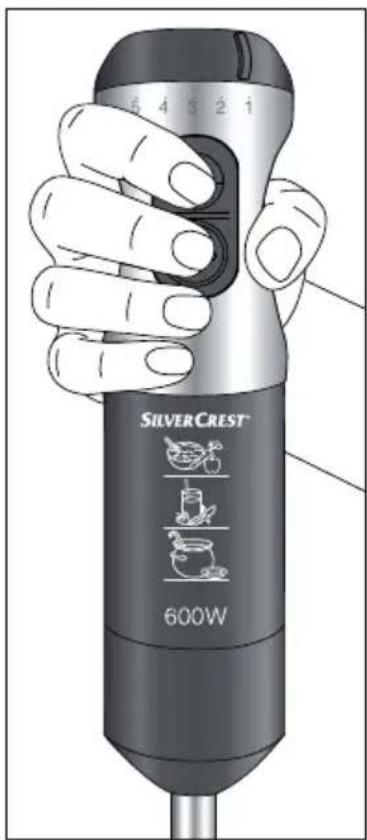

Holding the appliance
To operate the appliance, hold it as follows:
Operation
WARNING! RISK OF INJURY!
▶ Foodstuff s should not be too hot. Squirting contents may cause scalding.
NOTICE
We recommend that you let the hand blender ⑤ cool off for 2 minutes after 1 minute of operation.
When you have assembled the hand blender ⑤:
1) Insert the plug into a mains power socket.
2) Press and hold the switch ② to process foodstuffs at the standard speed. Slide the speed regulator ① in the direction of "5" to increase the speed. Slide the speed regulator ① in the direction of "1" to reduce the speed.
3) Press and hold the turbo-switch ③ to process foodstuffs at a higher speed. By pressing the turbo-switch ③ the maximum processing speed is available immediately.
4) When you have completed the processing of the foodstuff s, simply release the switch.
NOTICE
Should unusual noises occur during operation, such as squeaking or the like, apply a little neutral cooking oil to the drive shaft of the hand blender ⑤:
RISK OF ELECTRIC SHOCK!
Before you clean the hand blender ⑤, unplug the appliance from the power socket.
▶ Under no circumstances may the motor unit ④ be cleaned by immersing it in water or holding it under running water.
△WARNING - RISK OF PHYSICAL INJURY!
▶ Handle the extremely sharp blade with caution, it can cause injuries.
WARNING - PROPERTY DAMAGE!
▶ Do not clean the attachments of your hand blender in the dishwasher, as it may cause damage to them.
▶ Do not use aggressive, chemical or abrasive cleaning agents! They could irreparably damage the upper surfaces!
1) Disconnect the plug.
2) Clean the motor unit ④ with a moist cloth.
Ensure that water cannot permeate through the openings of the motor unit 4. For stubborn stains use a mild detergent on the cloth. Wipe detergent residues off with a damp cloth.
3) Clean the hand blender ⑤ thoroughly in washing-up water and afterwards remove all detergent residue with clean water.
4) Dry everything well with a dish cloth and ensure that the appliance is completely dry before re-using it.
Disposal of the appliance
Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.
Dispose of this appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.
Notes on the EC Declaration of Conformity
With regard to conformity with essential requirements and other relevant provisions, this appliance complies with the requirements of the Electromagnetic Compatibility Directive 2004/108/EC, the ErP Guidelines 2009/125/EC and the Low Voltage Directive 2006/95/EC.
The complete original declaration of conformity can be obtained from the importer.
CE
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
GB
Warranty
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department. Only in this way can a post-free despatch for your goods be assured.
NOTICE
The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.
This product is for domestic use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch.
Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.
Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.
Repairs made after the lapse of the warranty period are subject to charge.
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 90961
Hotline availability: Monday to Friday 08:00 - 20:00 (CET)
Recipes
Cream of Vegetable Soup
2 - 4 People
Ingredients
■ 2 - 3 tbsp Cooking oil
■ 200 g Onions
■ 200 g Potatoes (specially suitable are fl oury varieties)
200 g Carrots
■ 350 - 400 ml Vegetable stock (fresh or instant)
Salt, Pepper, Nutmeg
■ 5 g Parsley
Preparation
1) Peel and finely chop the onions. Wash, peel and cut the carrots into slices. Peel and rinse the potatoes, then cut them into approx. 2 cm cubes.
2) Heat the oil in a pan, sauté the onions in it until glassy. Add the carrots and potatoes and sauté them also. Pour in sufficient broth so that the vegetables are well covered and then boil everything for 10-15 minutes until soft. If necessary, add more broth if the vegetables are no longer completely covered.
3) Wash the parsley, shake it dry and remove the stems. Break the parsley into large pieces and add them to the soup. Puree everything with the hand blender ⑤ for about 1 minute. Season with salt, pepper and grated nutmeg.
Pumpkin Soup
4 People
Ingredients
■ 1 medium-sized Onion
2 Garlic cloves
■ 10 - 20 g fresh Ginger
■ 3 tbsp Rapeseed oil
■ 400 g Pumpkin (ideally suited is Hokkaido pumpkin, because the shell becomes soft when cooked and it does not need to be peeled)
■ 250 - 300 ml Coconut milk
■ 250 - 500 ml Vegetable stock
■ Juice of 12 of an Orange
■ some dry white wine
■ 1 tsp. Sugar
Salt, Pepper
Preparation
1) Peel and chop the onion, the garlic also. Peel and finely chop the ginger. Firstly, sauté the onion and ginger in hot oil. After 2 minutes add the garlic and sauté this also.
2) Thoroughly clean the pumpkin under warm water with a vegetable brush, then cut it into 2-3 cm cubes. (If a pumpkin other than Hokkaido pumpkin is being used, it must be peeled in addition). Add the diced pumpkin to the onions and ginger and sauté them also. Fill with half the amount of coconut milk and sufficient vegetable broth to cover the pumpkin well. Cook for approx. 20-25 minutes with the lid on until soft. Mix everything with a hand blender ⑤ until smooth. Thereby, add additional coconut milk until the soup has the correct soft and creamy consistency.
3) Season the soup with orange juice, white wine, sugar, salt and pepper so that it has both a sweet and a balanced sour-salty note in addition to the sharp fl avour.
Sweet Fruit Spread
Ingredients
■ 250 g Strawberries or other fruit (fresh or frozen)
■ 1 packet (about 125 g) Preserving sugar without cooking
■ 1 dash of Lemon juice
■ 1 pinch of the pulp of a Vanilla pod
Preparation
1) Wash and clean the strawberries, at the same time removing the green stems. Drain well in a colander, so that you are rid of excess water and the spread is not too watery. Slice larger strawberries into small pieces.
2) Weigh 250 g of strawberries and place in a suitable blender jug.
3) Add a dash of lemon juice.
4) If desired, scrape out and add the pulp of a vanilla pod.
5) Add the contents of the packet of preserving sugar without cooking and mix thoroughly with a hand blender ⑤ for 45-60 seconds. If there are still large pieces in it, allow it to stand for 2 minutes and then purée it again for 60 seconds.
6) Enjoy the fruit spread straight away or pour it into a glass jar with a screw cap and firmly seal it.
Herb Vinaigrette
Ingredients
■ 3 - 4 sprigs of fl at Parsley
■ 3 - 4 stalks of Basil
■ ca. 100 ml Olive oi
■ 1 untreated Lemon
■ 1 heaped tsp Mustard (Dijon mustard)
■ 1 Garlic clove
Salt, Pepper, Sugar
Preparation
1) Remove the leaves from the stems of the herbs and place them in a high mixing bowl.
2) Add the juice of the lemon and a little zest.
3) Peel the garlic clove and cut it into small cubes.
4) Place the mustard, the chopped garlic, salt and pepper in the mixing bowl.
5) Mix the ingredients with the hand blender ⑤ and gradually add the olive oil.
6) Season the vinaigrette to taste and perhaps add a pinch of sugar.
Yoghurt banana milk shake
Ingredients
■ 250 g yoghurt (vanilla)
1 banana
■ 200 ml milk
■ 1 sachet of vanilla sugar
Preparation
1) Peel the banana and cut it into small pieces.
2) Add all the ingredients to a mixing bowl.
3) Use hand blender ⑤ to blend and puree.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND / GERMANY
www.kompernass.com
Last Information Update:
07 / 2013 · Ident.-No.: EDS-SSM600C2-052013-2
