USER MANUAL 10027877 Klarstein

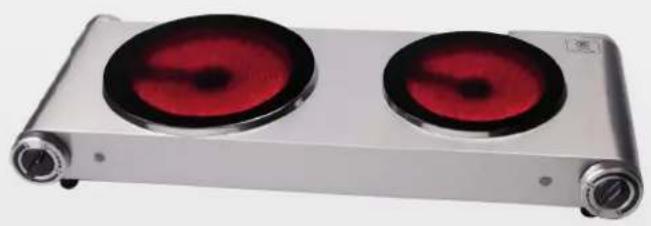

Exterior view of a silver portable electrical stove with a red illuminated top (no text or symbols visible)

Exterior view of a modern electric stove with two red-lit circular lamps (no text or symbols visible)

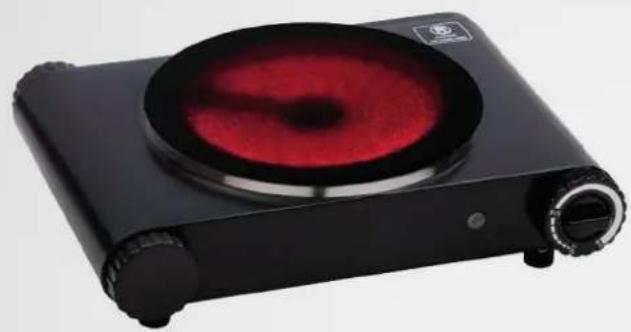

Black portable electrical stove with red interior and control knob (no visible text or symbols)

Black portable stove with two red-lit lamps (no text or symbols visible)

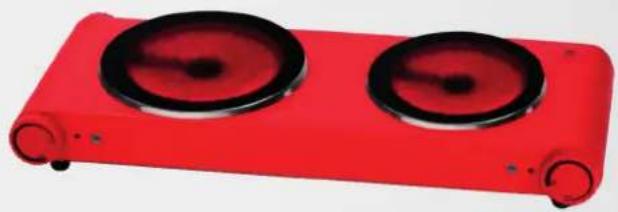

Red portable electrical stove with two circular burners (no text or symbols visible)

Kochplatt e

10027875

10027876

10027877

10027878

10027879

KLARSTEIN

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 5

Safety Instructions 5

Before first Use 6

Getting Started 6

Cleaning and Care 7

Environment Concerns 7

Declaration of Conformity 7

Technical Data

Item number 10027875, 10027876, 10027877
Power supply 220-240 V ~ 50-60 Hz
Power 2400 W (2 x 1200 W)
Dimensions 570 mm (Width) x 265 mm (Depth) x 105 mm (Height)
Weight 3 kg

Item number 10027878, 10027879
Power supply 220-240 V ~ 50-60 Hz
Power 1200 W
Dimensions 340 mm (Width) x 265 mm (Depth) x 105 mm (Height)
Weight 1.7 kg

Safety Instructions

• Read all the safety and operating instructions carefully and retain them for future reference.
• Do not touch hot surfaces. Use handle or knobs.
• To protect against electrical shock do not immerse cord, plugs, or the whole unit in water or other liquid.
• Close supervision in necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunction or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge or table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

CORRECT USE OF ELECTRICITY

• Use of an extension cord is not recommended as it may overheat and cause risk of fire. However, if an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and the long cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.
• To prevent overloading and blowing fuses, ensure that no other high power appliance is plugged into the same socket, or another socket which is connected in the same circuit.
• DO NOT PUT the cord under the carpet, blankets. Always keep the power cable away from walkway in room. DO NOT TRY TO REPAIR the broken fuse by yourself, the user should take the set to your local authorized maintenance center to replace it with the new one.
• The appliance is indoor use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The surfaces are liable to get hot during use
• Appliances are not intended to be operated by means of an external timer or separate remote-control system
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• The outer surface may get hot when the appliance is operating and first time use, there is a little smoke and smell, that is normal.

SAFETY IN OPERATION

• DO NOT OPERATE this hot plate near water sources or flammable liquids.
• DO NOT OPERATE this hot plate on or near any hot surface. (Hot plate, electric stoves etc).
• Always operate this from an earthed domestic 220V-240 \~ 50/60 Hz power socket.
• Ensure the hot place is placed on a stable, secure surface to eliminate the possibility of tipping over or avoid any water in the appliance.
• Never try to touch the hot surface of this hot plate before it is cooled down.

Before first Use

• Clean the hot plate with a soft damp cloth. Place your hot plate on the level and stable surface near the electrical socket. Check that the voltage marked on the product corresponds with your supply voltage. Ensure the controller is in the "OFF" position before plug in.
• Always use flat bottom saucepans or containers that make close contact with the heating element. Ideally, the saucepans or containers should be 180-200mm in diameter. Keep the surface of the heating element clean and dry.
• Close supervision is extremely necessary when this hot plate is used by or near children.
• or invalids. Never operate this hot plate unattended.

Getting Started

• Put water and/or food in the container (The total amount of water and /or food should not exceed 80% of the container to avoid overflowing), put a lid on the container and place it on the hot plate. If there is smoke for the first use, that is normal. To make the unit heat without any pot about 10 Minutes before cooking.
• Connecting to the power supply socket. Turn the switch from "OFF" TO "MAX" position and the indicator light is on for working, the hot plate is in a state of heating.
• Two points to be reminded by the user when using the new hot plate:
• When using this hot plate for the first time, there may be a smell of smoke coming from the surface of the heating element. This is normal because of the invisible protective coating in production.
• Before the water is boiling, the indicator light on the hot plate may be temporary off due to the temporary disconnection of the thermostatic control.
• This is a safety issue for the working on the hot plate.
• When you have finished using the hot plate, turn the switch to "OFF" position and unplug it from the socket. Wait until the appliance is completely cooled down before moving or cleaning.

Cleaning and Care

• Make sure the plug is removed from the power supply socket.
• After the hot plate set is completely cooled down, clean it with the mild cleaner or gel-like cleaner by using soft cloth.
• PLEASE DO NOT CLEAN THE SET WHEN IT IS STILL HOT.
• DO NOT USE hard brushes, scratchy materials and/or alcohol, petrol or any organic cleaner for the cleaning purpose.
• Except the removable frying pan, do not immerse the main body in water to clean.
• Put the hot plate on the cool place right after the cleaning.

Environment Concerns

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

This product is conform to the following European Directives:

2004/108/EC (EMC)

2011/65/EU (RoHS)

2006/95/EC (LVD)
