Product type	Beer refrigerator
Brand	Klarstein
Model	Beer Baron
Dimensions (H x W x D)	85 x 50 x 55 cm
Net weight	25 kg
Capacity	50 liters (approx. 150 cans of 33 cl)
Power supply	220-240 V ~ 50 Hz
Energy consumption	100 kWh/year (estimated)
Climate class	N/ST (16°C to 38°C)
Refrigerant	R600a
Noise level	~40 dB
Main functions	Adjustable cooling, LED interior lighting, glass door, adjustable shelves
Maintenance and cleaning	Clean the interior with a soft cloth and soapy water. Manual defrosting recommended.
Safety	Safety thermostat, lockable door
Spare parts and repairability	Available from Klarstein customer service (contact support)
General information	User manual included (64 pages), available in multiple languages

Frequently Asked Questions - Beer Baron Klarstein

What is the ideal temperature for storing my beers?

The ideal temperature is between 6°C and 10°C. Use the thermostat adjustment knob to set it.

How to clean the interior of the refrigerator?

Unplug the appliance, remove the shelves and clean with a soft cloth dampened with soapy water. Rinse and dry. Do not use abrasive cleaners.

Do I need to defrost the refrigerator?

Yes, it is recommended to manually defrost when the frost layer exceeds 3 mm thickness to maintain energy efficiency.

How many cans can I store?

With a capacity of 50 liters, you can store about 150 cans of 33 cl.

Is the door reversible?

Yes, the door can be reversed for left or right opening. See the manual for assembly instructions.

What to do if the appliance does not cool enough?

Check that the thermostat setting is not 'Off', that the ventilation is not blocked, and that the door closes properly.

Can I store drinks other than beer?

Yes, the refrigerator is suitable for all drinks, but it is optimized for beer cans and bottles.

How to adjust the temperature?

Turn the thermostat knob inside the refrigerator to a position between 1 (less cold) and 5 (colder).

The interior light is not working, what to do?

Check that the appliance is plugged in. If the LED light does not turn on, contact customer service for a replacement.

Where to find the user manual in French?

The manual is available for free download on notice-facile.com in the section dedicated to the Klarstein Beer Baron model.

USER MANUAL Beer Baron Klarstein

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 16

Installation Notes 19

Control Panel 20

Getting Started 21

Cleaning and Care 21

Product Data Sheet 22

Troubleshooting 26

Disposal Considerations 26

Manufacturer & Importer (UK) 26

TECHNICAL DATA

Item number	10034117, 10038331	10034513
Capacity (litres) 48 L 68 L
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

• Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

• Defrost the freezer at least once a month because too much frost may affect refrigeration.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is fl ammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special Notes

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.
• Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
• Store raw meat and fi sh in suitable containers in the refrigerator so that meat and fi sh do not come into contact with or drip on other foods.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of drinks.
- This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.
• This appliance is not suitable for freezing food.
- The shelves have been installed in advance to allow the most efficient use of energy.

Special notes on the shelves

• The shelves were placed in advance in such a way that they allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use other types of shelves not approved by the manufacturer, which may cause poor cooling or increase energy consumption.
• We recommend that you use the shelves as shown to ensure the most efficient use of energy.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's nameplate.

SN	Low	This cooling unit is designed for use at ambient temperatures of 10-32 °C.
N	Moderate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature and humidity of the beverage cooler. For optimal operation of the beverage cooler, we recommend an ambient temperature of 23^ C to 25^ C.

INSTALLATION NOTES

It is important that you leave your device upright for at least 4 hours before switching it on to allow the cooling system to adjust.

• When you move the unit, do not tilt it more than 45 degrees. Do not apply force to parts such as the condenser, door or handle. They can distort and interfere with the operation of the cooler. Make sure ALL packaging is removed before installation.
• Make sure there is enough space around the product to allow air to circulate freely.
• Do not place the product near heat sources, in direct sunlight or in humid rooms.
• Make sure that the supply voltage of the power outlet corresponds to the voltage indicated on the type plate.
• Insert the plug firmly into the socket.
• The socket outlet must be earthed. Do not plug the plug into unearthed sockets and do not use an extension cable.
• The product is equipped with adjustable feet. Once the product is in place, adjust them so that the refrigerator is level and does not slip.

Note: Do not place the product in places where the ambient temperature can fall below 5 °C, e.g. in the garage or shed.

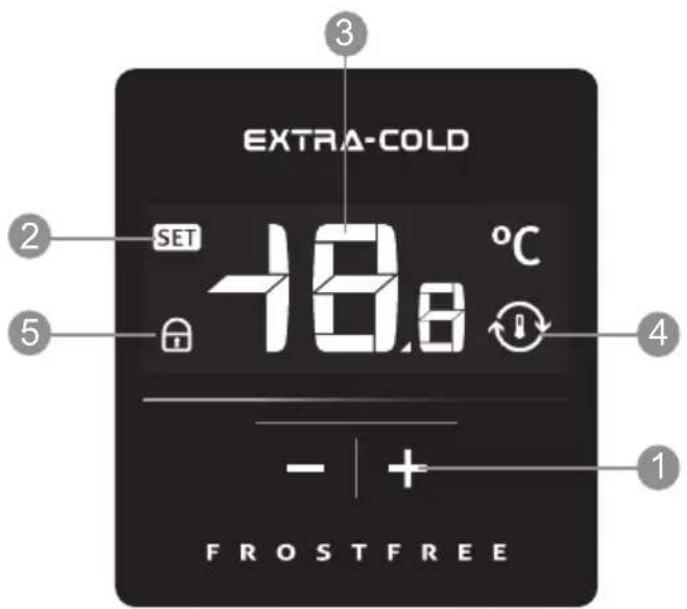

CONTROL PANEL

Button functions and displays

1	Temperature controller buttons (Plus/Minus)
2	System setting indicator (SET)
3	Temperature indicator
4	Fridge cooling indicator
5	Display lock indicator

GETTING STARTED

Setting the Temperature Control

The thermostat temperature controller is located on the display on the front touch panel.

• Insert the plug into the mains socket. On the display, all display areas light up for 1 second.
• Use the Plus/Minus button to set the desired temperature. Each time the button is pressed, the temperature is increased or decreased by 1 °C. The lowest temperature is 0 °C, the highest 10 °C.
• After you have set the desired temperature, wait for 5 seconds, "SET" appears in the display.
• When the small thermometer icon appears on the display, the appliance is cooled down to the set temperature.
• To lock the settings, press and hold the Plus/Minus buttons for 2 seconds, a beep will sound and the lock indicator will flash. To release the lock, press and hold the Plus/Minus buttons again for 2 seconds, the lock indicator will turn off.

CLEANING AND CARE

Outside

The outside of your refrigerator can be cleaned using a soft cloth moistened with a mild detergent solution. Wipe dry with kitchen towel. Do not use chemical or abrasive cleaners on any part of your refrigerator as these could permanently damage or discolour the surfaces.

Internal Cleaning

Wipe up any internal spills immediately with a soft cloth moistened with a mild detergent solution. Dry thoroughly.

Shelves and Guards

Any shelves can be removed and cleaned separately.

Door Seals

Ensure that the door seals are kept free from debris at all times. If they don't seal properly this can waste energy and cause refrigeration unit to over run.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10034117A, 10038331A
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 515		Total volume (dm3 or L)	48Width 430
	Depth	475
EEI		125	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		99.28	Climate class:	extended temperate, temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food Yes 48 4 - M
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10034513A
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance:				Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 695		Total volume (dm3 or L)	70
	Width	430
	Depth	475
EEI		125	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		101.11	Climate class:	extended temperate, temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food Yes 70 4 - M
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

TROUBLESHOOTING

Problem Possible cause and suggested solution
Condensation on outside of door.	Humidity in the room is high. This is also to be expected if the room is very warm.
Condensation on the inside of the cabinet.	This is also caused by high humidity. You can minimise this by only keeping the door open only as long as you need to.
Too cold / not cold enough inside the cabinet.	Adjust thermostat up or down accord ingly. Make sure nothing is stopping the door from sealing properly.
No power to cooler. Check power cord, power supply or on/off switch.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Estimado cliente,

ÍNDICE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdo

Chère cliente, cher client,

SOMMAIRE

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Gentile cliente,

INDICE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

KLARSTEIN
