Speed Iron V2 - Iron Klarstein - Free user manual and instructions

Product type	Clothes iron
Brand	Klarstein
Model	Speed Iron V2
Power supply	220-240 V ~ 50/60 Hz, 2000 W
Dimensions (approx.)	30 x 12 x 15 cm
Weight (approx.)	1.2 kg
Soleplate	Ceramic soleplate
Water tank capacity	250 ml
Steam function	Continuous steam up to 40 g/min, steam shot up to 130 g/min
Anti-drip function	Yes
Spray function	Yes
Automatic shut-off	Yes, after 8 min (vertical) / 30 s (horizontal)
Anti-scale system	Yes, integrated
Cord	2.5 m, swivel
Care and cleaning	Regular cleaning of the tank with a water-vinegar mixture; preferably use distilled water
Safety	Automatic shut-off, overheat protection system
Spare parts and repairability	Water tank, soleplate, steam button; repair possible by a professional
Color	White and silver
Included accessories	Measuring cup

Frequently Asked Questions - Speed Iron V2 Klarstein

How to fill the water tank?

Unplug the appliance and open the tank cap. Pour tap or distilled water up to the MAX level. Do not exceed the capacity.

How to use the steam function?

Make sure the tank is filled. Set the steam dial to the desired level. When the iron heats up, steam is produced continuously.

Why is my iron not producing steam?

Check the water level in the tank. If the tank is empty, fill it. Also make sure the steam dial is not on the minimum position.

How to descale the iron?

Use the self-cleaning function: fill the tank to 3/4, plug in the iron, set it to maximum, then press the self-cleaning button. Then rinse with clean water.

What is the anti-drip function?

The anti-drip function prevents water drops from staining laundry when the temperature is too low to produce steam.

How does the automatic shut-off work?

If the iron remains still horizontally for 30 seconds or vertically for 8 minutes, it turns off automatically for safety reasons.

Can I use tap water?

Yes, but to avoid scale buildup, it is recommended to use distilled water or demineralized water, especially in hard water areas.

How to maintain the ceramic soleplate?

Let the soleplate cool down, then wipe it with a damp cloth. Do not use abrasive products to avoid scratching the ceramic coating.

What to do if the iron does not heat up?

Check that the plug is properly inserted and that the thermostat is set to a sufficient temperature. If the problem persists, contact customer service.

How to store the iron after use?

Unplug the appliance and empty the tank. Wrap the cord around the heel, then store the iron in an upright position on a stable surface.

USER MANUAL Speed Iron V2 Klarstein

CLEANINGCI LEANINGLE ANINGLEAN NINGCLEAN NGCLEANINGCI CLEANINGLE LEANINGLE ANINGLEAN

KLARSTEIN

www.klarstein.com

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Product Overview 12

Installation 12

Commissioning and Operation 13

Cleaning and Care 13

Hints on Disposal 14

Manufacturer & Importer (UK) 14

TECHNICAL DATA

Item number 10034580, 10034581
Power supply 220-240 V ~ 50/60 Hz
Total output 2100 W
Iron output 800 W
Boiler output 1300 W
Water tank volume 1100 ml

SAFETY INSTRUCTIONS

- If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person to avoid danger.

- Do not leave the appliance unattended when the power plug is plugged into the wall outlet.

- Unplug the appliance from the wall outlet before filling the water tank.

- The appliance must be used and parked on a stable surface.

• Make sure that the iron holder is on a stable surface.

- Do not use the appliance if it has been dropped, has visible damage, or is leaking.

- Make sure that the power cord and iron are out of the reach of children under the age of 8 when it is in use or cooling down.

- The unit can be used by children 8 years of age and older.

- Do not use the equipment by persons with limited physical, sensory or mental abilities or lack of experience and knowledge unless they are supervised in using the equipment or have been instructed in the safe use of the equipment, can use the equipment safely and understand the hazards involved.

- The equipment is not a toy. Cleaning and maintenance of the appliance may only be carried out by children under supervision.

- Do not put detergents or chemical substances in the water tank.

- Tap water contains magnesium, mineral salts, and other residues, and in hard water areas, lime may form in the water tank. To avoid these problems, it is necessary to rinse the tank with water after every third or fourth use. In areas with very hard water, it is recommended to use a vinegar solution (75% water + 25% vinegar) to clean the water tank.

- Do not place the appliance in water or other liquids.

- Do not touch the water with wet hands or wet feet while the appliance is connected to power.

- Ensure that the appliance is not used by persons unfamiliar with the use of the appliance.

- It is recommended that the power plug be unplugged from the outlet when the product is not in use.

- To fill the water tank, use cold water and carefully pour the water into the water tank. Otherwise, the water may splash out of the water tank opening and wet the water tank environment.

- Do not expose the unit to wind or rain.

- Do not place the hot equipment on heat-sensitive surfaces.

- Only use extension cords recommended by the manufacturer as they may cause damage or fire.

- Never point the steam nozzles towards other people, animals or plants as the steam is strong and hot and may cause injury or damage.

Note: Our products are carefully tested before leaving the factory. Therefore, there may be residual water in the water tank or supply lines.

• Repairs may only be carried out by qualified personnel. Repairs that are not carried out in accordance with safety standards can significantly increase the risk of using the appliance.
• Damage caused by improper use, improper repairs and normal wear and tear are not covered by the warranty.

Note: It is recommended that the packaging of the product be kept at least until the warranty expires so that the product can be returned in its original packaging in the event of damage.

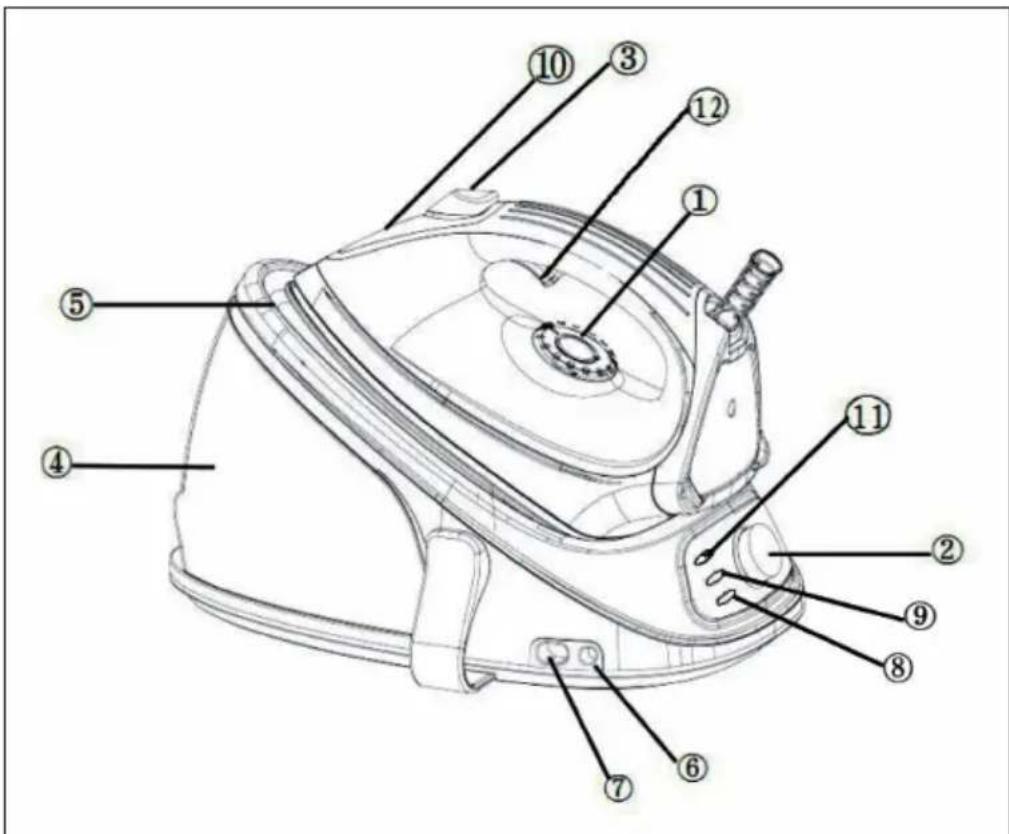

PRODUCT OVERVIEW

1	Temperature controllers	7	Cable and steam connection
2	On/off	8	Indicator light of power
3	Continuous steam	9	Indicator light of steam ready
4	Removable water tank	10	Indicator light of iron heating
5	Iron rest	11	Indicator light of no water
6	Power cord	12	Short steam interval button

INSTALLATION

1. Remove the water tank (4) and fill it with water up to the maximum mark.
2. Note that the water tank is removable.
   3 Switch on the appliance by pressing the ON/OFF button (2). The power indicator (3) will then light up.
   4 Set the steam iron thermostat to „MAX“.

COMMISSIONING AND OPERATION

Steam ironing

1. Set the ironing temperature to the „COTTON-LINEN“ position by turning the temperature control knob. All fabrics can be ironed at this temperature.
2. Wait until the „Steam ready“ indicator (9) lights up and wait until the „Heat up“ indicator goes out. Press the iron button (3) to continuously release steam through the nozzles on the soleplate.
3. Press the "Short steam interval" button (12) to interrupt continuous steam delivery.
4. Press the „Short steam interval“ button (12) for a short steam release. As soon as you release the button, the steam release is interrupted.

Note: During the first use of the iron, some drops of water mixed with steam may escape from the soleplate until the temperature and steam output stabilize. It is recommended that the first steam shocks be directed at an old cloth until the steam output has stabilized.

Filling the water tank

1. Switch the unit off with the ON/OFF key (2).
2. Press the continuous steam release button (3) to remove all water residues from the pipes.
3. Place the iron on the bracket (5).
4. Disconnect the mains plug from the socket.
5. Fill the water tank.

CLEANING AND CARE

• Always unplug the appliance from the wall outlet before cleaning and servicing.
- In hard water areas, clean the water tank with a vinegar solution (75% water and 25% vinegar).
- Wipe the cabinet with a damp cloth. Do not use solvents or cleaning agents that may damage the cabinet.
• We do not accept any liability for accidents which are related to improper use.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom
