| Product Type | Active ventilation charcoal barbecue |
| Brand | Florabest |
| Model | FLG 34 B1 |
| Dimensions (diameter x height) | 348 mm x 238 mm |
| Weight | Approx. 3.5 kg |
| Power supply | 4 AA batteries (1.5 V) – 6 V DC |
| Grid material | Stainless steel |
| Grid diameter | 343 mm |
| Use | Outdoors only, on a stable and fire-resistant surface |
| Package contents | Barbecue, 4 AA batteries, instruction manual |
| Main features | Adjustable active ventilation (rotary knob), operating indicator, lockable grid, firelighter gel cup, grease collector tray/reflector |
| Care and cleaning | Clean after each use: grid and collector tray in dishwasher, tub with damp cloth, charcoal container brushed dry |
| Safety | Do not use indoors (risk of CO poisoning), do not move when hot, use heat-resistant gloves and utensils, keep away from flammable materials (distance > 1 m) |
| Warranty | 3 years from date of purchase |
| Certifications | CE marking, TÜV SÜD (tested safety) |
Frequently Asked Questions - FLG 34 B1 FLORABEST
User questions about FLG 34 B1 FLORABEST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grill in PDF format for free! Find your manual FLG 34 B1 - FLORABEST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FLG 34 B1 by FLORABEST.
USER MANUAL FLG 34 B1 FLORABEST
TARGA GMBH
Coariarweg 45
SALAVA SCUST DEUTSCHLAND / CERMANY
User mental and service information
IAN 273452
IAN 273452
DE CH
Deutsch......2
Français....17
Italiano....33
English 49
Inhalt
Black cylindrical object with a small label on top, resembling a food item or container (no visible text or symbols)Tragetasche
Black and white photo of a portable stove burner with visible heat exchanger and cooling fan (no text or symbols)natural_image
Black cylindrical object with a small label on top, resembling a container or bag (no visible text or symbols)Sacoche de transport
Black cylindrical object with a small label on top, resembling a container or bag (no visible text or symbols)Custodia
- Intended use.... 50
- Package contents 51
- Controls and displays 51
- Technical specifications .... 52
- Safety instructions 52
- Before you start.... 57
- Getting started 57
8.1 Inserting the batteries....57
8.2 Getting started....57 - Maintenance/cleaning 59
9.1 Storing the charcoal barbecue....59 - Troubleshooting 60
- Environmental regulations and disposal information.... 60
- Conformity 61
- Guarantee information....61
1. Introduction
Thank you for buying a FLORABEST product.
The charcoal barbecue with active ventilation FLORABEST FLG 34 B1, in the following referred to as charcoal barbecue, can be used for grilling (e.g. meat, fish, vegetable, sausages, chicken, etc.). It can be set up next to the dining table.
2. Intended use
This charcoal barbecue is not intended for commercial use. This charcoal barbecue is intended for outdoor use. Always make sure the charcoal barbecue is on a stable surface.
The device fulfils all relevant norms and standards relating to CE conformity. Any modifications to the device other than recommended changes by the manufacturer may result in these standards no longer being met.
WARNING!
Risk of carbon monoxide poisoning. Do not use barbecue indoors, but outdoors only!
WARNING!
This barbecue will become very hot, do not move during operation!
WARNING!
Do not use spirit or petrol for lighting or relighting! Use only firelighters complying with EN 1860-3!
WARNING!
Keep children and pets away!
Do not use indoors!
Predictable misuse
Do not use the charcoal barbecue in closed rooms.
Do not use the charcoal barbecue as heater.
Risk of burns!
Do not place other items (e.g. cutlery, utensils, pan lids, etc.) on the charcoal barbecue. These could get very hot and you could burn yourself.

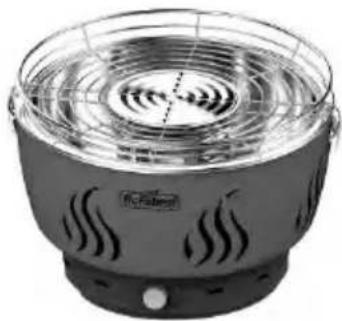

3. Package contents
4 AA batteries, 1.5 V These operating instructions
(not shown)

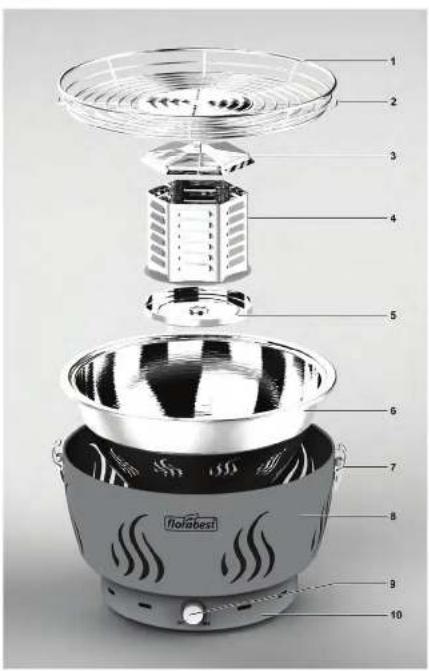

4. Controls and displays
These operating instructions have a fold-out cover. On the inside of the cover, the charcoal barbecue is shown with figures indicated. The meanings of the numbers are as follows:
1 Stainless steel grate
2 Bracket for securing the stainless steel grate
3 Cover for charcoal container
4 Charcoal container
5 Tray for fire gel
6 Grease collection tray/reflector
7 Latch
8 Housing
9 Control dial with fan indicator (lights up, while fan is powered on)
10 Battery compartment (on the underside of the housing)
5. Technical specifications
Manufacturer:
TARGA
GmbH
Model name: FLORABEST FLG 34 B1
Operating voltage: 6 V DC voltage (4 x 1.5 V AA batteries)
Operation: Continuous control dial for fan speed, engages in the "Off" position
Operation lamp if fan is powered on
Dimensions: Diameter 348 mm, height 238 mm
Diameter, stainless steel grate 343 mm
Weight: approx. 3.5 kg
TÜV SÜD: Tested safety
6. Safety instructions
Before you use this device for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices and charcoal barbecues. Keep these operating instructions in a safe place for future reference. If you sell the device or give it away, pass on the user manual at the same time. It forms parts of the product.
Explanation of symbols
In this user manual, warnings are used as follows.
Risk of burns!
This symbol warns of hot surfaces.
WARNING!
This symbol denotes important information for the safe operation of the product and user safety. It warns against risks which could, if left unheeded, cause danger to life and limb, injuries or material damage.
Risk of fire!
This symbol warns that fires could start if the warning is left unheeded.
This symbol denotes further information on the topic.
Children and persons with disabilities
This device may be used by children older than 8 years as well as by persons with reduced physical, sensory or mental capacities or those persons who have lack of knowledge or experience, as long as they are supervised or they have received instructions regarding the proper use of the appliance and they understand the associated risks. Do not allow children to play with the appliance. Any cleaning or maintenance of the product must not be performed by children unless they are supervised.
Children under the age of 8 must be kept away from the device.
WARNING of suffocation!
Packaging material is not a toy. Do not allow children to play with plastic bags. There is a risk of suffocation.
Batteries and small parts represent potential choking hazards. Keep the batteries in a safe place. If a battery is swallowed, seek medical help immediately.
Keep the device out of the reach of children.
General safety instructions
Risk of burns!
- Do not place other items (e.g. cutlery, utensils, pan lids, etc.) on the stainless steel grate (1). These could get very hot and you could burn yourself.
- Do not touch the stainless steel grate (1), the grease collection tray/reflector (6) or the charcoal container (4) during operation. Hold and carry the device only from the outside or the bottom on the housing (8).
- Transport or move the device only after it completely cooled down. Hold and carry the device only from the outside or the bottom on the housing (8).
- Clean the device only after it completely cooled down.
• Always wear barbecue gloves during grilling. - You should always wear barbecue gloves when preparing meals, adding charcoal or handling the stainless steel grate (1). Use barbecue cutlery with long, heat-resistant handles.
Risk of fire!
- Only use the charcoal barbecue outdoors. Do not ever use it in closed rooms.
• Do not use the charcoal barbecue as heater.
- Do not place the charcoal barbecue on textile surfaces such as a tablecloth.
- Never place the charcoal barbecue under or directly next to flammable items such as curtains or drapes.
- Maintain a clearance of at least 100 cm around the device to flammable and combustible materials.
- Do not use the charcoal barbecue in potentially explosive atmospheres or at locations with flammable materials. These include fuel storage areas such as below deck on a boat, fuel line or tank areas, environments where the air contains inflammable substances (e.g. cereals dust or metal powder) and any areas where you should normally switch off your car engine.
Warning about property damage
- Never place any objects on the stainless steel grate (1).
- Place the charcoal barbecue on an even, sturdy and fireproof surface protected against spray water.
- Do not expose the charcoal barbecue to extremely high or low temperatures.
Batteries
- Insert the batteries with the correct polarity. Refer to the diagram inside the battery compartment. Do not attempt to recharge the batteries and do not dispose of the batteries in a fire. Do not mix battery types (old and new or carbon and alkaline, etc.). Remove the batteries when the device is not to be used for an extended period. Improper use could cause explosions or leaks.
- Batteries must never be opened or deformed, as this could result in chemicals leaking out which could cause injuries. If the battery fluid becomes in contact with the skin or eyes, rinse immediately with plenty of water and seek medical aid.
- Remove the batteries when the charcoal barbecue is not to be used for an extended period.
7. Before you start
Unpack the device. First check whether all the parts are complete and undamaged (see "Package contents" on page 51). If any items are missing or damaged, please phone our hotline (see "Guarantee information" on page 61). Keep the packaging material away from children and dispose of appropriately.
8. Getting started
You can place the charcoal barbecue directly onto the dining table and prepare food right there.
Risk of fire!
- Do not place the charcoal barbecue on textile surfaces such as a tablecloth.
- Never place the charcoal barbecue under or directly next to flammable items such as curtains or drapes.
- Maintain a clearance of at least 100 cm around the device to flammable and combustible materials.
8.1 Inserting the batteries
The battery compartment (10) is located on the underside of the housing (8).
- Turn the charcoal barbecue upside down and carefully place it on a sturdy and even surface.
- Open the battery compartment cover (10). Using a finger or fingernail, reach from the outer edge under the latch of the battery compartment and pull it slightly in the direction of the arrow (◀).
- Insert four AA batteries into the battery compartment (10). Always pay attention to the polarity.
- Close the battery compartment cover (10). Make sure that the latch engages again so that the over cannot open and the batteries fall out accidentally.
- Place the charcoal barbecue upright again. The charcoal barbecue is operational.
8.2 Getting started
When powering the barbecue on for the first time, have the barbecue glow for 30 minutes, before using it to prepare food.
Minor smoke development can occur when the device is heated first. For this reason, the device should be heated for 10 to 15 minutes prior to preparing grilled food for the first time.
- Clean the stainless steel grate (1) using warm water and detergent. This removes dust and any packaging residue.
-
Place the device on an even, non-slip and dry surface.
-
Loosen both latches (7) and remove the stainless steel grate (1).
-
Remove the charcoal container (4) and its cover (3) and fill the charcoal container (4) with approx. 0.2 kg charcoal up to the upper edge of the container.
For optimum cooking results you should use barbecue charcoal and not charcoal briquettes.
Warning
Do not use any other fuel than charcoal.
-
Apply a 10 mm thick ring of fire gel around the centre of the fire gel tray (5). The fire gel should be within the circle stamped on the fire gel tray (5). Otherwise, the flame will be smothered. Should the fire gel tray (5) move out of place, insert it again into the centre of the grease collection tray/reflector (6).
-
Turn the control dial (9) to the MAX position (clockwise until it stops) to power on the fan.
You must power on the fan prior to igniting the flame. Otherwise, the flame will be smothered.
- Hold a burning match to the fire gel, until it burns.
Risk of burns!
Do not reach into the naked flame!
- Turn the control dial (9) to the MAX position (clockwise until it stops) to power on the fan.
You must power on the fan prior to inserting the charcoal container (4). Otherwise, the flame will be smothered.
- Insert the charcoal container (4) again with its cover (3).
Risk of burns!
Make sure not to burn yourself, when inserting the charcoal container (4)!
- Place down the stainless steel grate (1) again. Turn the grate such that the two brackets (2) are aligned with the latches (7). Lock the stainless steel grate (1).
- Place the grilled food onto the stainless steel grate (1), as soon as the charcoal is covered with a layer of ash.
- If undesired flame formation occurs during charcoal glowing, reduce the air supply using the control dial (9). To do this, turn it in a counter-clockwise direction.
Next, you can prepare grilled dishes using your charcoal barbecue. With a little practice, you can regulate the fan speed and thus the heat using the control dial (9). This way, you can either grill your dishes crispier or cook them gently.
- You can prepare meat, fish, sausages, chicken and vegetables in a low-fat and health-conscious way.
- Do not puncture meat to prevent moisture loss. Otherwise, it can become dry.
-
Season the grilled food and turn it from time to time. We recommend using wooden barbecue tongs. Brush fish additionally with butter.
-
Once you are done grilling, switch the charcoal barbecue off. Turn the control dial (9) counterclockwise to the OFF position, until it engages.
-
Remove the prepared dishes from the stainless steel grate (1).
Risk of burns!
After the fan is switched off, the coal can still be glowing for some time and the stainless steel grate (1) can be very hot. Be careful not to burn yourself.
9. Maintenance/cleaning
In order to avoid burning food residues, clean the charcoal barbecue after every use.
Risk of burns!
Wait until the charcoal barbecue is completely cool before cleaning it. Otherwise you could get burnt.
Warning about property damage
Do not use abrasive or astringent detergents or tools which could scratch the surface (e.g. metal sponges). These could damage the charcoal barbecue.
- Loosen both latches (7) and remove the stainless steel grate (1).
- Remove the charcoal container (4) with its cover (3).
- Remove the grease collection tray/reflector (6).
- Clean the stainless steel grate and the grease collection tray/reflector (6) in the sink using dish detergent. You can carefully tap the charcoal container (4) with its cover (3) and clean it using a brush or dry cloth as needed. Clean the housing (8) with a slightly moistened cloth.
9.1 Storing the charcoal barbecue
Store the charcoal barbecue in assembled condition in the carrying bag to protect it.
Store the charcoal barbecue in a dry and dust-free place.
Remove the batteries when the charcoal barbecue is not to be used for an extended period
10. Troubleshooting
If your charcoal barbecue does not work as normal, follow the instructions below to try to solve the problem. If working through the tips below does not fix the fault, please contact our hotline (see "Guarantee information" on page 61).
| Problem | Possible causes | yRemed |
| Charcoal does not light. | Fan is not powered on. Turn the control dial (9) to the maximum position (clockwise until it stops) to power on the fan. | |
| Control dial adjusted to too low position. | Turn the control dial (9) to the maximum position (clockwise until it stops). | |
| Fan cannot be powered on. | Battery inserted incorrectly or empty. | Insert the batteries with the correct polarity (+ and -). Replace the batteries with new ones as needed. |
| Barbecue becomes too hot or undesired flame formation. | Control dial adjusted to too high position. | Reduce the air supply using the control dial (9). To do this, turn it in a counter-clockwise direction. |
| Barbecue does not become hot enough. | Control dial adjusted to too low position. | Increase the air supply using the control dial (9). To do this, turn it in a clockwise direction. |
11. Environmental regulations and disposal information
Do not dispose of the device in household waste or bulky waste collections. Information on collection points and pick-up times can be obtained from your local council or waste disposal company.
Old batteries must not be disposed of with domestic waste. They must be handed in at a collection point for waste batteries. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits.
Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.
12. Conformity
This device complies with the basic and other relevant requirements of EMC Directive 2004/108/EC and the RoHS Directive 2011/65/EU. The complete EU Declaration of Conformity is available on request at:
ce@targa.de.
13. Guarantee information
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.
Service
Phone: 020 - 70 49 04 03
E-Mail: service.GB@targa-online.com
Phone: 01-4370121
E-Mail: service.IE@targa-online.com
Phone: 027 78 11 03
E-Mail: service.MT@targa-online.com
Phone: 02 - 20 09 025
E-Mail: service.CY@targa-online.com
IAN: 273452
Manufacturer
Please note that the following address is not a service address. First contact the service point stated above.
TARGA
GmbH
Coesterweg 45
59494 SOEST
GERMANY
