Product type	Hot air curling iron (Airstyler)
Brand	Philips
Model	HP4623
Electrical voltage	110-120 V or 220-240 V
Included accessories	1 small retractable bristle brush
Heat/air settings	1 (gentle airflow)
Automatic safety shut-off	Yes, in case of overheating
Humidity protection	Do not use near water
Cleaning	Brush or dry cloth
Storage	Suspension ring
Recommended use	Towel-dried (not wet), detangled hair
Bristle control button	Yes, to retract bristles
Unlock button	Yes, to change accessory
Warranty	International, see leaflet
Service	Philips authorized service centers

Frequently Asked Questions - Airstyler HP4623 PHILIPS

How to use the Philips Airstyler HP4623 hot air curling iron?

Separate hair into sections, wrap a section around the brush, then turn on the appliance (position I). Hold for 8 to 10 seconds for classic curls. Turn off the appliance, then remove the brush by pressing the bristle control button.

What is the difference between the HP4623 and HP4636 models?

The HP4623 comes with a small retractable bristle brush and has a single setting (gentle airflow). The HP4636 additionally includes a large brush and a second setting (hot airflow for quick styling).

Can I use the appliance on wet hair?

No, it is not recommended to use the appliance on wet hair. Dry your hair with a towel first for best results.

How to clean the Philips Airstyler HP4623?

Unplug the appliance and let it cool down. Clean it with a small brush or dry cloth. Do not block the air intake grille.

What to do if the appliance turns off automatically?

This is normal in case of overheating. Unplug the appliance, let it cool for a few minutes, then check that the air intake grille is not blocked by hair or dust before turning it back on.

How to store the appliance after use?

Unplug it, do not wrap it around the cord, let it cool, then hang it by its suspension ring or store it in a safe place.

Can I use accessories from other brands?

No, use only accessories provided by Philips. Using non-recommended accessories may void the warranty and pose risks.

How to get tighter or looser curls?

For tight curls, hold the brush longer (over 10 seconds) and use fine sections. For loose curls, reduce the time to less than 8 seconds and use thicker sections.

How to change the brush on the appliance?

To remove the brush, press the unlock button and pull. To attach a new one, align the arrows and press until it clicks.

Is the appliance suitable for all hair types?

Yes, it is suitable for all hair types. For best results, hair should be towel-dried and detangled beforehand.

USER MANUAL Airstyler HP4623 PHILIPS

Register your product and get support at www.philips.com/welcome

HP4636, HP4623

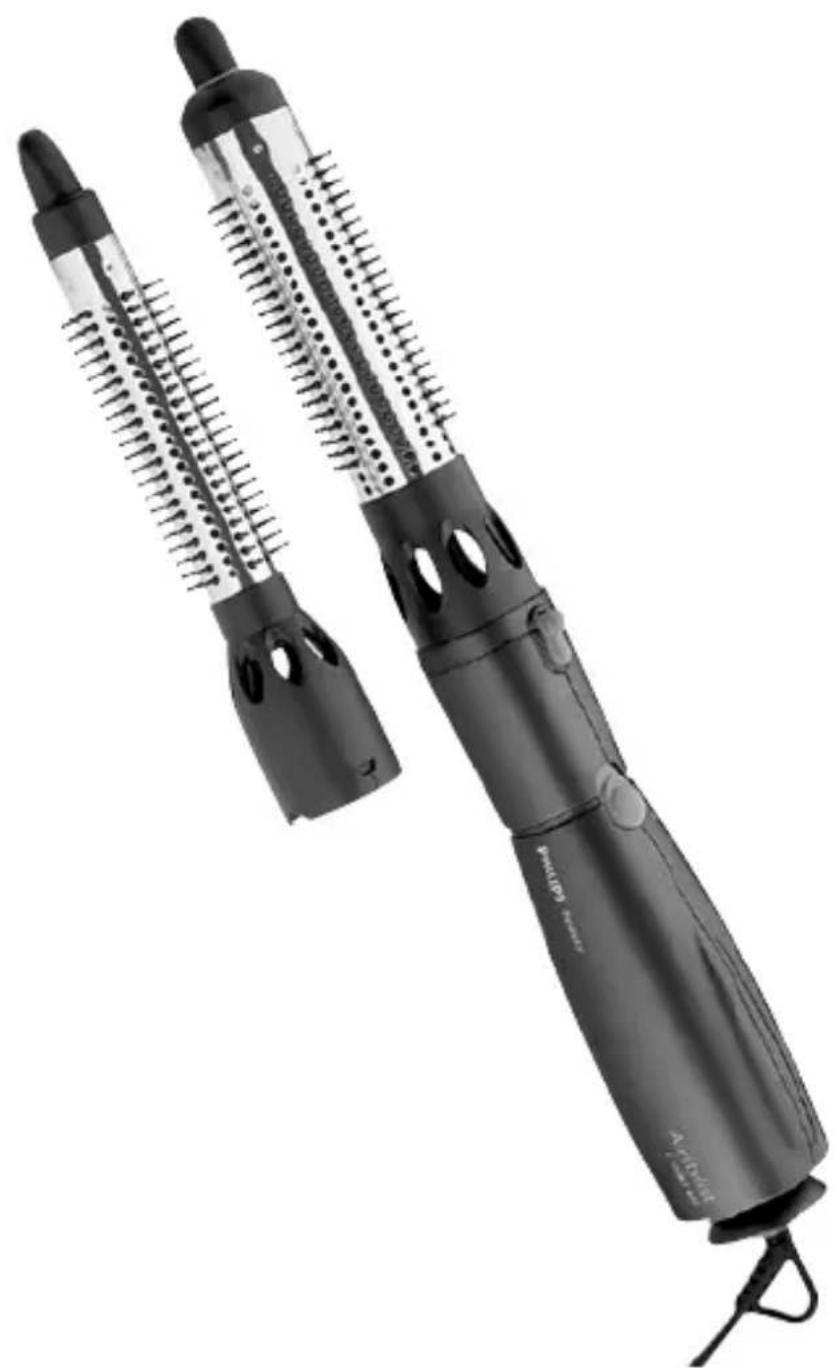

Two black hair curlers with bristles and filter designs, no visible text or symbols

PHILIPS

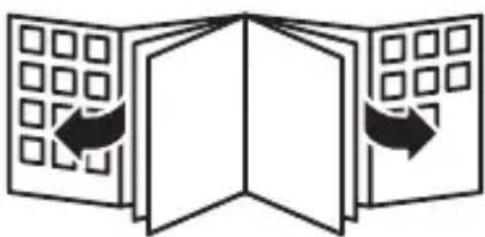

Diagram of a folded folding panel with grid patterns and directional arrows indicating movement (no text or symbols)

ENGLISH 6

FRANÇAIS 13

INDONESIA 21

한국어 28

BAHASA MELAYU 35

PORTUGUÊS 42

ภาษาไทย 49

TIÊNG VIÊT 54

繁體中文 61

简体中文 67

80 العربية

86 فارسی

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

This new Philips beauty Airstylist has been specially designed to give beautiful styling results in a quick and easy way.

The HP4623 can be used at 110-120 volts or 220-240 volts and comes with a small retractable bristle brush. The HP4636 operates at 220-240 volts and comes with a small and a large retractable bristle brush.

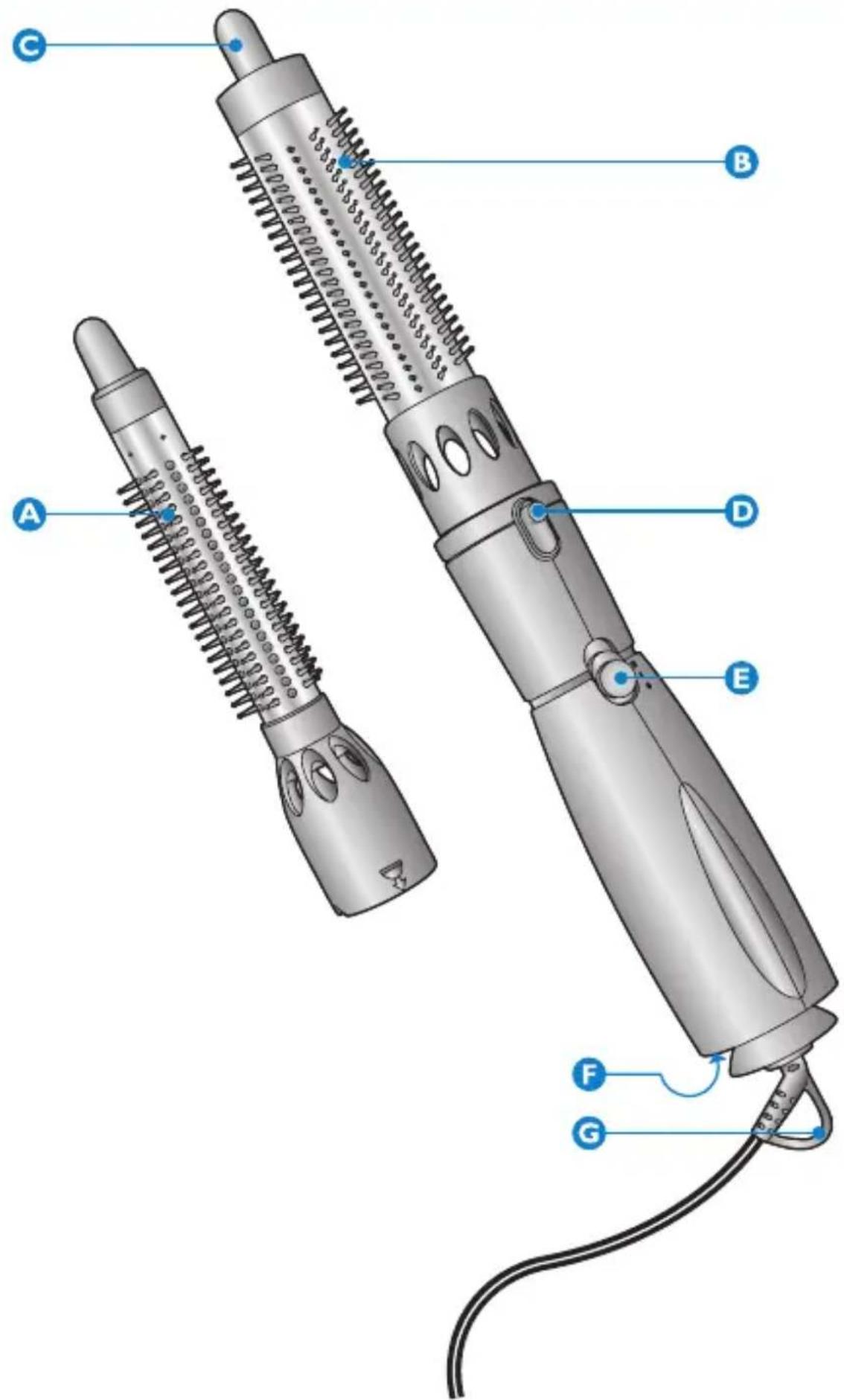

General description (Fig. 1)

A Retractable bristle brush
B Large retractable bristle brush (HP4636 only)
© Bristle retraction knob
D Release button
E Slide
- = off
- I = gentle, warm airflow for easy styling
- II = stronger and warmer airflow for fast styling (HP4636 only)
F Air inlet grille
G Hanging loop

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Keep the appliance away from water. Do not use it near or over water contained in baths, washbasins, sinks etc. When you use the appliance in a bathroom, unplug it after use. The proximity of water presents a risk, even when the appliance is switched off.
• Do not insert metal objects into the air inlet grille to avoid electric shock.

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Check the condition of the mains cord regularly. Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Caution

• For additional protection, we advise you to install a residual current device (RCD) in the electrical circuit that supplies the bathroom. This RCD must have a rated residual operating current not higher than 30mA. Ask your installer for advice.
• The attachments become hot during use. Prevent contact with the skin.
• Never block the air inlet grille.
• If the appliance overheats, it switches off automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance back on, check the grilles to make sure they are not blocked by fluff, hair, etc.
• Always unplug the appliance after use.
• Wait until the appliance has cooled down before you store it.
• Always switch off the appliance before you put it down, even if it is only for a moment.
• Do not wind the mains cord round the appliance.
• Do not use the appliance on artificial hair.
• Do not use the appliance for any other purpose than described in this manual.

ENGLISH8

• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Keep the attachments clean and free of dust, dirt and styling products such as mousse, spray and gel.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Preparing for use

Hair

Do not use the appliance on wet hair, dry your hair with a towel first. The Airstylist is most effective on towel-dry hair.

1 Before you start using the Airstylist, comb or brush the hair so that it is untangled and smooth.
2 Use a comb to divide the hair into locks.
Do not put too much hair in one lock.

Connecting and disconnecting attachments

Do not insert the mains plug into the wall socket until after you have connected the attachment.

1 Attach the bristle brush to the stylist by aligning the arrows on the brush with the arrows on the stylist and pressing the brush home (Fig. 2).

You will hear a click.

2 To remove the attachment from the appliance, press the release button and pull the attachment in the direction of the arrow. (Fig. 3)

Using the appliance

1 Snap the retractable bristle brush onto the appliance. See ‘Preparing for use’, section ‘Connecting and disconnecting attachments’.

Do not insert the mains plug into the wall socket until after you have connected the attachment.

Making small curls

We advise you to perform a curl test to determine how long the brush should be held in your hair to achieve a good result. Start with 8 to 10 seconds. You may have to hold the brush in your hair longer for tighter curls. Less tight curls will require less than 8 seconds.

1 Divide the hair into locks.
2 Take a lock of hair and wind it round the brush. Make sure the end of the lock is wound in the required direction.

Do not wind too much hair round the brush at a time.

Do not wind a lock of hair more than twice round the brush.

Note: The thinner the lock of hair, the tighter the curl will be.

Note: Make sure the lock of hair is in contact with the barrel of the brush.

If you wind the hair at right angles to the scalp, you will give your hair optimum lift and volume.

3 Switch the appliance on (Fig. 4).

HP4636 only: Switch the appliance on by selecting the preferred setting: (Fig. 5)

• I: gentle airflow for easy styling
• ll: warm airflow for fast styling

4 Keep the brush in your hair until the hair is warm to the touch.

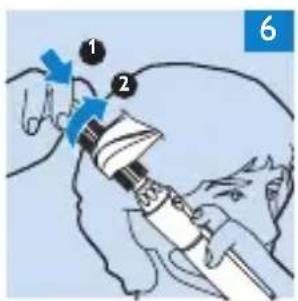

5 Switch the appliance off and remove the brush from your hair by pushing and turning the bristle retraction button in the direction of the arrows (Fig. 6).

ENGLISH10

6 Let the curls cool down before combing, brushing or finger-combing the hair to finish your style.
7 When you have finished curling, switch off the appliance and remove the brush.

See ‘Preparing for use’, section ‘Connecting and disconnecting attachments’.

Making large curls (HP4636 only)

If you want to make large curls, you can follow the steps above using the large retractable bristle brush.

Making waves

1 Divide the hair into locks.

2 Take the ends of a lock of hair and wind them around the retractable bristle brush in the desired direction.

3 Switch the appliance on (Fig. 4).

HP4636 only: Switch the appliance on by selecting the preferred setting: (Fig. 5)

- I: gentle airflow for easy styling

- ll: warm airflow for fast styling

4 As soon as the hair is warm to the touch, switch the appliance off and carefully remove the brush from the hair.

5 Let the waves cool down before finishing by combing, brushing or finger-combing the hair into its final style.

6 When you have finished waving, switch off the appliance and remove the brush.

See ‘Preparing for use’, section ‘Connecting and disconnecting attachments’.

Storage

1 Unplug the appliance.

2 Do not wind the mains cord round the appliance.

3 Put the appliance in a safe place and let it cool down.
4 The appliance can be stored by hanging it from its hanging loop (Fig. 7).

Cleaning

1 Unplug the appliance.
2 Put the appliance in a safe place and let it cool down.
3 Clean the appliance with a small brush or a dry cloth.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 8).

Guarantee & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Troubleshooting

If problems should arise with your hairstyler and you are unable to solve them by means of the troubleshooting guide below, please contact the nearest Philips service centre or the Philips Customer Care Centre in you country.

Problem Solution

The appliance does not work at all.	Perhaps there is a power failure or the socket is not live. Check if the power supply is working. If it is, check whether the socket is live by plugging in another appliance.
	Perhaps you failed to switch the appliance on. Make sure the appliance is plugged in. Then switch it on by selecting the preferred setting.
	Perhaps the appliance overheated and switched itself off. Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance on again, check the grille to make sure it is not blocked by fluff, hair, etc.
	Perhaps the appliance has the wrong voltage. Make sure that the voltage indicated on the appliance corresponds to the local mains voltage.
	If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

Introduction

1 Attach the bristle brush to the stylist by aligning the arrows on the brush with the arrows on the stylist and pressing the brush home (Gamb. 2).

If you wind the hair at right angles to the scalp, you will give your hair optimum lift and volume.

3 Hidupkan perkakas (Gamb. 4).

HP4636 only: Switch the appliance on by selecting the preferred setting: (Gamb. 5)

4 Keep the brush in your hair until the hair is warm to the touch.
5 Switch the appliance off and remove the brush from your hair by pushing and turning the bristle retraction button in the direction of the arrows (Gamb. 6).
6 Let the curls cool down before combing, brushing or finger-combing the hair to finish your style.
7 When you have finished curling, switch off the appliance and remove the brush.

See ‘Preparing for use’, section ‘Connecting and disconnecting attachments’.

Making large curls (HP4636 only)

If you want to make large curls, you can follow the steps above using the large retractable bristle brush.

Making waves

1 Divide the hair into locks.
2 Take the ends of a lock of hair and wind them around the retractable bristle brush in the desired direction.
3 Hidupkan perkakas (Gamb. 4).

HP4636 only: Switch the appliance on by selecting the preferred setting: (Gamb. 5)

4 As soon as the hair is warm to the touch, switch the appliance off and carefully remove the brush from the hair.

5 Let the waves cool down before finishing by combing, brushing or finger-combing the hair into its final style.

6 When you have finished waving, switch off the appliance and remove the brush.

See ‘Preparing for use’, section ‘Connecting and disconnecting attachments’.

Penyimpanan
