Notice VISION TM-CAGE100 - page 5
Pick your language and provide your email: we'll send you a specifically translated version.
Product TypeSecurity Anti-Theft Cage for Video Projector
BrandVision
ModelTM-CAGE100
Safe Working Load (SWL)7 kg
MaterialRobust Metal
Integrated AlarmYes, with motion detection and siren
Alarm Power Supply6 LR44 (AG13) batteries, pre-installed
Side Panels8 panels included to adjust to projector size
Included Components1 top plate, 1 bottom plate, 2 prevention collars, 2 lock discs, 2 keys, 1 Allen key, 8 side panels, foam blocks
Warranty2 years (return to workshop)
UsageAnti-theft for projector, ceiling or wall mounting
Locking FunctionLocking via lock disc with audible alarm
Mounting TypeRequires a projector hook (sold separately)
Dimensions (Approximate)Adaptable to projector (not specified)
Product Weight (without projector)Not specified - estimated: approx. 2-3 kg
Safety InstructionsDo not mount on false ceiling; load test recommended
Spare Parts AvailableContact the retailer
RepairabilityRepair in workshop after return
General InformationImported by Vision (EU), certified by TÜV SÜD

Frequently Asked Questions - TM-CAGE100 VISION

How to install the TM-CAGE100 cage?
The installation first requires fixing a projector hook to the ceiling. Then, assemble the cage around the projector using the top and bottom plates, side panels, and foam blocks. Be sure to follow the safety instructions and do not mount on a false ceiling.
What is the maximum load supported?
The safe working load (SWL) is 7 kg. Never exceed this weight.
How does the anti-theft alarm work?
The alarm is integrated into the lock discs. When the lock is closed, it emits a beep confirming arming. Any continuous movement of the cage first triggers 3 warning beeps, then a siren after 5 seconds of movement.
What to do if the alarm triggers without reason?
Check that the cage is not moved. If the alarm sounds, stop the movement; after 35 seconds without movement, the alarm stops automatically. If it triggers frequently, inspect the batteries and connections.
How to change the alarm batteries?
Each lock disc uses 6 LR44 (AG13) batteries pre-installed. To change them, open the battery compartment of the lock disc and replace them. Test proper operation after replacement.
Can I use the cage without side panels?
Yes, it is possible to use fewer than the 8 panels, provided the projector cannot be maneuvered out of the cage. However, it is recommended to use all panels for maximum security.
Is the cage compatible with all projectors?
The cage is designed to fit most projectors thanks to adjustable side panels and foam blocks of different thicknesses. However, verify that your projector dimensions (weight 7 kg max) are compatible.
How to fix the cage to the ceiling?
Use a Vision projector hook (sold separately) securely fixed to a load-bearing structure. The top plate of the cage screws onto the hook with the provided security nuts. Ensure the ceiling can support the weight.
What is the warranty on this product?
The cage comes with a 2-year warranty (return to workshop) from the date of purchase. It covers manufacturing or finishing defects, but not normal wear or mishandling.
What to do if a defect is found?
Contact your retailer who will advise on the return procedure. The original buyer is responsible for shipping the product to the service center. If the defect is covered, repair will be performed under warranty; otherwise, charges may apply.

User questions about TM-CAGE100 VISION

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Projector Accessories in PDF format for free! Find your manual TM-CAGE100 - VISION and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TM-CAGE100 by VISION.

USER MANUAL TM-CAGE100 VISION

Congratulations on your choice of the Vision TM-CAGE TECHMOUNT. In order to obtain the best performance please be sure to read this owner's manual and use your product only in accordance with the instructions. An electronic version of this manual and further information can be found on www.visionaudiovisual.com

WARNINGS

During installation take care to adhere to workplace health and safety laws:

  • Attach the bracket to a rated load-bearing structure. NEVER MOUNT CAGE OR BRACKET DIRECTLY TO A FALSE CEILING!
  • Do not cut or drill any parts above head height. This should all be done using the correct safety equipment at floor level.
  • Avoid overstretching which might result in the ladder tipping over.
  • SWL (safe working load): 7kg

If you are unsure about the load-bearing capacity of the structure you are attaching the bracket to, we recommend testing it with your body weight by hanging off it gently. If you are uncomfortable doing this, it is probably not safe.

This product is a theft deterrent and does not guarantee the security of your projector. Alarm batteries should be tested at time of installation and annually. Vision's liability is limited to the terms set out in the warranty.

Vision is a partner in the TÜV SÜD product certification system. All applicable certification is provided by TÜV. All products are designed and imported into the EU by 'Vision' who is wholly owned by Azlan Logistics Ltd, Registered in England Nr. 04625566 at 'Lion House, Pioneer Business Park, Clifton Moor, York, YO30 4GH'

ReHS WEE/ABD047SY TUV SUD CE

CONTENTS

Isometric line drawing of a mechanical part with cutouts and mounting holes (no text or symbols)

1 x Top Plate

Isometric line drawing of a rectangular frame with four rectangular cutouts (no text or symbols)

1 x Bottom Plate

Isometric line drawing of a metal bracket or bracket (no text or symbols)

2 x Access Prevention Collars

VISION TM-CAGE100 - CONTENTS - 4

2 x Disc Locks

2 x Keys

VISION TM-CAGE100 - CONTENTS - 5

1 x Lock Hex Key

Isometric view of a grid of 12 rectangular blocks arranged in rows (no text or symbols)

16 x Foam Blocks

VISION TM-CAGE100 - CONTENTS - 7

8 x Side Panels (Sold separately)

INSTALLATION INSTRUCTIONS

Note: For the most secure fit the cage should conform as closely as possible to the size of projector.

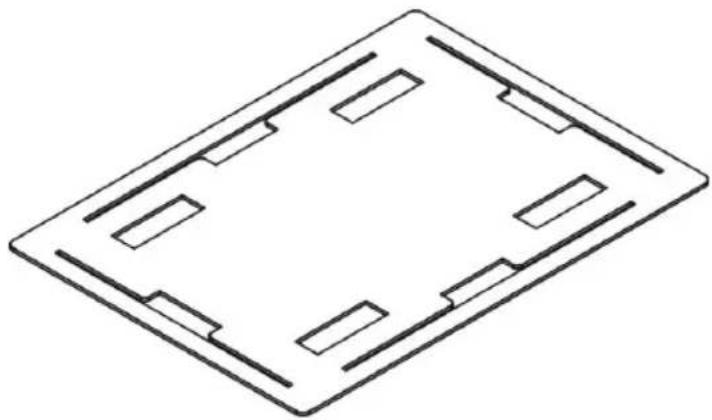

  1. Set bottom plate on level, non-scratch surface. It doesn't matter which way up it is.

Isometric line drawing of a rectangular frame with four internal slots and rectangular cutouts (no text or symbols)

  1. Set four foam blocks on each corner of the bottom plate.

Isometric line drawing of a rectangular electronic or architectural component with four internal compartments (no text or symbols)

  1. Carefully put projector onto the foam blocks upside-down.

Technical line drawing of a heat exchanger or cooling unit with multiple cooling fins and mounting base (no text or symbols)

Note 1: Locate the foam blocks so they ARE NOT pushing function buttons on the top surface of the projector.

Note 2: The foam blocks come in four thicknesses to allow for projectors which do not have a flat top surface. Adjust to ensure the projector is level.

  1. Add side panels to LONG SIDES of bottom plate.

Step 1:

Lift bottom plate and hook the side panel in the notch at the centre.

Technical line drawing of a heat exchanger or cooling unit with a magnified inset showing internal structure (no text or symbols)

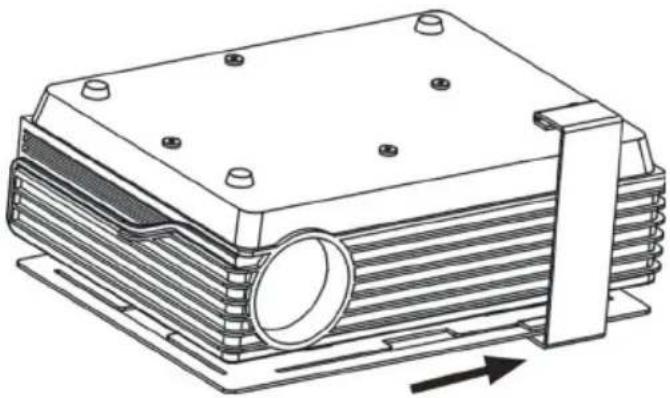

Step 2:

Slide panel towards a corner until it stops.

Technical line drawing of a mechanical component with layered structure and mounting holes (no text or symbols)

Step 3:

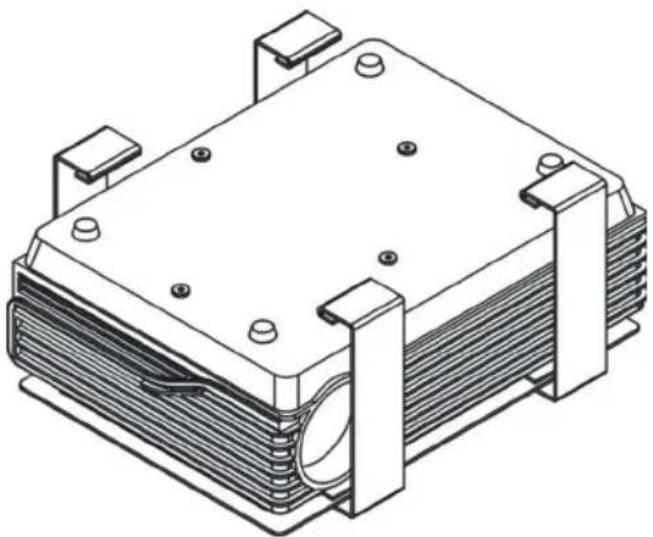

Repeat until two side panels are installed on each long side.

Isometric line drawing of a heat exchanger or cooling unit with mounting brackets and internal coil (no text or symbols)

Note: If the projector lens prevents all eight from being installed then provided the cage is a close fit it should still be secure even if only seven side panels are installed. This is only true if the projector cannot be manoeuvred inside the cage.

  1. Fit top plate.

Step 1:

Locate the top plate over the projector and hook to the side panels already in place one side at a time. No force should be required.

VISION TM-CAGE100 - Step 1: - 1

Step 2:

Slide the side panels towards the centre until they stop.

Technical line drawing of a mechanical or electronic component with layered structure and directional arrows indicating movement (no text or symbols)

  1. Add side panels to SHORT SIDES of bottom plate.

Step 1:

Lift bottom plate and hook the side panel in the notch at the centre.

Technical line drawing of a mechanical component with layered structure and directional arrow (no text or symbols)

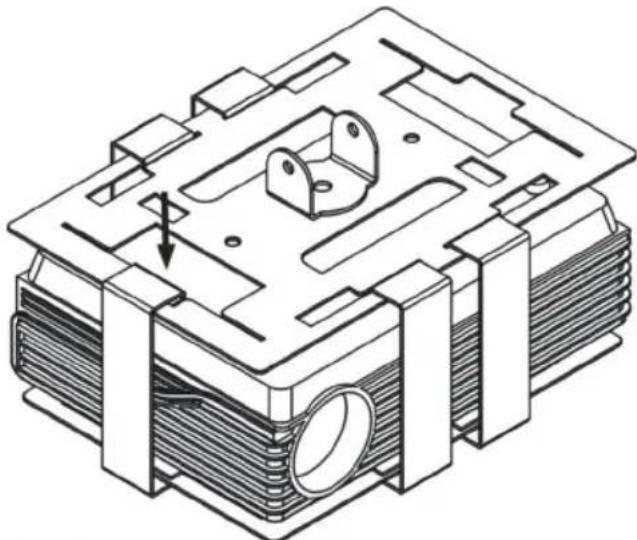

Step 2:

Push the top plate down gently and hook the top of the side panel to the top plate.

Technical line drawing of a mechanical housing or enclosure with internal components and mounting brackets (no text or symbols)

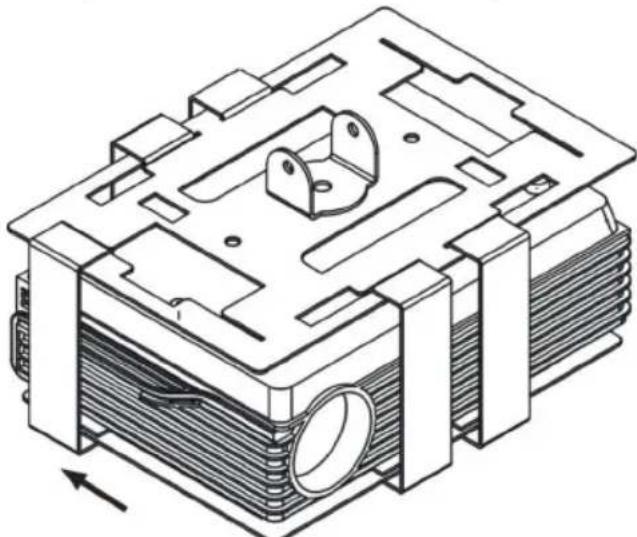

Step 3:

Slide panel towards corner until it stops.

Technical line drawing of a mechanical component with internal parts and mounting brackets (no text or symbols)

Step 4:

Repeat until two side panels are installed on each short side.

  1. Attach projector ceiling or wall mount.

Technical line drawing of a mechanical component with no visible text or symbols

Note: This step is done with the projector bracket already in place in the ceiling.

Vision brackets attach to the TM-CAGE top plate with the pin-hex security bolts which come with Vision brackets.

  1. Route cables down the projector bracket and plug in to projector.
  2. Turn the projector on. Adjust the pitch and roll of the projector and tighten adjustment bolts.
  3. Fit access prevention collars

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Gently locate in the notch at each end of the long side, then slide into place. The 8mm hole on the top surface should be directly over the 8mm hole in the top plate.

Note: a notch at the bottom of the collar upright allows cables to be routed up the projector bracket pole into the ceiling.

Technical line drawing of a mechanical component with cross-sectional view (no text or symbols)

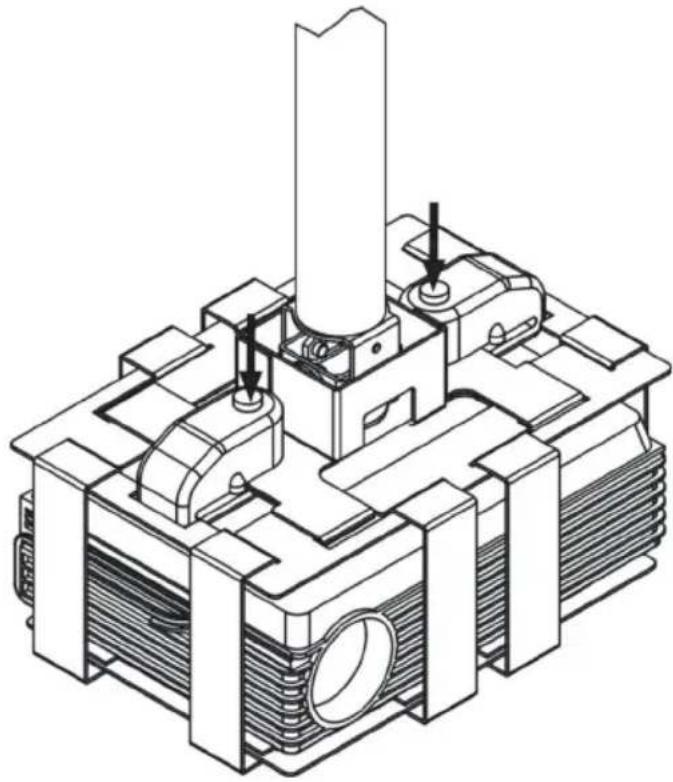

  1. Fit locks

Step 1:

Locate lock along the notch on the short side of the top plate.

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Step 2:

Turn lock 90°. Locate locking pin over the 8mm hole on the top surface of the access prevention collar.

Step 3:

Push the lock to close it.

Technical line drawing of a mechanical assembly with no visible text or symbols

LOCK INSTRUCTIONS

The lock comes with 6 x LR44 (AG13) batteries pre-installed in each lock.

  1. When locked, the lock will beep once to confirm it is armed. Then after 15 seconds it will become active.
  2. When the lock is moved it will give 3 warning beeps. After 5 seconds of continued movement the alarm will sound.
  3. When the alarm is sounding, if movement ceases for 35 seconds the alarm will stop sounding and return to active mode.

WARRANTY

This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale. The liability of the manufacturer and its appointed service company is limited to the cost of repair and or replacement of the faulty unit under warranty, except for death or injury (EU85/374/EEC). This warranty protects you against the following:

  • Faulty wields resulting in the product not safely performing its task within the recommended SWL (safe working load).
  • Poor finishing resulting in the product not being able to be assembled.
  • External corrosion if identified within 24 hours of purchase. The inside of the pipe is not powder-coated, so light corrosion may develop over time. This is normal and does not adversely affect the load-bearing capability of the product, therefore it is not covered in this warranty.

If you find you do have a problem with this product, you should contact the AV reseller you purchased this product from. The original purchaser is responsible for shipment of the product to the manufacturer's appointed service centre for repair. We will endeavour to return repaired units within 5 working days, however this may not always be possible in which case it will be returned as soon as practically possible. This warranty does not protect this product against faults caused by abuse, misuse, or incorrect installation which might be caused by ignoring the guidelines set out in this manual. If failure is not covered by this warranty, the owner will be given the option to pay for labour and parts to repair the unit at the service company's standard rate.

ENGLISH

VISION TM-CAGE100 - WARRANTY - 1

VISION TM-CAGE100 - WARRANTY - 2

VISION TM-CAGE100 - WARRANTY - 3

VISION TM-CAGE100 - WARRANTY - 4
