GBV5500 Plus - Smartphone iGET - Free user manual and instructions

Product Type	Smartphone
Model	GBV5500 Plus
Brand	iGET
Water/Dust Resistance	IP68 (1.5 m depth for 30 minutes, fresh water only)
Display Protection	Tempered glass
SIM Configuration	2x Nano SIM or 1x Nano SIM + 1x microSD
Network Bands (GSM)	900/1800 MHz
Network Bands (WCDMA)	900/2100 MHz
Network Bands (LTE)	800/900/1800/2100/2300/2600 MHz
WiFi	5 GHz (20 MHz: 5180-5700 MHz, 40 MHz: 5190-5670 MHz)
Maximum EIRP	2 W (max) / 1 W (max)
Operating Temperature	-10°C to +40°C
Battery	Rechargeable lithium-ion (included)
Charging	Via USB cable and adapter (included)
Moisture Indicator	Red label appears if moisture inside
Warranty	24 months (subject to conditions)
Safety Features	Do not use while driving, near petrol stations, or in explosive environments
Compliance	CE, RoHS (Directive 2011/65/EU)
Package Contents	Phone, charger, USB cable, clip (SIM ejector), warranty card, user manual

Frequently Asked Questions - GBV5500 Plus iGET

Is the iGET GBV5500 Plus water-resistant?

Yes, it has IP68 certification, meaning it can be submerged in fresh water up to 1.5 meters for 30 minutes. However, it is not resistant to salt water or other liquids. Ensure all ports are tightly closed.

How do I insert the SIM and microSD cards?

Turn off the phone. Use the provided clip to open the cover on the side, then push the pin into the hole to eject the card tray. Insert either 2 Nano SIMs or 1 Nano SIM + 1 microSD. Slide the tray back in and close the cover securely.

What should I do if the phone gets wet?

Dry the phone with a soft cloth and allow it to air dry. Do not charge until completely dry. If moisture enters, the internal moisture indicator may turn red, which could void the warranty. Avoid using heat above 40°C.

Does the phone have a warranty?

Yes, the iGET GBV5500 Plus comes with a 24-month warranty against manufacturing defects. However, damage from water (if moisture indicator triggers), physical damage, or unauthorized repairs is not covered.

Can I use the phone while driving?

No. Do not use your phone while driving. It is a safety precaution to avoid distractions and comply with traffic laws.

What is the maximum depth for water resistance?

The IP68 rating allows submersion up to 1.5 meters for a maximum of 30 minutes in fresh water. Deeper or longer exposure may cause damage.

How long does the battery last?

The battery life depends on usage. It is a rechargeable lithium-ion battery. For best performance, charge the phone fully before first use and avoid extreme temperatures.

What frequency bands does the phone support?

It supports GSM 900/1800, WCDMA 900/2100, LTE bands 800/900/1800/2100/2300/2600 MHz, and 5GHz WiFi (20/40 MHz channels).

Is the display scratch-resistant?

The display is made of tempered glass, which provides higher resistance to scratches and impacts. However, it can crack if dropped on hard surfaces. Such damage is not covered by warranty.

Where can I find the user manual?

A printed user manual is included in the package. You can also download a PDF version from the official iGET website or support page at www.iget.eu.

USER MANUAL GBV5500 Plus iGET

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

LTE: 800/900/1800/2100/2300/2600 MHz

5G WiFi (20 MHz): 5180 – 5700 MHz

5G WiFi (40 MHz): 5190 – 5670 MHz

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

LTE: 800/900/1800/2100/2300/2600 MHz

5G WiFi (20 MHz): 5180 – 5700 MHz

5G WiFi (40 MHz): 5190 – 5670 MHz

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

LTE: 800/900/1800/2100/2300/2600 MHz

5G WiFi (20 MHz): 5180 – 5700 MHz

5G WiFi (40 MHz): 5190 – 5670 MHz

Exklusiv-Importeur:

INTELEK spol. s r.o., Ericha Roučky 1291/4, 627 00 Brünn, CZ

WEB: http://www.iget.eu

SUPPORT: http://www.iget.eu/helpdesk

Individual parameters, description by figures and design in the manual may differ depending on the version and updates.

Printing errors reserved.

Update your device as soon as a new version of software is available.

The warranty sheet and the user manual are included in the phone package.

Update your device as soon as a new version of software is available.

The buyer is obliged to provide a serial number on the warranty card as well as in the delivery note and the proof of purchase. In this context, the buyer acknowledges that unless the serial number of goods is not marked on the proof of purchase, delivery note and in the warranty card and therefore it cannot be possible to compare this serial number marked on goods and its protective packaging with the serial number stated in the warranty card, delivery note and the proof of purchase and thus to verify that the goods runs from the seller, the service center is competent to claim such a goods automatically and reject it immediately. The buyer must instruct all persons to whom the goods would be subsequently sold. Product complaints do with your dealer if you are not on the web www.iget.eu indicated otherwise.

Safety use:

GBV5500 Plus has an increased resistance. However, it is not mechanically undestroyable.

The display is made of tempered glass, which ensures higher resistance. When dropped on a hard surface or sharp object, it may crack. The display cracked due to mechanical damage or improper misuse of the device is not covered by warranty.

The GBV5500 Plus has the IP68 certification under EN60529:1991+A1:2000+A2:2013 standard.

(According to producer 1,5 m depth for 30 minutes, IP68 resistance does not apply to salt water.)

The IP68 protection does not guarantee 100% resistance to water in all conditions.

Make sure that the holes for the power adapter (USB cable), headphones and NANO SIM / SD card holes are properly closed. In case of moisture penetration into the device due to insufficient "closure" of the phone, a warranty can not be accepted.

We also recommend to not to charge the phone and dry the phone after contact with water or other liquid with the adequately warm air flow (up to 40^ C).

The warranty is not applied to an intentional damage to the phone.

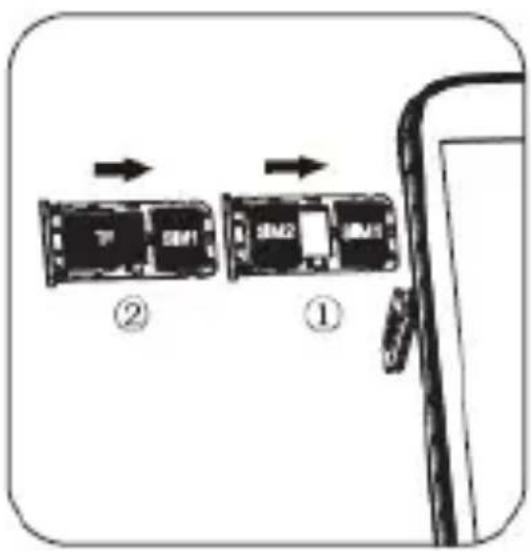

Installing the SIM NANO and microSD card

Before installing the cards, turn off the phone and follow the graphic on page 3.

1. Use the clip from the package to open the phone cover - use a hook located on the clip.
2. Then push the pin on the buckle into the hole under the phone cover - this will cause the card holder to eject. The holder is then completely removed from the phone using the hook on the clip. You can now insert cards: a) 2x NANO SIM or b) 1x NANO SIM and 1x microSD card
3. Slide the entire bin with the cards back into the phone, see. drawing on page 3. You can again use the hook from the buckle to insert it. Close the phone cover carefully again.

Charging the battery:

Before putting your phone into service you must recharge its battery for 100%.

1. Connect the adapter to the charger
2. Connect the charger to the wall outlet.
3. If the battery is fully charged, disconnect the phone from the charger.

Switching the phone on / off / sleep mode

Make sure that the phone has a SIM card and the battery is fully charged.

Press the ON button to switch on the phone.

Switch off the phone by pressing ON and select OFF. Confirm it by pressing OK.

Press shortly ON button to switch the phone over to the sleep mode.

Safety Precautions:

Do not use your phone while driving

Do not use your phone at the petrol stations.

Hold the phone at least 15 mm from your ear and body.

The phone produces a bright or flashing light.

The small parts of the phone can cause suffocation.

Do not expose your phone to open fire.

The phone can produce a loud sound.

The phone is not resistant to fillings.

Avoid exposure to magnetic fields.

Keep the phone away from medical devices.

Avoid extreme temperatures (-10°C, +40°C).

On request, turn off your phone in hospitals and other medical facilities.

Keep the phone dry.

On request, turn off the phone at airports and on planes.

Do not dismantle the phone.

Turn off the phone in the vicinity of explosive materials and chemicals.

Use the phone only with certified equipment.

Do not reckon only upon your phone during emergency situations.

The phone contains a label that detects moisture. In case of moisture inside phone this label becomes red. The manufacturer has the right to reject a warranty with such a damaged phone.

Damages requiring professional repair:

If such cases may occur, please, contact the authorized service or your distributor:

Moisture got into the phone.

The phone is mechanically damaged.

The phone is extremely overheated.

1) For household use: The given symbol (crossed-out wheeled bin) on the product or at accompanying documents means that used electrical and electronic products should not disposed of with household waste. To ensure proper disposal of the product, hand it over to a designated collection point, where it will be accepted free of charge. The correct disposal of this product will help to save valuable natural resources and prevent any potential negative impacts on the environment and human health, which could otherwise be caused by inappropriate disposal of wastes. For more details, please, contact your local authorities or the nearest collection point. The improper disposal of this waste can be penalized in accordance with national regulations. Information for users to disposal of electrical and electronic devices (corporate and

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

EN

business use): For proper disposal of electrical and electronic devices, ask for details from your dealer or distributor. Information for users to disposal of electrical and electronic devices in other countries outside EU: The above mentioned symbol (crossed-out wheeled bin) is valid only in the countries of EU. For proper disposal of electrical and electronic devices, ask for details from your authorities or dealer. All is expressed by the symbol of crossed-out wheeled bin on product, packaging or in printed materials.

2) Set up the claim for warranty repair of device at your dealer. If you have technical questions or problems, contact your dealer. Follow the rules for working with electrical equipment. The user may not dismantle the device or replace any part of this. There is a warranty seal inside the phone to verify that the phone does not carry signs of improper intrusion. Opening or removing the covers poses the risk of electric shock. In case of incorrect reassembly and subsequent connection you are also exposed to electric shock.

Declaration of Conformity:

Company INTELEK spol. s r.o. hereby declares that all GBV5500 Plus devices are in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on this website www.iget.eu.

CE

The warranty period of the product is 24 months, unless stated otherwise.

This device can be used in the following countries:

AT	BE	CY	CZ	DK	EE	FI	MT	NL	PL	PT	SK
SI	ES	DE	GR	HU	IE	IT	LV	LT	GB	IS	LI
NO	CH	BG	HR	RU	RO	FR	SE	LU	TR

Restrictions on WiFi use

	IT
	NO

Italy - The conditions for using the WiFi network are described in the so-called Electronic Communications Code

Norway - The 2.4 GHz limitation applies only to the area 20 km from colony of Ny-Ålesund.

RoHS: The components used in the device meet the requirements on the restriction of hazardous substances in electrical and electronic devices in

accordance with Directive 2011/65/EU. The RoHS declaration can be downloaded from www.iget.eu.

Operation of radio equipment:

CZ: This radio equipment can be operated in the Czech Republic under the General Authorizations VO-R / 1 / 05.2017-2 and VO-R / 12 / 09.2010-12.

SK: This radio equipment can be operated under General Authorizations VPR - 07/2014, VPR - 02/2017 and VPR - 35/2012.

Maximum EIRP:

Max. 2W / Max. 1W.

Frequency range:

GSM: 900/1800 MHz

WCDMA: 900/2100 MHz

LTE: 800/900/1800/2100/2300/2600 MHz

5G WiFi (20 MHz): 5180 – 5700 MHz

5G WiFi (40 MHz): 5190 – 5670 MHz

Exklusive importer of iGET products to EU: INTELEK spol. s r.o., Ericha Roučky 1291/4, 627 00 Brno - Černovice, CZ WEB: http://www.iget.eu

SUPPORT: http://www.iget.eu/helpdesk Copyright © 2020 Intelek spol. s r.o. All rights reserved.

Instrukcja:

na swoim telefonie.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

LTE: 800/900/1800/2100/2300/2600 MHz

5G WiFi (20 MHz): 5180 – 5700 MHz

5G WiFi (40 MHz): 5190 – 5670 MHz

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

LTE: 800/900/1800/2100/2300/2600 MHz

5G WiFi (20 MHz): 5180 – 5700 MHz

5G WiFi (40 MHz): 5190 – 5670 MHz

Serial / Batch number: (S/N)

Date of sale:

Warranty until:

Sale document number:

Seal of the store:

Information for Customers about Warranty Terms

and Conditions:

Warranty shall apply to defects of purchased product, found during its warranty period. When purchasing a particular product, please consider carefully what properties and functions you expect your product to have. The fact that purchased product shall not satisfy your later requirements shall not give any reason for complaint. Please, prior to the first use of this product read carefully its operating instructions and follow these

WARRANTY CARD

instructions consistently.

We recommend you to keep original product packing during the warranty period for possible transport of the product in such a way so as to prevent any product damage during its transport and handling.

For the purpose of due application of any complaint about the product we recommend you to ask Seller to fill-in and confirm this Warranty Card including identification of serial number of purchased product, which shall comply with the serial number specified both in the document proving product purchase and delivery note and purchased product.

In this connection Customer hereby takes into account that unless this Warranty Card specifies serial number of purchased product, i.e., comparison of such serial number identified in the product with the serial number identified in this Warranty Card and document of product purchase/or delivery note shall not allow to confirm that particular product has come from Seller, in case of any doubts about the origin of such particular product Seller shall be entitled to automatically and without any other acts to reject the complaint of such goods.

Warranty shall not apply to:

-product damage suffered by unqualified installation of firmware or its modification;
-product damage by static electricity;
-product use for any other purposes than designed, described in attached operating instructions;
-damage to warranty seal of the producer, attached to the product;

WARRANTY CARD

-product damage inconsistent with the operating instructions, technical standards or safety regulations valid in the Czech Republic;

-product damage resulting from normal wear and tear;

-discharged batteries, decrease in battery capacity caused by its wear and tear;

-product defects caused by the use in dusty, polluted or in any other way dissatisfactory environment pursuant to attached operating instructions.

Wear and tear of the product and its components caused by their common use (discharged batteries, decreased capacity of accumulator, wear and tear of mechanical or displaying components, wear and tear of supply cables, headphones etc.) shall be subject neither to defect warranty nor quality warranty in the moment of take-over.

Furthermore, complaints about product parameters, not included in the operating instructions or in any commercial-technical documentation of Seller, related to the product, shall not be subject to quality warranty in the moment of take-over.

Proof of product purchase, or delivery note, shall constitute an integral part of this Warranty Card.
