Product Type	Induction Hob
Brand	Hoover
Model	HIFS954SC
Number of Cooking Zones	5 (including flexible area)
Power Supply	220-240V~, 10800W total
Product Dimensions (W×D×H)	900 × 520 × 60 mm
Cutout Dimensions (W×D)	875 × 495 mm
Booster Function	Yes, up to 4000W per zone
Keep Warm Function	Yes, low temperature setting
Timer	Minute minder and auto shut-off (up to 9h59)
Pause Function	Yes, suspends all cooking zones
Key Lock	Yes, prevents accidental use
Flexible Zone	Yes, works as single large zone or two independent zones
Safety Features	Over-temperature protection, auto shut-off, small article detection, residual heat indicator
Control Type	Touch slider controls
Cooktop Material	Ceramic glass
Cleaning	Use cooktop cleaner; avoid abrasives; scrape off sugar spills immediately
Error Codes	F1-F6, F9-FA, Fb, FC, E1-E5
Installation	Requires 760mm above, 50mm minimum clearance, heat-resistant worktop
Electrical Connection	Hardwired via isolating switch; single-phase or three-phase
Warranty	Standard manufacturer warranty (refer to manual)

Frequently Asked Questions - HIFS954SC HOOVER

What type of cookware is suitable for this induction hob?

Only cookware with a magnetic base is suitable. Look for the induction symbol or perform a magnet test. Suitable materials include cast iron and stainless steel with a magnetic bottom. Avoid pure aluminium, copper, glass, or ceramic.

How do I use the Boost function?

Touch the heating zone selection control, then touch the Boost control labeled 'B'. The zone will operate at maximum power (indicated by 'b') for up to 5 minutes. To cancel, touch Boost again or adjust the slider.

What is the flexible area and how do I use it?

The flexible area consists of two inductors that can be used as a single large zone (for large pots) or as two independent zones. To activate as a large zone, touch the two dedicated keys simultaneously. For separate zones, touch the keys individually.

How do I set the timer to turn off a cooking zone?

First, touch the desired zone selection control. Then touch the timer control; the display shows '0:10'. Use the slider to set the desired time (up to 9h59). Touch timer again to confirm. When time expires, the zone switches off.

What should I do if the hob displays an error code?

Note the error code (e.g., E1, F5) and switch off the hob at the mains. Refer to the troubleshooting section in the manual. Common codes: F1-F6 indicate temperature sensor failure; E1/E2 indicate abnormal supply voltage. If the problem persists, contact a qualified technician.

Can I use the hob if the glass surface is cracked?

No. Immediately switch off the hob at the mains power supply and contact a qualified technician. Do not use the hob until repaired, as it poses an electrical shock hazard.

How do I clean the hob properly?

For everyday soiling, apply a cooktop cleaner when the glass is warm (not hot), then wipe dry. For burnt-on sugar or spills, scrape with a razor blade scraper at a 30° angle while the glass is still warm. Avoid abrasive pads or harsh cleaners.

Why does the hob make a humming noise on high heat?

This is normal for induction cooking due to electromagnetic vibrations. The noise typically decreases when you lower the heat setting. If it persists or is unusually loud, check the cookware is compatible and centered.

How do I lock the controls to prevent children from using the hob?

Touch the keylock control (padlock symbol) until the timer display shows 'Loc'. To unlock, touch and hold the keylock control for a few seconds. The ON/OFF control remains functional for emergencies.

What are the minimum installation clearances?

The hob requires a minimum 50mm space around the cutout, and a safety distance of at least 760mm between the hob and any cupboard above. The work surface must be heat-resistant (minimum 30mm thickness) and the hob must be well-ventilated.

USER MANUAL HIFS954SC HOOVER

INSTRUCTIONS FOR USE AND INSTALLATIONS GB

PIANI DI COTTURA

POKYNY NA POUŽÍVANIE A: INŠTALÁCIU

PŁYTY KUCHENNE

INSTRUKCJA OBSŁUGI I INSTALACJI PL

Model HIFS954SC

Pure electrical circuit lines without any symbols

Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
  • Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.

• No combustible material or products should be placed on this appliance at any time.

• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.

• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and maintenance

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance complies with electromagnetic safety standards.

• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.
• Beware: magnetisable metal objects worn on the body may become hot in the vicinity of the cooktop. Gold or silver jewellery will not be affected.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.
• CAUTION: The cooking process has to supervised short/long term continuous.

Cut Hazard

- The razor-sharp blade of a cooktop scraper is

exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.

- Failure to use caution could result in injury or cuts.

Important safety instructions

- Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.

- Never use your appliance as a work or storage surface.

- Never leave any objects or utensils on the appliance.

- Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

- Never use your appliance for warming or heating the room.

- After use, always turn off the cooking zones and the cooktop as described in this manual(i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

- Do not allow children to play with the appliance or sit, stand, or climb on it.

• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on your cooktop.

- Do not stand on your cooktop.

- Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.

- If the power supply cable is damaged, it must only be replaced by a qualified technician.

- This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

- After use, switch off the hob element by its control and do not rely on the pan detector.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Congratulations on the purchase of your new Induction Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it.

For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

Product Overview

Top View

1. max. 1800/3000 W zone
2. max. 1800/3000 W zone
3. max. 3000/4000 W zone
4. max. 1800/3000 W zone
5. max. 1800/3000 W zone
6. free induction zone. 3000/4000 W
7. free induction zone. 3000/4000 W
8. Glass plate
9. Control panel

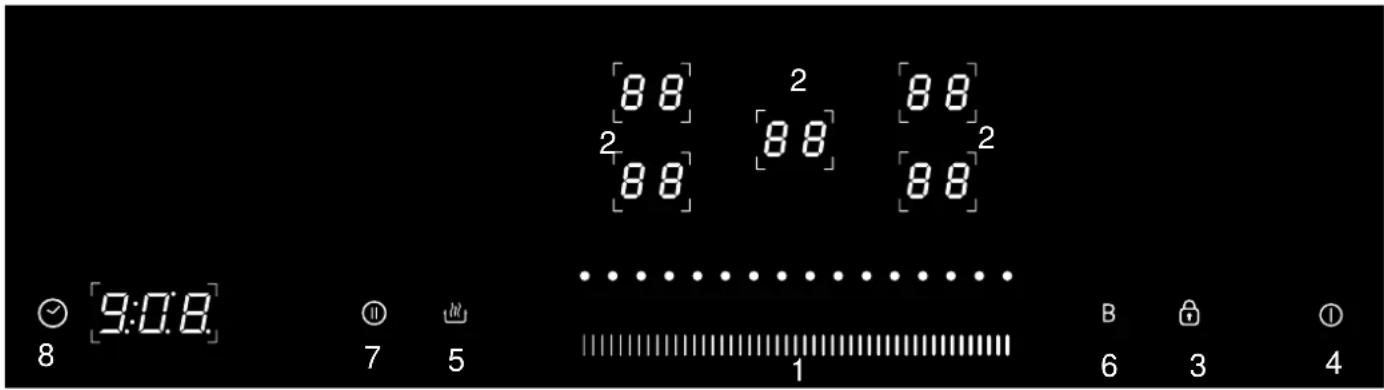

Control Panel

1. Power / Timer slider touch control
2. Heating zone selection controls
3. keylock control
4. ON/OFF control
5. keep warm control
6. Boost control
7. Pause control
8. Timer control

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Diagram of a steam locomotive with wheels and exhaust lines, no text or symbols present

iron pot

magnetic circuit ceramic glass plate induction coil induced currents

Before using your New Induction Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your Induction hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Two hand diagrams showing a checkmark and a cross on a line, no text or symbols present.

Choosing the right Cookware

- Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

• If you do not have a magnet:

• Put some water in the pan you want to check.

• Follow the steps under 'To start cooking'.

• If does not flash in the display and the water is heating, the pan is suitable.

- Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Simple line drawing of a cooking pot with a U-shaped tube attached (no text or symbols)

Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed-out X marks, no text or symbols present

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob. Always centre your pan on the cooking zone.

Four identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

Always lift pans off the Induction hob – do not slide, or they may scratch the glass.

Two cooking pots with crossed arrows indicating opposing pressure, one with crossed-out lid and the other with wide height (no text or symbols)

Using your Induction Hob

To start cooking

1. Touch the ON/OFF ① control.

After power on, the buzzer beeps once, heating zone selection controls show "☐" or"☐"or"—", indicating that the induction hob has entered the state of standby mode.

1. Place a suitable pan on the cooking zone that you wish to use.

- Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

Line drawing of a hand pointing upward above a cooking pot on a stand (no text or symbols)

1. Touching the heating zone selection control, and a indicator where you touched will flash

1. Adjust heat setting by touching the slider control.

2. If you don't choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.

3. You can modify the heat setting at any time during cooking.

If the display flashes ≥slant ≤slant alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or,
• the pan you're using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it.

When you have finished cooking

1. Touching the heating zone selection control that you wish to switch off

Simple line drawing of a hand pointing upward (no text or symbols)

1. Turn the cooking zone off by touching the slider to the left. Make sure the display shows"0"

1. Turn the whole cooktop off by touching the ON/OFF control.

Simple line drawing of a hand with a circular icon on the index finger (no text or symbols)

1. Beware of hot surfaces

H will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using the Boost function

Activated the boost function

1. Touching the heating zone selection control

Simple line drawing of a hand making a thumbs-down gesture (no text or symbols)

1. Touching the boost control "B", the zone indicator show "b" and the power reach Max.

Cancel the Boost function

1. Touching the heating zone selection control that you wish to cancel the boost function

Simple line drawing of a hand pointing upward with a small number 7 above the index finger (no text or symbols)

1. a: Touching the boost control "B", then the cooking zone will revert to its original setting.

b: Touching the slider control, then the cooking zone will revert to the level you select.

OR

• The function can work in all cooking zones
• The cooking zone returns to its original setting after 5 minutes.
• As the boost function of 1st cooking zone is activated, the 2nd cooking zone is limited under level 2 automatically. vice versa
• If the original heat setting equals 0, it will return to 15 after 5 minutes.

Using the Keep Warm function

Activated the Keep warm function

1. Touching the heating zone selection control

1. Touching the keep warm control 📊, the zone indicator show " / "

Cancel the keep warm function

1. Touching the heating zone selection control

Simple line drawing of a hand pointing upward with a black exclamation mark (no text or symbols)

1. a: Touching the keep warm control “關”, then the cooking zone will revert to its original setting.

b: Touching the slider control, then the cooking zone will revert to the level you select.

Simple line drawing of a hand pointing at a row of vertical bars, with no text or symbols present.

FLEXIBLE AREA

• This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.
• Flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, the part that is not covered by cookware is automatically switched off after one minute.
• Important: Make sure to place the cookwares centered on the single cooking zone. In case of big pot,oval,rectangular and elongated pans make sure to place the pans centered on the cooking zone covering both cross.

Examples of good pot placement and bad pot placement.

As big zone

1. To activate the flexible area as a single big zone, simply press the two dedicated keys at the same time.

1. The power setting works as any other normal area.

2. If the pot is moved from the front to the rear part (or viceversa), the flexible area detects automatically the new position, keeping the same power.

3. To add a further pot, press again the dedicated keys, in order to detect the cookware.

As two independent zones

To use the flexible area as two different zones with different power settings, press the dedicated keys.

Using the Pause control

1. when the cooking zones are running, touch the " ⑪ " control ,all the displays will show " 11 " and stop heating. At this moment only " ⑪ " and " ① "" 🔒 " control can be operated.

Hand gesture pointing upward with a circular button labeled 'II' (no text or symbols beyond the icon)

1. Touch " ⑪ " again, the displays show the original setting, and the cooking zones keep on heating.

Locking the Controls

- You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). - When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the keylock

control. The left timer indicator will show "Loc"

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control 🔒 for a while.
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disable except the ON/OFF ①, you can always turn the induction hob off with the ON/OFF ① control in an emergency, but you shall unlock the hob first in the next operation

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: .

Power level	1~5	6~10	11~14	15
Default working timer (hour)	8	4	2	1

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minutes.

People with a heart pace maker should consult with their doctor before using this unit.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn cooking zones off after the set time is up.
• You can set the timer for up to 9 hours and 59 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting any cooking zone.

1. Touch timer control ⏻, the "0: 10" will show in the timer display where touched. and the "0" flashes.

2. Set the time by touching the slider control. (e.g. 6)

1. Touch timer control ✅ again, the "1" will flash.

1. set the time by touching the slider control (e.g.9), now the timer you set is 56 minutes.

1. Buzzer will beep for 30 seconds and the timer indicator shows "0:00" when the setting time finished.

0:00

Setting the timer to turn cooking zones off

If the timer is set on one zone:

1. Touching the heating zone selection control that you want to set the timer for.

1. Touch timer control, the "0: 10" will show in the timer display. and the "0" flashes.

1. Set the time by touching the slider control. (e.g. 6)

16

Simple line drawing of a hand pointing at a horizontal bar with vertical tick marks (no text or symbols)

1. Touch timer control again, the "1" will flash.

1. set the time by touching the slider control (e.g.9), now the timer you set is 56 minutes.

0:56

Simple line drawing of a hand pointing at a row of vertical bars (no text or symbols)

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will be switch off automatically.

Other cooking zone will keep operating if they are turned on previously.

If the timer is set on more than one zone:

1. When you set the time for several cooking zones simultaneously, decimal dots of the relevant cooking zones are on. The minute display shows the min. timer. The dot of the corresponding zone flashes.

15

3. 6.

(set to 15 minutes)

(set to 45 minutes)

1. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

30

6

- Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator.

Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly, particularly if you're using PowerBoost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85^ C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and fourththickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak

To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For stir-frying

1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you.

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3 - 5	·reheating·rapid simmering·cooking rice
6 - 11	·pancakes
12- 14	·sautéing·cooking pasta
15/P	·stir-frying·searing·bringing soup to the boil·boiling water

Care and Cleaning

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the cooktop to find the settings that best suit you.

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Induction glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	·Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	·The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The induction hob cannot be turned on.	No power.	Make sure the induction hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your induction cooktop' for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low humming noise when used on a high heat setting.	This is caused by the technology of induction cooking.	This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting.
Fan noise coming from the induction hob.	A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you've turned the induction hob off.	This is normal and needs no action.Do not switch the power to the induction hob off at the wall while the fan is running.
Pans do not become hot and appears in the display.	The induction hob cannot detect the pan because it is not suitable for induction cooking.The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centred on it.	Use cookware suitable for induction cooking. See section 'Choosing the right cookware'.Centre the pan and make sure that its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display).	Technical fault.	Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

Failure Display and Inspection

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes:

Problem	Possible causes	What to do
F1-F6	Temperature sensor failure	Please contact the supplier.
F9-FA	Temperature sensor of the IGBT failure.	Please contact the supplier.
Fb	The connection between the right display board and the middle display board	Please contact the supplier.
FC	The connection between the display board and the main board is fail	Please contact the supplier.
E1/E2	Abnormal supply voltage	Please inspect whether power supply is normal.Power on after the power supply is normal.
E3/E4	Temperature sensor of the ceramic glass plate Is high	Please restart after the induction hob cools down.
E5	Temperature sensor of the IGBT Is high	Please restart after the induction hob cools down.

if there are anyone zone of the flexible area to be protected, the flexible area selection control will not be able to use.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.

Technical Specification

Cooking Hob	HIFS954SC
Cooking Zones	5 Zones
Supply Voltage	220-240V~
Installed Electric Power	10800W
Product Size D× W× H(mm)	900X520X60
Building-in Dimensions A× B (mm)	875X495

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
900	520	60	56	875	495	50 mini

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the Induction cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Adjusting the bracket position

Fix the hob on the work surface by screw 2 brackets on the bottom of hob(see picture) after installation.

Close-up of a mechanical component with red circles highlighting features, shown from an inset view (no text or symbols visible)

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.

2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob

electronics

1. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
2. The wall and induced heating zone above the table surface shall withstand heat.
3. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating plate.
   To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. alterations must only be made by a qualified electrician.

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. the method of connection is shown below.

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Simple line drawing of a steam locomotive with wheels and exhaust lines, no text or symbols present

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

Three identical cooking pots with crossed-out X marks, placed horizontally on a flat surface (no text or symbols)

Simple line drawing of a cooking pot with crossed arrows indicating pressure or heat (no text or symbols)

Simple line drawing of a hand pointing at a cooking pot and a digital timer showing 0 (no text or symbols on the main elements)

Simple line drawing of a hand pointing upward (no text or symbols)

Simple line drawing of a hand pointing upward with a circular icon on the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a small pixelated symbol above (no text or numbers)

Simple line drawing of a hand pointing upward with a small number 7 at the top (no text or symbols)

Simple line drawing of a hand with a black exclamation mark above the index finger (no text or symbols)

Simple line drawing of a hand holding a sign with a flame symbol (no text or labels)

0

Simple line drawing of a hand pointing at a row of vertical bars (no text or symbols)

ZONA FLESSIBILE

Two identical black circular objects with plus signs on their tops, enclosed in a dashed border (no text or symbols)

Gray rectangular object with plus and minus signs, enclosed by a dashed border (no text or symbols)

Two identical circular objects with cross marks connected by lines, enclosed in a dashed square frame (no text or symbols)

Come zona grande

Simple line drawing of a hand pointing upward with a small number '7' on the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a circular button labeled 'II' (no text or symbols beyond the number)

Simple line drawing of a hand pointing at a row of vertical bars (no text or symbols)

L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
900	520	60	56	875	495	minimo 50

A (mm)	B (mm)	C (mm)	D	E
760	minimo 50	minimo 20	Entrata aria	Uscita aria 5 mm

Mechanical assembly with two views: top shows a black metal component with circular features, bottom shows a metallic mounting bracket with a central bolt (no text or symbols visible)

Avvertenza

Simple line drawing of a steam locomotive with wheels and motion lines, no text or symbols present

Two hand-drawn diagrams showing a shoe being checked and crossed, with checkmark and cross symbols (no text or labels)

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Simple line drawing of a cooking pot with crossed arrows indicating pressure or heat (no text or symbols)

Simple line drawing of a hand pointing upward (no text or symbols)

Simple line drawing of a hand pointing upward with a circular icon on the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a small number '7' above (no text or symbols)

Simple line drawing of a hand pointing upward with a small number 7 above the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a small arrow on the index finger (no text or symbols)

Simple line drawing of a hand with an exclamation mark above the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a curved arrow above it (no text or symbols)

OF

FLEXIBELE ZONE

Two identical black circular objects with plus signs on their tops, enclosed in a dashed border (no text or symbols)

Gray rectangular button with plus signs, enclosed by a dashed border (no text or symbols)

Two identical dark circular objects with cross marks placed inside a dashed rectangular frame (no text or symbols)

Als grote zone

Simple line drawing of a hand pointing upward with a stylized symbol above (no text or numbers)

Simple line drawing of a hand pointing at a row of vertical bars (no text or symbols)

L(mm)	B(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
900	520	60	56	875	495	50 mini

A(mm)	B(mm)	C(mm)	D	E
760	50 mini	20 mini	Luchtinlaat	Luchtuitlaat 5 mm

Close-up of a black electronic component with circular cutouts, shown from two angles (no text or symbols visible)

Voorzichtig

Simple line drawing of a steam locomotive with wheels and exhaust lines, no text or symbols present

železný hrnec

magnetický okruh

sklokeramická deska

indukční cívka

indukované proudly

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

Three identical cooking pots with crossed-out X symbols on their bases, no text or labels present.

Four identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

Two cooking pots with crossed arrows indicating heating or cooling conditions (no text or symbols)

Simple line drawing of a hand pointing upward with a small pixelated symbol above (no text or symbols present)

Simple line drawing of a hand with a circular symbol on the index finger (no text or labels)

Simple line drawing of a hand pointing upward with a small pixelated number '7' above (no text or symbols on the hand)

Simple line drawing of a hand pointing upward with a small number 7 above the index finger (no text or symbols)

Simple line drawing of a hand making a peace sign (no text or symbols)

Simple line drawing of a hand pointing upward with a curved arrow above, emitting steam (no text or symbols)

NEBO

Simple line drawing of a hand pointing at a row of vertical bars (no text or symbols)

FLEXIBILNÍ OBLAST

Simple line drawing of a hand pointing upward with a small number 7 above the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a circular button labeled 'II' (no text or symbols beyond the number)

D (mm)	Š (mm)	V (mm)	H (mm)	A (mm)	B (mm)	X (mm)
900	520	60	56	875	495	50 mini

A (mm)	B (mm)	C (mm)	D	E
760	50 mini	20 mini	Vstupvzduchu	Odvodvzduchu 5 mm

Close-up of a mechanical component with red circles highlighting features, shown from two angles (no text or symbols visible)

Upozornění

Simple line drawing of a steam locomotive with wheels and exhaust lines, no text or symbols present

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

Two cooking pots with crossed handles and directional arrows indicating heating or cooling (no text or symbols)

Simple line drawing of a hand pointing upward (no text or symbols)

Simple line drawing of a hand pointing upward with a circular icon on the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a small pixelated symbol above (no text or numbers)

Simple line drawing of a hand pointing upward with a small number 7 above the index finger (no text or symbols)

Simple line drawing of a hand pointing at a row of vertical bars, no text or symbols present

Simple line drawing of a hand pointing upward with a black exclamation mark above the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a smoke or vapor inside (no text or symbols)

ALEBO

Simple line drawing of a hand pointing at a row of vertical bars, no text or symbols present

FLEXIBILNÁ OBLAST

Two identical black circular objects with handles, each containing a plus symbol, enclosed in a dashed border (no text or labels)

Simple gray rectangular shape with plus and minus signs inside, enclosed by a dashed border (no text or symbols)

Two black circular objects with cross marks connected by lines, enclosed in a dashed rectangular border (no text or symbols)

Vel'ká zóna

Simple line drawing of a hand pointing upward with a small number '7' on the index finger (no text or symbols)

D(mm)	Š(mm)	V(mm)	H(mm)	A(mm)	B(mm)	X(mm)
900	520	60	56	875	495	50 mini

A(mm)	B(mm)	C(mm)	D	E
760	50 mini	20 mini	Vstupvzduchu	Výstupvzduchu 5 mm

Close-up of a black electronic component with circular cutouts, shown from two angles (no text or symbols visible)

Upozornenia

Simple line drawing of a steam locomotive with wheels and motion lines, no text or symbols present

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Two cooking pots with crossed arrows indicating opposing pressure, one with a cross symbol and the other with a double-headed arrow (no text or symbols)

Simple line drawing of a hand pointing upward (no text or symbols)

Simple line drawing of a hand pointing upward with a circular icon on the index finger (no text or symbols)

Hand gesture pointing upward with a small pixelated symbol above (no text or numbers present)

Simple line drawing of a hand pointing upward with a small number 7 above the index finger (no text or symbols)

Simple line drawing of a hand pointing upward with a black mark above the index finger (no text or symbols)

Simple line drawing of a hand pressing a button with a lit flame (no text or symbols)

LUB

Simple line drawing of a hand pointing at a row of vertical bars (no text or symbols)

STREFA ELASTYCZNA

Simple line drawing of a hand pointing upward with a small number 7 above the index finger (no text or symbols)

Simple line drawing of a hand pointing at a horizontal bar with vertical tick marks (no text or symbols)

Close-up of a mechanical component with red circles highlighting features, shown from two angles (no text or symbols visible)

Przestrogi
