Product Type Freestanding Gas Cooker
Brand Hoover
Model HHG6BR4MX
Dimensions (H x W x D) 85 cm x 60 cm x 60 cm
Weight Approximately 45 kg
Power Supply Gas: Natural Gas or LPG (convertible); Electric: 220-240 V, 50 Hz
Number of Gas Burners 4
Oven Type Gas oven with thermostat
Oven Capacity 65 liters
Grill Function Yes, gas grill
Ignition System Automatic electronic ignition
Safety Features Flame failure safety device on all burners
Cleaning Enamel interior for easy cleaning; removable oven door
Control Type Front-mounted rotary knobs
Timer Mechanical timer with alarm
Oven Light Yes, interior light
Storage Drawer Yes, below oven
Energy Class A (for gas oven)
Spare Parts Availability Available from Hoover authorized service centers
Warranty 2 years manufacturer warranty

Frequently Asked Questions - HHG6BR4MX HOOVER

How do I install the HHG6BR4MX gas cooker?
Installation must be carried out by a qualified gas engineer. Ensure the cooker is placed on a flat, stable surface with adequate ventilation. Connect to gas supply (natural gas or LPG) using the appropriate regulator. The electrical connection (if any) should be to a 220-240 V socket. Refer to the user manual for detailed instructions.
How do I convert the cooker from natural gas to LPG?
Conversion requires changing the injectors on the burners and adjusting the air shutter. Use the LPG conversion kit provided. This should be done by a qualified technician. Refer to the conversion instructions in the manual.
What should I do if the oven does not light?
Check that the gas supply is turned on and the ignition spark is working. If using manual ignition, ensure the burner is correctly aligned. If the flame failure safety device activates, wait 5 minutes before retrying. For persistent issues, contact customer service.
How do I clean the gas hob?
Remove pan supports and burner caps. Wash them in warm soapy water. Wipe the hob surface with a damp cloth and mild detergent. Avoid abrasive cleaners. Dry thoroughly before reassembly. The burner caps should be re-aligned correctly.
Can I use the oven and grill simultaneously?
Yes, the HHG6BR4MX allows simultaneous use of oven and grill. However, ensure that the oven door is partially open when grilling to avoid overheating. Refer to the usage guidelines in the manual.
What is the maximum oven temperature?
The gas oven reaches a maximum temperature of approximately 250°C (482°F). Use the thermostat knob to set the desired temperature. Preheating is recommended for optimal baking results.
How do I replace the oven light bulb?
Disconnect the cooker from the power supply. Remove the glass cover by turning it counterclockwise. Replace the bulb with a new one of the same type (typically 25 W, 300°C resistant). Do not touch the bulb with bare hands. Reattach the cover and reconnect power.
What should I do if I smell gas?
Immediately turn off the gas supply at the main valve. Do not operate any electrical switches or create sparks. Open windows and doors for ventilation. Evacuate the area and call the gas emergency number or a qualified technician.
How do I set the timer?
Turn the mechanical timer knob clockwise to set the desired cooking time (up to 120 minutes). The alarm will sound when time expires. To cancel, turn the knob to the off position. The timer does not control the gas automatically; it is a reminder only.
Where can I find spare parts for the HHG6BR4MX?
Spare parts are available through Hoover authorized service centers and online parts retailers. Common parts include burner caps, knobs, oven door seals, and thermostats. Provide the model number HHG6BR4MX when ordering.

User questions about HHG6BR4MX HOOVER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Cooker in PDF format for free! Find your manual HHG6BR4MX - HOOVER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HHG6BR4MX by HOOVER.

USER MANUAL HHG6BR4MX HOOVER

SAFETY INSTRUCTIONS

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after-sales service. WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.

WARNING: use only hob guards designed by the Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: danger of fire: do not store items on the cooking surfaces.

WARNING: if the surface is cracked, do not touch the glass and switch off the appliance to avoid the possibility of electric shock.

This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously.

It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.

This appliance is not intended to be operated by means of an external timer or separate remote control system.

If present, do not stare into halogen lamp hob elements.

Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.

Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.

The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

Disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified people to avoid a hazard. The earth conductor (yellow-green) must be longer than 10 mm on the terminal block side. The internal conductors' section should be appropriate for the power absorbed by the hob (indicated on the tag). The type of power cable must be HO5V2V2-F.

Do not put metallic objects such as knives, forks, spoons, or lids on the hob. They could heat up. Aluminum foil and plastic pans must not be placed on heating zones.

After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns, giving off smoke and unpleasant smells, not to mention the risks of fire propagation.

Never use a steam or high-pressure spray to clean the appliance.

Do not touch the heat zones during operation or for a while after use.

Never cook food directly on the glass ceramic hob.

Always use the appropriate cookware. Always place the pan in the center of the unit that you are cooking on.

Do not place anything on the control panel.

Do not use the hob as a working surface.

Do not use the surface as a cutting board.

Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.

Do not use the hob for storage of any items.

Do not slide cookware across the hob.

No additional operation/setting is required in order to operate the appliance at the rated frequencies.

1. INSTRUCTIONS FOR THE INSTALLER

Installing a domestic appliance can be a complicated operation which, if not carried out correctly, can seriously affect consumer safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product, whether or not it results in damage to goods or injury to individuals.

1.1 BUILDING IN

The hob may be installed in any worktop which is heat resistant to a temperature of 100°C and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are shown in Figure 2.

When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3).

If the hob is fitted next to a cabinet on either side, the distance between the hob and the cabinet must be at least 15 cm; while the distance between the cut out and the rear wall must be at least 7 cm.

The distance between the hob and any other unit or appliance above it (e.g., an extractor hood) must be no less than 70 cm (Figure 4).

Metal objects in the drawer may reach high temperatures due to air recirculation. It is therefore recommended to use an intermediate wood panel.

Important - The diagram in Figure 1 shows how the sealant should be applied.

The hob unit is fitted by attaching the fixing clamps supplied, using the holes at the base of the unit.

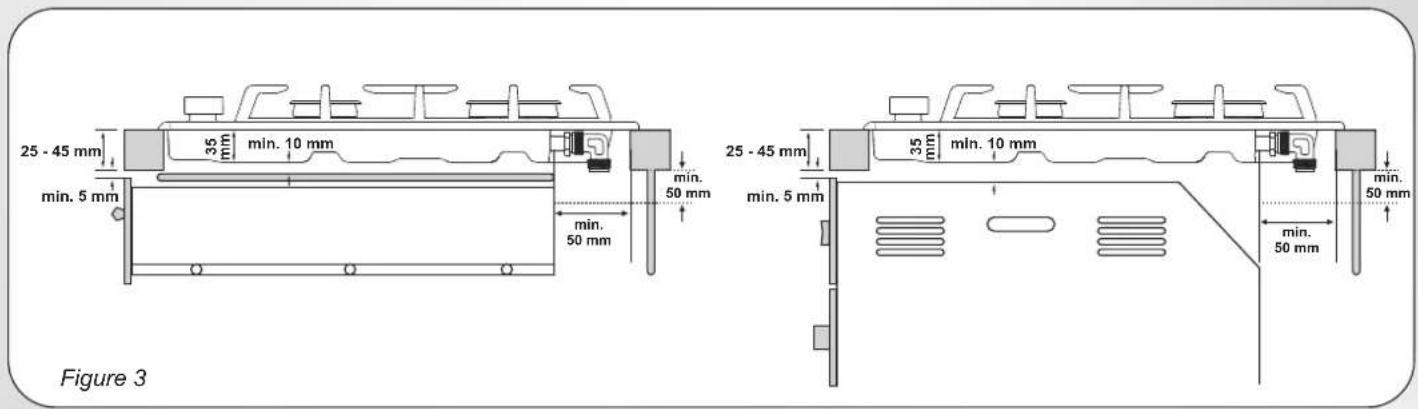

If a hob of 60 cm is fitted above an oven which is not equipped with fan cooling system, it is recommended that openings are created within the built-in furniture to ensure correct air circulation.

The size of these openings must be at least 300 cm² and placed as shown in Figure 5.

When a 75 cm hob is fitted over a built-in oven, the latter must be fan cooled.

1.2. SUITABLE LOCATION

This appliance must be installed in accordance with the regulations in force and only used in a well-ventilated space. Read the instructions before installing or using this appliance.

A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason, you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as opening a window or increasing the speed of an electric fan, if you have one.

If a hood cannot be installed, an electric fan should be fitted to an outside wall or window to ensure adequate ventilation. The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.

2. ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed

This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.

The appliance must only be connected to a suitably rated spur point; a 3-pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection.

Further details of the power requirement of the individual product will be found in the user's instructions and on the appliance rating plate. In the case of built-in products, you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat-resistant type must be used.

The wiring must be connected to the mains supply as follows:

CONNECT

TO SPUR TERMINAL

Green & Yellow Wire

Earth Connection

Blue Wire

Neutral Connection

Brown Wire

Live Connection

Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the “nuisance tripping” which may occur. You are again reminded that the appliance must be correctly earthed; the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.

2.1. ELECTRICAL CONNECTION

Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable. Before connection, check the earthing system.

By law, this appliance must be earthed. If this regulation is not complied with, the manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.

Where the hob is connected directly to the electricity supply, a circuit breaker must be fitted.

If the power supply cord is damaged, it must be replaced by a qualified engineer to prevent any potential risk.

The earth wire (green and yellow coloured) must be at least 10 mm longer than the live and neutral wires.

The section of the cable used must be of the correct size in relation to the absorbed power of the hob.

Please check the rating plate for the power details and ensure that the power supply cord is of the type 3x0.75 mm² H05 V2V2-F.

Mains SupplyLIVELBrown Wire
EARTHGreen/Yellow Wire
NEUTRALNBlue Wire

If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

2.2. GAS CONNECTION

These instructions are for qualified personnel; installation of equipment must be in line with the relevant national standard. (For U.K. only: by law, the gas installation/commissioning must be carried out by a "Gas Safe" installer.)

All work must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated, see the instructions in the following paragraphs to change gas setting.

For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards.

Use only pipes, washers and sealing washers which comply with the relevant national standards.

For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob.

When connecting the hob to the gas supply via use of flexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.

The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged in any way.

To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6):

1) As illustrated, assemble parts in sequence:

A: 1/2 Male Adaptor Cylindrical

B: 1/2 Seal

C: 1/2 Female Gas Adaptor Conical-Cylindrical or Cylindrical-Cylindrical

2) Tighten the joints with the spanner, remembering to twist the pipes into position. 3) Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.

IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (e.g. a drawer) and that it is not situated where it could be damaged.

Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS

To adapt the Hob for use with different types of gas, carry out the following instructions:

  • Remove the grids and burners
  • Insert a hexagonal spanner (7 mm) into the burner support (Figure 7)
  • Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)

2.4. REGULATING THE MINIMUM FLAME

After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).

Using a small "Terminal" type screwdriver, the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob.

When the gas supply available is LPG, the screw to set the idle flame must be turned (clockwise) to the end stop.

When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.

3. USE OF HOB - USER INSTRUCTIONS

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

Before using the burner, be sure that the grid perimeters center the burner as shown in the figure below.

If you are using cast iron grids, underneath the grid, its position is stated. Be sure that the exact grid is used in the correct position.

Diagram showing a kitchen stove with four circular windows and checkmark indicators below, likely illustrating a cooking or dining setup.

To ignite the burners, place a lighted taper close to the burner, press in and turn the control knob anti-clockwise.

If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape.

For appliances fitted with electronic ignition, carry out the following:

- Push in and turn the knob anticlockwise to the ignition symbol.

- Ignite the burner by pressing the sparker button.

For hobs fitted with automatic ignition, simply push in and turn the knob to the ignition symbol.

The ignition system will continue to generate sparks as long as the control knob is being pressed.

If the burner has not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation.

For models fitted with a safety tap (which cuts off the flow of gas if the flame is accidentally extinguished), the burners are ignited as described above, but care must be taken.

Prior to switching on the gas hob, ensure that the burners and burner caps are correctly placed within their position.

Warning: If there is no electricity on the appliance, to ignite the burner a lighter should be used;

- Push in and turn the knob anti-clockwise to the ignition symbol,

- While pushing in the button, ignite the burner by using a lighter and keep the button pushed in for 5 seconds after ignition.

GENERAL ADVICE

For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A.

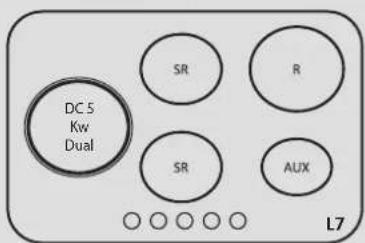

Burner Type∅ pan/pot (cm)Power (kW)G20/20 mbar (methane)G30/28-30 mbar (LPG)
AUX Auxiliary10 - 181,0095 l/h73 g/h
SR Semi Rapid12 - 221,75167 l/h127 g/h
R Rapid16 - 262,70257 l/h196 g/h
DC 4 kW DUAL16 - 264,00381 l/h291 g/h
DC 4,2 kW DUAL16 - 264,20400 l/h306 g/h
DC 5 kW DUAL16 - 265 NG 4,6 LPG476 l/h364 g/h

Table A

For smaller containers, the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.

WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite for at least 1 minute.

If over the years the gas taps become stiff to turn, it is necessary to lubricate them.

Such operation must be carried out only by qualified Service Engineers.

4. MAINTENANCE AND CLEANING

Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.

Cleaning and user maintenance shall not be made by children without supervision.

Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.

When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non-caustic detergent. For stainless steel use an appropriate cleaning solution.

The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.

It is important the burners are replaced correctly.

Chromed grids and burners

Chromed grids and burners have a tendency to discolour with use. This does not jeopardize the functionality of the hob.

Our After Sales Service Centre can provide spare parts if required.

5. AFTERCARE

Before calling out a Service Engineer please check the following:

  • that the plug is correctly inserted and fused; • that the gas supply is not faulty.

If the fault cannot be detected:

Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE.

6. PROTECTION OF THE ENVIRONMENT

HOOVER HHG6BR4MX - PROTECTION OF THE ENVIRONMENT - 1

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and

recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

  • WEEE shall not be treated as household waste.
  • WEEE shall be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
  • When you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in EEC directives 89/109.

The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR).

The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

Table 1

Burner Plate4 Gas4 Gas4 Gas4 Gas5 Gas5 Gas3 Gas
BurnerAux/SR/RAux/SR/R/DC 4 DualAux/SR/R/DC 4,2 DualAux/SR/R/DC 5 DualDC/2R/SR/AUXDC/2SR/SR/AUXAux/R/DC 4 Dual
TypeUH60MFUH60MFUH60MFUH60MFUH75MFUH75MFUH60MF
FFDYESYESYESYESYESYESYES
Aux 1kW1111111
Sr 1,75 kW211112-
R 2,7 kW1111211
Dc 4 kW Dual-1----1
Dc 4,2 kW Dual--1----
Dc 5 kW Dual---111-
Nominal Heat Input7,2 kW9,45 kW9,65 kW10,45 kW10,05 kW13,15 kW12,75 kW12,2 kW11,8 kW8,7 kW(NG)8,3 kW(LPG)
G20/20 mbar686 l/h900 l/h920 l/h996 l/h1253 l/h1163 l/h829 l/h
G30/28-30 mbar524 g/h688 g/h702 g/h731 g/h928 g/h859 g/h604 g/h
Installation Class3333333
Voltage V/Frequency Hz220-240 V/ 50-60 Hz220-240 V/ 50-60 Hz220-240 V/ 50-60 Hz220-240 V/ 50-60 Hz220-240 V/ 50-60 Hz220-240 V/ 50-60 Hz220-240 V/ 50 -60 Hz
Electrical Input Power1111111
Electric IgnitionYESYESYESYESYESYESYES
Product Dimension595x510595x510595x510595x510745x510745x510595x510

This appliance has been designed for non-professional, i.e. domestic, use.

Two views of a device casing with internal compartments and mounting holes, labeled 60 and 75 (no text or symbols on the casing itself)

560° mm min 70 mm min 170 mm (60 cm) min 200 mm (65 cm) min 250 mm (75 cm) 480° mm min 50 mm min 600 mm Figure 2Fig

Figure 2 Figure 1

Diagram of a rope knot with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical joint or connector (no text or symbols)

INJECTOR Figure 7

CYLINDRICAL CYLINDRICAL CONICAL Figure 8

Diagram showing a tool interacting with a circular device, with no visible text or symbols

DC 5 kw Dual SR R AUX L1

SR R DC 4,2 Kw Dual AUX L2

DC 4 Kw Dual R AUX SR L3

DC 5 kw Dual R AUX L4

R SR AUX SR L5 L6

DC S Kw Dual R R AUX SR

DC 5 Kw Dual SR R SR AUX L7

GAS TYPEHOBS

Gas TypeG20G20G25.1G25.3G30G30G30
Gas Pressure20 mbar25 mbar25 mbar25 mbar29 mbar37 mbar50 mbar
BurnersMax (kW)Min (kW)Injector NGInjector NGInjector NGInjector NGInjector LPGInjector LPGInjector LPG
Max - Min Max - Min Max - Min Max - Min Max - Min Max - Min
Aux10,372X(1Kw-0,3Kw)70X(1Kw-0,3Kw)74F1(1Kw-0,3Kw)72F1(1Kw-0,3Kw)50(1Kw-0,3Kw)46(1Kw-0,34Kw)43H2(1Kw-0,39Kw)
Sr1,750,4497Z(1.75Kw-0.44Kw)91Z(1.75Kw-0.44Kw)98Y(1.75Kw-0.44Kw)102F3(1.75Kw-0.44Kw)65(1.75Kw-0.44Kw)61(1.75Kw-0.51Kw)58M(1.75Kw-0.58Kw)
R2,70,75109Y(2.7Kw-0.75Kw)110F3(2.7Kw-0.75Kw)120F2(2.7Kw-0.75Kw)115F2(2.7Kw-0.75Kw)80(2.7Kw-0.75Kw)78(2.7Kw-0.83Kw)73S(2.7Kw-0.96Kw)
Dc 4 kW Dual4 2,3138H3-70H1(4Kw-2.3Kw)132H3-65H1(4Kw-2.3Kw)132F3-68F1(4Kw-2.3Kw)128K-68F1(4Kw-2.3Kw)93-44(4Kw-2.3Kw)86-41(4Kw-2.4Kw)68F4-41H2(4Kw-2.6Kw)
Dc 4,2 kW Dual4,22,3140H3-70H1(4.2Kw-2.3Kw)135H3-65H1(4.2Kw-2.3Kw)143F3-68F1(4.2Kw-2.3Kw)130K-68F1(4.2Kw-2.3Kw)95-44(4.2Kw-2.3Kw)90-41(4.2Kw-2.4Kw)73F4-41H2(4.2Kw-2.3Kw)
Dc 5 kW Dual5 2,3153H3-70H1(5Kw-2.3Kw)150H3-65H1(5Kw-2.3Kw)148F2-68F1(5Kw-2.3Kw)150F3-68F1(5Kw-2.3Kw)98-47(4.6Kw-2.3Kw)95-41(4.6Kw-2.4Kw)78F4-41H2(4.6Kw-2.4Kw)
Gas CategoriesII2E+3+II2H3+II2H3B/P
G20 20 mbarG20 20 mbarG20 20 mbar
G30/31 28-30/37 mbarG30 28-30mbarG30/31 30/30 mbar
G31 37 mbar
CountriesBE,FRCY,CZ,GB,GR,IE,IT,PT,SI, ES,TR,CHBG, HR,DK,EE,FI,LV,LT,NO,RO,SK,SE,CZ,SI,TR
Gas CategoriesII2H3B/PII2EK3B/PII2HS3B/PII2E3B/PII2E3B/P
G20 20 mbarG20 20 mbarG20 25mbarG20 20 mbarG20 20 mbar
G30/31 50/50 mbarG25.3 25 mbarG25.1 25 mbarG30/31 37/37 mbarG30/31 50 mbar
G30/G31 30/30 mbarG30/G31 30/30 mbar
CountriesAT,CH,DENLHUPLDE

Efficiency Declaration 2016/426

UH60MF 5kW DIAMOND (L1)UH60MF - BIG REAR (L3, L5)UH60MF - BIG FRONT (L2)
SINGLE BURNER EFFICENCYSINGLE BURNER EFFICENCYSINGLE BURNER EFFICENCY
AUXSRRDCAUXSRRDCAUXSRRDC
-55 %57,6 %57,6 %-60 %55,9 %54,3 %-60 %55,9 %54,3 %
MEDIUM %56,7MEDIUM %56,7MEDIUM %56,7
UH60MF 5kW 3 GAS (L4)UH75MF 5kW - CENTRAL (L6)UH75MF 5kW - LATERAL (L7)
SINGLE BURNER EFFICENCYSINGLE BURNER EFFICENCYSINGLE BURNER EFFICENCY
AUXRDCAUXSRRRDCAUXSRSRRDC
-57,6 %52,8 %-57,6 %54,3 %54,5 %59,4 %-57,1 %57,1 %52,8 %55,9 %
MEDIUM %55,2MEDIUM %56,5MEDIUM %55,7

1 table

Diagram showing four circular crosshair patterns with checkmark and X symbols, likely illustrating a pattern recognition or selection system.

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

AE

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HOOVER

Model : HHG6BR4MX

Category : Cooker
