USER MANUAL DSI 795XF CANDY

EN User instructions

H A B C D E F G I

H I A B C D E F G

Programme

Description

●

○

6

OUI

●

●

●

●

●

○

70°C

○150

OUI

OUI

OUI

●

●

●

●

●

○50°C

○135

OUI

OUI

●

●

●

●

70°C

○110

OUICUI

OUI

●

●

●

●

50°C

○105

OUI

OUI

●

●

●

●

50°C

○75

OUI

OUI

●

●

65°C

○55

OUI

Congratulations!

Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability.

Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers.

Ask your dealer for the catalogue with the complete range of Candy products.

Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher.

For future reference please keep this instruction booklet in a safe place.

Guarantee

This appliance is supplied with a guarantee certificate which allows free use of the Technical Assistance Service, apart from a fixed call out charge, for a period of one year from the date of purchase. Remember to post part A of the guarantee certificate within 10 days of the purchase date.

Part B should be filled in and retained by you, to be shown to the person from the Technical Assistance Service if required. You should also keep your sales receipt.

Contents

Description of the controls page 15

Technical data page 15

Operating the programmes and special functions page 16

The watercontrol system page 17

Programmes selection page 18

Description of the controls

H A B C D E F G I

A On/off button
B "70°C" button
C Extra rinse button
D Half load button
E Start delay selector

F Door handle
G Programme selector
H Mains indicator light
Low level salt indicator light

Dimensions:

Height	cm	82÷88,5
Depth	cm	55
Width	cm	59,8
Depth with door open	cm	117

Technical Data

EN 50242 place load
Capacity with pans and dishes
Water supply pressure
Fuse
Power input
Supply voltage

12
8 persons
Min. 0,08 - Max 0,8 MPa
(see rating plate)
(see rating plate)
(see rating plate)

Attention

This dishwasher is equipped with an anti-overflow safety device which works even when power is switched off, and if the water level is too high the supply will automatically be closed off. Important

To ensure the correct operation of the anti-overflow safety device, it is recommended not to move or to tilt the dishwasher during operation.

If it is necessary to move or to tilt the dishwasher, first make sure the washing cycle is finished and that no water is left in the tank.

Selecting the programme and special functions

Use in conjunction with programme guide

Toset the programme, turn the dial clockwise until the pointer indicates the symbol of the required programme on the control panel. Then press the On/Off button. Ensure that the water supply is turned on and the door is closed properly.

70^

"70°C" button

This button is an option available on the UNIVERSAL INTENSIVE 70°C and DAILY INTENSIVE 70°C programmes which will increase the temperature of the water of washing from 50°C to 70°C.

Extra rinse button

Extra rinse for very dirty washing.

1/2

Half load button

By pressing this button it is possible to wash a small quantity of crockery using only the upper basket for dishes and cutlery in the bottom basket. This reduces water and energy consumption and requires a smaller quantity of detergent as well.

Start Delay Control

Start Delay is available on all programmes and is used to postpone the start of programmes by up to 12 hours. Each one hour period is marked. If you wish to delay the start, simply load the machine, load the dispenser with detergent, and turn the programme control knob clockwise to the number of hours you wish the programme to be delayed. For example if it is 8pm and you want the machine to start at midnight, turn the start delay knob to 4. Press the On/Off button. The red pilot light will come on to show that the machine is switched on. The start of the programme will then be delayed according to the selected time.

The cycle ends

When the program handle reaches the ● symbol, the cycle ends. Push the On/Off button to cut power to the dishwasher and then only open the door.

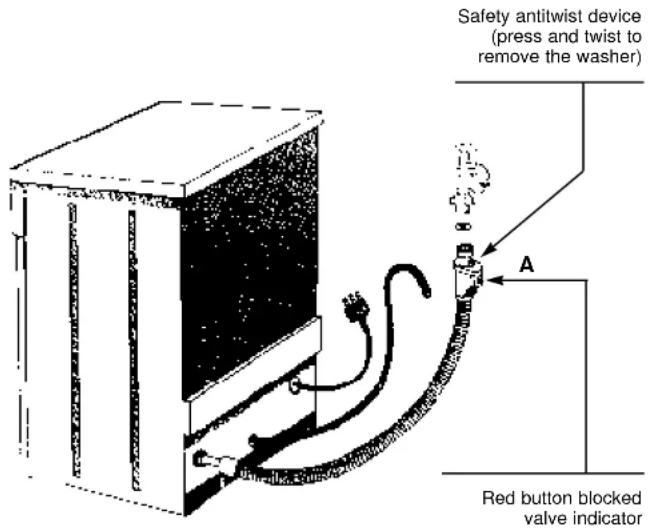

Watercontrol-system

The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose.

In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine.

This fault is shown by a red sector on the window «A». Would this occur, please refer to your Service Agent.

If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent.

Safety antitwist device (press and twist to remove the washer) A Red button blocked valve indicator

Information for the test laboratories

General programme comparison

Ref. EN 50242 Standards:

1) Upper basket position: low

2) Normal load

3) Shine setting: 5

4) Amount of detergent:

3 gr for pre-wash

- 22 gr for wash.

PROGRAMME SELECTION

Programme	Description
1[IMAGE]	PRE-WASH	Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.
2+70°C[IMAGE]70°C	UNIVERSAL INTENSIVE 70°C	Once a day - for heavily soiled pans and any other items that have been left all day for washing.
2[IMAGE]50°C	ECO UNIVERSAL 50°C	Energy Saving Programme suitable for normal soiled items. Using detergents with enzyme.Programme standardised to EN 50242.
3+70°C[IMAGE]70°C	DAILY INTENSIVE 70°C	Once a day - for normal soiled pans and any other items that have been left all day for washing.
3[IMAGE]50°C	DAILY 50°C	Suitable for heavily soiled items that are to be washed straight after a meal.
4[IMAGE]50°C	DELICATE 50°C	Suitable for delicate crockery and glassware. Also for less soiled items excluding pans.
5[IMAGE]65°C	PLATE- WARMING 65°C	Suitable for rinsing dishes which have not been used for some time and for warming dishes prior to serving.

Check list

Programme contents

Average duration in minutes

Special function buttons available

Detergent for soaking

Detergent for washing

Clean filter

Check rinse aid dispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

Hot rinse with rinse aid

With cold water (15°C)

“70°C” button

Extra rinse button

Half load button

●

○

6

YES

●

●

●

●

●

○

70°C

○

150

YES

YES

YES

●

●

●

●

●

○

50°C

○

135

YES

YES

●

●

●

●

70°C

○

110

YES

YES

YES

●

●

●

●

50°C

○

105

YES

YES

●

●

●

●

50°C

○

75

YES

YES

●

●

65°C

○

55

YES

H A B C D E F G I

●

○

6

JA

●

●

●

●

●

○

70°C

○150

JA

JA

JA

●

●

●

●

●

○50°C

○135

JA

JA

●

●

●

●

70°C

○110

JA

JA

JA

●

●

●

●

50°C

○105

JA

JA

●

●

●

●

50°C

○75

JA

JA

●

●

65°C

○55

JA

Watercontrol-System

H A B C D E F G I

H A B C D E F G I

H A B C D E F G I

●

○

6

SIM

●

●

●

●

●

○

70°C

○

150 SIM

M

SIM

SIM

●

●

●

●

●

○

50°C

○

135

SIM

SIM

●

●

●

●

70°C

○

110 SIM

M

SIM

SIM

●

●

●

●

50°C

○

105

SIM

SIM

●

●

●

●

50°C

○

75

SIM

SIM

●

●

65°C

○

55 SIM

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
