Product Type	Electric Fan Heater
Brand	Termozeta
Model	TZR16N
Dimensions (W x D x H)	20 x 15 x 30 cm
Weight	1.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	2000 W (max)
Heating Settings	Fan only, Low heat (1000 W), High heat (2000 W)
Thermostat	Adjustable thermostat with auto shut-off
Safety Features	Overheat protection, tip-over switch, thermal fuse
Housing Material	Heat-resistant plastic
Grille Material	Metal
Noise Level	Approx. 45 dB
Room Coverage	Up to 25 m²
Cleaning	Wipe with damp cloth; do not immerse
Filter	Washable dust filter (rear)
Certifications	CE, RoHS
Spare Parts Available	Yes (filter, feet, switch)
Repairability Index	7.5/10
Warranty	2 years

Frequently Asked Questions - TZR16N TERMOZETA

How do I turn on the TZR16N heater?

Plug the heater into a power outlet, then turn the thermostat knob to the desired temperature. Set the function switch to either Fan Only, Low Heat (1000 W), or High Heat (2000 W).

What does the thermostat do?

The thermostat automatically maintains the room temperature. Once the set temperature is reached, the heater will cycle off and on to maintain it. Turn the knob clockwise for higher temperature.

Is the TZR16N safe to leave unattended?

The heater has safety features including overheat protection and a tip-over switch. However, it is recommended to never leave the heater unattended while in use.

How do I clean the dust filter?

Unplug the heater. Remove the rear filter grille and take out the foam filter. Wash the filter with mild soap and water, let it dry completely before reinstalling. Clean monthly for optimal performance.

Why does the heater turn off suddenly?

This could be due to overheating or the tip-over switch activating. Ensure the heater is on a flat, stable surface and not covered. Let it cool down for 10 minutes before restarting. If the problem persists, contact support.

Can I use the heater in a bathroom?

The TZR16N is not designed for use in bathrooms or high-humidity areas. It should only be used in dry indoor locations to avoid electrical hazards.

What is the maximum room size for this heater?

The heater is suitable for rooms up to approximately 25 square meters (270 sq ft) with standard ceiling height. For larger rooms, a more powerful heater is recommended.

Does the heater have a remote control?

No, the TZR16N does not include a remote control. All settings are adjusted manually using knobs on the unit.

How do I store the heater during summer?

Clean the filter and wipe the exterior. Store the heater in a cool, dry place away from direct sunlight. Coil the power cord loosely to avoid damage.

Where can I find spare parts for the TZR16N?

Spare parts such as filters, feet, and switches can be ordered from the Termozeta website or authorized service centers. Check the manual for part numbers.

USER MANUAL TZR16N TERMOZETA

White TermoZETA portable heater with two side-mounted fans and a control panel (no visible text or symbols on the device body)

MANUALE D'ISTRUZIONI

White thermosink heater with heat exchanger and control knobs (no visible text or symbols)

INSTRUCTION MANUAL

We thank you for the preference given having chosen a TERMOZETA product ..

Please read the information contained in this manual carefully, as it will help you make the most of the features of this product.

This booklet is an integral part of the appliance and must be read carefully before use as it provides important information regarding safe installation, use and maintenance. Therefore store carefully.

with regards

Lange Distribution S.r.l.

Please read this instruction manual carefully as there is important information on the safety, use and maintenance of the appliance inside. Keep the manual for future reference.

SAFETY WARNINGS

CAUTION: To prevent overheating do not cover the appliance.

The appliance must not be placed below electric socket on the wall.

1. Remove the packing and make sure that the appliance is intact. The appliance must be intact without visible damages which could be caused by transport. In case of doubt do not use it and contact our after-sales service. Do not leave packaging materials like plastic bags, foam polystyrene, buttons and staples within reach of children.
2. If external cable is damaged, it must be replaced by a qualified service assistance.
3. Before cleaning and maintenance disconnect the appliance from electric socket
4. In case of abnormal situation turn off the appliance immediately and contact the dealer or the service
5. Do not use flying sockets or damaged cables.
6. Hold the plug firmly when disconnecting from the electric socket to prevent electric shock, short circuit or fire.
7. It's absolutely forbidden to dismount or repair the unit: risk of electric shock; contact your dealer or service center.
8. Do not insert items in the slots of the unit.
9. Before connecting the appliance check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance.
10. The unit is for domestic use only. Do not cover the appliance while it's turned on or plugged. Don't expose the product to atmospheric agents.
11. Danger. Do not use it for other purposes.

12. Before connecting the appliance check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance.

13. Do not to use adapters, multiple outlets and/or extension cords.

14. Use the appliance only for the mentioned purpose, namely for heating for domestic use. Do not use it for any other application as it could get dangerous. The manufacturer is not responsible for any eventual damages caused by improper or faulty use.
15. The product is intended for indoor use only. Don't ‘use it externally. Don’t allow atmospheric agents to in touch with the product.
16. The use of every electrical appliance calls for the awareness of some basic rules, such as:

a) -Never touch the appliance with wet or damp hands or feet.
b) -Never use the appliance with bare feet.
c) Never pull the chord of the appliances.

1. Before cleaning the appliance or carrying out any maintenance switch off the whole system or disconnect the appliance
2. If the appliance malfunctions or is out of work switch it off without tampering it. If any repair is required please contact only the after-sale centers approved by the manufacturer and ask for original spare parts. Otherwise safety of the appliance can be compromised.
3. When the appliance is not in use switch it off and unplug it. Make harmless the parts of the appliance which could be handled hazardously by children for playing.
4. Children should be supervised to ensure that they do not play with the appliance.
5. To avoid overheating risks you are recommended to unwind completely the extension cord.
6. Keep the power chord far from hot sources. Don't put heavy objects on the cable. Don't allow it twists around the product.
7. Don't allow power chord hangs down form the table.
8. Never pull the chord of the appliance for moving it or for disconnecting it from main supply.

9. After use, disconnect the product from main supply.

10. Air grilles and outlets must be kept free, in order to avoid over heating of the product.

11. Keep a minimum distance of 50 cm from walls and objects avoiding that the air flow is directed towards them. Avoid that between the appliance and the wall corners there is a distance which is lower than 15 cm.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
13. Avoid power chord goes in touch with the frontal grille of the product.
14. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
15. Only use the product in horizontal position.
16. Always position the product on a stable, flat, dry surface
17. Maintain the outlet grille clean.
18. The heater must not be located immediately below a socket outlet.
19. Don't use the appliance near explosive or flammable materials
20. CAUTION: To prevent overheating do not cover the appliance.
21. Warning: do not place the unit near curtains or other combustible materials for risk of fire
22. Children of less than 3 years should be kept away unless continuously supervised.

23. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

24. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

25. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision
26. Caution — some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present
27. When the product is working just touch the knobs and the handle
28. Do not use this device connected to controllers, timers, remote control or any other device that may turn the unit automatically on, risk of fire if the unit is covered or placed uncorrectly.
29. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
30. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
31. Warning: to prevent overheating, do not cover the appliance.
32. Always be sure that air outlets are free and not obstructed.
33. Non leave the heater without supervision when plugged.
34. Don't use the product in very small environments or where many people are present.
35. Do not use f lying sockets or damaged cables
36. Don't try to repair the product by yourself. Don't dismount it. Always refer to the dealer or Technical Center.
37. Don't insert any objects into the product slots and grilles.
38. Don't use inappropriately the product, don't use it for other purposes respect to which it has been design.

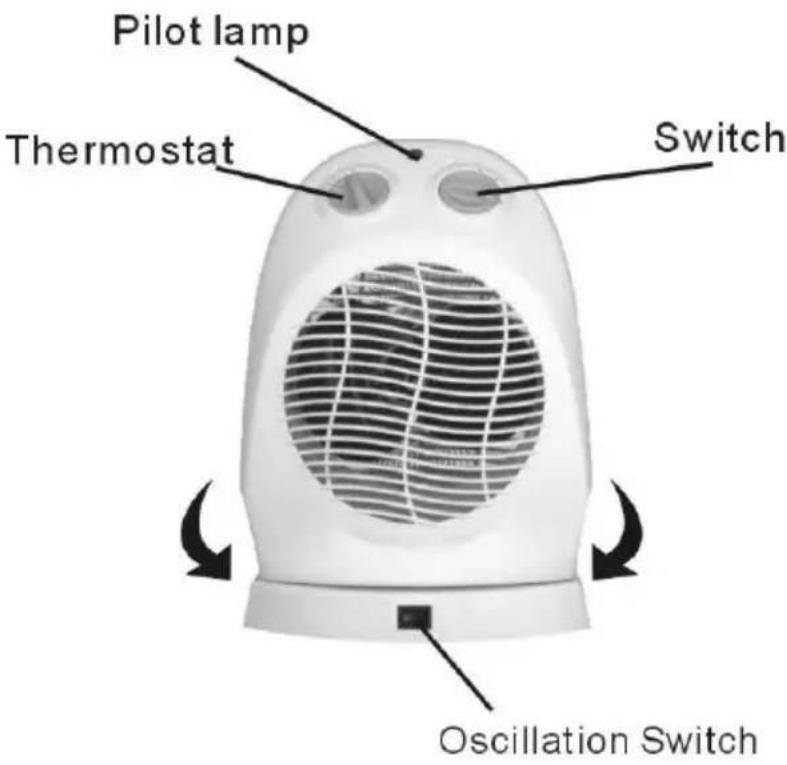

HOW TO USE THE EQUIPMENT

FUNCTIONS

“O” OFF

“∞” Fan only – No heat

“I” Heating, Low power

"II" Heating, High power

THERMOSTAT:

Turn clockwise to increase the heat output.

OSCILLATION CONTROL:

To activate or deactivate Oscillation function, push the related switch.

OPERATION

The appliance requires no installation, it should be used solely as a portable appliance.

Mains operated portable appliances are not suitable for use in a bathroom.

Plug the heater into a suitable power outlet [ observing all the instructions

regarding positioning and switch on.

To use the fan only function:

Turn the rotary switch to "X". The fan will blow out air at room temperature.

If the fan does not operate, the ambient room temperature is cooler than the built-in thermostat "off" level. Turn the thermostat dial gradually clockwise and the fan will start blowing.

To use the machine for heating:

Turn the rotary switch to "I" for low heat and "II" for full heat

Set the level of heat by turning the thermostat dial gradually clockwise for the lowest heat and fully clockwise for maximum.

The thermostat will turn the machine off when the selected room heating is achieved, and when the temperature drops it will turn on again automatically.

For maximum heat output use "II" with the thermostat turned fully clockwise.

To distribute heat evenly around a room, switch on the oscillation function.

SAFETY PROTECTION

The thermostat will turn the machine off if it overheats.

Overheating can be caused by obstruction to the air intakes on the back of the machine or the grill on the front. If this occurs please disconnect the machine or the and allow it to cool for 30 minutes. Remove any obstruction and turn the machine back on.

If the problem persists you should have the machine checked by a suitable qualified electrician.

If the heater ceases to function, the most likely cause is that a no-self-resetting thermal cut-out operates which could be reset by disconnection of the supply, mains. If there is still no function please follow the repair advice above.

CLEANING AND MAINTENANCE

There are no parts inside the machine that require your attention or servicing. Do not try to open the outer case. By doing so you could damage the motor and heating element and invalidate the warranty. If you have a problem with the heater, or if the power cord gets damaged in any way, you must take the unit to a suitably qualified engineer or electrical repair center.

Before cleaning the machine, please make sure it is disconnected from the power supply, and has cooled down completely.

Never clean the machine with water and do not let it get wet under any circumstance.

The outside case can be cleaned using a slightly damp lint-free cloth [a small amount of detergent can be used if required].

To remove any dust particles from inside the front grill, or the rear air intakes, you can use a regular vacuum cleaner.

Always make sure the machine is completely dry before using.

If you are not going to use the heater for a while it is best to make sure it is clean and dry and then store it inside a plastic bag in a cool dry place.

With sensible care and attention this heater will give you many years of good service and economical heating.

INFORMATION REQUIREMENTS FOR LOCAL SPACE HEATERS

Model identifier(s):		TZR16N
Item	Symbol	Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.962 kW			Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0	kW		Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1.962 kW			Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption					Fan assisted heat output	No
At nominal heat output	eI_max	N/A kW			Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N/A	kW		Single stage heat output and no room temperature control	No
In standby mode	eI_SB	N/A	kW		Two or more manual stages, no room temperature control	No
					temperature control	YesW
					With electronic room temperature control	No
					Electronic room temperature control plus day timer	No
					Electronic room temperature control plus week timer	No
					Other control options (multiple selections possible)
					Room temperature control, with presence detection	No
					Room temperature control, with open window detection	No
					With distance control option No
					With adaptive start control No
					With working time limitation No
					With black bulb sensor No
Contact details	Lange Distribution S.r.l. Via Treviso, 35 - 20127, Milano - Italy mail: [e-mail] www.termozeta.com Tel. [phone]

Termozeta is an international trademark. Copyright © 1995. All rights reserved.

Lange Distribution S.r.l. -Via Treviso,35-20127 Milano-Italy

INFORMATION FOR USERS

In accordance with European Directive 2012/19/UE on electric and electronic equipment waste disposal.

1. The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from waste.
2. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.
3. The adequate separate collection for the subsequent start-up of the equipment sent to be recycle, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.
4. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

Lange Distribution S.r.l. reserves the right to introduce technical and/or aesthetic changes to its products intended to improve performances.
