Product Type	Citrus Juicer
Model	CES3001
Brand	VOX
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	200 W
Juice Cup Capacity	1.0 L
Dimensions (approx.)	20 x 20 x 30 cm
Weight (approx.)	1.0 kg
Material	Plastic and stainless steel (sieve)
Motor Type	Dual-direction rotation
Operation	Press fruit on reamer to start; release to stop
Duty Cycle	15 seconds on, 15 seconds off; cool 30 minutes after 10 cycles
Intended Use	Only for citrus fruits (oranges, lemons, limes, grapefruits)
Cleaning	Removable parts (sieve, reamer, bowl) hand wash in hot soapy water; wipe motor base with damp cloth
Dishwasher Safe	No
Safety Features	Auto shut-off when released; non-slip base; overheat protection
Accessories Included	Top lid, reamer, sieve, juice cup, motor base
Warranty	Not specified in manual

Frequently Asked Questions - CES3001 VOX

How do I use the VOX CES3001 citrus juicer?

Place the cup on the base, assemble the sieve and reamer in sequence. Halve a citrus fruit, place it on the reamer, and press lightly to start the motor. Release to stop. Pour juice after removing the reamer.

What fruits can I juice with this appliance?

Only citrus fruits such as oranges, lemons, limes, and grapefruits. Do not use for other fruits.

How do I clean the juicer?

Unplug and let cool. Wash the sieve, reamer, and bowl in hot soapy water, rinse, and dry. Wipe the motor base with a damp cloth. Do not immerse motor unit or use dishwasher.

Can I put the parts in the dishwasher?

No, do not put any parts in the dishwasher. Hand wash only.

What is the maximum juice capacity?

The juice cup has a maximum capacity of 1.0 liter. Do not overfill.

Why does the motor stop during use?

The juicer has a duty cycle: operate for 15 seconds, then let it rest for 15 seconds. After 10 cycles, cool it for 30 minutes to prevent overheating.

Is the juicer safe to use?

Yes, it has safety features including auto shut-off when released and a non-slip base. Always supervise children and follow instructions.

What should I do if the cord is damaged?

Do not use the appliance. Take it to an authorized service facility for repair or replacement.

How do I store the juicer?

Unplug and clean all parts. Assemble with the top lid in place. Store in a dry place.

Can I leave juice in the cup?

Yes, but do not leave it for long periods. Keep the top lid on to maintain cleanliness.

USER MANUAL CES3001 VOX

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

CES - 3001

OPERATING INSTRUCTIONS CITRUS JUICER

MANUALE DELL'UTENTE SPREMIAGRUMI

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

CITRUS JUICER

INSTRUCTION MANUAL

CES - 3001

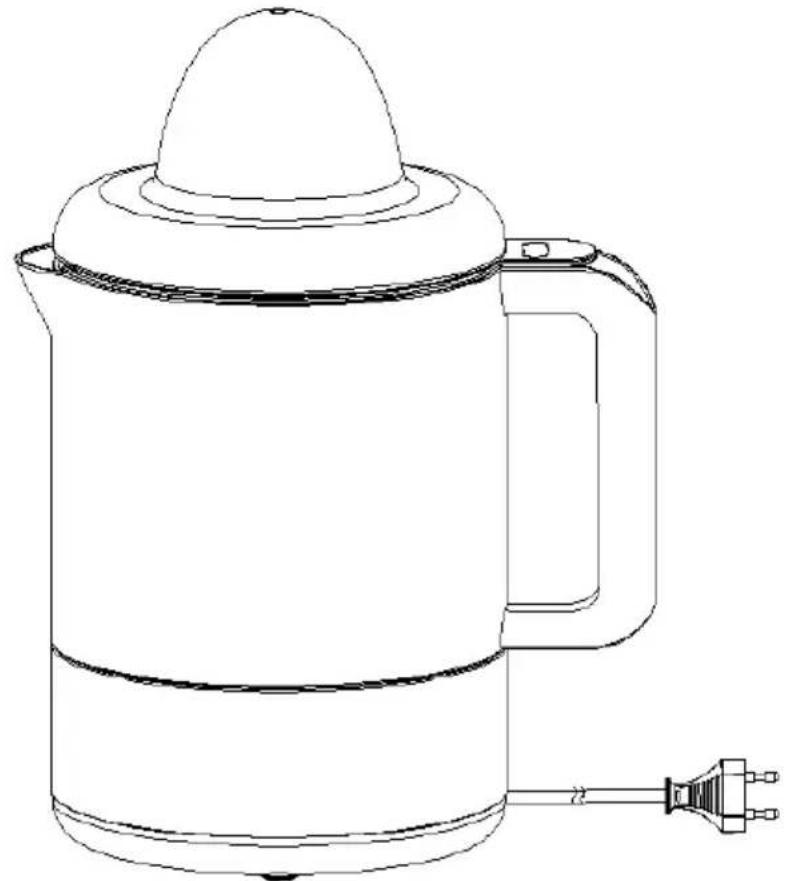

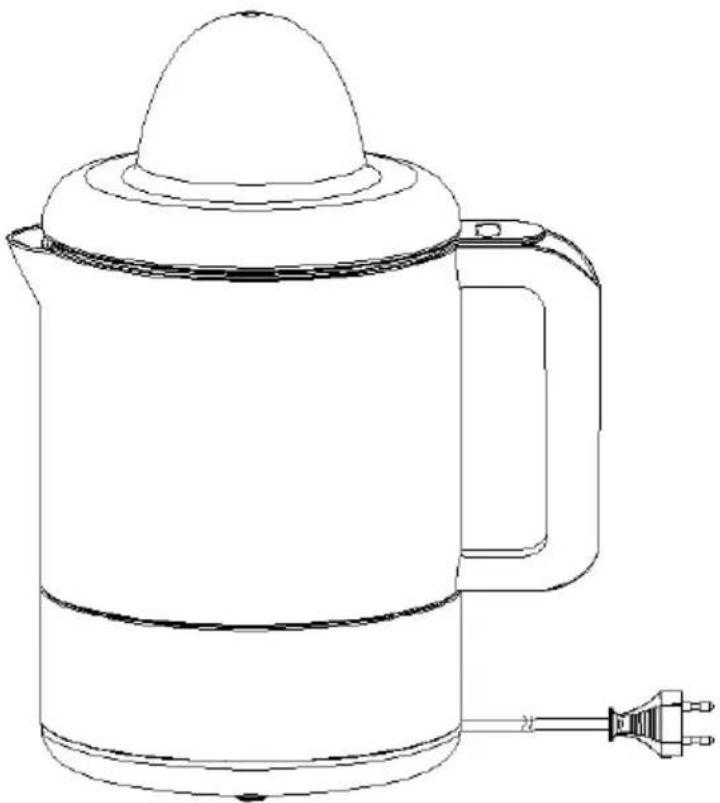

Line drawing of a modern electric kettle with a dome-shaped lid and power outlet (no text or symbols)

Read this manual thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

Before using the electrical appliance the following basic precautions should always be followed:

1. Read all instructions before use.
2. Make sure the voltage power corresponds to the one shown on the appliance nameplate.
3. To protect against risk of electrical shock do not put the motor unit in water or other liquid.

4. Unplug the appliance from the outlet when it is not in use, before putting on or taking off parts and before cleaning.

5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Take the appliance to the nearest authorized service facility for any check, repairmen or electrical or mechanical adjustment.

6. Use of accessories which are not recommended or sold by the manufacturer may cause fire, electric shock or injury.

7. Place the appliance on the flat surface. Do not place it on or near a hot gas or electric burner, or in a heated oven.

8. Do not let supply cord hang over the edge of a table or counter.

9. Close supervision is necessary when the appliance is used by or near children.

10. Do not use the appliance for other than intended use.

11. The appliance can only be used to squeeze the citrus fruit, never use it for juicing other kind fruits.

12. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
13. Children should be supervised to ensure that they do not play with the appliance.
14. Do not use outdoors.
15. Save these instructions.

FOR HOUSEHOLE USE ONLY

KNOW YOUR CITRUS JUICER

USING YOUR JUICER

Before first use, clean the top lid, reamer, filter and cup thoroughly with warm water.

1. Place the cup on the base, then assemble the sieve into the spindle cap and afterwards assemble the reamer into the spindle cap. Please assemble in sequence.

2. Halve the fruit, put the fruit on the reamer and press it lightly and the motor starts running. The extracted juice will flow into the cup through the sieve, rough flesh and pith will remain on the sieve. The motor may rotate in different direction.

Caution: Never exert excessive force when pressing the fruit as it may result in blocking and damaging the motor.

1. When squeezing is finished, release the hand from the reamer and the motor stops running. The appliance is in the idle state. You may restart it again any time by pressing the reamer down.

2. After extracting, put the reamer away before poring juice.

Caution: The appliance shall be on for 15 seconds and off for 15 seconds and after 10 consecutive cycles, the appliance must be cooled for 30 minutes.

Note: the max capacity of the cup is 1.0 L. Make sure you do not overfill the cup.

1. When operating is completed or do not use the appliance, unplug the appliance.
2. If you leave juice in the juice bowl, make sure the top lid is in place. To keep it clean and sanitized, do not leave the juice in the bowl for long time.

Caution: When juicer is not use, never hold the two pins of plug while turning the reamer by hand as this may result in electric shock.

Cleaning and Maintenance

1. Unplug the appliance and wait for its complete cooling before you start cleaning it.
2. The sieve, reamer and bowl can be cleaned in hot, soapy water. Rinse under running water and wipe dry.

Caution: Never use any metal polish to clean the appliance and do not put it into a dishwasher.

1. Wipe the rotating axis with a soft, damp cloth and never immerse the power base in water or other liquid.

2. Assemble all parts together.

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

SPREMIAGRUMI

MANUALE DELL'UTENTE CES - 3001

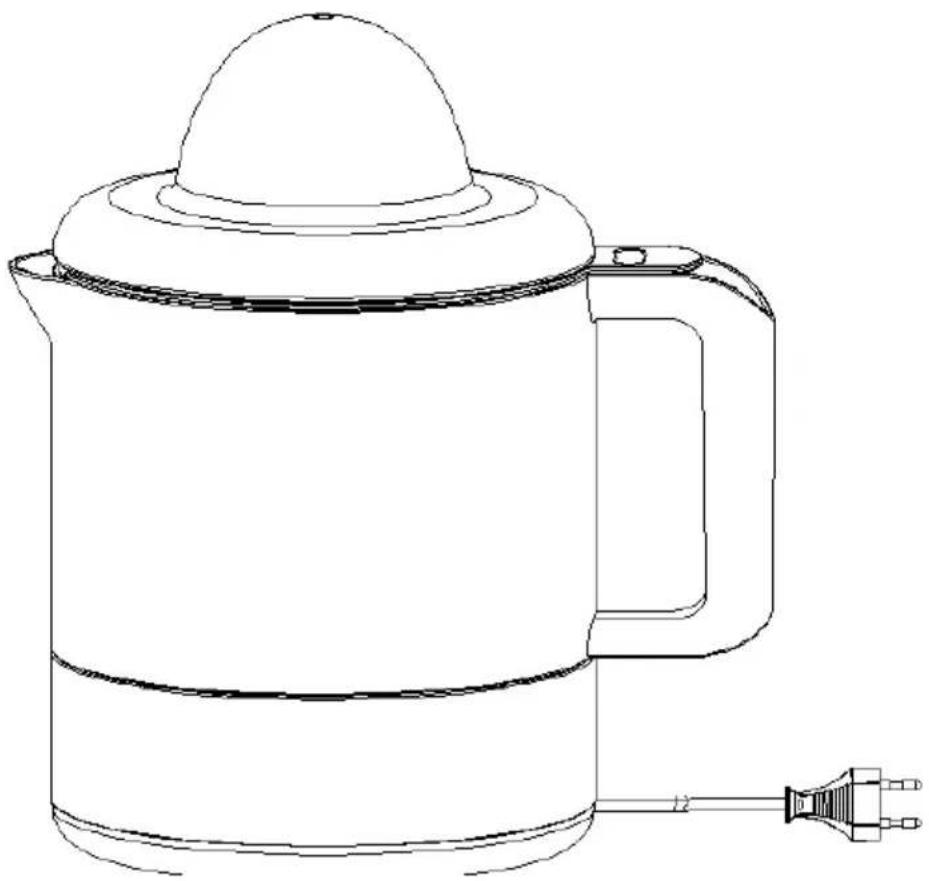

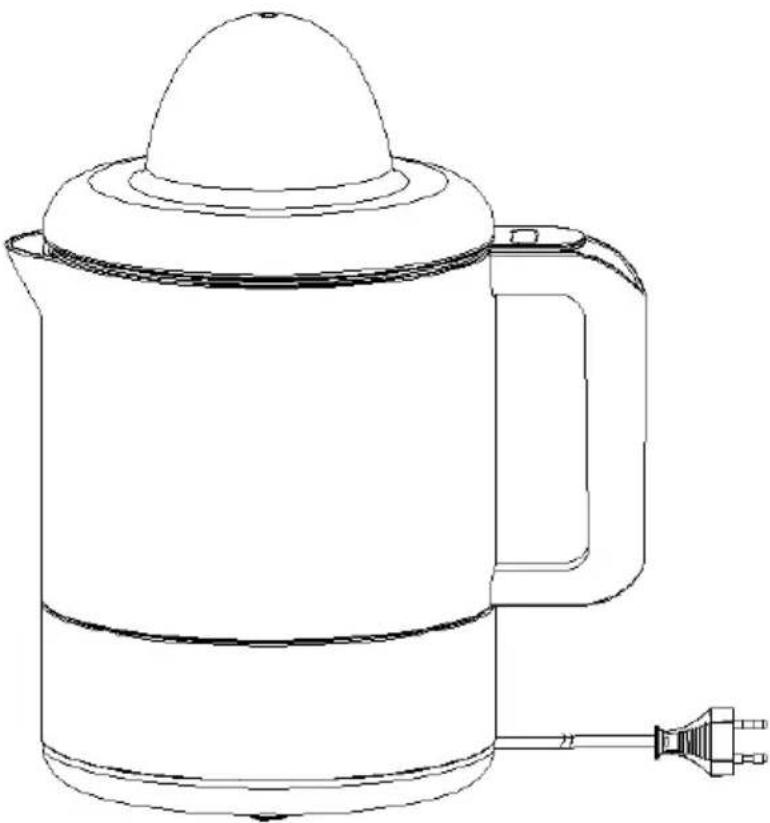

Line drawing of a modern electric kettle with a dome-shaped lid and power outlet (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

ZITRUSPRESSE

BEDIENUNGSANLEITUNG

CES - 3001

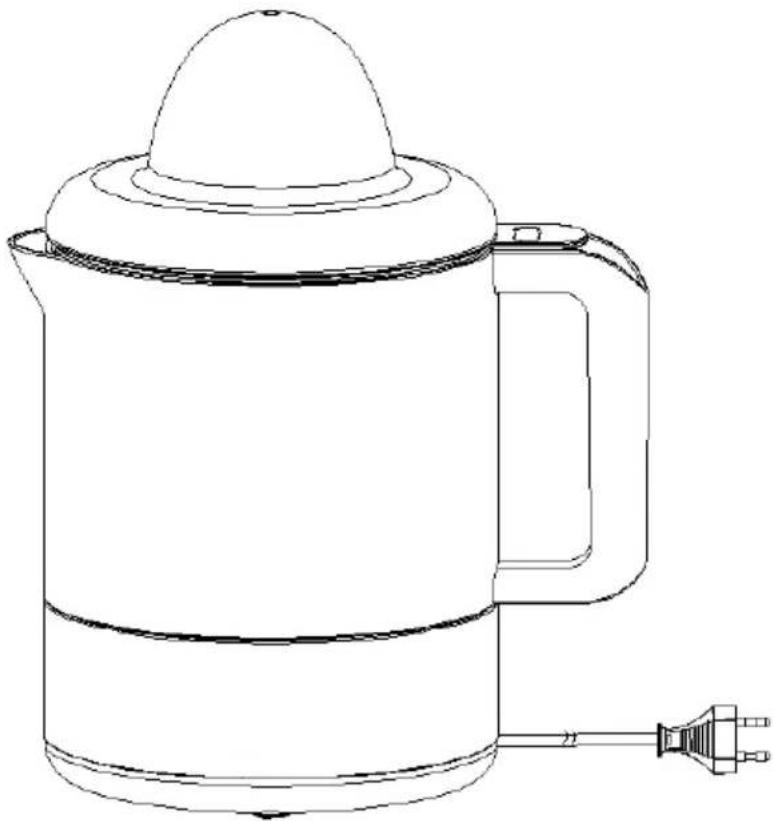

Line drawing of a modern electric kettle with a dome lid and handle, connected to a power outlet (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

RUS

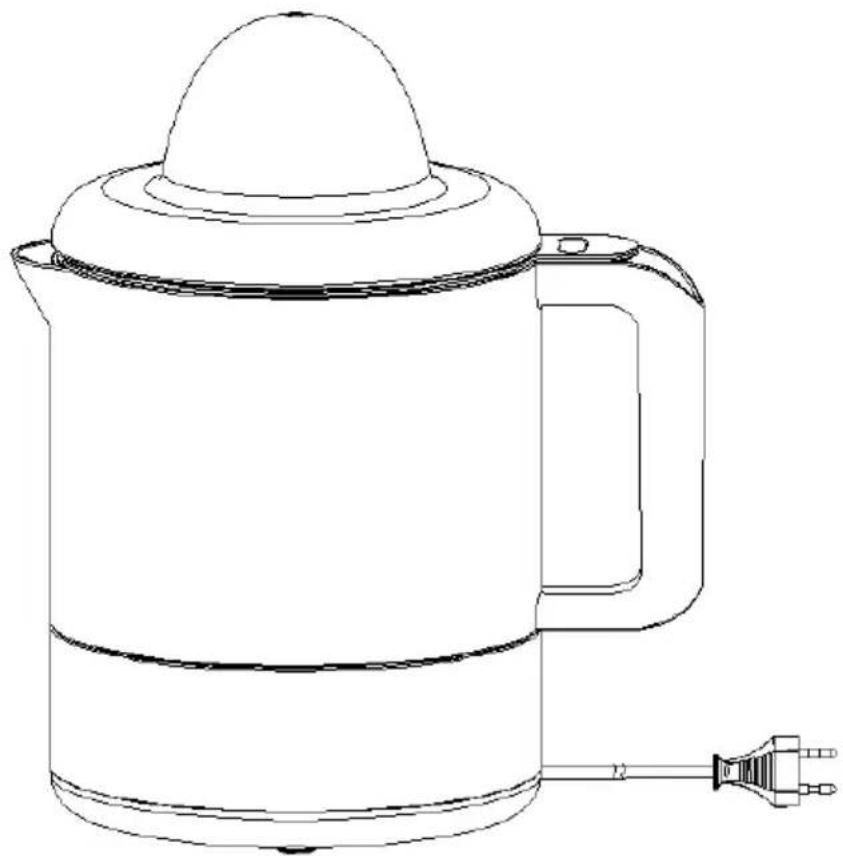

Line drawing of a modern electric kettle with a dome-shaped lid and power outlet (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

SOKOVNIK ZA CITRUSE

KORISNIČKO UPUTSTVO

CES - 3001

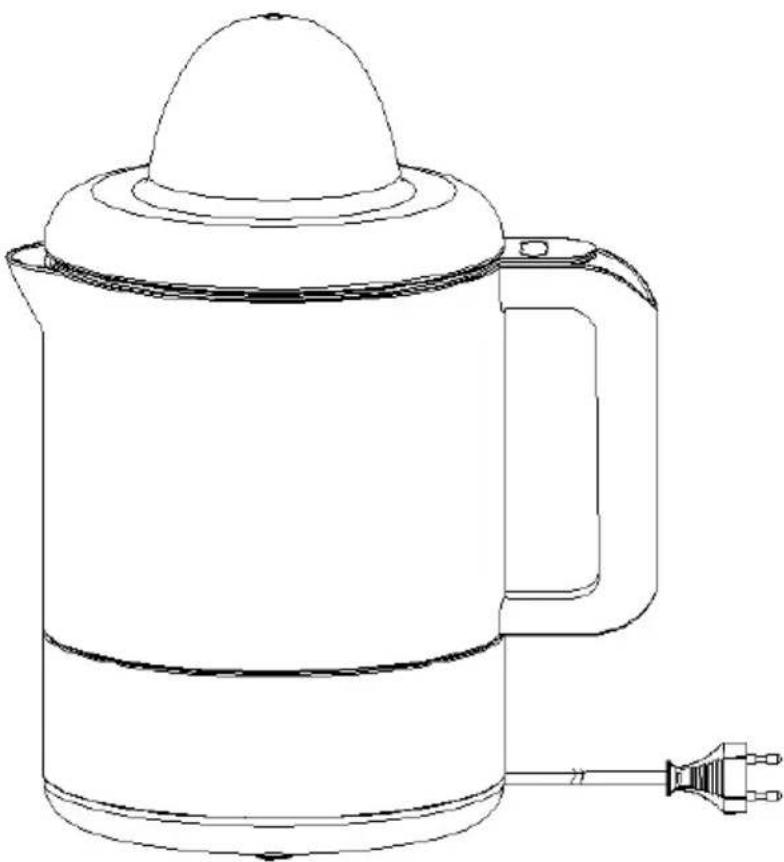

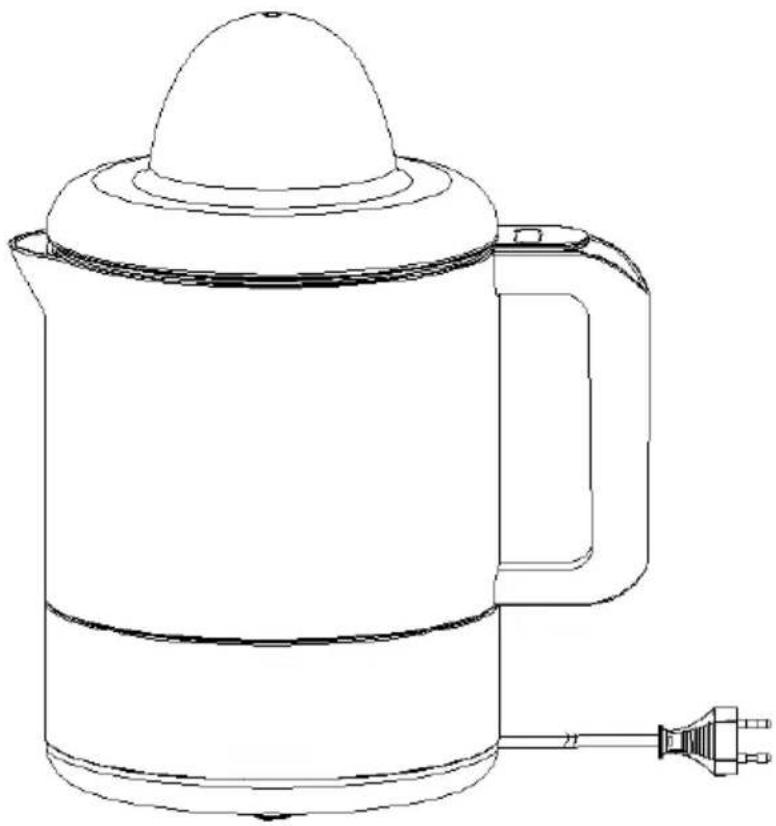

Line drawing of a modern water heater with a dome-shaped lid and handle, connected to an electrical outlet (no text or symbols)

Pažljivo pročitajte ovo uputstvo pre korišćenja i sačuvajte ga

za kasniju upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Line drawing of a modern kettle with a dome-shaped lid and handle, connected to a power outlet (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

ESP REMEDOR DE CITRINOS

MANUAL DE INSTRUÇÕES CES - 3001

Line drawing of a modern electric kettle with a dome-shaped lid and power outlet (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

ΑΠΟΧΥΜΩΤΗΣ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

CES - 3001

Line drawing of a modern water heater with a dome-shaped lid and power outlet (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

SOKOVNIK ZA CITRUSE

NAVODILA ZA UPORABO

CES - 3001

Line drawing of a modern electric kettle with a dome lid and power outlet (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Line drawing of a modern electric kettle with a dome-shaped lid and power outlet (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

SOKOVNIK ZA CITRUSE

KORISNIČKO UPUTSTVO

CES - 3001

Line drawing of a modern kitchen grater with a dome-shaped lid and power outlet (no text or symbols)

Pažljivo pročitajte ovo uputstvo prije korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBJEDNOSNA UPUTSTVA

Prije upotrebe ovog električnog uređaja treba uvijek ispuniti osnovne preduslove uključujući sljedeće:

1. Pročitati sva uputstva prije upotrebe
2. Provjeriti da li napon u zidnoj utičnici odgovara naponu uređaja koji se može naći na natpisnoj tablici pri dnu uređaja.
3. Radi zaštite od električnog udara, motornu jedinicu ne stavljajte u vodu ili druge tečnosti.
4. Isključite aparat iz utičnice kada nije u upotrebi, prije nego što stavljate ili skidate dijelove i prije čišćenja.
5. Ne koristite uređaj sa oštećenim kablom za napajanje ili ako je uređaj prestao da radi ili se oštetio na bilo koji način. Vratite uređaj u najbliži ovlašćeni servis na pregled, popravku ili zamjenu.
6. Upotreba dodataka koje ne preporučuje ili ne prodaje proizvođač može izazvati požar, strujni udar i povrede.
7. Postavite aparat na ravnu površinu. Ne stavljajte ga na ili blizu toplog gasa, električnog šporeta, ili u zagrijanu rernu.
8. Pazite da kabl za napajanje tokom upotrebe ne visi sa ivice stola ili radne površine.
9. Neophodan je nadzor ukoliko se uređaj koristi od strane djece ili u njihovoj blizini.
10. Ovaj uređaj ne koristite u svrhe kojima nije namijenjen.
11. Aparat se može koristiti samo za cijeđenje citrusnog voća, nikada ga ne koristiti za sokove drugih vrsta voća.
12. Aparat nije namijenjen za upotrebu od strane osoba (uključujući djecu) sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima, ili nedostatkom iskustva i znanja, osim ukoliko su pod nadzorom osobe odgovorne za njihovu bezbjednost, ili su od iste dobili uputstva o upotrebi aparata.
13. Djeca se ne smiju igrati s uređajem.
14. Nemojte koristiti uređaj na otvorenom,
15. Sačuvajte ovo uputstvo za buduću upotrebu.

SAMO ZA KUĆNU UPOTREBU

UPOZNAJTE SVOJ SOKOVNIK ZA CITRUSE

UPOTREBA SOKOVNIKA

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)
